Lightspeed TOPCAT User manual

Installation Guide
AUDIO INMICROPHONE AUDIO OUT
POWER
MIN
LINK
MAX MIN MAX MIN MAX

IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use the apparatus near
water.
6. Clean only with dry cloth.
7. Do not block any ventilation
openings. Install in accordance
with the manufacturer’s
instructions.
8. Do not install near any heat
sources such as radiators,
heat registers, stoves, or
other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety
purpose of the polarized
or grounding-type plug.
A polarized plug has two
blades with one wider than
the other. A grounding- type
plug has two blades and a
third grounding prong. The
wide blade or the third prong
is provided for your safety. If
the provided plug does not
fit into your outlet, consult an
electrician for replacement of
the obsolete outlet.
10. Protect the power cord
from being walked on or
pinched particularly at plugs,
convenience receptacles, and
the point where they exit from
the apparatus.
11. Only use attachments/
accessories specified by the
manufacturer.
12. Use only with a cart, stand,
tripod, bracket or table
specified by the manufacturer,
or sold with the apparatus.
When a cart is used, use
caution when moving the cart/
apparatus combination to
avoid injury from tip-over.
13. Unplug this apparatus during
lightning storms or when
unused for long periods of
time.
14. Refer all servicing to qualified
service personnel. Servicing is
required when the apparatus
has been damaged in any way,
such as power-supply cord or
plug is damaged, liquid has
been spilled or objects have
fallen into the apparatus, the
apparatus has been exposed
to rain or moisture, does not
operate normally, or has been
dropped.
15. When the mains plug or
appliance coupler is used as
the disconnect device, it shall
remain readily accessible.
16. Please keep the unit in a good
ventilation environment.
17. Warning: To reduce the risk of
fire or electric shock, do not
expose this apparatus to rain
or moisture.
18. Apparatus shall not be
exposed to dripping or
splashing and no objects
filled with liquids, such as
vases, shall be placed on the
apparatus.
19. Warning - battery pack shall
not be exposed to excessive
heat such as sunshine, fire or
the like.

To avoid potential equipment damage and/or serious injury, READ AND
FOLLOW all safety precautions when installing the Topcat. WARNINGS are
included throughout the procedural steps in this guide, and are repeated below
for emphasis.
CAUTION
• USE A LICENSED ELECTRICIAN FOR POWER CONNECTIONS. The
Topcat system uses standard 100 – 240VAC power. Obtain the services of
a licensed electrician when supplying and connecting power to the ceiling
enclosure. BE SURE electrical installation complies with local building
codes. Improperly installing and/or connecting power to the system may
result in EQUIPMENT DAMAGE, serious INJURY and/or DEATH.
• DO NOT INSTALL ALONE. The ceiling enclosure weighs approximately 12
lbs (9 kg), and requires at least two people to install. DO NOT install alone.
• USE SUITABLE LADDERS. use proper ladders or support platforms when
installing the Topcat enclosure. DO NOT stand on chairs, tables, or other
unsuitable surfaces.
• SUPPORT THE CEILING ENCLOSURE PROPERLY. DO NOT allow the
full weight of the ceiling enclosure to rest on the tile grid of the ceiling.
The ceiling enclosure is designed to be suspended at TWO POINTS by
suspension wires (secured to rafters or other suitable mounting points) and
to rest LIGHTLY on the tile grid.
IMPORTANT SAFETY INSTRUCTIONS
CONT’D
The lightning flash with arrowhead symbol
within an equilateral triangle is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure, that may be sufficient magnitude to
constitute a risk of electric shock.
The exclamation point within an equilateral
triangle is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.

TABLE OF CONTENTS
SECTION 1: 2 Important Safety Instructions
Overview 6 System Components and Unpacking
7 Optional Components
SECTION 2: 8 Installation Planning
Installation 9 1. Select Mounting Location
10 2a. Topcat Install for U.S. and Canada
10 2b. Topcat Install (Outside U.S. & Canada)
11 3a. Securing the Topcat for U.S. & Canada
13 3b. Securing the Topcat (Outside the U.S. &
Canada)
16 4a. Installing and Wiring Electrical Power
19 4b. Alternate Power (Optional)
21 5. Location of the Media Connector
22 6. Connecting the Power Supply
23 7. Audio Integration
24 8. Volume Adjustment for the Media
Connector
25 9. Set-up and Operation of the Flexmike
and Topcat
26 10. Charging the Flexmike
27 11. Tips to Obtain Optimum Audio
Performance
SECTION 3: 28 PageFirst Installation
Optional Installation

6
1. Overview 2. Installation 3. Optional
Installation
SYSTEM COMPONENTS AND UNPACKING
The standard configuration of the Topcat®will contain:
Topcat
Media Connector
and Power Supply
SECTION 1:
OVERVIEW
NOTE ON REGISTRATION: The Topcat, Microphone(s) and Media Connector
are pre-registered together at the Lightspeed factory as required for proper
operation. If paired components are separated and swapped during the
installation process, they must be re-registered. Please refer to the registration
instructions in the Troubleshooting section of the User Manual.
Lightspeed recommends that the microphone(s), Media Connector and/or
the accessory box be labeled with the room number of the Topcat that the
components are registered with for proper dispersement.
To assist in this process, Lightspeed has labeled each registered component
with a system number. If components become separated, simply match them
up by this number for proper operation.
AUDIO INMICROPHONE AUDIO OUT
POWER
MIN
LINK
MAX MIN MAX MIN MAX

7
1. Overview 2. Installation 3. Optional
Installation
SYSTEM COMPONENTS AND UNPACKING
CONT’D
Audio Cable Kit
OPTIONAL COMPONENTS
Optional equipment which may be part of your Topcat system:
Sharemike Handheld
Mic & Charger Cable
DC Extension Cable
Flexmike
Volume Control
Microphone
1 2
Wall Charger for
Flexmike

8
1. Overview 2. Installation 3. Optional
Installation
INSTALLATION PLANNING
SECTION 2:
INSTALLATION
Before beginning installation, make sure you have the necessary tools and
materials on hand and that the area underneath the proposed Topcat location is
cleared.
TOOLS & MATERIALS
In addition to the contents of the Topcat system,
you may need the following tools & materials:
• Flat blade screwdriver (small)
• Pliers
• Wire cutters
• Drill (for installations outside of U.S. and
Canada)
• Utility knife
• Safety wire anchors
• Wire ties
NOTE: Topcat is designed for
installation in a 2’ x 2’ or 2’ x 4’
suspended ceiling grid (or 600mm x
600mm international ceiling grids). If
you do not have this type of ceiling,
please contact your local Lightspeed
Classroom Audio Consultant.

9
1. Overview 2. Installation 3. Optional
Installation
The Topcat is shipped ready to mount in a standard suspended ceiling
grid. All hardware needed to secure the Topcat into the ceiling grid is provided.
Additional hardware may be required if building structure tie-points are metal.
A licensed electrician will need to provide necessary materials if Topcat is
permanently connected to the building AC mains.
Topcat will distribute sound throughout a classroom of up to 1200 square
feet (112 sq. meters) with ceiling heights of 9 to 12 feet. The location of the
Topcat is critical to ensure even sound distribution.
1. Identify the center of the listening area of the classroom for optimum location.
See Figure 1.
2. Select a ceiling tile that is free of fixtures (lighting, HVAC, etc.) nearest to the
center point.
3. Remove the selected ceiling tile for Topcat installation.
1. SELECT MOUNTING LOCATION
Fig 1: Identify the Center of the Listening Area

10
1. Overview 2. Installation 3. Optional
Installation
The dimensions of the Topcat are 1’ x 2’ and is designed to fit into any standard
2’ x 2’ or 2’ x 4’ suspended ceiling tile grid.
a. The ceiling tile will need to be cut to accommodate the Topcat.
b. Set the ceiling tile on a flat work surface with the patterned side facing down.
c. Using a straight edge, cut a 1’ x 2’ section from the ceiling tile, leaving a 1’ x 2’
section and a 2’ x 3’ section (see figure 2), or two 1’ x 2’ sections (see figure 4).
d. Locate the 2’ ceiling grid t-bar provided. Locate the attachment slots in
the existing ceiling grid and snap the new t-bar into place to create two
openings to create a 1’ x 2’ and a 2’ x 3’ opening (see figure 3) or
two 1’ x 2’ openings (see figure 5).
2a. TOPCAT INSTALL FOR U.S. & CANADA
Figure 2:
Cut the 2’ x 4’ tile to create a 1’ x 2’
section and a 2’ x 3’ section.
Throw Away Remaining Ceiling Tile
Cut with
straight edge
12”
Figure 3:
Create a 1’ x 2’ opening and a 2’ x 3 opening
New T-Bar
Existing
Tile Grid
Topcat
3/4 T
ile
2’ X 2’ AND 2’ X 4’ CEILING GRID
2b. TOPCAT INSTALL (OUTSIDE U.S. &
CANADA)
The Topcat has spacer brackets mounted on each of the four sides. With these
brackets installed and the ceiling tile is cut in half, the Topcat will fit into a
standard 2’ x 2’ suspended ceiling grid with and additional tile support. With the
brackets removed, it will fit a 300mm x 600mm ceiling grid with an additional tile
support. (see Figure 4 and Figure 5)

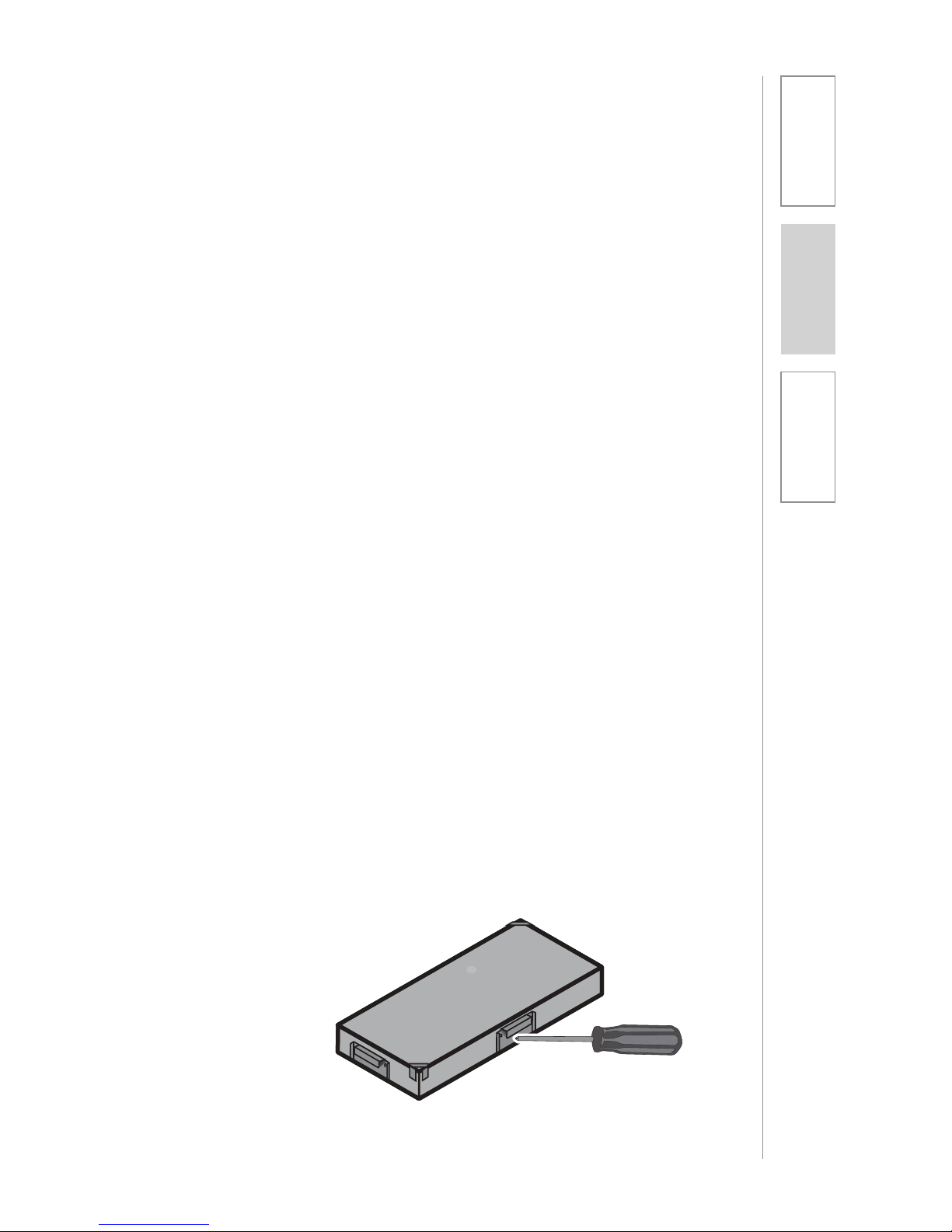

Remove the spacer brackets from each of the four sides of the Topcat. (see
Figure 1 pg 13)
NOTE: If your ceiling grid is any other dimension than mentioned above, contact
your local Lightspeed Representative.
600MM X 600MM CEILING GRID
New T-Bar
Existing
Tile Grid
Topcat
1/2 T
ile
Throw Away Remaining
Ceiling Tile
Cut with
straight
edge
12”
Figure5:
Create two 1’ x 2’ openings
Figure 4:
Cut the 2’ x 2’ tile to create
two 1’ x 2’ sections.

11
1. Overview 2. Installation 3. Optional
Installation
3a. SECURING THE TOPCAT FOR U.S. &
CANADA
To comply with Building Codes, the Topcat MUST be secured with 2 safety wires.

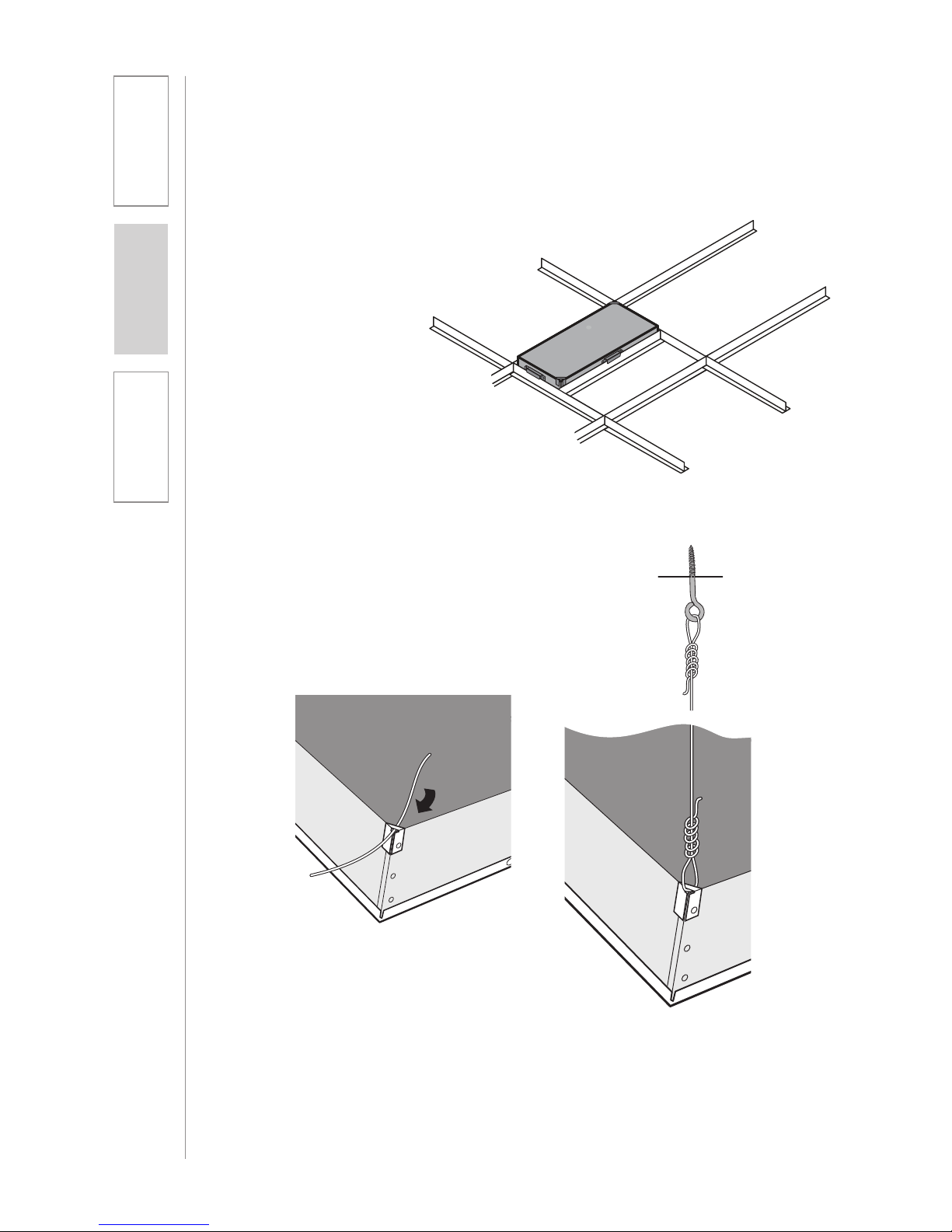

a. Locate the 20ft length of safety wire. The safety wire needs
to be permanently attached to the solid building structure above.
b. Cut the 20ft safety wire in half, leaving two 10ft pieces.
c. Install anchors (or eye screws if necessary) into the building structure.
d. Loop one end of the safety wire through the anchor (or eye screw), then twist it
around itself at least five times (Figure 1). Repeat for second anchor.

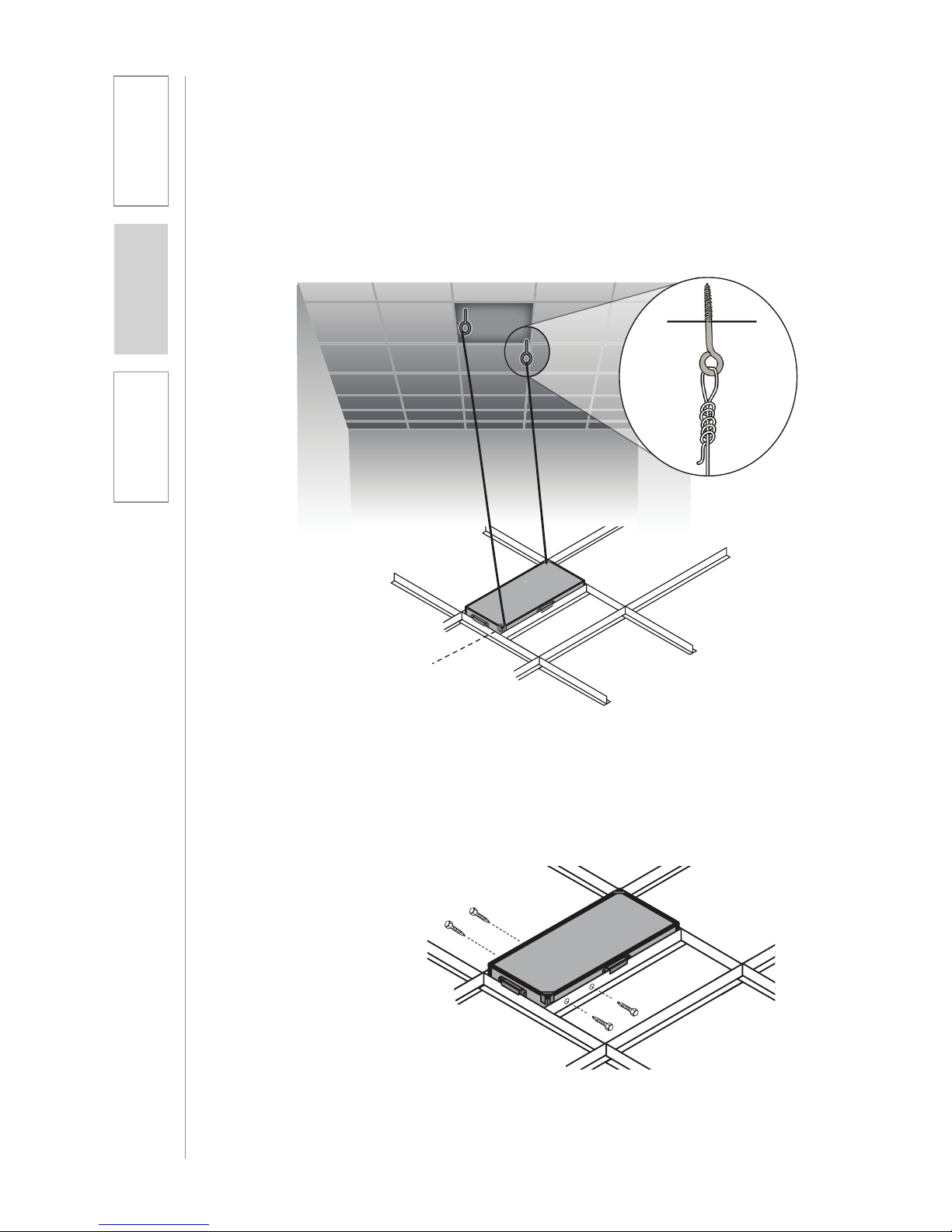

e. Lift the Topcat up and lay it into the desired grid location (Figure 4).
CAUTION: make sure the Topcat is stable on the grid rails with the side brackets
hooked over the rails. If not stable there could be a danger of it falling until
safety wires are attached.
f. Loop the other end of the safety wire through one of the tab on the Topcat
(located in opposite corners). Pull the wire through until it is taut and twist it
around itself at least five times to secure the Topcat. Cut off any excess wire if
needed.
g. Repeat with securing the second safety wire to the other tab. (see figure 5).

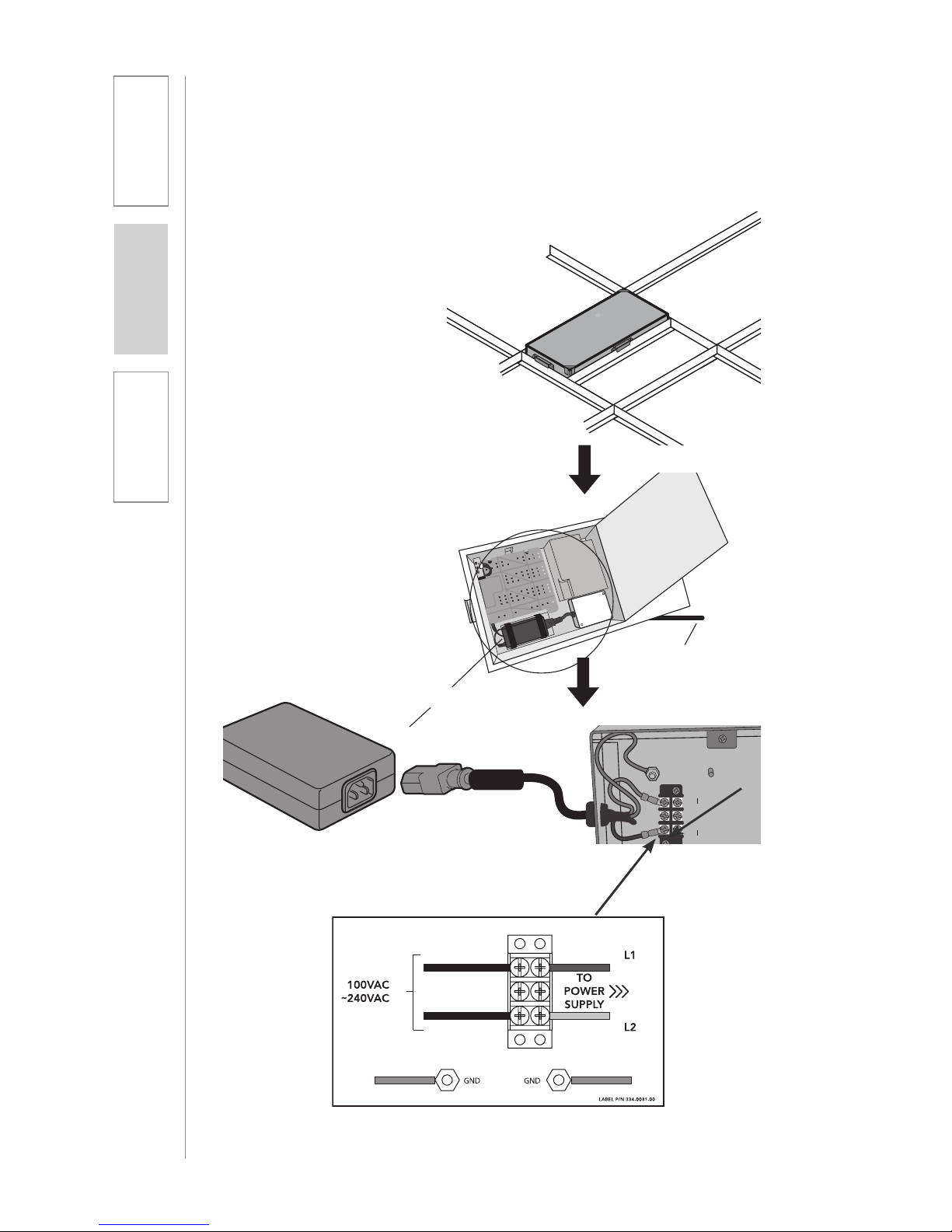

h. When hard wiring AC power to Topcat, electrical codes require for the Topcat
to be permanently affixed to the ceiling rail. Utilizing existing holes on the
vertical section of the ceiling rail (center of the hole to the base of the rail must
be a minimum of 15mm) drill two screw on each 2’ side of the Topcat. Drilling
these screws into the designated areas of the Topcat chassis will not cause harm
to the product. (see figure 3, page 14). NOTE: Do not drill in the area designated
with yellow tape.
Figure 1:
Attaching the safety wire to the building structure
Safety wire tab

12
1. Overview 2. Installation 3. Optional
Installation
3a. SECURING THE TOPCAT FOR U.S. &
CANADA CONT’D
Figure 3:
Loop the Safety
Wire Through Tab
Figure 2:
Set Into Ceiling
anchor or
eye screw

13
1. Overview 2. Installation 3. Optional
Installation
3b. SECURING THE TOPCAT (OUTSIDE U.S.
& CANADA)
To comply with Building Codes, the Topcat MUST be secured with 2 safety wires
and to the ceiling grid with four screws.
a. Remove the spacer brackets from each of the four sides of the Topcat (see
Figure 1 below).
b. Locate the 6m (20ft) length of safety wire. The safety wire needs to be
permanently attached to the solid building structure above.
c. Cut the 6m (20ft) safety wire in half, leaving two 3m (10ft) pieces.
d. Install anchors (or eye screws if necessary) into the building structure.
e. Loop one end of the safety wire through the anchor (or eye screw), then twist
it around itself at least five times (Figure 1). Repeat for second anchor. Repeat
for second eye screw.
f. Lift the Topcat up and lay it into the desired grid location (Figure 4).
CAUTION: make sure the Topcat is stable on the grid rails. If not stable there
could be a danger of it falling until safety wires are attached.
g. Loop the other end of the safety wire through one of the tab on the Topcat
(located in opposite corners). Pull the wire through until it is taut and twist it
around itself at least five times to secure the Topcat. Cut off any excess wire if
needed.
h. Repeat with securing the second safety wire to the other tab. (see figure 5).
i. Locate the four (4) self-drilling sheet metal screws.
j. Utilizing existing holes on the vertical section of the ceiling rail (center of the
hole to the base of the rail must be a minimum of 15mm - see figure 5), drill
two screws on each 2’ side of the Topcat (see figure 4). NOTE: Do not drill in
the area designated with yellow tape.
k. When hard wiring AC power to Topcat, electrical codes require for the Topcat
to be permanently affixed to the ceiling rail. Utilizing existing holes on the
vertical section of the ceiling rail (center of the hole to the base of the rail
must be a minimum of 15mm) drill two screw on each 2’ side of the Topcat.
NOTE: Drilling these screws into the designated areas of the Topcat chassis
will not cause harm to the product. (see figure 3, page 14)
l. Continue to step 4 in the manual, Installing and Wiring Electrical Power.
Figure 1:
Remove Bracket

14
1. Overview 2. Installation 3. Optional
Installation
Figure 2:
Attaching the safety wire to the building structure
Safety wire tab
3b. SECURING THE TOPCAT (OUTSIDE U.S.
& CANADA) CONT’D
Figure 3:
Set Into Ceiling

15
1. Overview 2. Installation 3. Optional
Installation
3b. SECURING THE TOPCAT (OUTSIDE U.S.
& CANADA) CONT’D
Figure 4: Drill Screws into
the Side of
Topcat
Figure 5:
Loop the Safety
Wire Through Tab
.6” min.
(15 mm)
anchor or
eye screw

16
1. Overview 2. Installation 3. Optional
Installation
4a. INSTALLING AND WIRING
ELECTRICAL POWER
There are two methods of providing power for the Topcat.
1. New Construction Installations: connect directly to the building’s AC mains.
2. Retrofit situations: wire to the building mains or order the optional extension
cable (Part #DCPEX-NA in U.S. and Canada; DCPEX-INT outside U.S. and
Canada).
SUPPLY POWER TO THE SELECTED LOCATION
WARNING! USE A LICENSED ELECTRICIAN FOR POWER
CONNECTIONS.
The Topcat System uses standard 100 – 240VAC power. Obtain the services of a
licensed electrician when supplying and connecting power to the Topcat chassis.
Be sure electrical installation complies with local building codes. Improperly
installing and /or connecting power to the system may result in EQUIPMENT
DAMAGE, serious INJURY and/or DEATH.
When routing power to the Topcat, avoid interference with lighting and other
noise possibilities.
CAUTION:
These servicing instructions are for use by qualified service personnel only. To
reduce the risk of electric shock, do not perform any servicing other than that
contained in the operating instructions unless you are qualified to do so.
Wire AC power to the Topcat as follows:
a. Turn off the circuit at the main breaker. Attach the electrical wiring to the
Topcat ceiling module as shown.
b. Find the power conduit hole on the Topcat back can and remove the plastic
plug. Insert the mains electrical wire through the hole.
c. Find and open the front panel door on the Topcat by sliding the door toward
the end of the Topcat to disengage the lock. (See figure 1)
Figure 1

17
1. Overview 2. Installation 3. Optional
Installation
4a. INSTALLING AND WIRING
ELECTRICAL POWER CONT’D
d. Remove the lid to the internal electrical box by loosening the two screws and
sliding the lid out. (See figure 2)
e. Attach the ground wire to the grounding lug provided. Attach the remaining
two wires to the terminal block screws as indicated. (See Figure 3)
f. Replace the cover on the internal electrical box and turn the electrical circuit
back on at the main breaker.
Figure 3Figure 2
Note: When hard wiring AC power to Topcat, electrical codes require
for the Topcat to be permanently affixed to the ceiling rail. Utilizing ex-
isting holes on the vertical section of the ceiling rail (center of the hole
to the base of the rail must be a minimum of 15mm) drill two screw on
each 2’ side of the Topcat. Drilling these screws into the designated
areas of the Topcat chassis will not cause harm to the product. (see
figure 3, page 14).

18
1. Overview 2. Installation 3. Optional
Installation
4a. INSTALLING AND WIRING
ELECTRICAL POWER CONT’D
To building
AC power mains
Power supply
90V
to
260V
Wiring AC Power to the Topcat
Note: When hard wiring AC
power to Topcat, electrical
codes require for the Topcat to
be permanently affixed to the
ceiling rail. Utilizing existing
holes on the vertical section of
the ceiling rail (center of the
hole to the base of the rail must
be a minimum of 15mm) drill
two screw on each 2’ side of the
Topcat. Drilling these screws
into the designated areas of
the Topcat chassis will not
cause harm to the product. (see
figure 3, page 14)

19
1. Overview 2. Installation 3. Optional
Installation
4b. ALTERNATE POWER (OPTIONAL)
When electrical AC power is not available above the ceiling for installation with
the Topcat, there is an alternative method for supplying power to the Topcat.
NOTE: there are two DC power connectors for connecting power to the
Topcat. Both connectors perform the same function. Use the internal DC power
connector located on the amplifier module when AC power is connected directly
to the Topcat. Use the connector access located on the outside of the Topcat
when using the optional DC extension cable.
1. Remove the factory installed 24V 2.5 amp power supply by unstrapping the
velcro holding it in place. Disconnect the AC power plug and the DC output
cable. Then restrap the velcro strips and enclose the AC plug with the velcro
to keep it in place. This AC plug should not touch the flat panel speaker when
the door is closed.
NOTE: The 24V power supply brick must be placed in the room below the
suspended ceiling. Faceplates and electrical boxes should be provided by the
installer as required.
2. Find the 50’ DC extension cable and plug the female connector into the side
port on the Topcat. Use the wire anchor supplied with the cable to secure the
cable to the side of the Topcat chassis.
3. Route the DC extension cable across the ceiling and to the closest standard
AC power outlet. Cable routing should follow all local electrical codes and
installation procedures. (If the DC extension cable is to be run inside the wall,
install a mud ring or electrical box in the wall close to the AC power outlet. If
the DC extension cable is run on the surface of the wall using wire molding,
then mount a surface mount electrical box to house the connection of the DC
extension cable and the power supply.)
4. Plug the DC extension cable end of the 24V supply into the power extender
cable.
5. Plug the AC power cord into the power supply and into the standard AC
power outlet.
NOTE: the 50’ DC extension cable is plenum rated, suitable for air handling
spaces.
Power Supply
50 f. cable
(15 m)
+DC INPUT
24V/2.5A
PAGING
INPUT AUDIO IN REGISTER PROGRAM
-

20
1. Overview 2. Installation 3. Optional
Installation
4. INSTALLING AND WIRING
ELECTRICAL POWER CONT’D
When wiring electrical power is complete, close door securly by applying
pressure outward on the tabs located on the main body of the Topcat.
Then slide the door toward the middle of the unit and lock into place.
