How to conclude on the service information
Total cycles and total work:
Please contact the lifter manufacturer in order to decide when it is appropriate to consider
exchanging the actuator.
Overload:
If overload has occurred it is recommended to consider stronger lifting equipment with higher
working load for the particular patients/institution.
How to exchange an actuator:

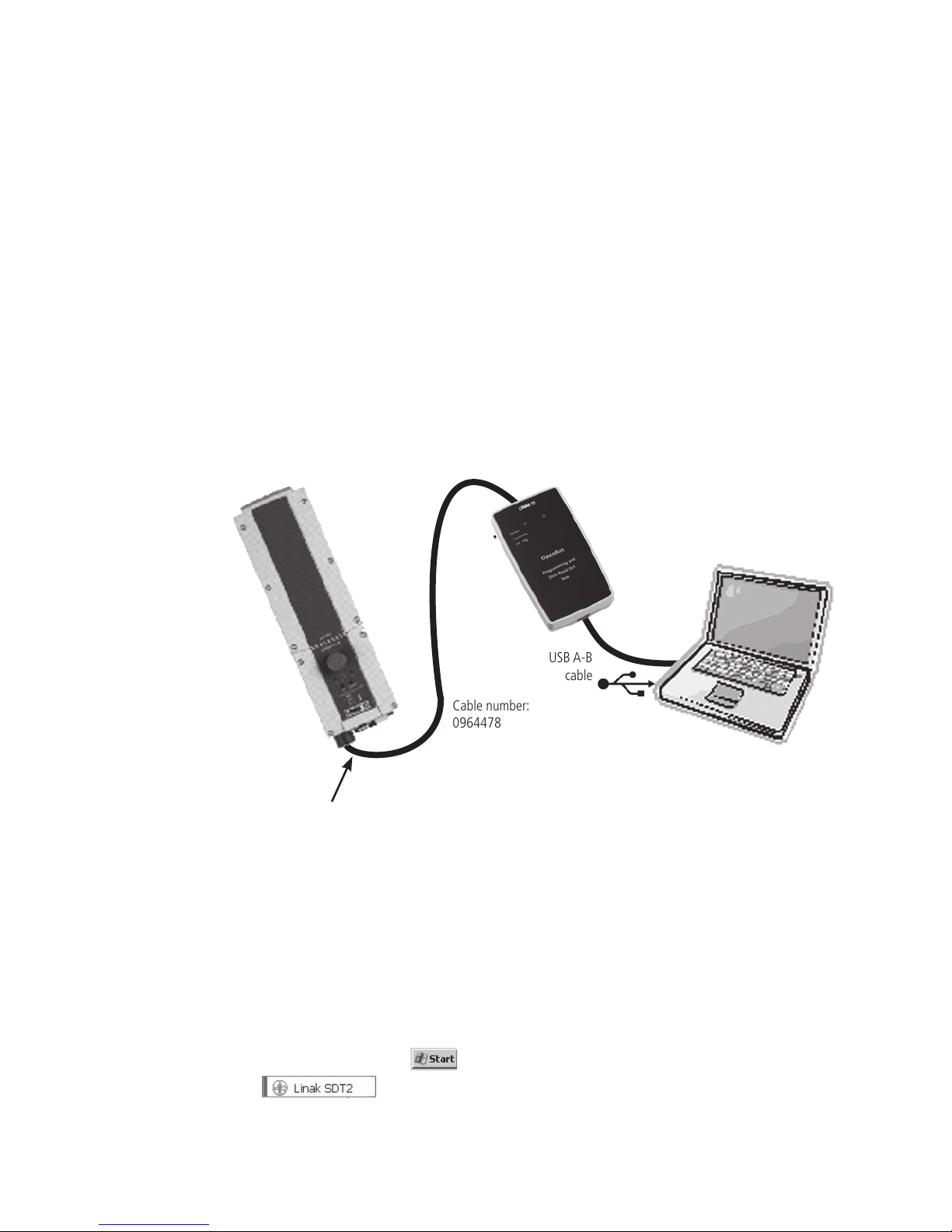

When an actuator needs to be exchanged this has to be registered in the Service Data Tool via a
laptop.
Go to the Statistics menu.
Press the “replace” button to reset and mount a new actuator.
The action is confirmed with a shortly illustrated text at the buttom of the Service Data Tool screen:
“Service command CLEARED”
Activations In / Out:
No. of activations in in- or outwards direction
Endstops In / Out:
No. of times the actuator has reach endstop in in- or outwards direction
Overloads In / Out:
No. of times the actuator was overloaded, in- or outwards direction
Acc. work [A*s] In / Out:
Accumulated amount of work carried out, in- or outwards direction
[Amperage, A; time in seconds]
Acc. duration [s] In / Out:
Accumulated amount of time spent, in- or outwards direction [time in
seconds]
Replace Act. 1 / Act. 2:
When an actuator needs to be exchanged this has to be registered in the
Service Data Tool.
Replace actuator 1 (channel 1) or actuator 2 (channel 2) via button press to
reset the JUMBO Care - then mount a new actuator.
