This Manual includes
following products:
series SPRINTERcar
P0IO020103 - October 2006
operating manual of the chargers
I-207-330-2
Processes
Description
Aplication
Charging process with W method
Serial number
Wide use charger
DC
W
1
Phase EN ISO 9001
CERTCERT
TUVTUV
..

Tomasz Domagalski
Operational Director
and has been designed in conformance with the following norms:
conforms to the following directives:
Declares that the charger:
Declaration of confirmity
Thank You
and congratulations on choosing our Charger.
Now you can get the job done and get it done right.
We know you don't have time to do it
any other way.
From LINCOLN ELECTRIC BESTER SA to You
LINCOLN ELECTRIC BESTER S.A. ul. Jana III Sobieskiego 19A, 58-260 Bielawa
73/23/CEE, 93/68/CEE, 89/366/CEE, 92/31/CEE
series SPRINTERcar s/n
LINCOLN ELECTRIC BESTER S.A.
EN 60335-2-29, EN 61000-6-3

Table of Contents
Features 4
5
5
7
6
12
11
11
8
9
13
14
14
15
Safety
General Information and Warning
Controls of the SPRINTERcar -1225, -1230
Controls of the SPRINTERcar -1225 plus, -2425
Exploitation
Technical Data
Set
10
10
10
Exploitation Conditions
Supply Conditions
Charger Preperation for Exploitation
Batteries Preperation for Charging
Battery Charging Process
Trouble Shooting Guide
Care and Maintenance
Spare Parts List
Notes 18
Thermal Protection - only for SPRINTERcar 2425
Page 3

Features
* Chargers series SPRINTERcar are rectifier devices for charging starting
lead acid batteries, which meet softy and EMC requirments of the Euro-
pen Standards. They are produced according to Quality System ISO 9001.
* Charges series SPRINTERcar are designed for exploitation charging of
opened and "free service" batteries /according IEC and DIN standards/
which are used in cars, delivery vans, tracks and agricultural tractors,
with 12 V or 24 V as well 6 V voltage installation.
* Chargers series SPRINTERcar cannot be used for charging full "free
service" batteries /e.g. gelones ones/, for long-lasting conservation char-
ging without supervising and for buffer operation.
* Charging process with decreasing current method i.e. according to DIN
41774 standard with "W" characteristic. During charging process charg-
ing current decreasses and battery voltage increases automatically.
Decreasing of charging current from 1.0xI to 0.25xI /where: I - rated
charger current/ causes increasing of battery voltage from 2 V/cell to
2.65 V/cell.
* A single-phase 230V, 50-60 Hz supply.
* Power supply circuit is protected by the delay fuse.
* Protected from output cables short-circuits, missconnection and charging
the battery with too high capacity.
* SPRINTERcar 1225 plus and -2425 have charging voltage range switch
and SPRINTERcar 2425 has additionally thermal protecion circuit.
* Chargers series SPRINTERcar are II protection class devices. They have
double and reinforced insulation of electrically 'hot" parts.
n
n
Page 4
n

General Information and Warning
* Do not install or operate this equipment without thoroughly reading
this Manual and the safety precautions contained throughout. Save
this Manual and keep it handy for reference.
* Any adaptations of this equipment are prohibited and they cause not
only loss of the guarantee rights but they may be a cause of deterio-
ration of safety conditions and they may expose users to electric shock.
* Any damage of the charger caused by improper use or through user's
fault causes loss guarantee rights.
* After battery charging, input cable of the charger should be always dis-
connected from supply network.
* User should check if the charger work is not cause interference of other
electronic devices e.g. the pacemaker.
* Producer reserves the right to change specifications without pre-
vious notice.
Set
The set consists of:
- Charger - 1 pc
- Crocodiles - 2 pcs
- Packing - 1 pc
- Manual - 1 pc
- Guarantee Card - 1 pc
- Spare Fuses - 1 cpl
Page 5

Page 6
Safety
* Lead acid batteries towards the end of charge give off hydrogen
gas which is explosive in sufficient concetration. You should en-
sure adequate ventilation!
* Do not bring any open fire into the room with charging baterry - it
may cause explosion!
* If during charging process gas presence is stated, you should not
disconnect the charger from the charging battery and switch off
the charger but you have to air the room!
* When the charger is switched on, removing its case is forbiden
because it may be a cause of deterioration of safety conditions
and it may expose users to electric shock.
* Installation, maintenance and repair should be carried only by qualified
personnel, after the charger switching off.
* Use this charger away from any heat source.
* Do not charge batteries with too high capacity, unformed or damaged.
* Before disconnecting output wires you should switch off the charger by
unpluging mains power supply.
* Battery acid is highly corrosive - avoid contact with it. It may damage
your skin and clothes.

Output Cables Length /m/ 1.7 m
Input Cable Length /m/ 1.9 m
Radio Noise
Level according to PN-EN 55014: 1996
Technical Data
Input Voltage
Output Voltage
/V/
Output Voltage
Sub-Range /V/
Charging Current
Avg. Value /A/
Switch Pos.MAX/MIN
MAX
MIN
Charging Current
Max.Value /A/
Switch Pos.MAX/MIN
MAX
MIN
12.5
10.0
8.5
7.3
25
20
17
14
12.5/11.0
10.0/9.0
8.5/7.7
7.3/6.4
25/22
20/18
17/15
14/12
15.0
13.2
11.2
9.4
30
26
22
19
12.5/15.0
11.0/13.2
9.3/11.2
8.0/9.4
25/30
22/26
18/22
16/19
40-240 40-240/30-200 50-300 40-240/50-300
220 - 230 V, 50/60 Hz
SPRINTERcar
1225
SPRINTERcar
1225 plus
SPRINTERcar
1230
SPRINTERcar
2425
12
-
12
6
12
-
24
12
Battery Capacity
15h /Ah/
Maximum Power
Consumption /W/ 240 240 300 420
Dimensions
/WxHxD/
/mm/
Weight /kg/
Protection Degree
Transformer
Insulation Class
Acceptable Ambient
Temperature Range
/ C/
Acceptable Humidity
at t=20 C
/ %/
255 x 208 x 182
4.5
F
4.5
IP 20
6.3 6.3
-10 do +40
80
Range
12V/6V
Range
24V/12V
Page 7

0
A
_+prostownik do ³adowania akumulatorów
SPRINTERcar 1230 220-230V
T4A
MAX
MIN
CE
76

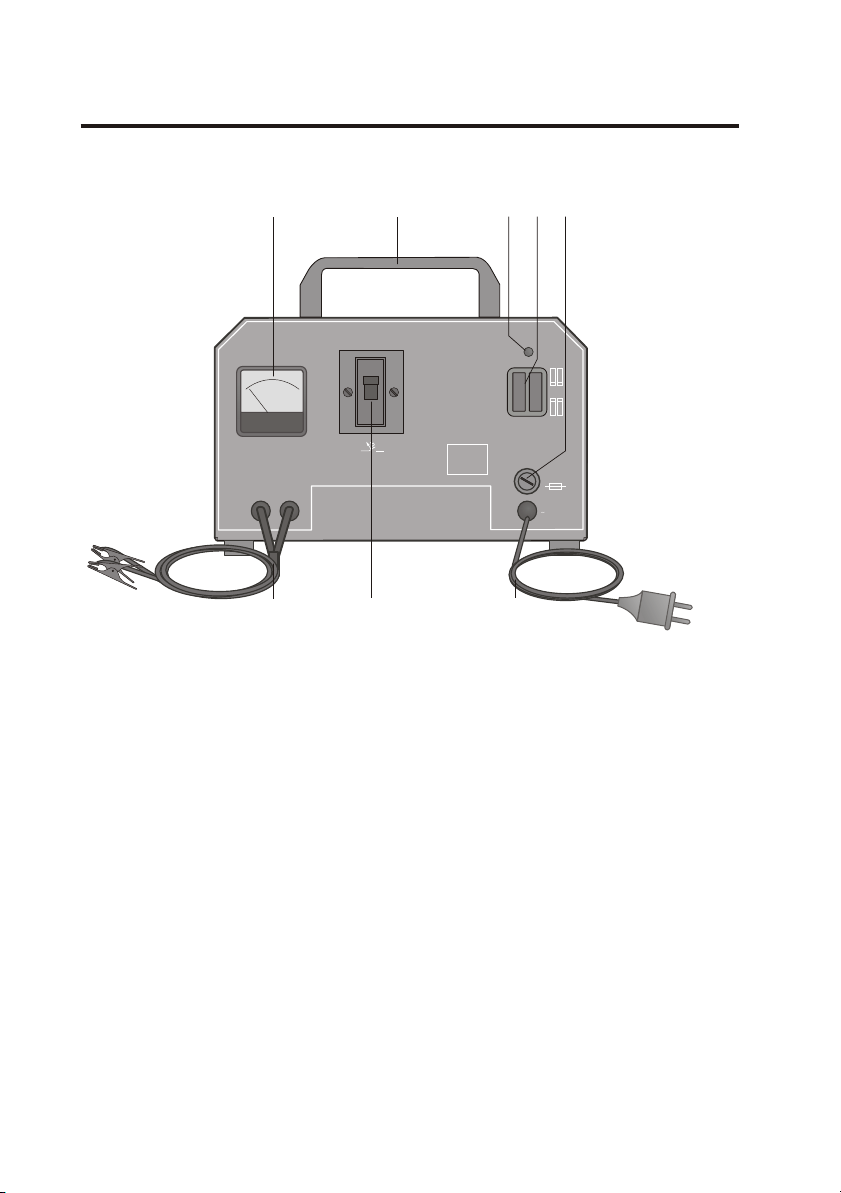

Controls of the SPRINTERcar -1225, -1230
1 3452
2
3
6
1
8
5
7
4
handle
switch of the charging current range and matching to
circuit breaker in the output circuit
output cable for connecting the charging battery
power supply indicator
charging current indicator
power supply circuit fuse
input cable with the plug
the power supply voltage
8
Page 8

0
A
_+prostownik do ³adowania akumulatorów
SPRINTERcar 2425 220-230V
T4A
12V
24V
MAX
MIN
CE
Controls of the SPRINTERcar -1225plus, -2425
1
0
456
987
32
2
3
6
9
0
1
8
5
7
4
handle
charging voltage range switch
switch of the charging current range and matching to
circuit breaker in the output circuit
output cable for connecting the charging battery
power supply indicator
charging current indicator
power supply circuit fuse
thermal protection indicator /there is not in
SPRINTERcar 1225 plus/
input cable with the plug
the power supply voltage
Page 9

Exploitation
Exploitation Conditions
Supply Conditions
* Chargers series SPRINTERcar are designed to be used indoor, in work-
shops or garages.
* The chargers can be exploited in conditions, that:
- give some protection against rain and moisture
- do not restrict free air flow
- exclude accumulation of gases, dust and fumes, which can be cause of
fire or explosion
* You should not cover ventilation slots during operation.
* The charger should be exploited according to proper rules.
* Charges series SPRINTERcar are adapted for a single-phase 220-230 V,
50-60 Hz supply.
* Charges series SPRINTERcar are II class equipment, so they do not require
additional protection.
* Installation and mains socket should have adequately protection by:
- 4 A delay fuse for SPRITERcar 1225, -1225plus and -130 or circuit breaker
type SC191C4
- 5 A delay fuse for SPRINTERcar 2425 or circuit breaker type SC191C6
Page 10

Charger Preparation for Exploitation
Battery Preparation for Charging
* Take of the charger and crocodiles from the packing.
* Connect crocodiles with leads of the output cable by inserting them into atta-
chments of the output cable. Unroll the cable.
* At using chargers SPRINTERcar 1225plus or -2425, you should select proper
charging voltage range by the charging voltage switch - 6V or 12 V for
SPRINTERcar 1225plus or -2425 and 12 V or 24 V for SPRINTERcar 2425.
* Set the circuit breaker in "I" position /switched on/.
* The charging way should be compatibile with Operating Instructions of the
charging batery.
* Before starting charging process, you should;
- check conditions of clamps and other connections
- unscrew ventilation corks of the battery /if present/
- check elektrolyte level in all the cells and fill up if necessery /elektrolyte
level should be 10-15 mm above the upper edge of the battery plates -
it concerns open batteries
0
12V
24V
Page 11

Battery Charging Process
n
* Carry out actions given in item "Charger Preperation for Exploitation" -
see page 11.
* Connect output cable clamps to the battery poles, adequately: "+" clamp
of the red lead to the "+" battery pole and the "-" clamp of the black lead
to the "-" battery pole.
* First connect the clamp with opposite polarization than "ground" of the car.
* Pluging the charger on (220-230 V, 50-60 Hz).
* The green lamp above "MAX-MIN" the switch light on.
* Set the buttons of the "MAX-MIN" switch in such positions, in order that
charging current will have the value calculated from the equation: I=0.25xC
/for example 25 A for the battery with capacity of 100 Ah/. Charging current
value is shown by the charging current indicator .
* During charging process the charging current decreases and indicator
needle moves towards zero - it means, that charging process proceeds
properly and proves about good condition of the battery.
* When the battery was connected properly and indicator does not swing,
the cause can be found in item "Trouble Shooting Guide".
* During battery charging process you should pay attention to elektrolyte
temperature, if it icreases above 45 C, you have to stop charging process.
* Battery can be recognized as charged if:
- during the two last hours of charging process there is intessive battery
"gassing"and the indicator needle is near zero
- specific gravity of elektrolyte reaches the value of 1.28 g/cm
* After full battery charging, first you should remove the mains plug from
the mains socket and then disconnect crocodiles of the output cable
from battery poles /firstly you should disconnect the crocodile with the
same polarization as "ground" of the car/.
* Check elektrolyte level in all the battery cells and if necessary you should
fiil up.
* Check patency of inlet corks and screw them in.
3
A
Page 12
MAX
MIN

Trouble Shooting Guide
After pluging the char-
ger to the supply, green
lamp does not light on
After connecting the
battery and pulging the
charger to the supply,
the circuit breaker
switches off after some
time
The red lamp is lit on -
the thermal protection
circuit is active
Lack of the mains supply
voltage or supply circuit
fuse is blown up
Check mains supply voltage
or replace mains supply fuse
Short circuit in charging
circuit
Very strong dischargered
battery
Inversely connection
charger to the battery
Connected battery has too
high capacity
One or more cells of the
battery are short circuited
Causes as above Wait for several minutes and
then the charger will be ready
to work
Check correctness of the battery
connection
Give back the charger to service
Find out and remove short
circuit
Charging process should be
carried with supervising
Connect the battery properly
Stop charging process and
use another charger with
higher charging current
Stop charging process and
give back battery to checking
Charging circuit is opened
Internal charger fault
Fault Cause Remedy
Page 13
After connecting the
battery and pulging the
charger to the supply,
the circuit breaker
switches off immedia-
tely
After connecting the
battery and pluging the
charger to the supply,
the green lamp does
not light on, the char-
ging indicator does not
swing

Care and Maintenance
Maintenance and repair should be carried only by qualified
personnel, after the charger switching off.
During maintenance you should:
- check condition of insulation of the power supply cable and its plug
- check condition of the charging cables paying particular attention to the
connections cables with clamps
- keep them clean and free from dust and moisture
- check all electrical connections and tighten where necessary
Thermal Protection - only SPRINTERcar 2425
* The charger is equipped with thermal protection circuit which will switch
the device off when the charger transformer reaches too high temperatu-
re and the thermal protection red lamp will light on.
* After transformer cooling the device switches on automaticaly and ther-
mal protection lamp will light off.
.
Page 14

Spare Parts List
0
A
_+prostownik do ³adowania akumulatorów
SPRINTERcar 2425 220-230V
T4A
12V
24V
MAX
MIN
CE
7 835
9
1 0
6
2
7 6 4 3
4
Page 15

Button Switch 1115-270-070R 4W4.1.L 1
KBPC 3502F
0941-116-205R
7 Charging Indicator A-073-30A 1
0917-421-085R
8Lamp LS4/P/1 green 1
1158-660-085R
5 Fuse WTA-T-3,15A L 250V 1
1115-299-180R
1115-270-051R
IndexPos. Description Type Qty
1
3
2
6
Transformer
Rectifier Bridge
Button Switch
Circuit Breaker
B-4247-328-1R
1156-112-099R
W.2.1.3/Z1346
S191 B16
1
1
1
1
KBPC 3502F
0941-116-205R
7 Charging Indicator A-073-30A 1
0917-421-085R
8Lamp LS4/P/1 green 1
1158-660-085R
5 Fuse WTA-T-3,15A L 250V 1
1115-299-180R
1115-270-051R
IndexPos. Description Type Qty
1
3
2
6
Transformer
Rectifier Bridge
Button Switch
Circuit Breaker
B-4247-328-2R
1156-112-099R
W.2.1.3/Z1346
S191 B16
1
1
1
1
Spare Parts List of the SPRINTERcar 1225
Spare Parts List of the SPRINTERcar 1225 plus
Page 16

0917-421-028R
9 Lamp LS4/P/1 red 1
1115-769-124R
10 Thermal Switch SO5.120 05 0200 1
0917-421-085R
8Lamp LS4/P/1 green 1
KBPC 3502F
1115-299-181R
6 Circuit Breaker S191 B20 1
0941-116-205R
7Charging Current Indicator A-073-30A 1
1115-270-070R
4Button Switch W4.1.L 1
1158-660-080R
1115-270-051R
IndexPos. Description Type Qty
1
3
2
5
Transformer
Rectifier Bridge
Button Switch
Fuse
B-4247-074-1R
1156-112-099R
W.2.1.3/Z1346
WTA-T-4A L 250V
1
1
1
1
KBPC 3502F
0941-116-205R
6 Charging Current Indicator A-073-30A 1
0917-421-085R
7Lamp LS4/P/1 green 1
1158-660-085R
4 Fuse WTA-T-3,15A L 250V 1
1115-299-181R
1115-270-051R
IndexPos. Description Type Qty
1
3
2
5
Transformer
Rectifier Bridge
Button Switch
Circuit Breaker
B-4247-074-2R
1156-112-099R
W.2.1.3/Z1346
S191 B20
1
1
1
1
Spare Parts List of the SPRINTERcar 1230
Spare Parts List of the SPRINTERcar 2425
Page 17

Notes
Page 18

BUTiR "PROJECT" Bielawa tel./fax /074/ 8 33 41 68
e-mail: [email protected]
Owner's Record
Please complete and retain with your personal records.
(Date which equipment was delivered to orginal customer)
Model Name Serial/Style Number
Purchase Date
Distributor
Address
Visit our webside
www.bester.com.pl
