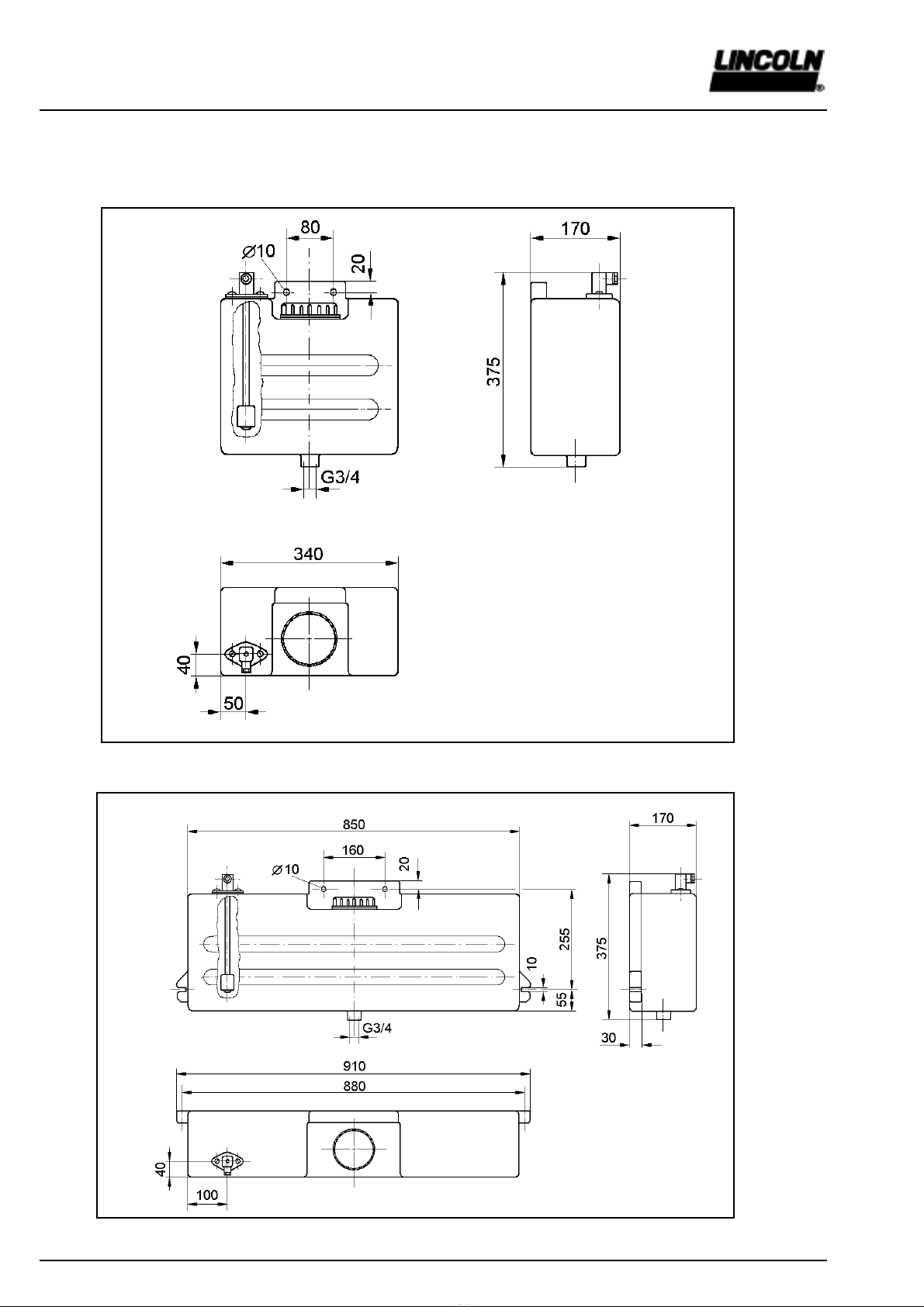

Accessories................................................................... 10
Single parts of magnetic pump PMA - 1 ...................11
Spare parts list .............................................................. 12
Declaration of manufacturer ........................................ 13
peration of the Magnetic Pump
 The magnetic pump should only be used if it is in good
technical condition.
 Defects and faults which may impair its operation and
safety must be remedied immediately.
 The reservoir must be refilled in due time with clean oil.
 f you need more information than is given in this Owner
Manual, please contact our company (see address
below).
 The PMA-1 magnetic pump is exclusively designed for
use in centralized oil lubrication systems.
 The limiting values specified in the Technical Data,
particularly the maximum operating pressure and the
maximum frequency, must on no account be exceeded.
 Any other use is not in accordance with the specified
instructions.
 The manufacturer is not liable for damages resulting
from improper use.
Maintenance and Repairs
 Before any maintenance or repair on the magnetic pump
is done the Owner Manual and the Safety nstructions
must be read.
 The Owner Manual must be available on the site where
the pump is in operation.
 Alteration or modifications of the magnetic pump are only
allowed if approved by the manufacturer.
 For repairs use only original spare parts.
 f other spare parts are used, the manufacturer may be
released from its liability for the resulting consequences.
Appropiate Use
Safety Instructions

2.1A-88001-B02
Subject to modifications
Page 3 of 13
LINCOLN GmbH & Co. KG  Postfach 1263  D-69183 Wa dorf  Te [phone]  Fax [phone]
Owner Manual
Magnetic Pump PMA-1
Fields of Application
4112a97
Fig. 1 - Magnetic pump for chain lubrication via spray nozzles
 The magnetic pump is designed to be used as an oil
supply pump, preferably in chain lubrication systems.
 t can be used in a centralised lubrication system either
- as a splash lubrication device for the accurate lubrication
of chain studs and rollers, if used in connection with
nozzles,
or
- as a drop lubrication or brush lubrication device, if
used with progressive divider valves.
 Due to the high frequency of 3 / s the pump is also
suitable for high-speed chains.
 The pump is driven by an electromagnet.
 The movement of the drive pinion (teeth or chain) is
sensored by the proximity switch (7, fig. 1) which, in this
way, controls the electromagnet for splash lubrication.
Structure
4113b97
Fig. 2 - Sectional drawing of the MA-1 magnetic pump
R - Oil from the reservoir 3 - Tappet
P - Pressure connection 4 - Pressure plate
E - Venting screw 5 - Pump element with piston
1 - Plug (with rectifier for C version) 6 - Proximity switch (option)
2 - Electric solenoid
1 - Oil reservoir 5 - Spray nozzles
2 - Shut-off valve 6 - Control unit
3 - Filter 7 - Proximity switch on
4 - Magnetic pump drive wheel

2.1A-88001-B02
Page 4 of 13
LINCOLN GmbH & Co. KG  Postfach 1263  D-69183 Wa dorf  Te [phone]  Fax [phone]
Owner Manual
Magnetic Pump PMA-1
Subject to modifications
Start-up
Connection of the tube lines and filling of the pump
* Connect the pressure line(s) and the filling line to the
corresponding connections on the pump.
CAUTI N Take care that no dirt or other foreign
particles enter the pump housing.
* Clean the tube lines before connecting them.
* Avoid contamination of the environment.
* Fill the reservoir with clean oil.
* Open the shut-off valve in the oil supply line to the pump.
Venting
* Unscrew the venting screw (E, Fig. 2), until oil emerges.
Then re-tighten the venting screw.
* Let the pump run, until the oil flows out of all outlets
without air bubbles.
* Connect and vent tube lines.
Operation
 The armature of the electromagnet (2, Fig. 2) receives an
electrical pulse (energizing) from the proximity switch (7
Fig. 1; ). t contacts the pressure plate (4, Fig. 2) via a
tappet (3). The pressure plate causes the movement of
the pistons in the pump elements (5)to move.
Erection and Installation
 even, solid and vibration - free installation surface
 protected from dust and dirt
 safe from atmospheric influences
 nstallation position: horizontal, venting screw
upward
 Oil supply: free oil supply from the
reservoir
Max. length of tube line
to the nozzles:
Output 60 mm³: steel tube 6 m
plastic tube 3 m
Output 30 mm³: steel tube 3 m
plastic tube 1,5 m
Specifications of the installation site Electrical connection
Before connecting the device,
disconnect the system from the
power supply.
The installation and connection of electric devices must
be carried out only by qualified personnel!
bserve the relevant rules of technology and the respec-
tive protection legislation (instructions, standards).
Electric connection of the electrical solenoid
 in accordance with the electrical wiring diagram and the
switching diagram.
Electric connection of the proximity switch
 in accordance with the electrical wiring diagram and the
switching diagram.
Operating Instructions
Maintenance and Repair
Before undertaking any repair on the
pump:
*Disconnect the system from the
power supply and make sure that it
cannot be restarted inadvertently
* Close the shut-off valve in the oil
supply line
* Reduce the pump and system
pressure to zero. Danger due to
splashing oil.
Repair work may be carried out only by qualified
personnel using original spare parts.
 Provided that the pump dispenses only clean oil, it does
not need any particular maintenance.
 The piston of each pump element lies directly in the oil
which is dispensed and is therefore lubricated automati-
cally.
 The pistons eject a dosed quantity of oil to the pressure
connection (P). The return stroke of the pump pistons
and that of the armature are spring activated. During the
return stroke the pistons suck fresh oil from the storage
chamber. The pump is ready for the next lubrication
pulse.
 The movement of the magnet and thus the operation of
the pump are monitored via the proximity switch (6, fig.2
optional version).

2.1A-88001-B02
Subject to modifications
Page 5 of 13
LINCOLN GmbH & Co. KG  Postfach 1263  D-69183 Wa dorf  Te [phone]  Fax [phone]
Owner Manual
Magnetic Pump PMA-1
 Fault: Pump does not supply
 Cause:  Remedy:
 Electromagnet defective * Check the supply voltage, replace the defective
electromagnet.
 Fault: Pump does not supply, magnet receives pulses
 Cause:  Remedy:
 No oil in the system * Check the oil supply to the pump. Refill the reservoir.
Check the filter.
 Pump element damaged or defective * Replace pump element
 Suction borehole of the pump element is clogged * Remove pump element, clean it and check for
foreign particles
 Air in the system * Vent the pump and the tube lines (see Start-up)
 All the repairs which are beyond the knowledge of the users personnel must be carried out by L NCOLN experts. For
this, return the defective pump to the repair department of the Walldorf works or call for a specialist who will carry out the
repair on site.
Service address: L NCOLN GmbH
Abt. Kundendienst
Postfach 1263
D-69183 Walldorf
Troubleshooting
NOTE: The following items only describe faults occurring at the pump itself. Faults due to an electric failure or system
malfunction are mentioned in the system description.
 The pump elements are screwed in on the outside and
can, therefore, be replaced without difficulty. When
replacing pump elements, observe the instructions given
above.
 After any replacement or repair the pump must be vented.
 The pump element is subject to natural wear and tear
which depends on the cycle time and pressure setting.
Technical Data
Pump
Number of outlets: 1 to 4 (Pump elements)
Note: If progressive metering devices are installed downstream of the pump
do not use more than two pump elements
Lubricant output per stroke and outlet: 60 mm³ or 30 mm³
Dispensed media: Oils on mineral oil or synthetic basis, purity: 30 µm
Viscosity: 30 to 240 mm²/s (at 40° C)
Operating temperature: - 15° C to 70° C (depending on the operating viscosity)
nstallation position: preferably horizontal
Suction connection: G 1/4"f
Pressure connection: for tube Ø 6 mm
Pressure: max. 50 bar
Magnet: Single-stroke control magnet
Type of protection: P 6K 9K
nsulation class: B
Cyclic duration factor (c. d. f.): 25%
Supply voltage: 24 VDC / 230 VAC
Magnet voltage: 24 VDC / 180 VDC (rectifier in plug)
Current consumption: 4,3 A / 0.55 A

2.1A-88001-B02
Page 6 of 13
LINCOLN GmbH & Co. KG  Postfach 1263  D-69183 Wa dorf  Te [phone]  Fax [phone]
Owner Manual
Magnetic Pump PMA-1
Subject to modifications
Switch times for maximum pulse frequency
f shortes pulse times shall be achieved, the following
switch times have to be observed:
1. for magnet with 24VDC
Voltage on: 0.1 s
Voltage off: 0.2 s
2. for magnet with 230VAC (180VDC)
Voltage on: 0.1 s
Voltage off: 0.3 s in case of 4 pump elements
0.35 s in case of 1 to 3 pump elements
f
max
= 1/T = 3.3 Hz
4433a02
4434a02
Fig. 3: Switch times for maximum pulse frequency at 24VDC
Fig. 4: Switch times for maximum pulse frequency at 230 VAC
f
max
= 1/T = 2.5 Hz in case of 4 pump elements
f
max
= 1/T = 2.2 Hz in case of 1 to 3 pump elements
Note:
The indicated pulse frequencies were achieved at ambient
temperature of 25°C with Öl OPT MOL V SCOGEN KL 23.
Operating viscosity: 650 cSt.
For higher operating viscosities the On and Off switch times
have to be prolonged whereby the relation from On-time to
Off-time must be in accordance with the above diagrams.
Electric Equipment
Proximity switch:
Magnetic plug 24VDC:
with integrally extruded cable and LED status display
3-pole, contact arrangement acc. to D N 43650
Type of protection: P 67
Magnetic plug 230VAC(180 VDC):
line receptacle with bridge rectifier and signal lamp
3-pole, contact arrangement acc. D N 43650-A, PG 11
nput voltage : 150...230 V AC
Output voltage: 135...250 V DC
Current voltage: 2 A
Three-core, NO-contact, PNP, appliance inlet with LED
Operating distance: 2 mm
Operating voltage: 10 ....30 V
Operating current: 200 mA
Operating frequency: 1000 Hz
Voltage drop: 3 V
Type of protection: P 67
4435a02
4436a02
Fig. 5: Connecting diagram/ magnetic plug 24 VDC
Fig. 6: Connecting diagram/ magnetic plug 230 VAC (180 VDC)
Fig. 7: Connecting diagram/ proximity switch (option)
4437a02

2.1A-88001-B02
Subject to modifications
Page 7 of 13
LINCOLN GmbH & Co. KG  Postfach 1263  D-69183 Wa dorf  Te [phone]  Fax [phone]
Owner Manual
Magnetic Pump PMA-1
Float magnetic switch:
(Part no. 444-24283-1):
Switching capacity: max. 60VA
Switching voltage: max. 230V
Switching current: 1 A
The maximum switching capacities refer to pure resistive loads.
n case of deviating loads, contact protective measures are ne-
cessary.
12
3
Spray nozzle, part no. 615-28660-2
Opening pressure: approx. 5 - 8 bar
Connection: for tube ø 6mm
4118a97
Fig. 10 - Spray nozzle 615-28660-2
Fig. 8 - Connecting diagram/ float magnetic switch
Contact Protection Measures
Fig. 9: Contact protection measures
KWU9-3a

2.1A-88001-B02
Page 8 of 13
LINCOLN GmbH & Co. KG  Postfach 1263  D-69183 Wa dorf  Te [phone]  Fax [phone]
Owner Manual
Magnetic Pump PMA-1
Subject to modifications
Identification Code
The different models of the magnetic pump can be ordered in accordance with the following type code:
Ordering examples:
PMA 1 - A 2 - D6 - 60 - 230VAC/25- KN
PMA 1 - S 4 - D6 - 30 - 24VDC/25
Pump, magnetic
Series (version)
A = Outlets, screw type
S = Outlets, push-in type
1-4 = Numbers of outlets
D6 = for tube Ø 6 mm
60 = 60 mm³/outlet and stroke
30 = 30 mm³/outlet and stroke
Supply voltage
24 VDC, 230 VAC
25 = c.d.f. 25% ED
KN = mit with electric monitoring

2.1A-88001-B02
Subject to modifications
Page 9 of 13
LINCOLN GmbH & Co. KG  Postfach 1263  D-69183 Wa dorf  Te [phone]  Fax [phone]
Owner Manual
Magnetic Pump PMA-1
Dimensions
Magnetic pump PMA - 1 (KN)
4114c97

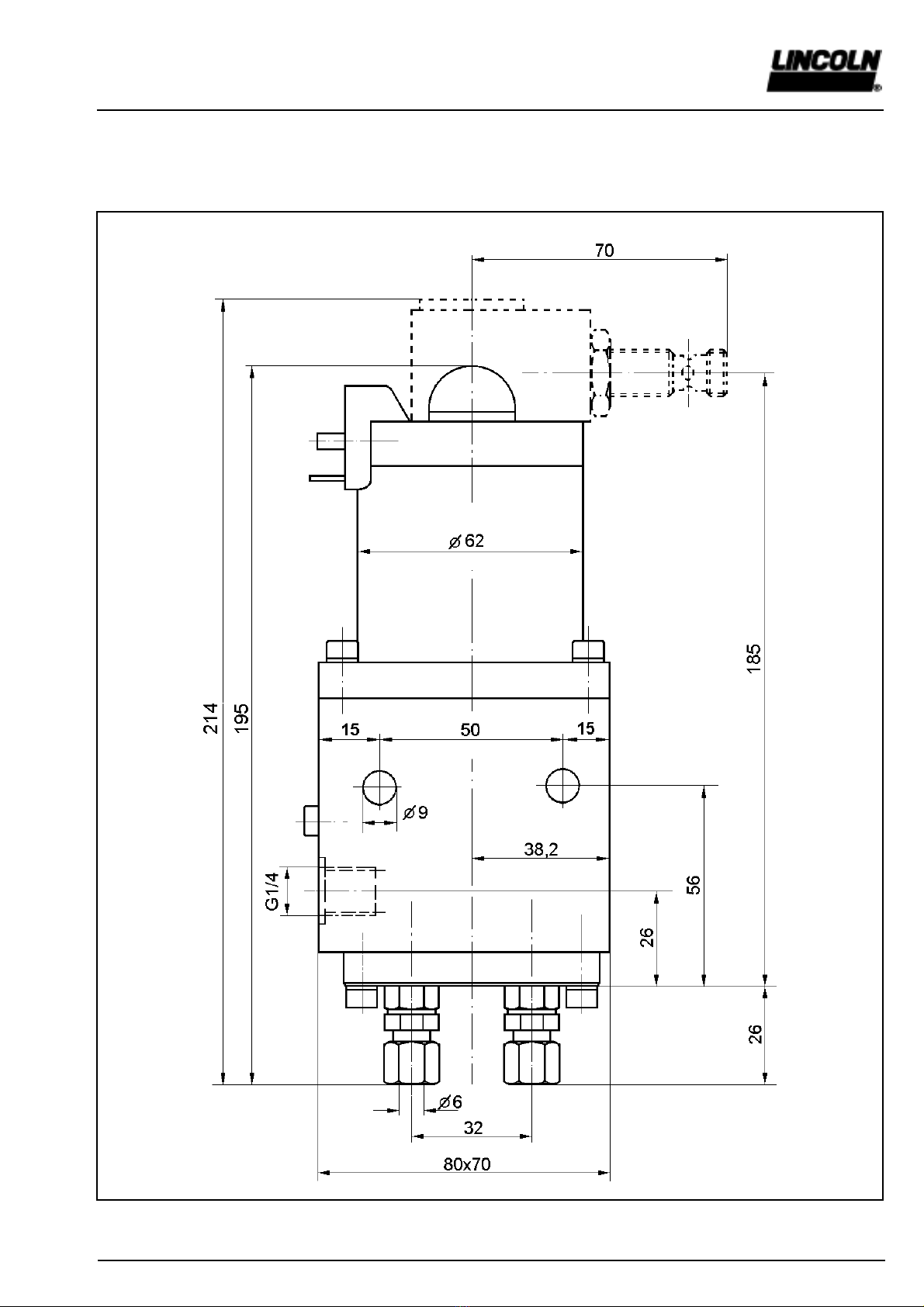

Fig. 5 - Dimensions of pump MA - 1 (KN) without magnetic plug

2.1A-88001-B02
Page 10 of 13
LINCOLN GmbH & Co. KG  Postfach 1263  D-69183 Wa dorf  Te [phone]  Fax [phone]
Owner Manual
Magnetic Pump PMA-1
Subject to modifications
Accessories
Fig. 6 - Reservoir 13 l, part no. 651-28691-1 with electric low-level control (float magnetic switch)
Fig. 7 - Reservoir 36 l, part no. 651-28685-1 with electric low-level control (float magnetic switch)

2.1A-88001-B02
Subject to modifications
Page 11 of 13
LINCOLN GmbH & Co. KG  Postfach 1263  D-69183 Wa dorf  Te [phone]  Fax [phone]
Owner Manual
Magnetic Pump PMA-1
Components of the Magnetic Pump PMA 1
4117b97
Fig. 8 - Sectional drawing with spare parts

2.1A-88001-B02
Page 12 of 13
LINCOLN GmbH & Co. KG  Postfach 1263  D-69183 Wa dorf  Te [phone]  Fax [phone]
Owner Manual
Magnetic Pump PMA-1
Subject to modifications
Spare Parts List
Item Designation Qty. Part N°.
1,2 Plug (230VAC) 1 236-13828-8
Bridge rectifier (only at 230 VAC) 1 236-13884-4
Plug (24 VDC) 1 236-13869-1
3 Solenoid 25 % ED, 180 VDC 1 451-70191-1
Solenoid 25 % ED, 24 VDC 1 235-13171-2
Solenoid 25 % ED, 180 VDC, type KN 1 451-24405-1
Solenoid 25 % ED, 24 VDC, type KN 1 451-24408-1
4 Hexagon socket head screw M 5 x 20 8 201-12016-8
5 Washer Ø 5,3 8 209-13077-3
6 O-Ring 1 219-13798-2
7 Housing 1 451-70038-1
8 Hex. socket head screw M 5 x 8 1 201-12017-6
9 Copper washer Ø9 x Ø5 x 1 1 209-12158-8
10 O-Ring 48 x 2 1 219-14138-5
11 Housing cover 1 451-24404-1
12 Pump element 6 K4,5; 60 mm³ 1-4 651-28651-1
Pump element 3 K4,0; 30 mm³ 1-4 651-29045-1
13 Closure plug 0-3 303-19257-1
14 Compression spring for 24 VDC models 1 218-13787-5
Compression spring for 180 VDC models 1 218-10141-3
15 Pressure piece 1 451-24403-1
16 Locking ring J 12 x 1 1 211-12448-6
17 Feather key 6 x 12 x 1,2 1 209-13047-6
18 U-cup sealing ring 1 220-13735-2
19 Support ring 1 420-24127-1
20 Tappet 1 451-70037-1
21 Proximity switch 1 234-13153-7
22 Connection plug with LED 1 236-13294-9
23 Support 1 451-24402-1
24 Closure plug 1 233-13100-6
25 Hex. socket head screw M 4 x 35 2 201-12594-8
26 Tooth lock washer A 4,3 2 210-12162-2

2.1A-88001-B02
Subject to modifications
Page 13 of 13
LINCOLN GmbH & Co. KG  Postfach 1263  D-69183 Wa dorf  Te [phone]  Fax [phone]
Owner Manual
Magnetic Pump PMA-1
Declaration of conformity as defined by machinery
directive 98/37/EG, Annex II B
This is to declare that the supplied model of the
Magnetic Pump Model PMA ...
is intended to be incorporated into machinery covered by this
directive and must not be put into service until the machinery
into which it is to be incorporated has been declared in con-
formity with the provisions of the directive in force.
Applied harmonized standards in particular:
EN 292-1 Safety of machinery, part 1
Basic terminology, methodology
EN 292-2 Safety of machinery, part 2
Technical principles and specifications
EN 809 Pumps and pump units for liquids
Safety requirements
EN 60204-1 Safety of machinery
Electrical equipment of machines
Part 1: General requirments
Walldorf, 11. 6. 2 2 , Dr. Ing. Z. Paluncic
