LineEye SI-65 User manual

Interface Converter
Instruction Manual
3 rd
The CD-ROM attached to a product contains the newest English and Japanese
instruction manuals in a PDF format. Please also refer to them.
LAN RS-422/485
SI-65
SI-65A
SI-65A-L
SI-65FA
SI-65FA-L

1
Notice
Under the copyright laws, it is prohibited to reprint or duplicate any part or the whole of
this instruction manual without priority from LINEEYE CO., LTD. ("LINEEYE")
All company and product names in this manual are trademarks or registered trademarks of
their respective companies.
The contents of this manual and specications of the products are subject to change
without notice.
This manual has been designed and edited with great care to give you all information. If
you have any questions, feel free to direct your inquiries to LINEEYE.
LINEEYE makes no warranty or guarantee, either expressed or implied with respect to its
quality, performance, merchantability, or tness for a particular purpose. LINEEYE shall
not be liable for direct, in-direct, special, incidental, or consequential damages resulting
from any defect in the product. The warranty and remedies set forth above are exclusive
and in lieu of all others.
Thank you for your purchase of SI series. To use it correctly,
you are advised to read and understand this instruction manual
thoroughly. Keep this together with the warranty.
Introduction
Copyright ©2016 LINEEYE CO.,LTD. All rights reserved.

2
LINEEYE has developed and manufactured this product for purpose of using with
electrical devices such as a computer, a personal device, a measurement device,
semiconductor manufacturing equipment, a vending machine, a sequencer, display
equipment and so on. LINEEYE does not manufacture this product under the
purpose of using with equipment which may cause malfunction to do harm to the
human body: control equipment for nuclear, aircraft equipment, life maintenance
equipment, traffic signals, etc. Therefore, LINEEYE makes no guarantee with
the mentioned-above use. If you use this product for the purposes mentioned
above, please contact LINEEYE considering safety like Fail Safe under your
responsibilities.
Do not disassemble or modify the converter and AC adapter.
This may cause overheating, a re, an electric shock, injury or unit malfunction.
Stop using the converter immediately when smoke, smells, or unusual sound emanates
from itself.
Continuous use may cause a burn, re, or electric shock.
Keep the products dry. Keep them away from water.
Failure to do so may cause overheating, an electric shock, or unit malfunction.
Do not insert the metal scrap or the rubbish such as lead wires into the opening.
Doing so may cause overheating, an electric shock, or unit malfunction.
Never touch the converter and AC adapter with wet hands.
Doing so may cause an electric shock.
Remove the dust on the AC adapter periodically to prevent the heat and ignition.
*"Injury" indicates injury, burn, an electric shock, or the like which does not
require hospitalization or the extended hospital visit. "Material damage" indicates
damage related to a house, a building, furniture, apparatus, livestock or a pet.
Danger Level
Be sure to read the following
Safety Information
Should the device be used without following these symbols, there
is a possibility of accidents, such as a death or a serious injury,
occurring.
Should the device be used without following these symbols, there
is a possibility of accidents, such as an injury and material damage,
occurring.

3
Do not install the converter in the unstable or vibrating place.
Doing so may cause unit malfunction or injury.
Do not install the converter in any temperature and humid places, or any places which has
the extreme temperature change.
Doing so may cause unit malfunction.
Do not install the converter in any places exposed to direct sunlight.
Doing so may cause a burn or unit malfunction by overheating.
Be sure not to short-circuit the pins on the connector.
Doing so may cause unit malfunction or injury.
Use the included AC adapter with the converter only.
Failure to do so may cause re or injury by overheating.
Be sure to hold the converter when you disconnect the AC adapter from it.
Failure to do so may cause re or an electric shock by damaging a cord.
Please do not damage the power cable by pulling, stamping, or tearing.
This may result in a injury, an electric shock, re, explosion and or a breakdown due to
overheating.
Do not place the cord of the AC adapter near heating equipment.
Doing so may cause re or an electric shock by melting the cord's cover.
Never use the converter in the place where an inammable gas leaks.
Doing so may cause ignition.
Do not conduct the installation or wiring work when power is applied.
Doing so may cause an electric shock or unit malfunction.
Do not use the damaged cables.
Doing so may cause re by overheating.
Use the included AC adapter or ones specied by LINEEYE.
Failure to do so may cause overheating, re, an electric shock, or injury.
Never touch the converters and cables while thunderbolts are occurring.
Do not connect the power cord to an outlet that has an illegal number of connections.
Doing so may cause re by overheating.

4
■■ Contents ■■
Chapter 1 Before Using The Product... 5
1-1. Unpacking and Product
Composition......... 5
1-2. How to read
this instruction manual ....... 5
1-3. Overview ....................................... 6
1-4. Specications ................................ 6
Chapter 2 SI-65(A/FA) Usage.............. 7
2-1. SI-65(A/FA)
Overview and Features...... 7
2-2. SI-65 Panel Explanation ............... 9
2-3. SI-65A Panel Explanation........... 10
2-4. SI-65FA Panel Explanation..........11
2-5. SI-65(A/FA) Hardware Setup ..... 13
2-6. SI-65(A/FA) Cable Connection .. 15
2-7. SI-65(A) Power Source............... 16
2-8. SI-65FA Power Source................ 17
Chapter 3 Basic Conguration........... 18
3-1. Connect to the LAN network...... 18
3-2. Basic conguration ..................... 18
3-3. Default IP address ....................... 19
3-4. Usage of DeviceInstaller............. 19
3-5. Conrm IP address...................... 20
3-6. Assign IP address ........................ 21
Chapter 4 Conguration Using
Web Manager .... 22
4-1. Web Manager Usage ................... 22
4-2. Communication conditions
of serial port..... 24
4-3. Set up LAN connection mode..... 24
4-4. Other Setting ............................... 25
Chapter 5 Setup Example................... 26
5-1. Server mode usage ..................... 26
5-2. Client Mode Usage ..................... 27
5-3. Using two units of converter....... 28
Chapter 6 COM Port Redirector ........ 30
6-1. About Virtual COM Port ............ 30
6-2. Basic Setting................................ 30
6-3. Install COM Port Redirector....... 30
6-4. COM Port Redirector.................. 31
Chapter 7 Documents......................... 32
7-1. Built in XPort .............................. 32
7-2. Option.......................................... 32
7-3. Ordering information .................. 33
7-4. LAN Connector Specication .... 33
7-5. General-purpose I/O pins............ 34
7-6. Factory setting............................. 34
7-7. How to apply
the factory setting ....... 35
7-8. Installation Method ..................... 37
7-9. Transmission distance
of RS-422/485 ....... 39
Chapter 8 Warranty and
After-Sales Service...... 40
8-1. Troubleshooting .......................... 40
8-2. Warranty and Repair ................... 42
8-3. After-Sales Service...................... 42

5
Chapter 1 Before Using The Product
1-1. Unpacking and Product Composition
Make sure of the following when unpacking the product.
Please let your LINEEYE distributor or LINEEYE know if you nd any damage to
the product caused by transportation, or if there are accessories lacking.
Converter : 1
AC Adapter : 1 *2
Utility CD-ROM : 1 *1 *2
Instruction Manual : 1*2
Warranty : 1
*1 This CD-ROM includes manuals and tools for setup.
Please read the README.txt for further details.
*2 -NS models do not have these items.
1-2. How to read this instruction manual
First, please read instruction about power supply and how to connect the device at the chapter of the model.
Then read chapter 3, chapter 4, and chapter 6 for the details of the conguration and IP address setting. In
this article, “SI-65(A)” means SI65 and SI-65A. “SI-65(A/FA)” means SI-65, SI-65A, and SI-65FA.
Description of I/O pins on the XPort
The description of I/O pins of XPort at conguration differs depending on the version of the WEB
manager. And the version of the WEB manager also differs depending on the version of the XPort.
Please refer to the following information to apprehend the meaning of the description at conguration.
For more information about this matter, please refer to the Chapter 10-1.
Web Manager Ver1.8.0.1 or before : CP0, CP1, CP2
Web Manager Ver1.9.0.1 or later : CP1, CP2, CP3. (Examples in this manual use this
description)
About SI-65A-L and SI-65FA-L
SI-65A and SI-65FA have two models for each: SI-65A / SI-65A-L and SI-65FA / SI-65FA-L (-L models
are wall-hanging model).
SI-65A and SI-65A-L have same function. SI-65FA and SI-65FA-L have same function. When this
manual refers to "SI-65A", it refers to both SI-65A and SI-65A-L while when the manual refers to "SI-
65FA" it refers to both SI-65FA and SI-65FA-L.
Note: SI-65A-L and SI-65FA-L do not support L bracket and DIN rail mounting plate.

6
1-3. Overview
SI-65, SI-65A, and SI-65FA are communication converters which convert asynchronous
communication on RS-422/485 into TCP/IP or UDP/IP communication on Ethernet.
These converters have built-in Lantronix XPort at the LAN interface part and the RS-
422/485 interface supports 4-wire full duplex and 2-wire half duplex. Thus It can be applied
to various systems which requires liability. You can control the device which has a serial
port from a PC on the network by socket communication. By using COM port redirector,
which is included in the CD-ROM, you can use it like com port communication. It is also
possible to extend the serial line without PC by connecting the two devices by LAN.
1-4. Specications
SI-65 SI-65A SI-65A-L SI-65FA SI-65FA-L*5
S
e
r
i
a
l
Interface
RS-422/485
6 poles terminal block, 5.08mm pitch 5 poles terminal block, 5.08mm pitch
Able to set the terminator.
Synchronous Method Asynchronous
Baud Rate (bps) 300/600/1200/2400/4800/9600/19200/38400/57600/115200/230400/
460800 *1/921600 *1
Data Frame Structure Data (7 or 8) + Parity (Even, Odd or None) + Stop (1 or 2)
Flow Control Xon/off, Line Monitoring
LED Display SD,SD/RD, DRIVER ACTIVE
Isolation -
Photo coupler (Signal part)
Isolation transformer (Power source
part)
Surge Protection 15KV ESD
L
A
N
Interface Ethernet IEEE802.3 RJ-45 connector 10BASE-T/100BASE-TX
Protocol ARP,TCP/IP,UDP/IP,ICMP,SNMP,TFTP,Telnet,DHCP,BOOTP,HTTP,AutoIP
LED Display 10BASE-T、100BASE-TX、Activity、Link、Full/Half duplex
Transformer Insulation 1500V
Management Web manager, Telnet connection
Power Supply DC5 ～12V DC5 ～30V AC85 ～264V (50/60Hz)
Power Consumption 3.6W / 4.9VA*2 2.8W / 3.7VA*2 2.7W (at AC240V)
Operating
Temperature,Humidity
-10 ～+50℃*3、
10 ～95%RH
-25 ～+75℃、
10 ～95%RH
-20 ～+60℃、
10 ～95%RH
Storage
Temperature,Humidity
-20 ～+80℃、
10 ～95%RH
-25 ～+85℃、
10 ～95%RH
-25 ～+75℃、
10 ～95%RH
External Dimension
(W x D x H) 65
× 90 × 24mm589 × 90 × 24mm*5 90 × 100 × 22mm 114 × 100 × 22mm*5
Weight 195g 200g 280g
Accessories AC adapter*4, Utility CD-ROM, Instruction manual, Warranty
*1 You need to change the performance setting of the XPort when you use at 460.8kbps or 921.6kbps..
*2 In the case of using the attached AC adapter (AC100V).
*3 When the power supply voltage, which is supplied from the terminal block, is DC10V or higher the
operating temperature is limited up to +40 degree.
*4 Not included in SI-65FA.
*5 Includes attaching portion to a wall.

7
Chapter 2 SI-65(A/FA) Usage
2-1. SI-65(A/FA) Overview and Features
SI-65 is a DC powered model. SI-65A is a DC powered model which is adaptive to cold
district. SI-65FA has a built-in AC power supply and has a insulator between the interfaces
(Ethernet and the RS-422/485). These three models have the same function as to the conversion
function. You can set an IP address to the converter and the converter communicates with the
Ethernet device by TCP/IP or UDP/IP. When it receives data from serial side, it transmits the
data by putting it on the data part of the TCP/IP or UDP/IP packet. When it receives data from
the Ethernet side, it extracts the data part of the TCP/IP or UDP/IP packet and transmits it to the
serial part.
SI-65(A) Block chart
XPort
SD+
SD-
SD/RD+
SD/RD-
GND
LAN
Data OUT
Data IN
CP1
CP2
CP3
Line monitor circuit
Driver control circuit
SW-A1～4
SW-B2
SW-B1
+
-
NC
SW-B3
100Ω
SW-B4
100Ω
+
-
+
-
RS-422/485
SI-65FA Block chart
XPort
SD+
SD-
SD/RD+
SD/RD-
GND
LAN
Data OUT
Data IN
CP1
CP2
CP3
回線監視回路
ドライバ制御回路
SW-A1～4
SW-B2
SW-B1
+
-
NC
SW-B3
100Ω
SW-B4
100Ω
+
-
+
-
RS-422/485
Line monitor circuit
Driver control circuit
Line monitor circuit
Driver control circuit

8
SI-65(A/FA) Line Monitoring Function
RS-485 communications of two-wire half duplex is required to send data after conrming
that any devices have not sent data into the RS-485 line. The line monitoring function
allows to detect that any devices have not sent data into the RS-485 line, and to conduct
the ow control. To use this function, the ow control of built-in XPort is required to set to
CTS/RTS (Hardware).
RS-485 Line Condition Flow Control Condition
The period of time from when to detect a space bit of the data
in the RS-485 line sent by another device, to when not to get
to continuously detect a space bit over internal timer time of
the converter, while the RS-485 driver of the converter is not
active.
Prohibits sending data
from the converter to the
RS-485 circuit.
The period of time when not to detect a space bit in the RS-
485 line which another device continuously sends over
internal timer time of the converter, or when the RS-485
driver of the converter is active.
Permits to send data from
the converter to the RS-
485 circuit.
*This function allows the ow control to operate in a direction of sending only. The
ow control in a direction of receiving does not operate.
2-2. SI-65 Panel Explanation
8.
7.
CONVERTER
SI
65
RS
LAN
422
PWR
SD
RD
DRIVER
ACTIVE
GND
5VIN
DC
-
IN
100 BASE
10
LAN
485
SD
SW‐B
SW‐A
5.
1.3.
4.
6.
9.
2.
No. Name Explanation Note
1 Power Supply LED It lights when the SI-65 is powered.
2 Data Status LED
“SD” lights when a data is transmitted from LAN to RS-
422/485 “SD/RD” lights when a data is transmitted from RS-
422/485 to LAN.
3 Driver Status LED It lights when the driver for RS-485 is active.
4 Dip Switch A To congure line monitoring function and driver control. [ 2-5. ]
5 Dip Switch B To congure communication method, terminal resistance, etc. [ 2-5. ]
6 AC Adapter Jack A socket to connect to an AC adapter. (Non-polar) [ 2-7. ]
7 Ethernet Connector Ethernet IEEE802.3 RJ-45 connector 10Base-T/100Base-TX
auto-detection available. [ 7-5. ]
8RS-422/485
Terminal Block*1
5.08mm pitch 6pole terminal block (Press-to-screw type)
Standard Torque:0.25Nm/M3. [ 2-6. ]
9 Rubber foot Rubber foot to place the unit horizontally. [ 7-6.]
*1 Pin assignment of RS-422/485 terminal block

9
Terminal
No. Name Full Duplex Mode *1 Half Duplex Mode *1
I/O Direction*2 Description I/O Direction*2 Description
1 SD+ Out Transmission Data+ - Cannot use *3
2 SD- Out Transmission Data- - Cannot use *3
3 SD/RD+ In Reception Data + I/O Transmission/Reception
Data +
4 SD/RD- In Reception Data - I/O Transmission/Reception
Data -
5 GND - Signal Grand *4 - Signal Grand *4
6 +5V IN - External Power Input *5 - External Power Input *5
*1 Can switch by the dip switch.
*2 "Out" means a direction to output signals from the converter. "In" means a direction to input
signals to the converter. "I/O" means both directions to input and output.
*3 Do not connect anything when using the half duplex mode.
*4 Connect to GND (SG) of the target device [ 2-6. SI-65(A/FA) Cable Connection ]
*5 About external power supply
[ 2-7. SI-65(A) Power Source ]
2-3. SI-65A Panel Explanation
SI-65A
SI-65A-L (Wall hanging model)
⑦
⑥
②
⑧
⑤
③
①
④
⑨
12
90
65
SI-65A-L
⑦
⑥
②
⑧
⑤
③①
④
⑨

10
No. Name Explanation Note
1 Power Supply LED It lights when the SI-65A is powered.
2 Data Status LED
The LED of “SD” lights when a data is transmitted from LAN
to RS-422/485.The LED of “SD/RD” lights when a data is
transmitted from RS-422/485 to LAN.
3 Driver Status LED It lights when the driver for RS-485 is active.
4 Dip Switch A Switches for conguration of the line monitoring function and
driver control. [ 2-5. ]
5 Dip Switch B Switches for configuration of the communication method,
terminating resistance, etc. [ 2-5. ]
6 AC Adapter Jack A socket to connect to an AC adapter. (Non-polar) [ 2-7. ]
7 Ethernet Connector Ethernet IEEE802.3 RJ-45 connector 10Base-T/100Base-TX
auto-detection available. [ 7-5. ]
8RS-422/485
Terminal Block*1
5.08mm pitch 6pole terminal block (Press-to-screw type)
Standard Torque:0.25Nm/M3. [ 2-6. ]
9 Rubber foot Rubber foot to place the unit horizontally. [ 7-6. ]
*1 Pin assignment of RS-422/485 terminal block
Terminal
No. Name Full Duplex Mode *1 Half Duplex Mode *1
I/O Direction*2 Description I/O Direction*2 Description
1 SD+ Out Transmission Data+ - Cannot use *3
2 SD- Out Transmission Data- - Cannot use *3
3 SD/RD+ In Reception Data + I/O Transmission/Reception
Data +
4 SD/RD- In Reception Data - I/O Transmission/Reception
Data -
5 GND - Signal Grand *4 - Signal Grand *4
6DC-IN
5~30V - External Power Input *5 - External Power Input *5
*1 Can switch by the dip switch.
*2 "Out" means a direction to output signals from the converter. "In" means a direction to input
signals to the converter. "I/O" means both directions to input and output.
*3 Do not connect anything when using the half duplex mode.
*4 Connect to GND (SG) of the target device [ 2-6. SI-65(A/FA) Cable Connection ]
*5 About external power supply
[ 2-7. SI-65(A) Power Source ]

11
2-4. SI-65FA Panel Explanation
SI-65FA standard model (Model number: SI-65FA)
SI-65FA wall-hanging model (Model number: SI-65FA-L)
SI-65FA and SI-65FA-L have same function. About the detail of the shape of SI-65FA-L,
please refer to “Attach on the wall (For SI-65FA-L)” at “7-8. Installation Method”.
22.2 2
100
90
4.
2.
8.
5.
7.
6.
3.
1.
9.
22.2 2
100
90
GND
4.
2.
8.
5.
7.
6.
3.
1.
9.

12
No. Name Explanation Note
1 Power Supply LED It lights in green when the unit is powered.
2 Data Status LED
The LED of “SD” lights when a data is transmitted from LAN to
RS-422/485.The LED of “RD” lights when a data is transmitted
from RS-422/485 to LAN.
3 Driver Status LED It lights when the driver for RS-485 is active.
4 Dip Switch A Switches for line monitoring function and driver control. [ 2-5. ]
5 Dip Switch B Switches for communication method, terminating resistance, etc. [ 2-5. ]

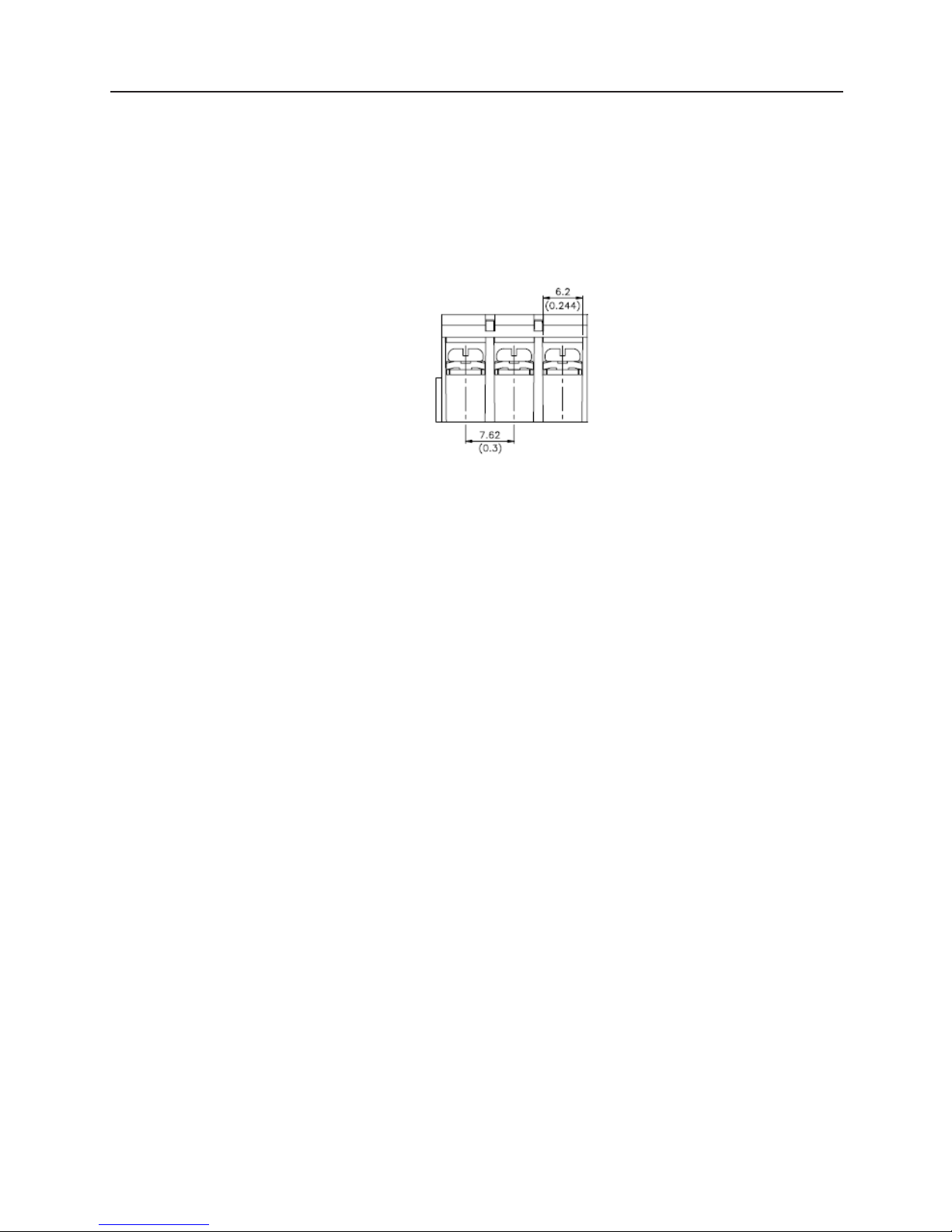

6Power Terminal
Block*1 3 poles, 7.62mm pitch, M3 terminal screws (with cover)
Standard Torque: 0.5Nm [ 2-8. ]
7 Ethernet Connector 10Base-T/100Base-TX, RJ-45 connector [ 7-5. ]
8RS-422/485
Terminal Block*1 5 poles, 5.08mm pitch terminal block (Press-to-screw type)
Standard Torque: 0.25Nm, Screw size: M3 [ 2-6. ]
9 Rubber foot Rubber foot to place the unit horizontally. [ 7-6. ]
*1 Power terminal block Terminal Name Description
AC IN Power terminal (AC85 - 264V, 50/60Hz)
FG Terminal for frame ground
*2 Pin assignment of RS-422/485 terminal block
Terminal
No. Name Full Duplex Mode *1 Half Duplex Mode *1
I/O Direction*2 Description I/O Direction*2 Description
1 SD+ Out Transmission Data+ - Cannot use *3
2 SD- Out Transmission Data- - Cannot use *3
3 SD/RD+ In Reception Data + I/O Transmission/Reception Data +
4 SD/RD- In Reception Data - I/O Transmission/Reception Data -
5 GND - Signal Grand *4 - Signal Grand *4
*1 Can switch by the dip switch B.
*2 "Out" means a direction to output signals from the converter. "In" means a direction to input
signals to the converter. "I/O" means both directions to input and output.
*3 Do not connect anything when using the half duplex mode.
*4 Connect to GND (SG) of the target device [ 2-6. SI-65(A/FA) Cable Connection ]

13
2-5. SI-65(A/FA) Hardware Setup
The two 4-position dip switches on the converter allows you to conduct the following setups:
the line monitoring function, the driver control method, terminator enable/disable, and echo
back enable/disable.
SW-A No.1-3 (Baud Rate Setup)
Following communication speed (baud rate) you wish to use, this setup is to set the
internal timer used for the non-communication monitoring circuit and driver control
circuit. Using this timer conducts to monitoring non-communication condition more
than 16 bits in RS-485 line and to control the RS-485 driver.
* Speed [ 6-2. Communication conditions of serial port]
Speed (bps)
[ ] indicates a representative
example.
SW-A No.1 SW-A No.2 SW-A No.3 Internal Timer *1(ms)
Over300 [300, 600] OFF OFF OFF 57
Over 1200 [1200] ON OFF OFF 14.3
Over 2400 [2400] OFF ON OFF 7.1
Over 4800 [4800] ON ON OFF 3.6
Over 9600 [9600] OFF OFF ON 1.8
Over 19200 [19200] ON OFF ON 0.9
Over 38400 [38400, 57600] OFF ON ON 0.45
Over 115.2k [115.2k to 920k] ON ON ON 0.11
*1 The internal timer is accurate at +10 to -10%.
SW-A No.4 (Driver Control)
Selects two kinds of control methods in the RS-422/485 driver control line of the
converter: active and auto.
SW-A Meaning OFF ON
No.4 RS-422/485 transmission driver control Active Auto
OFF (Active) Setting
To keep the driver active, set the CP2 of the XPort I/O pin "L"(active). ("H" is for non-
active.) The default setting of CP2 is a low level. [ 9-4. General-purpose I/O pins]
ON (Auto) Setting
This setting detects the rst space bit (start bit) in the string which you wish to send from the
converter to the RS-422/485 line, and automatically makes the driver active. The active status
of the driver keeps from the last space bit in the string being sent until the internal timer time
being set. After that, the driver automatically becomes non-active.
<eg.>9600bps Data 31H SW-A No.1-3 OFF/OFF/ON (1.8mS)
The following chart shows the driver control of the converter.
Mark
Data
Space Idle
On
Off
Driver
Controll
1 1 1 1 10 0 00 0 0
start
bit
b0
(LSB)
b1 b2 b3 b4 b5 b6 b7
(MSB)
stop
bit
Driver Active
Inner Timer(1.8ms)
The device is kept active for 1.8ms (internal timer time) after the last space bit.Please do not
let the other device respond within 1.8ms.

14
SW-B Meaning OFF ON
No.1 Select a line mode RS-422 (full duplex) RS-485 (half duplex)
No.2 Echo reception of transmission
data
With echo back Without echo back
No.3 Terminal control between SD+
and SD-
Without terminal
control
With terminal
control(100 ohm)
No.4 Terminal control between SD/
RD+ and SD/RD-.
Without terminal
control
With terminal
control(100 ohm)
SW-B No1 (Line Mode)
Selects the RS-422/485 line specication which is connected to the converter.
OFF (Full Duplex) Setting
This setting makes the converter operate in the full duplex RS-422 mode. Communicated
data is sent from SD+ and SD- terminals, and is received to SD/RD+ and SD/RD-
terminals.
ON (Half Duplex) Setting
This setting makes the converter operate in the half duplex RS-485 mode. Communicated
data is sent and received through SD/RD+ and SD/RD- terminals.
SW-B No.2 (Echo Back Setup)
Selects the echo back specication for the half duplex RS-485 mode.
OFF(Echo Back)
Echo back the data which is sent from the converter to the RS-485 line. The full
duplex RS-422 mode does not echo back data even when this switch is in the OFF
setting.
ON(No Echo Back)
When you communicate in the half duplex RS-485 mode, setting this switch to ON
prohibits the data, which is sent from the converter to the RS-485 line, is echoed back to
the LAN host. Therefore, while the driver is active, the ON setting makes the receiver
non-active.
* Be sure to set this switch to OFF in the full duplex RS-422 mode.
SW-B No.3 (Terminal End Between SD+ and SD-)
Setting this switch to ON inserts the terminator 100 ohm between SD+ and SD- (terminal
block 1, 2) in a direction of parallel.
SW-B No.4 (Terminal End Between SD/RD+ and SD/RD-)
Setting this switch to ON inserts the terminator 100 ohm between SD/RD+ and
SD/RD- (terminal block 3, 4) in a direction of parallel.
*1 Press down the DIP switch to switch on and press up to switch off.

15
2-6. SI-65(A/FA) Cable Connection
LAN
Connect to the LAN connector of SI-65(A/FA) with a LAN cable of category 5 or more.→ [
3-1. Connection to the Network ]
RS-422/485
Connect RS-422/485 terminal block of SI-65(A/FA) and RS-422/485 signal line of the target
device by using a twisted pair cable.
Proper RS-422/485 cable
Size : AWG24-14 / single wire 0.2 - 2.5mm2/ twisted cable 0.12 - 1.5mm2
Wire strip length: 6mm. Please do not make branch wire when using twisted cable.
If using the ferrule terminal, ferrule diameter should be 1.5mm or less.
Following are the recommendation.
Phoenix Contact Inc. "AI0.25-8YE AWG24"
JST Mfg. Co., Ltd." TUB-05 AWG26-22"
Send and Recive + (DataB)
Send and Recive - (DataA)
GND (SG)
SD+
SD-
SD/RD+
SD/RD-
GND
SI-65(A/FA) Target Device
RS-485(half duplex) Setting
SD+
SD-
SD/RD+
SD/RD-
GND
SI-65(A/FA) Target Device
RS-422 (full duplex) Setting
Receive+ (RDB)
Receive- (RDA)
Send+ (SDB)
Send- (SDA)
GND (SG)
* ( ) are the examples of RS-422/485 differential signals.
Usually, differential signal [+] uses [B] and differential signal [-] uses [A].
* Connect the GND(SG) between devices to protect higher voltage runs into the other
device.
The following chart shows a connection example to connect the converter to more than two
devices in the half duplex mode by N to N.
* This multidrop system can connect up to 128 units.
*The rst unit and the “N” unit need a termination resistor.
○SD + ○SD - ○SD/RD + ○SD/RD - ○GND ○SD + ○SD - ○SD/RD + ○SD/RD - ○GND
○SD + ○SD - ○SD/RD + ○SD/RD - ○GND
○SD + ○SD - ○SD/RD + ○SD/RD - ○GND
・・・・・
SI-65(A/FA)
1st Unit
SI-65(A/FA)
2st Unit
SI-65(A/FA)
3st Unit
SI-65(A/FA)
Nst Unit

16
2-7. SI-65(A) Power Source
There are two ways to supply power to SI-65/SI-65A.
Supply by AC
1. Connect the plug of the AC adapter to the DC jack (DC-IN) of SI-65/SI-65A.
2. Plug the AC adapter to an AC outlet to supply power.
Please use appropriate AC adapter which complies with the power specication and safety
standards of the country in which you use SI-65/SI-65A.
Model Power specication Safety standards
VFN-650B AC 100V ± 15%, 50/60 Hz PSE
6A-181WP09 AC 90 - 264 V, 50/60 Hz PSE/UL/CUL/GS/CCC/CE
Note: When using VFN-650B (AC adapter), power consumption of AC is about 4.9VA for SI-65 and
about 3.7VA for SI-65A.
The operating temperature of the VFN-650B is from –10 to +50 degrees Celsius. When using SI-
65A at the temperature of –25 to –10 or +50 to +75 degrees Celsius, please do not use the AC
adapter. Prepare a DC source which is appropriate for the environment.
Supply by terminal block
(In the case of SI-65)
1. Prepare DC source of 5 - 12V (DC 5 - 9V is recommended), 4W or more.
* Current consumption of SI-65 is up to 300mA regardless of supply voltage.
External source of lower voltage is recommended. Because the more voltage is,
the more power consumption and heat tend to be.
2. Connect the 6th pin of the terminal connector with the plus pole of the external
source and connect the 5th pin with the minus pole (GND) of the source.
* Please use a cable of AWG22 - 14. Bare the end of the cable for 6mm, which is
to be connected to the terminal block. Please do not make offset when you use
twisted wire.
(In the case of SI-65A)
1. Prepare DC source of 5 - 30V, 2W or more.
* Current consumption of SI-65A is up to 330mA when DC is 5V, 130mA when
DC is 12V and 60mA when DC is 30V.
2. Connect the 6th pin of the terminal connector with the plus pole of the external
source and connect the 5th pin with the minus pole (GND) of the source.
* Please use a cable of AWG22 - 14. Bare the end of the cable for 6mm, which is
to be connected to the terminal block. Please do not make offset when you use
twisted wire.

17
2-8. SI-65FA Power Source
1. Prepare a power source of AC 85 - 264 V (50/60Hz).
* Current consumption of SI-65FA is up to 40mA when AC is 100V and 24mA
when AC is 240V.
2. Please conrm that there is no power supply on the cable, then open the cover of
terminal block and connect the cables.
3. Connect the external AC power source to the AC IN of the terminal and the
grounding wire to the FG terminal.
* Please use a cable of AWG22 - 14. Width of the screw part of the terminal is
6.2mm. Please do not make offset when you use
twisted wire.
* Please connect to ground to prevent electric shock and to protect from external
surge.

18
Chapter 3 Basic Conguration
3-1. Connect to the LAN network
Connect LAN connector of converter to the HAB/PC using LAN cable.
LAN Cable
HUB
LAN Cable(Cross Cable)
*This converter does not have AutoMDI/MDI-X function to nd the LAN port. To
connect LAN port of PC directly, use the LAN cable with cross connection.
* Try to use a short LAN cable when concerning the noise.
3-2. Basic conguration
Conguration can be set from following procedure.
Set through network using Web browser
Input the IP address in the Web browser of the PC, and set from the Web
manager.
Refer to "Chapter 4".
Use set-up mode
Connect the converter by Telnet connection, and then open the set-up mode.
(For serial connection, input the special command after turning on the power to enter into
the set-up mode.
Refer to[Xport User Guide (XPort_UG.pdf)] in the CD-ROM.
If entering the incorrect IP address, it may affect the whole network. To use it
properly, consult with your network manager. Please write down the important
conguration in case of resetting.
IP Address ..................... [ . . . ]
Subnet Mask.................. [ . . . ]
Default Gateway............ [ . . . ]

19
3-3. Default IP address
As a factory setting, DHCP client mode and AutoIP function automatically set IP address.
* When the IP address is 0.0.0.0 (factory setting), those functions are valid. When IP
address is 0.0.1.0, only DHCP client function is valid.
When having DHCP server in the network
IP address is automatically set from the DHCP server when turning on the power
of device.
When not having DHCP server in the network
One of the IP addresses of "169.254.01" to "169.254.255.1" is automatically set by the
AutoIP function when turning on the power of device.
Refer to "Chapter 3.4"
3-4. Usage of DeviceInstaller
Install the DeviceInstaller of Lantronix for setting the IP address.
Preparation: Log to the PC as administrator. If you had already installed the previous
version of DeviceInstaller, uninstall it.
*If you would like to use the converter with XPort rmware Ver.1.8, used the previous
version of DeviceInstaller. The latest XPort rmware is displayed as "Unknown:x5"
or "Unknown:x9".
1 Double click on "setup_di_x86x64cd_4.4.0.0.exe" in the "/lantronix/DeviceInstaller/
ver4.4.x.x" folder. If you nd the latest version in the CD-ROM, use the latest
version.
2 Install it following the wizard.
* OS for DeviceInstaller(v4.4.x.x): Windows x86: XP/ 2003 Server/ Vista/ 7/ 8/ 2008
Server Windows x64: vista/ 7/ 8/ 2008 Server
* If the PC is connected to the Internet,".NET Framework" is automatically installed.
Refer to the "Release.txt" le in the CD-ROM for information of ".NET Framework"
version.
