www.batcafitness.com LD-7 Owner’s Manual
April 2012
Revision 1
Serial Number Here
Date of Purchase
Owner’s Manual
Seated Bicep Curl/Tricep Extension
LD-7
1207 New Hope Road, Raleigh, NC - 919.255.1233 - www.batcafitness.com

Batca Fitness Systems 2LD-7 Owner's Manual
__________ Page
Instructions 2
Parts Listing 3
Hardware Comparison 4-7
Main Assembly 8-19
Upholstery 17-18
Cable Routing 15
Batca Fitness Systems has built this gym to give you a safe, effective and enjoyable
workout. However, there is a risk assumed by individuals who use this type of equipment. It is
very important that all warnings and instructions are read and followed before beginning any
exercise program.
It is also very important to read and follow the preventative maintenance schedule
described in this manual. If any of the warning labels or stickers are worn, faded, torn,
scratched or missing they should be replaced immediately.
WARNING: There is a risk assumed by individuals who use this type of equipment. To minimize
risk always follow these rules.
1) It is essential that you consult with your physician before beginning any exercise program.
2) Inspect equipment before each use for loose, worn, or frayed parts (including cables, nuts
and bolts). Replace parts at first signs of wear (use only genuine BATCA replacement
parts). Use of equipment that is damaged, worn, frayed or not completely assembled on a
solid, level surface may result in injury.
3) Make sure all adjustment pins are fully engaged before using equipment.
4) Keep all parts of the body and clothing outside the path of any moving parts of the gym. Be
alert to the possibility of injury. Do not be careless.
5) Minors and children should not be allowed to play on or around this gym.
__________ Page
Final Assembly and Troubleshooting 20
Cable Tension and Adjustments 21
Maintenance 22
Warranty 23
Floor Plan Layout 24
Table of Contents
Instructions
Warning
Congratulations on the purchase of your new Batca LD-7. This gym will provide you with a lifetime of
enjoyment to meet your strength training needs. Batca Fitness Systems strives to build the best quality gyms
and to package these gyms in such a way to avoid any damage during shipping.
In order to get started with your assembly you should first familiarize yourself with this manual. It is
recommended that you read through each step thoroughly before you begin. Begin by opening your boxes and
separating all of your parts. Verify that all parts are accounted for and have no damage. When all parts are
accounted for, you may begin your assembly. Some items may have been pre-assembled for your convenience.
Please note that hardware quantities shown reflect total quantities for your gym and may not reflect actual
quantities in each bag. Assemble your gym on a solid level surface. This will ensure the best possible perfor-
mance, function, and safety for the gym and your workout.
Assemble your gym according to the step by step instructions found in this manual. Failure to do so
will void your warranty and may result in personal injury. After assembly, you should check each station to
ensure correct operation. If a problem arises, recheck your assembly with these instructions to verify cor-
rect assembly. If you are unable to correct a problem or have questions with your assembly please contact
your authorized Batca dealer.

www.batcafitness.com 3LD-7 Owner’s Manual
Frame Components Accessories
Upholstery
Hardware
Cables
Tools Required
 9/16” Wrench
 9/16” Ratchet
 Allen Wrench Set
 Tape Measure
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
1 BFP-10893 Bicep Curl/Tricep Extension Frame 1
2 BFP-10892 LD-7 Seat Frame 1
3 BFP-10901 LD-7 Short Cage 1
4 BFP-10894 Base 1
5 BFP-51861 Anti-Deflection Plate 1
6 BFP-10888 Guide Rod Plate 1
7 BFP-51827 Guide Rod 2
8 BFP-10889 Top Weight Plate 1
9 BFM-50632 Weight Stack Plate 14
10 BFM-50529 Rubber Donut 2
11 BFP-10895 Bicep Curl/Tricep Ext. J
Brace/Bearing Housing
1
12 BFP-52360 Anti-Deflection Plate 1
13 BFP-10896 Bent U Support Brace 1
14 BFP-51836 Curved Anit-Deflection Plate 1
15 BFP-10897 Bicep Curl/Tricep Ext Cam 1
16 BFP-10898 Bicep Curl/Tricep Ext. Arm 1
17 BFP-10899 6” Counter Weight 1
18 BFP-10902 Bicep Curl/Tricep Ext. Handle Bar 1
19 BFP-51210 Axle 1
20 BFP-10903 Double Pulley Cover 1
21 BFP-10904 Chrome Chest Adjustment 1
22 BFP-10900 Chrome Seat Adjustment 1
23 BFM-50856 Back Pad Connector 1
24 BFP-51711 Placard Plate 1
25 BFP-51740 Rear Weight Stack Shroud 1
26 BFP-51742 Right Front Weight Stack
Shroud 1
27 BFP-51741 Left Front Weight Stack
Shroud 1
ITEM NO. PART NUMBER DESCRIPTION QTY
.
34 BFP-50174 4 1/2” Pulley 5
35 BFH-50530 5” Pulley 1
36 BFH-50210 Gas Spring 1
37 BFH-50165 1” Snap Ring 2
38 BFP-51885 Red Pivot Point Cap 1
39 BFP-52340 BHSCS 3/8” x 3/4” 4
40 BFH-50254 HCS 3/8” x 3/4” 2
41 BFH-50144 FHSCS 3/8” x 1” 2
42 BFP-51653 SHCS 3/8 x 1 1/4” 4
43 BFP-51697 SHCS 3/8” x 1 1/2” 2
44 BFH-50351 1 3/8” Shoulder Bolt 1
45 BFP-52377 FHSCS 3/8” x 2” 2
46 BFP-51759 SHCS 3/8” x 2” 1
47 BFP-51752 SHCS 3/8” x 2 1/4” 4
48 BFP-51750 SHCS 3/8” x 2 3/4” 3
49 BFP-51747 SHCS 3/8” x 3” 4
50 BFP-51748 SHCS 3/8” x 3 1/4” 6
51 BFP-52346 SHCS 3/8” x 4” 2
52 BFP-51799 SHCS 3/8” x 5” 4
53 BFP-51756 SHCS 3/8” x 5 1/4” 2
54 BFH-52364 SHCS 3/8” x 6” 1
55 BFH-50267 5/16” Nylock 1
56 BFH-50147 3/8” Lock Washer 12
57 BFH-50204 3/8” Curved Washer 12
58 BFH-50146 3/8” Flat Washer 47
59 BFH-50157 3/8” Nylock 24
60 BFH-50227 Cable Strap End 1
61 BFH-50351 1 3/8” Shoulder Bolt 1
62 BFH-50620 BHSCS 3/8” x 1” 3
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
30 BFP-52366 Lower Back Pad 1
31 BFP-52141 Bottom Pad 1
32 BFP-52367 Bicep Curl/Tricep Ext. Arm Pad 2
33 BFP-52369 Bicep Curl/Tricep Ext. Chest Pad 1
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
28 CAB-15011 Weight Stack to Cam Cable 1
ITEM NO. PART NUMBER DESCRIPTION QTY.
29 BFM-51175 Weight Stack Pull Pin 1

Batca Fitness Systems 4LD-7 Owner's Manual

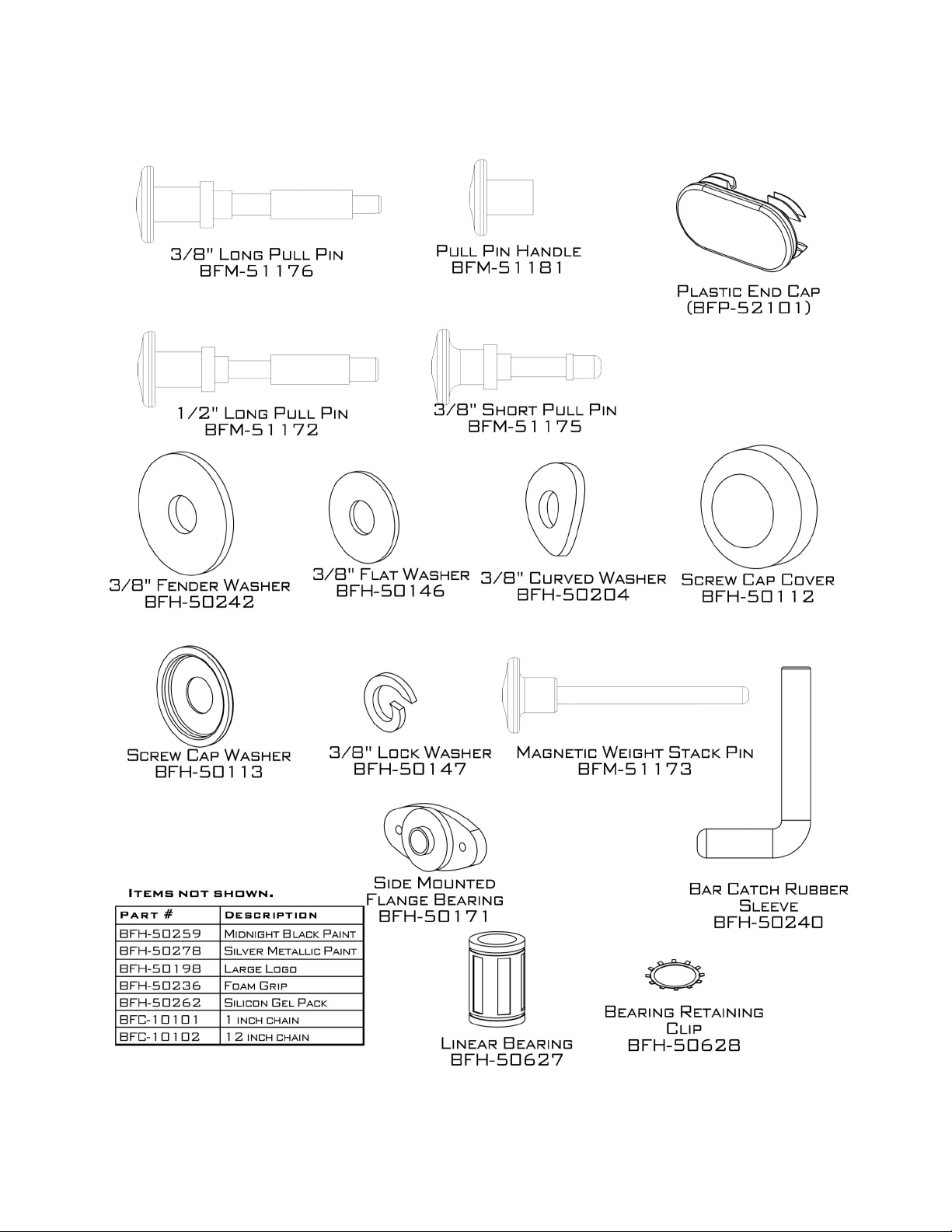

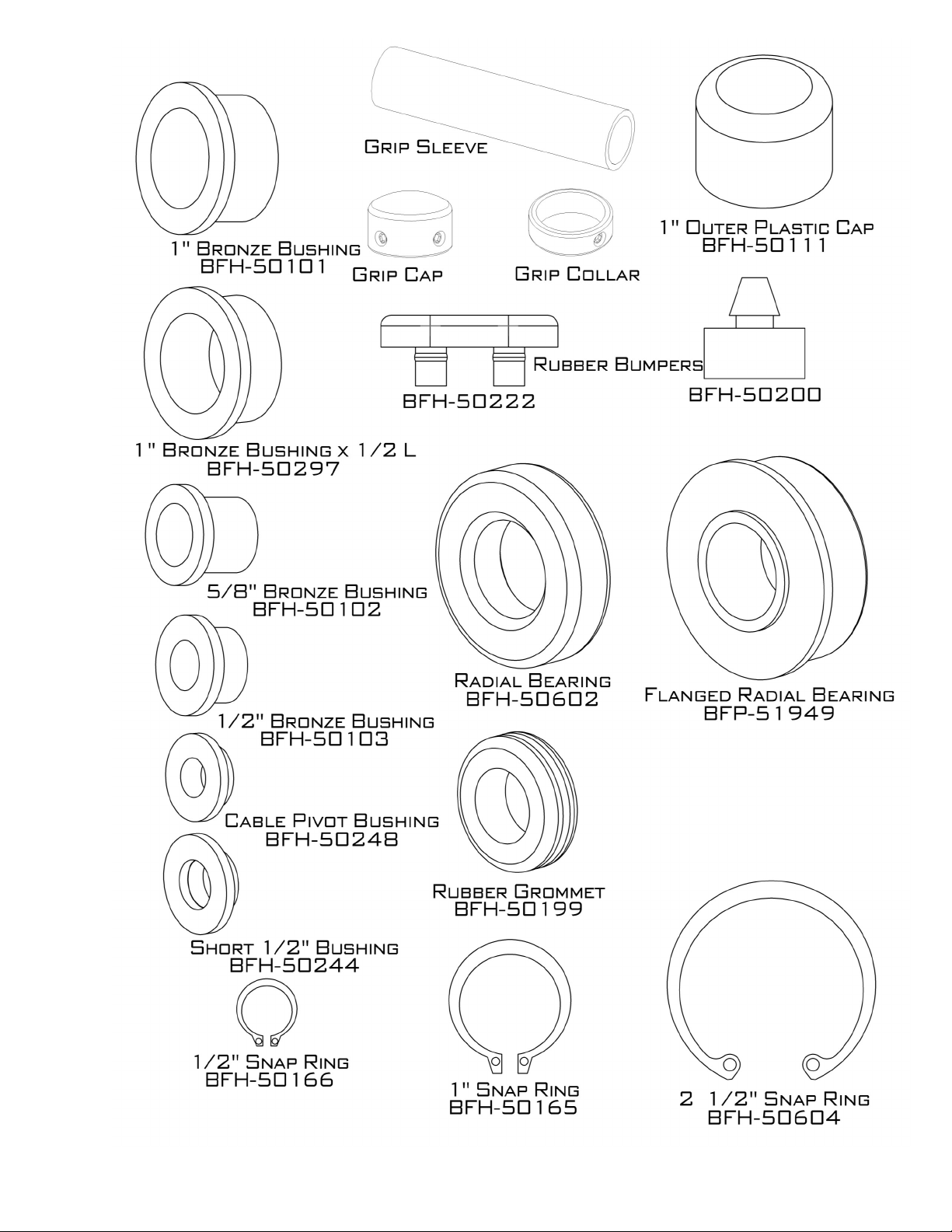

Bolt Length
Note: Bolt length is measured
from the underside of the head
of the bolt.

www.batcafitness.com 5LD-7 Owner’s Manual

Batca Fitness Systems 6LD-7 Owner's Manual

www.batcafitness.com 7LD-7 Owner’s Manual

Batca Fitness Systems 8LD-7 Owner's Manual

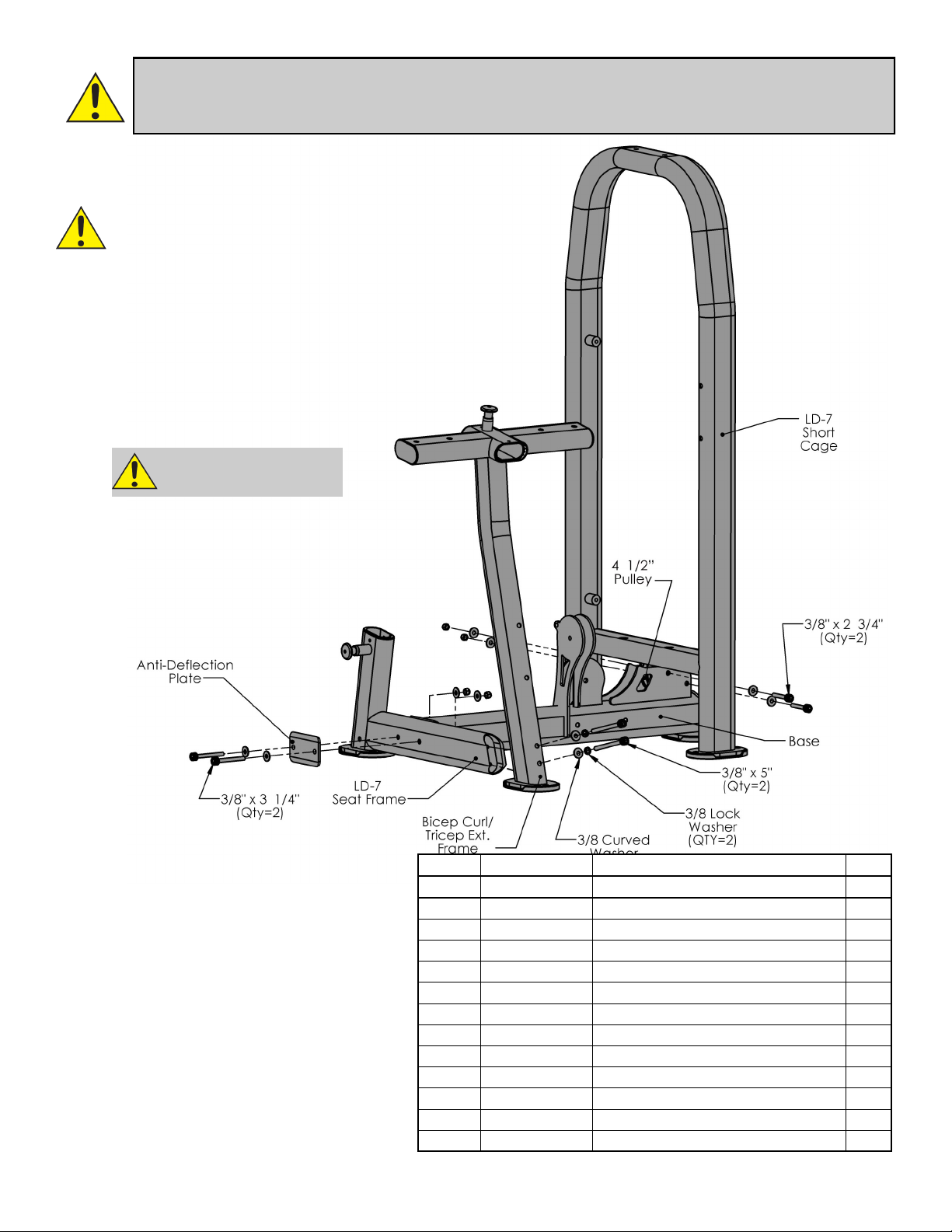

Step 1:
Note: For a more consistent appearance,
position all bolts in the direction shown
In each figure .
PLEASE FOLLOW ALL DIRECTIONS VERY
CAREFULLY FOR PROPER INSTALLATION.
All Flat Washers and Nylocks are
3/8” unless otherwise noted.
Anywhere a washer is against the round
side of a tube there is to be a 3/8”
CURVED WASHER instead of a 3/8”
FLAT WASHER.
Figure 1
Item # Part # Description Qty
1 BFP-10893 Bicep Curl/Tricep Extension Frame 1
2 BFP-10892 LD-7 Seat Frame 1
3 BFP-10901 LD-7 Short Cage 1
4 BFP-10894 Base 1
5 BFP-51861 Anti-Deflection Plate 1
34 BFP-50174 4 1/2” Pulley 1
48 BFP-51750 SHCS 3/8” x 2 3/4” 2
50 BFP-51748 SHCS 3/8” x 3 1/4” 2
52 BFP-51799 SHCS 3/8” x 5” 2
56 BFH-50147 3/8” Lock Washer 2
57 BFH-50204 3/8” Curved Washer 2
58 BFH-50146 3/8” Flat Washer 8
59 BFH-50157 3/8” Nylock 4
DO NOT TIGHTEN
BOLTS UNTIL STEP 4

www.batcafitness.com 9LD-7 Owner’s Manual

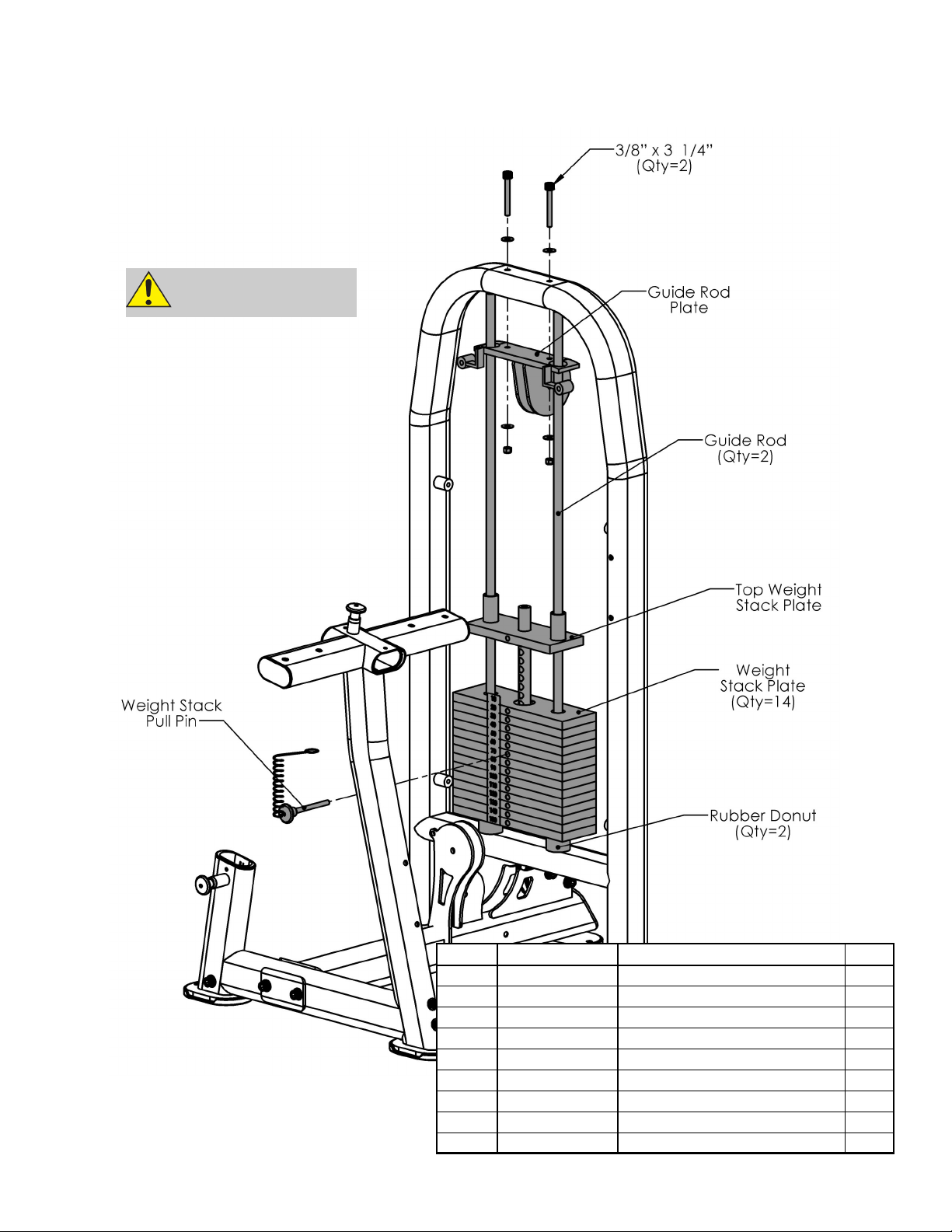

Figure 2
Step 2:
Item # Part # Description Qty
6 BFP-10888 Guide Rod Plate 1
7 BFP-51827 Guide Rod 2
8 BFP-10889 Top Weight Plate 1
9 BFM-50632 Weight Stack Plate 14
10 BFM-50529 Rubber Donut 2
29 BFM-51175 Weight Stack Pull Pin 1
50 BFP-51748 SHCS 3/8” x 3 1/4” 2
58 BFH-50146 3/8” Flat Washer 4
59 BFH-50157 3/8” Nylock 2
DO NOT TIGHTEN
BOLTS UNTIL STEP 4
All Flat Washers and Nylocks are 3/8” unless
otherwise noted.

Batca Fitness Systems 10 LD-7 Owner's Manual

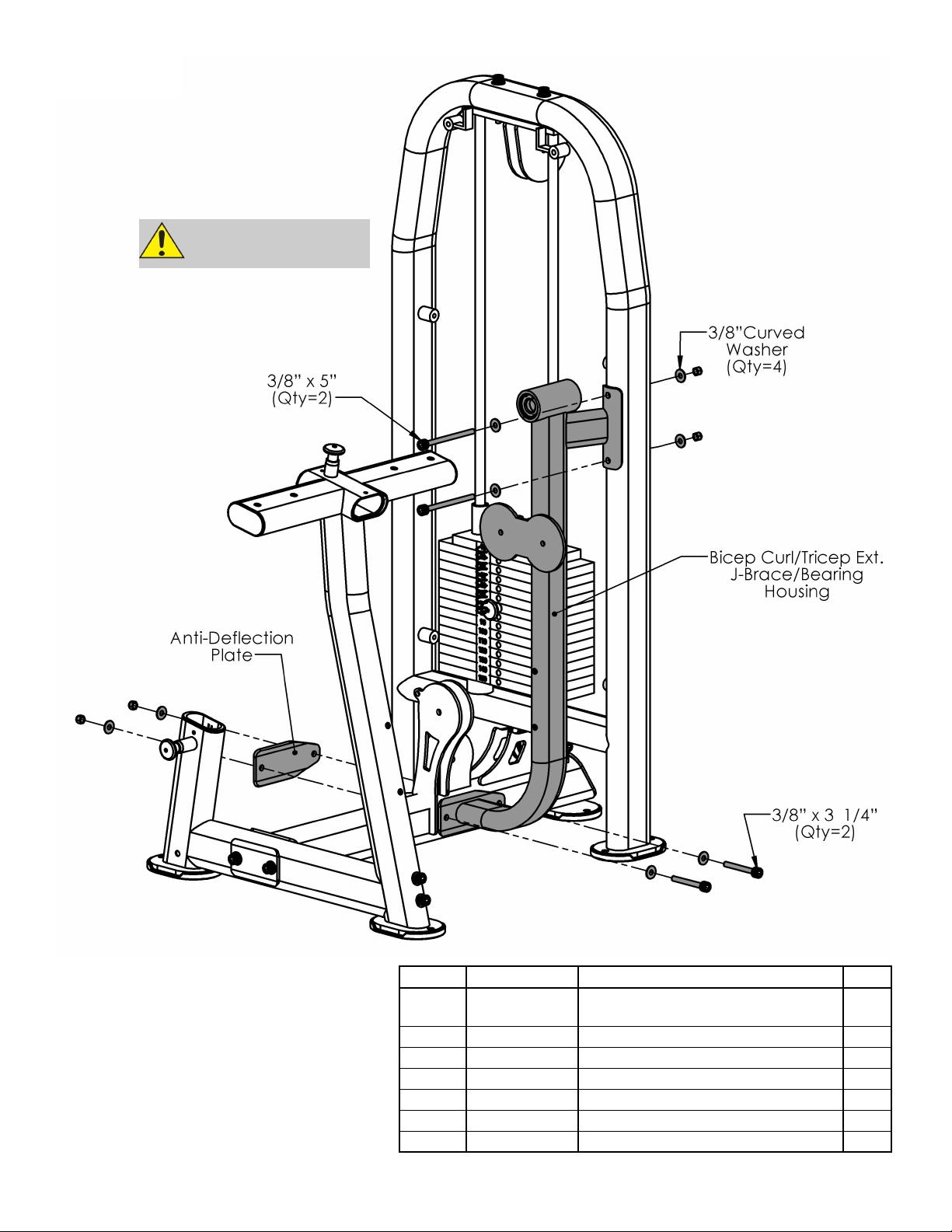

Step 3:
Figure 3
All Flat Washers and Nylocks are 3/8”
unless otherwise noted. Anywhere a
washer is against the round side of a
tube there is to be a 3/8” CURVED
WASHER instead of a 3/8” FLAT
WASHER.
Item # Part # Description Qty
11 BFP-10895
Bicep Curl/Tricep Ext. J
Brace/Bearing Housing 1
12 BFP-52360 Anti-Deflection Plate 1
50 BFP-51748 SHCS 3/8” x 3 1/4” 2
52 BFP-51799 SHCS 3/8” x 5” 2
57 BFH-50204 3/8” Curved Washer 4
58 BFH-50146 3/8” Flat Washer 4
59 BFH-50157 3/8” Nylock 4
DO NOT TIGHTEN
BOLTS UNTIL STEP 4

www.batcafitness.com 11 LD-7 Owner’s Manual
Step 4:
All Flat Washers and Nylocks are 3/8” unless
otherwise noted. Anywhere a washer is against
the round side of a tube there is to be a 3/8”
CURVED WASHER instead of a 3/8” FLAT
WASHER.
Item # Part # Description Qty
13 BFP-10896 Bent U Support Brace 1
14 BFP-51836 Curved Anti-Deflection Plate 1
51 BFP-52346 SHCS 3/8” x 4” 2
53 BFP-51756 SHCS 3/8” x 5 1/4” 2
57 BFH-50204 3/8” Curved Washer 6
58 BFH-50146 3/8” Flat Washer 2
59 BFH-50157 3/8” Nylock 4
Make sure all bolts
are tightened before
moving on
Figure 4

Batca Fitness Systems 12 LD-7 Owner's Manual

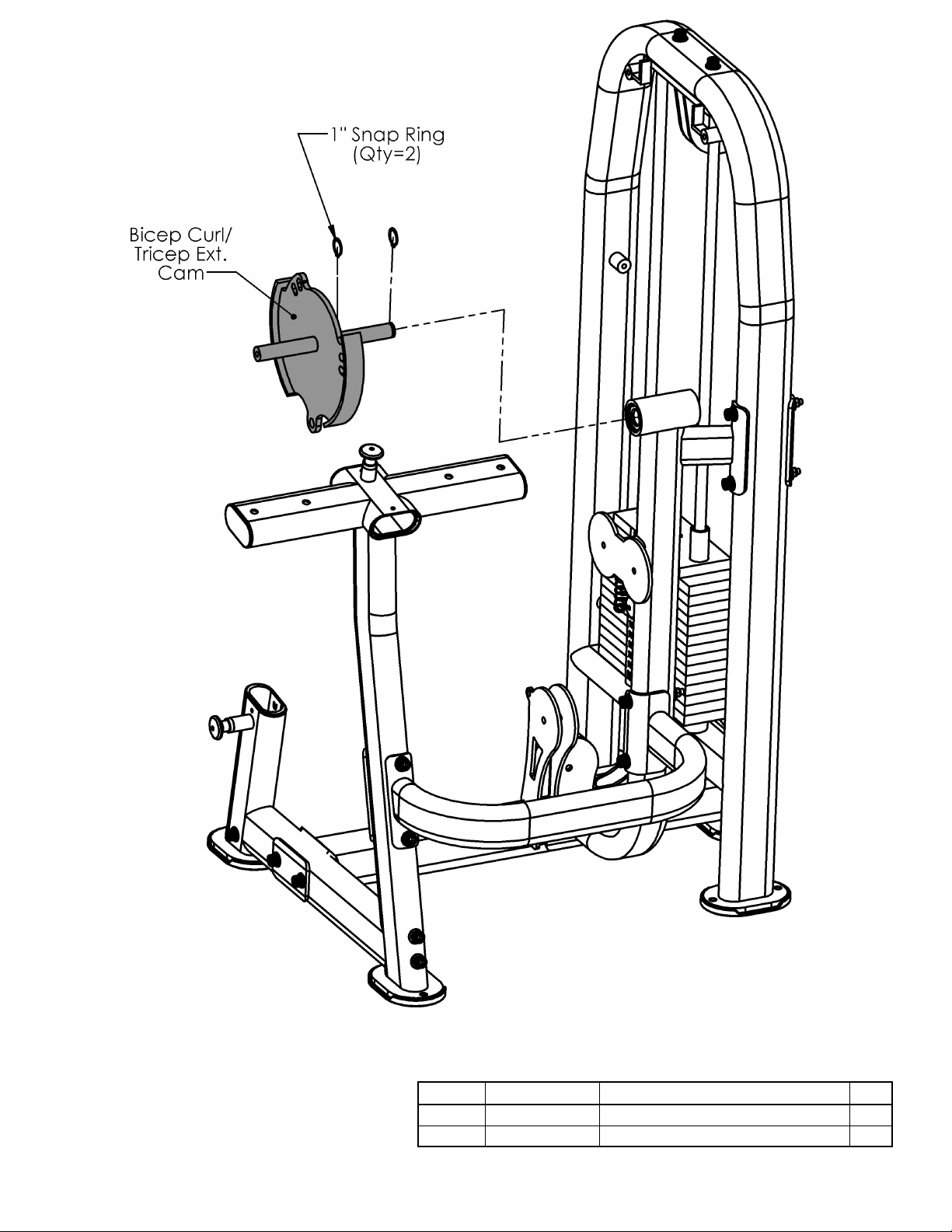

Step 5:
All Flat Washers and Nylocks are 3/8”
unless otherwise noted. Anywhere a
washer is against the round side of a tube
there is to be a 3/8” CURVED WASHER
instead of a 3/8” FLAT WASHER.
Item # Part # Description Qty
15 BFP-10897 Bicep Curl/Tricep Ext Cam 1
37 BFH-50165 1” Snap Ring 2
Figure 5

www.batcafitness.com 13 LD-7 Owner’s Manual

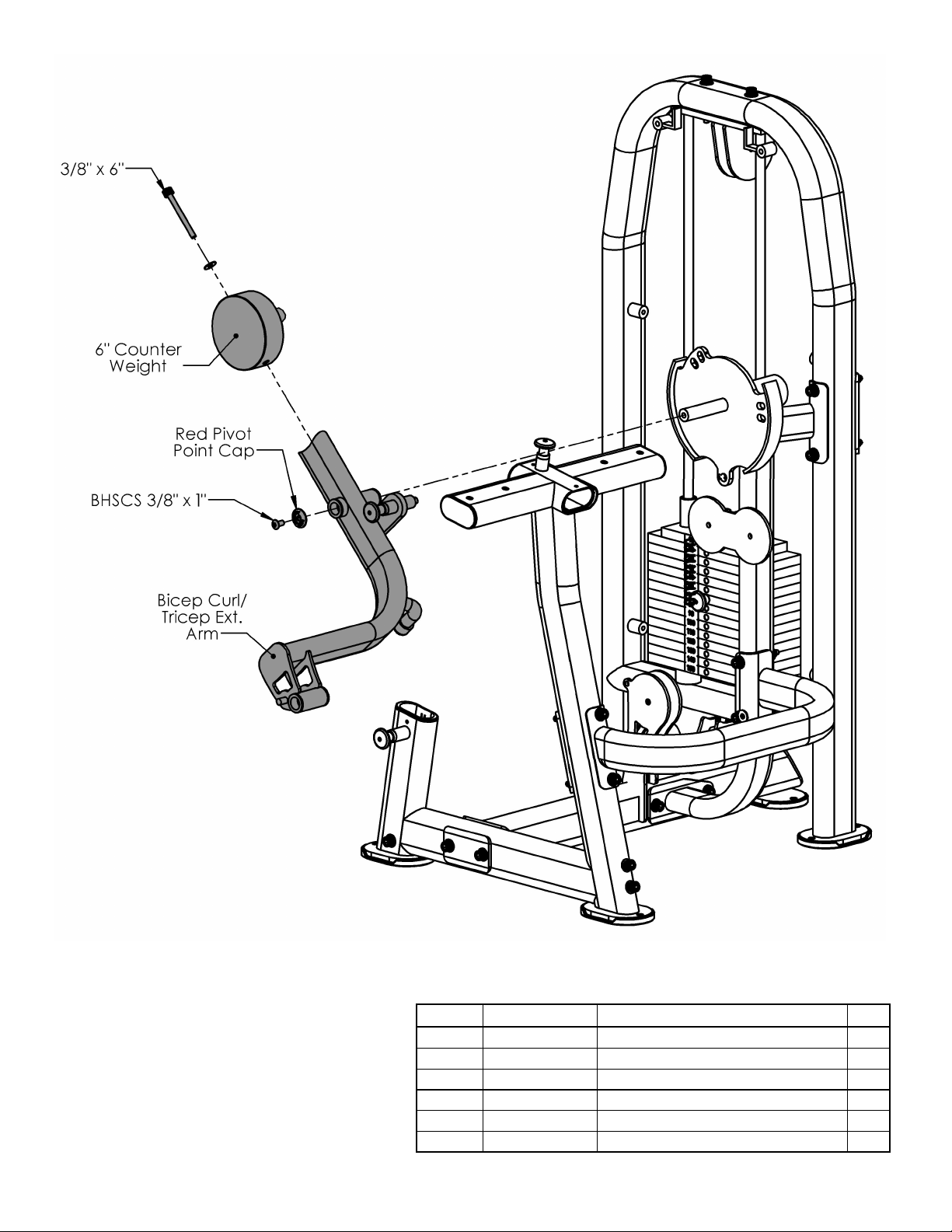

Step 6:
Figure 6
All Flat Washers and Nylocks are 3/8”
unless otherwise noted.
Item # Part # Description Qty
16 BFP-10898 Bicep Curl/Tricep Ext. Arm 1
17 BFP-10899 6” Counter Weight 1
38 BFP-51885 Red Pivot Point Cap 1
54 BFH-52364 SHCS 3/8” x 6” 1
58 BFH-50146 3/8” Flat Washer 1
62 BFH-50620 BHSCS 3/8” x 1” 1

Batca Fitness Systems 14 LD-7 Owner's Manual
Item # Part # Description Qty
18 BFP-10902 Bicep Curl/Tricep Ext. Handle Bar 1
19 BFP-51210 Axle 1
58 BFH-50146 3/8” Flat Washer 2
62 BFH-50620 BHSCS 3/8” x 1” 2

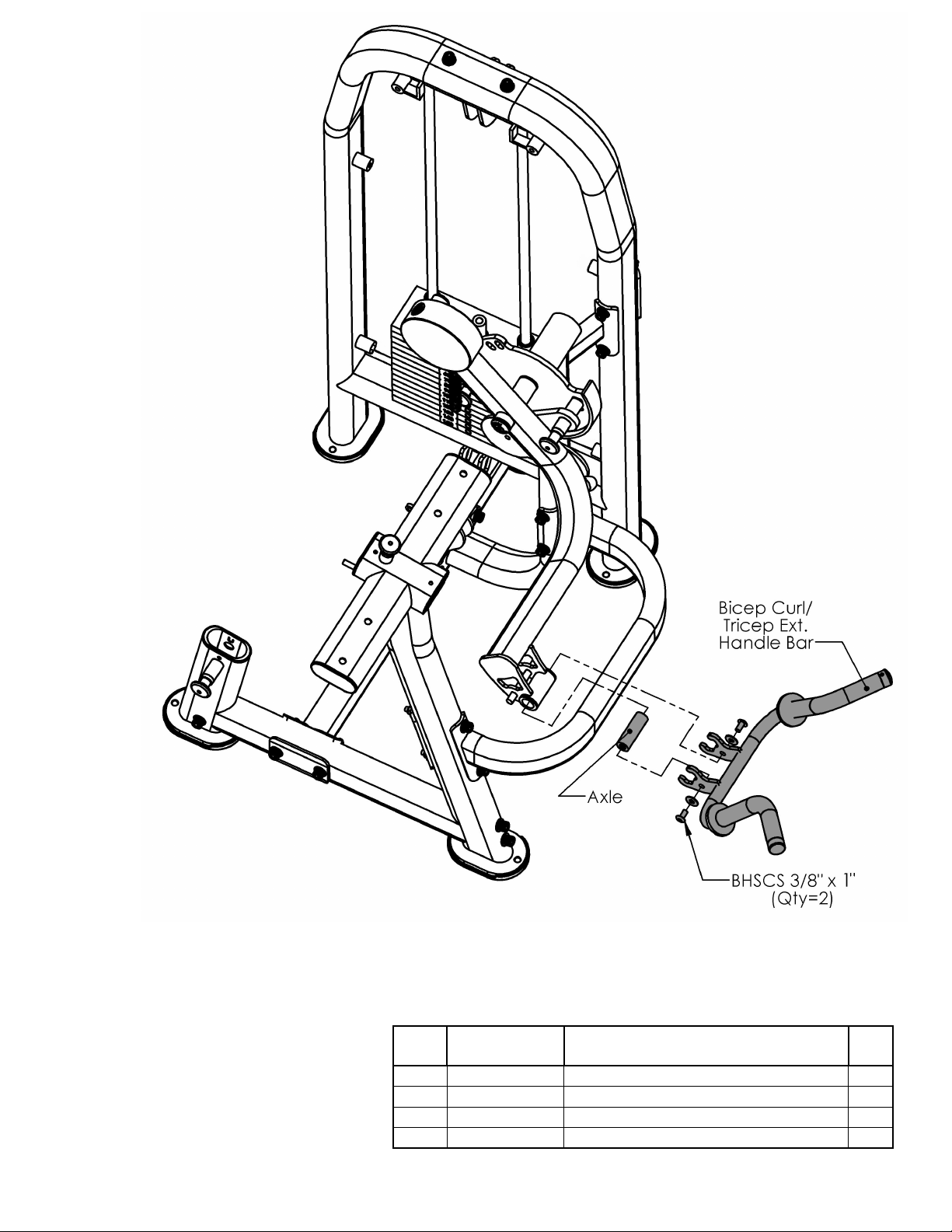

Step 7:
Figure 7
All Flat Washers and Nylocks are 3/8” unless
otherwise noted.

www.batcafitness.com 15 LD-7 Owner’s Manual
All Flat Washers and Nylocks are 3/8” unless
otherwise noted.

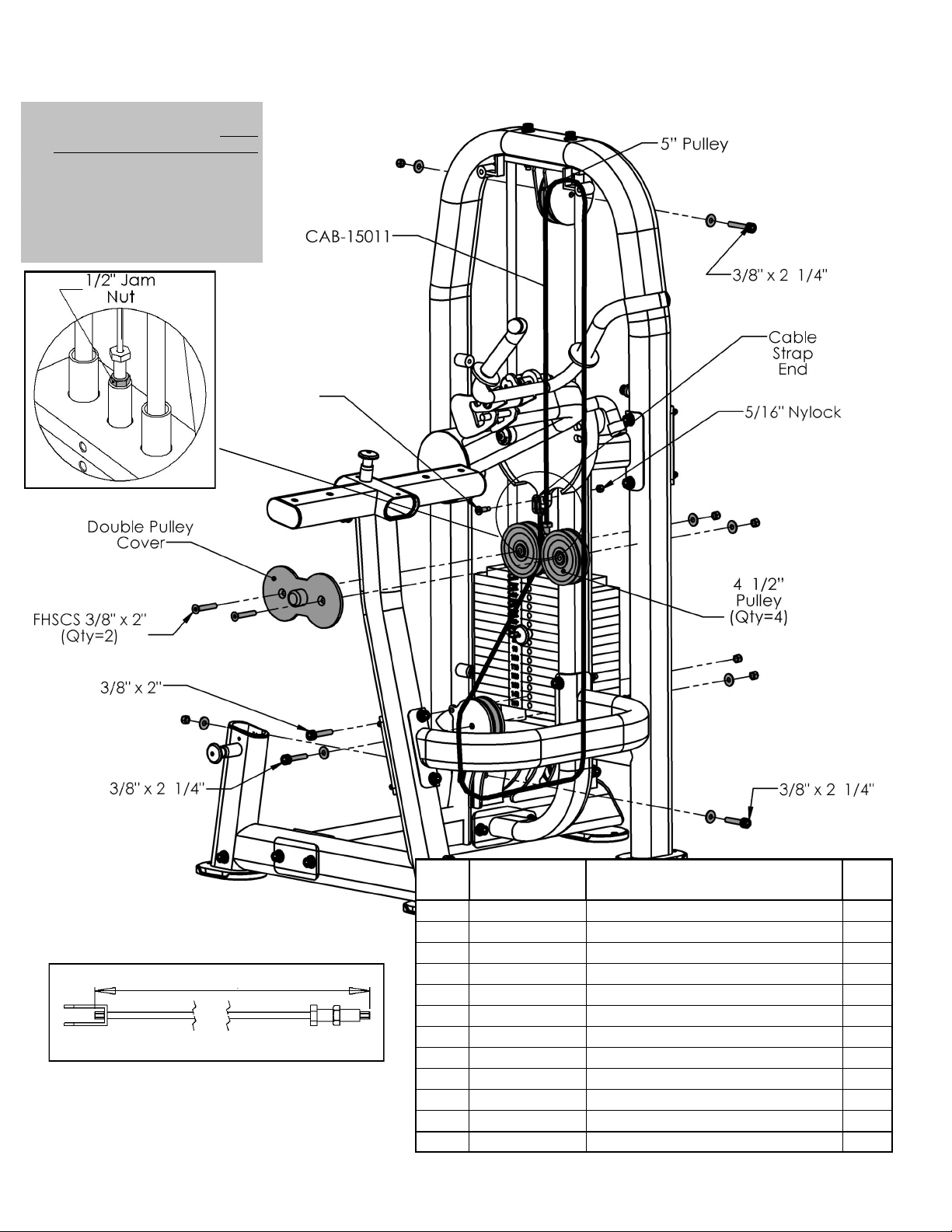

Step 8:
Item # Part # Description Qty
28 CAB-15011 Weight Stack to Cam Cable 1
20 BFP-10903 Double Pulley Cover 1
34 BFH-50174 4 1/2” Pulley 4
35 BFH-50530 5” Pulley 1
45 BFP-52377 FHSCS 3/8” x 2” 2
46 BFP-51759 SHCS 3/8” x 2” 1
47 BFP-51752 SHCS 3/8” x 2 1/4” 3
55 BFH-50267 5/16” Nylock 1
58 BFH-50146 3/8” Flat Washer 8
59 BFH-50157 3/8” Nylock 6
60 BFH-50227 Cable Strap End 1
61 BFH-50351 1 3/8” Shoulder Bolt 1
Figure 8

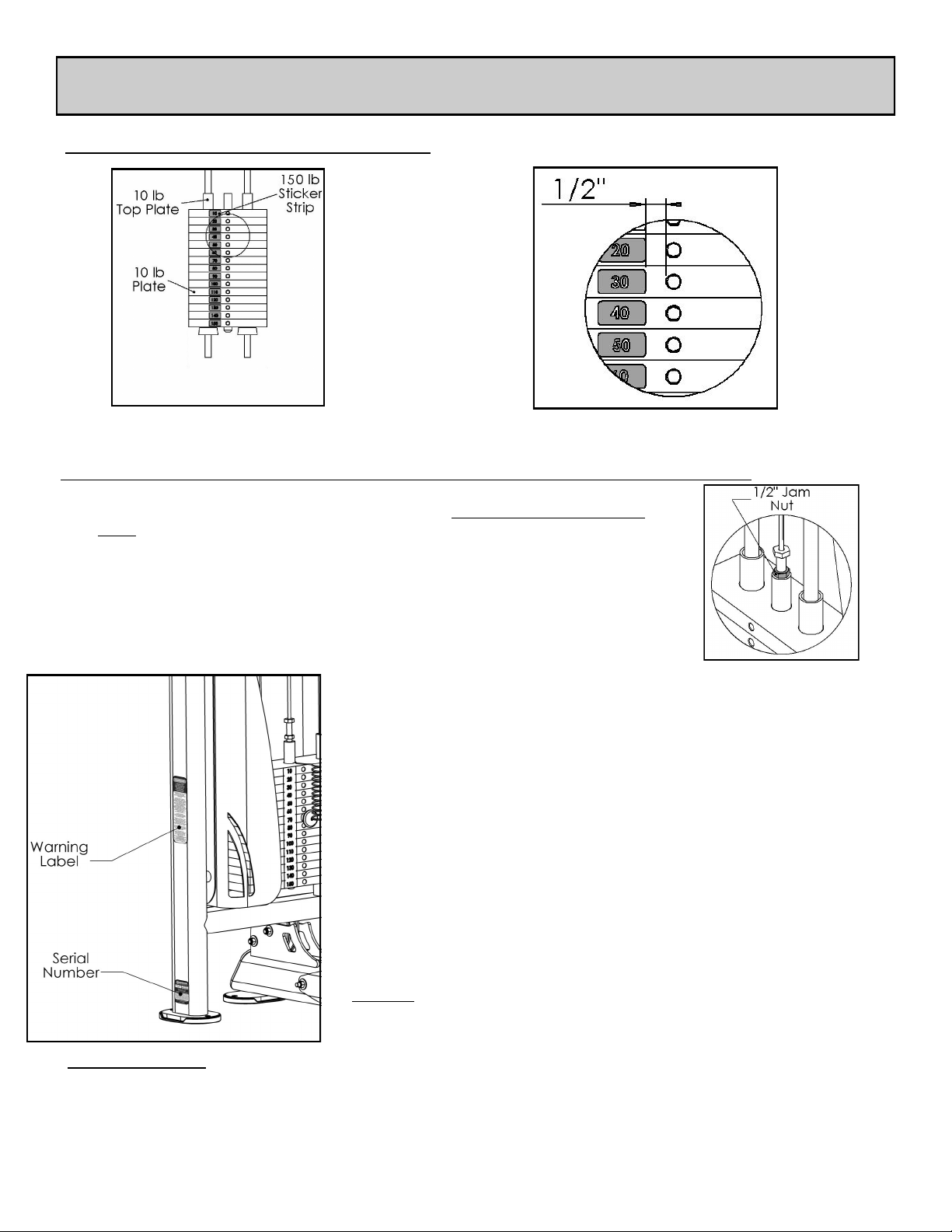

Note: The threaded bolt on
the end of the cable must
be threaded at least 1/2”
the Top Plate of the
weight stack. The bolt
must also be secured with
a 1/2” Jam Nut to ensure a
s a f e a n d p r o p e r
connection.
CAB-15011
127 1/4”
1 3/8” Shoulder
Bolt

Batca Fitness Systems 16 LD-7 Owner's Manual
Item # Part # Description Qty
21 BFP-10904 Chrome Chest Adjustment 1
22 BFP-10900 Chrome Seat Adjustment 1
23 BFM-50856 Back Pad Connector 1
36 BFH-50210 Gas Spring 1
41 BFH-50144 FHSCS 3/8” x 1” 2
47 BFP-51752 SHCS 3/8” x 2 1/4” 1
48 BFP-51750 SHCS 3/8” x 2 3/4” 1
58 BFH-50146 3/8” Flat Washer 4
59 BFH-50157 3/8” Nylock 4
All Flat Washers and Nylocks are 3/8” unless
otherwise noted.

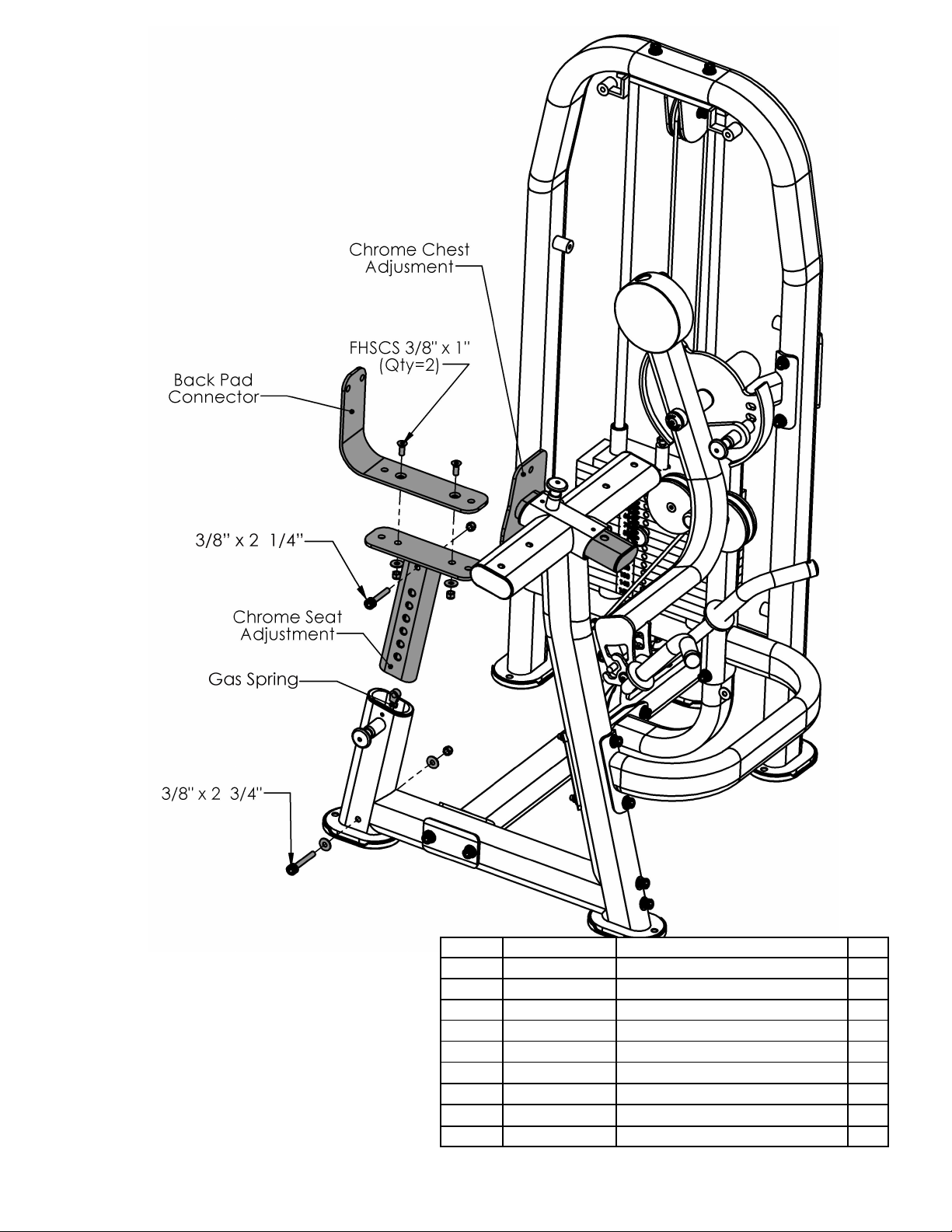

Step 9:
Figure 9

www.batcafitness.com 17 LD-7 Owner’s Manual
All Flat Washers and Nylocks are 3/8” unless
otherwise noted.
Step 10:
Figure 10
Item # Part # Description Qty
32 BFP-52367 Bicep Curl/Tricep Ext. Arm Pad 2
33 BFP-52369 Bicep Curl/Tricep Ext. Chest Pad 1
42 BFP-51653 SHCS 3/8 x 1 1/4” 2
49 BFP-51747 SHCS 3/8” x 3” 4
56 BFH-50147 3/8” Lock Washer 6
58 BFH-50146 3/8” Flat Washer 6

Batca Fitness Systems 18 LD-7 Owner's Manual
Item # Part # Description Qty
24 BFP-51711 Placard Plate 1
25 BFP-51740 Rear Weight Stack Shroud 1
30 BFP-52366 Lower Back Pad 1
31 BFP-52141 Bottom Pad 1
39 BFP-52340 BHSCS 3/8” x 3/4” 4
40 BFH-50254 HCS 3/8” x 3/4” 2
42 BFP-51653 SHCS 3/8” x 1 1/4” 2
43 BFP-51697 SHCS 3/8” x 1 1/2” 2
56 BFH-50147 3/8” Lock Washer 4
58 BFH-50146 3/8” Flat Washer 8
All Flat Washers and Nylocks are 3/8” unless
otherwise noted.
Step 11:
Figure 11

www.batcafitness.com 19 LD-7 Owner’s Manual
All Flat Washers and Nylocks are 3/8” unless
otherwise noted.

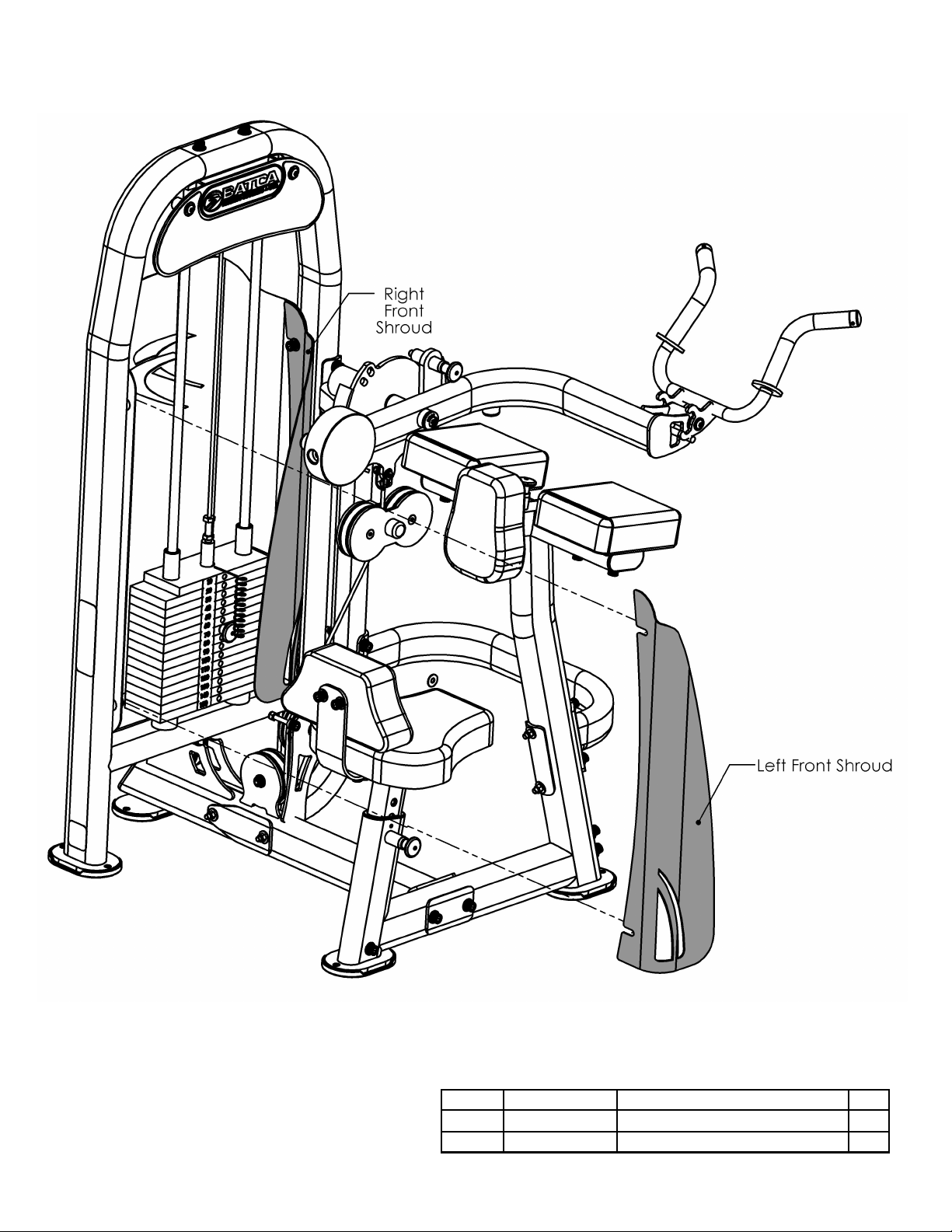

Step 12:
Figure 12
Item # Part # Description Qty
26 BFP-51742 Right Front Weight Stack Shroud 1
27 BFP-51741 Left Front Weight Stack Shroud 1

Batca Fitness Systems 20 LD-7 Owner's Manual
Final Assembly and Troubleshooting
Top Plate
Weight Stack Decals:
IMPORTANT - Check These Components Before Using Gym:
 Each Cable with a threaded bolt on either end must be threaded at least
1/2” into its attachment, whether it be a Free Floater, Lockout Free
Floater, or the Top Plate of the weight stack. Each must also be secured
with a 1/2” Jam Nut to ensure a safe and proper connection.
 Record your serial number on the front of this manual
and keep for your records. The serial number can be
found on the side of the cage as seen in the figure to the
left.
Guide Rod
Lubrication:
 Clean guide rods with a lint-free cloth and apply a thin layer of silicone lubricant (Part # BFH-
50262) to each guide rod. This will ensure a glass smooth performance from your weight stack.
150lb Stack
