Lionel Articulated
2-6-6-4 Norfolk & Western
‘A’ Class
Steam Locomotive and Tender
Owner’s Manual

2
Table of contents
Transformer operations
Running your Lionel ‘A’ Class with a Lionel transformer 3
Locking your ‘A’ Class into a single operational state 4
Using your ‘A’ Class’ tender-mounted ElectroCoupler 4
Your ‘A’ Class’ RailSounds system—the basics 5
Experiencing the range of your ‘A’ Class’ RailSounds system 6
Notes on RailSounds 6
Installing the Lionel Sound Activation Button 7
TrainMaster Command operations
Your ‘A’ Class in the TrainMaster Command environment 8
CAB-1 commands for your ‘A’ Class 9
RailSounds in the Command environment 10
CAB-1 numeric keypad commands for your ‘A’ Class 10
Tuning your ‘A’ Class’ performance 11
Maintaining your ‘A’ Class’ handrail antenna 11
Assigning your ‘A’ Class a new ID# 12
Reprogramming R2LC circuit board to restore features 12
Maintaining and servicing your ‘A’ Class
Lubricating your ‘A’ Class 13
Replacing your ‘A’ Class’ lamps 14
Adding fluid to your ‘A’ Class’ smoke generator 15
Installing ‘O’ gauge front coupler 15
Lionel Service 16
• Powerful Pittman®motor
• R2IR reverse unit for use with the
Lionel TrainMaster®CommandTM
model railroad control system
• Smoke generator that produces
clean, safe and realistic smoke
• Die-cast ElectroCoupler
(rear of tender)
• Wireless Tether
• Lighted cab interior
• RailSoundsTM digital
sound system
• Brilliant Headlight and Marker
Lights
• CrewTalk (in Command)
• TowerCom (in Command)
• Tire Traction
• Directional lighting
• Fire Box Glow
You own one of the most sophisticated model trains ever built—the Lionel
TrainMaster®Command-equipped ‘A’ Class.
From its hand-applied scale details to the
advanced technology found inside, your ‘A’
Class is ready for duty on your model rail-
road layout. Experience the superiority of
today’s Lionel.
Congratulations!

Transformer operations
3
Running your Lionel ‘A’ Class with a Lionel transformer
Place your ‘A’ Class on Lionel or
Lionel-compatible O-54 or larger track.
• With track power OFF, connect the drawbar between locomotive and tender.
That’s all you have to do with Lionel’s new Wireless Tether®, an infrared communi-
cation system that eliminates the plugs and wires of the past.
NOTE: Your ‘A’ Class is designed to operate on minimum 0-54 diameter track.
2
2
3
3
Power up your ‘A’ Class with your transformer.
•Your ‘A’ Class is designed to operate on 8-18 volts alternating cur-
rent. Virtually all Lionel and Lionel-compatible alternating-current transformers
are suitable; we recommend the TrainMaster Command model railroad control
system.
•Do not power your ‘A’ Class with direct current (DC). Damage to sensi-
tive electronic components may occur.
•When you first power up your track, the ‘A’ Class will wait between
three and eight seconds as it “listens” for digital language from the
TrainMaster Command Base (available separately). When it’s determined that it’s
on a conventional (non-Command) railroad, the ‘A’ Class’ headlight will illumi-
nate and RailSounds will start up. At this point, the ‘A’ Class is in neutral. (This
occurs when placing the locomotive on your railroad for the first time. Thereafter, it
starts in forward after every three-secondpowerinterrupt.)
Note!
Move ‘em out!
•Get your ‘A’ Class moving. Press the DIR button on your CAB-1 remote or
Lionel transformer. This sequences the R2IR to the next operating state.
•Adjust track voltage until your ‘A’ Class moves at your desired speed.
1
1

Using your ‘A’ Class tender’s ElectroCoupler
in the non-Command environment
To use your ‘A’ Class tender’s Electro- Coupler in the non-Command environ-
ment, you must first couple a piece of rolling
stock equipped with Lionel magnetic cou-
plers directly to your ‘A’ Class tender’s rear
ElectroCoupler. The magnetic coupler on the
rolling stock will then react to the magnetic
field generated by a Lionel remote-control
track section (available separately). Place
your rolling stock’s coupler “trigger disc”
over the central coil of a remote-control
track section and press uncouple on the con-
troller. The magnetic field pulls the disc
downward, and the coupler opens.
Your ‘A’ Class tender’s
ElectroCoupler will NOT open
manually or by using a remote-
control track section
Magnetic coupler on the rolling stock coupled
to the rear of your‘A’ Class tender
Note!
Remote-control
track section
4
Transformer operations
To select a single operational state for
your Lionel ‘A’ Class (example: forward
only), you can deactivate the R2IR’s
sequencing function with the Program/Run
switch, located on the right hand side, under
the boiler casting.
Get your locomotive moving in the desired
direction, then slow it down without stop-
ping. Set the Program/Run switch to PROG.
The ‘A’ Class is now “locked” into your cho-
sen direction.
When you no longer want single-direction
operation, just slide the Program/Run switch
back to RUN.
Locking your ‘A’ Class into a single operational state
Program/Run Switch
Smoke Unit Switch
(see page 15 for details)

5
Note!
Note!
Note!
Note!
Your ‘A’ Class’ RailSounds system—the basics
Lionel RailSounds is the most realistic model railroad sound system in the
world. Your ‘A’ Class features digital samples
from real-life steam locomotives for the ulti-
mate in realism.
Begin by installing a 9-volt alkaline bat-
tery in the tender. This ensures interruption-
free operation of RailSounds. The battery clip
is located in the tender. To remove the tender
body, refer to the diagram on page 6 for loca-
tion of mounting screws
When you first apply track power, the ‘A’
Class’ RailSounds system produces sounds of
the locomotive at rest. As the ‘A’ Class moves,
chuffing begins, increasing with the locomo-
tive’s speed.
To silence the steam chuffing sound
(whistle/bell are unaffected), slide the
RailSounds switch, located on the underside
of the tender (see page 6 for location), to the
OFF position before powering up the loco-
motive. The whistle is activated by using the
lever or button on your transformer or CAB-
1. The volume control knob to raise or lower
the level of sound is located on the under-
side of the tender near the front truck (see
page 6).
Installing a 9-volt alkaline bat-
tery in your ‘A’ Class’ tender.
Please remove protective cover from battery clip
Although RailSounds is powered by track voltage, the battery is required for
uninterrupted operation and shutdown sequences. Use only alkaline batteries.
Discontinue locomotive power for 10 seconds before changing the RailSounds
ON/OFF switch position.
If RailSounds “drops out” during track power interrupts (direction change),
replace the battery.

6
With RailSounds, you experience the sounds of real railroading like never
before. Simply put, it’s the most sophisticat-
ed, authentic model railroad sound system in
the world. And remember—coming from
inside your Lionel ‘A’ Class’ tender are the
authentic sounds of the RailSounds digital
sound system. No other electric train can
offer you authentic sounds. That’s the
power of Lionel.
• Variable chuff rate. Your ‘A’ Class’
speed determines the steam chuff rate.
• MultiWhistleTM. Different whistles
every time—a RailSounds exclusive.
• Authentic bell. Press BELL on your
CAB-1 or transformer to begin the effect,
again to discontinue. Even the final “hit”
is muted like the real thing.
• Reverse unit reset sound. Power
down your track, wait for 3-5 seconds,
and listen for the air-release sound—
that’s the ‘A’ Class telling you its R2IR
Command reverse unit has just reset to
forward operation.
• Shutdown sequence. No other model
railroad sound system shuts down like
RailSounds. Turn off track power, and
after the air-release reset sound, you have
two seconds to restart your ‘A’ Class. If
you’re done with operations, RailSounds
will commence with an authentic shut-
down sequence about two seconds after
the air-release reset occurs.
NOTE: Battery must be installed for shut-
down sequence.
Experiencing the range of your ‘A’ Class’ RailSounds system
Notes on RailSounds
• Use the volume control dial, located on the
underside of the tender, to adjust sound
output.
• Listen for incidental engine sounds during
RailSounds operation. They’re automatic
and, of course, authentic.
• The 9-volt alkaline battery you installed
ensures continuous sounds, even during
short track-power interrupts.
• Longer track-power interruptions (includ-
ing locomotive derailments) cause Rail-
Sounds to shut down after about 7 seconds.
• For even more authentic RailSounds
effects, operate your ‘A’ Class in the
TrainMaster Command environment. See
page 8-10 for details.
Transformer operations

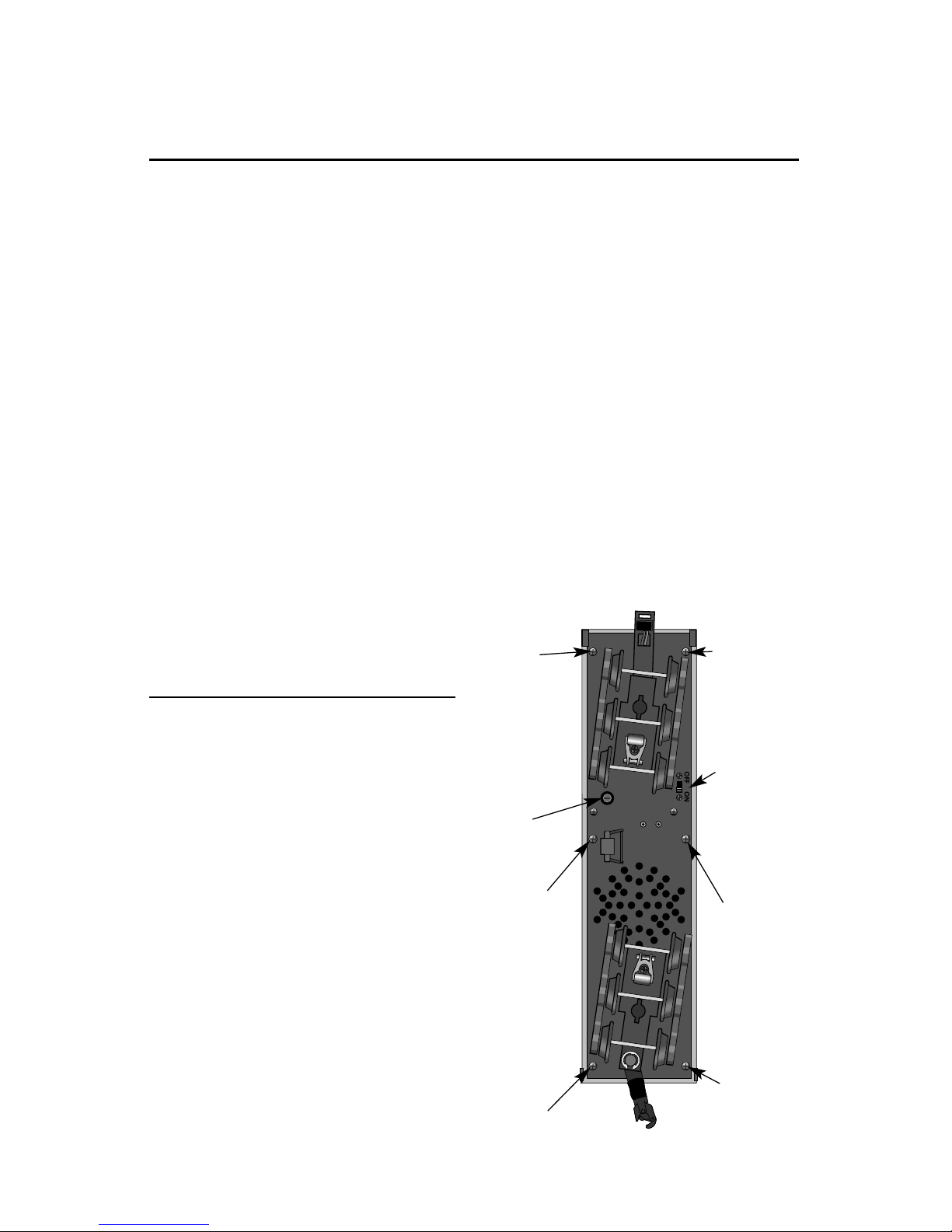

Tender Body
Screw
Tender Body
Screw
Tender Body
Screw
Tender Body
Screw
Rear
Front
RailSounds
On/Off
Switch
RailSounds
volume
control
Tender
Body
Screw
Tender
Body
Screw

Installing the Lionel Sound Activation Button
LIONEL
SOUND
ACTIVATION
BUTTON
12
12
LIONEL
SOUND
ACTIVATION
BUTTON
LIONEL
SOUND
ACTIVATION
BUTTON
For AC transformers with a horn/whistle button
For AC transformers lacking a horn/whistle button
Attach to ground terminal
Attach to power terminal
Customer’s wire
Black wire
Red wire
Lionel no. 610-5906-001
SoundActivation Button for
activating the bell
To your transformer
Lionel no.
610-5906-001
SoundActivation
Button for
whistle Lionel no. 610-5906-001
SoundActivation Button for bell
Black wire
Red wire
Red wire
Attach to ground
terminal
Attach topower
terminal
To your transformer
The no. 610-5906-001 button works with any Lionel AC transformer except no.
6-4690 Type MW. Transformers made by other manufacturers may not be com-
patible with RailSounds.
Note!
To operate the bell and whistle sounds when operating your ‘A’ Class with con-
ventional transformers, you’ll need to install
the Lionel no. 610-5906-001 Sound Activation
Button (available separately). Connect the
button(s) as shown below.
7
Note! All track power must
feed through Sound
Activation Button. Do
not bypass button.

8
Your ‘A’ Class in the TrainMaster Command environment
Lionel TrainMaster Command is the fun and sophisticated model railroad con-
trol system from Lionel. Your ‘A’ Class fea-
tures the R2IR reverse unit, which acts as
both a conventional reverse unit as well as
the key to unlocking many extra features
when you operate in Command mode.
TrainMaster Command gives you the
power to operate multiple Command-
equipped locomotives on the same track, at
the same time. It’s the most fun you can
have with electric trains, and it’s incredibly
easy too! Just follow the directions below and
you’ll be on your way.
To operate in Command mode, you
need a Command Base and a CAB-1
remote. Find them both at your authorized
Lionel retailer.
Place your ‘A’ Class on Lionel or
Lionel-compatible O-54 or larger track.
• Make sure track power is OFF before placing it on track.
• Make sure your Lionel Command Base is ON and its communica-
tions wire is connected to the COMMON post on your Lionel transformer or
the U terminal on any of your installed PowerMasters.
• Once positioned on the track, increase track voltage to FULL (on
PowerMaster, slide the CMD/CONV switch to CMD).
Address your ‘A’ Class with CAB-1.
• Press ENG and 1 on the numeric keypad of your CAB-1 remote. This
command is sent by CAB-1 to the Command Base, which then translates
your commands into digital code. That code is sent around your railroad’s
outside rails in the form of a digital “halo.” All Command-equipped Lionels
listen to this digital communication, but they do not respond until they
hear their own ID number.
• The digital language of TrainMaster Command—and not track power—
controls the actions of Command-equipped Lionels. Track power is simply
like gasoline in the tank of your car—it gives you the power to go places,
but it doesn’t tell you where to go or how fast to get there.
• All Command-equipped Lionels come factory-programmed
with an ID# of “1.” To change your ‘A’ Class’ ID#, see page 12.
Move ‘em out!
•Throttle up or press any command button on CAB-1. Your ‘A’ Class
will respond to your every command. Read on. The fun is just beginning!
1
1
2
2
3
3
TrainMaster Command operations

Tender rear coupler
releases.
Coupler release
sounds.
9
Press AUX2 to turn
your ‘A’ Class’ head-
light on and off.
Press WSTL/HRN to
activate the ‘A’ Class’
whistle, release to dis-
continue. Multi-
Whistle steam
whistle sound.
Press DIR—the loco-
motive decelerates to a
complete stop; turn the
throttle up, and the loco-
motive moves in the
opposite direction. There
is no neutral. Steam
air-release sound.
Press BELL once to
activate the bell, again
to discontinue.
Traditional bell
sound.
PressHALT to shut down all
PowerMaster electrical out-
put on your railroad. Stops
all Command-equipped
Lionels in
operation.
Turn the THROTTLE to
the right to accelerate,
left to decelerate.
Speed-dependent
variable steam
chuffing.
DynaChuff dynamic
chuffing effect.
CAB-1 commands for your ‘A’ Class
Press and hold BOOST for
extra power. Release
BOOST and return to the
locomotive’s previous
speed. Labored chuff.
Press and hold BRAKE to slow down or stop. ReleaseBRAKE and
return to the previous speed. Squealing brake sounds.
‘A’ Class RailSounds
effects in bold italic
Running your ‘A’ Class in the TrainMaster
Command environment
Your Command-equipped ‘A’ Class comes factory-pro-
grammed with an ID# of “1.” To
get your ‘A’ Class into action, set
PowerMasters to CMD or set all
power supplies on full. Press ENG
and “1” on CAB-1. Turn the
throttle or press any command
button; RailSounds starts up.
Your ‘A’ Class is ready for
Command operations.
Address Locomotive #1
PowerMasters set to CMD or traditional
power supplies ON FULL
Press ENG
Press 1 (the ID#)
Throttle up/press any command button
Example

10
When you press AUX1 on CAB-1, you turn the numeric key-
pad into 10 command buttons.
The keypad “stays open” and gives
you access to extra command fea-
tures until you press any top-row
button (SW, ACC, RTE, TR, or
ENG). The CAB-1 keypad overlay includ-
ed with your ‘A’ Class is designed to
help you learn the auxiliary fea-
tures specific to this classic loco-
motive.
‘A’ Class RailSounds effects
in bold italic.
CAB-1 numeric keypad commands for your ‘A’ Class
STEAM ENGINE
RESET
VOLUME
SMOKE
➠
BLOW
OFF
SHUT
DOWN
OFF ON
STEAM
RELEASE
PRESS
& HOLD
SMOKE
BOOST
➠
START-UP
CREW
TALK
TOWER
COM
0Stops and resets the ‘A’ Class to FOR- WARD. Whistle blows. Headlight
flickers.
1Raises the volume of RailSounds. Sound volume increases.
2CrewTalk™ is the sound of unintelligi- ble walkie-talkie communication.
3Starts up RailSounds. Start-up sequence commences. Steam
blowoff sound.
4Lowers the volume of RailSounds. Sound volume decreases.
5Activates the RailSounds steam shut- down sequence. Just like the real thing,
your ‘A’ Class must be idle for shutdown
to occur. Steam shutdown com-
mences. Remember, the whistle and bell
will not sound until you restart RailSounds.
CrewTalk sounds
6Steam release sound.
7TowerCom™is an audible announce- ment that includes that engine’s road
number and/or name. There is a four sec-
ond delay in this function.
8Turns off the smoke generator. CrewTalk sounds
9Turns on the smoke generator. Press and hold 9 (10 seconds maximum) to initi-
ate Smoke Boost™—it superheats the smoke
generator and enhances smoke output when
you start running your ‘A’ Class. CrewTalk
sounds
RailSounds in the Command environment
Your ‘A’ Class’ RailSounds system gives you even more in the TrainMaster
Command environment.
• DynaChuffTM. Real steam locomotive
chuffing depends on the locomotive’s load.
DynaChuff simulates both labored and
relaxed chuffing sounds. Highball down the
mainline and hear the labored chuffing of a
locomotive battling inertia. Reduce your
throttle setting, and chuffing relaxes to a
more sedate sound, as though the load
placed on the ‘A’ Class has decreased.
Experience DynaChuff on steep grades, at
yard crawls, and at speed. Another
RailSounds exclusive.
• Bonus sounds like squealing brakes
with the CAB-1 BRAKE command.
• Incidental sounds you control with
CAB-1 numeric keypad commands, like
steam let-off and steam release effects.
TrainMaster Command operations

11
Tuning your ‘A’ Class’ performance
MOMENTUM
Simulate the labored performance of a
locomotive pulling a heavy load with
momentum. Press L, M, or H (located under
CAB-1’s removable panel) for light, medium
or heavy momentum. The R2IR remembers
the setting until you change it. For delayed
response, use H. For quick response, choose L.
BOOSTING AND BRAKING
Use the BOOST and BRAKE command but-
tons for incremental control of speed and a
superior method for handling grades, stops-
and-starts, and more. Plus, using BRAKE in
the Command environment gives you a
bonus RailSounds effect—the ultra-realistic
sound of squealing brakes.
STALL
Make your ‘A’ Class feel more responsive by
setting a “stall” voltage. Get your locomotive
moving, then press SET; the ‘A’ Class will
stop. The headlight will flash, indicating it’s
in the SET mode. Turn the throttle clockwise
to get the engine moving, then decrease
speed until the locomotive just stops. Then
press SET again; the R2IR remembers the
stall setting until you change it. To clear
stall, press SET twice, holding it for one sec-
ond each time.
HIGH VOLTAGE SETTING
Press ENG, the locomotive ID#, then press
SET; the headlight will flash. Get your loco-
motive moving to the maximum speed you
want it to run, then press BOOST. Use this to
keep your locomotive from accidentally
being derailed at high speed.
To clear setting, press ENG,
the ID#, then immediately
press BOOST.
SOUND QUALITY
To achieve your preferred RailSounds mas-
ter volume level, use the volume control dial
located on the bottom of the tender (see page
6). Turn the dial left or right to adjust the
volume to your liking.
For quick remote-control of volume below
the master setting—like muting—use the
CAB-1 numeric keypad’s volume control.
Pressing AUX1 and 4 on the keypad lowers
overall RailSounds output.
Maintaining your ‘A’ Class’ handrail antenna
Your ‘A’ Class’ handrails are more than just model grab irons—they’re the
R2IR’s antenna for receiving Command Base
digital communications. Please handle the
‘A’ Class carefully to avoid handrail dam-
age. To ensure optimum reception, both
handrails are insulated from the die-cast
shell. If your ‘A’ Class experiences difficulty
receiving Base communications, check the
handrail ends in the cab and pilot for the
presence of insulating material. Ensure each
stanchion is present and enjoys a proper fit.
Finally, prevent the handrails from touching
any part of the die-cast locomotive cab.
These settings will be lost when you
assign a new engine ID number.
Note!
Note!

12
Assign a new ID# to your
Command-equipped locomotive
Command Base ON
Place the locomotive on track
PowerMasters set to CMD or
traditional power supplies ON FULL
Set the locomotive PROGRAM/RUN Switch
to PROGRAM (see page 4 for location)
Turn track power on (PowerMasters):
Press BOOST
Program the locomotive with a new ID#:
Press ENG
Press a number you choose (the
ID#)
Press SET
Set PROGRAM/RUN Switch to RUN
(see page 4 for location)
Your locomotive remembers its ID# forever;
change it any time with these steps.
Example As your fleet of Command-
equipped Lionels grows, give
your ‘A’ Class locomotive its own
ID#. Choose from any between 1 and
99. Turn the Command Base ONand
place the locomotive on track. Power
up, then slide the locomotive’s
PROGRAM/RUN switch to PRO-
GRAM. (See page 4 for location)
Using CAB-1, press ENG, the loco-
motive ID#, then press the SET but-
ton located under CAB-1’s removable
panel. See the locomotive’s head-
light flash; that’s your signal that
the programming has been accept-
ed. Now slide the switch to RUN.
We recommend that you choose an easy-
to-remember ID# for your engines. Some
possibilities are part of the engine road
number, your age, or any two-digit num-
ber that is not used by another engine. If
you like, write the number on a small
piece of tape and put this on the bottom of
the frame to aid in remembering.
Reprogramming R2IR circuit boards to restore features
STEP 1: Move switch on locomotive from
RUN to PROGRAM.
STEP 2: Turn on Command Base.
STEP 3: Place locomotive on track, then
turn on power to track.
STEP 4: Press “ENG” then input locomo-
tive’s ID#. Press “SET”
STEP 5: Press “ENG,” then the ID#,
“AUX1”, then press the number 74.
STEP 6: Turn off power to track, wait ten
seconds.
STEP 7: Remove locomotive from track,
move switch from PROGRAM to RUN.
STEP 8: Place locomotive back on track,
turn power on to track.
STEP 9: Press “ENG” and ID#, then oper-
ate as normal.
Assigning your locomotive a new ID#
Due to the inevitable derailments, static, and the nature of electricity, it is possi-
ble that your R2IR could someday lose its
setup program.The symptoms of this condi-
tion would be unresponsiveness in Command
mode. This can be easily remedied by “repro-
gramming” your R2IR using the following
steps.
TrainMaster Command operations

13
Help your Lionel ‘A’ Class lead a long and productive life on your railroad by
maintaining it properly.
We recommend you purchase a
Lionel Lubrication and
Maintenance Kit (part no.
6-62927), available from your
Lionel dealer. Two basic rules to
keep in mind: never over-
lubricate (a small amount will
do), and avoid getting grease or
oil on the ‘A’ Class’ wheels,
contact rollers, or your track.
You’ll know your ‘A’ Class requires
lubrication when visual inspection reveals
dryness on the parts indicated in the
illustration. Remove accumulated
dirt and dust before lubricating, and
always lubricate any locomotive
emerging from prolonged storage.
Also, lightly lubricate the ‘A’ Class’
side rods, drive rods, linkage, front
and rear truck pivot points, and
tender wheel bearings after each 25
hours of operation.

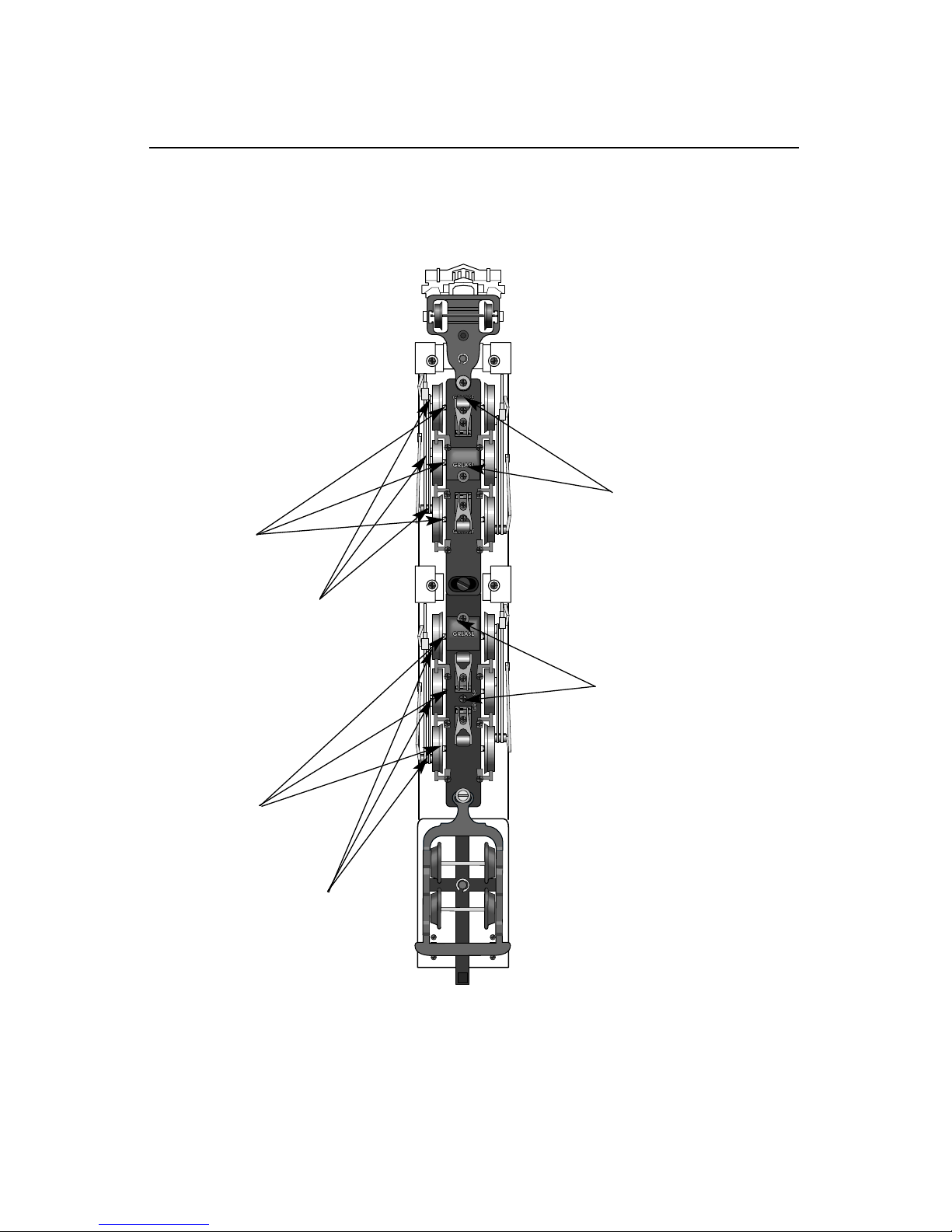

Lubricating your ‘A’ Class
Maintaining and servicing your Locomotive
Grease
Grease
Oil both sides
of the
locomotive
Oil both sides
of the
locomotive
Oil rods and pivot
both sides of the
locomotive
Oil rods and
pivot both
sides of the
locomotive

Your ‘A’ Class locomotive is illuminated by three lamps. One is located in the front
pilot illuminating the headlight. The second
is located behind the motor for the firebox
glow, and the third illuminates the inside of
the cab. During the course of normal opera-
tions, they may require replacement.
Note: Due to the complexity of the disas-
sembly required to replace the lamps in your
‘A’ Class, we recommend that you take your
locomotive to your Authorized Lionel Service
Center for any required lamp replacement.
Your ‘A’ Class tender is illuminated by one lamp, located at the rear of the tender.
Remove the tender body by unscrewing the
six screws located on the underside of the
tender (see page 6 for screw locations).
Carefully lift the tender body from the frame
taking care with the lamp wiring assembly
which is still attached to the tender body.
Unscrew the bracket holding the lamp.
Remove the expired lamp and replace with
Lionel part no. 610-8049-300. All lamps are
available from your Authorized Lionel Service
Center or Lionel Service. See the Lionel Service
section on page 16 for more information.
Reassemble in reverse order. While
reassembling the tender, make sure all wires
are inside the body before the screws are
tightened.
14
Replacing your ‘A’ Class’ lamps (Engine)
Maintaining and servicing your ‘A’ Class
Replacing your ‘A’ Class’ lamps (Tender)
Lamp Numbers:
Headlight (1) 620-8029-300
Cab and firebox (1 each) 610-8011-019
Note: Engine Marker Lights are LEDs (light emitting diodes) and are not user serviceable.
Your locomotive is equipped with Tire- Traction. This means that four of the
drive wheels are fitted with rubber traction
tires to enhance tractive effort so your loco-
motive can pull many cars at once.
Lionel has provided extra traction tires to
replace the installed traction tires if they
wear out. Simply unscrew the drive rod nut
from the wheel and slip off the old traction
tire and remove it from under the drive rod.
Place the new one on the wheel in the reverse
of this step and tighten the drive rod nut
back up and you’re ready to pull that long
freight back to the yard.
Tire-Traction™

15
Adding fluid to your ‘A’ Class’ smoke generator
Your ‘A’ Class is equipped with a smoke generator that produces safe, clean,
white smoke during operation.
The smoke generator requires the periodic
addition of Lionel smoke fluid in order to
function. Pierce the tube end with a pin, then
add 10 to 15 drops of fluid directly into the
‘A’ Class’ stack. Smoke production will com-
mence momentarily, faster if you run your
‘A’ Class at speed. When smoke production
wanes, add more fluid (10 to 15 drops).
In Command Control, when the locomo-
tive is first placed on the track and powered
up, the smoke generator will be in a default
“OFF” position. Using any function key on
your CAB 1 remote will turn the smoke gen-
erator on. Turning off the sound, (AUX1-5),
or resetting the engine, (AUX1-0), will return
the smoke unit to the initial “OFF” position.
Always keep a small amount of smoke fluid
in the ‘A’ Class’ smoke generator; the genera-
tor’s element can become damaged if operat-
ed without fluid. Smoke production is greater
at higher voltages and when the ‘A’ Class is
pulling a heavy load or long consist.
Note! Always keep smoke fluid in your ‘A’ Class’ smoke generator. If not, turn it off when
smoke is not desired using the switch shown on page 4 or the AUX1-8 command if
you are running in Command mode. Using Smoke Boost with depleted fluid can
damage the generator’s element.
Maintaining and servicing your ‘A’ Class
An ‘O’ gauge coupler (non-operating) is included with your ‘A’ Class for people
who may wish to “double-head” their trains
with a second ‘A’ Class or another engine.
Simply turn the engine over onto a padded
surface, loosen the screw holding the front
coupler. Replace the scale coupler head with
the ‘O’ gauge coupler head and retighten the
screw. Note: The Coupler door will not close
with the ‘O’ gauge coupler head in place.

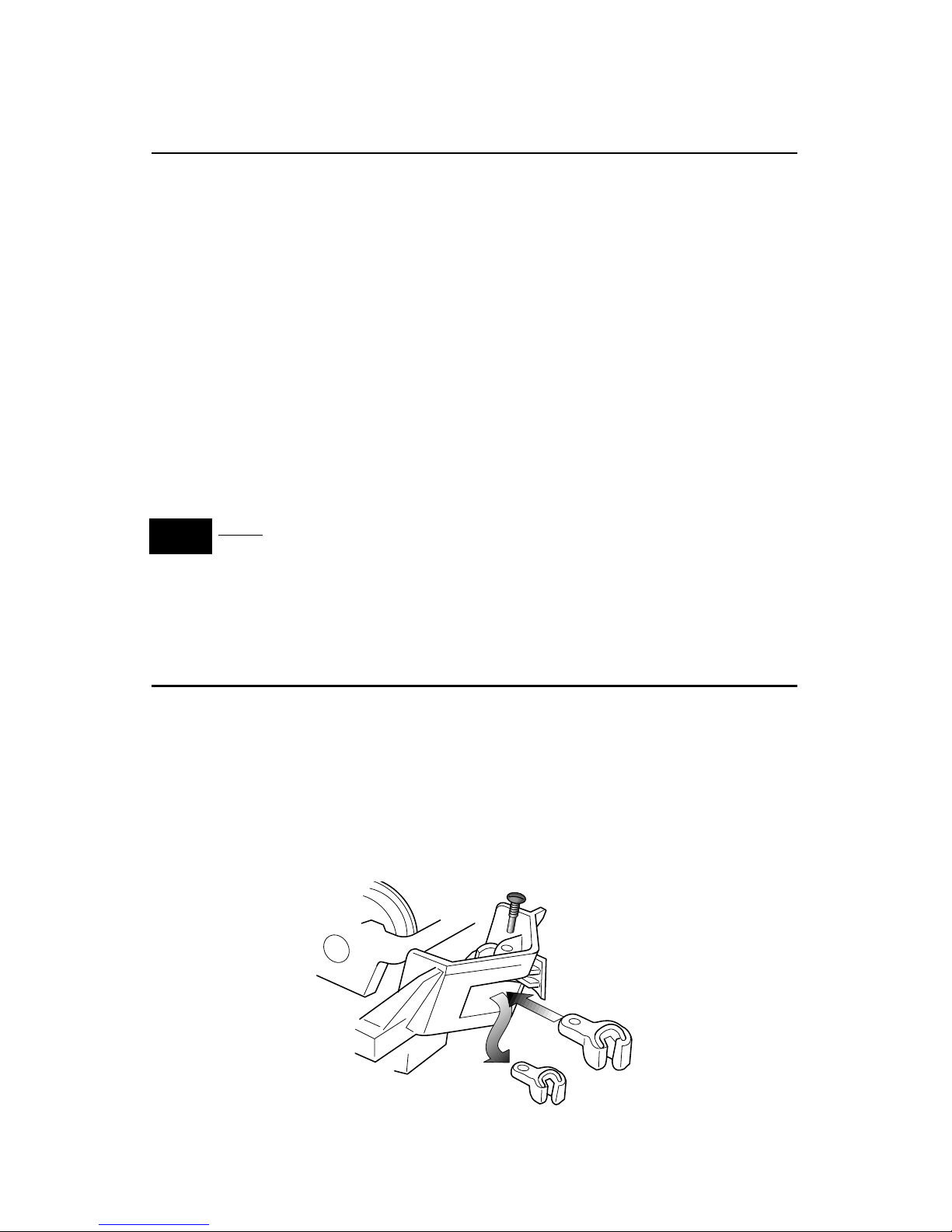

Installation of ‘O’ Gauge Coupler Head

Limited Warranty/Lionel Service
This Lionel product, including all mechani-
cal and electrical components, moving
parts, motors and structural components,
except for light bulbs, is warranted to the original
consumer-purchaser, for one year against original
defects in materials or workmanship when pur-
chased through an authorized Lionel merchant.
This warranty does NOT cover normal wear
and tear, light bulbs, defects appearing in the
course of commercial use, or damage resulting
from abuse or misuse of the product by the pur-
chaser. Transfer of this product by the original
consumer-purchaser to another person voids this
warranty. Modification of this product voids this
warranty.
Any warranted product which is defective in
original materials or workmanship and is delivered
by the original consumer-purchaser to Lionel L.L.C.
or an Authorized Lionel L.L.C. Service Center,
together with proof of original purchase, will at the
option of Lionel L.L.C. be repaired or replaced,
without charge for parts or labor. In the event the
defective product cannot be repaired, and a replace-
ment is not available, a refund of the original pur-
chase price will be granted. Any products on which
warranty service is sought must be sent freight or
postage prepaid, as transportation and shipping
charges are not covered by the warranty.
In no event shall Lionel L.L.C. be
liable for incidental or consequen-
tial damages.
Some states do not allow the exclusion or limi-
tation of incidental or consequential damages, so
the above exclusion may not apply to you.
This limited warranty gives you specific legal
rights, and you may have other rights which vary
from state to state.
Instructions for Obtaining Service
If service for this Lionel L.L.C. product is
required, bring the item, along with your dated
sales receipt and completed warranty information
to the nearest Authorized Lionel Service Center.
Your nearest Lionel Service Center can be found by
calling 1-800-4-Lionel, or by contacting our
Website at www.Lionel.com
If you prefer to send it back to Lionel L.L.C. for
factory repair, you must first call 810-949-4100 or
FAX [phone] or write to Customer Service,
P.O. Box 748, New Baltimore, MI 48047-0748 stat-
ing what the item is, when it was purchased and
what seems to be the problem. You will be sent a
return authorization letter and label to assure your
merchandise will be properly handled upon receipt.
Once you have received your return authoriza-
tion and label, make sure that the item is packed
to prevent damage during shipping, and handling.
We suggest that you use the products original pack-
aging. This shipment must be prepaid and we rec-
ommend that it be insured.
Please make sure you have followed all of the
above instructions carefully before returning any
merchandise for service.
Warranty Information
Please complete the information below and
keep it, along with your dated sales receipt. You
must present this and your dated sales receipt when
requesting warranty service.
Name ____________________________
Address ____________________________
Place of Purchase ____________________
Date of Purchase ______________________
Product Number ______________________
Product Description ____________________
________________________________
© 2000 Lionel LLC, Chesterfield MI 48051-2493
United States of America
