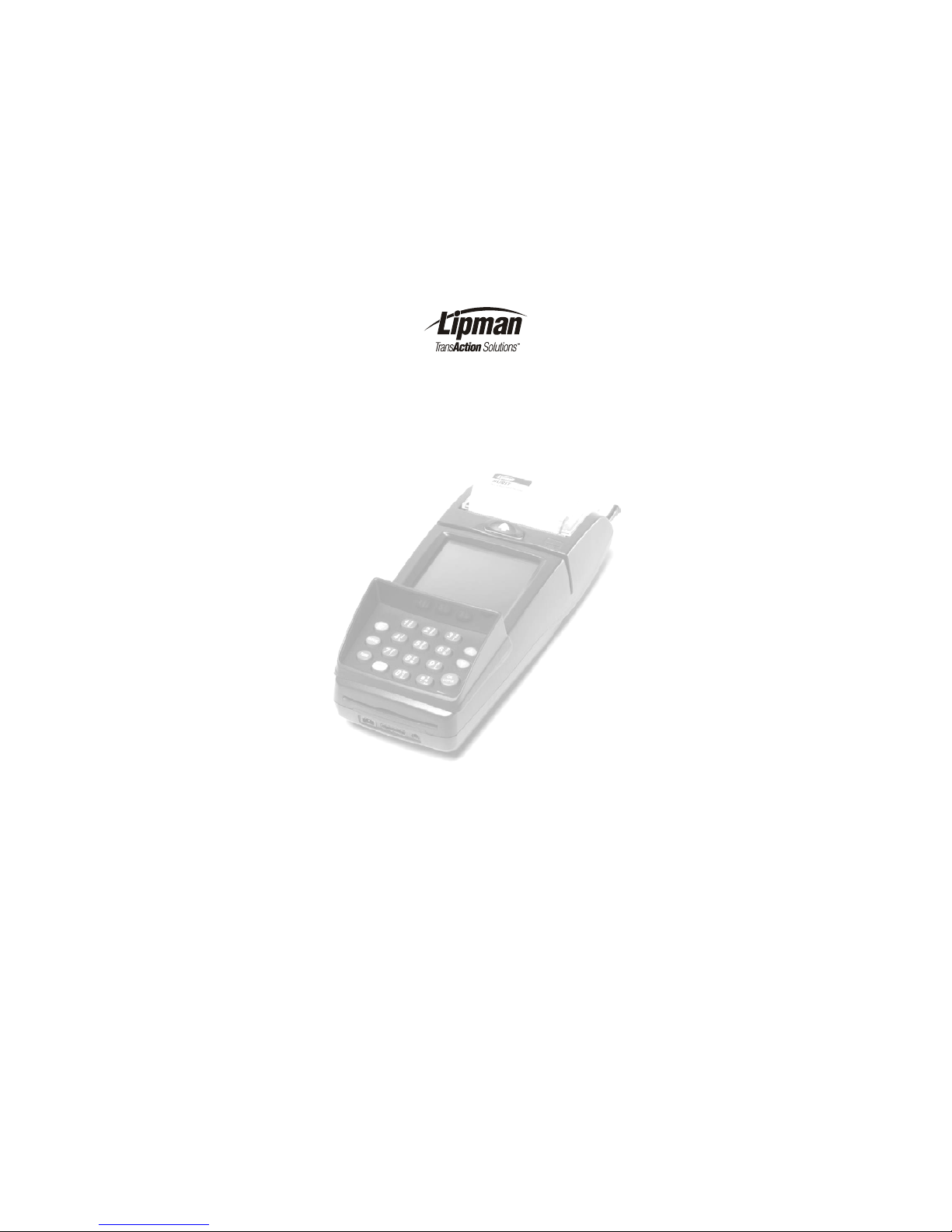

Lipman NURIT 8000 User manual

NURIT 8000
Wireless Palmtop
Solution
Installation Manual
SanDiegoMerchantServices.net 858-335-2992

Copyright Notice
Copyright© Lipman Electronic Engineering Ltd. All
rights reserved.
The content of this publication is for informational
purposes only and is subject to change without notice.
It does not represent a commitment on the part of
Lipman Electronic Engineering Ltd.
No part of this publication may be reproduced,
transmitted, transcribed, stored in a retrieval system,
or translated to any language in any form by any
means without the prior written permission of
Lipman.
Trademark Information
NURIT® is a registered trademark of Lipman
Electronic Engineering Ltd. All other product and
brand names contained in this manual are
trademarks of their respective owners.
Catalog Number
DOC00222 Orig.
Print Date
July 2004
SanDiegoMerchantServices.net 858-335-2992

Installation Manual iii
Foreword
Thank you for purchasing the NURIT 8000
Wireless Palmtop Solution. You now own one of
the most advanced electronic point-of-sale (POS)
terminals manufactured today.
This manual provides basic installation
instructions. To fully utilize the features of your
NURIT 8000, and for general safety purposes, it
is recommended that you familiarize yourself
with this manual, the terminal and any
peripheral equipment or accessories.

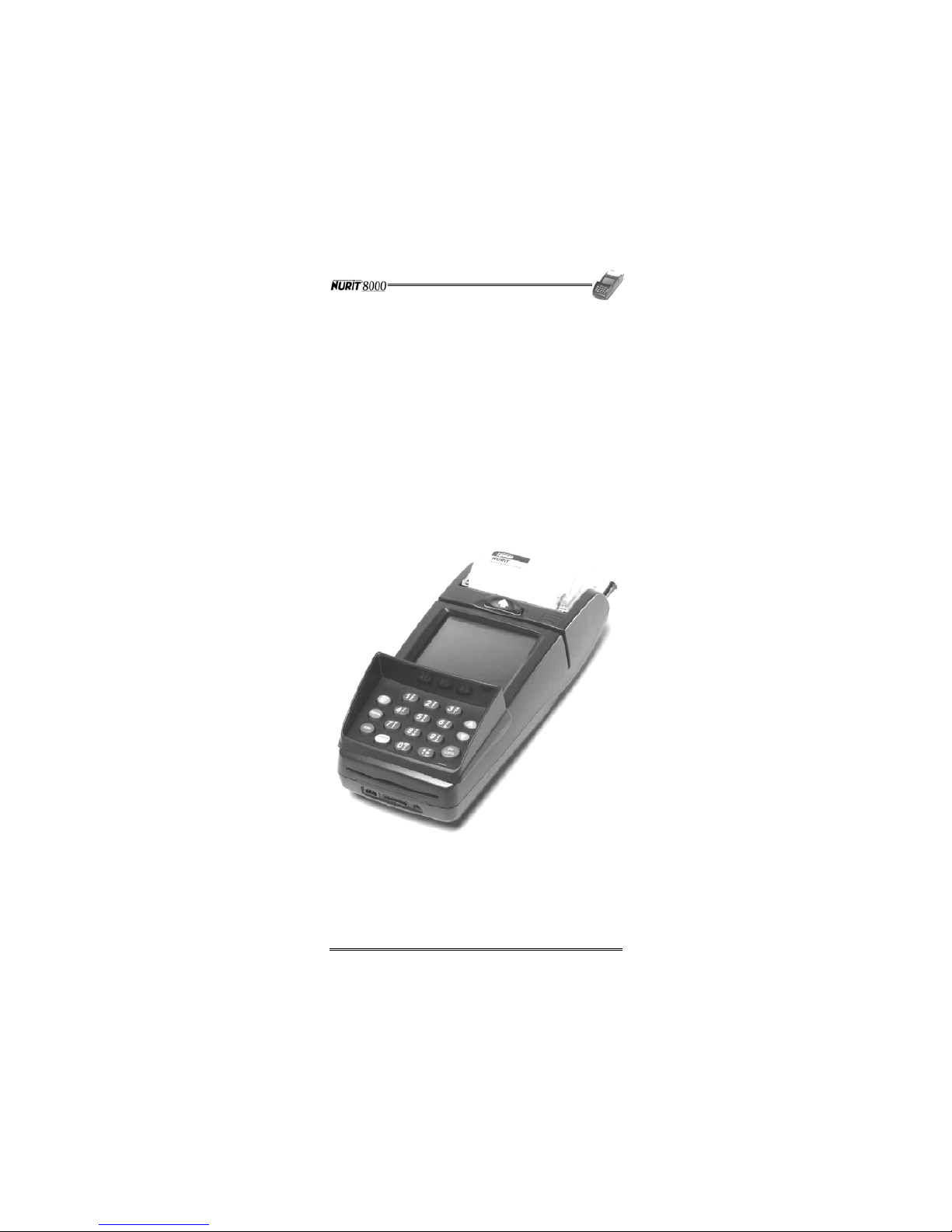

Figure 1 NURIT 8000 - General View
SanDiegoMerchantServices.net 858-335-2992

iv Installation Manual
Note
All graphic images in this manual
are for illustrative purposes only.
Different models of this terminal
may exist and may vary in
appearance according to country of
use or particular customer
requirements.
The basic installation procedure is
the same for most units.
The operation of the terminal is
application-dependent.
It is recommended that you store this manual in
a safe place for future reference.
Document Conventions
Note - Helpful hints and other important
information that will help you get better use
from your NURIT.
Caution - Information about procedures that, if
not observed, could result in damage to the
NURIT or other equipment.
Warning - Failure to follow specific procedures
and practices may result in personal injury.
SanDiegoMerchantServices.net 858-335-2992

Installation Manual v
Table of Contents
Copyright Notice ........................................ ii
Trademark Information ................................. ii
Catalog Number ......................................... ii
Print Date................................................. ii
Foreword............................................. iii
Document Conventions ................................ iv
Product Regulatory Information ....................... 1
FCC Compliance Statement............................ 1
FCC Part 15 Requirements ............................. 1
FCC Part 68 Requirements ............................. 2
FCC Part 90 Requirements ............................. 3
In Canada:................................................ 4
EU Directives Compliance Statement ................ 4
General Safety Instructions.......................... 5
Radio Frequency Energy Emission .................... 9
Safety Precautions for Medical Devices.............10
Pacemakers .............................................10
Other Medical Devices.................................10
Safety Precautions for Other Electronic Devices ..11
Specifications ....................................... 12
Initial Setup ......................................... 13
Unpacking the Box .....................................13
Contents Checklist .....................................14
Selecting a Point-Of-Sale Location ..................17
Optional Accessories ............................... 19
General Features ................................... 23
SanDiegoMerchantServices.net 858-335-2992

vi Installation Manual
Installing the Battery Pack ........................ 26
Battery Pack Maintenance ............................28
Connecting the NURIT 8000 to an AC Power Outlet. 30
Installing the External Modem.................... 32
Connecting the Car Adapter ........................ 33
Loading Paper in the Printer ...................... 35
Installing the Keypad Privacy Shield ............. 37
Installing a SIM or SAM Card ......................... 39
Installing the SIM/SAM Cardholder Compartment Cover.. 43
Installing a SIM Card in the TEL SIM Slot ............45
Connecting Peripheral Devices....................... 47
Connecting a Cellular Headset ................... 49
General Care and Maintenance ..................... 50
Cleaning the NURIT 8000..............................50
Cleaning the Printer ...................................51
Maintenance Recommendations .....................52
Technical Assistance ...................................52
Shipping the NURIT 8000 ..............................53
Troubleshooting ..................................... 54
Appendix A Using the Magnetic Card Reader....... 60
Appendix B Using the Smart Card Reader .......... 61
Installation Notes................................... 63
SanDiegoMerchantServices.net 858-335-2992

Installation Manual vii
List of Figures
Figure 1 NURIT 8000 - General View iii
Figure 2 Secure Device Label 13
Figure 3 NURIT 8000 – Box Contents 16
Figure 4 NURIT 8000 - Optional Accessories 19
Figure 5 NURIT 8000 - Top View 25
Figure 6 NURIT 8000 - Bottom View 25
Figure 7 Battery Pack Installation 26
Figure 8 Battery Pack Removal 27
Figure 9 AC Power Connection 30
Figure 10 External Modem Installation 32
Figure 11 Car Adapter Connection 33
Figure 12 Loading Paper in the Printer 36
Figure 13 Keypad Privacy Shield Installation 37
Figure 14 SIM/SAM Cardholder Locking-Clasp 41
Figure 15 SIM/SAM Card Installation 42
Figure 16 SIM/SAM Cardholder Compartment
Cover Installation 44
Figure 17 Void Label Installation 44
Figure 18 SIM Cardholder Ejection 45
Figure 19 SIM Card Installation 46
Figure 20 SIM Cardholder Insertion 46
Figure 21 Barcode Reader Connection 48
Figure 22 Cellular Headset Connection 49
Figure 23 Magnetic Card Reader 60
Figure 24 Smart Card Reader 61
SanDiegoMerchantServices.net 858-335-2992

SanDiegoMerchantServices.net 858-335-2992

Installation Manual 1
Product Regulatory
Information
Note
The following product regulatory
information and compliance
statements apply to all models of the
NURIT 8000x, where xrepresents a
suffix, such as S, SVP, or Secure,
designating the specific security
features of a particular model.
Caution
Changes or modifications to this
device that are not expressly
approved by the party responsible
for compliance could void the user's
authority to operate the equipment.
FCC Compliance Statement
Manufacturer: Lipman Electronic Engineering Ltd.
Model: NURIT 8000
FCC Part 15 Requirements
This equipment has been tested and found to comply
with the limits for Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference when the equipment is installed and
operated in a commercial environment.
SanDiegoMerchantServices.net 858-335-2992

2 Installation Manual
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation.
Operation of this equipment in a residential area is
likely to cause harmful interference in which case the
user will be required to correct the interference at
his/her own expense.
If this equipment does cause harmful interference to
radio or television reception, which can be determined
by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment
and the receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
• Consult your dealer or an experienced technician
for help.
Connection of peripherals to this unit requires the use
of grounded, shielded cables to ensure compliance
with the class B limits.
FCC Part 68 Requirements
[Applicable when using optional NURIT 8000 docking
station or NURIT 8000 external modem]
The FCC has established rules permitting this device
to be directly connected to the telephone network.
Standardized FCC Part 68 compliant telephone line
cords and modular jacks are used for these
connections. This equipment should not be used on
party or coin lines.
SanDiegoMerchantServices.net 858-335-2992

Installation Manual 3
If this device is malfunctioning, it may be causing
harm to the telephone network; this device should be
disconnected until the source of the problem can be
determined and until repair has been made. If this is
not done, the telephone company may temporarily
disconnect service.
The telephone company may make changes in its
technical operations and procedures; if such changes
affect the compatibility or use of this device, the
telephone company is required to give adequate notice
of the changes. You will be advised to file a complaint
with the FCC.
If the telephone company requests information on
what equipment is connected to their lines, inform
them of:
• The telephone number to which this unit is
connected
• The AC Ringer Equivalence Number: 00B
• The USOC jack required: RJ-11C
• The FCC Registration number: (See the
underside of the unit and/or applicable unit
documentation for this number.)
The Ringer Equivalence Number (REN) is used to
determine how many devices can be connected to your
telephone line. In most areas, the sum of the RENs of
all devices on any one line should not exceed five (5). If
too many devices are attached, they may not ring
properly. To be certain of the number of devices that
may be connected to the line, as determined by the
total RENs, contact the telephone company to
determine the maximum REN for the calling area.
FCC Part 90 Requirements
This device may contain a radio transceiver module,
(FCC ID number is located on the bottom of the
terminal), operating under Part 90 of the FCC rules in
a licensed part of the radio spectrum. Qualified
personnel must perform service or repairs to the radio
portion of this device. Any unauthorized modification
to the radio module, shielding, or antenna system may
void the user’s authority to operate this device.
SanDiegoMerchantServices.net 858-335-2992

4 Installation Manual
This device has been tested and meets RF exposure
guidelines for hand held operation pursuant to FCC
OET Bulletin 65 Supplement C ed. 01-01, IEEE
1528/D1.2 (2003) and Industry Canada RSS-102
(1999).
In Canada:
This digital apparatus does not exceed the class B
limits for radio noise emissions from digital
apparatuses set forth in the Radio Interference
Regulations of the Canadian Department of
Communications.
Cet appareil numérique n'émet pas de bruits
radioélectriques dépassant les limites applicables aux
appareils de la classe B, déterminée par la
Réglementation d’Interférence Radio du Ministère
canadien des Communications.
EU Directives Compliance Statement
This product complies with the requirements of
applicable EU Council Directives.
Caution
Any unauthorized modification of
the equipment may void the user’s
authority to operate this device.
SanDiegoMerchantServices.net 858-335-2992

Installation Manual 5
General Safety Instructions
Warning
Failure to observe these instructions
may result in severe personal injury
or damage to the NURIT 8000 or
other equipment.
Note
These safety instructions are based
in general on those provided by
Underwriters Laboratories (UL) Inc.
U.S.A.
When using the NURIT 8000 or any associated
device, the following basic safety precautions
should always be observed to reduce the risk of
fire, electric shock, or personal injury:
• Read and make sure you understand all
instructions.
• Follow all warnings and instructions marked
on the device and in this manual.
• Disconnect the device from the power supply
and any peripherals before cleaning.
• Do not use liquid or aerosol cleaners. Use a
damp cloth for cleaning and/or a soft brush.
• Do not use the device near water, especially
when using the AC/DC Power Adapter or
external modem.
• Never spill any liquid on the device.
SanDiegoMerchantServices.net 858-335-2992

6 Installation Manual
• Place the device in a stable position on a solid
surface. When operated hand-held, grasp the
device securely. Serious damage may result if
the device falls.
• The optimal operational position for the
terminal is hand-held at an angle of
approximately 30o. The terminal is also
designed for optimal tabletop usage. Keep the
terminal a short distance from your body.
• Do not cover slots and openings of the device.
They may be provided for ventilation and
protection against overheating. Never place
the device near radiators, or in a place where
proper ventilation is not provided.
• Use only the power source as marked on the
device. If you are not sure of the type of the
power supplied to your location, consult your
dealer or local power company.
• Do not place objects on the power cord. Install
the device where no one can step on the cord.
• Do not overload wall outlets and extension
cords as this can result in the risk of fire or
electric shock.
• Never push objects into the device through
slots (other than those specifically intended
for the stylus, magnetic stripe or smart cards,
or SAM/SIM cards), as this may result in fire
or electric shock.
SanDiegoMerchantServices.net 858-335-2992

Installation Manual 7
• To reduce the risk of electric shock, do not
disassemble any of the equipment or
accessories referred to in this manual. If
required, take the equipment to a qualified
service representative. Opening or removing
covers may expose you to dangerous voltages
or other risks. Incorrect reassembly can cause
electric shock.
• Disconnect the device from the power supply
and any peripherals and refer to qualified
service personnel under the following
conditions:
• The power supply cable or plug is
damaged or frayed.
• Liquid has been spilled into the
device.
• The device has been exposed to rain or
water.
• The device does not work normally,
when following the operating
instructions.
• The device has been dropped or
damaged.
• The device exhibits a distinct change
in performance.
• When using the NURIT 8000 optional
docking station and/or external modem
during thunderstorms, disconnect the
telephone line, if possible. There may be a
remote risk of electric shock from lightning.
• Never install telephone wiring during a
lightning storm.
SanDiegoMerchantServices.net 858-335-2992

8 Installation Manual
• Never install telephone jacks in wet locations
unless the jack is specifically designed for wet
locations.
• Never touch non-insulated telephone wires or
equipment unless the telephone line has been
disconnected at the network interface.
• Use caution when installing or modifying
telephone lines.
• When in the vicinity of a gas leak, do not use
the NURIT 8000, a standalone telephone or a
telephone connected to a POS terminal or
docking station to report the leak.
• Take care when installing an internal battery
pack. If installed incorrectly, it may explode.
Use only a Lipman supplied battery pack.
Discard used battery packs according to local
regulations.
SanDiegoMerchantServices.net 858-335-2992

Installation Manual 9
Radio Frequency Energy Emission
Your NURIT 8000 may contain a transmitter and
receiver that emit radio frequency (RF) energy.
The actual frequency range used by the NURIT
8000 is radio-modem dependent according to the
specific model. Digital modulation techniques are
used.
During radio communication, the local radio
system handling the actual communication
controls the actual power transmission output
level. This output level may typically vary
(relative to the distance between the user location
and the cell transmission sites).
• When used properly, the design of this hand-
held wireless terminal complies with U.S.,
Canadian, European and other standards for
protection from public exposure to radio
frequency (RF) magnetic signals.
• This device has been tested and meets RF
exposure guidelines for hand held operation
pursuant to FCC OET Bulletin 65
Supplement C ed. 01-01, IEEE 1528/D1.2
(2003) and Industry Canada RSS-102 (1999).
SanDiegoMerchantServices.net 858-335-2992

10 Installation Manual
Safety Precautions for Medical
Devices
For those persons using a pacemaker or other
medical device, please read the following
important safety notes:
• Though most electronic equipment and
critical medical devices are shielded against
radio-frequency signals, it is important to
realize the possibilities of potential
interference and to know the standard
precautions that may be taken.
Pacemakers
Industry standards recommend a minimum
separation of 15 cm (6 inches) between a wireless
phone-type device and a pacemaker to prevent
any potential problems.
Individuals using a pacemaker should:
• Always keep the NURIT more than 15 cm (6
inches) from the pacemaker when using the
unit for cellular wireless communication or
when performing an online transaction.
• Turn off the NURIT immediately and
disconnect it from the power supply if you
suspect any problem of interference.
Other Medical Devices
Consult the manufacturer of your medical
device to determine its level of shielding.
Depending on the proximity to certain
equipment, you may be asked not to use your
NURIT terminal or one of its accessories.
SanDiegoMerchantServices.net 858-335-2992

Installation Manual 11
Safety Precautions for Other
Electronic Devices
 Do not use your NURIT 8000 in an area of
potential explosive atmosphere, such as fuel
or chemical storage or transfer facilities, or in
any area where you would be advised to turn
off a vehicle’s engine.
• Do not replace the battery pack or charge the
NURIT 8000 in an area of potential explosive
atmosphere.
• Do not use the NURIT 8000 in a known
blasting area.
• Do not place the NURIT 8000 in the area over
a vehicle-equipped air bag.
• If the battery pack has been removed, ensure
that no metal objects come in contact with its
electrical contacts.
• You are using a NURIT 8000 designed for use
with a built-in internal antenna. Do not open
the device with the intent of tampering with
the antenna system. Doing so may damage
the unit and violate FCC (Ministry of
Communications) regulations.
• Radio frequency energy may affect improperly
installed or very sensitive systems. Consult
the specific device manufacturer (or airline
crew for possible airborne operation)
regarding typical problems that may arise
when using the device. At the time of the
publication of this manual, it is known that
use of all radio-type devices is prohibited
while airborne.
SanDiegoMerchantServices.net 858-335-2992

12 Installation Manual
Specifications
Specification Details
Power
• Terminal: 8.4 VDC at 1.0 A
• AC/DC Adapter (Safety
Approved)
Input: 100-240 VAC at
50/60 Hz (0.8 A)
Output: 8.4 VDC at 1.0 A
Dimensions
• Height: 82 mm (3.23 in)
• Width: 108 mm (4.26 in)
• Depth: 230 mm (9.06 in)
Paper Roll
• 57 mm x 38 mm
(2.25 in x 1.5 in)
• 10.5 mm (0.4 in) core diameter
Weight
• Terminal: 650 g (22.9 oz)
Including privacy shield,
battery pack and paper roll
• Shipping: 800g (28.2 oz.)
Not including this manual
Modem
Communication
Rate
• 56 Kbps (maximum)
Approvals
• EMV Levels 1 and 2
• Visa PED (optional)
• FCC Part 15 Class B
• CE
Note
Specifications are subject to change
without notice following
technological improvement of the
device and its components.
SanDiegoMerchantServices.net 858-335-2992
