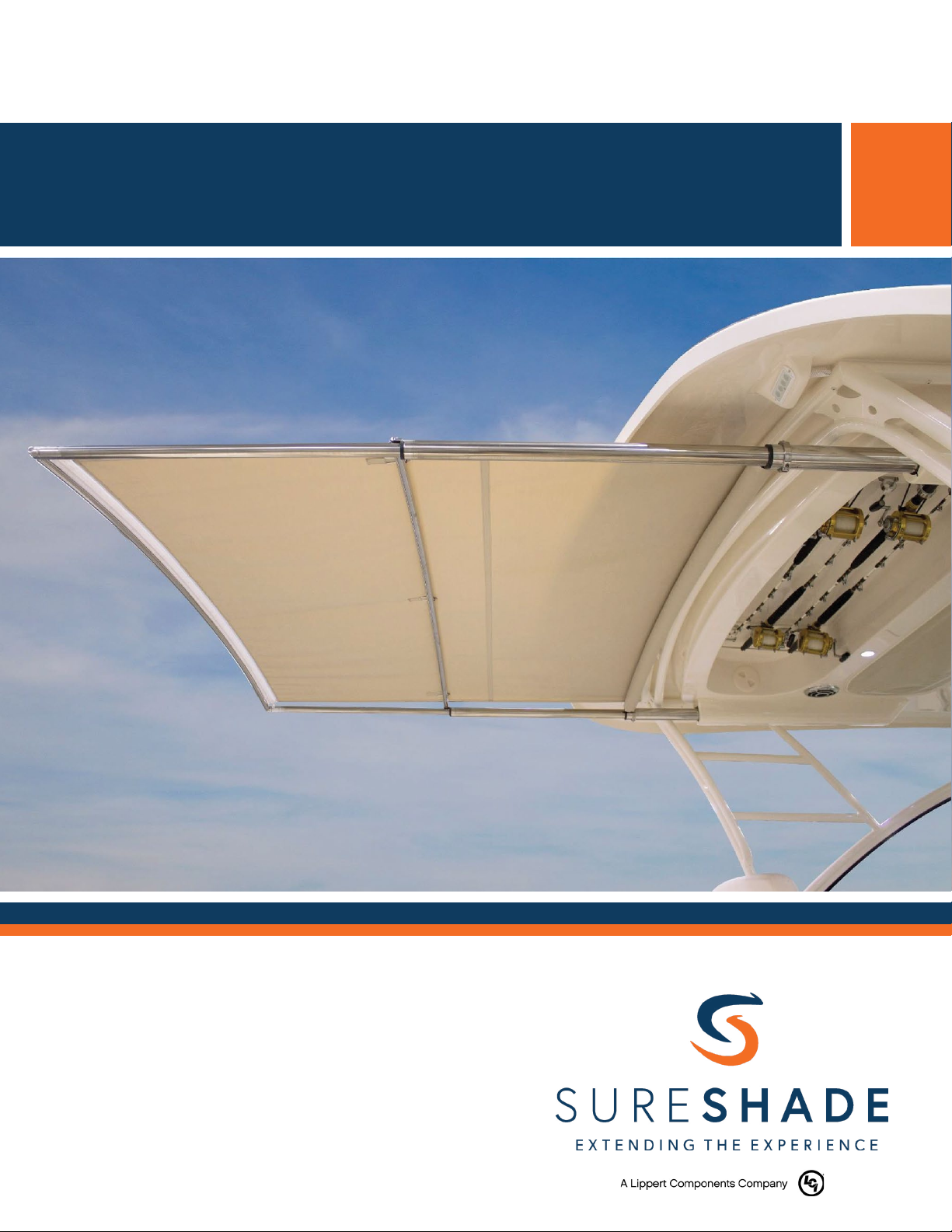

Lippert Components SURESHADE ATF Quick start guide

SURESHADE®TECHNICAL DOCUMENTATION
ATFTM Automated Boat Shade
INSTALLATION INSTRUCTIONS AND OWNER'S MANUAL
PLACEHOLDER

2
sureshade.com Rev: 08.11.20877-333-8323 CCD-0003846
TABLE OF CONTENTS
GENERAL INFORMATION ................................................................................................... 4
Introduction.............................................................................................................................................4
Model and Serial Number Tag Location...........................................................................................4
Contact Information ..............................................................................................................................4
Customer Support...........................................................................................................................4
SureShade Limited Product Warranty Statement..........................................................................4
SAFETY ................................................................................................................................. 6
Safety Descriptions ................................................................................................................................6
Important Safety Messages .................................................................................................................6
Important Instructions..........................................................................................................................7
Safety Warnings......................................................................................................................................7
Safety Label Locations ..........................................................................................................................7
SPECIFICATIONS.................................................................................................................. 8
Technical Data.........................................................................................................................................8
PREPARATION ..................................................................................................................... 9

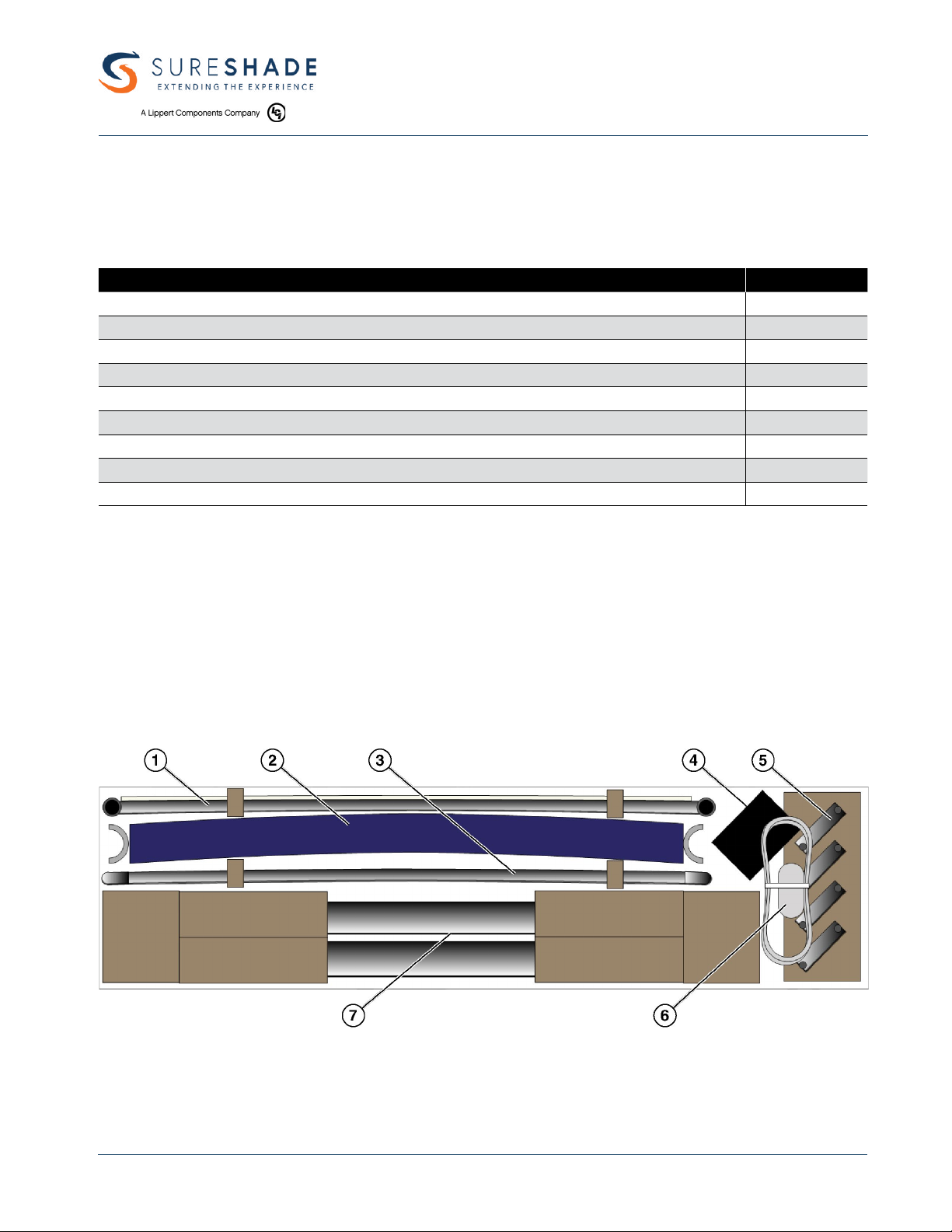

Parts and Quantities..............................................................................................................................9
Tools Required..................................................................................................................................... 10
Skill Level of Installer .......................................................................................................................... 11
Installation Time Frame ..................................................................................................................... 11

3
Rev: 08.11.20 sureshade.com877-333-8323 CCD-0003846
TABLE OF CONTENTS
INSTALLATION .................................................................................................................. 12

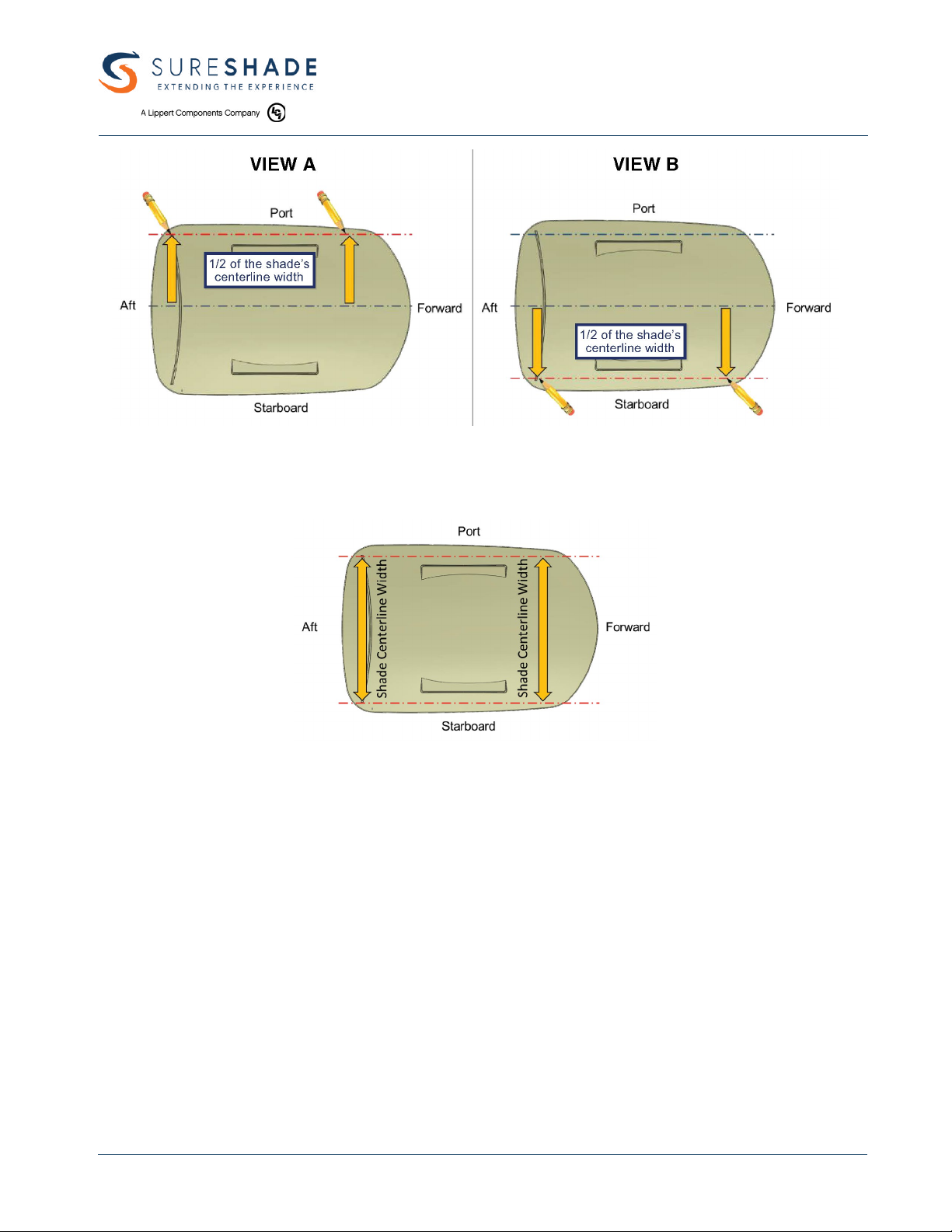

Determining the Centerline of the Hardtop to Position the Shade........................................ 12

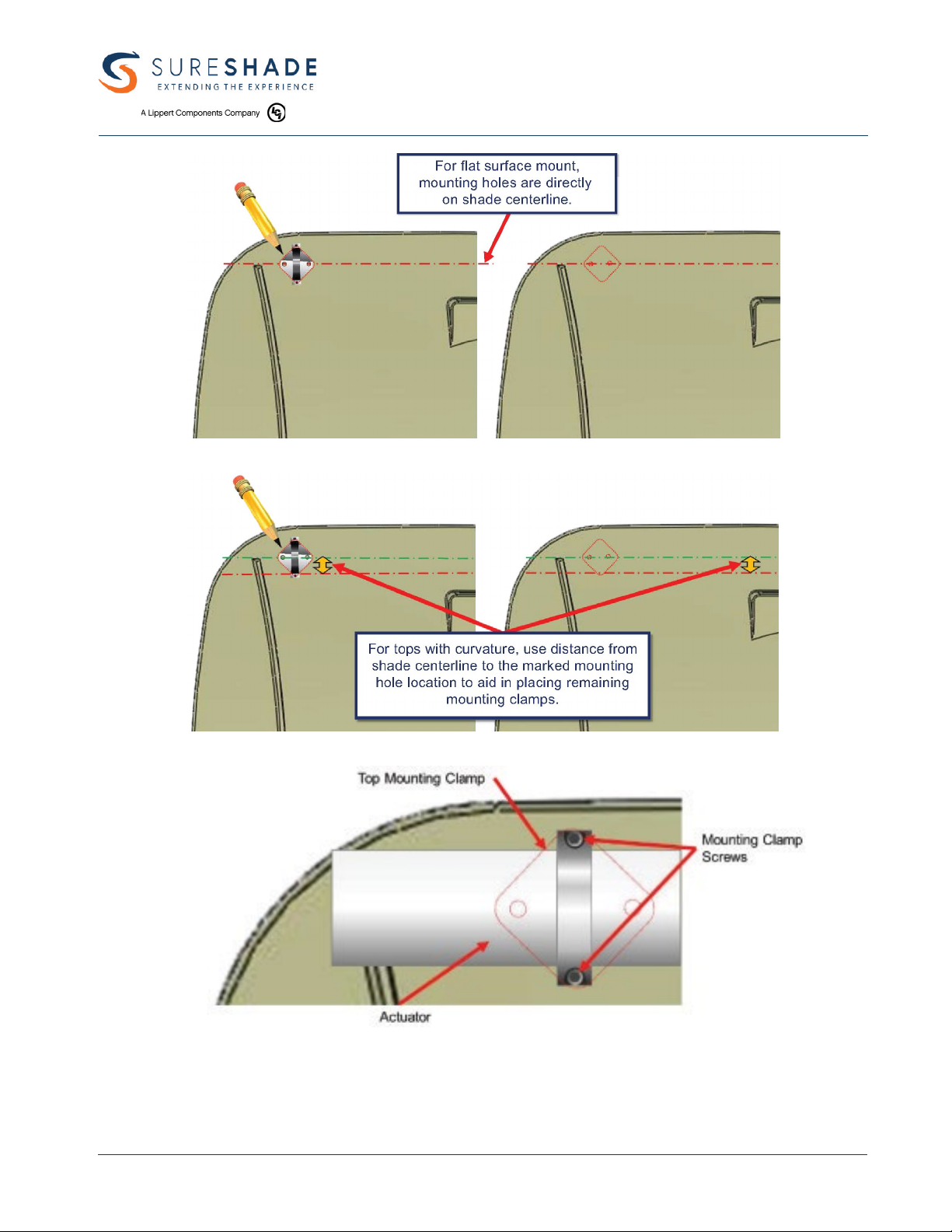

Setting the Mounting Clamps........................................................................................................... 13
Installing and Securing the Actuators ............................................................................................ 18

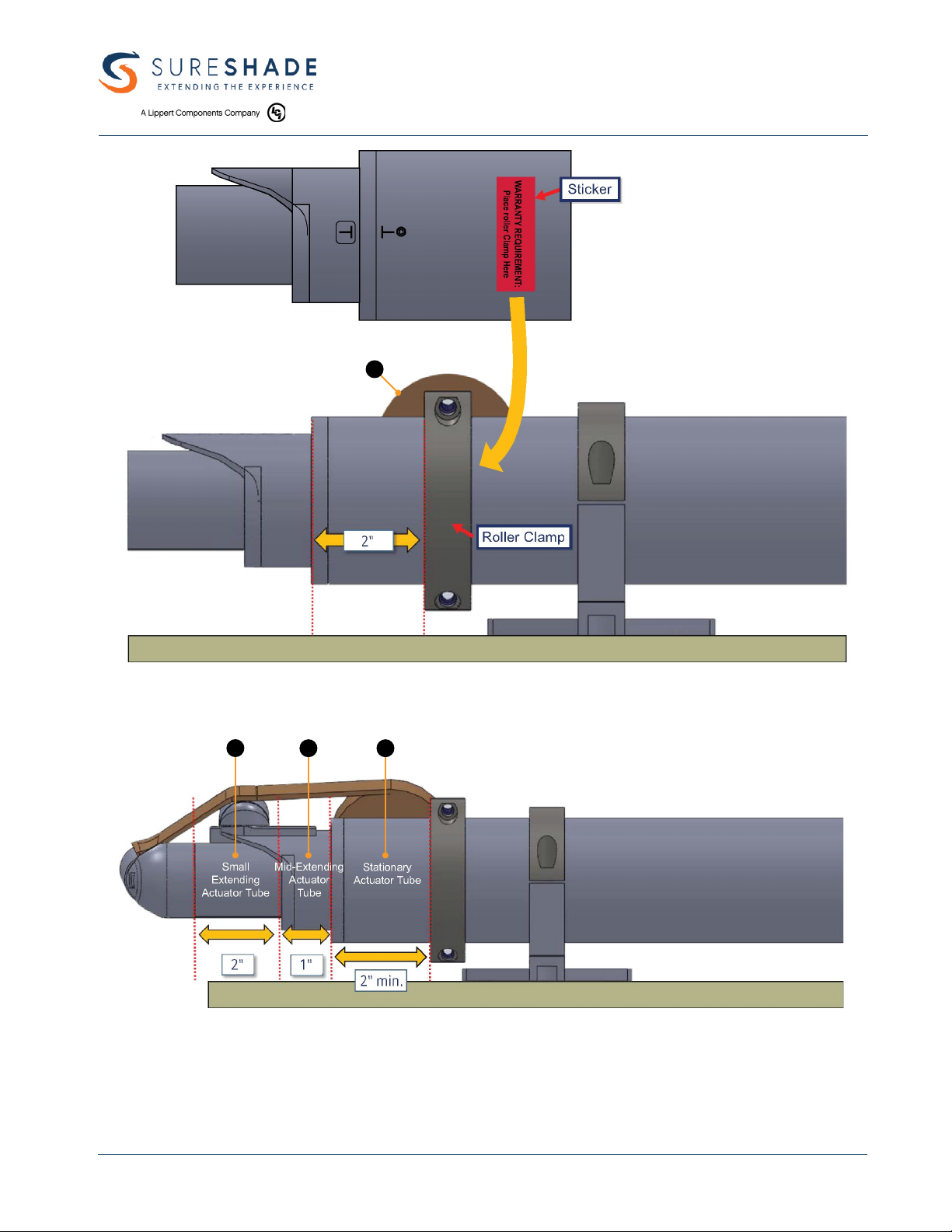

Securing the Roller Assembly........................................................................................................... 18
Securing the Crossbars...................................................................................................................... 20
Pre-loading the Canvas...................................................................................................................... 22
Wiring the Electrical System ............................................................................................................. 24
Electrical Wiring Diagram ............................................................................................................ 25
Initiating the Sureshade ATF-SG Intelligent Control Box (ICB) ................................................. 26
Initiating the Remote Key Fob .......................................................................................................... 26
Using the Momentary Rocker Switch ............................................................................................. 26
MAINTENANCE ................................................................................................................. 27
Regular Cleaning.................................................................................................................................. 27
Actuator Collar Maintenance............................................................................................................ 27
Canvas.................................................................................................................................................... 27
Long-Term Storage ............................................................................................................................. 27
TROUBLESHOOTING......................................................................................................... 28
Troubleshooting Chart....................................................................................................................... 28
Troubleshooting the SureShade ATF-SG Intelligent Control Box (ICB).................................. 29
If the Shade Does Not Operate................................................................................................. 29
“Force Hard Home” Reset ........................................................................................................... 29
NOTES ................................................................................................................................ 30

4
sureshade.com Rev: 08.11.20877-333-8323 CCD-0003846
GENERAL INFORMATION
INTRODUCTION
Thank you for purchasing a SureShade®retractable shade for your boat.
Invented by boaters for boaters, SureShade is the new standard for shade on boats. Our automated or manual
retractable shade systems are featured on over 50 boat brands as factory or aftermarket installations.
SureShade is the only U.S.-made telescoping marine sunshade on the market, with patents in the U.S., Canada, Europe
and China. SureShade is committed to improving sun safety on boats with shade systems that give boaters more sun
protection... where and when they need it.
MODEL AND SERIAL NUMBER TAG LOCATION
Your shade system is identied by the serial number located on the control box. Please do not remove thislabel.
The canvas is identied by the white tag sewn into the canvas. Please do not remove this label.
CONTACT INFORMATION
CUSTOMER SUPPORT
We take pride in oering an unprecedented level of customer service to our boat builders, dealers and — most
importantly — the boaters who use our sunshade systems.
Whether you purchased your sunshade system as a factory-install option, an aftermarket installation through your local
boat dealer or directly from us, you can have condence in continued customer service resources from SureShade.
Should you require assistance with your SureShade installation, our technical experts are available from
9am - 5pm EST Monday through Friday via email at [email protected], or call us at 877-333-8323.
Further customer resources and information can be found on our website at:
https://www.sureshade.com/service/
SURESHADE LIMITED PRODUCT WARRANTY STATEMENT
SureShade provides the following Limited Warranty of its electric and manual sunshade awning systems.
SureShade warrants that the shade framework — which consists of the actuator drive assemblies, crossbars, roller
assembly, mounts and in the case of an electric shade, the motors, controller and wire that connects the actuators to
the controller — will be free from material defects and workmanship and will repair or replace, at its sole discretion,
any inoperable components that are reported within 3 years from the date of shade sale to original purchaser — boat
builder, dealer or private boat owner.
SureShade will also replace, at its sole discretion, the canvas component of the shade system (electric or manual)
when reported defective within one year from the date of canvas manufacture as indicated on the white manufacturer
tag attached to the canvas (tag must remain attached for warranty purposes).
Exclusions to this limited warranty are as follows:
• Damage resulting from abuse, misuse, neglect, improper installation, improper operation, improper
maintenance, attempted repair eorts resulting in further damage, power surges, underpowering or forcing
operation in low voltage situations, improper stowage for ground transportation, inclement weather or other act
of nature.

5
Rev: 08.11.20 sureshade.com877-333-8323 CCD-0003846
GENERAL INFORMATION
• Damage resulting from leaving the shade extended unattended during inclement weather.
• Damage resulting from leaving shade extended in conditions that exceed the shade framework’s wind rating of
50 mph (Applies to aft facing shade only. Forward shade must be stowed at all times while boat is underway).
• Damage resulting from corrosion.
• Any shade product that has been altered or modied from SureShade factory specications.
• Any shade that’s installed without SureShade-supplied or approved mounting components.
• Removal and/or dismantling of the shade and its components (including actuator drive system) without proper
notication to SureShade.
• Attempted controller reset that results in loss of controller memory, specically the manipulation of dip switches
1-4.
• Deterioration of the canvas thread and stitching.
• Travel time to/from boat to troubleshoot, repair and/or replace components.
• Labor cost and expenses associated with removal or reinstallation of other components in order to access the
shade product components.
• Any cost associated with production downtime or time spent troubleshooting or reviewing troubleshooting
documentation/videos.
• Excessive labor cost beyond recommended standard labor repair rates.
SureShade reserves the right to utilize reconditioned, refurbished, repaired or remanufactured products or parts in the
warranty repair or replacement process. Such products and parts will be comparable in function and performance to an
original product or part and warranted for the remainder of the original warranty period.
In no event shall any repair or replacement under this Limited Warranty exceed the fair market value of the product as
of the date of the owner’s claim.
Acceptance of any product returned for any refund provided by SureShade shall not be deemed an admission that the
product is defective.
In order for a warranty claim to be deemed valid, the following information must be provided to SureShade
immediately after discovery of any defect:
• Description of the nature of the problem
• Details of the boat that the shade is installed on — year, make, model and hull identication number.
• Date of shade purchase, or in the case of factory install, date of boat purchase.
• Details of the installation — Factory install? Dealer install? Private install?
SureShade will make every eort to troubleshoot, determine root cause and fully resolve the issue, either directly
or with an experienced marine technician. SureShade is solely responsible for determining and authorizing the
remedial actions to be performed either by a SureShade technician or an experienced marine technician approved by
SureShade.
The remedy of repair or replacement of parts or materials that are found to be defective in factory materials or
workmanship covered by this limited warranty shall constitute the owner’s sole and exclusive remedy against
SureShade for any claims whatsoever of economic loss resulting from product failure.
Please contact us or call 877-333-8323 with any questions or concerns, or if replacement canvas or parts for SureShade
sunshade systems are needed.

6
sureshade.com Rev: 08.11.20877-333-8323 CCD-0003846
SAFETY
SAFETY DESCRIPTIONS
The words WARNING, CAUTION and NOTICE are used throughout this manual to highlight important information. Be
careful that the meanings of these alerts are known to all who install and operate this equipment.
WARNING
Indicates a potentially hazardous situation that, if not avoided, could result in death or
serious injury.
CAUTION
Indicates a potentially hazardous situation that, if not avoided, could result in damage to product
or equipment.
NOTICE
Indicates a situation which can cause damage to the components and/or the environment, or cause
the equipment to operate improperly.
NOTE: Important information is noted to aid in the installation process.
WARNING
Always wear OSHA-approved body, eye, ear and respiratory system
protection. Never wear loose clothing, jewelry or long hair when installing
the retractable shade.
WARNING
Always keep hands and loose clothing clear of the actuators when
extending/retracting the shade.
IMPORTANT SAFETY MESSAGES
WARNING
Before installing and operating the retractable shade, be sure to read and
understand the content and safety messages in this manual.
This safety alert symbol appears with most safety statements. It means attention, become
alert, your safety is involved! Please read and abide by the statement that follows the safety
alert symbol.

7
Rev: 08.11.20 sureshade.com877-333-8323 CCD-0003846
SAFETY
IMPORTANT INSTRUCTIONS
• In the event of malfunction please visit https://www.sureshade.com/service/ and review applicable videos and
documentation before continuing to operate the system or making any repairs. You may also submit a service
request via email at [email protected]. Do NOT attempt to repair shade on your own or you could risk
voiding the warranty.
• Never disassemble actuators without permission from SureShade factory or you will void warranty.
• Do NOT install the shade anywhere it will obstruct or interfere with the navigation lights or any other boat
accessories.
• When tensioning the canvas, refer to https://www.sureshade.com/service-and-technical-documentation/ for
proper roller pre-load instructions. Improper tensioning can cause spring malfunction, which will prevent the
roller assembly from operating normally.
• Be sure that boat batteries are 100% charged before operating the shade.
• Your SureShade product has been designed and tested to withstand wind speeds of up to 50 mph. However, it is
recommended to retract the shade while underway.
• To protect the shade and components, always retract shade during inclement weather. Retracting the shade
when NOT in use will prolong the life of the canvas and components.
• Refer to the SureShade website for maintenance and winterization procedures. https://www.sureshade.com/
customer-resources/
• Do NOT operate the shade without the crossbars attached.
• It is important to understand the Warnings, Cautions and Notices BEFORE starting the installation.
SAFETY WARNINGS
• Keep hands away from moving shade parts.
• Keep clear of shade while extending and retracting.
• Keep shade clear of obstructions.
SAFETY LABEL LOCATIONS
Safety labels must be legible to alert personnel of safety hazards. Replace any illegible or missing labels immediately.
Safety labels removed during any repair work must be replaced in their original position (Fig.1) before operating
theshade.
Fig.1

8
sureshade.com Rev: 08.11.20877-333-8323 CCD-0003846
SPECIFICATIONS
TECHNICAL DATA
Functional Specication ATF STAGE
Extension length 5', 6' or 7'
Width Up to 12'
Over 12’ custom
Hardware Specication
Actuator material 316SS
Framework material 316SS
Mounting component material 316SS
Actuator placement Integrated w/in bridge or hardtop
Top surface-mount
Underside surface-mount
Roller conguration Straight or cambered spring-tension roller
Roller position Traveling or stationary
Canvas Marine-grade acrylic, Sunbrella®, any standard color
Electrical Specication
Voltage 12V or 24V
Amperage 3 amps
Operating device Toggle switch and remote control
Controller type Software-based synchronization
Controller dimensions 5" x 7" x 1.75"
Structural Specication
Maximum wind speed 50 mph
Maximum weight displacement 300 lbs across framework
Deection Less than 3"

9
Rev: 08.11.20 sureshade.com877-333-8323 CCD-0003846
PREPARATION
PARTS AND QUANTITIES
Many of the provided parts are pre-assembled before shipping. This helps to ensure all necessary parts are included
and checked for proper t before delivery. Ensure all assembled parts are contained in the shipping crate BEFORE
starting installation (Fig.2).
PART QUANTITY
Shade specication drawing — specic to your shade and provided as a separate document 1
Mounting clamps w/mounting hardware and bolt covers 4
Pre-assembled actuators 2
Roller assembly w/mounting hardware 1
Outer crossbar w/mounting hardware 1
Mid-crossbar w/mounting hardware 1
Pre-rolled canvas (attached to roller assembly) 1
Pre-programmed electronic controller w/wireless remote 1
Starboard and port control harness w/Deutsch connectors 2
Packing contents:
1. Outer Crossbar
2. Roller Assembly
3. Mid-Crossbar
4. Electronic Controller/Connections/Wireless remote
5. Mounting Clamps
6. Control Harness, Roller Clamps, Miscellaneous Hardware
7. Actuators.
Fig.2

10
sureshade.com Rev: 08.11.20877-333-8323 CCD-0003846
PREPARATION
TOOLS REQUIRED
REQUIRED TOOLS (NOT INCLUDED) SURFACE
INSTALL
INTEGRATED
INSTALL
Safety glasses/goggles X X
Ratchet and socket set X X
Power drill X X
Jigsaw X X
Drill bits X X
Phillips head screwdriver X X
Allen wrench set (standard) X X
Wire strippers X X
Wire cutters X X
Wire crimper X X
Utility knife X X
Assorted wire connectors X X
Wire (8-gauge for power as per ABYC E-11, Table IX, 10%
Voltage drop, 14-gauge for switch connections) X X
Multimeter (or similar device) X X
Tape measure X X
Marine caulk X X
Extension cord X
Thread lock (Loctite®) X X
Electrical tape X X
Tubing cutter, hacksaw X
Fish tape (used to route wires through inaccessible areas) X
Level X
Grease pencil X X
Wire ties X X
Hole saws X
Dremel®with round sanding wheels and/or round grinding bit
(If not available, a drill can be used) X
Ladder X X

11
Rev: 08.11.20 sureshade.com877-333-8323 CCD-0003846
PREPARATION
SKILL LEVEL OF INSTALLER
Must be able to read a tape measure and be comfortable using a hand drill.
For installation of shade framework - intermediate skill level:
• Read tape measure
• Use hand drill
• Able to lift 35+ lbs
Electrical installation - wiring of shade:
• Wiring of shade to the boat should be done by an experienced marine electrician.
INSTALLATION TIME FRAME
It is recommended that two people perform the installation. Depending on the type of mount (surface or integrated)
and the complexity of the wire run to the boat’s power source, the installation can take anywhere from 10 – 16 hours.

12
sureshade.com Rev: 08.11.20877-333-8323 CCD-0003846
INSTALLATION
DETERMINING THE CENTERLINE OF THE HARDTOP TO POSITION
THE SHADE
NOTE: Refer to the supplied shade specication drawing to determine the shade’s centerline width. Shade centerline
width is determined by the centerline of the port actuator tube to the centerline of the starboard actuator tube, and is
the most critical dimension in order to properly center the shade framework on the hardtop.
Mark hardtop centerline as follows:
1. Measure across the hardtop at the forward section from the port side to the starboard side. Using a grease pencil,
mark the center of the hardtop (Fig.3A).
2. Repeat step 1 for the aft section (Fig.3B). Using the pencil marks as a guide, run tape or string down the center of
the hardtop (Fig.3C).
3. After marking the centerline of the hardtop, begin determining the placement of the mounting clamps.
A. Refer to the shade centerline width dimension on the shade specication drawing.
B. Take 1/2 of the width of the shade specication drawing dimension and measure out from the hardtop
centerline to the port side by that amount (Fig.4, VIEW A).
NOTE: For example, if the shade centerline width is 80”, measure 40” from the hardtop centerline to the port
or starboard side (Fig.4, VIEWS A and B).
Fig.3
forward
aft
port
starboard
AB
C
NOTICE
Placement of mounting clamps must hold actuators parallel to each other to ensure proper
functioning of shade system.

13
Rev: 08.11.20 sureshade.com877-333-8323 CCD-0003846
INSTALLATION
Fig.4
4. To verify centerline measurements, measure the distance from the port side to the starboard side at the forward
and aft sections (Fig.5) to make sure marks are parallel. These measurements should be the same as the shade
centerline width provided on the shade specication drawing.
SETTING THE MOUNTING CLAMPS
1. Disassemble the four mounting clamps, which may include spacers (Fig.6) depending on installation, by
removing the two 1/4" - 20 x 3/4" socket head screws from each clamp.
A. Remove the top clamp (Fig.6).
B. Set the screws and top clamps aside.
C. Place mounting clamps 6" - 12" from aft of hardtop (Fig.7). Spacing between forward and aft mounting
clamps should be no less than 26" (Fig.7).
NOTE: Thirty inches or more is preferred, when applicable.
2. Position the four bottom mounting clamps (Fig.6) along the predetermined lines on the hardtop (Fig.7).
NOTE: Place actuator in clamps to aid in aligning and spacing mounting clamps.
3. With assistance, have each person place and hold an actuator onto the starboard and port mounting clamps.
Fig.5

14
sureshade.com Rev: 08.11.20877-333-8323 CCD-0003846
INSTALLATION
4. Measure from port actuator centerline to starboard actuator centerline at the forward and aft sections (Fig.8)
to make sure the centerline width is accurate. Refer to shade centerline width dimension located on shade
specication drawing.
NOTE: Shade actuators are used during this process to conrm proper shade position.
Fig.6
Fig.7
NOTICE
Actuators should be used to nalize placement before drilling holes.
NOTICE
Take note of the style of the hardtop (at or curved) before drilling the mounting holes.
5. If the hardtop is at (Fig.9), the mounting hole locations are the same as the shade’s center width for either a
topside or underside mount (Fig.9).

15
Rev: 08.11.20 sureshade.com877-333-8323 CCD-0003846
INSTALLATION
Fig.8
actuator
centerlines
Fig.9
6. If the hardtop is curved, the mounting holes are dierent than the shade centerline.
NOTE: When mounting on a curvature, mark one clamp and measure from the mounting hole to the actuator
centerline. Use that measurement to aid in placement of the remaining clamps.
A. To determine mounting hole location for topside surface mount with curvature, see gure 10. The mounting
holes will ultimately be drilled narrower than the shade centerline.
at surface mount
Fig.10
VIEW A
VIEW B
curved surface mount

16
sureshade.com Rev: 08.11.20877-333-8323 CCD-0003846
INSTALLATION
B. To determine mounting hole location for an underside surface mount on a hardtop with curvature, see
gure11. The mounting holes will ultimately be drilled wider than the shade centerline.
VIEW A
VIEW B
Fig.11
7. Mark location of mounting holes with a grease pencil.
8. Carefully remove actuator from mounting clamps. Make sure mounting clamps are in marked location and mark
holes for drilling. See gures 12 and 13.
NOTICE
Use care when tightening mounting clamp bolts. Do not overtighten to the point where the surface
material starts to buckle.
NOTICE
Re-measure and make sure placement of mounting clamps for both sides are clear of any
obstructions and measurements are correct before drilling holes.
curved surface mount
9. Drill the two marked holes for each of the mounting clamps.
• For at surface mount, drill straight down (Fig.9, VIEW A).
• For curved surface mount, drill on an angle perpendicular to surface (Fig.10, VIEW A).
10. Line up and install the four mounting clamps to the hardtop using the included 5/16" - 18 bolts and tighten
down with nuts (Fig.14).
NOTE: Mounting hardware is NOT provided for OEM installs.

17
Rev: 08.11.20 sureshade.com877-333-8323 CCD-0003846
INSTALLATION
Fig.12
Fig.13 curved surface mount
at surface mount
Fig.14

18
sureshade.com Rev: 08.11.20877-333-8323 CCD-0003846
INSTALLATION
INSTALLING AND SECURING THE ACTUATORS
1. Place the actuators onto the installed mounting clamps.
2. Attach the top mount to the mounting clamps using the provided hardware. Do not tighten as forward/aft
adjustments may be needed.
3. Measure from the telescoping end (Fig.15A) of the stationary actuator tube to the aft mounting clamp (Fig.15B).
There should be no less than 4" between the end of the tube and the aft mounting clamp (Fig.15).
4. Repeat steps 2 and 3 for the other actuator.
5. Once both actuators are aligned, tighten the mounting clamp top brackets.
SECURING THE ROLLER ASSEMBLY
A
B
Fig.15
NOTICE
The zipper of the canvas should be facing aft and on top of the roller when installed.
1. Slide the roller assembly (Fig.16A) onto the actuators.
2. Make sure roller clamps are aligned over“Place Roller Clamp Here” stickers; 2" in from the end of the actuator
main tube (Fig.16).
3. Secure the roller in place using the provided 1/4" - 20 x 3/4" socket head cap screws.
4. To make sure the actuator is properly spaced, do as follows:
A. Measure the space between the stationary actuator tube (Fig.17A) and the mid-extending actuator tube
(Fig.17B). It should measure approximately 1".
B. Measure the space between the mid-actuator tube (Fig.17B) and the small extending actuator tube (Fig.17C).
It should measure approximately 2".
C. If measurements are o, rotate the small extending actuator tube (Fig.17C) clockwise—to retract—or
counterclockwise—to extend.

19
Rev: 08.11.20 sureshade.com877-333-8323 CCD-0003846
INSTALLATION
Fig.16
A
Fig.17
AB
C

20
sureshade.com Rev: 08.11.20877-333-8323 CCD-0003846
INSTALLATION
SECURING THE CROSSBARS
1. Mid-Crossbar
NOTICE
Do NOT remove the #10 - 32 set screws (Fig.18A) that connect the outer and mid-crossbar sleeves to
the crossbars.
A
B
Fig.18
A. Remove the two 1/4" - 20 x 1/2" socket head cap screws (Fig.18B) from the ends of the mid-crossbar.
B. Attach the mid-crossbar (Fig.19A) onto actuator’s mid-crossbar tab (Fig.19B) and secure in place using two
1/4" - 20 x 1/2" socket head cap screws (Fig.19C).
Fig.19
A
B
C
