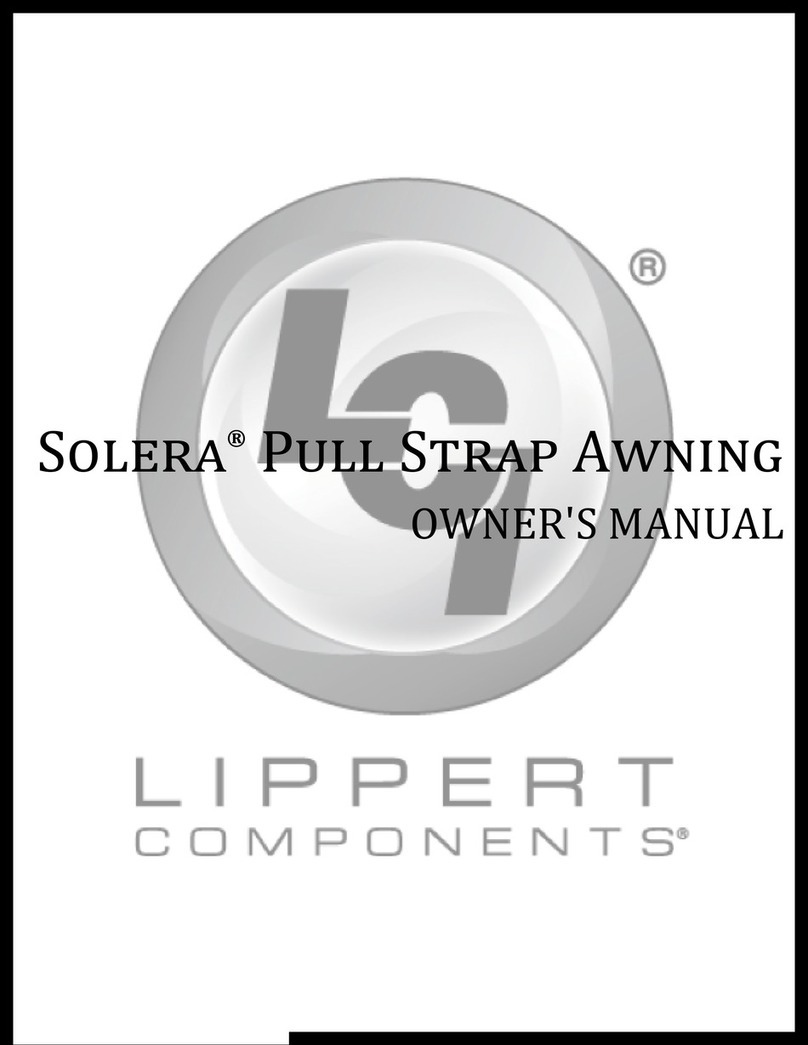

Solera®
Pull Strap Awning
OWNER'S MANUAL

Rev: 02.15.19 Page 2 CCD-0001400
Introduction
The Solera® Manual Pull Strap Awning extends and retracts with the easy-to-use pull strap. This manual provides
operational procedures for Solera Manual Pull Strap Awning. Solera Manual Pull Strap Awning features an
internal spring system that extends and retracts the awning. Additionally, the friction joint allows for rain dump
and adjustable pitch features, and there is no rafter arm to lock in place. The friction joint also provides added
stability.
Safety
TABLE OF CONTENTS
Introduction 2
Safety 2
Operation 3
Extending the Awning 3
Retracting the Awning 4
Adjusting Pitch 5
Maintenance 5
Fabric Care 5
Troubleshooting 6
Solera Manual Awning, Pull Strap Assembly 7
Solera Manual Awning, Pull Strap Components 8-13
The "CAUTION" symbol above is a sign that a procedure has a safety risk involved and may cause
personal injury or product and/or property damage if not performed safely and within the
parameters set forth in this manual.
Moving parts can pinch, crush or cut. Keep clear and use caution.
Operating the Solera Manual Pull Strap Awning in any other manner than described may result in
personal injury, damage to the recreational vehicle or the awning assembly as well as voiding the
Lippert Components Limited Warranty.

Rev: 02.15.19 Page 3 CCD-0001400
Operation
Extending the Awning
1. Locate the locking latch (Fig. 1), if equipped, and unlock the latch (Fig. 2).
NOTE: This latch is optional and may or may not be installed on one or both support arms.
2. Using the pull rod, place the "L" end of the rod on top of the cam lock (Fig. 3A) and pull down on the lock
to release it (Fig. 3).
3. Insert the pull rod into the pull strap (Fig. 4).
4. Pull strap to chest height using the pull rod. Using hands to grasp the strap, walk the awning outward,
keeping in front of the roll tube at all times (Fig. 5).
NOTE: Extension is considered complete when the fabric is completely unrolled, the valance seam is visible
and a section of the roll tube is exposed (Fig. 6). The exposed part of the roll tube will be under the
awning upon full extension. Also, check to make sure the cam lock is on top of the roll tube.
Exposed Roll
Tube Section
Fig. 1
Fig. 2
Fig. 3
Fig. 4 Fig. 5 Fig. 6 - Complete Extension
A
Fabric
Valance Awning
Head
Roll Tube
5. Do NOT tie down the roll tube, which would restrict proper support arm movement.
Tying the roll tube down once extended will not allow the free oating support arms to work as
designed and may cause damage to the awning or RV.
Valance Seam

Rev: 02.15.19 Page 4 CCD-0001400
Fig. 7 Fig. 8
Fig. 9 Fig. 10
Fig. 11 Fig. 12
A
Retracting the Awning
NOTE: The awning can be retracted without resetting the pitch. See Adjusting Pitch section.
1. Grasp the strap and pull slightly to release pressure on the cam lock (Fig. 7A) and disengaging the cam
lock.
2. While holding the strap in hand, walk the awning toward the unit until the strap is about chest height
(Fig. 8).
3. Insert pull rod into the pull strap.
4. Walk awning all the way in until it stops (Figs. 9 and 10). Remove pull rod from strap.
5. Locate the locking latch (Fig. 11), if equipped. Lock the latch to secure the awning in place (Fig. 12).
NOTE: This latch is optional and may or may not be installed on one or both support arms. If not installed,
awning is secured and ready for transportation.

Rev: 02.15.19 Page 5 CCD-0001400
Maintenance
Fabric Care
If the awning is rolled up while wet, roll it out and let it dry as soon as conditions allow before rolling it up again.
This will help prevent the formation of mildew and add greatly to the life of the awning.
NOTE: Mildew does not form on the fabric itself, but on the accumulated dust, dirt and grime.
Periodically clean vinyl or woven acrylic fabric using a mixture of ¼cup of dish soap and five gallons of warm
water.
1. Liberally slosh the mixture on the top of the fabric and roll up the awning for five minutes.
2. Apply the mixture to the bottom of the fabric as well.
3. Roll the awning back out and hose off with fresh water.
4. Repeat if necessary.
5. Allow the fabric to dry before rolling up.
Pitch
Fig. 13 Fig. 14
Adjusting Pitch
1. Pitch can be set manually by adjusting the articulating arm to tip one side of the awning to allow water
runoff.
NOTE: The awning will pitch itself to purge the pooling of excess water and may dump a significant amount of
water without notice.
2. Extend the awning to desired position.
3. Choose the side of the awning for optimum shade or convenient water runoff. Pull downward on the joint
of the articulating arm until desired pitch is set (Fig. 13). Do not push the articulating arm up past straight.
This will put tension on the gas strut, which can cause the strut to break. Belleville washers and bolt (Fig.
14A) allow for the joint to remain in the set position.
NOTE: If the articulating arm does not hold position, it can be tightened by adjusting the bolt (Fig. 14A) in the
center of the articulating arm.
NOTE: The awning can be retracted without resetting the pitch.
A

Rev: 02.15.19 Page 6 CCD-0001400
Troubleshooting
What’s Happening? Why? What Should Be Done?
Awning won’t open. Locked
If optional travel locks are installed, make sure that they have
been unlocked.
Make sure cam lock is flipped to the extend position.
Awning pitch won’t
stay in the flat
position.
Bad gas strut,
incorrect pitch
arm tension
Check for bad gas strut which will not allow awning to open all
the way. The fabric will just drop down.
Check pitch arm bolt for proper tension. (High winds can cause
the pitch arm to deviate from the flat position due to the built-
in safety feature of the awning.)
Make sure all three washers are in the proper location of the
pitch arm.
Awning doesn’t
close all the way.
Obstructions,
fabric not
square
The awning is considered completely closed as long as the
outer arm is overlapping the mount arm. This overlap can vary.
Make sure there are no obstructions in the support arm
assemblies preventing the awning from closing.
Verify the fabric is square from unit to roll tube and is rolling up
straight on the roll tube.
Awning seems
to wobble when
extending or
retracting.
Loose bolts,
end caps not
seated, bent
shaft, mount
arms not
secured or
bent, spacers
not properly
located
Make sure the bolts that hold the head to the support arm
assemblies are tight.
Make sure the end caps are seated properly on the roll tube.
Make sure the shaft coming out of the head going to the end
cap isn’t bent.
Make sure the mount arms are properly secured to the wall.
Make sure no part of the support arm assemblies are bent.
Make sure the wear collar spacers are all properly located in the
support arm assemblies.
Awning will not stay
in the rolled out
position.
Faulty cam
lock
Check the cam lock. Signs of a faulty cam lock include:
• The absence of a clicking noise when the awning is rolled out.
• The awning rolling back up after it is placed in the stop
position.

AWNINGS
Rev: 02.15.19 Page 7 CCD-0001400
Awning Rail
Drive Head
Assembly
Idler Head
Assembly Fabric
Roll Tube
Support Arm
Assembly
End Cap
Pull Strap
SOLERA®MANUAL AWNING, PULL STRAP ASSEMBLY

AWNINGS
Rev: 02.15.19 Page 8 CCD-0001400
D
C
B
A
Awning Fabric and Roll Tube Replacement
To order replacement awning fabric and roll tube for your awning, locate the awning label on the roll tube. Locate
the variant code at the bottom of the label. Call LCI Customer Service at 574-537-8900 and provide the variant code.
Variant Code
Callout Part # Description
A272397 White Idler Head Assembly
285147 Black Idler Head Assembly
B266147 White Idler Head Assembly (Only used on 6' awning assemblies.)
273479 Black Idler Head Assembly (Only used on 6' awning assemblies.)
C289563 White Idler Head Front Cover
289566 Black Idler Head Front Cover
D289564 White Idler Head Rear Cover
289567 Black Idler Head Rear Cover
SOLERA®MANUAL AWNING, PULL STRAP COMPONENTS

AWNINGS
Rev: 02.15.19 Page 9 CCD-0001400
E
G
F
Callout Part # Description
E271181 White Drive Head Assembly
272067 Black Drive Head Assembly
F289557 White Drive Head Front Cover
289560 Black Drive Head Front Cover
G289558 White Drive Head Rear Cover
289561 Black Drive Head Rear Cover
SOLERA®MANUAL AWNING, PULL STRAP COMPONENTS

AWNINGS
Rev: 02.15.19 Page 10 CCD-0001400
H I J
K
LM
N
O
Callout Part # Description
H 299419 Screw #8 - 15 x ½(End Cap to Roll Tube)
I 266156 #6 x ½Screw (Fastener for Head Covers, 6 Per Cover)
J 299630 #8 End Cap Wax Screw (Head to Roll Tube)
K118043 Nut ⁄- 18 Nylon Lock (Head to Arm)
L 266155 Screw #8 - 32 x ½ (Back Cover to Mount)
M 281079 Screw #6 - 20 x ½
N 266148 Screw ⁄-18 x 2-1/4 (head to arm)
O275071 Rubber Grommet (for manual override opening)
SOLERA®MANUAL AWNING, PULL STRAP COMPONENTS

AWNINGS
Rev: 02.15.19 Page 11 CCD-0001400
Q
P
S
Mount
Arm
R
Callout Part # Description
P3334291 White End Cap (Drive Head)
3334292 Black End Cap (Drive Head)
Q3334301 White End Cap (Idler Head)
3334302 Black End Cap (Idler Head)
R
295742 White Support Arm Assembly (Short, 61 ½")
295743 Black Support Arm Assembly (Short, 61 ½")
260294 White Support Arm Assembly (Pitched, 66 ⁄")
266169 Black Support Arm Assembly (Pitched, 66 ⁄")
281152 White Support Arm Assembly (Flat, 69")
281154 Black Support Arm Assembly (Flat, 69")
NOTE: Support Arm measurement based on wall mount extrusion.
S
280343 Gas Strut; 61 ½" Short, 69" Tall and 77" XL Awning Arms
260282 Gas Strut; 63" Tall and 66 ⁄" Tall Awning Arm
346882 Gas Strut; 60 ½" Tall Awning Arm
SOLERA®MANUAL AWNING, PULL STRAP COMPONENTS

AWNINGS
Rev: 02.15.19 Page 12 CCD-0001400
Y
AW X
AT
V
AU
Callout Part # Description
T286576 Screw #14 - 10 x 1 ½(Arms to Coach)
U282484 Star Washer (for Gas Strut)
V289373 White Awning Center Support Assembly
289374 Black Awning Center Support Assembly
NOTE: Only required for Solera Awnings greater than 21' in length.
W344391 Pull Rod
X292794 Manual Pull Strap Replacement
Y281928 White Awning Rail (144")
281929 Black Awning Rail (144")
SOLERA®MANUAL AWNING, PULL STRAP COMPONENTS

Rev: 02.15.19 Page 13 CCD-0001400
