The basic CDS 4000 system - for
conferences, boardrooms,
government offices, committee
rooms, press centres, courtrooms,
etc.

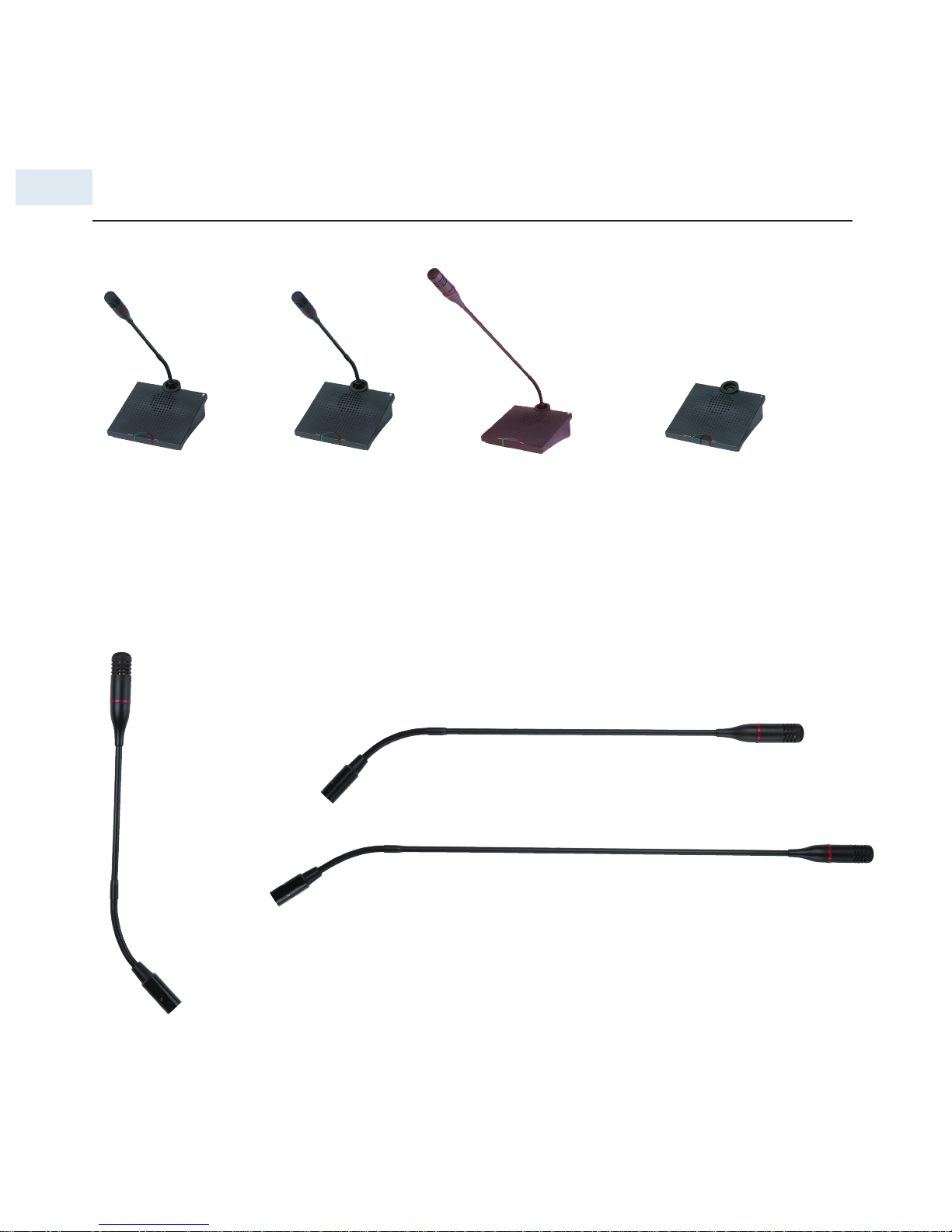

Based on a central unit - CU
4005, the system drives up to 50
microphone units in one chain. Ten
of these may be chairman versions.
Simply connect the units one after
the other and the system is ready for
the meeting.
Alternatively the CU 4010 drives
up to 100 units in two chains.
The simple “daisy-chain” cable
configuration makes set-up simple,
easy and fast. Automatic operation
with “push to speak/request” button
(on/off) and furthermore “delegate
off” and priority access to speak for
chairman units ensures trouble free
meeting sessions.
Built-in loudspeakers in hi-fi quality
provide surpassed speech
intelligibility.
Enhanced options
The CU 4005/10 includes in addition
to facilities for speaking and listening
a complete range of microphone
control possibilities, which brings
structure and order to meetings.
An LCD display provides
information about the basic
automatic operating modes “AUT” or
“FIFO”. 1 to 6 delegates may be set
for simultaneous activation. “FIFO”
includes a “request to speak”
waiting list with automatic activation.
On the display you can see
volume settings and system status
- and easily do an automatic
performance test.
Also the CU 4005/10 includes
connectors for linking to external
equipment such as interpretation
systems, tape recorders or PA
systems.
The CU 4005/10 has a few, self-explanatory
operating buttons and an illuminated display
on the front. On the back professional XLR
and D-Sub connectors ensure optimum
connection to microphone units, external
sound system, interpretation system or
recording equipment. Stacking 10 CU 4010
units up to 1000 microphones can be control-
led. Due to the elegant design of the compact MC
4000 Microphone Control Panel, the MC 4000
may be placed at the head table and/or at
other positions in the conference room.
