LBB 4511 Radiator
INTEGRUS Radiators are used to distribute the
infrared light in the room to the receivers. Up to
120 radiators can be daisy-chained to one
transmitter via RG59 BNC cabling. The radiator
requires a mains power supply.
updated 07.19.05 Listen®and the Listen logo are registered trademarks of Listen Technologies Corporation
• Covers up to 10,750 square ft. (999 square meters) (one carrier, 4 standard quality channels)*
• Power output selection for efficiency and economy
• Universal mains power facility allows use worldwide
• No fan - cooled by convection - resulting in quieter operation and less moving parts to wear out
• LED indicators for radiator status checking
• Communication between radiator and transmitter for easy checking by the operator
• Automatically switches on when transmitter is switched on and vice versa
• Automatic gain control ensures the IRED’s (infra-red emitting diodes) function with maximum
efficiency
• Automatic cable equalization ensures maximum transmission efficiency with different quality of
cables
• Automatic cable termination simplifies installation
• Temperature protection circuitry automatically switches radiator from full- to half- power if the
temperature becomes too high
• Brackets for mounting on ceiling and floor stand included, which simplifies installation
• Adjustable radiator angle ensures maximum coverage
• IRED’s protected by a cover plate, making the units easy to maintain and clean
• Attractive and stylish design
• Mains cable included
* When the amount of channels in use doubles, the footprint is reduced by half
Key Features & Benefits
LBB 4511/00
Specify Part
Number
Listen Technologies Corporation
8535 South 700 West, Suite A
Sandy, UT 84070-2515 U.S.A.
Phone: [phone] or 1.800.330.0891
Fax: [phone]
Email: [e-mail]

Don't miss a single sound.
LBB 4511 Radiator
updated 07.19.05
1. Two yellow LED’s: one on each radiator panel to indicate that this panel is switched on and is
receiving carrier waves from the transmitter
2. Two red LED’s: one on each radiator panel to indicate that this panel is in standby mode
3. Red and yellow LED’s simultaneously illuminated to indicate the radiator panel is malfunctioning
4. Red LED flashing and yellow LED’s to indicate the radiator panel is in temperature protection
mode
5. Power reduction switch to reduce the output of the radiator to half-power
6. Two delay compensation switches to compensate for differences in cable lengths between
transmitter and radiators
7. Male Euro socket for mains connection
8. HF input and output connectors (2 x BNC) for connection to transmitter and loop-through to
other radiators
Features
2
1
3
NOTE:
and use the same LED’s as and
4
1
2
5
6
7
8
Listen Technologies Corporation Phone: [phone] or 1.800.330.0891
8535 South 700 West, Suite A Fax: [phone]
Sandy, UT 84070-2515 U.S.A. Email: [e-mail]

Don't miss a single sound.
LBB 4511 Radiator
Cable t
yp
e 75 ohm RG5
9
Maximum number of radiators 30
p
er HF out
p
u
t
Maximum cable len
g
th TBD
Mounting
Suspension bracket for direct ceiling mounting
Mounting plates for floor stands with M10 and ½"Whitworth thread
LBB 3414/00 Wall Mounting Bracket can be used for fixing radiator to wall surfaces
Dimensions (H x W x D) without bracket: 7.9 x 19.7 x 6.9 in. (200 x 500 x 17 mm
)
Radiator angle 0, 15 and 30° for floor-stand mounting
0, 15, 30, 45, 60, 75 and 90° for wall/ceiling mounting
Weight without bracket: 15 lbs. (6.8 kg)
with bracket: 17 lbs. (7.6 kg)
Finish Bronze colored
Number of IRED
s
260
Total IR output at 68°F (20 °C
)
8 Wrms 16 Wpp
Total optical peak intensity 9 W/s
r
Angle of half intensity ± 22°
HF input nominal 1Vpp, minimal 10 mVpp
Mains voltage 90 to 260 V, 50 to 60 H
z
Power consumption 100 W
Power consumption (standby) 8
W
Workin
g
conditions Fixed/stationar
y
/trans
p
ortable
Tem
p
erature ran
g
e - trans
p
or
t
-40 to 158 °F
(
-40 to + 70 °C
)
Temperature range - operating 41 to 113 °F (+5 to + 45 °C)
Maximum relative humidit
y
< 93%
According to EN 60065, CAN/CSA-E65 (Canada and US) and UL 6500
According to EN 60065, CAN/CSA-E65 (Canada and US) and UL 1419 for LBB
4511/00 and LBB 4512/00
EMC emission According to harmonized standard EN 55103-1 and FCC rules part 15, complying
with the limits for a class A digital devices
EMC immunity According to harmonized standard EN 55103-2
EMC approvals Affixed with the CE mark
ESD According to harmonized standard EN 55103-2
Mains harmonics According to harmonized standard EN 55103-1
Environmental requirements Contains no banned substances as specified in
UAT-0480/100
(
e.
g
. no cadmium or asbestos
)

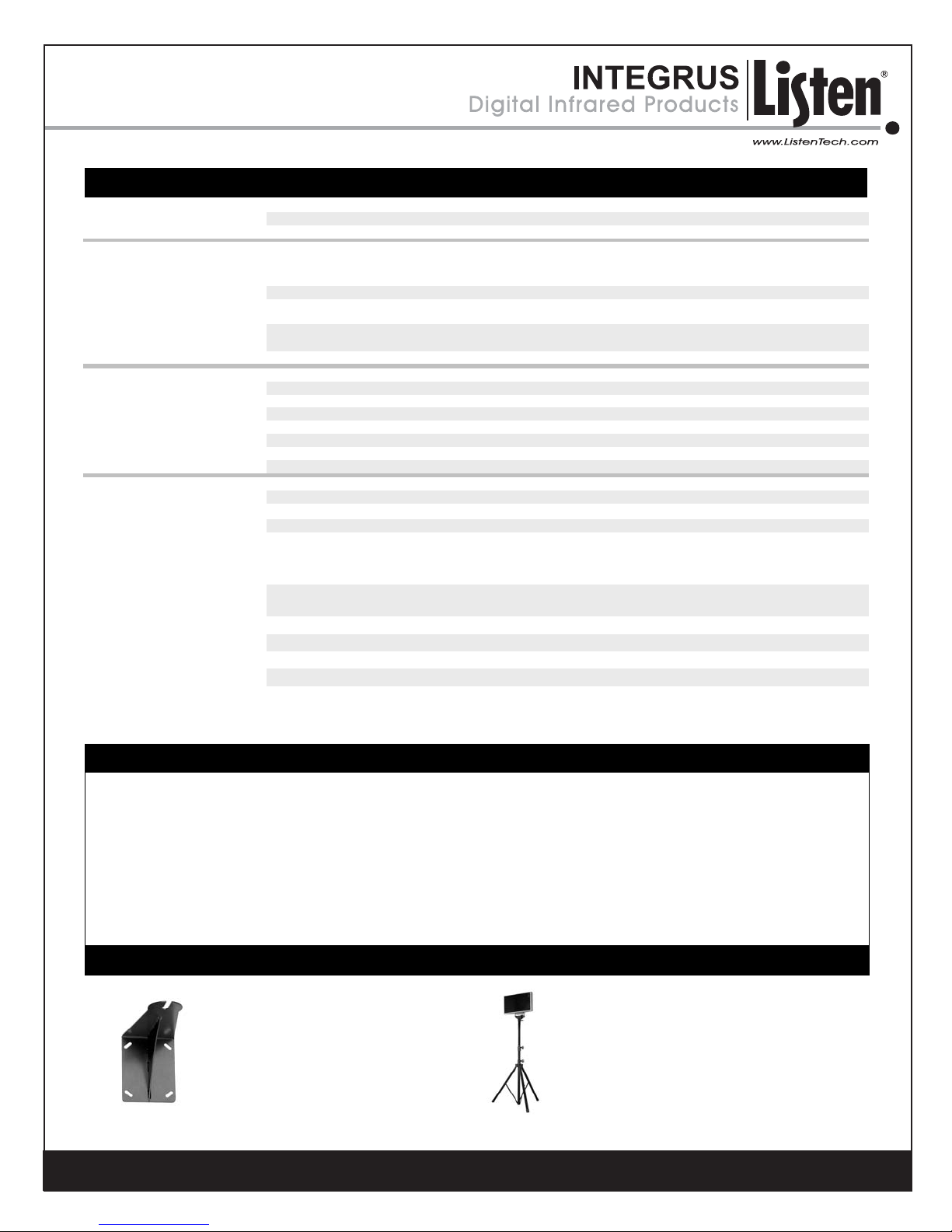

Cabling and System Limits
System Environmental
Conditions
Safety
Physical
Electrical and Optical
Characteristics
Photographs, CAD drawings, etc. available at www.ListenTech.com.
Specifications
Warranty
Most Bosch equipment carries a 3 year limited manufacturer's warranty (excluding accessories) to be
free from defects in workmanship and material under normal use and conditions. Bosch rechargeable
batteries carry a 1 year warranty. All Bosch accessory items carry a 90-day warranty to be free from
defects in workmanship and material under normal use and conditions. Warranty does not cover
normal wear and tear on the product or any other physical damage unless the damage was the
result of a manufacturing defect. This warranty is void if damage occurred because of misuse or if the
product has been repaired or modified by anyone other than a factory authorized service center.
Contact Listen or see the Listen website for further details.
Accessories
LBB 3414/00 Integrus Wall
Mounting Bracket
Study metal bracket to mount the
Integrus Medium or High Power
Radiators to a wall.
LA-337 Integrus Radiator Stand
The Integrus Radiator Stand is a portable tri-
pod stand for the Integrus medium and high
powered radiators. Made of sturdy
aluminum and glass-reinforced
polycarbonate fittings this stand is also
lightweight enough for portable application.
