INTRODUCTION
Congratulations and thank you for your purchase of this elliptical!
Purchases of this product ensure that a minimum of $4M will go to the LIVESTRONG®Foundation and the fight
against cancer.
Whether your goal is to win races or simply enjoy a fuller, healthier lifestyle, this elliptical can help you attain it
– adding club-quality performance to your at-home workouts, with the ergonomics and innovative features you
need to get stronger and healthier, faster. Because we’re committed to designing fitness equipment from the
inside out, we use only the highest quality components. It’s a commitment we back with one of the strongest
frame-to-brake warranty packages in the industry.
You want exercise equipment that offers the most comfort, the best reliability and the highest quality in its class.
LIVESTRONG®by Johnson ellipticals deliver.
2 ENGLISH
30 FRANÇAIS
58 ESPAÑOL

3
IMPORTANT PRECAUTIONS
SAVE THESE INSTRUCTIONS
Read the ELLIPTICAL GUIDE before using this OWNER’S MANUAL. When using an electrical product, basic precautions
should always be followed, including the following: Read all instructions before using this elliptical. It is the responsibility of
the owner to ensure that all users of this elliptical are adequately informed of all warnings and precautions. If you have any
questions after reading this guide, contact Customer Tech Support at the number listed on the back panel.
This elliptical is intended for in-home use only. Do not use this elliptical in any commercial, rental, school or institutional
setting. Failure to comply will void the warranty.

4
TO REDUCE THE RISK OF ELECTRICAL SHOCK:
Always unplug the elliptical from the electrical outlet immediately after using, before cleaning, performing maintenance and putting on or
taking off parts.
DANGER
• To reduce the risk of burns, fire, electrical shock or injury to persons:
• If you experience any kind of pain, including but not limited to chest pains, nausea, dizziness, or shortness of breath, stop
exercising immediately and consult your physician before continuing.
• When exercising, always maintain a comfortable pace. Do not sprint above 80 RPMs on this machine.
• To maintain balance, it is recommended to keep a grip on the handlebars while exercising, mounting or dismounting
the machine.
• Do not turn pedal arms by hand.
• Make sure handlebars are secure before each use.
• Keep the topside of the foot support clean and dry.
• Care should be taken when mounting or dismounting the equipment. Before mounting or dismounting, move the pedal on
the mounting or dismounting side to its lowest position and bring the machine to a complete stop.
• Do not wear clothes that might catch on any part of the elliptical.
• Always wear athletic shoes while using this equipment.
• Do not jump on the elliptical.
• At no time should more than one person be on the elliptical while in operation.
• This elliptical should not be used by persons weighing more than the specified user capacity in the OWNER’S MANUAL
WARRANTY SECTION. Failure to comply will void the warranty.
• This elliptical is intended for in-home use only. Do not use this elliptical in any commercial, rental, school or institutional
setting. Failure to comply will void the warranty.
• Do not use elliptical in any location that is not temperature controlled, such as but not limited to garages, porches, pool
rooms, bathrooms, car ports or outdoors. Failure to comply will void the warranty.
• To prevent electrical shock, never drop or insert any object into any opening.
• Connect this exercise product to a properly grounded outlet only.
WARNING

5
TO REDUCE THE RISK OF BURNS, FIRE, ELECTRICAL SHOCK OR INJURY TO PERSONS:
• Keep power cord away from heated surfaces. Do not carry this unit by its supply cord or use the cord as a handle.
• Do not use other attachments that are not recommended by the manufacturer. Attachments may cause injury.
• Do not operate where aerosol (spray) products are being used or when oxygen is being administered.
• Use the elliptical only as described in the elliptical guide and owner’s manual.
• Disconnect all power before servicing or moving the equipment. To clean, wipe surfaces down with soap and slightly damp
cloth only; never use solvents. (See MAINTENANCE)
• The elliptical should never be left unattended when plugged in. Unplug from outlet when not in use, and before putting on or
taking off parts.
• Do not operate under blanket or pillow. Excessive heating can occur and cause fire, electric shock, or injury to persons.
• At NO time should children under the age of 13 or pets be within 10 feet of the machine.
• At NO time should children under the age of 13 use the elliptical.
• Children over the age of 13 or disabled persons should not use the elliptical without adult supervision.
• Never operate the elliptical if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged,
or immersed in water. Contact tech support at the number on the back panel to schedule service.
• To disconnect, turn all controls to the off position, then remove plug from outlet.
• Do not remove the console covers unless instructed by Customer Tech Support. Service should only be done by an
authorized service technician
It is essential that your elliptical is used only indoors, in a climate controlled room. If your elliptical has been exposed
to colder temperatures or high moisture climates, it is strongly recommended that the elliptical is warmed up to room
temperature before first time use. Failure to do so may cause premature electronic failure.
WARNING
WARNING
This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

6

7
ASSEMBLY
There are several areas during the assembly process that special attention must be paid. It is very important to follow the
assembly instructions correctly and to make sure all parts are firmly tightened. If the assembly instructions are not followed
correctly, the elliptical could have frame parts that are not tightened and will seem loose and may cause irritating noises. To
prevent damage to the elliptical, the assembly instructions must be reviewed and corrective actions should be taken.
Before proceeding, find your elliptical’s serial number located on a white barcode
sticker on the front stabilizer tube and enter it in the space provided below.
ENTER YOUR SERIAL NUMBER AND MODEL NAME IN THE BOXES BELOW:
» Refer to the SERIAL NUMBER and MODEL NAME when calling for service.
WARNING
SERIAL NUMBER:
EP
MODEL NAME: LIVESTRONG® ELLIPTICAL

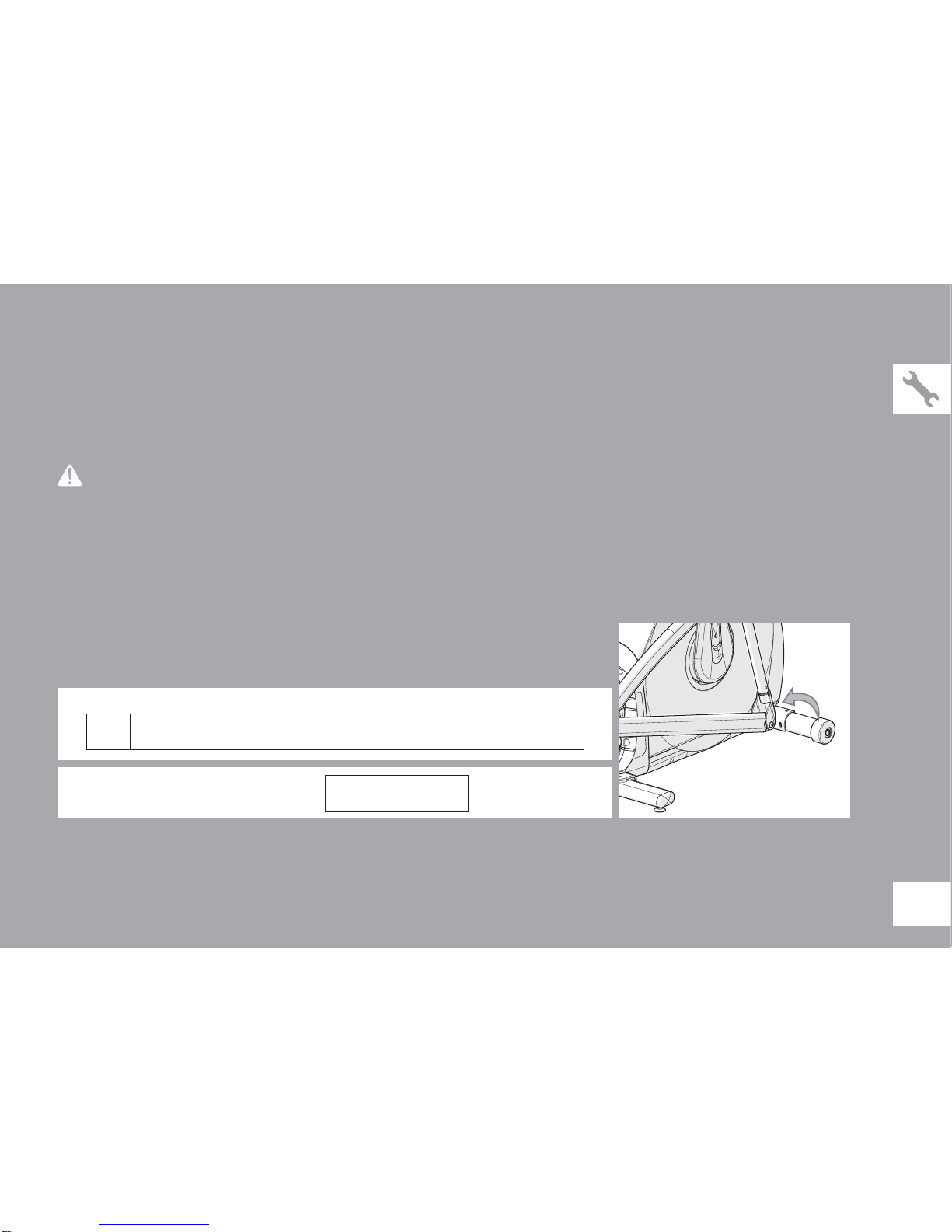

SERIAL NUMBER LOCATION

8
CONSOLE FAN
SPEAKERS
UPPER HANDLEBAR
WATER BOTTLE HOLDER
TOP CAP
MANUAL INCLINE LEVER
PEDAL ARM
PIVOTING FOOT PADS
GUIDE RAIL SET
REAR COVER
MUSIC PLAYER / READING RACK
CONSOLE
PULSE GRIPS
CONSOLE MAST
LOWER HANDLEBAR
CRANK
POWER CORD SOCKET
STABILIZER TUBE
MAIN FRAME
LOWER LINK ARM

9
TOOLS REQUIRED:
8 mm L-Wrench
13/15 mm Flat Wrench
5 mm L-Wrench/Screwdriver
Screwdriver (not included)
PARTS INCLUDED:
1 Main Frame
1 Stabilizer Tube
1 Guide Rail Set
1 Manual Incline Lever
1 Console Mast
2 Pedal Arms
2 Lower Handlebars
2 Upper Handlebars
2 Handlebar Caps
2 Lower Link Arms With Footpads
1 Front Top Cap Piece
1 Rear Top Cap Piece
1 Console Mast Boot
1 Console
1 Rear Cover
1 Audio Adapter Cable
1 Power Cord
1 Hardware Kit
UNPACKING
Unpack the product where you will be using it. Place the elliptical carton on a level
flat surface. It is recommended that you place a protective covering on your floor.
Never open box when it is on its side.
NOTE: It is recommended that two people work together for ease and efficiency
while assembling an elliptical.
If you have questions or if there are any missing parts, contact Customer Tech
Support. Contact information is located on the back panel of this manual.
NEED HELP?
PRE ASSEMBLY
During each assembly step, ensure that ALL nuts and bolts are in place and
partially threaded. It is recommended you complete the full assembly of your
unit before completely tightening any ONE bolt. Several parts have been pre-
lubricated to aid in assembly and usage. Please do not wipe this off. If you
have difficulty, a light application of lithium bike grease is recommended.
IMPORTANT NOTES

10

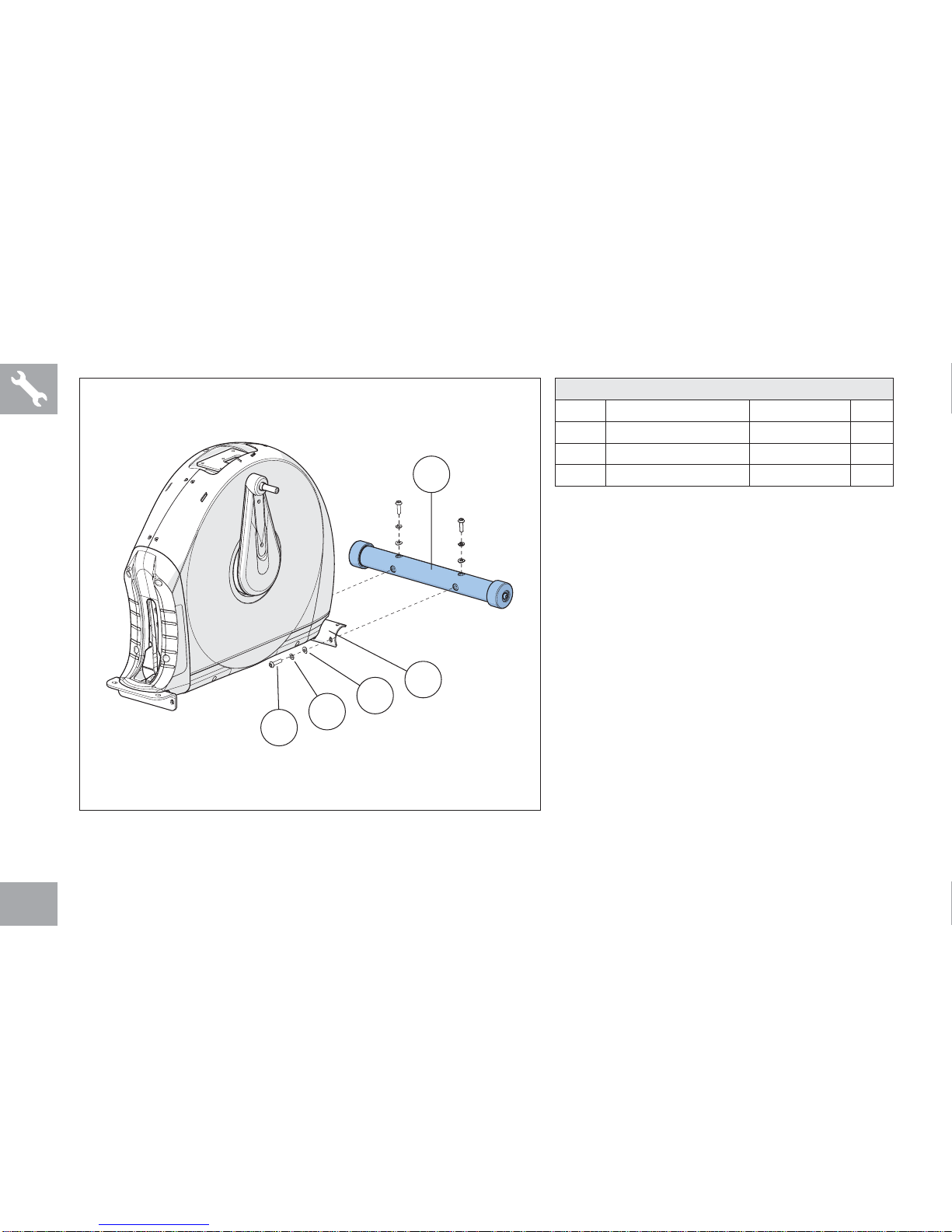

ASSEMBLY STEP 1
A Open HARDWARE FOR STEP 1.
B Attach the STABILIZER TUBE (1) to the
MAIN FRAME (2) using 2 BOLTS (A),
2 SPRING WASHERS (B) and 2 ARC
WASHERS (C) on each side.
A
BC2
1
HARDWARE FOR STEP 1
PART TYPE DESCRIPTION QTY
A BUTTON HEAD BOLT M8X1.25PX30L 4
BSPRINGWASHER8.2X15.4X2.0T4
C ARC WASHER 8.4X17.0X1.0T 4

11
ASSEMBLY STEP 2
3
4
EBF
D
A Open HARDWARE FOR STEP 2.
B Attach MANUAL INCLINE LIFT LEVER
(3) to GUIDE RAIL SET (4) using 4 BOLTS
(D), 4 FLAT WASHERS (E), 4 SPRING
WASHERS (B) and 4 NUTS (F).
HARDWARE FOR STEP 2
PART TYPE DESCRIPTION QTY
D BUTTON HEAD BOLT M8X1.25PX35L-
20L 4
E FLAT WASHER 8.2X16.0X2.0T 4
BSPRINGWASHER8.2X15.4X2.0T4
FNUTM8X1.25P4

12
HARDWARE FOR STEP 3
PART TYPE DESCRIPTION QTY
G SOCKET CAP BOLT M10X1.5PX20L 4
H SPRING WASHER 10.2X18.4X2.5T 4
I FLAT WASHER 10.2X20.0X1.5T 4
ASSEMBLY STEP 3
4 3 2
H
I
G
A Open HARDWARE FOR STEP 3.
B Align GUIDE RAIL SET (4) with MAIN
FRAME (2) as shown.
C Lift up on the MANUAL INCLINE LIFT
LEVER (3) and place it in one of the holes
inside the MAIN FRAME (2).
D Attach the GUIDE RAIL SET (4) to the
MAIN FRAME (2) using 4 BOLTS (G),
4 SPRING WASHERS (H) and 4 FLAT
WASHERS (I).

13
2
7
5
9
K L
B
8
6
J
NOTE: Be
careful not
to pinch any
wires while
attaching the
console mast.

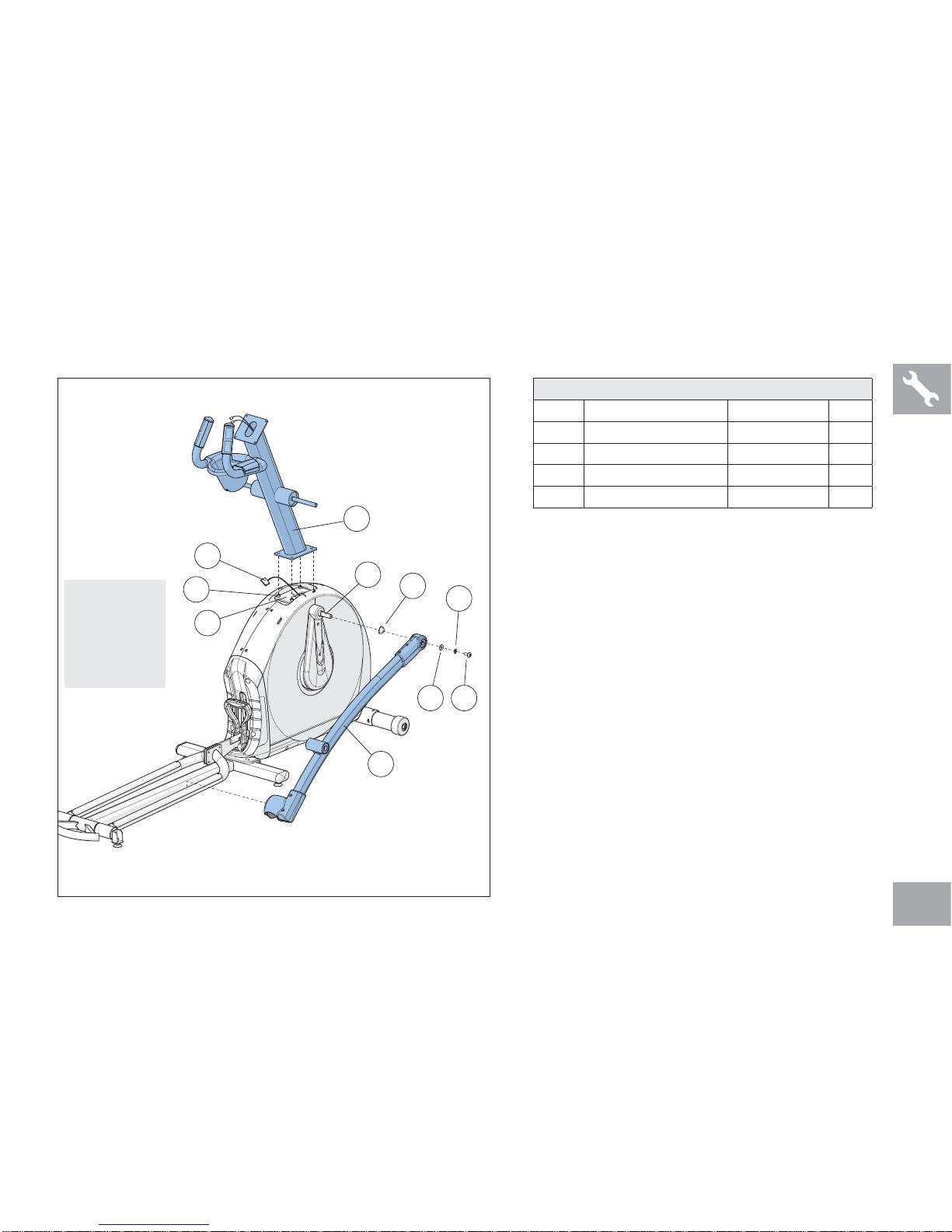

ASSEMBLY STEP 4
A Open HARDWARE FOR STEP 4.
B Carefully pull the CONSOLE CABLE (5)
through the CONSOLE MAST (6) using
the twist tie located inside the CONSOLE
MAST (6).
C Attach CONSOLE MAST (6) to MAIN
FRAME (2) using PRE-INSTALLED
BOLTS AND WASHERS (7).

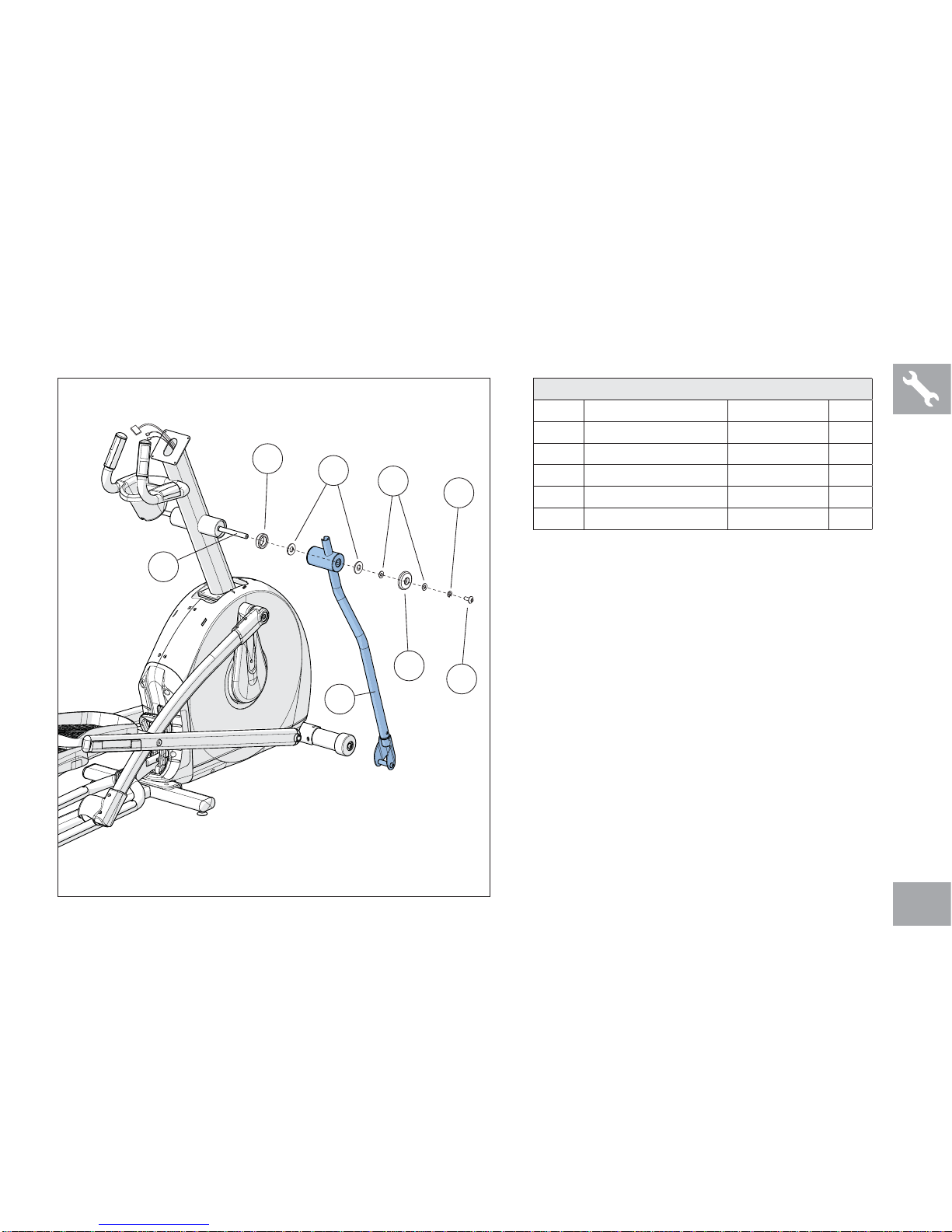

D Slide WAVY WASHER (J) over CRANK
(8) followed by PEDAL ARM (9) as shown.
Rest pedal arm wheel on guide rail.
E Attach the PEDAL ARM (9) to the CRANK
(8) using 1 FLAT WASHER (K), 1 SPRING
WASHER (B) and 1 BOLT (L).
F Repeat steps D–E on the opposite side of
the elliptical.
HARDWARE FOR STEP 4
PART TYPE DESCRIPTION QTY
J WAVY WASHER 17.2X22.5X0.5T 2
KFLATWASHER8.2X20.0X1.5T2
BSPRINGWASHER8.2X15.4X2.0T2
L BUTTON HEAD BOLT M8X1.25PX20L 2

14
HARDWARE FOR STEP 5
PART TYPE DESCRIPTION QTY
M FLAT WASHER 20.2X27.2X1.5T 4
N WAVY WASHER 20.7X29.1X0.5T 2
KFLATWASHER8.2X20.0X1.5T2
BSPRINGWASHER8.2X15.4X2.0T2
L BUTTON HEAD BOLT M8X1.25PX20L 2
ASSEMBLY STEP 5
10
11
M N M
K B L
A Open HARDWARE FOR STEP 5.
B Slide 1 FLAT WASHER (M), 1 WAVY
WASHER (N) and another FLAT
WASHER (M) onto the LOWER LINK
ARM (10).
C Slide the LOWER LINK ARM (10) into the
PEDAL ARM BRACKET (11).
D Attach the LOWER LINK ARM (10)
to the PEDAL ARM BRACKET (11)
using 1 FLAT WASHER (K), 1 SPRING
WASHER (B) and 1 BOLT (L).
E Repeat steps B–D on the opposite side of
the elliptical.

15
OPQB
6
12
13 L
ASSEMBLY STEP 6
A Open HARDWARE FOR STEP 6.
B Slide 1 RUBBER WASHER (O) and 1 FLAT
WASHER (P) onto the CONSOLE MAST (6).
C Slide LOWER HANDLEBAR (12) onto
CONSOLE MAST (6) and attach using
1 FLAT WASHER (P), 1 FLAT WASHER (Q),
1 HANDLEBAR CAP (13), 1 FLAT WASHER
(Q), 1 SPRING WASHER (B) and 1 BOLT (L).
D Repeat steps B–C on the other side.
HARDWARE FOR STEP 6
PART TYPE DESCRIPTION QTY
O RUBBER WASHER 16.2X26.2X2.0T 2
P FLAT WASHER 16.0X25.0X1.5T 4
Q FLAT WASHER 8.6X26.0X2.0T 4
BSPRINGWASHER8.2X15.4X2.0T2
L BUTTON HEAD BOLT M8X1.25PX20L 2

16
HARDWARE FOR STEP 7
PART TYPE DESCRIPTION QTY
R BOLT M8X1.25PX70L-12L 2
BSPRINGWASHER8.2X15.4X2.0T2
KFLATWASHER8.2X20.0X1.5T2
FNUT M8X1.25P2
ASSEMBLY STEP 7
10 KB
12
R
F
A Open HARDWARE BAG 7.
B Slide LOWER LINK ARM (12) into bottom end
of LOWER HANDLEBAR (10).
C Secure the joint with 1 BOLT (R), 1 SPRING
WASHER (B),1 FLAT WASHER (K) and 1
NUT (F).
D Repeat steps B–C on the opposite side of
the elliptical.

17
14
S
16
615
4
17
ASSEMBLY STEP 8
A Open HARDWARE BAG 8.
B Slide FRONT TOP CAP PIECE (14)
and REAR TOP CAP TPIECE (15) over
CONSOLE MAST (6) and snap into place.
C Insert CONSOLE MAST BOOT (16) over
TOP CAP (14) and snap into place.
D Slide REAR CAP (17) over GUIDE RAIL
(4) and attach using 3 SCREWS (S).
HARDWARE FOR STEP 8
PART TYPE DESCRIPTION QTY
SSCREW 4X15L3

18
ASSEMBLY STEP 9
18
6
19
521
22
12
NOTE: All hardware for this step is pre-installed.
A Remove 4 PRE-INSTALLED BOLTS (18) from the
CONSOLE (19).
B Attach the CONSOLE CABLES (5) to the
CONSOLE (19).
C Carefully tuck the CONSOLE CABLES (5) into the
CONSOLE MAST (6) before attaching the CONSOLE.
Attach CONSOLE (19) to CONSOLE MAST (6) using
4 PRE-INSTALLED BOLTS (18).
D Slide the UPPER HANDLEBAR (21) onto the LOWER
HANDLEBAR (12) making sure handlebars are joined
together completely. Secure the UPPER HANDLEBAR
(21) to the LOWER HANDLEBAR (12) using PRE-
ATTACHED SET SCREWS (22).
E Repeat STEP D on other side.
NOTE: Make sure upper handlebars are as far down as
possible. Handlebars can be damaged If not secured correctly.
ASSEMBLY COMPLETE!
NOTE: Do not to pinch any wires while attaching the console.

19
ELLIPTICAL OPERATION
This section explains how to use your elliptical’s console and programming.
The BASIC OPERATION section in the ELLIPTICAL GUIDE has instructions for the following:
• LOCATION OF THE ELLIPTICAL
• POWER/GROUNDING INSTRUCTIONS
• FOOT POSITIONING
• MOVING THE ELLIPTICAL
• LEVELING THE ELLIPTICAL
• POWER/MANUAL INCLINE OPERATION
• USING THE HEART RATE FUNCTION

20
A
B
J
D
I I
C
J
F E
L
G
K
H
ON
M
