Lobtex LOBSTER R2A1 User manual

英語／ＥＮＧＬＩＳＨ
1
CONTENTS
Ｎｏ .RAR2A1S90130
R2A1
ＡＩＲ ＲＩＶＥＴＥＲ
AIR RIVETER
INSTRUCTION MANUAL
Professional model of air riveter to install blind rivets.
Thank you very much for purchasing “LOBSTER” air riveter. To ensure correct operation, please read
this instruction manual carefully, and keep it in a safe place for later reference.
CONTENTS
IMPORTANT SAFETY
INSTRUCTIONS.................................1
NOMENCLATURE.............................3
TECHNICAL
DATA ...........................4
PREPARATION
BEFORE USE .......5
OPERATING
THE AIR RIVETER ....7
MAINTENANCE.................................8
STORAGE........................................12
TROUBLESHOOTING .....................15
PARTS
TABLE ................................13
ORDERING
PARTS .........................14
MANUFACTURER
PRINTED IN JAPAN
英語／ENGLISH
BUILT-IN ON-DEMAND
VACUUM SYSTEM
R1A1
INSTRUCTION MANUALBUILT-IN ON-DEMAND
VACUUM SYSTEM
INTRODUCTION…………………2
IMPORTANT SAFETY
INSTRUCTIONS ……………3
NOMENCLATURE ………………6
TECHNICAL DATA ………………7
PREPARATION BEFORE USE …8
OPERATING THE AIR RIVETER
…10
MAINTENANCE ………………11
STORAGE ………………………15
ORDERING PARTS ……………15
EXPLODED VIEW ……………16
PARTS LIST ……………………17
TROUBLESHOOTING …………18
Professional model of air riveter to install blind rivets.
● Thank you very much for purchasing “LOBSTER” air riveter. To ensure correct operation, please
read this instruction manual carefully, and keep it in a safe place for later reference.
● This is Original instructions. (Original Instruction Manual is written in English Ianguage.)
Osaka 579-8053, Japan
12-8 Shijo-cho, Higashi-Osaka City
Telephone: [phone] Telefacs: [phone]
URL https://www.lobtex.co.jp/
MANUFACTURER
International Marketing&Sales Division

英語／ＥＮＧＬＩＳＨ
22
● INTRODUCTION
１
１
１
２
Thank you very much for purchasing “LOBSTER”air riveter.
●
These are the blind rivet tools which is only used for xing blind rivets. These tools are not
designed for other purposes.
●
This instruction manual shows how to use the tools safely, work properly, maintenance
and inspection which will make tools more e󰀨ectively.
● Please check the blind rivets specication and durability on customers side before using it.
IMPORTANT NOTICES
●
Read this manual carefully before using this tool. Follow instructions in this manual for han-
dling this tool, replacing accessories or replacing parts as needed.
●
If you have any questions about this manual, contact the “LOBSTER” dealer where you
purchased the tool.
●
It is impossible to foresee all potential dangers and describe them in this manual.
You must operate this tool paying attention to safety as well as observing the instructions in
this manual.
●
This manual is translated from Japanese, its original language. It is your own responsibility
to achieve a full understanding of the contents of this manual before using the equipment
described.
●
Lobtex Co., Ltd. has the copyright of this manual. It is prohibited to publish, copy or translate
to other language without prior consent.
INDEMNIFICATION
● Our warranty does not apply to direct and indirect damages and lost income caused by the
misuse, abuse, and unauthorized modification of the tool.
We do not guarantee the strength or quality of blind rivet.
● We do not guarantee any damages and failures caused by any modifications without our
written approval.
● We do not guarantee any damages and failures caused by use of parts other than our
recommendation.

英語／ＥＮＧＬＩＳＨ
3
● IMPORTANT SAFETY INTRUCTIONS
1. The air pressure should be kept within the range of 0.5 to 0.6 MPa (71 to 85 psi).
• If an air pressure which is greater than this is used, the tool may become damaged, and injury or
damage to property may result.
2. Never look into the nosepiece of the tool, and never point the nosepiece toward other persons.
• If the tool is used while the cut mandrels are still inside the tool not being ejected, these mandrels
may be ejected from the tool’s nosepiece during use and cause serious injury.
3. Always attach the tank case unit before use.
• If you work without attaching the tank case unit, there is a risk that the mandrel of rivet that has
been cut is not discharged, and will be clogged inside exhaust pipe,causing a fault of the equipment.
• Also, these mandrels may be ejected from the tool’s nosepiece during use and cause serious injury.
4. Wear protective glasses during use.
• Failure to do so may result in an accident or personal injury in case that a rivet or a piece of cut-
mandrels jumps out toward you.
5. Make sure that the tool and the air source are connected securely.
• If the threads of the joints do not match or if the screws are not inserted far enough, the air hose
may become disconnected during use and injury may result.
• Use hose bands to securely connect the air hose joint and air hose. If they are not connected
securely enough, the air hose may become disconnected during use and injury may result.
6. Turn o󰀨 the air supply before disconnecting the tool from the air source.
• Compressed air may cause the air hose to whip around, and injury may result.
7. Check that all the tool parts are free from damage before use. Any damaged parts should
be repaired before the tool is used.
• If the tool is used while any parts are still damaged, injury may result.
• If the tool is damaged by objects being dropped onto it, for instance, the damaged part may
break and accident or injury may result.
• Don't pull and drag the tool by the air hose. It may trigger some damages on the tool body,
• breakage of Rotary Joint or some other defects and lead serious troubles with injuries.
8. If using in elevated locations, use a safety harness, and take care to avoid dropping rivets
or the tool itself.
• Accident or injury may result if this practice is not followed.
⚠WARNING
◆
Always wear protective goggles while using the tool.
The rivets may jump out by accident and cause injuries.
IMPORTANT SAFETY INSTRUCTIONS
◆ Be sure to read the following Important Safety Instructions carefully and make sure that you
understand them thoroughly before using this tool.
◆ Always wear eye-protection at all times during use. If this is not observed, the cut mandrels
may eject out when the rivets are cut and cause serious injury.
◆ This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
◆ The Important Safety Instructions are divided into and .
The differences between these two levels are described below.
CAUTION
WARNING
: Indicates a potentially hazardous situation which, if not avoided, could result in death or
serious injury to the operator.
: Indicates a potentially hazardous situation which, if not avoided, may result in moderate
injury to the operator or physical damage.
Moreover, failure to follow the instructions marked with the symbol or cautions without a
symbol which appear in the text of this manual may also have serious results in some cases.
Always be sure to observe the instructions given in the Important Safety Instructions.
CAUTION
CAUTION
CAUTION
WARNING
1.
The air pressure should be kept within the range of 0.49 to 0.59 MPa (5 to 6 kgf/cm2, 71 to 85 psi).
If an air pressure which is greater than this is used, the tool may become damaged, and injury or
damage to property may result.
2. Never look into the nosepiece of the tool, and never point the nosepiece toward other persons.
If the tool is used while the cut mandrels are still inside the tool not being ejected, these mandrels may
be ejected from the tool’s nosepiece during use and cause serious injury.
3. Always attach the tank case unit before use.
If this is not observed, the cut mandrels may be ejected when the rivets are cut and cause serious
injury.
4. Wear protective glasses during use.
Failure to do so may result in an accident or personal injury in case that a rivet or a piece of cut-mandrels
jumps out toward you.
5. Make sure that the tool and the air source are connected securely.
If the threads of the joints do not match or if the screws are not inserted far enough, the air hose may
become disconnected during use and injury may result.
Use hose bands to securely connect the air hose joint and air hose. If they are not connected securely
enough, the air hose may become disconnected during use and injury may result.
6. Turn off the air supply before disconnecting the tool from the air source.
Compressed air may cause the air hose to whip around, and injury may result.
7. Check that all the tool parts are free from damage before use. Any damaged parts should
be
repaired before the tool is used.
If the tool is used while any parts are still damaged, injury may result.
If the tool is damaged by objects being dropped onto it, for instance, the damaged part may break and
accident or injury may result.
Don't pull and drag the tool by the air hose. It may trigger some damages on the tool body, breakage of
Rotary Joint or some other defects and lead serious troubles with injuries.
8. If using in elevated locations, use a safety harness, and take care to avoid dropping
rivets
or the tool itself.
Accident or injury may result if this practice is not followed.
◆ After reading this manual, keep it in a safe place where it is easily accessible to tool users.
WARNING
英語／ENGLISH
1
1. Before starting maintenance or disassembling the unit to replace parts, be sure to stop
air
supply.
Performing maintenance or disassembly with air supplied may cause a part to jump out, oil to squirt out,
or the unit to perform unexpected behavior, and may result in an accident or personal injury.
3.
2.
Do not operate the tool with the Frame Head ‘CJM’ removed .
Tighten
the Bleed Plug firmly before use.
Items such as fingers may become caught in the mechanism.
If the Bleed Plug is loose or coming off during use, oil may squirt out resulting in an accident or personal
injury.
4. Do not bring your face close to the air outlet holes.
Pressurized air containing fine particles is discharged from the air outlet holes during use. Keep eyes
away from this area.
5. Avoid skin contact with substances such as hydraulic oil, lubricating oil and grease.
Such substances may cause inflammation of the skin. If they come into contact with your skin, wash
the affected area thoroughly.
6. The parts to be used must be those supplied from us or recommended by us.
Select
and attach parts applicable to your rivet.
Otherwise the unit may not produce maximum performance and may sometimes malfunction resulting
in an accident or personal injury.
7. Make sure that the workplace is safe, clean and organized.
Accidents can easily occur in untidy workplaces.
If the cut-mandrels are allowed to fall onto the floor, you may slip on them, and injury may result.
8. Avoid uncomfortable postures while working.
You may fall down and injury may result.
9. Keep people who are not involved in work away from the workplace.
Accidents or injury may result.
10. Maintain the tool with due care.
Refer to the Instruction Manual for details on replacing parts and attachments, otherwise injury may occur.
11. Keep the handgrip always dry and clean, and avoid adhesion of oil and grease.
Otherwise the grip may slip from your hand resulting in falling of the unit.
12. Do not leave the floor littered with cut-mandrels.
Cut-mandrels are dangerous because their ends are sharp. Stepping on them is also dangerous easily
causing a slip and fall accident.
13. Use the tool carefully and concentrate on correct operation at all times.
Use the tool with proper care, paying full attention to methods of handling and operation and
surrounding conditions. Accidents and injury may result if this practice is not followed.
Use common sense at all times, otherwise accidents or injury may result.
When you are tired, do not use the tool, otherwise accidents or injury may result.
14. Ask Lobtex to carry out any repair work required.
Repair work should only be carried out by a qualified technician. Please contact your nearest
“LOBSTER” distributor, representative, or direct to Lobtex Co., Ltd., Osaka. If the tool is repaired by
someone without the necessary qualifications and experience, the tool may not perform to optimum
standards, and accidents or injury may result.
15. Do not attempt to modify the tool.
Unauthorized modifications may cause malfunctions which can lead to accidents or injury.
16. Only for EU countries, do not dispose of electric tools together with household waste
material
!
In observance of European Directive 2002/96/EC on waste electrical and electronic equipment and
its implementation in accordance with national law, electric tools that have reached the end of their
life must be collected separately and returned to an environmentally compatible recycling facility.
CAUTION
英語／ENGLISH
2
◆
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
◆After reading this manual, keep it in a safe place where it is easily accessible to all users.
: Indicates a potentially hazardous situation which, if ignored, may result in death
or serious injury to the operator.
: Indicates a potentially hazardous situation which, if ignored, may result in moderate
injury to the operator or physical damage.
Moreover, failure to follow the instructions marked with the symbol or cautions without a
symbol which appear in the text of this manual may also have serious results in some
cases. Always be sure to observe the instructions given in the lmportant Safety Instructions.
⚠WARNING
⚠CAUTION
⚠CAUTION ⚠CAUTION
◆
Be sure to read the following Important Safety Instructions carefully and make sure that you
understand them thoroughly before using this tool.
◆
These Important Safety Instructions are divided into and .
The di󰀨erences between these two levels are described below.
⚠WARNING ⚠CAUTION

英語／ＥＮＧＬＩＳＨ
44
1. Before starting maintenance or disassembling the unit to replace parts, be sure to stop air
supply.
• Performing maintenance or disassembly with air supplied may cause a part to jump out, oil
to squirt out, or the unit to perform unexpected behavior, and may result in an accident or
personalinjury.
2. Tighten the Bleed Plug rmly before use.
• If the Bleed Plug is loose or coming o󰀨 during use, oil may squirt out resulting in an accident or
personal injury.
3. Do not operate the tool with the Frame Head removed.
• Items such as ngers may become caught in the mechanism.
4.
Do not bring your face close to the exhaust ports.
• Pressurized air containing ne particles is discharged from the exhaust ports during use. Keep
eyes away from this area.
5. Avoid skin contact with substances such as hydraulic oil, lubricating oil and grease.
• Such substances may cause inammation of the skin. If they come into contact with your skin,
wash the a󰀨ected area thoroughly.
6.
The parts to be used must be those supplied from us or recommended by us.
Select and attach parts applicable to your rivet.
• Otherwise the unit may not produce maximum performance and may sometimes malfunction
resulting in an accident or personal injury.
7. Make sure that the workplace is safe, clean and organized.
• Accidents can easily occur in untidy workplaces.
• If the cut mandrels are allowed to fall onto the oor, you may slip on them, and injury may result.
8. Avoid uncomfortable postures while working.
• You may fall down and injury may result.
9. Keep people who are not involved in work away from the workplace.
• Accidents or injury may result.
10. Maintain the tool with proper care.
• Refer to the Instruction Manual for details on replacing parts and attachments, otherwise injury
may occur.
11. Keep the handgrip always dry and clean, and avoid adhesion of oil and grease.
• Otherwise the grip may slip from your hand resulting in falling of the unit.
12. Do not leave the oor littered with cut mandrels.
• Cut mandrels are dangerous because their ends are sharp. Stepping on them is also dangerous
easily causing a slip and fall accident.
13. Use the tool carefully and concentrate on correct operation at all times.
• Use the tool with proper care, paying full attention to methods of handling and operation and
surrounding conditions. Accidents and injury may result if this practice is not followed.
• Use common sense at all times, otherwise accidents or injury may result.
• When you are tired, do not use the tool, otherwise accidents or injury may result.
14. Ask Lobtex to carry out any repair work required.
• Repair work should only be carried out by a qualied technician. Please contact your nearest
“LOBSTER” distributor, representative, or direct to Lobtex Co., Ltd., Osaka. If the tool is repaired
• by someone without the necessary qualications and experience, the tool may not perform to
• optimum standards, and accidents or injury may result.
15. Do not attempt to modify the tool.
• Unauthorized modications may cause malfunctions which can lead to accidents or injury.
16. Only for EU countries, do not dispose of electric tools together with household waste
material !
• In observance of European Directive 2002/96/EC on waste electrical and electronic equipment and
its implementation in accordance with national law, electric tools that have reached the end of their
life must be collected separately and returned to an environmentally compatible recycling facility.
17. Important information and clue about the use are listed in main body label. When contents
cannot read by contamination or by the damage of the label, please order a new label and put it.
• The new label could be ordered from us(Lobtex)via distributor.
⚠CAUTION

英語／ＥＮＧＬＩＳＨ
5
18. The production date of this product is shown brevity code below the tools.(on page5)
(Example)year: ２０②⓪ month: ⑩ → B O O ○○○○
19. This product is a tool for exclusive use of the professional business. When you are the
one who uses this tools for the rst time, please receive an instruction from the one who
have already used this tools before, also please read the Instruction Manual carefully and
understand the content.
• Wear protective goggles or safety glasses.
• When this product is damaged, please do not use.
20. This product is an exclusive tool for Blind Rivet fastening two boards by riveting.
We do not design, manufacture or sell intending to other applications.
21. Please perform regular inspection and maintenance on this machine. As a guideline,
inspect fastening every 30,000 blind rivets or once a year, and request repair if any
abnormality is suspected.
22. Only persons who are well trained and qualied should use, adjust, and maintain this
product.
23. Do not modify the tool. Any modication to the equipment impairs the validity of safety
devices, leading to a higher risk to operators.
24. Slip, trips and falls are major causes of workplace injury. Be aware of slippery surfaces
caused by use of the tool and also of trip hazards caused by the air line or hydraulic hose.
25. Proceed with care in unfamiliar surroundings. There can be hidden hazards, such as
electrical or other utility cables.
26. This machine is not intended for use in potentially explosive atmospheres and is not
insulated against contact with electric power.
27. Ensure that there are no electrical cables, gas pipes, etc., which can cause a hazard if
damaged by use of the tool.
28. If you experience numbness, tingling, pain or whitening of the skin in your ngers or
hands, stop using the tool, inform your employer and consult a physician.
29. Compressed air can cause severe injury.
• Be sure to disconnect the tool from the air supply source when it is not in use or before replacing
or repairing it.
• Never direct air at yourself or anyone else.
28. Always check for damaged or loose hoses and ttings.
• Whipping hoses can cause severe injury.
29. Always make sure there are no damages on hoses and no loose ttings.
30. Do not carry the pneumatic tool by holding the hose.
31. Preventative maintenance should be carried out, after a specied time of operation, a
specied number of cycles/operations or a stated number of times per year.
32. When you handle oil or grease, obtain the material safety data sheet (SDS) from the
supplier, and follow the described instructions.
⚠CAUTION
A year/month of manufacture １ ２ ３ ４ ５ ６ ７ ８ ９ １０ １１ １２
An English character Ａ Ｂ Ｍ Ｎ Ｋ Ｗ Ｔ Ｙ Ｕ Ｏ Ｌ Ｚ
↓
↓
O
O
↓
B
↓
(Lot No. )
How to check manufactured date

英語／ＥＮＧＬＩＳＨ
66
● NOMENCLATURE
Cylinder Cup
Nosepiece
FRAME HEAD INTERNAL PARTS
Hrame Head Nut
Jaw Case Head
Frame Head
Ultra Jaws 'M'
Jaw Pusher
Jaw Pusher Spring Guide Pipe Unit 2.4-3.2(with O-ring)
(for 2.4-3.2)
Tank Joint
Guide Pipe Collar4.0-4.8(with O-ring）
(for 4.0-4.8)
Bleed Plug
Trigger
Nosepiece
Frame Head
Frame Head Nut
Tank Case Unit
Vacuum Knob
Bottom View
Exhaust Port
Warning Label
Rotary Jopint
(Screw size : Parallel pipe thread G1/4)
Serial No.

英語／ＥＮＧＬＩＳＨ
7
● TECHNICAL DATA
● Product specications and design are subject to change for improvement without notice.
● Weight and dimensions given are standard values. Actual products may di󰀨er slightly from
the values given.
●The warning lavel is located on the side of the Cylinder Cup.
●The production date of this product is indicated on the bottom of Cylinder Cup with brevity
code. Please refer to the page 5 how to read its brevity code.
●The serial number of this product is indicated on the top surface of Cylinder Cup with numbers.
Model No. R2A1
Weight kg 1.28
Operating air pressure MPa 0.5 ～0.6
Dimensions (Length×Height×Width) mm 290×267×112
Air consumption per minute L/min （At air pressure 0.6 MPa）82(on the occasion of vacuum is working)
Tool stroke mm 19
Traction power at 0.6 MPa 9(on the occasion of vacuum is working)
Applicable rivets(rivet diameters) φmm 2.4 ・3.2 ・4.0 ・4.8
Operating
environment
Temperature ℃ 4～35
Relative humidity %RH max 80%RH max. (No condensation)
Sound Pressure level (Lpa) 75 dB
Vibration Emission value （At air pressure 0.6 MPa）Less than equal to 2.5m/sec2
Air intake (Rotary joint) Size of screw G1/4 (PF1/4)
■ Air consumption calculation method ■
Use the following calculation method to obtain the required air consumption, and select the
compressor accordingly.
Required air consumption = Air consumption per minute
Make sure that this corresponds to the compressor discharge capacity (per minute).
290
267
112
56
50
φ 21
φ 45
38
φ 83

英語／ＥＮＧＬＩＳＨ
88
● PREPARATION BEFORE USE
Set the Tank Case Unit to the Tank Joint.
Mandrel (shaft)
Body (ange)
Rivet diameter
１
１
１
２
⚠WARNING
●Always attach the tank case unit before use.
If you work without attaching the tank case unit, there is a risk that the mandrel of rivet that has
beencut is not discharged, and will be clogged inside exhaust pipe, causing a fault of the equipment.
Also, these mandrels may be ejected from the tool's nosepiece during use and cause serious injury.
Align the shutter plate with the notch inside the tank case unit, press it against the tank joint ( ①),
and turn the tank case unit clockwise ( ②) to attach it.
Replace the nosepiece and Guide Pipe Unit as indicated
below to conform to the size of the rivet being used.
(Refer to “Jaw maintenance” on page 11.)
Rivet Dia. Nosepiece Guide Pipe Unit
2.4 mm 2.4
3.2 mm 3.2
4.0 mm 4.0
4.8 mm 4.8
2.4
4.0
3.2
4.8
Tank Case Unit
Tank Joint
Shutter Plate
①
②
Guide Pipe Unit
2.4-3.2(with O-ring)
Guide Pipe Collar
4.0-4.8(with O-ring)

英語／ＥＮＧＬＩＳＨ
9
Set up the compressor, and be sure to install an air lter, air regulator and air lubricator
(3-device set) between the compressor and the tool.
１
３
Use the air regulator to adjust the operating air pressure to 0.5 ~ 0.6MPa.
When using the product after a long period of disuse, please perform maintenance and inspection
carefully. (Refer to "Cleaning the frame head and jaw case head section" on page 11)
Please perform maintenance and inspection and activate the vacuum function before use.
１
４
IMPORTANT
●Adjust the drip-feed amount of the air lubricator to the minimum setting.
●If moisture enters inside of the unit, it may freeze in cold temperature or accelerate
degradation of O-rings and packings, resulting in malfunction of the unit. To avoid that, use an
air dryer as necessary in addition to an air lter, regulator and an air lubricator (3-device set).
●If you attach the Rotary Joint to the opposite side, remove the Spool Cap and exchange the
positions.
⚠WARNING
●The air pressure should be kept within the range of 0.5 to 0.6 MPa
If an air pressure which is greater than this is used, the tool may become damaged, and injury or
damage to property may result.
●If the diameter of your stainless rivet (NST, NSS) is 4.8mm(3/16"), set the air pressure to
0.54 ~ 0.6 MPa (78 ~ 87 psi).
●If the air pressure is too high, damage to parts may occur. If the pressure is too low, some
size of the rivet may not be correctly installed (cut).
Be sure to replace the nose piece and guide pipe unit according to the blind rivet size you are using.
Even if the mandrel can be inserted into the nosepiece, if it is the wrong size, it may clog inside.
●Shaded areas indicate parts which are installed in the tool as standard accessories.
●Applicable rivet size is marked on the hexagon part of Nosepiece.
Rotary Joint
Spool Cap
Air lter
Air regulator
Air lubricator

英語／ＥＮＧＬＩＳＨ
1010
● OPERATING THE AIR RIVETER
Replace the nosepiece and Guide Pipe Unit with one which matches the size of the rivet to be used.
(Refer to “Preparation Before Use” on page 8.)
Select a suitable size of rivet for the workpiece to be riveted.
１
１
１
２
Release the trigger. The cut mandrel (shaft) will then be drawn into the tank case unit.
*Make sure that the cut mandrel has been completely removed before proceeding to the next riveting.
１
８
Make sure that the Tank Case Unit is set, and turn the vacuum knob
clockwise to activate the vacuum.
*This tool is designed vacuum will not work unless
the tank case unit is attached.
１
４
Drill a hole of appropriate size
(0.1 to 0.2mm larger than the diameter of the rivet) into the workpiece.
１
３
After inserting the mandrel (shaft) of the rivet into the nosepiece.
１
５
insert the head of the rivet into the hole.
１
６
Lightly t the end of riveting tool to the base material. Make sure that
there is no space in the base material and other things, and then
activate the trigger. The rivet will be installed into the workpiece.
１
７
When the tank is about half full with cut mandrels,Turn the vacuum knob
counterclockwise to stop the vacuum, then turn the tank case unit
counterclockwise to discard spent mandrel.
* If the tank becomes over half full, cut mandrels may be obstructed by those
inside the tank and may not normally be collected, causing them to be left in
the ejection pathway.That will result in clogging of cut mandrels and air
leakage from the Nosepiece making the unit to be unusable.
１
９

英語／ＥＮＧＬＩＳＨ
11
● MAINTENANCE
After long periods of use, debris from cut mandrels and other foreign materials tend to build up in
various parts of the tool, and the hydraulic oil level also drops, both of which can lead to operating
problems.The tool should be cleaned periodically.
Jaw maintenance
１
●If debris builds up, the jaws will not move smoothly and normal operation will not be possible.
●The jaws should be cleaned on average once every 3,000 riveting operations.
Turn o󰀨 the air supply.
Loosen and remove the frame head nut and
remove the frame head.
Pull the locking ring in the direction shown in the
illustration, and loosen and remove the jaw case head.
Locking Ring
Jaw Case Head
Guide Pipe Unit
Jaw Pusher Spring
Jaw Case Head Jaw Pusher
Remove the jaw pusher spring, guide pipe unit,
jaw pusher, and jaw.
１
４
１
３
１
２
１
１
⚠CAUTION
●
Before starting maintenance or disassembling the unit to replace parts, be sure to stop air supply.
Performing maintenance or disassembly with air supplied may cause a part to jump out, oil to squirt
out, or the unit to perform unexpected behavior, and may result in an accident or personal injury.
●
Jaws are consumable items and must be replaced periodically.
This tool uses ultra jaws that are highly durable. When replacing, please order "Ultra jaws ''M".
●Never loosen the oil stopper screw for any purpose other than refueling.
Hydraulic oil may leak or air may get in to the tool.
● Do not operate the tool with the Frame Head removed.
Items such as ngers may become caught in the mechanism.
Frame Head
Frame Head Nut
⚠CAUTION
●Never loosen the jaw case and jaw case lock nut.
Doing so readily exposes parts inside the air riveter to damage.
●Should you have loosened these parts,
tighten them as explained in the following
procedure (Refer to page 12) or have
the air riveter serviced.
Jaw Case Jaw Case Rock
Nut
Ultra Jaws 'M'
DISASSEMBLY

英語／ＥＮＧＬＩＳＨ
1212
１
６
* Jaw Case Head, Ultra Jaws ‘M’, Jaw
Pusher, O-ring,Jaw Case, Guide Pipe Unit,
and Jaw Pusher Spring are consumable
items. Replace them on a regular base.
Assemble the air riveter in the opposite order in which it
was disassembled. Apply lubricant to the back of the jaw
(conical surface) and the inside of the jaw case head
(conical surface), and t the jaw into the jaw case head.
---
---
ジョー背部グリス
2:1
1
---
参考）単重量 32.00g
株株式式会会社社ロロブブテテッッククスス
20℃・65％・101.3kPa
普通公差 JIS B 0419-mH
寸法公差
0.5
0.3
0.2
0.1
中級±
呼び区分
0.5以上 6以下
6をこえ 30以下
30をこえ 120以下
120をこえ 400以下
公差表示方式JIS B 0024
表面処理
承認
製図
設計
CODE
制定日付
硬度
材質 尺度
個数 品名
図番
検図
Lubricating
Oil
Put the guide pipe unit, jaw pusher spring, and jawPut the guide pipe unit, jaw pusher spring, and jaw
pusher into the jaw case in that order.pusher into the jaw case in that order.
Tighten the jaw case head to the end. From there,Tighten the jaw case head to the end. From there,
return it to the position where the upper notch andreturn it to the position where the upper notch and
the lower notch meet each other forthe lower notch meet each other for
the rst time, and set the locking ring.the rst time, and set the locking ring.
１
７Insert the frame head and tighten the frame head nut to fasten the frame head.
* To prevent scratching from occurring, apply lubricant to the screw of the frame head nut.
Notch
Jaw Case Head
Rocking Ring
Frame Head
Frame Head Nut
Using a brush or the like, clean parts.
In particular, carefully clean the following areas.
• Back of the frame head
• Toothed section of the jaw
• Sliding section between
the jaw case head and the jaw
１
５
⚠CAUTION
Tightening method (When only the jaw case is loose, begin your work from step ②.)
①Immobilize the double-face section at the tip of the male screw
and tighten the jaw case lock nut with 15 N•m of torque.
②Grip the jaw case lock nut and tighten the jaw case with 15 N•m of torque.
Double-face section
Jaw Case Rock Nut Jaw Case Rock Nut
Jaw Case
DISASSEMBLYCLEANINGRE-ASSEMBLY

英語／ＥＮＧＬＩＳＨ
13
Remove the O-ring (P-6) at the tip of the oiler, and attach the seal washer
that was removed in step , to the tip of the oiler instead of the O-ring.
２
１
１
１
２
１
３
Replacement of the Nosepiece
* If the Nosepiece is damaged, replace it with a new one.
* If you change the rivet size, replace with an applicable Nosepiece.
Turn o󰀨 air supply.
Remove the Nosepiece from the Frame
Head using a wrench or spanner.
Firmly set a Nosepiece applicable to the rivet size to the Frame Head
* Please check periodically whether there is any slack of a nosepiece during work.
* If you work after the nosepiece is loosened, damage to the parts may occur.
* When riveting φ4.0/4.8 blind rivets, replace the nose piece and use the guide pipe unit 2.4-3.2.
Replace with guide pipe collar 4.0-4.8.
Nosepiece
(AF 10mm)
Frame Head
(AF 21mm)
３Oil Supply
１
１To remove the oil retaining screw and the seal washer, loosen the oil
retaining screw with a hexagonal bar wrench (4 mm between opposite
sides) or the like, with the air riveter placed horizontally so that the oil
retaining screw is to the upper side.
* When you loosen the oil retaining screw, hydraulic oil may spew
vigorously. Therefore, loosen the oil retaining screw slowly at rst.
* Hydraulic oil coming from the air riveter may be black. This is not
abnormal. As long as hydraulic oil is not mixed with air, metal powder,
or dust, you can use it without a problem.
* When a large amount of air mixes with hydraulic oil, the seal can wear.
In such case, have the air riveter serviced.
⚠CAUTION
●Customers themselves do not need to oil the air riveter in principle. To lubricate parts, however, use the B29624
oiler (syringe unit, optionally available), and lubricate parts with Ebi-brand hydraulic oil B10012 (optionally
available) as explained in the following steps. If the stroke is inadequate immediately after lubricating with
hydraulic oil, the seal may be worn or some other issue may exist. In such case, have the air riveter serviced.
●Prevent oils such as hydraulic oil, lubricating oil, and grease from contacting skin and eyes. This may cause
irritation. If contacted, wash completely from the contacted area.
●Do not lubricate the air riveter with the cylinder cup removed.
* Note that hydraulic oil does not come standard with an oiler.
１
２１
１
Oil Retaining Screw
(M6×8)
Seal Washer
DISASSEMBLYRE-ASSEMBLY
DISASSEMBLY

英語／ＥＮＧＬＩＳＨ
1414
１

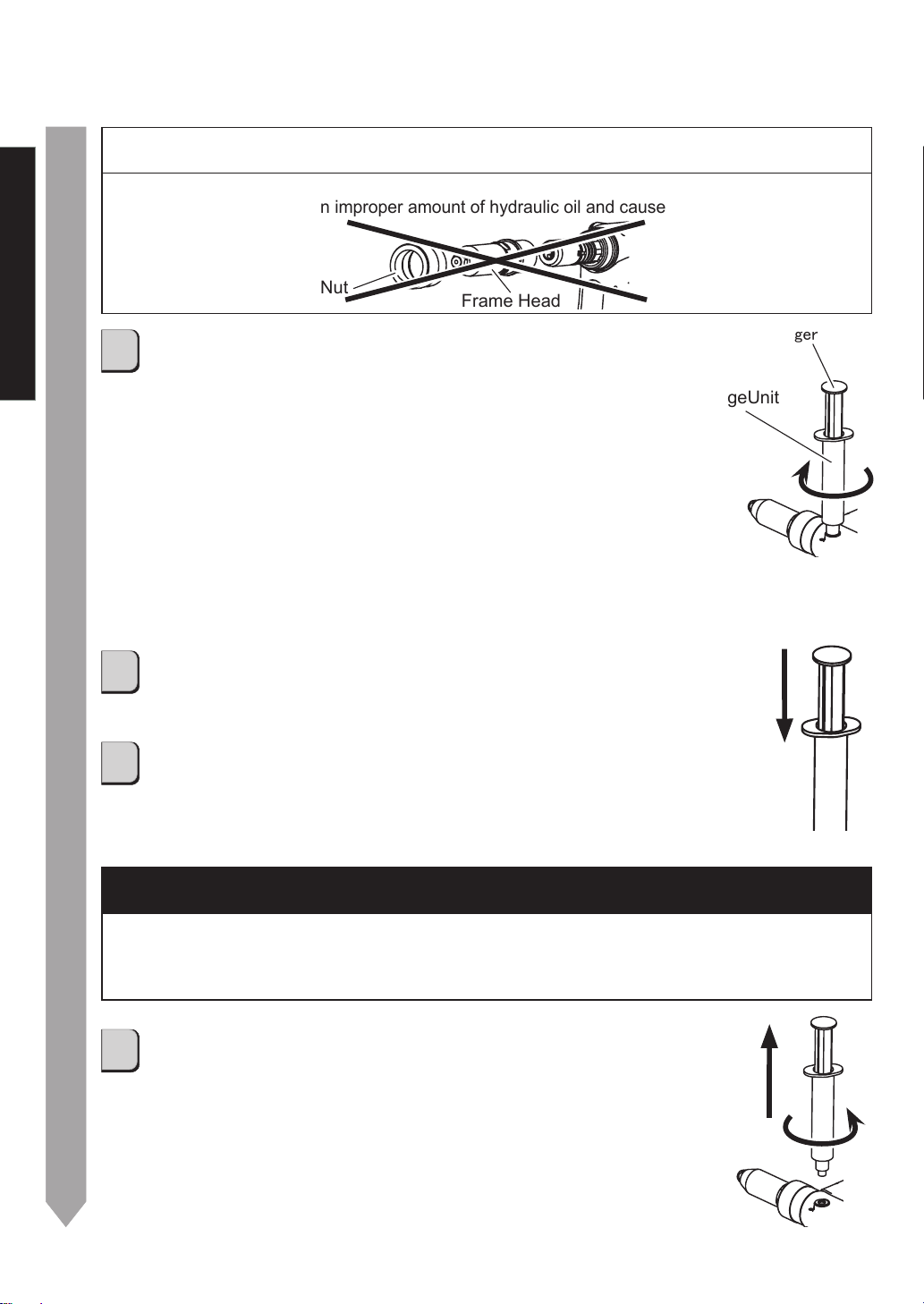

６Loosen the oiler and remove it from the air riveter.
Remove the seal washer from the tip of the oiler.
Insert the plunger of the oiler and inject the hydraulic oil into the air riveter.
１
４
１
５Insert the plunger of the oiler several times and make sure that the air
riveter is adequately lled with hydraulic oil.
* When the air riveter is adequately lled with hydraulic oil, the plunger
returns after being inserted and then released.
１
３Attach the oiler containing the hydraulic oil to the oiling port in
the air riveter (the part to which the oil retaining screw was attached).
* Make sure that the seal washer is attached to the tip of the oiler.
Without a seal washer in place, air can mix with the hydraulic oil
during oiling or prevent oil from being suf󳞛ciently supplied.
* If air (in the form of air bubbles) is found inside the oiler,
point the tip of the oiler upward and slowly insert the plunger to purge air,
and then attach the oiler to the air riveter.
* When you purge air from the oiler, hydraulic oil may spew from the tip of the oiler.
Keep your face away and cover the tip of the oiler with cloth or the like while purging.
* Be careful not to allow a gap to form between the oiler and the air riveter.
Gapping may allow air to mix with the hydraulic oil.
Plunger
SyringeUnit
⚠CAUTION
●Do not lubricate the air riveter with the frame head nut and frame head removed.
Doing so may result in an improper amount of hydraulic oil and cause trouble with the air riveter.
Frame Head
Frame Head Nut
⚠WARNING
●Do not oil the air riveter in ways other than that described in this instruction manual.
Doing so may supply an excessive amount of hydraulic oil, damage parts and cause injuries .
●Do not try forcing an excessive amount of oil into the air riveter.
FILLING OIL, RE-ASSEMBLY

英語／ＥＮＧＬＩＳＨ
15
１
７Attach the oil stopper screw and seal washer to the air riveter
using a hexagonal wrench (width across ats: 4 mm).
Wipe o󰀨 hydraulic oil adhering to the main body or
spilling out before use.
* During disassembly/assembly, be careful to prevent
cutting dusts of metal and other objects from getting
into the hydraulic oil and Air Cylinder.
１
８
●Store in a place which is well-ventilated and free from excessive dust and humidity, and
where there is no danger that tool will fall.
●If the tool will not be used for a long period of time, inspect the parts as shown in “Maintenance”
on pages 11 to 14 prior to storing the tool.
●To increase the working life of the tool, it is recommended that you perform the periodic over-
hauls. Contact the place of purchase or your nearest “LOBSTER” dealer for any overhauls
and repair work required. (A charge will be made for this service.)
Indicate the tool model, part name, code no. and quantity as shown below when ordering.
*
When parts are modied for improvement, the older parts are kept in stock for a
period of ve years.
● STORAGE
● ORDERING PARTS
Model Part name Code No. Qty.
R2A1 Ultra Jaws 'M' 10281 1
R2A1 Frame Head 69468 1
FILLING OIL, RE-ASSEMBLY

英語／ＥＮＧＬＩＳＨ
1616
● EXPLODED VIEW
1
2
3
4
5
6
7
8
9
16
17
10 11
12 13
14
15

英語／ＥＮＧＬＩＳＨ
17
● PARTS LIST
Index
No. Part name Code No. Material
1 Frame Head Nut
69500 Aluminum
2-B Nosepiece 3.2
10028 Steel
3 Frame Head
69468 Steel
4 Jaw Case Head
10280 Steel
5 Ultra Jaws 'M'
10281 Steel
6 Jaw Pusher
69504 Steel
7 Jaw Pusher Spring
69508 Steel
8-A O-ring P-3
10333 Rubber
9-A Guide Pipe Unit 2.4-3.2
69474
①
10 Oil Retaining Screw (M6×8)
69542 Steel
11 Seal Washer
63209 Rubber
12 Tank Case Unit
70557
②
13 O-ring SS-9
63182 Rubber
14 Spool Cap
69495 Aluminum
15 Cylinder Cup Cover
69478 Rubber
16 Rotary Joint Unit
70549 Aluminum
17 Warning Label
61075 Plastic, Paper
Accessory parts
Index
No. Part name Code No. Material
2-A Nosepiece 2.4
10027 Steel
2-C Nosepiece 4.0
10029 Steel
2-D Nosepiece 4.8
10030 Steel
8-B O-ring AS568-007(1B)
69545 Rubber
9-B Guide Pipe Collar 4.0-4.8
69473 Stainless
- Lubricating Oil
64088 Plastic, Oil
Separately sold
Index
No. Part name Code No. Material
- Priming Pump(SyringeUnit)
29624 Plastic
-‘‘LOBSTER’’ hydraulic oil
10012 Plastic, Oil
-‘‘LOBSTER’’ lubricant oil JO-50
889 Plastic, Oil
Material
①: Stainless, Aluminum
②: Plastic, Steel,
Stainless, Sponge, Paper
* Parts with circled Index No. are consumable parts. They should be replaced periodically.

英語／ＥＮＧＬＩＳＨ
1818
Trouble Couse Countermeasure
The rivet does not go
in, or the cut mandrel
does not come out
after riveting.
１
Wrong type of Nosepiece or Guide
Pipe Unit.
Replace with the correct part which matches
the rivet size. (Refer to pages 8.)
２Nosepiece or Frame Head is loose.
Use a spanner or similar to tighten securely.
３Jaw Case is incorrectly assembled. Check the assembly procedure of parts
inside the Jaw Case. (Refer to page 11,12.)
４
Contact surface between Jaws and
Jaw Case ‘Head’ are not smooth.
(friction).
Clean the Jaws and the inside of Jaw Case
Head, and apply “LOBSTER” brand lubricant
oil to the back of Jaws. (Refer to page 11,12.)
5
Oil lling was not performed
correctly, so that there is excess
hydraulic oil inside the tool.
Loosen the Bleed Plug to allow the excess
hydraulic oil to drain out. (Refer to pages
13,14).
6Mandrels clog up the Jaw Pusher
or the machine.
Eliminate the mandrels clogging in the Jaw
Case or the Guide Tube. (Refer to page 11,12.)
7The guide pipe unit does not match
the rivet used.
Replace with a guide pipe unit suitable for the
blind rivet diameter used. (Refer to page 8.)
Rivet working does
not complete with
one trigger operation
１
The rivet length is not correct for the
workpiece thickness.
Use rivet which match the workpiece
thickness.
２
Compressor air pressure is
incorrect.
Increase air pressure. (By making air pressure
more than maximum 0.6 MPa or more will
lead to damage to parts. If the rivet does not
break even with the maximum air pressure,
that rivet cannot be used.) (Refer to page 9.)
３Jaw Case is incorrectly assembled. Check the assembly procedure of parts
inside the Jaw Case. (Refer to page 11,12.)
４Jaws are worn. Replace the Jaws. (Refer to page 11,12.)
５
The Jaw Pusher Spring has been worn. Replace Jaw Pusher Spring (Refer to page 11,12.)
６Insu󰀩cient hydraulic oil, causing a
shorter stroke.
Add hydraulic oil. (Refer to pages 13,14.)
Piston does not operate,
or returns very slowly, or
operation is not smooth.
１
Insu󰀩cient and excess pressure of
supplied air.
Adjust to obtain an appropriate pressure of
supplied air. (Refer to page 9.)
The suction power
is weak and the cut
mandrels (shafts)
cannot be drawn out.
１
Insu󰀩cient turning of Vacuum Knob. Turn the Vacuum Knob until it stops.
２Too many cut mandrels in the tank. Remove the Tank Case Unit and
discard the cut mandrels.
３
Cut mandrels clog in the machine. Remove the cut mandrels.
４The Guide Pipe Unit is not
applicable to the size of rivet used.
Replace with a Guide Pipe Unit applicable
to the rivet used. (Refer to page 8.)
If a problem occurs, check the followings. If the problem persists after checking the items in the
table below, contact your nearest “LOBSTER” dealer or direct to us.
In making any enquiries about this product or requests for repair work, first check the
troubleshooting items below, and then make a note of the model number, the usage conditions and
the trouble symptoms in as much detail as possible. If you can provide this kind of information, it
will contribute to reducing the amount of time required for delivery or repairs to be completed.
● TROUBLE SHOOTING

英語／ＥＮＧＬＩＳＨ
19
WARRANTY & SERVICE
LOBSTER® WARRANTS THAT GOODS COVERED BY THIS
MANUAL WILL CONFORM TO APPLICABLE SPECIFICATIONS
AND DRAWINGS AND THAT SUCH GOODS WILL BE
MANUFACTURED AND INSPECTED ACCORDING TO GENERALLY
ACCEPTED PRACTICES OF COMPANIES MANUFACTURING
INDUSTRIAL TOOLS. THERE ARE NO WARRANTIES WHICH
EXTEND BEYOND THE FOREGOING.
THE LIABILITY OF LOBSTER® ON PARTS FOUND TO BE
DEFECTIVE IS LIMITED TO RE-WORK OR THE REPLACEMENT
OF SUCH GOODS AND IN NO CASE TO EXCEED THE INVOICE
VALUE OF THE SAID GOODS. UNDER NO CIRCUMSTANCES
WILL LOBSTER® BE LIABLE FOR DAMAGES OR COSTS
INCURRED BY THE BUYER OR SUBSEQUENT USER IN RE-
PAIRING OR REPLACING DEFECTIVE GOODS.
ROUTINE MAINTENANCE AND REPAIR OF LOBSTER® RIVET
TOOLS CAN BE PERFORMED BY AN AVERAGE MECHANIC.
HOWEVER, IF YOU HAVE A LOBSTER® RIVET TOOL THAT IS IN
NEED OF MAJOR REPAIR WE RECOMMEND THAT IT BE SENT
DIRECTLY TO US POSTAGE PAID FOR SERVICE AT A
REASONABLE CHARGES.
MANUFACTURER
OSAKA, JAPAN

英語／ＥＮＧＬＩＳＨ
2020
ＭＥＭＯ
