Locinox SlimStone-2-9005 User manual

SlimStone-2 1
SlimStone-2
MANUAL • HANDLEIDING • MANUEL
ANLEITUNG •INSTRUCCIONES
INSTRUKCJA •ИНСТРУКЦИИ

2SlimStone-2
COPYRIGHT
Copyright©2019 Locinox. All rights reserved. This product incorporates copyright protected technology that is
protected by a number of EU patent method claims and other intellectual property rights owned by the Locinox
Corporation and other rightholders.
Use of this copyright protected technology must be authorized by the Locinox Corporation. Reverse engineering or
disassembly is prohibited.
No part of this publication can either be reproduced, communicated, transcribed, stored in a retrieval system or
be translated into any language in any form or by any means, whether electronic, mechanical, magnetic, optical,
chemical, manual or otherwise, unless explicit written consent has been given by the copyright holder.
NOTICE
The contents of this publication are subject to change. The Locinox Corporation reserves the right to alter the contents
of this publication at any time and without notice. The contents of this publication may contain inaccuracies or
typographical errors and is supplied for informational use only.
TECHNICAL SUPPORT
If you require any additional information or assistance during the installation, please contact your dealer, who will be
able to provide the latest information. Alternatively, you can visit the Locinox website for more technical information or
e-mail us on [email protected]. Please keep the serial number at hand of your product for future support.

SlimStone-2 3
SlimStone-2
MANUAL • HANDLEIDING
MANUEL • ANLEITUNG
INSTRUCCIONES • INSTRUKCJA
ИНСТРУКЦИИ

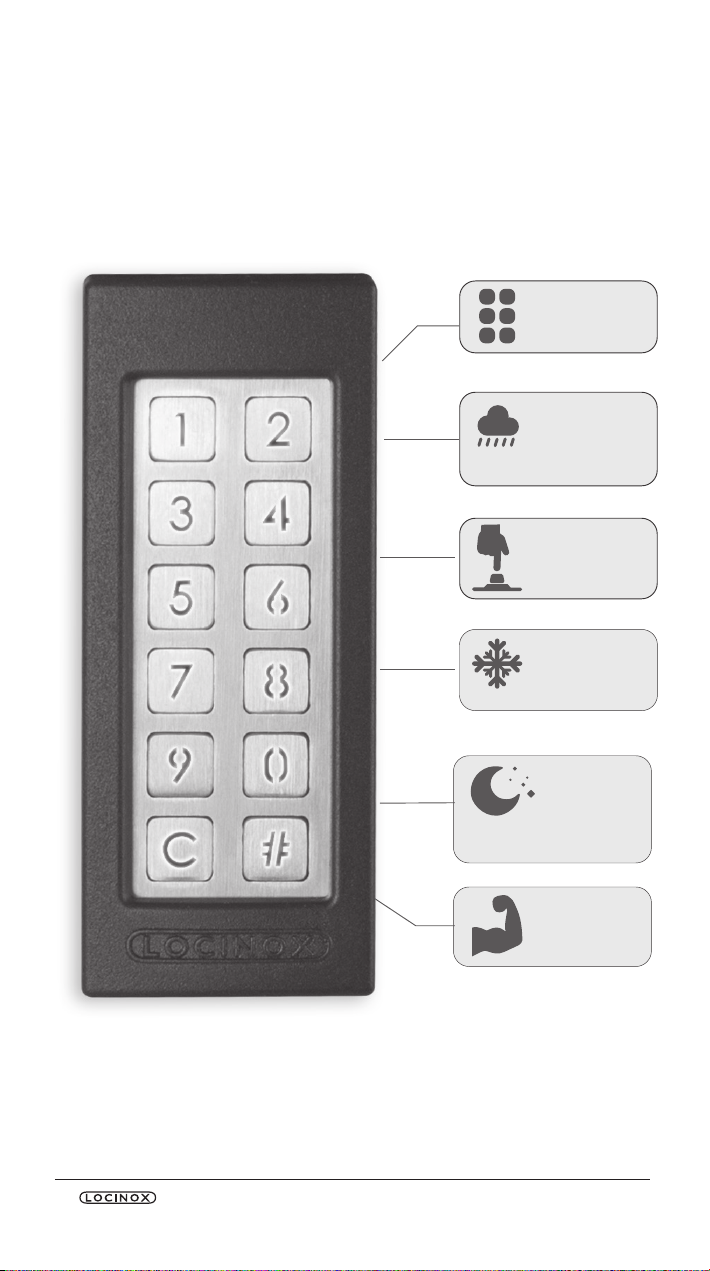

4SlimStone-2
IP 68
Extreme
weather
proof
Freeze-free
by heating
element
Easily
readable
digits by
LED lighting
Ultimate
durable
components
Up to 100
entry codes
SlimStone-2
Override
contacts
included

SlimStone-2 5
BOX CONTENT
SLIMSTONE-2
27 mm
1-1/16”
Ø 15 mm Ø 9/16”
Ø 15 mm
Ø 9/16”
50 mm
2”
115 mm
4-1/2””
*TEMP-000049*
50 mm
2”
115 mm
4-1/2”
137 mm
5-3/8”
54 mm
2-1/8”
23,8 mm
15/16”
1
5
2
3
4
1SlimStone-2
2Allen key 6 mm
3Allen key 2,5 mm
4Wall mounting set
5Drilling template

6SlimStone-2
CONTENTS
EN 1. PRODUCT DESCRIPTION.................................................................................... 8
2. TECHNICAL SPECIFICATIONS........................................................................... 8
3. MOUNTING ........................................................................................................ 8
4. CABLING.............................................................................................................. 10
5. PRIORITY CONTACT ........................................................................................... 10
6. PROGRAMMING ................................................................................................ 10
7. FUNCTIONING OF SLIMSTONE2................................................................ 12
8. MAINTENANCE .................................................................................................. 13
9. GENERAL INFORMATION ................................................................................. 13
10. WARRANTY.......................................................................................................... 13
11. TROUBLESHOOTING.......................................................................................... 13
12. FREQUENTLY ASKED QUESTIONS.................................................................... 13
13. USER CODES ....................................................................................................... 57
14. CONNECTION SCHEME ................................................................................... 63
NL 1. PRODUCTOMSCHRIJVING................................................................................ 14
2. TECHNISCHE FICHE ........................................................................................... 14
3. MONTAGE........................................................................................................... 14
4. BEDRADING......................................................................................................... 16
5. VOORRANGSCONTACT.................................................................................... 16
6. PROGRAMMATIE ................................................................................................ 16
7. WERKING VAN DE SLIMSTONE2................................................................ 18
8. ONDERHOUD...................................................................................................... 19
9. ALGEMENE INFORMATIE .................................................................................. 19
10. GARANTIE............................................................................................................ 19
11. PROBLEEMOPLOSSING...................................................................................... 20
12. VEELGESTELDE VRAGEN..................................................................................... 20
13. GEBRUIKERSCODES ........................................................................................... 57
14. AANSLUITSCHEMA ............................................................................................ 63
FR 1. DESCRIPTION DU PRODUIT............................................................................... 21
2. SPÉCIFICATIONS TECHNIQUES ....................................................................... 21
3. MONTAGE........................................................................................................... 21
4. CÂBLAGE ............................................................................................................. 23
5. CONTACT PRIORITAIRE...................................................................................... 23
6. PROGRAMMATION............................................................................................ 23
7. FONCTIONNEMENT DU SLIMSTONE2...................................................... 26
8. ENTRETIEN........................................................................................................... 26
9. INFORMATIONS GÉNÉRALES........................................................................... 26
10. GARANTIE............................................................................................................ 27
11. AIDE AU DÉPANNAGE ....................................................................................... 27
12. QUESTIONS SOUVENT POSÉES....................................................................... 27
13. CODES D’UTILISATEUR....................................................................................... 57
14. SCHÉMA DE CONNEXION .............................................................................. 63
DE 1. PRODUKTBESCHREIBUNG................................................................................. 28
2. TECHNISCHE SPEZIFIKATIONEN...................................................................... 28
3. MONTAGE........................................................................................................... 28
4. VERKABELUNG.................................................................................................... 30
5. VORRANGKONTAKT .......................................................................................... 30
6. PROGRAMMIERUNG ......................................................................................... 30
7. FUNKTIONSWEISE DER SLIMSTONE2....................................................... 33
8. WARTUNG........................................................................................................... 33
9. ALLGEMEINE INFORMATIONEN...................................................................... 33
10. GARANTIE............................................................................................................ 33
11. FEHLERBEHEBUNG ............................................................................................. 34
12. HÄUFIG GESTELLTE FRAGEN............................................................................. 34
13. BENUTZERCODES............................................................................................... 57
14. VERBINDUNGSSCHEMA .................................................................................. 63

SlimStone-2 7
ES 1. DESCRIPCIÓN DEL PRODUCTO ........................................................................ 35
2. ESPECIFICACIONES TÉCNICAS........................................................................ 35
3. MONTAJE ............................................................................................................ 35
4. CABLEADO........................................................................................................... 37
5. CONTACTO PRIORITARIO.................................................................................. 37
6. PROGRAMACIÓN............................................................................................... 37
7. FUNCIONAMIENTO DEL SLIMSTONE2 ..................................................... 40
8. MANTENIMIENTO.............................................................................................. 40
9. INFORMACIÓN GENERAL ................................................................................ 40
10. GARANTÍA........................................................................................................... 40
11. LOCALIZACIÓN DE AVERÍAS............................................................................. 41
12. PREGUNTAS FRECUENTES................................................................................. 41
13. CÓDIGOS DE USUARIO .................................................................................... 57
14. ESQUEMA DE CONEXIÓN ............................................................................... 63
PL 1. OPIS PRODUKTU................................................................................................. 42
2. DANE TECHNICZNE........................................................................................... 42
3. INSTALACJA......................................................................................................... 42
4. PRZEWODY PODŁĄCZENIOWE ........................................................................ 44
5. PRZEKAŹNIK PRIORYTETOWY........................................................................... 44
6. PROGRAMOWANIE ........................................................................................... 44
7. OBSŁUGA URZĄDZENIA SLIMSTONE2..................................................... 47
8. KONSERWACJA .................................................................................................. 47
9. INFORMACJE OGÓLNE..................................................................................... 48
10. GWARANCJA...................................................................................................... 48
11. ROZWIĄZYWANIE PROBLEMÓW .................................................................... 48
12. CZĘSTO ZADAWANE PYTANIA......................................................................... 48
13. KODY UŻYTKOWNIKÓW................................................................................... 57
14. SCHEMAT PODŁĄCZENIA ................................................................................. 63
RU 1. ОПИСАНИЕ ПРОДУКТА ................................................................................... 50
2. ТЕХНИЧЕСКИЕ ДАННЫЕ................................................................................... 50
3. МОНТАЖ............................................................................................................. 50
4. ПРОВОЛОЧНАЯ АРМАТУРА ............................................................................ 52
5. ПРЕИМУЩЕСТВЕННЫЙ КОНТАКТ................................................................... 52
6. ПРОГРАММИРОВАНИЕ.................................................................................... 52
7. РАБОТА SLIMSTONE2 ................................................................................... 55
8. ОБСЛУЖИВАНИЕ.............................................................................................. 55
9. ОБЩАЯ ИНФОРМАЦИЯ................................................................................... 55
10. ГАРАНТИЯ ............................................................................................................ 55
11. ВЫЯВЛЕНИЕ НЕИСПРАВНОСТЕЙ ................................................................... 56
12. ЧАСТО ЗАДАВАЕМЫЕ ВОПРОСЫ .................................................................. 55
13. КОДЫ ПОЛЬЗОВАТЕЛЕЙ................................................................................. 57
14. СХЕМА ПОДКЛЮЧЕНИЯ ................................................................................. 63

EN EN
8SlimStone-2
Congratulations with the purchase
of your SlimStone-2
1. PRODUCT DESCRIPTION
The SlimStone-2 is a sturdy, weather resistant
keypad with integrated LED lighting. This keypad
is unique in its kind thanks to its durability.
Developed and tested for use in the most extreme
weather conditions, SlimStone-2 guarantees
access control in all circumstances.
Thanks to the 2 integrated relays, with normally
open and normally closed contacts, both the
coupling to Locinox and other automation
products and the programming of the SlimStone-2
are very easy. Equipped with innovative Quick-
Fix, alternative fixings for wood and stone are also
supplied.
The SlimStone-2 is made of an aluminium powder
coated housing with a brushed stainless steel key
panel and ditto push buttons.
Up to 100 codes can be programmed.
2. TECHNICAL SPECIFICATIONS
Operational
temperature
-22°F up to 185°F
-30°C up to 85°C
Power supply 10-26 V AC/DC
Switching
contact
0-26 V AC/DC, 2A (60W)
Number of
onboard relays
2
Cable length 2 m (6-1/2ft.)
IP value IP68
Control inputs 2 control inputs
Consumption 1,5 W (> 5°C/41°F) + 12
W at max heating (< -25°C/
< -13°F)
INTERNAL TEMPERATURE °C
-22-13-451423
32
415059
-30-25-20-15-10-5
0
51015
0
2
4
6
8
10
12
14
CONSUMPTION W
INTERNAL TEMPERATURE °F
HEATING
Under -20°C/-4°F a 24V power supply is
recommended.
3. MOUNTING
STEP 1
Stick the template and drill into the wall or post (see
p.5).
STEP 2
Remove the cover of the SlimStone-2.
1
3
2
HEX
2,5mm

EN EN
SlimStone-2 9

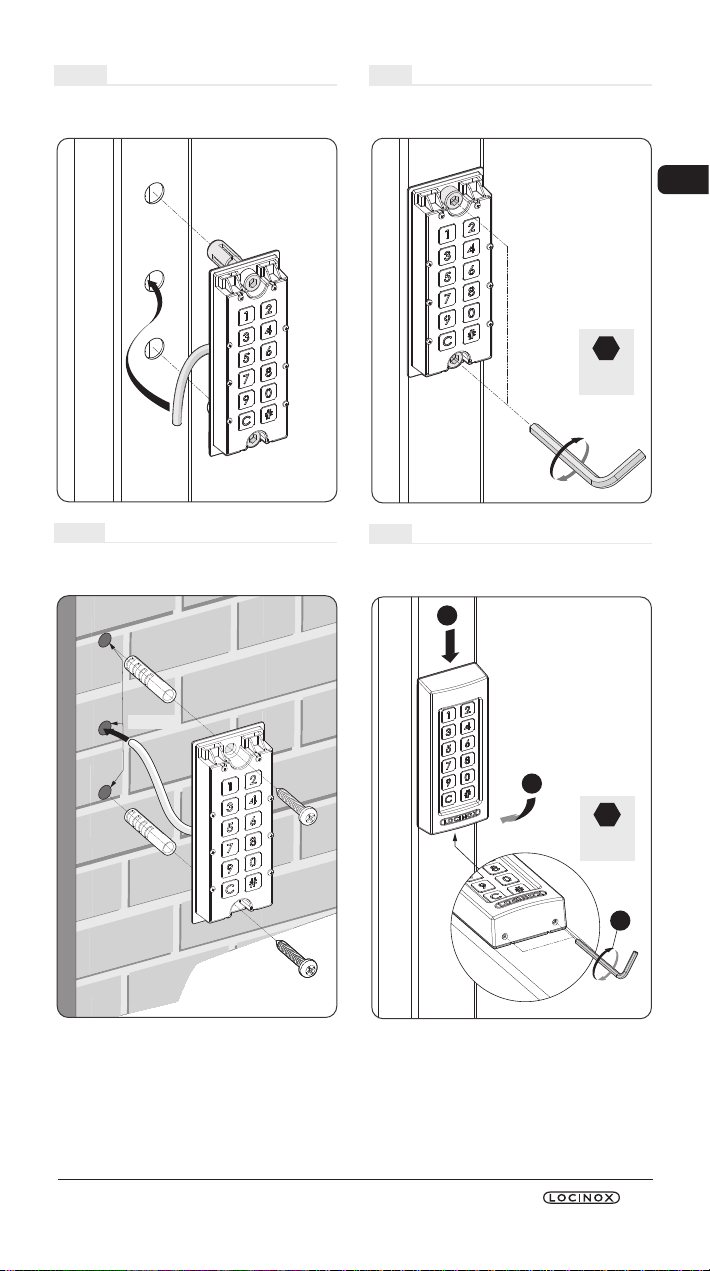

STEP 3A
Run the cable through the middle hole in the post.
STEP 3B
Run the cable through the middle hole in the wall.
3 x Ø 10 mm3 x Ø 10 mm
STEP 4
Position the SlimStone-2 and tighten both
Quick-Fix.
HEX
6 mm
STEP 5
Position the cover and tighten using
2 screws underneath.
1
2
3
HEX
2,5 mm

EN EN
10 SlimStone-2
4. CABLING
The SlimStone-2 is equipped with a 2 m long 10
conductor cable.
See p. 63 for a detailed connection scheme.
Power supply
AC1 Blue
AC2 Brown
Relay
Relay 1 COM Black
Relay 1 NO Orange
Relay 1 NC Red
Relay 2 COM Black/Blue
Relay 2 NO Orange/Blue
Relay 2 NC Red/Blue
Override button
Override 1 White
Override 2 White/blue
Unused cable ends must be insulated separate-
ly to ensure a proper functioning of the keypad.
5. CONTROL INPUTS
• You can connect an external button or actuator
that will activate the relays and have priority over
PIN code. For example, using an intercom or
free exit.
• To activate the first relay, connect the NO
contact of the external button for relay 1 between
J (override 1) and the 0V line (in case of DC),
or one of the power lines (in case of AC).
• To activate the second relay, connect the NO
contact of the external button for relay 2 between
I (override 2) and the 0V line (in case of DC),
or one of the power lines (in case of AC).
• For more details on control inputs,
see the scheme on page 63
Attention! This must be a dry contact with NO
function.
• The corresponding button lights up, and a light
sequence runs from the bottom to the top while
the relay is energised.
6. PROGRAMMING
6.1 ACCESS PROGRAMMING
MODE
• Press [#] for 5 sec, [#] will start flashing
• Enter the Master PIN and press [#] (default
12345). If correct, [#] will remain lit as long as the
programming mode is activated.
• If a wrong Master PIN is entered, the
programming mode ends and the time out
procedure as described in 7.2 applies.
If only [#] is lit, you are in the main menu of the
programming mode.
For safety reasons we strongly recommend to
change the Master PIN upon first use.
• Select a menu number and confirm with [#]. The
following menus are available:
[9]  set Master PIN
[1]  manage PIN code
[3]  set hold time relay 1
[4]  set hold time relay 2
[5]  set lighting mode
[7]  pulse repetition
[0]  factory reset
See next paragraph for detailed information
The programming mode ends
automatically when there is no activity
for 60 seconds.
• After selecting a menu, it’s possible to return to the
main menu by pressing the [C] key
• Press [C] for 5 seconds to exit the programming
mode
6.2 SET MASTER PIN [9]
• Access programming mode (see 6.1)
• Press [9] and confirm with [#]
• [9] and [#] are both lit
The default Master PIN is 12345. It always has
to be a 5-digit code.
• Enter a new 5-digit Master PIN and press [#].
Repeat this step.
• If both codes are equal, all LEDs will light briefly
and you will return to the main menu of the
programming mode
