Locinox Slimstone-2 User manual

SlimStone-2 1

SlimStone-2

MANUAL

2SlimStone-2

protected by a number of EU patent method claims and other intellectual property rights owned by the Locinox

Corporation and other rightholders.

Use of this copyright protected technology must be authorized by the Locinox Corporation. Reverse engineering or

disassembly is prohibited.

No part of this publication can either be reproduced, communicated, transcribed, stored in a retrieval system or

be translated into any language in any form or by any means, whether electronic, mechanical, magnetic, optical,

chemical, manual or otherwise, unless explicit written consent has been given by the copyright holder.

NOTICE

The contents of this publication are subject to change. The Locinox Corporation reserves the right to alter the contents

of this publication at any time and without notice. The contents of this publication may contain inaccuracies or

typographical errors and is supplied for informational use only.

TECHNICAL SUPPORT

If you require any additional information or assistance during the installation, please contact your dealer, who will be

able to provide the latest information. Alternatively, you can visit the Locinox website for more technical information

or e-mail us on [email protected]. Please keep the serial number at hand of your product for future support.

SlimStone-2 3

SlimStone-2

MANUAL

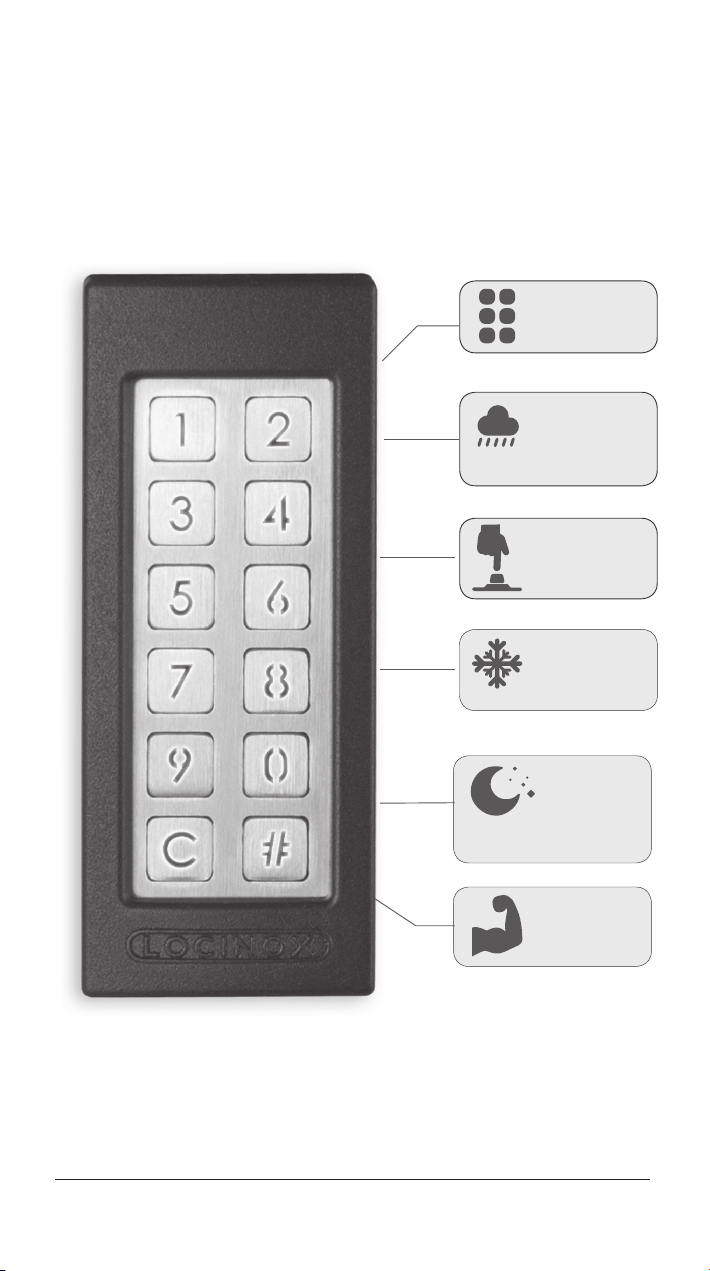

4SlimStone-2

IP 68

Extreme

weather

proof

Freeze-free

by heating

element

Easily

readable

digits by

LED lighting

Ultimate

durable

components

Up to 100

entry codes

SlimStone-2

Control

inputs

included

SlimStone-2 5

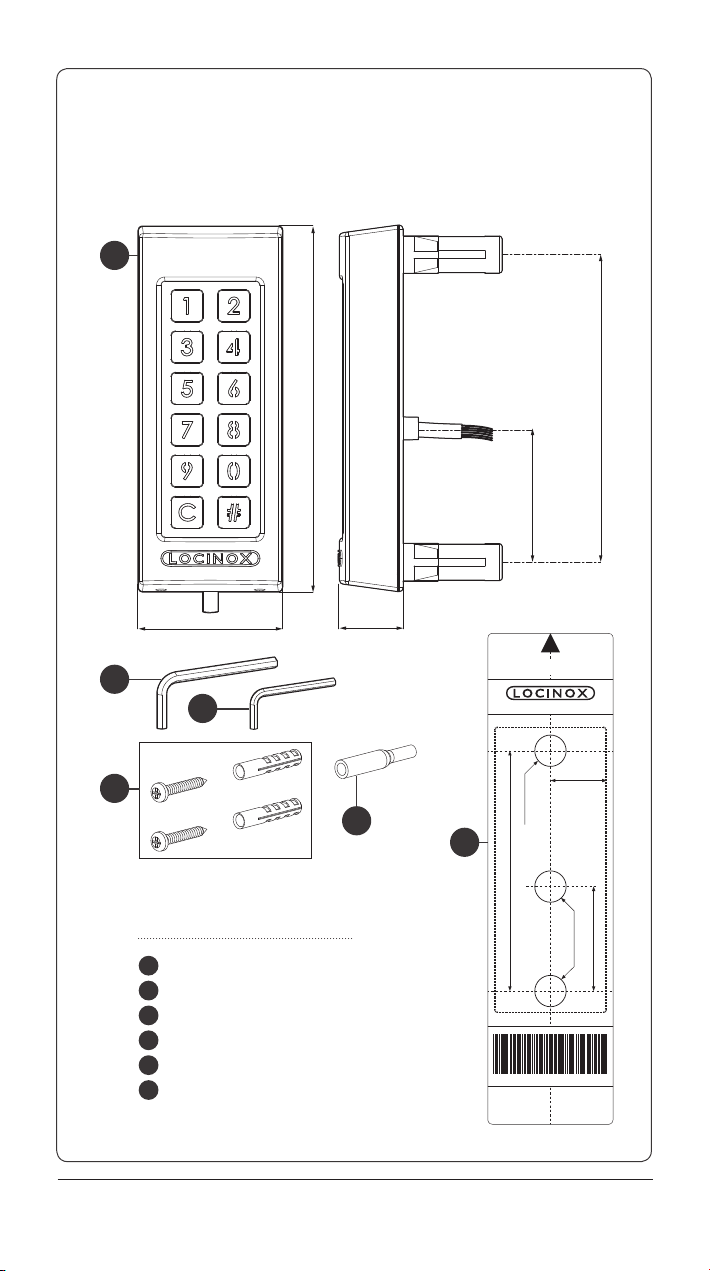

BOX CONTENT

115 mm

4-1/2”

50 mm

2”

27 mm

1-1/16”

Ø 15 mm

Ø 9/16”

Ø 15 mm

Ø 9/16”

SLIMSTONE2

*TEMP-000038*

50 mm

2”

115 mm

4-1/2”

137 mm

5-3/8”

54 mm

2-1/8”

23,8 mm

15/16”

1SlimStone-2

2Allen key 6 mm

3Allen key 2,5 mm

4Wall mounting set

5Heat Shrinking Tubing (6x)

6Drilling template

6SlimStone-2

CONTENTS

EN 1. PRODUCT DESCRIPTION.................................................................................... 7

2. TECHNICAL SPECIFICATIONS........................................................................... 7

3. MOUNTING ........................................................................................................ 7

4. CABLING.............................................................................................................. 9

5. PRIORITY CONTACT ........................................................................................... 9

6. PROGRAMMING ................................................................................................ 9

7. FUNCTIONING OF SLIMSTONE2................................................................ 11

8. MAINTENANCE .................................................................................................. 12

9. GENERAL INFORMATION ................................................................................. 12

10. WARRANTY.......................................................................................................... 12

11. TROUBLESHOOTING.......................................................................................... 12

12. FREQUENTLY ASKED QUESTIONS.................................................................... 12

13. USER CODES .......................................................................................................

14. CONNECTION SCHEME ...................................................................................

EN EN

Congratulations with the purchase

of your SlimStone-2

1. PRODUCT DESCRIPTION

The SlimStone-2 is a sturdy, weather resistant

keypad with integrated LED lighting. This keypad

is unique in its kind thanks to its durability.

Developed and tested for use in the most extreme

weather conditions, SlimStone-2 guarantees

access control in all circumstances.

Thanks to the 2 integrated relays, with normally

open and normally closed contacts, both the

coupling to Locinox and other automation

products and the programming of the SlimStone-2

are very easy. Equipped with innovative Quick-Fix,

alternative ﬁxings for wood and stone are also

supplied.

The SlimStone-2 is made of an aluminium powder

coated housing with a brushed stainless steel key

panel and ditto push buttons.

Up to 100 codes can be programmed.

2. TECHNICAL SPECIFICATIONS

Operational

temperature

-22°F up to 185°F

-30°C up to 85°C

Power supply 10-26 V AC/DC

Switching

contact

0-26 V AC/DC, 2A (60W)

Number of

onboard relays

Cable length 2 m (6-1/2ft.)

IP value IP68

Control inputs 2 control inputs

Consumption 1,5 W (> 5°C/41°F) + 12 W

at max heating (< -25°C/

< -13°F)

INTERNAL TEMPERATURE °C

-22-13-451423

415059

-30-25-20-15-10-5

51015

CONSUMPTION W

INTERNAL TEMPERATURE °F

HEATING

Under -20°C/-4°F a 24V power supply is

recommended.

3. MOUNTING

STEP 1

Stick the template and drill into the wall or post (see

p.5).

STEP 2

Remove the cover of the SlimStone-2.

HEX

2,5mm

SlimStone-2 7

EN EN

STEP 3A

Run the cable through the middle hole in the post.

STEP 3B

Run the cable through the middle hole in the wall.

3 x Ø 10 mm3 x Ø 10 mm

STEP 4

Position the SlimStone-2 and tighten both

Quick-Fix.

HEX

6 mm

STEP 5

Position the cover and tighten using

2 screws underneath.

HEX

2,5 mm

8SlimStone-2

EN EN

4. CABLING

The SlimStone-2 is equipped with a 2 m long 10

conductor cable.

See p. 63 for a detailed connection scheme.

Power supply

AC1 Blue

AC2 Brown

Relay

Relay 1 COM Black

Relay 1 NO Orange

Relay 1 NC Red

Relay 2 COM Black/Blue

Relay 2 NO Orange/Blue

Relay 2 NC Red/Blue

Control input

Control Input 1 White

Control Input 2 White/blue

Unused cable ends must be insulated

separately to ensure a proper functioning of the

keypad.

5. CONTROL INPUTS

• You can connect an external button or actuator

that will activate the relays and have priority over

PIN codes. For example, using an intercom or

free exit.

• To activate the ﬁrst relay, connect the NO

contact of the external button for relay 1 between

J (override 1) and the 0V line (in case of DC),

or one of the power lines (in case of AC).

• To activate the second relay, connect the NO

contact of the external button for relay 2 between

I (override 2) and the 0V line (in case of DC),

or one of the power lines (in case of AC).

• For more details on control inputs,

see the scheme on page 63

Attention! This must be a dry contact with NO

function.

• The corresponding button lights up, and a light

sequence runs from the bottom to the top while

the relay is energised.

6. PROGRAMMING

6.1 ACCESS PROGRAMMING

MODE

• Press [#] for 5 sec, [#] will start ﬂashing

• Enter the Master PIN and press [#] (default

12345). If correct, [#] will remain lit as long as the

programming mode is activated.

• If a wrong Master PIN is entered, the

programming mode ends and the time out

procedure as described in 7. 2 applies.

If only [#] is lit, you are in the main menu of the

programming mode.

For safety reasons we strongly recommend to

change the Master PIN upon ﬁrst use.

• Select a menu number and conﬁrm with [#]. The

following menus are available:

[9]  set Master PIN

[1]  manage PIN code

[3]  set hold time relay 1

[4]  set hold time relay 2

[5]  set lighting mode

[7]  pulse repetition

[8]  keypad heating

See next paragraph for detailed information

The programming mode ends

automatically when there is no activity

for 60 seconds.

• After selecting a menu, it’s possible to return to the

main menu by pressing the [C] key

• Press [C] for 5 seconds to exit the programming

mode

6.2 SET MASTER PIN [9]

• Access programming mode (see 6.1)

• Press [9] and conﬁrm with [#]

• [9] and [#] are both lit

The default Master PIN is 12345. It always has

to be a 5-digit code.

• Enter a new 5-digit Master PIN and press [#].

Repeat this step.

• If both codes are equal, all LEDs will light brieﬂy

and you will return to the main menu of the

programming mode

SlimStone-2 9

EN EN

• For safety reasons, the Master PIN can only be

entered to access the programming mode. It

cannot be used as an entry code.

When two different codes or a wrong code

length is entered, all LEDs will ﬂash three times,

indicating the code hasn’t been saved. Try

again. [9] will remain lit.

6.3 MANAGE PIN CODE [1]

• Access programming mode (see 6.1)

A maximum of 100 different PIN codes can be

programmed (min. 4 - max. 8 digits).

• Press [1] and conﬁrm with [#]

• [1] and [#] are both lit

• Enter a new PIN code and conﬁrm with [#]

• In case of a new code, the code will need to be

repeated and conﬁrmed with [#]

• The lights bellow button [1] and [2] are indicating

which relays are selected to be controled by this

code

• Pressing [1] or [2] will select (permanently on) or

de-select (ﬂashing) the corresponding relay

• The selection is conﬁrmed by pressing the [#] key

• You will return to the main menu of the

programming mode

When two different codes or a wrong code

length is entered, all keys will ﬂash three times,

indicating the code setting hasn’t been saved.

Try again. [1] will remain lit.

A code can be removed by de-selecting [1]

and [2] before conﬁrmation

6.4 SET HOLD TIME RELAY 1 [3]

• Access programming mode (see 6.1)

• Press [3] and conﬁrm with [#]

• [3] and [#] are both lit

• Enter the time (between 1 and 99 seconds) and

conﬁrm with [#]

• A valid time is conﬁrmed with a brief lighting of

all LEDs

• You will return to the main menu

Pulse mode : if the SlimStone-2 is used to

control automated systems, a pulse is required.

This mode can be activated by setting a time of

0 seconds. The pulse duration is 150ms.

In case an invalid time is entered, all keys will

ﬂash three times. Menu [3] remains activated.

The default time is set at 8 seconds.

6.5 SET HOLD TIME RELAY 2 [4]

• Access programming mode (see 6.1)

• Press [4] and conﬁrm with [#]

• [4] and [#] are both lit

• Enter the time (between 1 and 99 seconds) and

conﬁrm with [#]

• A valid time is conﬁrmed with a brief lighting of

all LEDs

• You will return to the main menu

Pulse mode: if the SlimStone-2 is used to control

automated systems, a pulse is required. This

mode can be activated by setting a time of 0

seconds. The pulse duration is 150ms.

In case an invalid time is entered, all keys will

ﬂash three times. Menu [4] remains activated.

The default time is set at 8 seconds.

6.6 SET LIGHTING MODE [5]

• Access programming mode (see 6.1)

• Press [5] and conﬁrm with [#]

• [5] and [#] are both lit

• Choose the mode in which you want the lighting

to work:

[1] Always on

[2] Auto-dim (default):

The brightness of the lighting is dimmed to

20% after 45 seconds inactivity. As soon as a

key is pressed, the lighting will be back at full

brightness for a minimum time of 45 seconds.

[3] Auto-off:

The lighting is switched off after 45 seconds

inactivity. As soon as a key is pressed, the

lighting is back on for a minimum time of 45

seconds.

• Press [1], [2] or [3] and conﬁrm with [#]. When all

LEDs ﬂash, your choice is saved

• You are back in the main menu of the

programming mode

In case an invalid number is entered, all lights

ﬂash three times. Start over. Menu [5] remains

activated.

10 SlimStone-2

EN EN

6.7 SET PULSE REPETITION [7]

If one or both of the relays are set to pulse mode,

additional pulses can be given by pressing [#]

without the need to re-enter the PIN code. This menu

allows setting the duration of this pulse repetition

timeframe.

• Access programming mode (see 6.1)

• Press [7] and conﬁrm with [#]

• [7] and [#] are both lit

• Enter the timeframe within which pulse repetion is

allowed (between 1 and 99 seconds), and press

[#] (0s will disable pulse repetition)

• If a valid value is entered all lights will light up, you

will return to the main menu

In case of an invalid value, all lights will ﬂash

three times. Menu [7] remains activated.

By default the value is set to ‘no pulse repetition

’

6.8 KEYPAD HEATING [8]

• Access programming mode (see 6.1)

• Press [8] and conﬁrm with [#]

• [8] and [#] are both lit

• Select the mode for the keypad heating:

[1] Full power heating (default): The keypad

heating can consume up to 12W of power

[2] Half power heating: The power consumed for

keypad heating is limited to a maximum of 6W.

[3] No heating: The keypad heating is disabled.

• Press [1], [2] or [3] and conﬁrm with [#]. When

all LEDs ﬂash, your choice has been saved.

• You are back in the main menu of the

programming mode

In case of an invalid value, all lights will ﬂash three

times. Start over. Menu [8] remains activated.

6.9 FACTORY RESET UPON LOSS

OF MASTER PIN

Perform a factory reset without a Master PIN:

• Switch the power supply off and on, enter the

default Master PIN ‘12345’ and conﬁrm with [#]

within 20 seconds

• The factory reset is complete

• In case of a factory reset as described above, the

Master PIN is reset to ‘12345’

7. FUNCTIONING OF

SLIMSTONE2

7.1 ENTER A CORRECT CODE

• Enter a personal code (min. 4 - max. 8 digits)

• Press [#] to conﬁrm the code

• In case the code is only valid for 1 relay, the relay

will be activated immediately

• In case the code is valid for both relay 1 and 2,

buttons [1] and [2] will ﬂash. Press [1] and/or [2]

to activate relay 1 and/or relay 2.

• The corresponding button lights up, and a light

sequence runs from the bottom to the top during

the time the relay is energised (default time is 8

seconds)

• If the sequence light stops, the relay is no longer

energised. The SlimStone-2 is ready for a new

code.

7.2 ENTER A WRONG CODE

• Enter a wrong code

• Press [#] to conﬁrm the code

• All lights ﬂash for 2 seconds, indicating a wrong

code has been entered

• If 5 or more wrong codes are entered

consecutively, you won’t be able to use the

SlimStone-2 for a certain period due to safety

reasons. The time out period is speciﬁed as

follows :

2[number of failed attempts] seconds.

For example : 6 failed attempts result in a time out

period of 64 seconds (26seconds)

The time out period is reset when a correct

code is entered, or if no new code was entered

during 2 hours.

SlimStone-2 11

EN EN

8. MAINTENANCE

• Clean the housing and display using a soft cloth,

moistened with a neutral cleaning agent

• Never use fuel or chemicals on the device since

they might harm the housing

9. GENERAL INFORMATION

• Please observe the local regulations on the

deposit of packaging material and of appliances

no longer in use

• Our packaging material is eco-friendly. It can be

divided into 2 materials: cardboard (box) and

expandable polyester (buffer).

• Your device is made of recyclable materials

10. WARRANTY

A 2 year warranty covers all electronics

11. TROUBLESHOOTING

PROBLEM SOLUTION

• All lights are ﬂashing • When wrong codes have been entered

repeatedly, the SlimStone-2 is blocked.

See 7.2.

• The SlimStone-2 lighting is off after pushing a

button

• Verify the power supply connection

• The SlimStone-2 does not react after entering

the code

• Entering a code must always be conﬁrmed with

[#]

• The sequence light remains lit • Check if the cables of the override button are

insulated

• Possibly you set a time of 99 seconds

• The lights ﬂash after entering the PIN code and

conﬁrmation by pressing [#]

• The entered code does not match any of the

registered codes. See 7.2

12. FREQUENTLY ASKED QUESTIONS

QUESTION ANSWER

• Is the keypad heated? • Yes, SlimStone-2 has a regulated heating system

which keeps the keys frost-free

• How weatherproof is the SlimStone-2? • SlimStone-2 is designed to comply with the IP68

standard

• Can I use the SlimStone-2 with sectional doors? • Yes, by setting the relay hold time to 0, a pulse is

given with which sectional doors can be controlled

• Is it possible to control the same device from

two SlimStone-2s?

• Yes, Two SlimStone-2’s (A and B) can control the

same device: Start by connecting the device to

SlimStone-2 A as described on page 59. Next,

connect one of the control inputs of SlimStone-2

A to the COM contact of SlimStone-2 B. The NO

contact of SlimStone-2 B should be connected to

the 0V/N line. Please note that codes need to be

programmed on both SlimStone-2’s.

A discarded device can either be returned to your dealer or be sent back to Locinox. This product’s

recycling fee is € 0,2.

The WEE marking on the product indicates that it may not be thrown away together with normal

household waste and must be handed over to a designated collection point for the recycling of

electrical and electronic rejects.

As manufacturer of this product, we guarantee that we have taken all the necessary steps in order

to comply with the current safety requirements for this product.

12 SlimStone-2

• -

USER CODES NAME OFUSER

SlimStone-2 13

USER CODES NAME OFUSER

14 SlimStone-2

• -

USER CODES NAME OFUSER

SlimStone-2 15

USER CODES NAME OFUSER

16 SlimStone-2

• -

USER CODES NAME OFUSER

SlimStone-2 17

RELAY 1

RELAY 2

CONTROL INPUT 1 N

CONTROL INPUT 2

DC-POWER 12V/20W

220V12 V

220 V 12 V 0 V

RELAY 1

RELAY 2

CONTROL INPUT 1 N

CONTROL INPUT 2

DC-POWER 12V/20W

220V12 V

220 V 12 V 0 V

RELAY 1

RELAY 2

CONTROL INPUT 1 N

CONTROL INPUT 2

DC-POWER 12V/20W

220V12 V

220 V 12 V 0 V

RELAY 1

RELAY 2

CONTROL INPUT 1 N

CONTROL INPUT 2

DC-POWER 12V/20W

220V12 V

220 V 12 V 0 V

FAIL CLOSE

FAIL OPEN

AControl input 1

BControl input 2

CCommon Relay 1

DNormal open relay 1

ENormal close relay 1

FCommon Relay 2

GNormal open relay 2

HNormal close relay 2

IPower

JPower

CONNECTION SCHEME

18 SlimStone-2

Mar 2021

Whilst every effort has been made to ensure the accuracy of the information supplied. F.H. Brundle cannot be held responsible for any errors or omissions.

This product must only be employed for its original intended use. Any other use is wrong and potentially dangerous. Installation must be carried out in full
