Lofrans GALAXY 703 User manual

Accessori Elettrici
Electric Accessories
CONSERVARE QUESTO MANUALE A BORDO
STORE THIS MANUAL ON BOARD
CONSERVER CE MANUEL À BORD
DIESES HANDBUCH AN BORD AUFBEWAHREN
GUARDAR ESTE MANUAL A BORDO
Via Philips, 5 - 20052 Monza (MB) (Italy) - www.lofrans.com - e-mail: [email protected]
MANUALE DI INSTALLAZIONE E D’USO - INSTALLATION AND USER’S MANUAL
MANUEL D’INSTALLATION ED D’UTILISATION - MANUAL DE INSTALACIÓN Y USO
INSTALLATION UND BEDIENUNG
UK
IT
FR
DE
ES
GALAXY 703
3
Years Limited
Warranty
2
Years Limited
Warranty

GALAXY 703
2
FCC Caution.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between theequipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
§ 15.21 Information to user.
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device must not be co-located or operating in
conjunction with any other antenna or transmitter.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired operation

www.lofrans.com
3
Dear Customer,
Thank you for choosing a Lofrans product. Lofrans is a leader company in the production and worldwide distribution of nautical systems
manufactured according to the most modern technologies, in compliance with international regulation requirements and the most
important certifying bodies. All our products are manufactured with excellent materials suited for operations in marine environments and
are subject to continuous checks to improve the qualitative levels and make them without any manufacturing defects. Together with such
requirements, Lofrans anchor windlasses are a synthesis of reliability and efciency, by guaranteeing the maximum performances during
each phase of mooring, even in the most difcult. With a Lofrans product, years of reliable operations are guaranteed.
Lofrans declines any liability for possible inaccuracies due to print errors in this manual and reserves the right to introduce any changes
deemed appropriate.
For this reason, Lofrans does not guarantee the accuracy of the manual after the date of issue and declines all liability for possible errors
and omissions.
1 INTRODUCTION 4
1.1 Purpose of the manual 4
1.2 Assistance 4
1.3 Receipt and storage 4
1.4 General notes 4
2 INSTALLATION 4
2.1 Contents of the package 4
2.2 Recommended accessories 4
2.3 Installing the magnet on the anchor windlass 5
2.4 Installing the magnetic sensor for
horizontal shaft anchor windlasses 5
2.5 Installing the chain counter 5
3 TECHNICAL DATA 5
4 MENU 6
4.1 Starting up 6
4.2 Chain counter setting menu 7
4.3 Measurement menu 7
4.4 Alarm and functions menu 7
4.5 Settings menu 7
4.6 Language menu 8
4.7 Sensor calibration menu 8
4.8 Table 1 - Standard series sensor 9
4.9 Check menu 10
Lofrans©copyright, 2015. All rights reserved.
PRODUCT COMPLIANT WITH CE REGULATIONS
TABLE OF CONTENTS
5 USΕ 10
5.1 Measurement reset 10
6 TROUBLESHOOTING 11
7 WIRING DIAGRAM 11-12
8 WARRANTY CONDITIONS 12
8.1 Conditions and limitations 12
8.2 Exceptions 13
8.3 Liability 13
8.4 Procedure 13
8.5 Termination clause 13
8.6 Conformity 13
UK

GALAXY 703
4
DANGER!
A warning such as this indicates the existence of a serious risk that has high probabilities to cause death or a serious accident if
appropriate precautions are not taken.
ATTENTION!
A warning such as this indicates a reference to the application of safety practices, or draws the attention on unsafe behaviours
that might cause personal injuries or damages to the boat.
1.1 Purpose of the manual
This manual will supply information on safety and correct use of the product. Follow these warnings carefully to avoid possible
accidents or damages.
2.1 Contents of the package
- radio-chaincounter; - fastening kit for radio-chaincounter (1 bracket with 2 screws);
- power adaptor for lithium-ion battery charging; - receiver power unit;
- magnetic sensor; - magnet;
- horizontal shaft anchor windlass sensor support; - instructions for use.
1.2 Assistance
The Lofrans products are backed throughout the world by a network of authorised distributors and assistance. In case of need,
please contact your local Lofrans distributor. Details on website www.lofrans.com
2.2 Recommended accessories
Use exclusively original Lofrans accessories and spare parts, designed and manufactured to ensure performances, duration and for
keeping valid the warranty. For information on available spare parts, contact your local reseller or visit website www.lofrans.com
2.3 Installing the magnet on the anchor windlass
On a few models of anchor windlass the sensor and the magnet are already installed
(chain counter setting).Therefore, the operations described below are not necessary.
1. A hole having a diameter of 6.5 mm (~1/4”) and depth of 8 mm (5/16”) must be drilled on a
tooth of the gypsy, in a place outside the chain’s path.

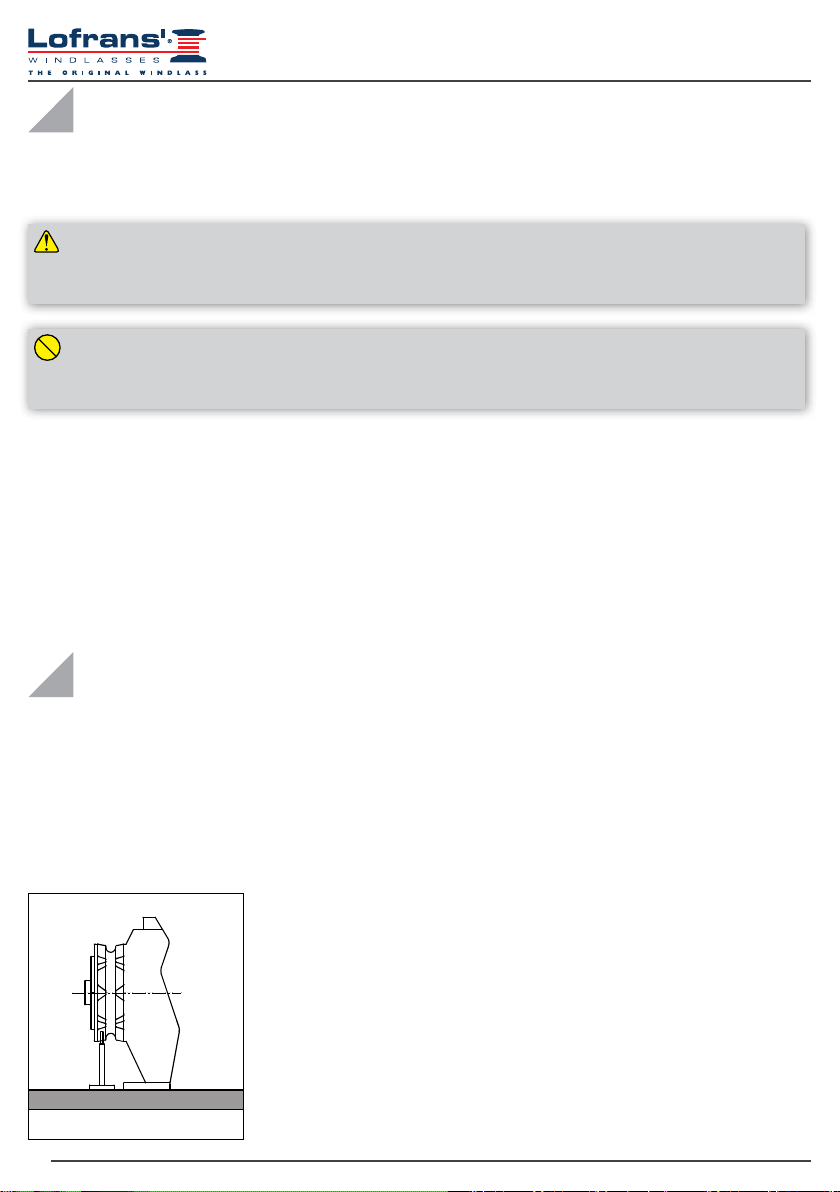

2. In the case of horizontal shaft anchor windlasses (see Fig.), drill the hole in the outer
circumference of the gypsy.
3. Also make sure that the protruding part of the magnet will not collide with the base or sensor
during rotation of the gypsy.
4. Insert the metal part of the magnet in the hole, allowing the protected part to protrude by about
2 mm. Fix it in place using an adhesive for metals (two component epoxy glue) or silicone. The
glue used must be able to withstand a marine environment.
1.3 Receipt and Storage
Upon receipt of the package, verify the integrity of packing. Should it be necessary to store the product for a prolonged period,
keep it in a dry and protected place.
1.4 General notes
The Galaxy 703 chain counter must be used solely for the purposes described herein, i.e. to operate and display the number
of metres/feet of chain let out by an anchor windlass. Any other use is to be considered improper.
Any tampering with the instrument will result in immediate voiding of the warranty.
1 INTRODUCTION
2 INSTALLATION

www.lofrans.com
5
UK
2.5 Installing the chain counter
The chain counter must be positioned so that the display will be easy to read. It should not be exposed to direct sunlight. Secure the
instrument in place with the bracket provided, tightening the two screws using a cross screwdriver.
For instructions on making electrical connections, see the attached diagram. The wires must have a minimum cross section size
of 1.5 mm². Install a 5 A (ampere) fast safety fuse on the positive(+) wire of the battery. Do not use the voltage generated by the engine
battery set to provide power.
The instrument complies with EMC standards (EN55022) and must be positioned at a distance of:
- 30 cm (~1 Ft) from the compass; -50 cm (~1.5 Ft) from radio equipment;
- 2 metres (~6.5 Ft) from radio transmitter equipment; -2 metres (~6.5 Ft) from the radar beam.
- Transmission frequency 2,4GHz
2.4 Installing the magnetic sensor for horizontal shaft anchor windlasses
(see Fig. 2A – 2B – 2C)
Drill a 4 mm (~3/16”) hole in the cover through which to thread the sensor cable. Fasten Part A of the support with the two screws
provided, after having positioned the O-ring in the lower part of the support. Cut Part C to measure using a hacksaw. The sensor must be
positioned at a distance of about 3 mm (~1/8”) from the magnet. Fit Part C with the magnetic sensor on support A and x it in place using
an adhesive for plastic (two-component epoxy glue) or silicone. Using the same glue, attach the sensor to Part C.
Part.C
Part.A
magnetic sensor
sensore magnetico
Fi g. 2A Fi g. 2B Fig. 2C
sensor cable
cavo sensore
3 TECHNICAL DATA
Receiver
Power supply from 12 to 24 Vdc
No-load current intake max 100 mA
Protection rating -
Operative temperature -10 : +60
Size (mm) 126 x 78 x 23
Weight (g) 80
Max output current* 2A
Transmitter
Rechargeable lithium-ion battery
Duration in continuous duty 115 minutes
Graphic display 128 x 64 pixel
Protection rating IP 66(Remote only)**
Operative temperature -10 : +60
Max. chain length 999 metres – 999 feet
Size (mm) 155x 65 x 45
Weight (g) 110
Max communication distance
at line of sight >100m
*Outputs have short circuit protection and over current protection
**Excluding cable connection zone

GALAXY 703
6
Hold down the (ON) key for six seconds to
access the instrument setting menu. The following
page will appear on the display:
Use the (DOWN) and (UP) keys to
move around the menu options.
Once you are positioned on the item to be modied press the (ON) key to conrm your choice.
Use the (DOWN) or (UP) keys to move from one parameter to another.
Once one is positioned on the parameter press the (ON) key to enable modication.
According to the type of parameter, using the (DOWN) and (UP) keys it is possible to
reduce/increase the value of the same or disable/enable the function.
Once the modication has been performed, press the (ON) key to conrm.
Using the (DOWN) key go to the Exit option and press the (ON) key again to return to
the setting menu. The same procedure must be used to return to the main page.
4.1 Starting up
The chain counter features a graphic display and three keys: (ON), (UP) and (DOWN). There
is also a buzzer that indicates the pressing of the keys or attracts the user’s attention in particular conditions
(alarm triggering). The ON key switches on the display and enables the other two keys. It must be used to
access the parameter setting menus. For selecting the parameters to be modied and to conrm the values
set. The display backlight will switch off 30 seconds after the last command given (adjustable default time – see
“BkLight Time”).
The UP key commands the hoisting of the anchor and the DOWN key casts it. When the key is released, the
action is stopped. During parameter setting, the two keys allow the User to move around the menu and vary
parameter values.
4.2 Chain counter setting menu
When switched on, the instrument will make a beep and the following page will appear for a few seconds:
Once the initialisation procedure is complete, the main page will appear.
Where:
STATUS: indicates the status of the instrument and any failure.
SPEED’: indicates the chain speed during hoisting or lowering in meters per minute or feet per minute.
COUNT: indicates the measurement of the chain lowered (in metres or feet).
MONITORING: indicates the power supply voltage of the instrument and the power supply voltage of the boat.
ICONS: this is the part of the display bearing the icons that indicate the hoisting or casting of the anchor and any failure.
When the instrument is turned on for the rst time, it will set up as programmed in the factory (see table).
4 MENU
Menu
Measure
Alarms &Function
Settings
Language
Sensor Calibration
V=11.6 Vdc

www.lofrans.com
7
UK
4.3 Measurement menu
4.5 Settings menu
Use the (DOWN) or (UP) key to move around the parameters
OFF
Turn the unit OFF Conrm with
Reset Measurement
Resets the chain measurement value (0.0).
Select with
= Yes = No
Conrm with
Units
Selects the unit of measurement:
Feet/ inches
Metres / centimetres
Select with
= Feet = Metres
Conrm with
Exit
To return to the settings menu. Conrm with
Use the (DOWN) or (UP) key to move around the parameters
Contrast
By enabling this function it is possible to start
the display contrast programming procedure.
Select with

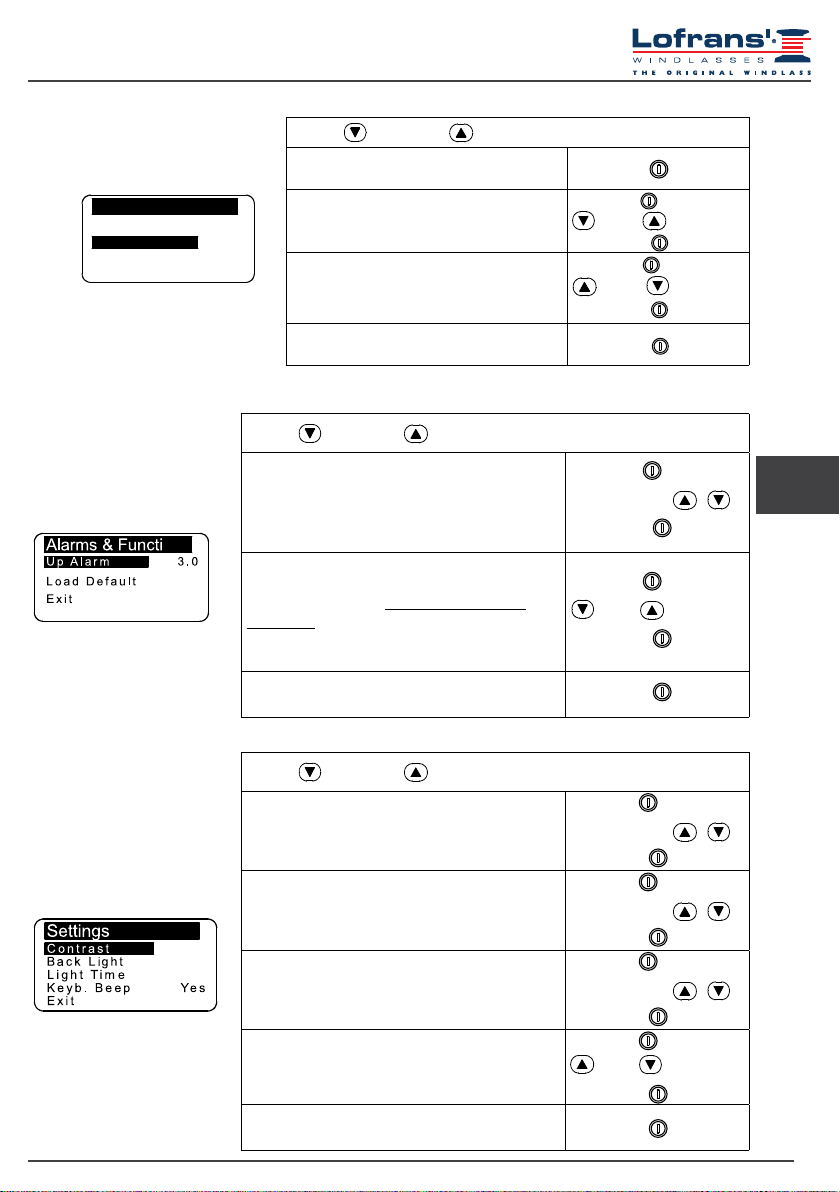

Select value with
Conrm with
Back Light
This function allows the user to set the backlight on
time during which the display remains lit after the last
command given (default value 30 seconds).
Select with
Select value with
Conrm with
Light Time
By enabling this function it is possible to start the
display luminous intensity programming procedure.
Select with
Select value with
Conrm with
Keyboard Beep
This function allows the user to enable or disable the
buzzer (emitted each time a key is pressed).
Select with
= Yes = No
Conrm with
Exit
To return to the settings menu. Conrm with
Measure
ResetMeasure No
Unit
sF
eet
Off
Exit
30
4.4 Alarm and functions menu
Use the (DOWN) or (UP) key to move around the parameters
Up Alarm
It is possible to enable the function and establish the
height at which the anchor-winch stops; After must
release the up button to continue to other function.
Settable values: 1.0 - 1.5 - 2.0…5.0 (metres or feet).
Select with
Select value with
Conrm with
Load Default
This function allows the User to revert to the original
factory default settings, thus erasing all settings
memorised.
This command must only be used in the event of
programming errors.
Select with
= Yes = No
Conrm with
Exit
To return to the settings menu. Conrm with

GALAXY 703
8
4.6 Language menu
4.7 Sensor calibration menu
Use the (DOWN) or (UP) key to move around the parameters
Language*
The user may select the display language:
Italian, English, French, German,
Spanish, Greek
Select with
Select value with
Conrm with
Exit
To return to the settings menu. Conrm with
Standard Series Sensor Menu
(magnet and sensor placed on gypsy)
Gypsy Circumference
In this row the user must enter the circumference of the gypsy (in centimetres or inches).
Use the Table 1 provided to calculate the circumference.
Settable values: centimetres or inches.
Default value, 33 cm.
Select with
Select value with
Conrm with
Exit
To return to the settings menu.
Language
Language English
Exit
Gypsy
*When the operator changes the language, the remote control will restart
automatically.

www.lofrans.com
9
UK
4.8 Table 1 - Standard Series Sensor
(magnet and sensor placed on gypsy)
Chain type Number of recesses
(R value)
Gypsy Circumference (G value)
(cm)
Gypsy Circumference
(inches)
6mm ISO 4565 / DIN 766
5 18,0 7,1
6 21,6 8,5
9 32,4 12,8
10 36,0 14,2
7mm ISO 4565 6 25,2 9,9
9 37,8 14,9
8mm ISO 4565 / DIN 766
5 24,0 9,4
6 28,8 11,3
7 33,6 13,2
8 38,4 15,1
10mm ISO 4565 5 30,0 11,8 6 36,0 14,2
7 42,0 16,5
10mm DIN 5 28,0 11,0 6 33,6 13,2
7 39,2 15,4
12mm ISO 4565 & 13 DIN 766 5 36,0 14,2
6 43,2 17,0
13 DIN 764 5 45,0 17,7
14 pitch 42mm 5 42,0 16,5
5/16 HT 7 36,7 14,4
3/8'' BBB 7 38,8 15,3
3/8'' P.C. 6 44,2 17,4
1/2 BBB 6 40,8 16,1
1/2 HT 5 40,4 15,9
* factory setting of instrument 33,0
The table values are indicative.
For accurate gypsy Circumference value use formula (G value) = * R value*
Chain Internal Length

GALAXY 703
10
4.9 Check menu
5.1 Measurement reset
Tests
Software Version
Operat. Time
Sensor Test
Exit
LCD Test
3.0
0

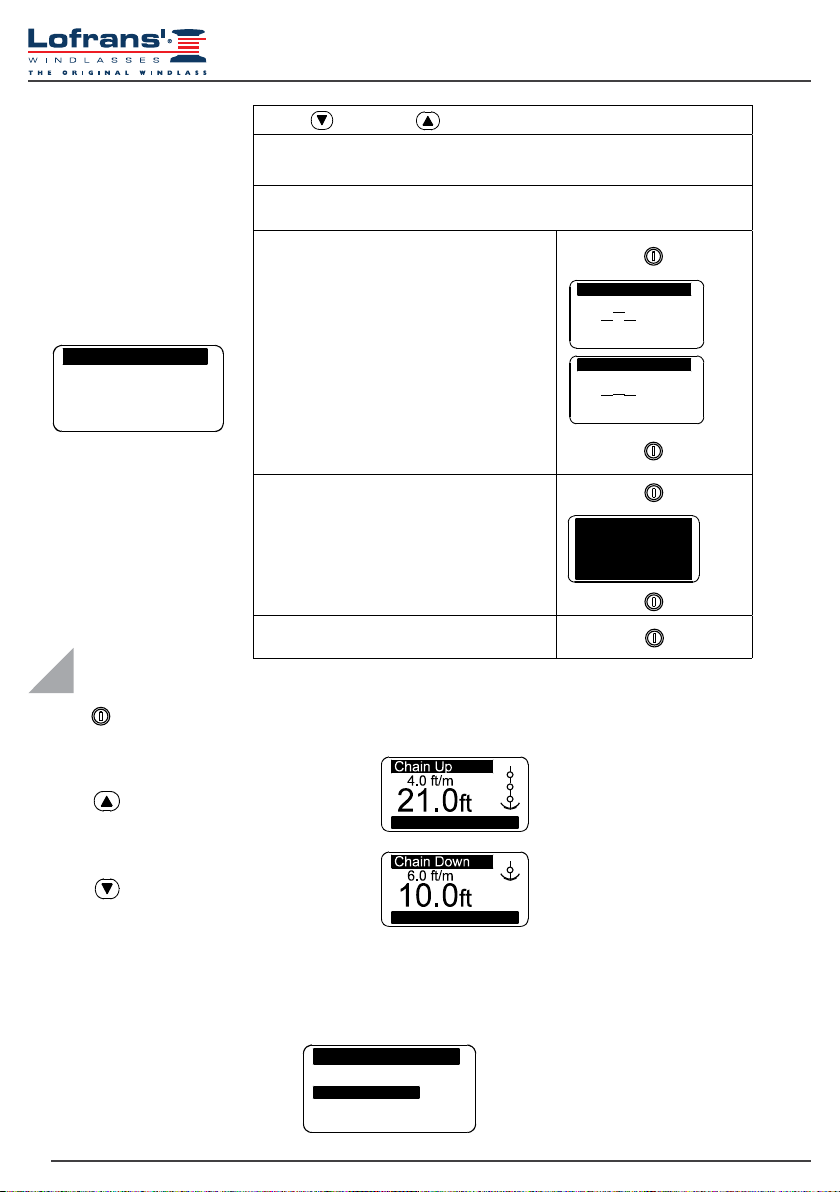

Press the (ON) key to activate controls and to switch on the display lighting. The display lighting switches off 30 seconds
after the last command given (adjustable default time – see “BkLight Time”).
Measurement reset is performed in the Measurement menu by selecting “Yes” in the Reset Measure row.
When any key is released (UP or DOWN) the corresponding action is stopped.
Press key (UP) to control the anchor ascending
Press key (DOWN) to cast anchor
V=11.6 Vdc
V=11.6 Vdc
5 USE
Measure
ResetMeasure No
Unit
sF
eet
Off
Exit
Use the (DOWN) or (UP) key to move around the parameters
Software Version
Indicates the version of the software installed.
Operation Time
Indicates the time the instrument operates
Sensor Test
The purpose of this function is to check the state
of the sensor:
Every pulse coming from receiver is momentary
displayed to the screen
Select with
Conrm with
LCD Test
This function switches on all the display’s pixels
thus making it possible to perform a check on
them.
Select with
Conrm with
Exit
To return to the settings menu. Conrm with
Sensor Test
Sensor Test

www.lofrans.com
11
UK
6 TROUBLESHOOTING
7 WIRING DIAGRAM
FAULT CAUSE CORRECTIVE ACTION
Though UP or DOWN keys
are pressed, the instrument
doesn’t receive any signal from
the magnetic sensor for more
than 5 seconds.
Check the sensor electric connections.
Check if sensor operates properly.
If not, replace it.
Check the position of sensor and magnet on
gypsy and their distance (3 mm).
Check the operation of electric
installation or anchor windlass.
The instrument’s power
supply voltage is lower than10Vdc.
Verify the battery charge or
operation of the electricssystem.
V=11.6 Vdc
V= 7.9 Vdc
Version 4.00

GALAXY 703
12
8 WARRANTY CONDITIONS
Version 2.30
Lofrans warrants that in normal use and observing the maintenance schedules, the product is covered by warranty for a period of 2
years from the date of purchase by the original purchaser, without prejudice to the conditions, limitations and exceptions listed below.
Any product that proves defective in normal use during said period shall be repaired or replaced, as Lofrans chooses.
- Lofrans does not assume any responsibility for an incorrect choice of product made by the purchaser.
- The responsibility of Lofrans shall be limited to the repair or replacement of all parts of the product that originally present material and/
or manufacturing defects.
- Lofrans shall not in any way be liable for faults or any consequent damage originating from:
- use of the product in applications for which it was not designed;
- corrosion, degradation caused by ultraviolet rays and wear;
- failure to follow the maintenance schedule;
- incorrect or unsuitable product installation;
- any modication or alteration of the product;
- conditions of use exceeding the product specications.
- The warranty does not cover the additional costs borne for interventions, removal, transport and installation of the product;
- The warranty is cancelled if maintenance is carried out by peoplenot authorised by Lofrans
- Lofrans products are designed to be used only in the marine environment. Lofrans does not assume any
responsibility deriving from other uses.
- Lofrans reserves the right to not acknowledge this warranty if the electromechanical products are operated by unsuited
electrical accessories and/or in the case of failure to install an appropriate overload cutout switch on the electric power line.
8.1 Conditions and limitations

www.lofrans.com
13
UK
Coverage under warranty is limited to a period of 2 years from the date of purchase by the original purchaser for:
- Electrical or electronic control equipment
- Control box and contactors
- Overload cutout switches
Coverage under warranty is limited to a period of 1 year from the date of purchase by the original purchaser for:
- Electric motors
- Electrical boards
- Gaskets and seals
- All the products used on charter boats.
This warranty does not cover any loss or damage caused to the purchaser by the ascertained non-conformity of the product, except for
the case of fraud or gross negligence of Lofrans declared with a court ruling.
Some states and countries do not allow the exclusion or limitation of incidental or consequential damages, so the above-stated
limitations or exclusions might not be applicable.
The warranty application must be notied to Lofrans website http://www.lofrans.com/warranty.php by lling all the necessary
elds, including the serial number of the control.
If any clause of this warranty is invalidated by a judge or other competent authority, the validity of the remaining clauses of this warranty
and the rest of the clause in question will not be affected.
This warranty is governed by the laws and in conformity with Italian laws.
The Court of Milan has jurisdiction over all disputes.
8.2 Exceptions
8.3 Liability
8.4 Procedure
8.5 Termination clause
8.6 Conformity

Via Philips, 5 - 20052 Monza (MB) (Italy)
www.lofrans.com - e-mail: [email protected]
