Logik L39FE12 User manual

39” Full HD LED TV
Instruction Manual
L39FE12
L39FE12_IB_120524_Glo.indd 1 24/05/2012 5:22 PM

L39FE12_IB_120524_Glo.indd 2 24/05/2012 5:22 PM

Contents
Preparation.........................................................................................................................................................................................5
Unpacking the TV ...............................................................................................................................................................................................................5
Installing / Removing the Base Stand .........................................................................................................................................................................6
Front / Right Side View and Controls...........................................................................................................................................................................7
Rear View and Sockets......................................................................................................................................................................................................8
Installing Batteries in the Remote Control ................................................................................................................................................................9
Remote Control Operation Range................................................................................................................................................................................9

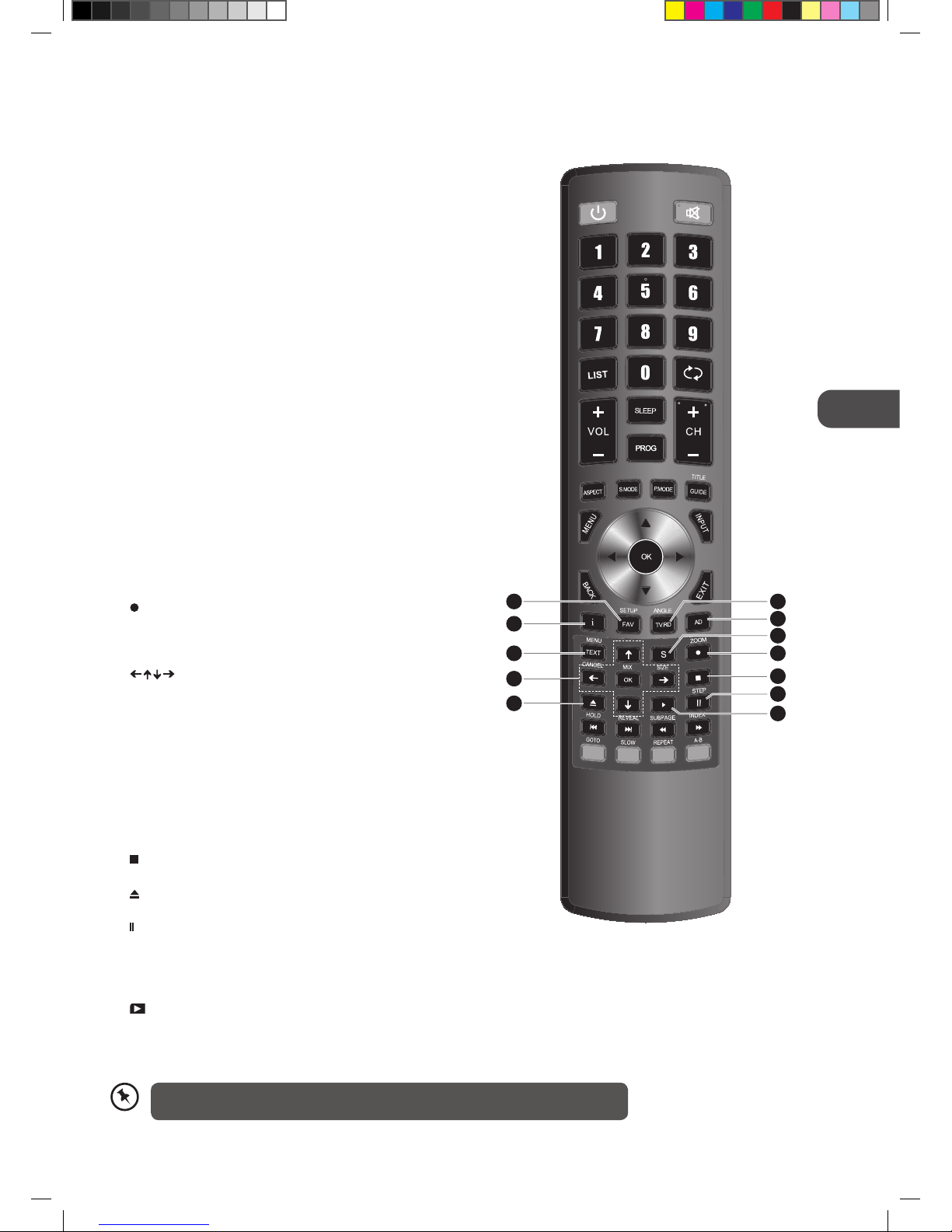

Remote Control .................................................................................................................................................................................................................10
Connections......................................................................................................................................................................................13
Making Video and Audio Connections.....................................................................................................................................................................13
Connecting an AV Device Using an HDMI Cable...................................................................................................................................................13
Connecting a Computer Using a VGA Cable ..........................................................................................................................................................14
Connecting an AV Device Using a Component (YPbPr) Cable ........................................................................................................................14
Connecting an AV Device Using a SCART Cable ...................................................................................................................................................15
Connecting an AV Device Using Composite Cable ..............................................................................................................................................15
Initial Setup ......................................................................................................................................................................................16
Turning the TV On for the First Time .........................................................................................................................................................................16
− Target Region Descriptor...................................................................................................................................................................................17
− Selecting the Input Source................................................................................................................................................................................17
− Channel Selection ...............................................................................................................................................................................................18
− Display Channel Information ...........................................................................................................................................................................18
− Volume Adjustment.............................................................................................................................................................................................18
Customising TV Settings .................................................................................................................................................................19
Channel Setting (TV, DTV or Radio Mode)...............................................................................................................................................................19
− Auto Tuning ............................................................................................................................................................................................................19
− DTV Manual Tuning............................................................................................................................................................................................. 20
− ATV Manual Tuning............................................................................................................................................................................................. 20
− Channel Edit (ATV / DTV Mode).......................................................................................................................................................................21
− Signal Information (DTV Mode)...................................................................................................................................................................... 22
− CI (Common Interface) (DTV Mode).............................................................................................................................................................. 23
− Software Update (Over Air Download)........................................................................................................................................................ 24
− Software Update (USB)...................................................................................................................................................................................... 24
Picture Setting .................................................................................................................................................................................................................. 25
Sound Setting ................................................................................................................................................................................................................... 27
− Stereo / Dual Sound Reception (ATV Mode).............................................................................................................................................. 28
Time Settings..................................................................................................................................................................................................................... 28
Option Setting .................................................................................................................................................................................................................. 29
− OSD Language...................................................................................................................................................................................................... 29
− Audio Language (DTV Mode).......................................................................................................................................................................... 30
− Subtitle Language (DTV Mode).......................................................................................................................................................................31
− Hearing Impaired..................................................................................................................................................................................................31
− Country.....................................................................................................................................................................................................................31
− PVR File System (DTV Mode)............................................................................................................................................................................ 32
− CEC (Consumer Electronics Control) ............................................................................................................................................................ 33
− Backlight ................................................................................................................................................................................................................. 33
− Restore Factory Default..................................................................................................................................................................................... 34
Lock Setting ....................................................................................................................................................................................................................... 35
− Lock System........................................................................................................................................................................................................... 35
− Set Password ......................................................................................................................................................................................................... 36
− Block Channel ....................................................................................................................................................................................................... 37
− Parental Guidance ............................................................................................................................................................................................... 38
L39FE12_IB_120524_Glo.indd 3 24/05/2012 5:22 PM

Using the Features ...........................................................................................................................................................................39
EPG (Electronic Programme Guide) (DTV Mode)................................................................................................................................................. 39
− Switch On / O EPG............................................................................................................................................................................................. 39
− Select a Programme ........................................................................................................................................................................................... 39
Teletext (ATV Mode)........................................................................................................................................................................................................ 40
− To Turn on Teletext Function........................................................................................................................................................................... 40
Digital Teletext (DTV Mode)..........................................................................................................................................................................................41
− Teletext within Digital Service.........................................................................................................................................................................41
Entertainment ..................................................................................................................................................................................42
Connecting a USB Storage Device............................................................................................................................................................................. 42
Viewing Photos................................................................................................................................................................................................................. 42
Listening to Music............................................................................................................................................................................................................ 43
Viewing Movies ................................................................................................................................................................................................................ 44
My Text................................................................................................................................................................................................................................. 45
PVR (Personal Video Recorder).......................................................................................................................................................46
Time Shift Function......................................................................................................................................................................................................... 46
Recording DTV Programme onto a USB Storage Device .................................................................................................................................. 47
Timer Programming ....................................................................................................................................................................................................... 48
Play Recorded Programme .......................................................................................................................................................................................... 49
Maintenance.....................................................................................................................................................................................50
Display Modes ..................................................................................................................................................................................52
YPbPr Mode ....................................................................................................................................................................................................................... 52
PC Mode .............................................................................................................................................................................................................................. 52
HDMI Mode ....................................................................................................................................................................................................................... 52
Specifications ...................................................................................................................................................................................53
Safety Warnings ...............................................................................................................................................................................55
L39FE12_IB_120524_Glo.indd 4 24/05/2012 5:22 PM

GB
5
Preparation

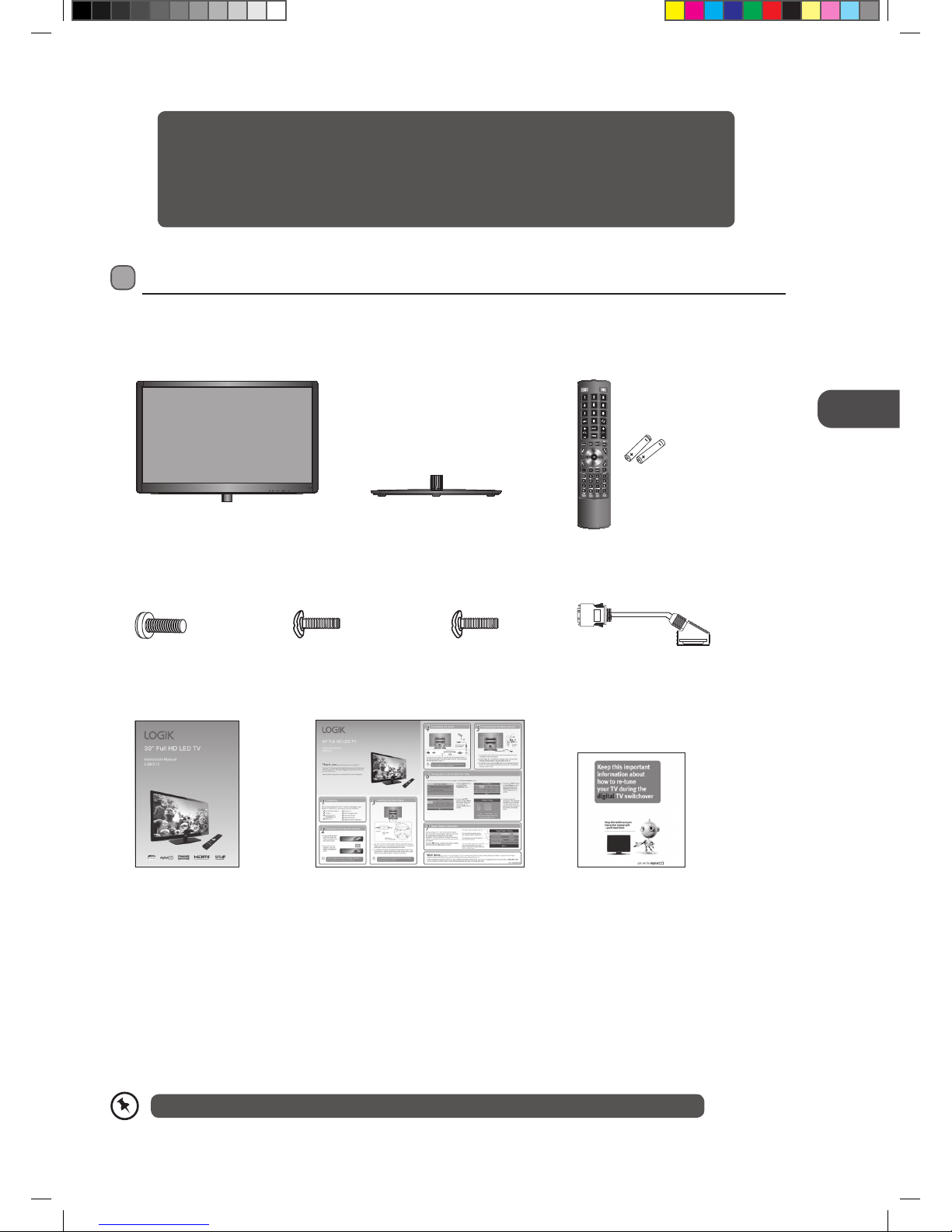

Unpacking the TV
Remove all packaging from the TV. Retain the packaging. If you dispose of it, please do so according to local regulations.
The following items are included:
Thank you for purchasing your new Logik 39" Full HD LED TV.
Your new TV has many features and incorporates the latest technology to enhance your viewing
experience. We recommend that you spend some time reading this instruction manual so that you fully
understand these features. You will also find some hints and tips to help you resolve any issues.
Read all the safety instructions carefully before use and keep this instruction manual for future reference.
If items are missing, or damaged please contact Partmaster (UK only). Tel: [phone] for assistance.
Preparation
TV Base
(P.N.: 102Q3901111)
Remote Control / AAA Batteries x 2
(P.N.: 504C2251101 & 32200007158)
TV with Stand Support
(TV Stand Support P.N.: 115Q3901101)
Screw A x 4
(P.N.: 209060408B1)
Screw B x 2
Ø2 x 25mm
(P.N.: 209100426B1)
Screw C x 2
Ø2 x 22mm
(P.N.: 209100422B1)
Instruction Manual
(P.N.: 4031Q390107)
Quick Start Guide
(P.N.: 4033Q390102)
Digital TV Switchcover Addendum
(P.N.: 4031C241307)
SCART Adapter Cable
(P.N.: 30430110019)
L39FE12_IB_120524_Glo.indd 5 24/05/2012 5:22 PM

GB
6
Preparation
1. Disconnect all cables connected to the TV.
2. Lay the TV down on a flat surface with the back side facing up. Please make sure a soft cushioned material (such as a pillow or
thick piece of foam) is placed beneath the screen.
3. To install the TV stand, first attach
the base stand to the TV by using
screw A. Align the screw holes,
then secure with a screw driver
(not included) using the 4 screws A
provided.
4. To remove the stand assembly, untighten the 2 screws
B and 2 screws C holding the stand assembly to the
rear of the TV. Slide the stand assembly out.
5. Mounting on the wall. This TV is designed to be
wall-mounted with a standard 200 mm x 200 mm
mounting kit (sold separately) designed for flat-panel
TVs. Mount this TV according to the instructions
included in the mounting kit. Due to space restrictions,
we recommend that you make all connections (refer to
page 13-15 and page 42 for details) before mounting
on to the wall.
Installing / Removing the Base Stand
Keep all the spare screws should you want
to use the stand assembly option.
The LCD display is very fragile, and must be protected at all times when installing and removing the base stand. Be
sure that no hard or sharp object, or anything that could scratch or damage the LCD display, comes into contact with it.
DO NOT exert pressure on the front of the TV at any time because the screen could crack.
Remove the stand assembly before mounting the TV onto the wall.
• Please read this instruction manual carefully while setting up your TV.
• If you require additional assistance please call our UK Call Centre on 0844 561 1234. Our UK
Customer Contact Centre is open Monday-Saturday 8am-8pm or Sunday 8am-6pm.
C B B C
unscrew
Screw A x 4
(P.N.: 209060408B1)
TV Front Base Stand
Front
screw
200 mm
200 mm
Four mounting holes
(size M6x12 screw)
Screw B x 2
(P.N.: 209100426B1)
Screw C x 2
(P.N.: 209100422B1)
L39FE12_IB_120524_Glo.indd 6 24/05/2012 5:23 PM

GB
7
Preparation
Front / Right Side View and Controls
Item Description
1POWER LED
Illuminates blue when the TV is turned on. Illuminates red when the TV is in standby
mode. The LED will flash blue and red when the timer programming has started in
standby mode.
2IR (Infrared Receiver) Receives IR signals from the remote control.
Do not put anything near the sensor, as its function may be affected.
3 INPUT
Press to select among different input signal sources:
DTV / ATV / SCART / YPbPr / PC / HDMI1 / HDMI2 / AV / USB.
Use the buttons on the remote control to select the input, and then press the OK
button to confirm.
4MENU Displays the OSD (on screen display) menu.
5 CH
/ Press to select a channel or select a sub-menu from the OSD menu.
6 VOL + / – Adjusts the volume.
Press to select and adjust a setting in the OSD menu.
7Switches the TV on from standby mode.
Switches the TV back to standby mode.
1
3 4 75 6
2
L39FE12_IB_120524_Glo.indd 7 24/05/2012 5:23 PM

GB
8
Preparation

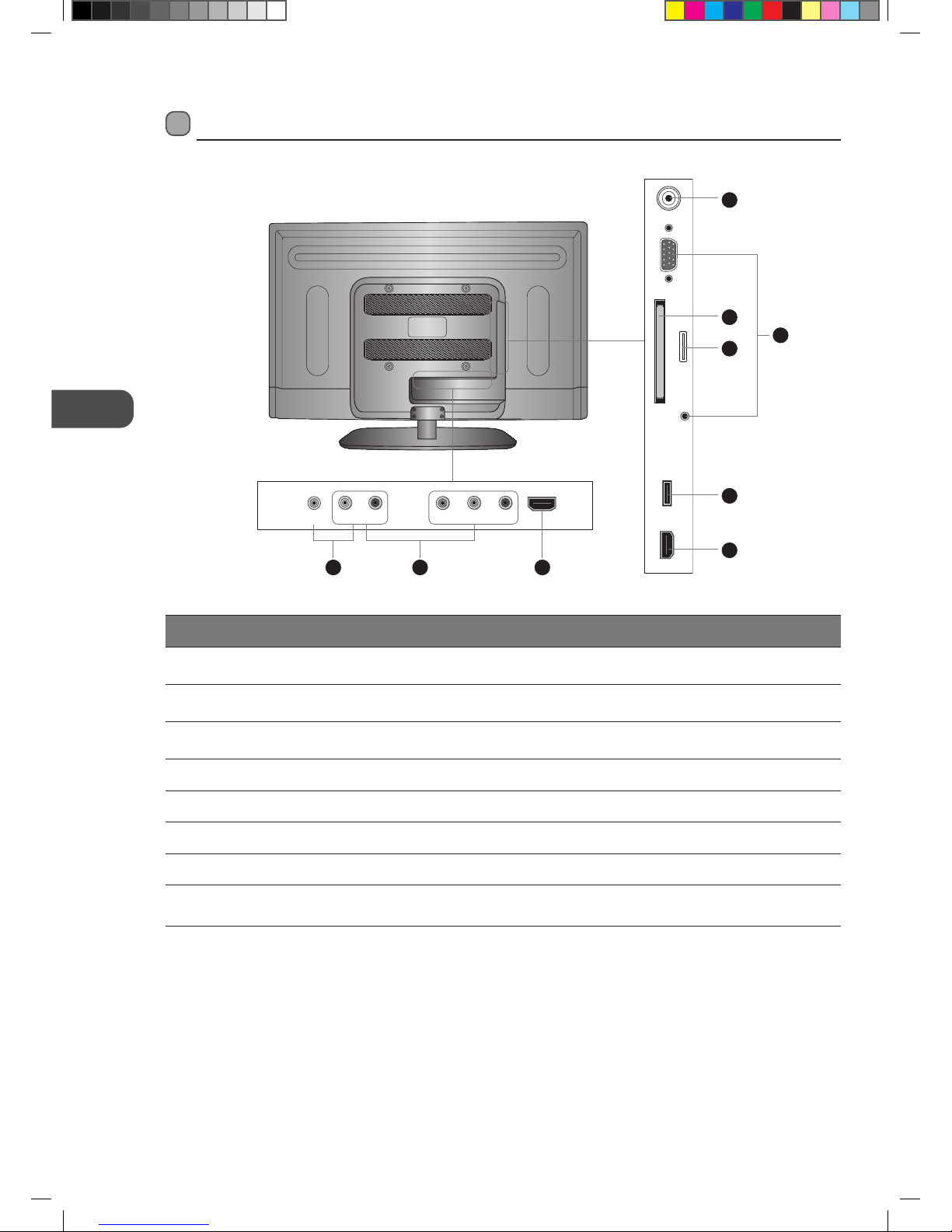

Rear View and Sockets
Socket Description
1 VIDEO / AUDIO (L/R) Connects to the Composite VIDEO and AUDIO (L/R) output sockets on external video
devices.
2 Y, PB, PR / AUDIO (L/R) Connects to a DVD player, Digital Set-Top-Box, or other AV devices with component
(YPbPr) video and audio output sockets.
3 HDMI1 / HDMI2 Connects to a High-Definition (HD) signal output device, such as a set-top box, blu-ray
disc player or AV receiver.
4 RF Aerial Connects to the aerial socket on the wall with the RF coaxial cable.
5 PC IN / PC AUDIO Connects to a computer or other devices with a VGA interface.
6 COMMON INTERFACE Allows the insertion of a Common Access Module. (Refer to page 23 for details.)
7 SCART Connects to a VCR, DVD Player, or other AV device using a mini SCART adapter (included).
8 USB Allows the insertion of a USB storage device to play video, audio, photo and text files
(USB mode) and record DTV programmes on to a USB storage device.
USBHDMI1 PC IN RF
COMMON INTERFACE (CI)
PC AUDIO SCART
4
5
6
7
3
8
RLVIDEO Y Pb Pr HDMI2
31 2
L39FE12_IB_120524_Glo.indd 8 24/05/2012 5:23 PM

GB
9
Preparation
Remote Control Operation Range
Point the remote control at the TV no more than 5 metres from the
remote control sensor on the TV and within 60° in front of the TV.
The operating distance may vary depending on the brightness of the
room.
Installing Batteries in the Remote Control
1. Press and lift the back cover to open the battery compartment of the
remote control.
2. Insert two AAA size batteries. Make sure the (+) and ( - ) ends of
the batteries match the (+) and ( - ) ends indicated in the battery
compartment.
3. Close the battery compartment cover.
30° 30°
5M
Handling the Batteries
• Improper or incorrect use of batteries may cause
corrosion or battery leakage, which could cause
fire, personal injury or damage to property.
• Only use the battery type indicated in this manual.
• When the batteries are exhausted, the remote will
not function. Replace both batteries at the same
time with new ones.
• Do not install new batteries with used ones and do
not mix different types of batteries.
• Do not dispose of used batteries as domestic
waste. Dispose of them in accordance with local
regulations.
Handling the Remote Control
• Take care of your fingernails when you press and
hold the battery release tab.
• Do not drop or cause impact to the remote control.
• Do not spill water or any liquid on the remote
control.
• Do not place the remote control on a wet object.
• Do not place the remote control under direct
sunlight or near sources of excessive heat.
• Remove the battery from the remote control
when not in use for a long period of time, as it
could cause corrosion or battery leakage and may
result in physical injury and/or property damage
including fire.
L39FE12_IB_120524_Glo.indd 9 24/05/2012 5:23 PM

GB
10
Preparation
1.
Switch the TV between on and standby mode.
2. MUTE
Mute and restore your TV sound.
3. 0-9 Number Button
• Press to select a programme.
• Select numbered items in a menu. (DVD mode)
4. LIST
• Display the channel list. (ATV / DTV mode)
• Display the text page on the teletext screen. (ATV mode)
5. RECALL
• Return to the previous viewing channel. (ATV / DTV mode)
• Return to menu (DVD mode)
6. SLEEP
Set the TV sleep timer: OFF / 10 / 20 / … / 180 / 240 min.
7. VOL + / –
Adjust the volume.
8. CH + / –
Select a channel.
9. PROG
• Display the channel edit menu. (ATV / DTV mode)
• Programme the DVD. (DVD mode)
10. S.MODE
Select sound mode: Standard / Music / Movie / Sports / User.
11. ASPECT
Watch the screen in various formats: Auto / 4:3 / 16:9 / Zoom /
Subtitle / Smart Zoom / Full.
12. GUIDE
Displays the EPG Electronic Programme Guide. (DTV mode)
TITLE
Display the DVD title content. (DVD mode)
13. P.MODE
Select picture mode: Standard / Mild / User / Dynamic.
14. MENU
Display the OSD (On Screen Display) menu.
15. INPUT
Select among the dierent input signal sources:
DTV / ATV / SCART / YPbPr / PC / HDMI1 / HDMI2 / AV / USB.
16.
Allows you to navigate the OSD menus and adjust the system
settings to your preference.
OK
Conrm the selection in the OSD menus.
17. BACK
Return to the previous menu in the OSD menus.
18. Exit
Exit the OSD menu.
Remote Control
12
5
8
12
15
18
9
13
3
4
7
11
14
16
17
6
10
Please note that there are DVD mode functions on the remote control only operate on
TV models with a built-in DVD player.
L39FE12_IB_120524_Glo.indd 10 24/05/2012 5:23 PM
