Logik LHFIP3010 User manual

Hi-Fi with Docking for iPod
Instruction Manual
LHFIP3010
(iPod not included)
LHFIP3010_IB_111101_Zell.indd 1 01/11/2011 8:13 PM

LHFIP3010_IB_111101_Zell.indd 2 01/11/2011 8:13 PM

Contents
Unpacking..................................................................................................................................5
Product Overview......................................................................................................................6
Front and Side View........................................................................................................................................... 6
Rear View............................................................................................................................................................... 6
Remote Control................................................................................................................................................... 7
Remove the Insulating Strip from the Remote Control........................................................................ 7
Battery Replacement for the Remote Control ......................................................................................... 7
Remote Control Operation Range................................................................................................................ 8
LCD Display Window ......................................................................................................................................... 9
Wall Mounting ...........................................................................................................................9
Connections .............................................................................................................................10
Speaker Connections......................................................................................................................................10
Connecting to the Mains Socket ...............................................................................................................10
For Personal Listening ....................................................................................................................................10
Compatible Disc Types ............................................................................................................11
Basic Operation .......................................................................................................................11
Powering ON/OFF ............................................................................................................................................11
Selecting Modes...............................................................................................................................................11
Adjusting the Volume ....................................................................................................................................12
Clock Setting......................................................................................................................................................12
Timer Setting ....................................................................................................................................................12
Sleep Timer Setting .........................................................................................................................................13
Preset EQ .............................................................................................................................................................13
CD / MP3 / WMA Operation.....................................................................................................14
Playback...............................................................................................................................................................14
To Pause Playback ............................................................................................................................................14
To Stop Playback...............................................................................................................................................14
Skipping to Another Track ............................................................................................................................14

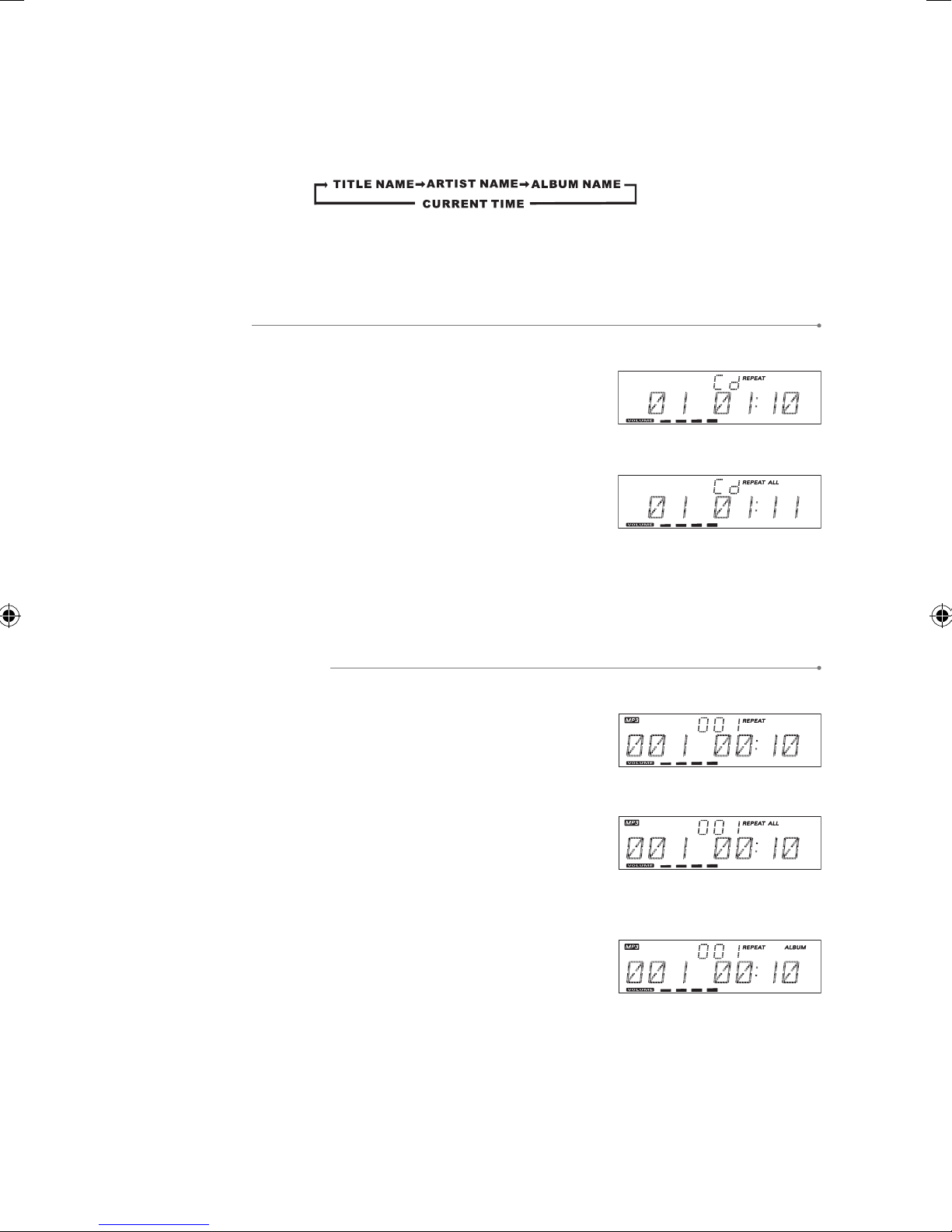

ID3 Operation (For MP3 / WMA Mode).....................................................................................................15

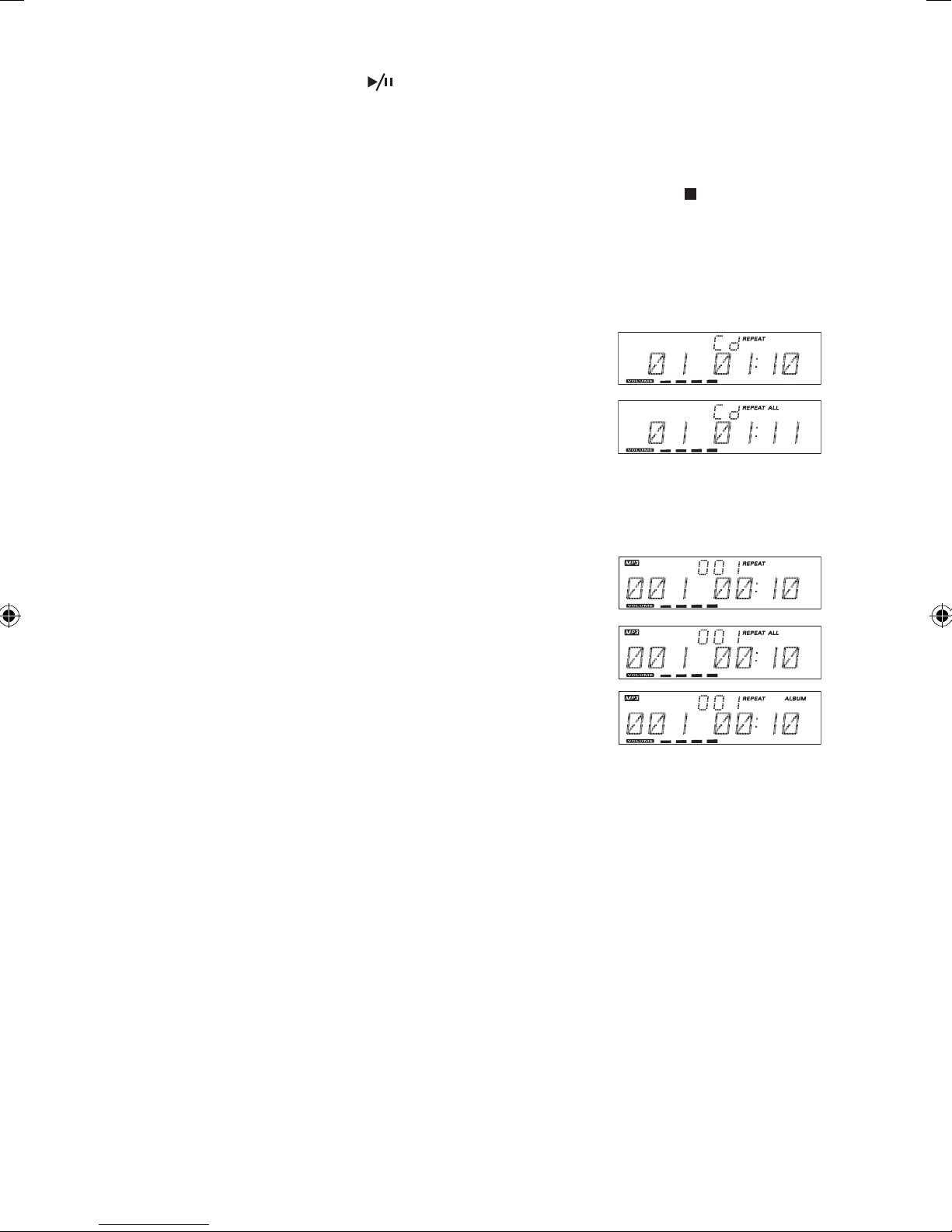

Repeat Playback................................................................................................................................................15

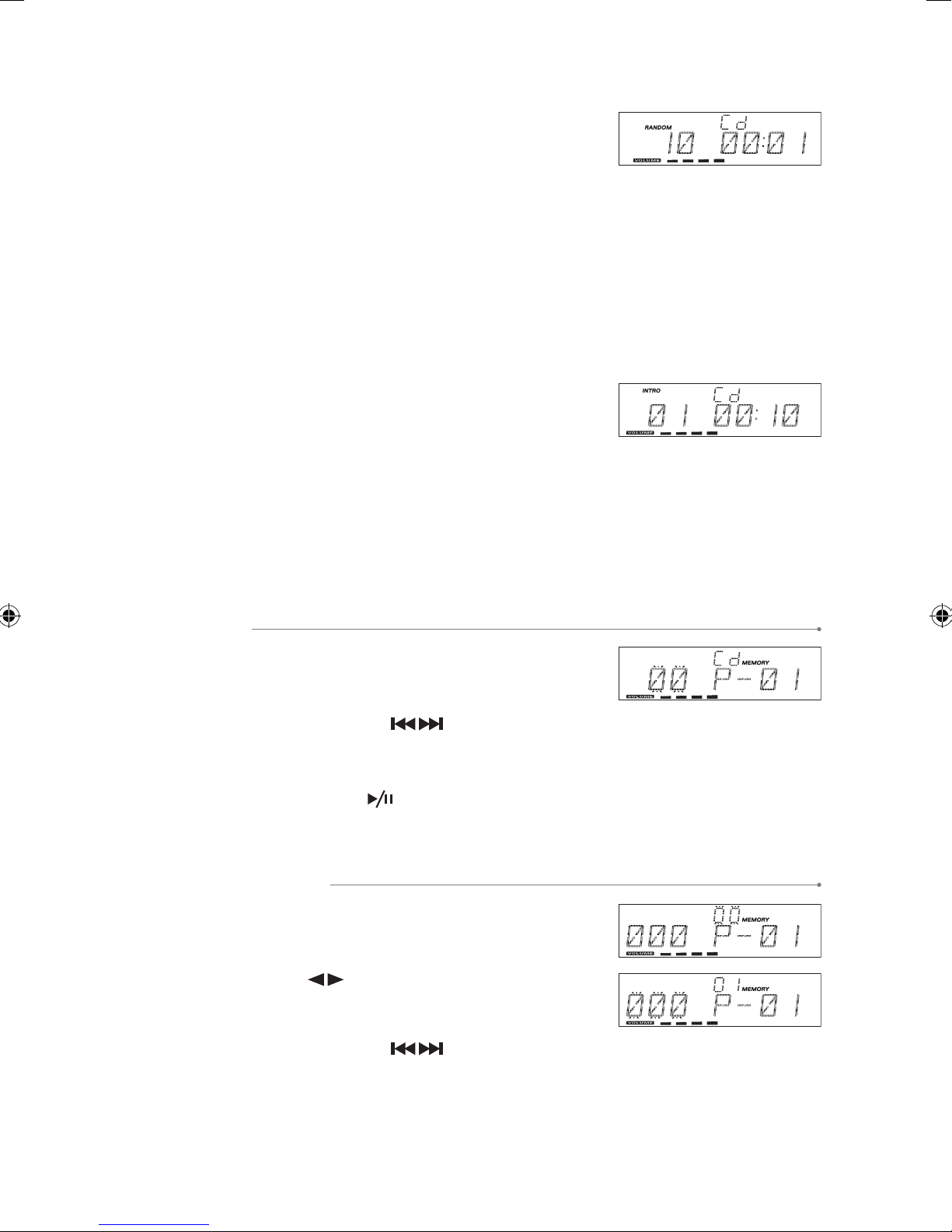

Random Playback ............................................................................................................................................16
Intro Playback ...................................................................................................................................................16
Programmable Playback ...............................................................................................................................16
USB / Memory Card Operation ...............................................................................................18
iPod Operation.........................................................................................................................19
Inserting the iPod and Selecting iPod Mode..........................................................................................19
iPod Playback.....................................................................................................................................................19

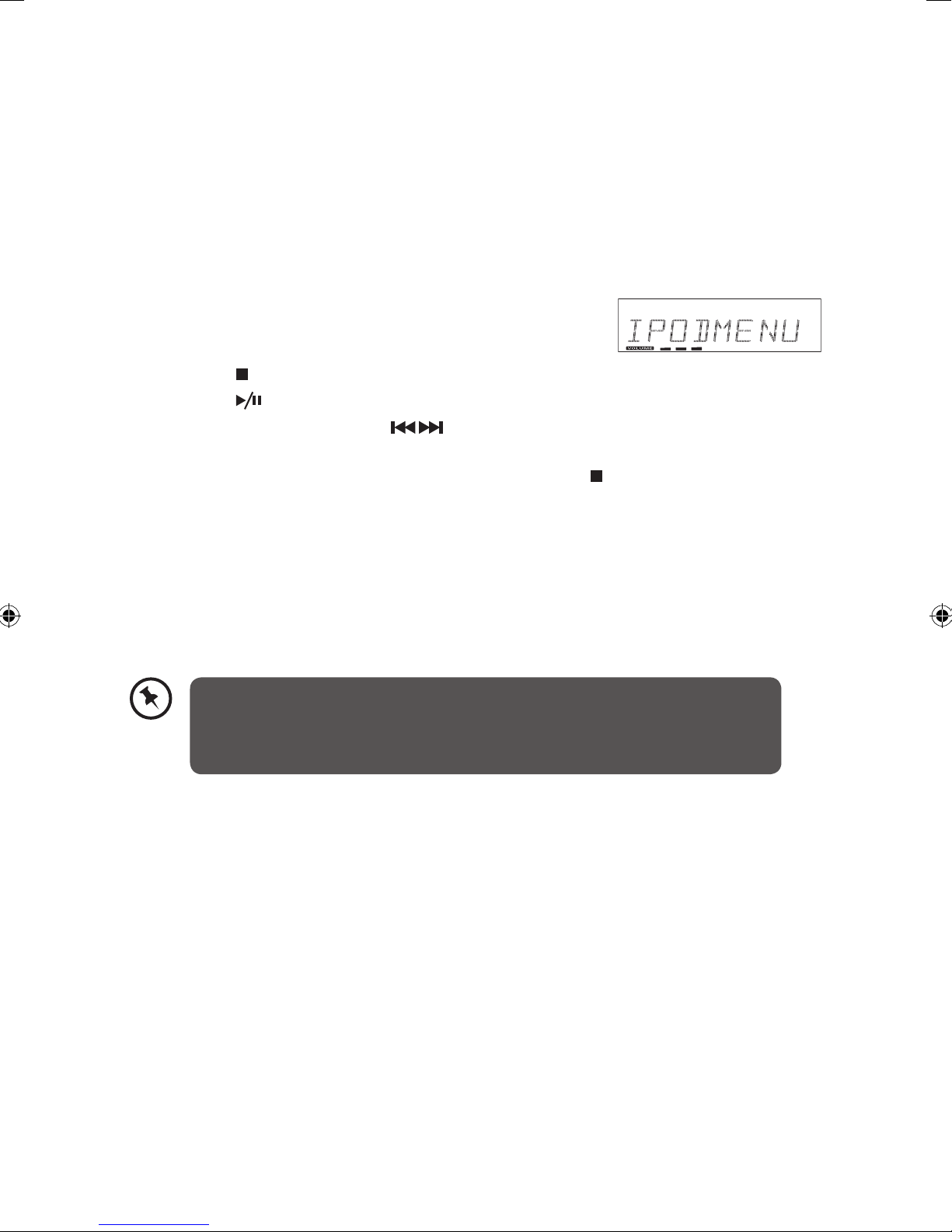

iPod MENU Mode .............................................................................................................................................20
Charging Your iPod..........................................................................................................................................20
LHFIP3010_IB_111101_Zell.indd 3 01/11/2011 8:13 PM

AUX Operation.........................................................................................................................21
Radio Operation ......................................................................................................................21
Searching for a Station Manually................................................................................................................21
Searching for a Station Automatically ......................................................................................................21
Selecting Mono / Stereo ................................................................................................................................21
Presetting Stations...........................................................................................................................................22
Tuning in to a Preset Station ........................................................................................................................22
For Better Reception .......................................................................................................................................22
Maintenance ............................................................................................................................23
Hints and Tips ..........................................................................................................................24
Specications...........................................................................................................................25
Safety Warnings.......................................................................................................................26
4
LHFIP3010_IB_111101_Zell.indd 4 01/11/2011 8:13 PM

The Main Unit Speakers x 2
Instruction Manual
(P.N.: LHFIP3010-IB-003)
Quick Start Guide
(P.N.: LHFIP3010-QSG-002)
Remote Control
(P.N.: 070-0018DN-01E0)

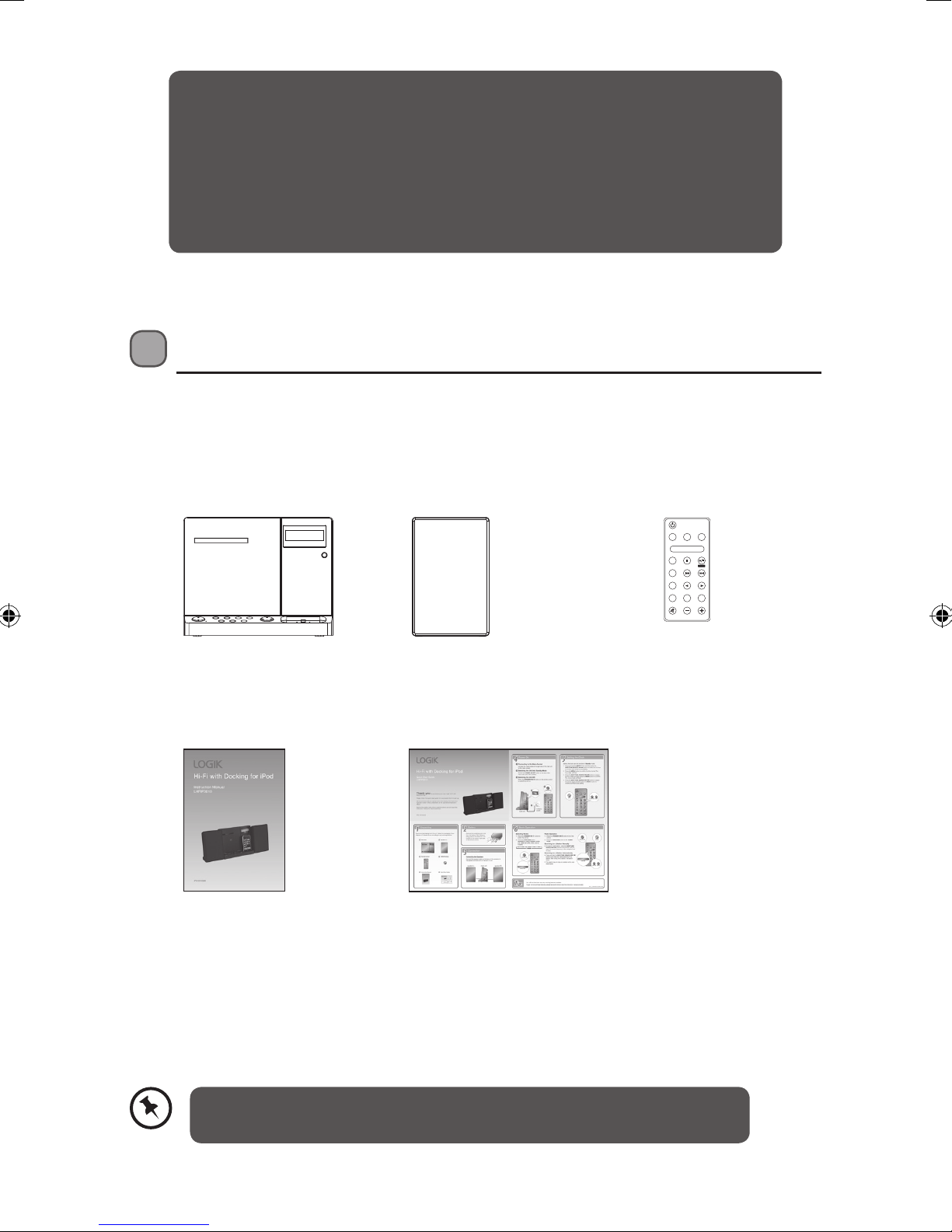

Unpacking
Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so
according to local regulations.
The following items are included:
STANDBY/ON
TIMER DISPL AY OPEN/CLOSE
MENU
FUNCTION
ENTER
SLEEP SKIP/TUNE SEARCH
INTRO PRESETS
VOLUME
REPEAT RANDOM
MUTE
EQ
Thank you for purchasing your new Logik Hi-Fi with Docking for iPod.
We recommend that you spend some time reading this instruction manual in
order that you fully understand all the operational features it oers. You will
also nd some hints and tips to help you resolve any issues.
Read all the safety instructions carefully before use and keep this instruction
manual for future reference.
If items are missing or damaged, please contact Partmaster (UK only).
Tel: [phone] for assistance.
5
LHFIP3010_IB_111101_Zell.indd 5 01/11/2011 8:13 PM

Rear View
Product Overview
Front and Side View
1. LINE IN Socket
2. FM Aerial
3. Disc Door
4. LCD Display
5. Remote Sensor
11. USB Port
12. SD/MMC Memory
Card Port
13. OPEN/CLOSE Button
14. STANDBY/ON Button
15. STANDBY LED
Indicator
6
7
8
9
10
3
1
2
5
4
6. Hitching Hole
7. Power ON/OFF Switch
8. Earphones Socket
9. Speaker Terminals (L/R)
10. Mains Cable
13
14
15 16 18
17 19
20 22 24
11 12
21 23
25
16. FUNCTION Button
17. TIMER Button
18. MENU Button
19. VOLUME + / – Button
20. PRESETS Buttons
21. SKIP/TUNE SEARCH
DOWN Button
22. STOP/MENU Button
23. SKIP/TUNE SEARCH
UP Button
24. PLAY/PAUSE/ENTER
Button
25. iPod Dock
6
LHFIP3010_IB_111101_Zell.indd 6 01/11/2011 8:13 PM

Battery Replacement for the Remote Control
1. Press and slide the back cover to open the
battery compartment of the remote control.
Remove the Insulating Strip from the Remote Control
Remove the insulating mylar strip from the battery if the battery
is being used for the rst time. It is located at the bottom back
side of the remote control.
Remote Control
1. STANDBY/ON Button
2. TIMER button
3. DISPLAY Button
4. OPEN/CLOSE Button
5. FUNCTION Button
6. MENU Button
7. Button
8. /ENTER Button
9. SLEEP Button
10. SKIP/TUNE SEARCH
Buttons
11. INTRO Button
12. PRESETS Buttons
13. EQ Button
14. REPEAT Button
15. RANDOM Button
16. MUTE Button
17. VOLUME + / – Buttons
STANDBY/ON
TIMER DISPLAY OPEN/CLOSE
MENU
FUNCTION
ENTER
SLEEP SKIP/TUNE SEARCH
INTRO PRESETS
VOLUME
REPEAT RANDOM
MUTE
EQ
12
17
10
15
8
4
16
11
9
13
6
2
5
1
14
7
3
2. Remove the old battery, and place a new battery
(CR2032) in the holder.
3. Close the battery compartment cover.
7
LHFIP3010_IB_111101_Zell.indd 7 01/11/2011 8:13 PM

Handling the Battery
• Improper or incorrect use of batteries may cause corrosion or battery leakage, which could
cause re, personal injury or damage to property.
• Install the battery correctly by following the polarity (+ and -) indications in the battery
compartment.
• When the battery is exhausted, the remote control will not function.
• Only use the battery type indicated in this manual.
• Do not dispose of the used battery as domestic waste. Dispose of it in accordance with local
regulations.
• Small button cell batteries such as the one used in the remote control are easily swallowed
by young children and this is dangerous. Keep loose button cells away from young children
and make sure that the battery holder tray is secure in the remote control. Seek medical
advice if you believe a cell has been swallowed.
• If you are not going to use the unit for a long time, remove the battery to avoid damage
from battery leakage and corrosion.
Handling the Remote Control
• Take care of your ngernails when you press and hold the battery release tab.
• Do not drop or cause impact to the remote control.
• Do not spill water or any liquid on the remote control.
• Do not place the remote control on a wet object.
• Do not place the remote control under direct sunlight or near sources of excessive heat.
• Remove the battery from the remote control when not in use for a long period of time, as it
could cause corrosion or battery leakage and may result in physical injury and/or property
damage including re.
Remote Control Operation Range
Point the remote control at the unit no more than 5 metres
from the remote control sensor and within 60° of the front
of the unit. The operating distance may vary depending
on the brightness of the room.
STANDBY/ON
TIMER DISPLAY OPEN/CLOSE
MENU
FUNCTION
ENTER
SLEEP SKIP/TUNESEARCH
INTRO PRESETS
VOLUME
REPEAT RANDOM
MUTE
EQ
Within about 5 m
30° 30°
8
LHFIP3010_IB_111101_Zell.indd 8 01/11/2011 8:13 PM

Wall Mounting
Fix four screws (Size: 3.5*25BA) (not included) into the wall. They should be parallel to each
other. The distance between the two screws should be 182 mm.
LCD Display Window
4
5
6
1 2 3
7
1. Timer Indicator
2. Album / Radio Memory Number Indicator
3. Repeat 1 & All Indicator
4. Sleep Indicator
5. Track / Number / Time Indicator
6. Volume Indicator
7. Stereo Indicator
182 mm
This unit is designed for mounting in a vertical position only.
9
LHFIP3010_IB_111101_Zell.indd 9 01/11/2011 8:13 PM

Connections
Speaker Connections
Connect the speaker cables at the back of the speakers to the speaker sockets (L/R) at the right
side of the unit.
Connecting to the Mains Socket
Connect the mains cable at the right side of the main unit to the mains socket.
To Mains Socket
For Personal Listening
Connect earphones (Ø3.5mm stereo mini plug) to the earphones socket. Adjust the volume
control to obtain the desired volume level.
When the earphones are connected, the speakers will automatically mute.
Long-term exposure to loud music may cause hearing damage. It is
best to avoid extreme volume when using earphones, especially for
extended periods.
10
