Logitech Zone True Wireless Assembly Instructions

LOGITECH ZONE TRUE WIRELESS
Complete Setup Guide |
完整設定指南 | 설치 가이드 |
Panduan Pemasangan Lengkap

CONTENTS
English . . . . . . . . . . . . . . . . .3
繁體中文 . . . . . . . . . . . . . . . 13
한국어 . . . . . . . . . . . . . . . . 23
Indonesia . . . . . . . . . . . . . . .33

KNOW YOUR PRODUCT
Bluetooth® pairing
button
Qi-wireless
charging
Case light indicator
USB-C port for
charging cable
Earbud light indicator
Wind defense
fabric
Control button
Noise-canceling mics
Replaceable eargels
Light indicator
USB-C adapter
USB-A receiver
3English

USB-A USB-C USB-A | USB-C
S
M M
S LL
USB-A
USB-C
CHARGING
Charging via USB cable
1. Place the earbuds in the charging case
andclose the lid.
2. Plug the USB-C cable end into the USB-C
port on the front of the charging case.
3. Plug the USB-A end into the USB-A charging
port on your computer or plug the USB-A
end into the USB-C adapter and plug
theUSB-C adapter into the USB-C port on
yourcomputer.
4. Case light Indicator will be a pulsing,
whitelight for charging.
5. Case light Indicator will be solid white when
fully charged.
— 2 hrs 45 mins for full earbuds charge
— 3 hrs for full case charge
— 5 mins will give you 2 hrs music time
(ANCo)
6. Earbuds can be used with receiver and
Bluetooth®paired while charging.
Charging via Qi wireless charger
1. Place the charging case on top of any Qi
wireless charging pad.*
2. Case indicator light will be a pulsing,
whitelight when charging.
3. Case Indicator light will be solid white
whenfully charged.
* Qi wireless charging base is not included.

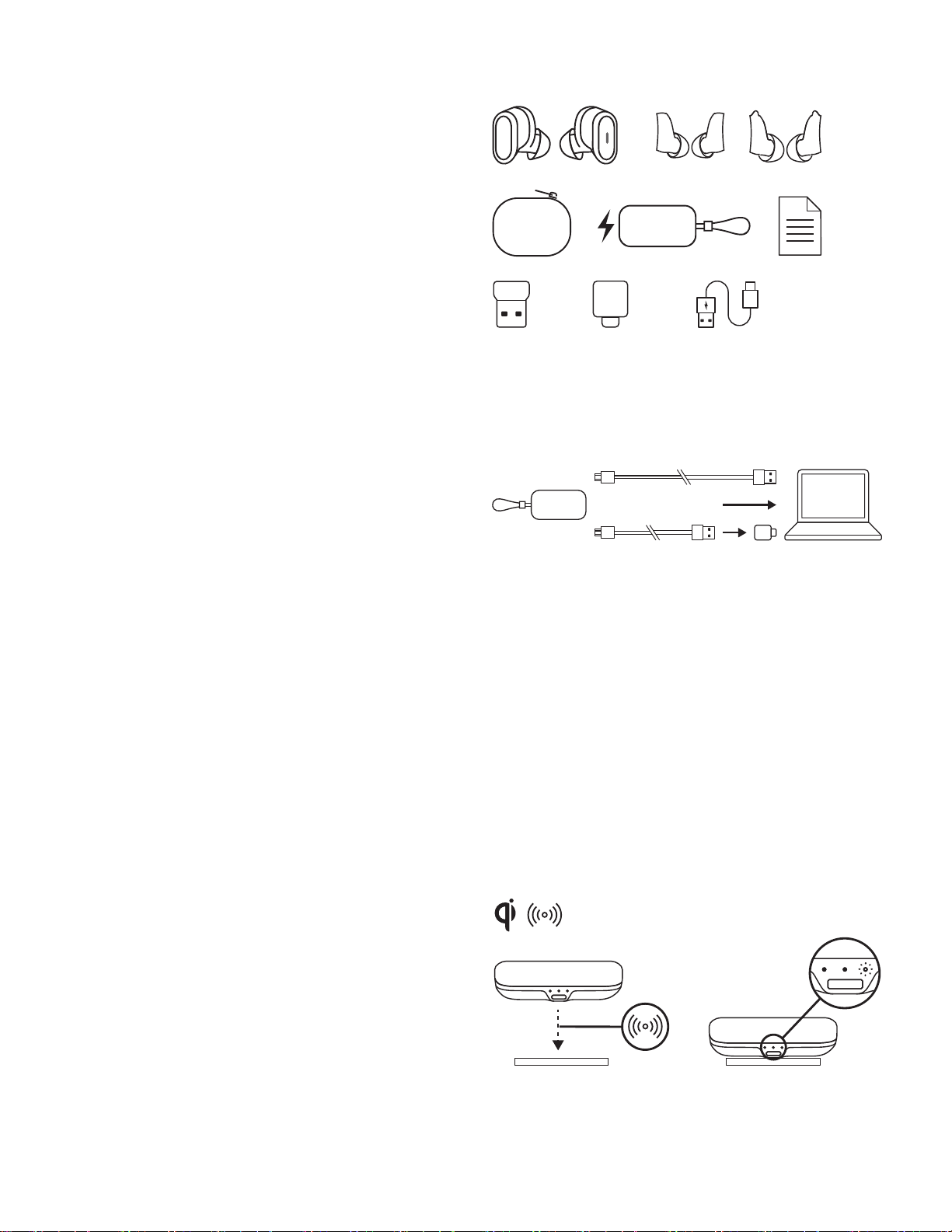

WHAT’S IN THE BOX
1. Left & right ear buds
2. Replaceable eargels (total of 3 pairs):
— Small left & right eargels without ear ns
— Medium left & right eargels with ear ns
(premounted on the earbuds)
— Large left & right eargels with ear ns
3. Cloth travel bag
4. Wireless charging case
5. User documentation
6. USB-A receiver
7. USB-C to A adapter
8. USB-C to A charging cable (0.79 ft)
4English

ZONE
TRUE
WIRELESS
3 sec.
USB-A
USB-C
HOW TO SETUP YOUR DEVICE
1. Remove the earbuds from the charging case.
2. Insert the earbuds into your ears.
PAIR TO SMARTPHONE VIA BLUETOOTH®
1. Press the Bluetooth®pairing button in
thecharging case for 3 seconds. Earbud light
indicator will ash white rapidly.
2. Open Bluetooth®settings on your device.
3. Select Zone True Wireless in discoverable
devices.
4. Once successfully paired, the light indicator
will turn solid white.
PAIR TO COMPUTER VIA USB RECEIVER
1. USB-A
Insert the USB-A receiver into the computer
USB-A port.
USB-C
Insert the USB-A receiver into the USB-C
adapter. Then insert the adapter into
thecomputer USB-C port.
2. Earbuds are pre-paired to the receiver included
in the box. Once successfully paired, the light
indicator on the receiver will remain solid.
5English

S
S
M
S
M
L
FIND YOUR PERFECT FIT
For optimized performance of ANC and comfort ,
select among the three eargel sizes (S, M, L) to nd
the ones that best t your ears. Earbuds ship with
medium eargels.
1. Place the earbuds rmly within your ears. Adjust
angle and depth of the earbuds for the best seal
and comfort.
2. Size down if you feel too much pressure on
yourear, or size up if the earbuds are too loose.
— Note: It is common to use dierent sized
eargels for dierent sides of your ears.
3. Fit Trial
— The earbuds should remain secured and tight
even after shaking your head in all directions.
— Play the same music as a fair comparison of
noise isolation.
Left Right
OR
OR
6English

CALL AND MUSIC CONTROLS
Note:
- Teams activities are only functional when Teams is running on an unlocked computer.
- Media control functionality depends on type of application.
- Call activities are always the rst priority. When two Bluetooth®devices are connected, the
last active device will override the other.
Tip: Button customizations and Music EQ controls available in Logi Tune.
For UC: Call situations Non-call situations
Action Left earbud Right earbud Left earbud Right earbud
Short press
Answer / End call Play / Pause 
2 seconds press Reject call Next song 
Double taps
ANC /
Transparency
Toggle
Mute on / o
ANC /
Transparency
Toggle
Mute on / o
For Microsoft
Teams: Call situations Non-call situations
Action Left earbud Right earbud Left earbud Right earbud
Short press
Answer / End call Play / Pause Invoke Teams
2 seconds press Reject call Next song Invoke Teams
Cortana
Double taps
ANC /
Transparency
Toggle
Mute on / o
ANC /
Transparency
Toggle
Mute on / o
7English

ACTIVE NOISE CANCELLATION (ANC)
ANC blocks out the noise around you to help you
concentrate on the task at hand.
1. Double tap the left earbud to switch between
ANC and Transparency mode.
2. There will be a voice prompt when turning ANC
or Transparency mode on.
3. You can also switch between ANC and
Transparency mode via Logi Tune.
EARBUD LIGHT INDICATOR
Controlling busy light via Logi Tune
Busy light is disabled by default. To activate it:
1. Open Logi Tune.
2. Select “Settings” tab.
3. Click on “Busy light” and select "Active on call".
Earbud Status
White Flashing Bluetooth®pairing mode
Solid Active call*
* Download Logi Tune to activate the busy light.
Bluetooth®
pairing mode
Active call
2x L
ANC
8English

For UC:
Light Status
White Flashing Incoming call
Solid Active call
Red Solid Mute on
For Microsoft Teams:
Light Status
White Flashing Incoming call
Solid Active call
Red Solid Mute on
Purple Solid
Active Teams call
with other device/
Nocallactivity /
Callonhold
RECEIVER LIGHT INDICATOR
Incoming call
Active call
Mute on
Incoming call
Active call
Mute on
Active Teams call
with other device/
No call activity/
Call on hold

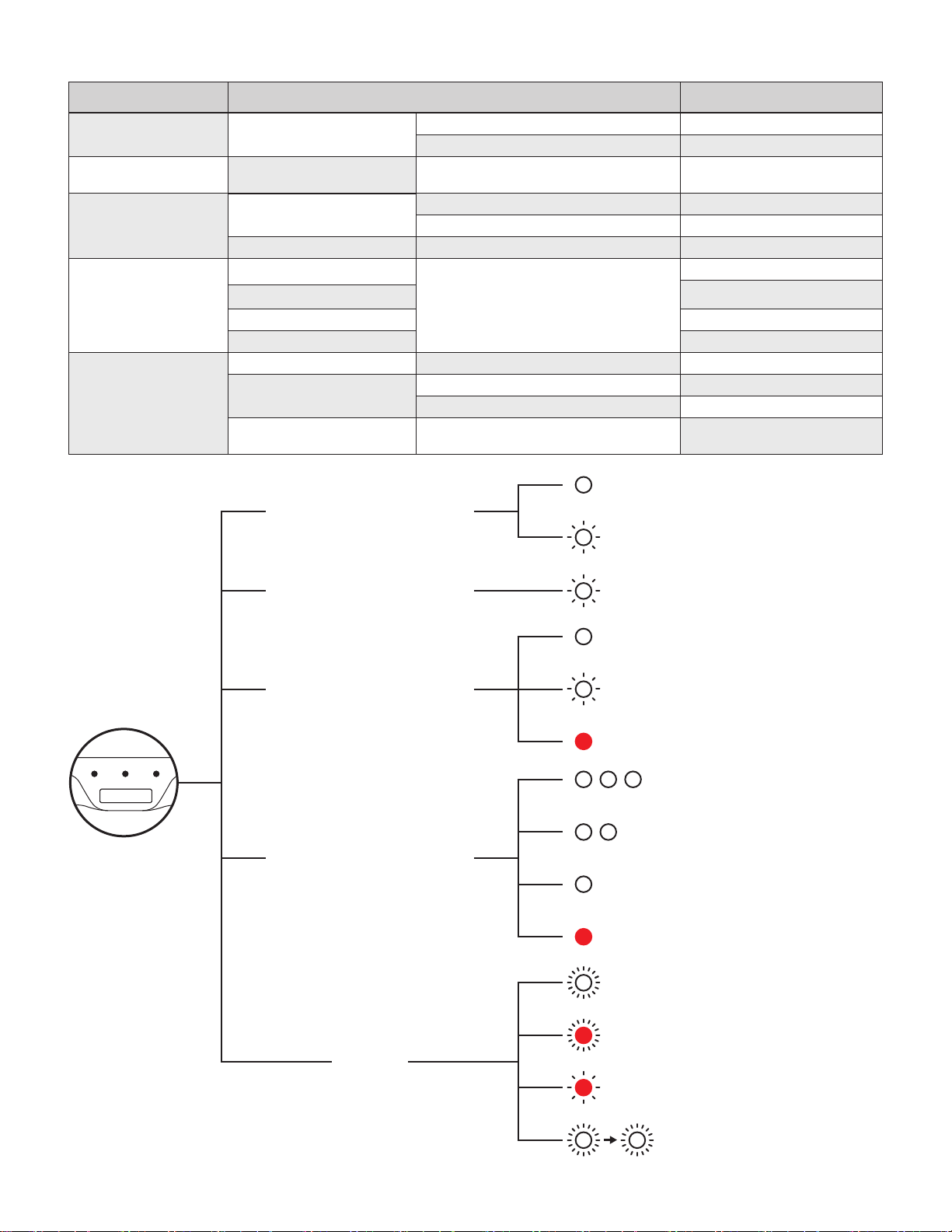

CASE LIGHT INDICATOR
Left LED light: Battery status of the left earbud
Middle LED light: Battery status of the charging case
Right LED light: Battery status of the right earbud
Left earbud
Case
Right earbud
9English

State Light Status
Plugged into power source White Solid Fully charged
Pulsing Not fully charged
Inserting buds in the case White Pulsing for 3 seconds Earbud inserted in the case
Case button pressed and
released (earbuds in the
case)
White Solid for 3 seconds Fully charged
Pulsing for 3 seconds Charging
Red Solid Case battery <20%
Case button pressed and
released (no earbuds in
the case)
White (All lights on)
Solid for 3 seconds
Case battery between 80-100%
Case battery between 50-79%
White (Middle and left light on)
White (Left light on only) Case battery between 20-49%
Red Case battery <20%
Others
White Blinking Pairing mode
Red Blinking while in over-the-air (OTA) mode Device rmware update
Pulsing Charging error
White Blinking while in pairing mode and blinking
WHITE 3 times to conrm factory reset Factory reset
Fully charged
Not fully charged
Earbud inserted in the case
Fully charged
Charging
Case battery <20%
Case battery between
80-100%
Pairing mode
Case battery between
50-79%
Device rmware update
Case battery between
20-49%
Charging error
Case battery <20%
Factory reset
Plugged into power source
Inserting buds in the case
Case button pressed
andrelease
(earbuds in the case)
Others
Case button pressed
andrelease
(no earbuds in the case)
3 sec.
3 sec.
3 sec.
3 sec.
3 sec.
3x
3 sec.
3 sec.
10 English

LOGI TUNE
Logi Tune helps boost your earbud performance
withperiodic software and rmware updates.
Learn more and download Logi Tune at
www.logitech.com/tune, the Apple App Store®
orGooglePlay™ store.
ADJUSTING SIDETONE
Sidetone lets you hear your own voice during
conversations so you are aware of how loud
youaretalking. In Logi Tune, select the sidetone feature,
andadjust the dial accordingly.
 A higher number means you hear more external sound.
 A lower number means you hear less external sound.
AUTO SLEEP TIMER
By default, your earbuds will automatically power o
when not in use for one hour. Adjust the sleep timer
inLogi Tune.
RECONNECT EARBUDS
Reconnect earbuds to receiver via Logi Tune
1. Plug USB-A receiver into computer.
2. Open Logi Tune.
3. Select the receiver from the dashboard.
Press“Reconnect earbuds”.
4. To initiate Bluetooth®pairing, press and hold the
Bluetooth®pairing button in the charging case for
3seconds. The light indicator on thereceiver will
ashwhite.
5. Once successfully paired, the light indicator
onthereceiver will remain solid white.
FACTORY RESET
1. Place the left and right earbuds in the charging case.
2. Press the Bluetooth®pairing button in the case
for15seconds.
3. The case light indicators will blink 3 times in white
toconrm the reset.
www.logitech.com/tune
Logi Tune
11 English

Earbuds:
Height x Width x Depth: 15.9 x 27.4 x 26.3 mm
Weight (a pair of earbuds): 13 g
Charging case:
Height x Width x Depth: 25.0 x 39.8 x 74.5 mm
Weight: 46 g
Receiver:
Height x Width x Depth: 21.5 x 13.6 x 6.0 mm
Adapter:
Height x Width x Depth: 25.2 x 16.5 x 9.5 mm
DIMENSIONS
Works with common calling applications across almost all platforms
andoperatingsystems.
Works with Windows®, Mac, or Chrome™ based computer via USB-C, USB-A,
Bluetooth®and iOS or Android™ Bluetooth®enabled devices.
SYSTEM REQUIREMENTS
Microphone Type: Omni-directional, dual MEMS mics array with beamforming plus
an inward-facing mic
Frequency response (Earbuds): 20-20kHz (music mode), 100-8kHz (talk mode)
Frequency response (Microphone): 100-8kHz
Battery type: Built-in battery (Lithium ion)
Battery life (talk time): Up to 6 hrs (ANC on), up to 6.5 hrs (ANC o)
Battery life (listening time): Up to 7 hrs (ANC on), up to 12 hrs (ANC o)
Bluetooth®version: 5.0
Wireless range: Up to 30 m/100 ft (open eld line of sight)
Qi Wireless charging enabled
USB-A to C charging cable: 0.79 ft (24 cm)
TECHNICAL SPECIFICATIONS
© 2021 Logitech. Logitech, Logi and the Logitech logo are trademarks or registered trademarks
ofLogitech Europe S.A. and/or its aliates in the U.S. and other countries. Apple and the Apple logo
are trademarks of Apple Inc., registered in the U.S. and other countries and regions. App Store is
a service mark of Apple Inc. Google Play and the Google Play logo are trademarks of Google LLC.
TheBluetooth®word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and
any use of such marks by Logitech is under license.
www.logitech.com/support/zonetruewireless

瞭解您的產品
藍牙 配對按鈕
Qi 無線充電
充電盒指示燈
用於充電連接線的
USB-C 連接埠
耳機麥克風指示燈
防風布料
控制按鈕
隔噪麥克風
可更換耳塞
指示燈
USB-C 轉接器
USB-A 接收器
13 繁體中文

USB-A USB-C USB-A | USB-C
S
M M
S LL
USB-A
USB-C
充電
透過 USB 連接線充電
1. 將耳機放入充電盒，然後蓋上外蓋。
2. 將USB-C 連接線端插入充電盒正面的 USB-C 連接埠。
3. 將USB-A 端插入電腦上的 USB-A 充電連接埠，或是將
USB-A 端插入到 USB-C 轉接器，然後將 USB-C 轉接器
插入到電腦的 USB-C 連接埠。
4. 充電盒指示燈會閃爍白燈，表明正在充電。
5. 完全充電後充電指示燈會亮起穩定白燈。
— 耳機完全充電需要 2 小45 分鐘時間
— 完全充電需要 3 小時時間
— 充電 5 分鐘可提供 2 小時聆聽音樂時間 (ANC 關閉)
6. 耳機在充電時可搭配接收器和藍牙配對裝置使用。
透過 Qi 無線充電器充電
1. 將充電盒放在任何 Qi 無線充電墊的上方。*
2. 充電盒指示燈會閃爍白燈，表明正在充電。
3. 完全充電後充電盒指示燈會亮起穩定白燈。
* Qi 無線充電底座未隨附。
包裝內容
1. 左耳與右耳耳機
2. 可更換耳塞 (總共 3 組)：
不含耳掛的小號左耳和右耳耳塞
含耳掛的中號左耳和右耳耳塞(已預先安裝在耳機上)
含耳掛的大號左耳和右耳耳塞
3. 布質攜行袋
4. 無線充電盒
5. 使用者文件
6. USB-A 接收器
7. USB-C 轉USB-A 轉接器
8. USB-C 轉USB-A 充電連接線 (24 公分)
14 繁體中文

ZONE
TRUE
WIRELESS
3 sec.
USB-A
USB-C
裝置設定方式
1. 從充電盒中取出耳機。
2. 將耳機插入耳中。
透過 藍牙 與智慧型手機配對
1. 按住充電盒的藍牙配對按鈕 3 秒。耳機指示燈會快速閃
爍白燈。
2. 開啟您裝置上的藍牙設定。
3. 在可發現裝置中選擇 Zone True Wireless。
4. 成功配對後，指示燈會亮起穩定白燈。
透過 USB 接收器與電腦
1. USB-A
將USB-A 接收器插入到電腦的 USB-A 連接埠。
USB-C
將USB-A 接收器插入到 USB-C 轉接器。然後將轉接器
插入到電腦的 USB-C 連接埠。
2. 耳機已和包裝盒中的接收器完成配對。成功配對後，
接收器上的指示燈會穩定亮起。
15 繁體中文

S
S
M
S
M
L
尋找您的完美配戴方式
為獲得最佳 ANC 效能與舒適性，請從三種耳塞尺寸 (小、
中、大) 中選擇，找出最適合您耳朵的一種。耳機交付時已
裝上中型耳塞。
1. 請將耳機穩固放入耳中。調整耳機的角度和深度，以獲
得最佳密閉性和舒適性。
2. 如果您覺得耳朵太緊請更換較小的耳塞，如果太鬆請更換較
大的耳塞。
— 注意：您的兩耳分別使用不同大小的耳塞，是正常現象。
3. 試戴
— 耳機即使在您朝各方向轉頭之時，應仍保持穩固緊貼。
— 播放相同的音樂以進行公正的隔噪效果比較。
左耳 右耳
或
或
16 繁體中文

通話與音樂控制
注意：
- Teams 活動僅在 Teams 於未鎖定的電腦上執行時才可以使用。
- 媒體控制功能視應用程式類型而定。
- 通話活動始終是第一優先選擇。有兩個連線的 藍牙 裝置時，最後一個使用的裝置會優先於另一個裝置。
提示：Logi Tune 中提供有按鈕自訂和音樂等化器控制功能。
適用於 UC： 通話狀態 非通話狀態
動作 左耳耳機 右耳耳機 左耳耳機 右耳耳機
短按
接聽/掛斷通話 播放/暫停 
按住 2 秒拒絕通話 下一首歌曲 
按兩下 ANC/ 通透切換 靜音開啟/關閉 ANC / 通透切換 靜音開啟/關閉
適用於
Microsoft
Teams：
通話狀態 非通話狀態
動作 左耳耳機 右耳耳機 左耳耳機 右耳耳機
短按
接聽/掛斷通話 播放/暫停 執行 Teams
按住 2 秒拒絕通話 下一首歌曲 執行 Teams
Cortana
點按兩下 ANC/ 通透切換 靜音開啟/關閉 ANC / 通透切換 靜音開啟/關閉
17 繁體中文

主動隔噪 (ANC)
ANC 會阻隔您周圍的噪音，以協助您專心在手邊的工作上。
1. 點按兩下左耳耳機可切換 ANC 和通透模式。
2. 在開啟 ANC 或通透模式時會發出語音提示。
3. 您也可以透過 Logi Tune 來切換 ANC 和通透模式。
2x L
ANC
耳機指示燈
透過 Logi Tune 控制忙線指示燈
忙線指示燈預設為停用狀態。若要啟用：
1. 開啟 Logi Tune。
2. 選擇「設定」標籤。
3. 按一下「忙線指示燈」然後選擇「在通話時啟用」。
耳機 狀態
白燈 閃爍 藍牙配對模式
穩定亮起 通話中*
* 下載 Logi Tune 可啟用忙線指示燈。
藍牙 配對模式
通話中
18 繁體中文

適用於 UC：
指示燈 狀態
白燈 閃爍 來電
穩定亮起 通話中
紅燈 穩定亮起 靜音開啟
適用於 Microsoft Teams：
指示燈 狀態
白燈 閃爍 來電
穩定亮起 通話中
紅燈 穩定亮起 靜音開啟
紫燈 穩定亮起
與其他裝置進行 Teams
通話/ 沒有通話活動 / 通話
保留中
接收器指示燈
來電
通話中
靜音開啟
來電
通話中
靜音開啟
與其他裝置進行
Teams 通話/
沒有通話活動 /
通話保留中
充電盒指示燈
左側 LED 指示燈：左耳耳機電池狀態
中間 LED 指示燈：充電盒電池狀態
右側 LED 指示燈：右耳耳機電池狀態
左耳耳機
充電盒
右耳耳機
19 繁體中文

狀態 指示燈 狀態
插入電源 白燈 穩定亮起 完全充電
閃爍 未完全充電
將耳機放入充電盒 白燈 閃爍 3 秒 耳機已放入充電盒
按下與放開充電盒按鈕 (耳
機在充電盒中)
白燈 穩定亮起 3 秒 完全充電
閃爍 3 秒 充電中
紅燈 穩定亮起 充電盒電池 <20%
按下與放開充電盒按鈕 (充
電盒中沒有耳機)
白燈 (始終亮起)
穩定亮起 3 秒
充電盒電池介於 80-100%
充電盒電池介於 50-79%
白燈 (中間與左側指示燈亮起)
白燈 (僅左側指示燈亮起)充電盒電池介於 20-49%
紅燈 充電盒電池 <20%
其他
白燈 閃爍 配對模式
紅燈 在無線更新 (OTA) 模式時閃爍白燈 裝置韌體更新
閃爍 充電時發生錯誤
白燈 在配對模式閃爍白燈，在執行出廠重設時閃爍
3 次表示確認 出廠重設
完全充電
未完全充電
耳機已放入充電盒
完全充電
充電中
充電盒電池 <20%
充電盒電池介於 80-100%
配對模式
充電盒電池介於 50-79%
裝置韌體更新
充電盒電池介於 20-49%
充電時發生錯誤
充電盒電池 <20%
出廠重設
插入電源
將耳機放入充電盒
按下與放開充電盒按鈕
(耳機放在充電盒中)
其他
按下與放開充電盒按鈕
(充電盒中沒有耳機)
3 秒
3 秒
3 秒
3 秒
3 秒
3 秒
3 秒
3 次
20 繁體中文
