Logitech Ultimate Ears 6000 User manual

Setup Guide
Ultimate Ears™ 6000

UE 6000
3
English. . . . . . . . . . . . . . . . . . 4
Deutsch . . . . . . . . . . . . . . . . 10
Français . . . . . . . . . . . . . . . . 16
Italiano. . . . . . . . . . . . . . . . . 22
Español . . . . . . . . . . . . . . . . 28
Português . . . . . . . . . . . . . . . 34
Nederlands . . . . . . . . . . . . . . 40
Svenska . . . . . . . . . . . . . . . . 46
Dansk . . . . . . . . . . . . . . . . . 52
Norsk . . . . . . . . . . . . . . . . . 58
Suomi . . . . . . . . . . . . . . . . . 64
www.logitech.com/support . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

UE 6000
4 English
AAA
Setup Guide
Ultimate Ears™ 6000
1
2 4
6
3
5
Package contents
1. Headphones
2. Detachable audio cable with
in-lineremote
3. Travel case
4. Sharing splitter
5. 2 AAA alkaline batteries
(pre-installed)
6. Documentation

UE 6000
English 5
5
6
7
8
1
2
9
10
11
3
4
Know your product
1. Adjustable headband
2. Memory foam cushions
3. Battery LED
4. On/O slider
5. Volume up
6. Media/calling controls
•One click:
Play/pause (audio)
Call answer/hang up (phone)
•Double click:
Next track (audio)
•Triple click:
Previous track (audio)
•One click, then click and hold:
Fast forward (audio)
•Two clicks, then click and hold:
Rewind (audio)
•Click and hold:
Activate/deactivate voice dial1
7. Volume down
8. Microphone
9. Battery door release (Press button
toopen battery door.)
10. Battery compartment
11. 3.5 mm input
1 Function varies by phone. Activates Siri® on iPhone® 4S.

UE 6000
6 English
2
1
3

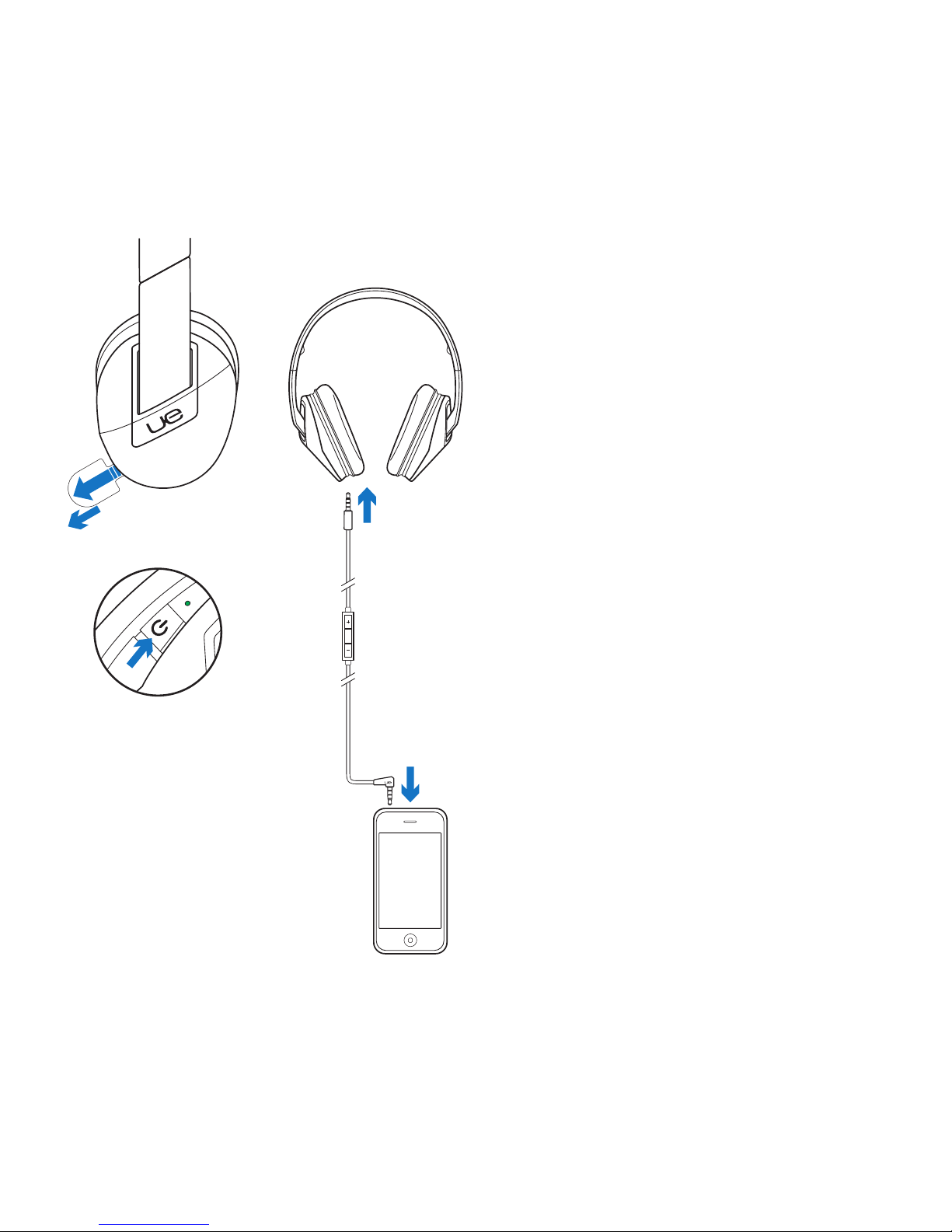

Set up your product
1. Pull the tab to activate batteries.
2. Move the slider to “On.” The Battery
LED turns green to indicate Active Noise
Cancellation mode.
3. Connect the headphone to begin
listening to music.

UE 6000
English 7
Product features
Answering a call
• On your phone, the music fades and
a ring tone sounds.
• You can pick the call up on your phone
or press the center button.
• To hang up, press the center button.
Sharing your music
1. Remove the cap.
2. Plug in the sharing splitter and connect.
Listen to music together.
Active Noise Cancellation
Battery LED
No light: headphone o
Green: Power on; batteries good
Red: Low power; change the batteries
If the power runs out, Active Noise
Cancellation ends and music stops.
Move the slider to the “O” position to
keep listening to music (without Active
Noise Cancelling and equalization).
Replace batteries for optimal performance.
Storage
The headphone folds easily for storage.
21

UE 6000
8 English
Visit Product Central
There’s more information and support
online for your product. Take a moment
tovisit Product Central to learn more about
your new Ultimate Ears headphone.
Browse online articles for setup help,
usage tips, or information about additional
features.
Connect with other users in our Community
Forums to get advice, ask questions,
andshare solutions.
At Product Central, you’ll find a wide
selection of content:
• Tutorials
• Troubleshooting
• Support community
• Software downloads
• Online documentation
• Warranty information
• Spare parts (when available)
Go to www.logitech.com/support/ue6000

UE 6000
English 9
Troubleshooting
No sound or faint sound
• Check the cable connection. Make sure
the straight connector is connected
to the headphone and the angled
connector is connected to your device.
• Try increasing the volume for the
headphone and your media application.
• Restart your media application.
• If the Battery LED is red, replace the
2 AAA alkaline batteries.
Headphones not working with a computer
• Specify audio settings for your operating
system:
Windows® (Control Panel)
•Voice playback and recording:
Computer’s soundcard
•Sound playback: Computer’s speakers
Mac® OS X (Preferences)
•Sound input: Internal microphone
•Sound output: Internal speakers
Refer to your operating system
documentation. For more information,
go to www.logitech.com/
support/ue6000.
What do you think?
Please take a minute to tell us.
Thank you for purchasing our product.
www.logitech.com/ithink

UE 6000
10 Deutsch
AAA
Setup Guide
Ultimate Ears™ 6000
1
2 4
6
3
5
Inhalt
1. Kopfhörer
2. Abnehmbares Audiokabel
mitBedienelementen am Kabel
3. Reise-Etui
4. Audio-Splitter für zwei Personen
5. 2 Alkalibatterien vom Typ AAA
(bereits eingelegt)
6. Bedienungsanleitung
