Logitech Ultimate Ears 9000 User manual

ULTIMATE
EARS 9000
WIRELESS
HEADPHONES
USER
GUIDE

ENGLISH . . . . . . . . . . . . . . . . . . 4
DEUTSCH . . . . . . . . . . . . . . . . . . 16
FRANÇAIS . . . . . . . . . . . . . . . . . 28
NEDERLANDS . . . . . . . . . . . . . . .40

POWER
UP. SYNC UP. PRESS PLAY.
Turn on the UE 9000
Wireless Headphones.
Turn on your Ultimate Ears 9000
Wireless Headphones.
The Bluetooth® LED should blink blue rapidly,
indicating that the headphones are discoverable.
Pair your headphones with your Bluetooth-enabled device.
Apple iOS®
Go to Settings > General > Bluetooth.
Turn on Bluetooth.
Select “UE 9000” from “Devices.”
Optional: Pair additional Bluetooth-enabled devices.
You can pair your headphones with up to eight devices. To do so:
1. Move the slider to the “Bluetooth” position and hold it there until the Bluetooth LED
blinks rapidly blue, indicating that the headphones are discoverable.
2. Complete pairing according to the instructions on the previous page.
3. Press play on the device you’ve just paired.
When you’ve successfully paired a device, the Bluetooth LED will turn solid blue.
If pairing times out (the LED will blink slowly), move the slider to the “Bluetooth”
position and hold it there until the LED starts rapidly blinking again.
Press play on your media device.

GET TO KNOW YOUR
UE 9000 WIRELESS
HEADPHONES.
UE 9000 Wireless Headphones
Molded travel case
Optional audio cable with on-cord mic and controls
USB charging cable
AC adapter
¼-inch (6.35 mm) adapter
Microfiber polishing cloth
WHAT’S IN
THE BOX:
Volume up
Play/Pause
Call answer/hang up
Next track
Previous track
Volume down
Listen Through button
Micro USB charging port
3.5 mm input (Interrupts Bluetooth connection when connected)
On/O/Bluetooth connection slider
Bluetooth LED
Battery level LED
Click, or press and hold
Single click
Single click to answer/
press and hold to hang up
Double click
Triple click
Click, or press and hold
Music/Calling
On-ear controls On-cord controls

FEATURES:
BASIC BEHAVIOR.
Bluetooth LED Battery Level LED
O
Headphones o or connected to
an audio source via the 3.5 mm jack
Blue (blinking rapidly):
Discoverable/pairing mode
Blue (blinking slowly): Connecting
Blue (solid): Connected
O
Headphone o
Green (pulsing slowly): Charging
Green (solid): Power on; fully charged
Red: Low battery
Move the On/O slider to the ‘On’ position to activate Bluetooth, active noise cancellation,
and amplification.
When in wireless mode, all LEDs turn o automatically. However, the LEDs will illuminate
when there is a pairing change or a control is activated.
To use the “listen through” feature, press the Listen Through button once. Your music will be
muted and environmental sounds will be amplified into your headphones. To resume listening
to music, simply press the Listen Through button again.
The “listen through” feature is only available in wireless mode while listening to music.
Itisnot available in wired mode or during phone calls.
FEATURES:
CHARGING.
Typically a three-hour charge through an AC outlet provides up to 10 hours of power,
andyoucan use your headphones while they’re charging.
When the battery level LED turns red, you should recharge your headphones. To do so:
1. Charge the headphones via the supplied AC adapter or USB. The battery level LED
will pulse green.
2. When your headphones are fully charged, the battery level LED will glow
solid green.
or
Micro USB charging port USB charging cable
Computer USB port
AC power adapter
ENGLISH - 9

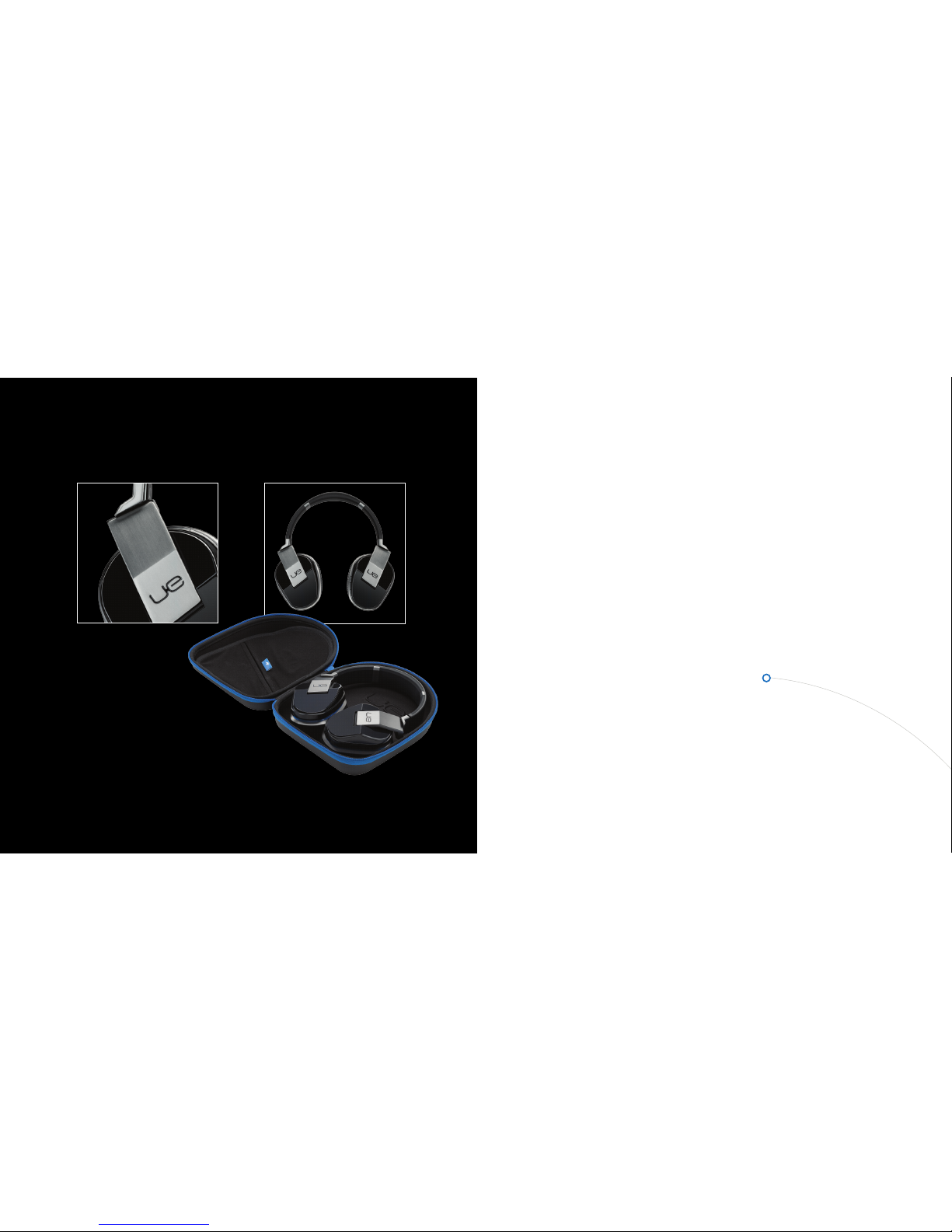

FEATURES:
TRAVEL STORAGE.
To safely store your headphones while you’re on the go:
1. Swivel the ear cups until they “click”.
2. Place the headphones flat in their case.
3. Place the AC adapter in the top pocket.
4. Place all cables and accessories in the bottom pocket.
PRODUCT CENTRAL.
There’s more information and support available for your product online.
Visit Product Central, where you can:
• Browseonlinearticlesandtutorials.
• Findtipsaboutusageandinformationaboutadditionalfeatures.
• Gethelptroubleshootingaproblem.
• Downloadthelatestsoftwareforyourproduct.
• Findonlinedocumentationandwarrantyinformation.
• ConnectwithotherusersinourCommunityForumstogetadvice,
askquestionsandshare solutions.
• Orderspareparts(whenavailable).
Go to www.logitech.com/support/ue9000
ENGLISH - 11

TROUBLESHOOTING.
If your headphones are not working or pairing/connecting properly, try the following:
•Move closer. The range of the Bluetooth wireless connection is up to 10 meters
or30feet.
•Recharge, particularly if the battery level LED is red. See “Charging.”
• Tryincreasingthevolumeontheheadphones,onyourdeviceor
inyourmediaapplication. And if you’re connected to a computer,
checkthevolumesettings for your operating system.
• EnableBluetoothonyourdevice,andthenselect“UE9000”
fromtheBluetoothdevice list.
• ToxaBluetoothconnectionbyrepairing:
1. On your device: Delete “UE 9000” from the Bluetooth device list
2. On the headphones: Move the slider to “Bluetooth” and hold until
theBluetoothLED blinks blue
3. On your device: Select “UE 9000” from the Bluetooth device list
4.FromthemediaplayeronyourBluetoothdevice:Select“UE9000”
• Forcomputers,youmayneedtospecifytheheadphoneastheinput/output
device for your operating system.
Forhelp,gotowww.logitech.com/support/ue9000
WHAT DO YOU THINK?
PRODUCT SUPPORT.
Please take a minute to tell us.
www.logitech.com/ithink
www.logitech.com/support/ue9000
ENGLISH - 13

BATTERY REMOVAL
AND RECYCLING
1. Peel and remove the ear pad from the left ear cup.
2. Remove screws to disassemble the speaker chamber.
3. Unplug the old battery.
4. Dispose of old battery at an authorized
battery recycling center.
HEADPHONE
DISASSEMBLY
Remove screws
LEFT EAR CUP
Peel and remove
earpad
Unplug battery
ENGLISH - 15

AUFLADEN. SYNCHRO-
NISIEREN. ABSPIELEN.
Schalten Sie die UE 9000
Wireless Headphones ein.
Schalten Sie Ihre Ultimate Ears 9000
Wireless Headphones ein.
Die Bluetooth®-Anzeige blinkt schnell in blau
und signalisiert somit, dass die Kopfhörer erkennbar sind.
Pairen Sie Ihre Kopfhörer mit Ihrem Bluetooth-fähigen Gerät.
Apple iOS®
Navigieren Sie zu „Einstellungen> Allgemein > Bluetooth“.
Schalten Sie Bluetooth ein.
Wählen Sie unter „Geräte“ die UE 9000 aus.
Optional: Pairen Sie zusätzliche Bluetooth-fähige Geräte.
Sie können Ihre Kopfhörer mit bis zu acht Geräten pairen. Dazu gehen Sie
folgendermaßenvor:
1. Bewegen Sie den Schieberegler auf die Bluetooth-Einstellung und halten Sie Ihn
andieser Stelle, bis die Bluetooth-LED schnell blau blinkt und somit signalisiert,
dass die Kopfhörer erkennbar sind.
2. Schließen Sie den Pairing-Vorgang gemäß den Anweisungen auf der
vorangegangenen Seite ab.
3. Drücken Sie auf dem Gerät, das Sie eben gepairt haben, die Wiedergabetaste.
Wenn Sie ein Gerät erfolgreich gepairt haben, leuchtet die Bluetooth-Anzeige
dauerhaftblau.
Wird das Zeitlimit für den Pairing-Vorgang überschritten (die LED blinkt langsam),
dannbewegen Sie den Schieberegler auf die Bluetooth-Einstellung und halten Sie ihn
solange dort, bis die LED wieder schnell blinkt.
Drücken Sie die Wiedergabetaste auf
Ihrem Gerät.

Drücken oder gedrückt halten
Einmal drücken
Einmal Drücken zur Anrufannahme/
Gedrückt halten zum Auflegen
Doppelt drücken
Drei Mal hintereinander drücken
Einmal drücken oder gedrückt halten
EINFÜHRUNG
UE 9000 WIRELESS
HEADPHONES.
UE 9000 Wireless Headphones
Passgenaues Reise-Etui
Optionales Audio-Kabel mit Mikrofon und Bedienelementen
USB-Ladekabel
Netzteil
6,35-mm-Adapter
Mikrofasertuch
INHALT :
Lauter
Wiedergabe/Pause
Annehmen/Beenden
von Anrufen
Nächster Titel
Vorheriger Titel
Leiser
Listen Through-Taste
Mikro-USB-Ladeanschluss
3,5-mm-Eingang (unterbricht beim Anschließen die Bluetooth-Verbindung)
Ein/Aus- und Bluetooth-Regler
Bluetooth-Anzeige
Akkustandsanzeige
Musik/Anrufe
Bedienelemente
an der Hörmuschel Bedienelemente am Kabel
