Logitech Ultrathin T630 User manual

Ultrathin Touch Mouse T630 Setup Guide
Bluetooth wireless technology

English. . . . . . . . . . . . . . . . . 3
Deutsch . . . . . . . . . . . . . . . .10
Français . . . . . . . . . . . . . . . .17
Italiano. . . . . . . . . . . . . . . . 24
Español . . . . . . . . . . . . . . . .31
Português . . . . . . . . . . . . . . 38
Nederlands . . . . . . . . . . . . . 45
Svenska . . . . . . . . . . . . . . . 52
Dansk . . . . . . . . . . . . . . . . 59
Norsk . . . . . . . . . . . . . . . . 66
Suomi . . . . . . . . . . . . . . . . 73
Ελληνικά . . . . . . . . . . . . . . . . 80
Türkçe . . . . . . . . . . . . . . . . 87
95 . . . . . . . . . . . . . . . . 
www.logitech.com/support . .102

Get to know your mouse
Touch
surface
Status
light
Micro-USB
charging cable
On
21
O
Connect
Bluetooth
Connect
button
Bluetooth
Easy Switch
On/O switch
Micro-USB port
English3

On
21
O
Connect
On
21
O
Connect
On
21
O
Connect
Set up Bluetooth
2. Select Bluetooth
channel
On your mouse
3. Press Connect
The status light
blinks blue rapidly
to indicate the
mouse is ready
for pairing with
your PC.
Slide the Bluetooth
Easy Switch to
position 1 or 2.
Slide the switch
to the On
position.
1. Power on
The status light
blinks while
the mouse is
discoverable—
about three minutes.
4English

Set up Bluetooth
On your PC
Windows 8 and Windows RT:
Open the Settings charm and tap
or click Devices (in PC settings).
Tap or click Add a Device and
select Ultrathin Touch Mouse from
the list of wireless devices.
Windows 7: Right-click
the Bluetooth icon on the taskbar
and select Add a Device from the
context menu. Select Ultrathin
Touch Mouse from the list of
available devices and click Next.
When pairing is complete,
the status light glows blue
steadily for 30 seconds.
Install software
Don’t miss out on all your mouse
has to oer! Install Logitech
software for smoother
performance, customizable
settings, and optimal gestures.
Download the software from:
www.logitech.com/support/t630
English5

Pair with another PC
Slide the Bluetooth Easy Switch
to the remaining unused channel,
press the Connect button, and
repeat the steps in “Set up
Bluetooth.”
Afterwards, reconnect to a PC
by first selecting the channel you
used to pair with it.

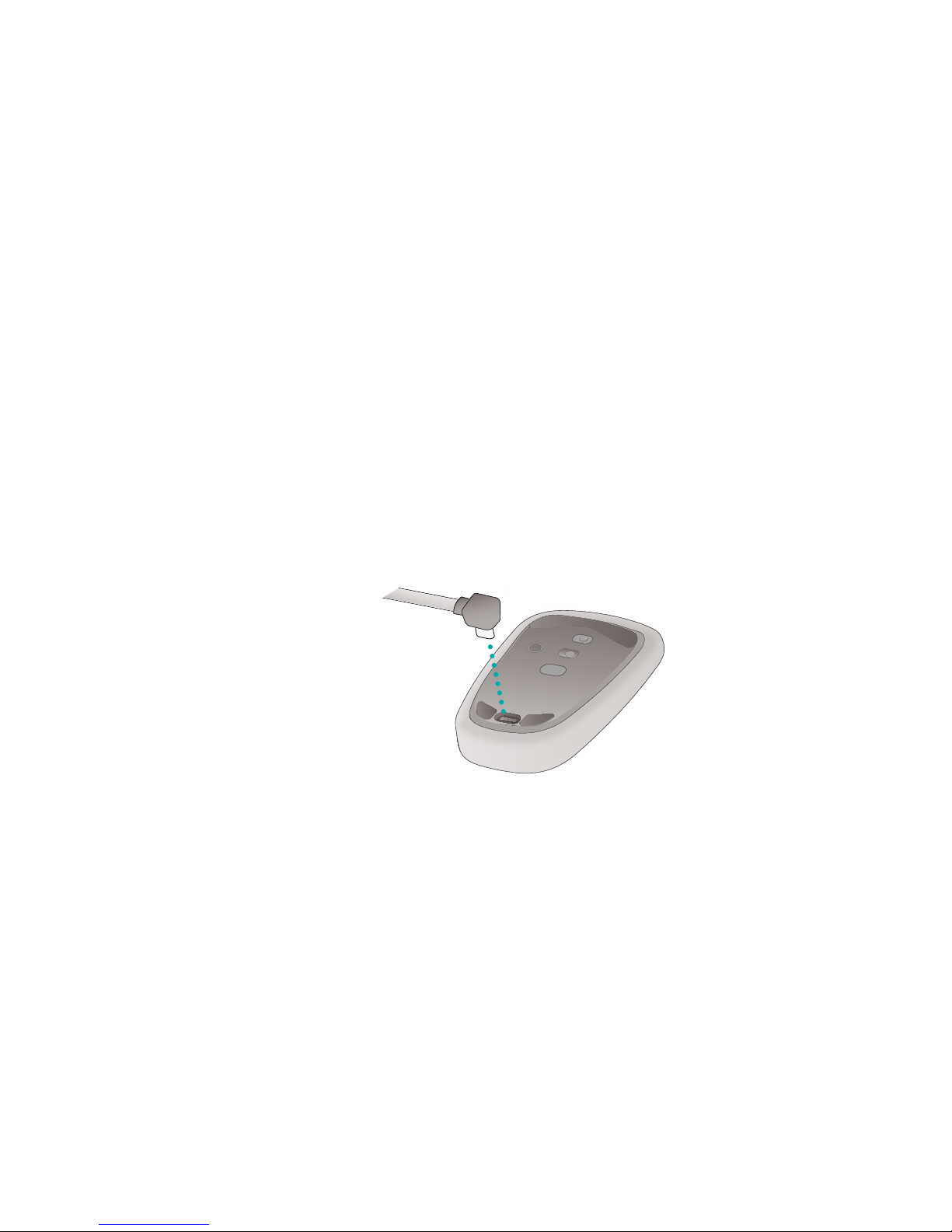

Charge the battery
Use the charging cable to
recharge the mouse from
your computer. The status light
blinks green until the mouse
is fully charged. On average, one
minute of charging adds an hour
of use.
What do you think?
Take a moment to tell us.
Thank you for purchasing
our product.
www.logitech.com/ithink
6English

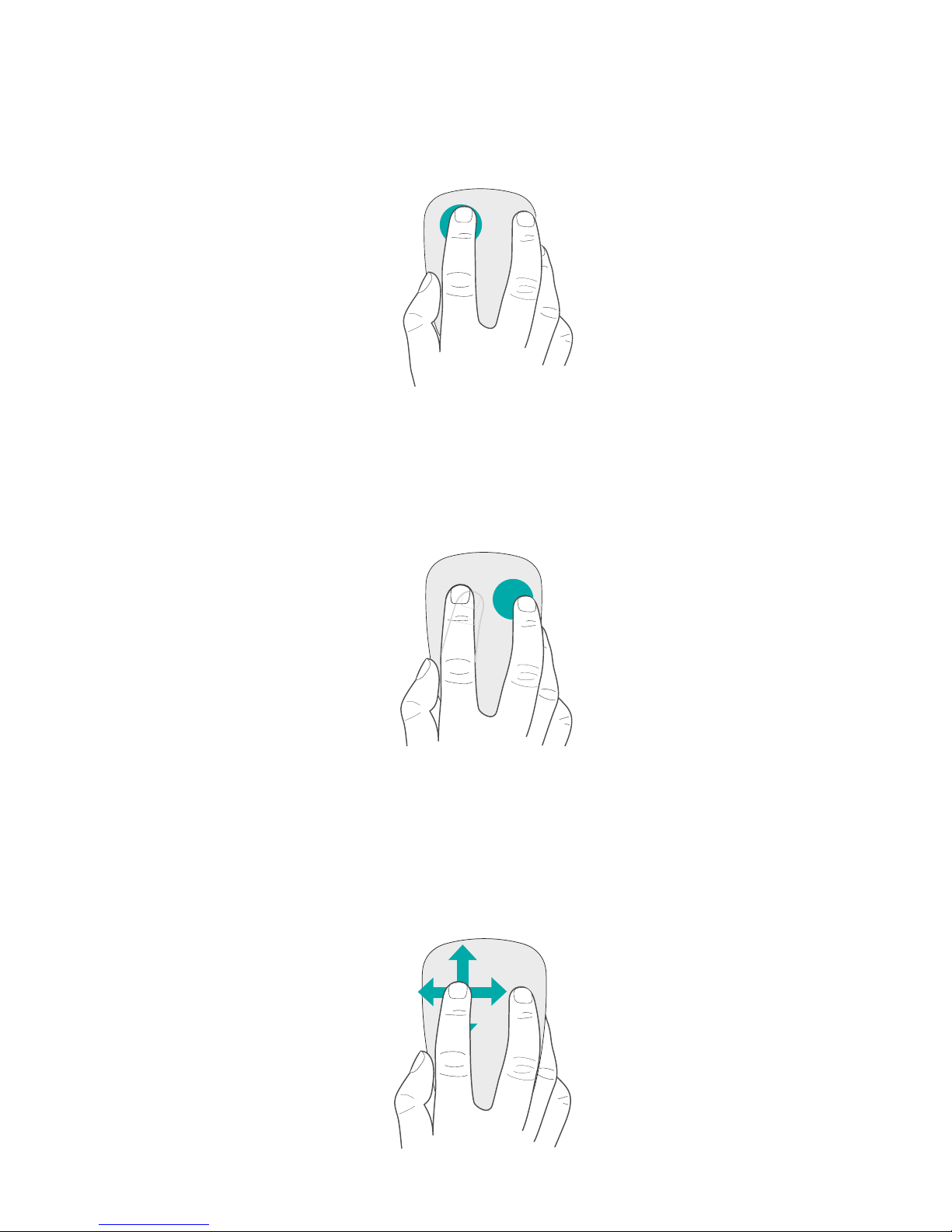

Gestures
Click. Press the left side of
the touch surface.
Lift the non-
clicking finger
completely o
the surface.
Right-click. Press the right side of
the touch surface.
Scroll. Swipe up, down,
or sideways.
English7

Middle-click. Press the lower
portion of the touch surface.
Start menu. Double-tap on
the touch surface with two fingers.
App switching. Swipe from the
left edge of the touch surface with
one finger.
Swipe from
the right edge
to display the
Charms bar.
8English

Troubleshooting
Mouse not working?
•OnyourPC,conrmthat
Bluetooth is turned on.
•Isthemousepoweredon?
•Ifthestatuslightisblinkingred,
recharge the battery.
•ConrmthattheBluetooth
channel (1 or 2) is the same one
you used for pairing.
•RestartyourPC.
•Ifyourmouseislistedas
a Bluetooth device, remove it
from the list and repeat the
steps to pair it with your PC.
www.logitech.com/support/t630
Support
Visit the product page
While online check out
the Ultrathin Touch Mouse
product page, your destination
for world-class support.
There you will find tutorials,
guidelines, and troubleshooting
tips for your mouse.
www.logitech.com/support/t630
English9

Einführung zur Maus
Touch-
Ober-
fläche
Status-
anzeige Mikro-USB-
Ladekabel
On
21
O
Connect
Bluetooth
Verbindungs-
taste
Bluetooth
Easy Switch
Ein-/Ausschalter
Mikro-USB-Anschluss
10Deutsch
