Lonsdor K518PRO User manual

K518PRO Versatile Key Programmer
User Manual
★Please read it carefully before operation, keep it well for further refer.

K518 PRO
2
Copyright
Lonsdor’s entire contents, including but not limited to products or services issued
by itself or co-issued with cooperative companies, and the materials and software
on Lonsdor’s related websites, are copyrighted and protected by law.
No part of the above all shall be copies, modified, extracted, transmitted or bundled
with other products, sold in any way or by any means without the permission of
Lonsdor.
And infringement of the company’s copyright and other intellectual property rights,
Lonsdor shall seize its liability according to law!
Disclaimer
K518 PRO key programmer and related info, which should be used only for normal
vehicle maintenance, diagnosis and testing, please do not use it for illegal
purposes.
Lonsdor shall not assume any incidental or consequential damages or any economic
damages arising from the accidents of individual users and the 3rd parties, as well
as legal responsibilities, due to their misuse, unauthorized change or repair of
the device, or abuse to violate laws and regulations. The product has a certain
degree of reliability, but does not rule out the possible loss and damage. The risk
arising from the user at their own risk. Lonsdor does not assume any risks and
responsibilities.
Declared by: Lonsdor Dept of Legal Affairs

K518 PRO
3
SAFETY INSTRUCTION
Before using this product, please read this instruction carefully to know how to
use it properly.
(1) Do not hit, throw, acupuncture the product, and avoid falling, squeezing and
bending it.
(2) Do not use this product in damp environment such as bathroom, and avoid it being
soaked or rinsed with liquid. Please turn off the product in circumstances when
it’s forbidden to use, or if it may cause interference or danger.
(3) Do not use this product while driving a car, so as not to interfere with safety
driving.
(4) In medical establishments, please follow the relevant regulations. In areas
close to medical equipment, please turn off this product.
(5) Please turn off this product near high-precision electronic equipment,
otherwise the equipment may malfunction.
(6) Do not disassemble this product and accessories without authorization. Only
authorized institutions can repair it.
(7) Do not place this product and accessories in appliances with strong
electromagnetic fields.
(8) Keep this product away from magnetic equipment. The radiation from magnetic
equipment will erase the info/data stored in this product.
(9) Do not use this product in places with high temperature or inflammable air(such
as near gas station).
(10) When using this product, please comply with relevant laws and regulations, and
respect the privacy and legal rights of others.

K518 PRO
4
Table of Contents
Copyright and Disclaimer………………………………………………………1
Safety Instruction………………………………………………………………2
Contents……………………………………………………………………………3
1. Registration Guide……………………………………………………………4
2. Product Overview……………………………………………………………5
2.1 Introduction ………………………………………………………5
2.2 Software/Hardware Advantages………………………………………5
2.3 Function Superiority……………………………………………6
2.4 Specs and Parameter…………………………………………………
2.5 Product List…………………………………………………6
2.6 Product Appearance……………………………………………………
2.6.1 K518 PRO Main Unit………………………………………………7
2.6.2 OBDII Connector+Cable……………………………………………8
2.6.3 Collect-simulate Antenna+J-LCD Cable………………………10
2.6.4 KPROG Adaptor……………………………………………………11
2.7 Function Display…………………………………………12
2.7.1 Homepage Interface………………………………………12
2.7.2 Special Functions Interface………………………13
2.7.3 System Settings Interface……………………14
2.7.4 Function Operation Interface…………………………………15
3. Aftersales Service………………………………………………………16
Warranty Card ……………………………………………………………………18

K518 PRO
5
1. REGISTRATION GUIDE
Note: after booting the device, please set and connect WIFI well, then go through
the registration&activation process.
New user:
①For the first use, please prepare an available mobile phone or E-mail to help
finish device registration and activation, click OK to start;
②Boot the device and enter registration&activation process;
③Enter user name, password, mobile number or E-mail to get verification code,
then enter the code and submit registration;
④New account is registered successfully, set the device’s power-on password;
⑤Submit the info, apply for binding the user to the device;
⑥Verified by the server, successful registration;
⑦Initialize menu and etc;
⑧Reboot and enter the device system.
Registered user:
①For the first use, please prepare the corresponding mobile phone or E-mail
of the registered account to help finish device registration and activation,
click OK to start;
②Boot the device and enter registration&activation process;
③Enter the registered mobile number or E-mail to get verification code, then
enter the code and submit login;
④Account login successful, set the device’s power-on password;
⑤Submit the info, apply for binding the user to the device;
⑥Verified by the server, successful registration;
⑦Initialize menu, etc;
⑧Reboot and enter the device system.

K518 PRO
6
2. PRODUCT OVERVIEW
2.1 Introduction
Product Name: K518 PRO Versatile Key Programmer
Product Description: K518 PRO, 2nd generation product of K518, is a
versatile key programming device released by Lonsdor, designed
specifically for the technician and locksmiths. Integrated with all
functions and features of its predecessor, this tablet device shows more
advantages and functionality, including immobilization, odometer
adjustment, remote/smart key generate, adaptor, chip identify and copy,
key chip generate, remote frequency detect, ignition coil detect, Toyota
smart key settings, one-key update, push function and etc.
2.2 Software/Hardware Advantages
✓Trendy tablet design with support frame, better user experience;
✓Based on Android 9, more optimized operation;
✓With Quad-core A7, the strongest computing power, 2 times that of A33;
✓Excellent and powerful ultra-high energy consumption ratio;
✓The first to support 8A(H chip) generation;
✓Added support for CANFD and Ethernet protocols.
2.3 Function Superiority
✓More comprehensive functions and features based on K518;
✓Support most car models on the market, luxury, domestic and popular
cars all included;
✓Networking/Pincode/OBD program, not required for most models;
✓Support 24V lorry and heavy trucks.
2.4 Specs and Parameter
Operation system: Android 9
Processor: Allwinner A50
Memory: Ram 2G flash 8G
Display: MIPI 800*1280
WiFi: (802.11 b/g/n)
USB: USB2.0
Bluetooth: 4.1
SD card: support Plug & Unplug
Battery: 5800MA
Input voltage: 12V
Shell material: PC hard shell+TPR60°
Dimension: 26* 3 *16CM

K518 PRO
7
2.5 Product List
Name
Qty
K518 PRO Portable Bag
1
K518 PRO Main Unit
1
OBD II Connector
1set
12V Power Adaptor
1
Type-C USB Cable
1
Collect-Simulate Antenna
1
User Manual
1
Certificate
1
2.6 Product Appearance

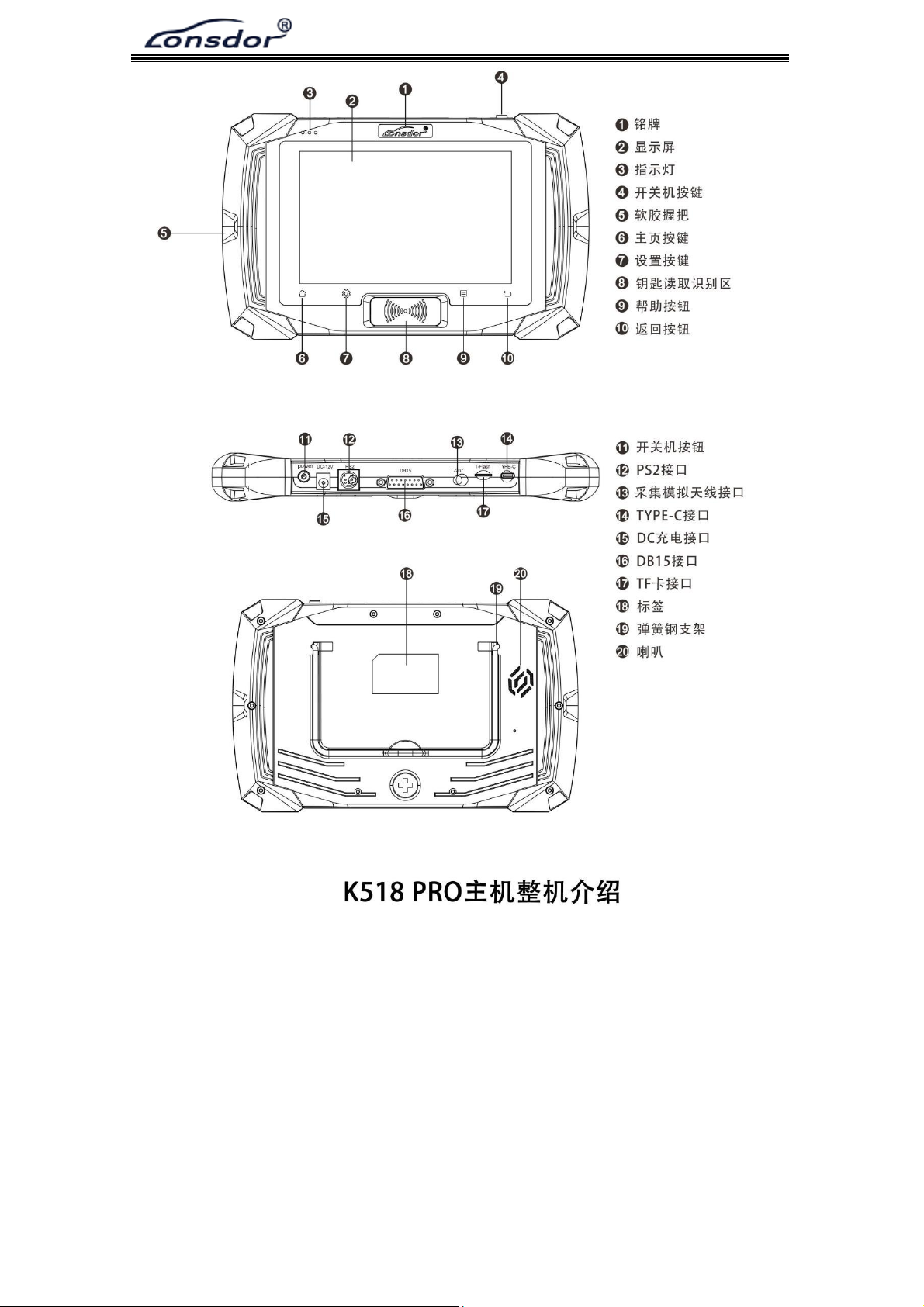

2.6.1 K518 PRO Main Unit
按数字顺序：
Trademark
Capacitive Touch Screen
Three-color Indicator
Power-on/off Button
Rubber Grip
Homepage Button
Setting Button
Key Read & Identify Area
Help Button
Return Button
Power-on/off Button
PS2 Port
Collect-Simulate Antenna Port
TYPE-C Port
DC Charging Port
DB15 Port
TF Card Port
Label
Spring Steel Bracket 弹簧钢支架
Speaker

K518 PRO
8
2.6.2 OBDII Connector + Cable
按数字顺序：
OBD Generic Plug
Illuminated LOGO

K518 PRO
9
Lanyard Eyelet
OBD Cable
Type Sticker
蓝牙款 Bluetooth Ver
带线款 Cable Ver

K518 PRO
10

K518 PRO
11

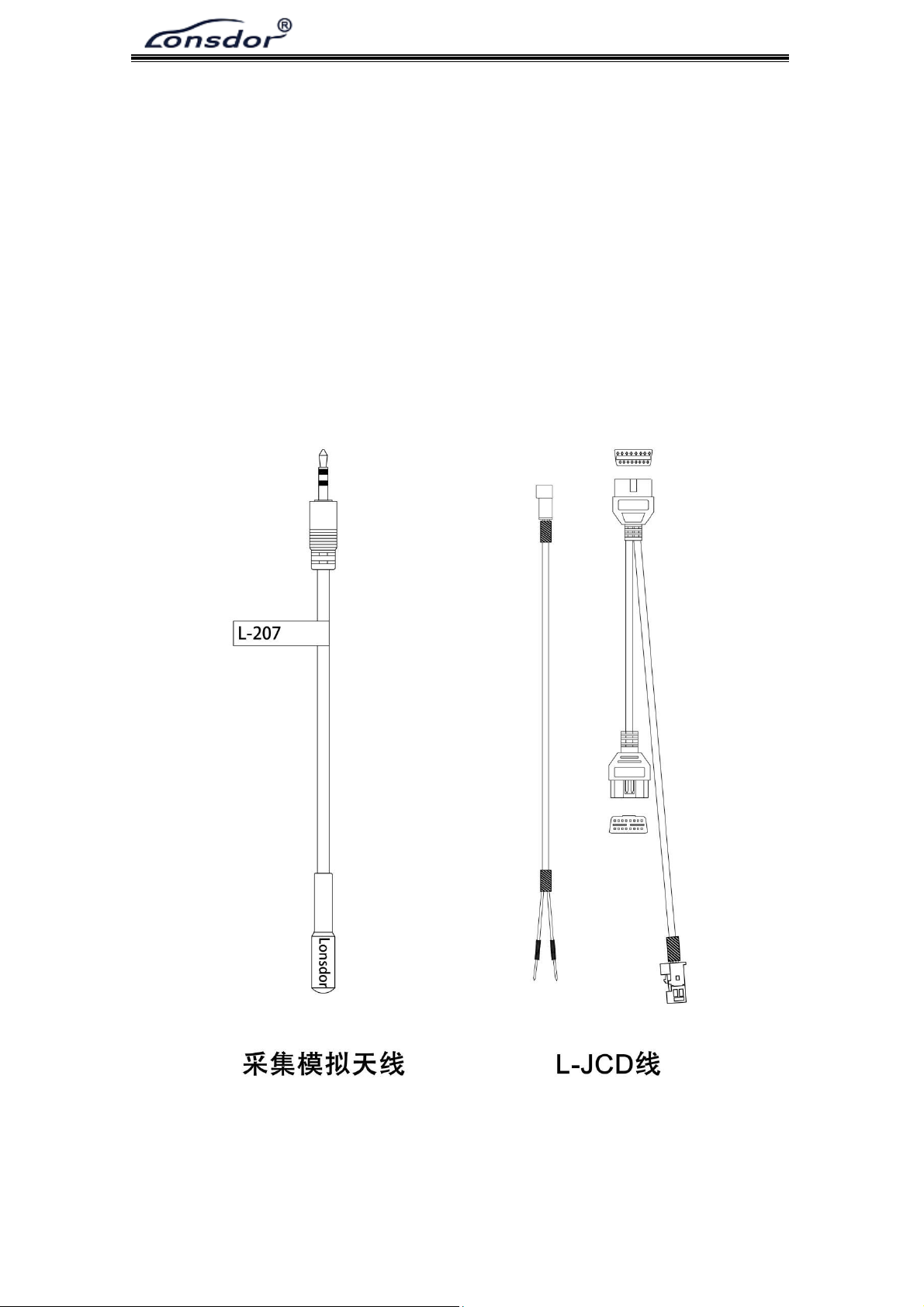

2.6.3 Collect-simulate Antenna + L-JCD Cable(non-standard)

K518 PRO
12

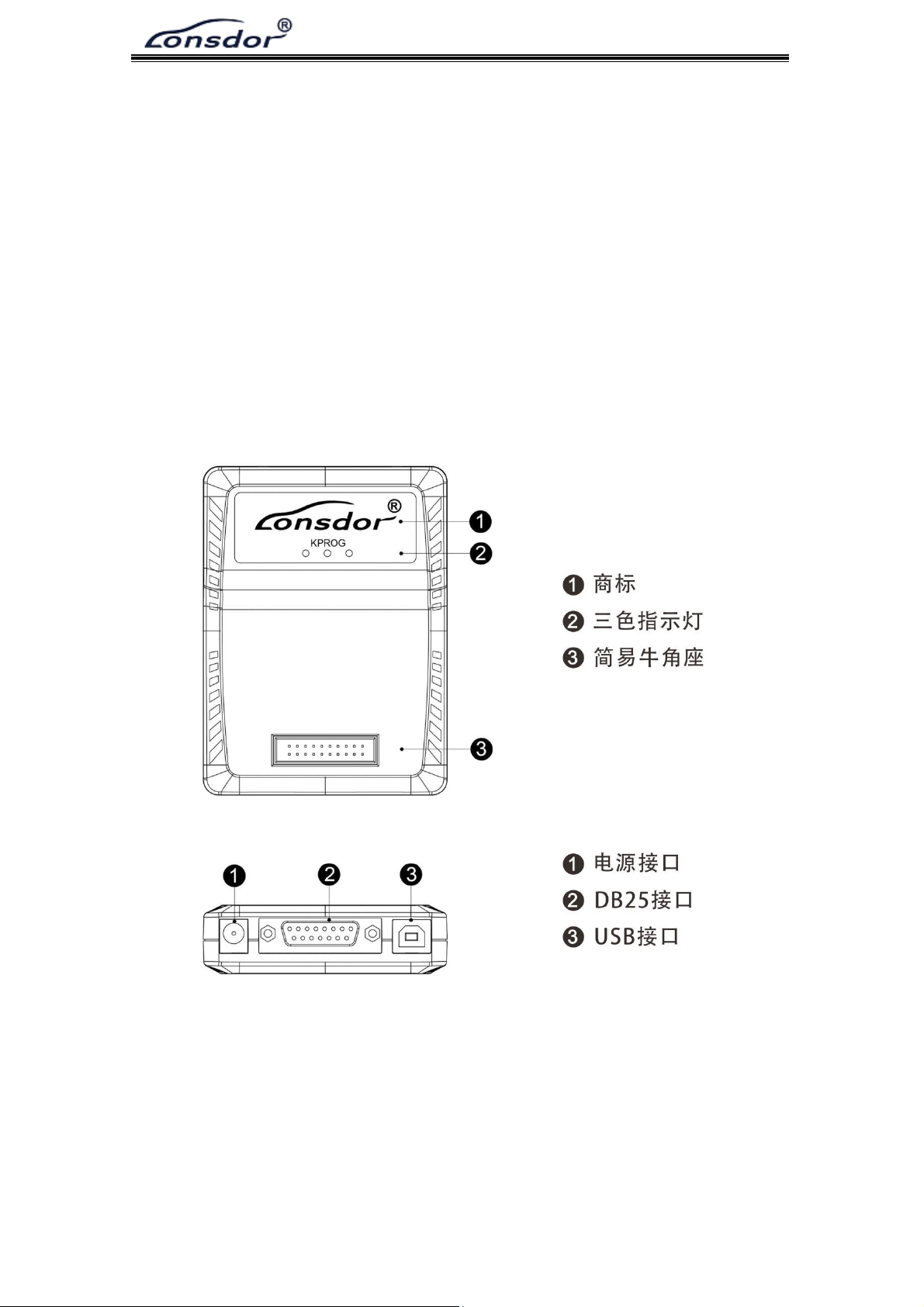

2.6.4 KPROG Adaptor(non-standard)
Trademark
Three-color Indicator
Simple Horn Seat
Power Interface
DB25 Port
USB Port

K518 PRO
13
2.7 Function Display
2.7.1 K518 PRO Homepage Interface
Function
Description
Immobilization
Program mechanical key/smart key/remote, etc. Support
most of car models on the market, regular updates for new
models
Odometer Adjustment
Mileage diagnosis and correction
Generate Remote/smart
Generate smart key/remote/garage door remote
Adaptor
Read and write EEPROM chip/CPU main control chip, read
EEPROM Pincode, etc
Special Functions
Identify and copy key chip, generate key chip, detect
remote frequency, simulate chip, decode chip, detect
ignition coil, key settings, access control card, etc
Push Function
Push the designated function App to user, which will be
automatically disabled when expired. Contact us to obtain
function not activated yet
OBD Illumination
OBD connector’s light can be switched on/off

K518 PRO
14
2.7.2 K518 PRO Special Functions Interface
Function
Description
Generate key chip
Support 4D, 46, 48, 7935, 8A and more key chip generation
Identify&Copy chip
Identify info and status of almost all car key chips on
the market
Generate remote
Detect remote key’s frequency
Simulate chip
Mainly LKE functions, include: simulate 4D/46/8A chip,
bind LKE and obtain LKE info, etc
Decode chip
Support 46 and 4D chip decoding
Ignition coil
Detect if the coil has signal, also identify key type on
AKL condition
Key settings
Set Lonsdor 8A and 4D smart key type
Unlock key
Unlock Toyota 8A smart key
Access control card
Identify and copy IC/ID card

K518 PRO
15
2.7.3 K518 PRO System Settings Interface
Function
Description
Wifi settings
Set WIFI connection
Ethernet
Display Ethernet card status, network connection status,
MAC/IP address, etc
Bluetooth settings
Set Bluetooth connection status
Display settings
Set screen brightness and auto-off screen time
Start record
Click to start recording, or close demo video
Device info
View info like device ID, PSN, hardware/kernel version, etc
Screen test
Screen touch diagnosis
Bind adaptor
Require to bind the adaptor to the device for the first use
Reset device
Reset the device, situations like program error, system
crash, communication failure, can be returned to normal
state
Firmware upgrade
Update adaptor firmware

K518 PRO
16
2.7.4 K518 PRO Function Operation Interface
Function
Illustrate each function, and necessary tips
Operation
Give concrete guide for each step, pics and notices
attached if necessary
Attention
Emphasize tips and notices for functions, as well as user
possible overlook during operation
Reference
Provide the basic info like chip type, frequency, car and
key photos
?
Scan the code to view HELP instructions while programming
key
Replay
System replay and user record process
Feedback
Feedback function problems in time
Version
Detect the latest version of current interface functions

K518 PRO
17
3. AFTERSALES SERVICE
(1) Our company will provide you with excellent after-sales service and warranty
service within agreed time.
(2) The warranty period lasts 12 months since device activation date.
(3) Once the product is sold, the return and refund will not be accepted if there
is no quality problem.
(4) For product maintenance beyond the warranty period, we will charge labor
and material costs.
(5) If the device is faulty or damaged due to any of the following reasons, we
reserve the right not to provide service based on the agreed terms(but you can
choose paid service).
※The device and components are beyond the warranty period.
※Users find that the product appearance is flawed or damaged, but has no
quality problem.
※Counterfeit, without certificate or invoice, our official back-end system
can not authenticate the device info.
※The product is damaged due to not following the instructions in this manual
for operation, use, storage, and maintenance.
※Damage caused by private disassembly or damage caused by repair and
maintenance of maintenance company unauthorized by Lonsdor.
※Liquid inflow, moisture, falling into water or mildewing.
※The newly purchased device works normally without any damage when unpacked
for the first time. But with the prolonged time of use, screen damage occurs,
such as screen explosion, scratching, white spots, black spots, silk screen,
touch damage, etc.
※The use of special tools and accessories not provided by our company.
※Force majeure.
※For the man-made damaged device, if you decide not to repair after we
disassemble it and make a quotation, the device appears unstable condition(such
as: unable to boot, crash, etc) when you receive it.
※Private cracking of the system causes function changes, instability, and
quality damage.

K518 PRO
18
(6) If the auxiliary parts and other parts(other than the main components of
the device) are faulty, you can choose the paid repair service provided by our
company or our authorized customer service outlets.
(7) We will perform repair after receiving your device and confirming its
problems, so please fill in the problems in details.
(8) After repair finished, we will return the device to customer, so please fill
in the correct delivery address and contact number.
(9) Customers who needs to send the device for repair, shall bear the cost, such
as round-trip delivery cost, transportation cost and etc. If the device is
damaged in the process of delivery, our company will not bear relevant fees.
In particular cases, we will assist the customer to claim for compensation
against the shipping company..
(10) We do not provide sales invoice to individual in any form. If need it, please
ask the dealer you purchased from to invoice you.
(11) Please keep the warranty card properly, and fill in the card when returning
your device for repair, so that we can deal with the relevant work procedures(the
warranty card attached to the end of the manual).
(12) Aftersales service hotline: [phone]
WeChat: guopi0001 guopi0004
Service hours: Monday to Sunday 9:00-12:00 13:30-18:00(legal holidays off).
Website: www.lonsdor.com E-mail: [email protected]om
Official account QR code Official website QR code

K518 PRO
19

K518 PRO
20
Product Warranty Card
Customer name: ________________________________________ ( Mr/Miss )
Phone No.: _________________________________________________________
Customer address: __________________________________________________
__________________________________________________________________
Device model: _____________________________________________________
Serial No.: ________________________________________________________
Returned items (details): __________________________________________
___________________________________________________________________
Problem description in details: _____________________________________
______________________________________________________________________
______________________________________________________________________
Sending date:_____________________
(Note: our company reserves the final interpretation right for the above terms.)
