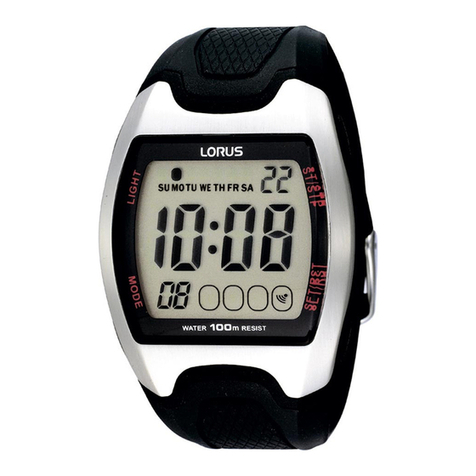

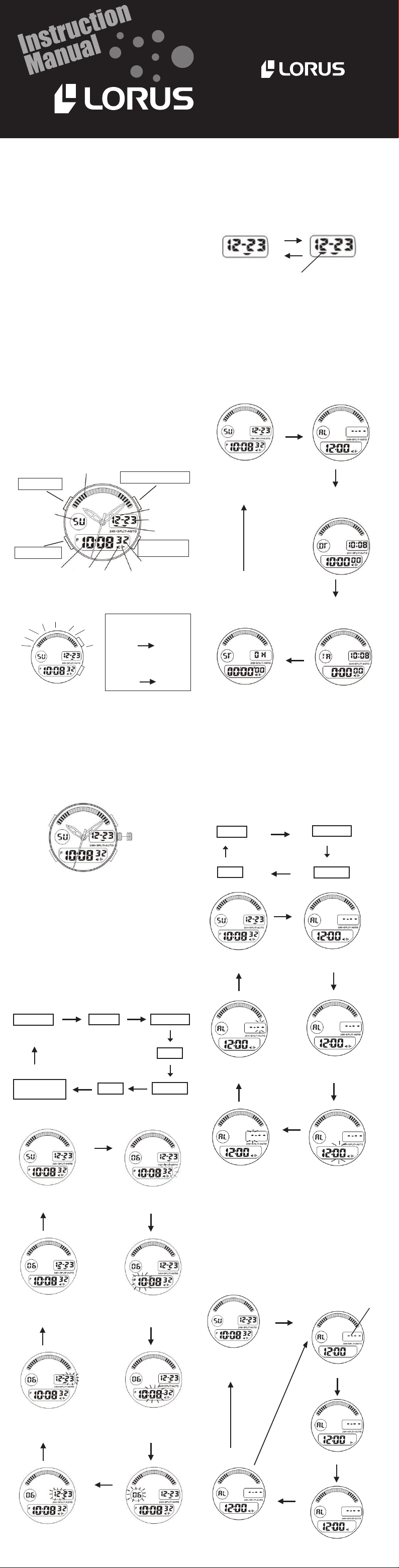

LORUS R23 Series User manual

S3
S3
■CHARACTERISTICS
1. Analogue & digital time displays: Hour,
Minute, Second, Month, Date and day of the
week.
2. Automatic calendar: The calendar automati-
cally adjusts the dates and months from the
year of 2000 to 2049.
3. Daily alarm and hourly chime: The alarm
can be set to sound at the designated time
on a 24-hour basis and the chime can be set
to sound every hour on the hour with a single
beep.
4. Second time zone: Time in a different time
zone can be displayed.
5. Countdown timer: The countdown timer can
be set up to 23 hours 59 minutes and 59 sec-
onds.
6. S t opwa tch: The stopwatch can measure
up to 23 hours 59 minutes and 59 seconds in
1/100-second increments. Split time measure-
ment is available.
7. Selection of 12 or 24-hour format: The time
display format in either 12-hour indication or
24-hour indication can be selected.
8. Animation dots are displayed: Animation
dots are displayed in both 12 and 24-hour for-
mat and can be selected in either fast flashing
or slow flashing.
9. EL backlight: The built-in electro-luminescent
(EL) backlight illuminates the display for easy
viewing in darkness.
■
LCD DISPLAY AND BUTTONS
FUNCTION
■
HOW TO SET NORMAL TIME/
CALENDAR
■HOW TO SET ALARM TIME
* P r e s s S 1 o r S 2 t o
switch from fast to
slow flashing.
(fast slow)
* Press any key to
switch
from slow to
fast flashing.
(slow fast)
1. Press S3 button to show the NORMAL TIME
mode.
2. Press S4 button to begin setting procedure.
The seconds digit starts flashing.
3. Press S1 button to set SECONDS setting.
4. Press S3 button to move on to HOURS setting.
* Selection of the digits to be adjusted is made
in the following order by pressing S3 button
and then pressing S1 button.
5. Press S3 button after completing the setting.
NREZ012 10-2010
CAL. Z012 (R23 SERIES)
■HOW TO CHANGE THE DISPLAY
MODE
* Animation dots are displayed in both 12 and
24-hour format.
■ SETTING THE TIME (ANALOGUE)
1. Pull the crown out one step, the second hand
will stop.
2. Set the correct time by turning the crown.
3. Push the crown back to the original position.
The watch will start running again.
* The analogue indication and digital display of
the time setting can be adjusted separately.
- Multi-function digital watch with 12 or 24
animation dots.
“ST” means
“ Stopwatch”
1. From NORMAL TIME mode, press S3 button
once into ALARM mode.
2. Press S4 button to begin setting procedure.
The hours digit starts flashing.
3. Press S1 button to set HOURS setting.
4. Press S3 button to move on to MINUTES setting.
* Selection of the digits to be adjusted is made
in the following order by pressing S3 button
and then pressing S1 button.
5. Press S3 button after completing the setting.
* Press S3 button to show the NORMAL TIME
mode.
* If the NORMAL TIME mode is shown already on
the display, skip the above operation.
* Press S3 button to change the display mode in
the following order.
SECONDS
DATE
YEAR
12/24-HOUR
FORMAT MONTH
MINUTESHOURS
S3
S3
S3
S2
S3S3
* Day of week will change automatically based on
date changing.
“----- ” means
“Daily Alarm”
DATE MONTH
MINUTES
HOURS
S3
S3
S3
S3
S4 (SET)
HOURS
DAY O F
WEEK
CHIME
SIGNAL
DAT E
MINUTES
SECONDS
24HOUR
FORMAT
ALARM
SIGNAL
S3 (MODE)
S2 (RESET/
LIGHT)
ANIMATION DOTS
MONTH
S1 (START/STOP)
S2
S1
S4
S3 S2
S1
CROWN
NORMAL TIME
MINUTES SETTING BY
PRESSING S1
HOURS SETTING BY
PRESSING S1
SECONDS SETTING
BY PRESSING S1
S4
S3
S3
S3
YEAR SETTING BY
PRESSING S1
S3
MONTH SETTING BY
PRESSING S1
DATE SETTING BY
PRESSING S1
S3
12/24-HOUR
FORMAT
S3
NORMAL TIME
“DT”means
“Dual Time”
S3
“AL” means
“Daily Alarm”
“TR” means
“ Timer”
S3
S3
S3
S3
ALARM MODE
S4
HOURS SETTING BY
PRESSING S1
MINUTES SETTING BY
PRESSING S1
S3
MONTH SETTING BY
PRESSING S1
DATE SETTING BY
PRESSING S1
Engagement/Disengagement of ALARM &
CHIME
* With each press of S2 button, the ALARM and
CHIME can be engaged or disengaged in
the following order. The ALARM signal and/or
CHIME signal appear or disappear on the dis-
play accordingly.
* The ALARM can be set only in one time zone.
* If month and date are set, it will alarm once.
S2
S2
S3
S3
S2
PRESS S3
1 TIME
NORMAL TIME
• The time display format in either 12-hour indi-
cation or in 24-hour indication can be selected
by pressing S2 button. Under the 12-hour indi-
cation format, no mark appears on the display.
Under the 24-hour indication format, “ -” mark
appears under the date indicator.
• The calendar automatically adjusts the dates
and months from the year of 2000 up to 2049.
S3
PRESS S3
1 TIME
NORMAL TIME
S2
ALARM ON
CHIME ON
ALARM/
CHIME ON
S2
RESET
12-hour 24-hour
S2
24-hour format indication
Selection of 12-hour/24-hour format
ALARM MODE

Lap Time Measurement
1. Press S1 to start counting first lap time.
2. Press S2 button, the STOPWATCH keeps count-
ing first lap time and showing it on the display.
3. Press S1 button to stop counting first lap time.
4. Press S2 button to release first lap time.
5. Press S1 button to start counting second lap
time. The STOPWATCH shows second lap time.
* This operation can be repeated and the split
time can be read.
6. Press S2 to finish counting the lap time mearu-
rement.
7. Press S2 again to reset the STOPWATCH to "0:00;
00."
Start Lap 1 Reset
Lap 2 Stop
S1 S2 S2 S2 S1
NORMAL TIME
PRESS S3
4 TIMES
STOPWATCH
S1
START
S2
RELEASE
S1
STOP
S2
LAP
S3
S3
Countdown Timer Setting
TIMER
HOUR SETTING BY
PRESSING S1
MINUTE SETTING BY
PRESSING S1
SECOND SETTING BY
PRESSING S1
NORMAL TIME
PRESS S3
3 TIMES
TIMER
■HOW TO SET COUNT DOWN TIMER
1. From NORMAL TIME mode, press S3 button 3
times into TIMER mode.
2. Press S4 button to begin setting procedure.
The HOURS digit starts flashing.
3. Press S1 button to set HOURS setting.
4. Press S3 button to move on to MINUTES setting.
* Selection of the digits to be adjusted is made
in the following order by pressing S3 button
and then pressing S1 button.
5. Press S3 button after completing the setting.
* From NORMAL TIME mode, Press S3 button 4
times into STOPWATCH mode.
■HOW TO USE STOPWATCH
S1
NORMAL TIME
PRESS S3
4 TIMES
STOPWATCH
S1
START
S2
RESET
STOP
START/STOP
RESTART
RESET/
RELOAD &SET
SET
MODE
CHANGE
S1
S4
S3
Standard Measurement
S1
Start Stop Reset
S1 S2
1. Press S1 button alternately to start and stop
the STOPWATCH.
2. Press S2 button to reset the STOPWATCH to
"0:00; 00."
START/STOP
RESET/ LAP
SECONDS
MINUTES
HOURS
S3
S3
S3
■HOW TO SET SECOND TIME ZONE
1. From NORMAL TIME mode, Press S3 button 2
times into DUAL TIME mode.
2. Press S4 button to begin setting procedure.
The HOURS digit starts flashing.
3. Press S1 button to set HOUR setting.
4. Press S3 button to move on to MINUTE setting.
* Selection of the digits to be adjusted is made
in the following order by pressing S3 button
and then pressing S1 button.
5. Press S3 button after completing the setting.
■HOW TO USE EL BACKLIGHT
Note:
1. The backlight of the watch employs an elec-
tro-luminescent (EL) light, which tends to lose
illuminating power after very long use.
2. The illumination provided by backlight may be
hard to see when viewed under direct sunlight.
* When the illuminating light becomes dim, re-
place the batteries with new ones.
This watch contains precise electronic
components. Never attempt to open the case or
remove the back cover.
• BATTERY
CAUTION
Do not expose the old battery to fire
or recharge it. Keep it at a place be-
yond the reach of children. If a child
swallows it, consult a doctor immedi-
ately.
• WATER RESISTANT
Condition
of u s e Accidental
contact
wi t h wate r,
su c h as
splashes
an d rai n
Swimming
and taking
a sh owe r
Skin
diving
Scuba
diving
Indication
on the dial/
case back
No
Indication
* If your watch is 200 M/20 BAR, 100 M/10 BAR or
50 M/5 BAR water resistant, it is so indicated on
the dial/case back.
• Do not operate the buttons when the watch is
wet.
• If the watch is exposed to salt water, rinse it in
fresh water and then wipe it thoroughly dry.
• Should you find any water or condensation in-
side the watch, immediately have it checked.
Water can corrode electric parts inside the
case.
NO NO N O
YES YES NO NO
YES YES NO
NO N O N O
YES
WATE R R E-
SISTANT
WATE R R E-
SISTANT
(50M/5 BAR )
WATE R R E-
SISTANT
100M/10 BAR
or a b ove
(
NO
(
Caution:
Leather straps are not water resistant except so
indicated, even if the watch head is water resist-
ant.
• ALLERGIC REACTION
Because the case and band touch the skin di-
rectly, it is important to clean them regularly. If
not, shirt sleeves may be stained and those with
delicate skin may develop a rash. Please wear
the watch with some play to avoid any possible
allergic reaction. If you develop a rash on your
wrist, stop wearing and consult a physician.
• MAGNETISM
Your watch will be adversely affected by strong
magnetism. Keep it away from close contact with
magnetic objects.
• SHOCKS AND VIBRATIONS
Your watch may be worn for normal sports activi-
ties, but be careful not to drop it or hit it on hard
surfaces.
• TEMPERATURE
Your watch is preadjusted so that constant accu-
racy may be insured at normal temperature.
• CLEANING
Use only a soft cloth and clean water for cleaning
your watch. Never use chemicals, as the water-
proof gasket will corrode.
Printed in China
YES
■CARE OF YOUR LORUS WATCH
S4
S3
PRESS S3
2 TIMES
S3
DUAL TIME
HOUR SETTING BY
PRESSING S1
MINUTE SETTING BY
PRESSING S1
NORMAL TIME
S2
S1
S1
RELOAD
TIMER AND
SET
1. Press S1 button while in the TIMER mode to start
the COUNTDOWN TIMER.
2. The countdown signal “:” appears and starts
flashing.
3. Press S1 button again to stop the COUNTDOWN
TIMER.
4. While in the COUNTDOWN TIMER MODE, press
S2 button to reset the countdown time to
its starting value and to start to countdown
automatically or while in countdown time
mode press S2 button and then press S1 button
to reset the countdown time.
5. Press S3 button return to NORMAL TIME display.
Countdown Timer Operation
STOP
START
START
COUNTING STOP
S4
S3
S2
S1
* Press S2 button in any mode to turn the illuminating
light on.
■SERVICE
When your LORUS watch requires repair or servic-
ing, please see the enclosed WARRANTY/GUAR-
ANTEE.
S2
STOPWATCH
MODE
STOPWATCH
SIGNAL
LIGHT ON
TIMER
MODE
S1
S2
TIME COUNTDOWN
SIGNAL
* Press S3 button return to NORMAL TIME display.
