LORUS Y922 User manual

■CHARACTERISTICS
1. Time/calendar display: Hour, minute,
second, date, day of the week and month.
2. Automatic calendar adjustment: Cal-
endar adjusts automatically for odd and
even months except February of leap years.
3. Time indication: Changeover between
12-hour and 24-hour indications is pos-
sible.
4. Stopwatch: 24-hour stopwatch with 1⁄100
second readout up to 40 minutes and with
1 second readout after the first 40 min-
utes. Split time measurement is avail-
able.
5. Alarm: The alarm rings at the desig-
nated hour and minute with “beep, beep”
for 30 seconds.
6. Hourly time signal: Can be set to ring
every hour on the hour with a single “beep”.
7. Illuminating light (for Cal. YK30,
YK31, YK32, YK33, YK34 & Z001):
The light evenly illuminates the display in
the dark.
■ DISPLAY AND BUTTON OPERATION
[Cal. YK32 / Z001]
Alarm mark
Day indicator
Hour
Minute
Second
EL button
C
B
A
EL button
Hourly time
signal mark
I NSTRUCTION M ANUAL
CAL. Y922, YK30, YK31, YK32, YK33, YK34
CAL. Z001, Z002, Z003
(R23 SERIES)
NREY922C 10-2003
[Cal. YK33]
[Cal. YK30 / YK31]
Alarm mark
Day indicator
Hour Second
C
B
A
EL button
Hourly time
signal mark
Minute
Hour Second
AC
B
Minute
AM/PM indicator
12-hour/24-hour indication
Day indicator
EL button
Alarm/Hourly time signal mark
[Cal. YK34]
Hour Second
Minute
EL button
AC
B
A
Minute
B
Hour
[Cal. Y922 / Z002 / Z003]
Hourly time
signal mark
Day indicator Alarm mark
C
Second
Button A : • Selection of the display.
The selection is made in the following order:
▲ ▼
▲
▲
A
A
-␣ -␣ -␣ -␣ -␣ -␣ -␣ -␣ -␣ -␣ -␣ -␣ -␣ -␣ -␣ -␣ -␣ -␣ -␣ -␣ -␣ -␣ -␣ -␣ -␣ -␣ -␣ -
-␣ -␣ -␣ -␣ -␣ -␣
-␣ -␣ -␣ -␣ -␣ -␣
-␣ -␣ -␣ -␣ -␣ -␣ -␣ -␣ -␣ -␣ -␣ -␣ -␣ -␣ -␣ -␣ -␣ -␣ -␣ -␣ -␣ -␣ -␣ -␣ -␣ -␣ -␣ -
Time/calendar display
Stopwatch display
▼
Press
Button A
for 2 sec.
A
A
Alarm setting
Time/calendar setting
Button C : • Alarm display in the time/cal-
endar display.
• Split/Split release/Reset in the
stopwatch function.
• Setting the digits in the alarm
setting function and the time/
calendar setting function.
• Stopping the alarm in any dis-
play.
Button B while keeping Button C pressed:
Engagement and disengagement
of the alarm and the hourly time
signal.
Button B : • Calendar (month, date and day)
display in the time/calendar display.
• Start/stop in the stopwatch func-
tion.
• Selection of the digits to be ad-
justed in the alarm setting func-
tion and the time/calendar set-
ting function.
Button C while keeping Button B pressed:
Changeover of the calendar (month
and date) display.
Buttons B & C:
Alarm test in the time/calendar
display.
■HOW TO SET THE DUAL CALEN-
DAR DISPLAY
1 Press Button B to show the calendar (month,
date, and day) display. The calendar dis-
play is shown while Button B is kept pressed.
2 The month and the date change places
with each other with each press of Button
C while keeping Button B pressed.
▼
▲
B
C
B
C
* In the 12-hour indication, “A” (AM)/“P” (PM)
mark is displayed. In the 24-hour indica-
tion, there is no indication.
Month Day Date Date Day Month
Day indicator Alarm/Hourly time signal
mark
AM/PM indicator
1 Press Button A for 2 seconds to activate
the alarm setting function. (The alarm set
indicator starts flashing.)
2 Press Button B to activate the “Hour” or
“Minute” setting. The display changes in
the following order with each press of Button
B.
A
1 Press Button A to show the stopwatch dis-
play. (The stopwatch indicator starts flashing.)
The stopwatch can measure up to 24 hours
and is displayed in minutes, seconds, and
1/100 seconds up to 40 minutes, and in
hours, minutes, and seconds after the first
40 minutes. (The 1/100 second indicator
flashes during the first 40 minutes.)
When the measurement is over 24 hours,
the stopwatch will be reset to “0:00oo”
and start counting again.
Stopwatch
indicator
Stop indicator
Split indicator
1/100 second
indicator
B: Start/Stop
C: Split/
Split release/
Reset
Minute Second 1/100 second
■HOW TO USE THE STOPWATCH
2 Reset the digits to “0:00oo” before using
the stopwatch. When the split and the
stopwatch indicators are flashing, press
Button B to check that the stop indicator
starts flashing, and then press Button C
twice to reset the digits to zero.
3 When measuring a long period of time,
return the stopwatch to the time/calendar
display after the stopwatch starts to pre-
vent any possible mistaken operation.
* When Button B or C is pressed in the stop-
watch display, a single “beep” sounds to
confirm the operation.
Start Stop Restart ResetStop
BBB BC
Start
BCBC
Split Stop Reset
C
Finish (First runner)
BCBCC
Start Reset
Stop
Finish
time of 1st
competitor
**
**Restart and stop can be repeated by pressing
Button B.
**
Split
release
**Measurement and release of split time can be
repeated by pressing Button C.
Accumulated elapsed time measurement
Split time measurement
Measurement between two competitors
Finish (Second runner)
Finish
time of 2nd
competitor
■HOW TO SET THE ALARM
AC
Alarm set indicator
B
Hour Minute “A” (AM)
▲ ▼
B
Hour setting
Minute setting
3 One digit (flashing) is advanced with each
press of Button C. The digits are advanced
quickly by keeping Button C pressed.
4 After all the adjustments are completed,
press Button A to return to the time/cal-
endar display.
(The display returns directly to the time/
calendar display and not to the time/cal-
endar setting.)
Note: When setting the hour digits, be sure
to check that the “A” (AM)/“P” (PM)
mark is correctly set.

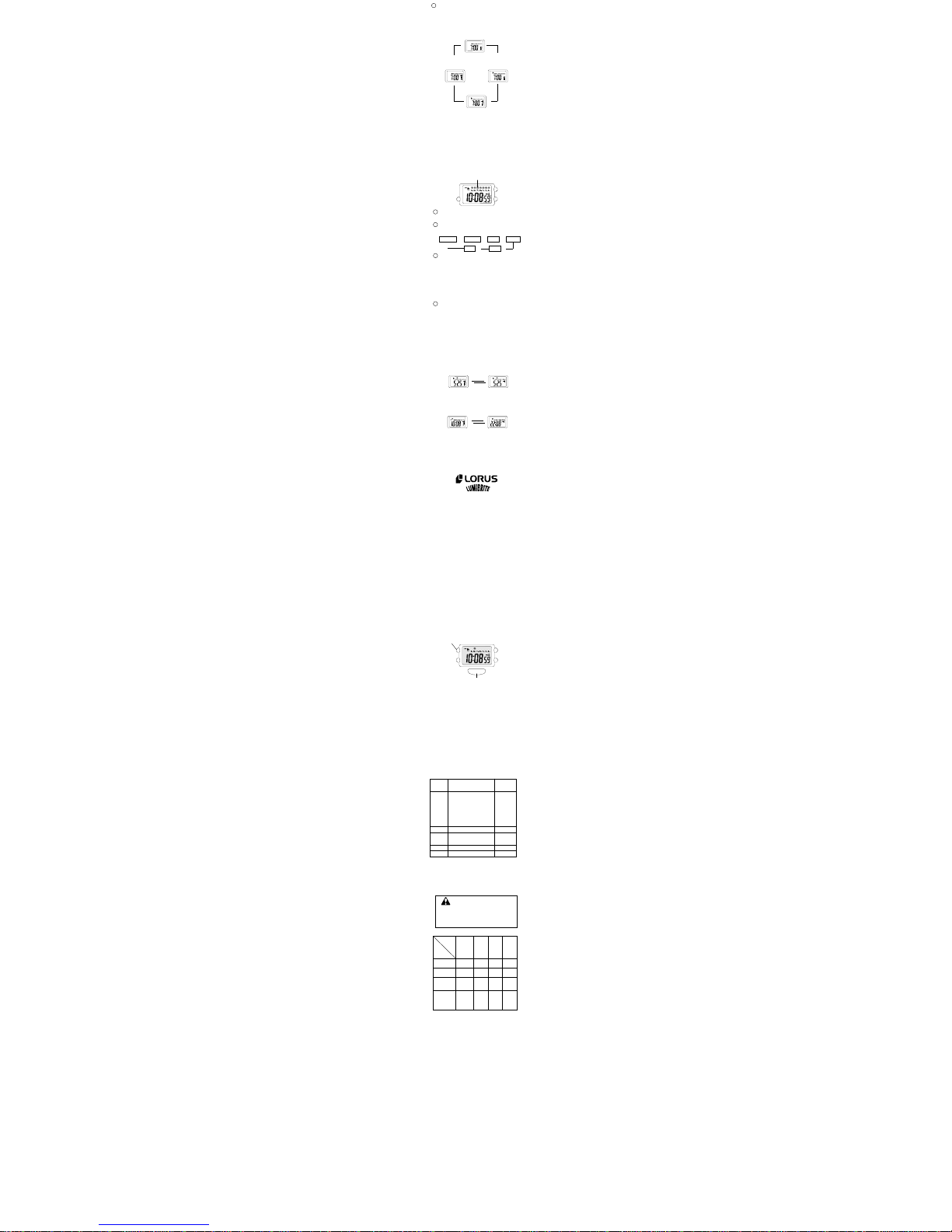

■HOW TO ENGAGE AND DISENGAGE
THE ALARM AND THE HOURLY TIME
SIGNAL
1 Press Button C in the time/calendar dis-
play to show the alarm display. The alarm
display is shown while Button C is kept
pressed.
Alarm display
B
C
Hour Minute “A” (AM)

▼
▼
The alarm rings at the designated time for 30
seconds and stops. However, the alarm can
be stopped manually by pressing Button C in
any display.
■ HOW TO SET THE TIME/CALENDAR
Time/calendar setting
indicator
1 Press Button A to activate the time/calendar
setting function. (The time/calendar setting
indicator and the second digits start flashing.)
2 Selection of the digits to be adjusted (flash-
ing) is made in the following order by
pressing Button B.
3 One digit (flashing) is advanced with each
press of Button C. (The digits except
seconds are advanced quickly by keeping
Button C pressed.)
•Second setting
Press Button C in accordance with a
time signal. The seconds are reset to
“00” and start immediately.
When the seconds count any number
from “30” to “59” and Button C is pressed,
one minute is added and the seconds
are immediately reset to “00”.
4 After all the adjustments are completed,
press Button A to return to the time/cal-
endar display.
Note: When setting the hour digits, be sure
to check that the “A” (AM)/“P” (PM)
mark is correctly set.
Second Minute MonthHour
Day Date
→→→
A
■ HOW TO CHANGE OVER THE 12-HOUR
AND THE 24-HOUR INDICATIONS
In the calendar or the alarm display, each
press of Button A changes over the time indi-
cation display from the 12-hour to the 24-
hour and vice versa.
• Changeover in the calendar display
24-hour
▼
A
▲
A
Alarm is engaged.
Hourly time signal
is disengaged.
Alarm and hourly time
signal are disengaged.
Hourly time signal
is engaged.
Alarm is disengaged.
■ALARM TEST
The alarm can be tested with a beeping sound
by pressing Buttons B and C at the same time
in the time/calendar display.
B
C
12-hour
[Keeping Button B pressed]
←←
▲
▲
Alarm and hourly time
signal are engaged.
■HOW TO STOP THE ALARM
• Changeover in the alarm display
24-hour
▼
A
▲
A
■LUMIBRITE WATCH
(dial, hands, buttons, case, bezel,
strap, etc.)
✩If your watch is a LORUS LUMIBRITE watch,
it has following features.
LORUS LUMIBRITE watches absorb and store
light energy from natural and artificial light
sources and emit light in the dark. They are
made of environmentally friendly material,
and therefore, are harmless to human beings
and the environment.
• With a full charge, LORUS LUMIBRITE
watches glow in the dark hours longer than
conventional luminous watches of this type.
If exposed to a light of more than 500 lux
(i.e., the brightness of a typical office) for
approximately 10 minutes, or direct sunlight
for 2 minutes, they will glow for hours.
• Since LORUS LUMIBRITE watches emit
the light they store, the brightness will
decrease gradually over time. The length
of time they will glow may also differ slightly
depending on such factors as the brightness
of and distance from the light source used
to charge the watch.
When EL button is pressed and released in
the time/calendar or stopwatch display, or
in the alarm setting or time/calendar setting
function, the electroluminescent light evenly
illuminates the display for 4 seconds for
easy viewing in the dark.
12-hour
[Keeping Button C pressed]
* When the “A” (AM)/“P” (PM) mark disap-
pears, the calendar or the alarm display is
shown in the 24-hour indication.
EL button
Notes:
1. The watch works with one battery. When
the light begins to lose its luminance,
this is an indication that the battery is
depleted. We recommend that you change
the battery before the watch itself stops.
2. If the light is used continuously for a
long time, the battery life may be less
than the specified period.
■BATTERY CHANGE
The miniature battery which powers your watch
should last as individually specified below.
However, because it is inserted at the factory,
the actual life of the battery once in your
possession may be less than the specified
period. Be sure to replace the battery to
prevent any possible malfunction as soon as
it runs down. To replace the battery, we
recommend taking the watch to a local watch
repair shop.
EL button
(for Cal. YK32 & Z001 only)
■ILLUMINATING LIGHT
(for Cal. YK30, YK31, YK32, YK33,
YK34 & Z001)
↑
BATTERY
LIFE
(Approx.)
CAL. NO. BATTERY
■SERVICE
When your LORUS watch requires repair
or servicing, please see the enclosed
WARRANTY/GUARANTEE.
Printed in Japan
•Do not operate the buttons when the watch
is wet.
•If the watch is exposed to salt water, rinse
it in fresh water and then wipe it thoroughly
dry.
Caution:
Leather straps are not water resistant except
so indicated, even if the watch head is water
resistant.
• ALLERGIC REACTION
Because the case and band touch the skin
directly, it is important to clean them
regularly. If not, shirt sleeves may be
stained and those with delicate skin may
develop a rash. Please wear the watch
with some play to avoid any possible allergic
reaction. If you develop a rash on your
wrist, stop wearing and consult a physician.
• MAGNETISM
Your watch will not be affected by mag-
netism generated by household electric
appliances.
• SHOCKS AND VIBRATIONS
Your watch may be worn for normal sports
activities, but be careful not to drop it or
hit it on hard surfaces.
• TEMPERATURE
Your watch is preadjusted so that constant
accuracy may be insured at normal tem-
perature.
* If your watch is 200 M/20 BAR, 100 M/10
BAR or 50 M/5 BAR water resistant, it is so
indicated on the dial/case back.
• BATTERY
• WATER RESISTANT
No
indication
WATER
RESISTANT
WATER
RESISTANT
(50 M/5 BAR)*
WATER
RESISTANT
100 M/
10 BAR or
above
Condition
of use
Accidental
contact with
water, such
as splashes
and rain
Swimm-
ing and
taking a
shower
Skin
diving Scuba diving
Indica-
tion on
the dial/
case back
NO NO NO NO
YES YES NO NO
YES NO NO NO
YES YES YES NO
()
*
CAUTION
Do not expose the old battery to
fire or recharge it. Keep it at a
place beyond the reach of chil-
dren. If a child swallows it, consult
a doctor immediately.
Note: If the alarm is used for more than 30
seconds a day (and/or the illuminating
light for more than 4 seconds a day
for Cal. YK30, YK31, YK32, YK33,
YK34 & Z001), the battery life may
be less than the specified period.
Z003 SONY CR1020, 1 piece 4 years
SONY CR2032, 1 piece 8 yearsZ001
2 years
YK34
YK32 SONY CR1620, 1 piece
SONY CR1220, 1 piece 2 years YK31
Cal. Y922:
10 years
Cal. YK30:
2 years
Cal. YK33:
2 years
Cal. Z002:
5 years
SONY CR2016, 1 piece
YK30
YK33
Z002
Y922
■CARE OF YOUR LORUS WATCH
2 With each press of Button B while keep-
ing Button C pressed, the engagement and
disengagement of the alarm and the hourly
time signal are made as follows:
