S100/H100 Conduit Option Installation Manual
Thank you for purchasing LS Variable Frequency Drives!
SAFETY INSTRUCTIONS
To prevent injury and property damage, follow these instructions.
Incorrect operation due to ignoring instructions will cause harm
or damage. The seriousness of which is indicated by the
following symbols.
DANGER
WARNING
CAUTION
This symbol indicates the possibility of
death or serious injury
This symbol indicates the possibility of
injury or damage to property
This symbol indicates the instant death or serious injury if
you don’t follow instructions
■ The meaning of each symbol in this manual and on your equipment is as follows.
This is the safety alert symbol.
Read and follow instructions carefully to avoid dangerous situation.
This symbol alerts the user to the presence of “dangerous voltage”
inside the product that might cause harm or electric shock.
■ After reading this manual, keep it in the place that the user always can find easily.
■ This manual should be given to the person who actually uses the products and
is responsible for their maintenance.
2

S100/H100 Conduit Option Installation Manual
WARNING
Do not remove the cover while power is applied or the unit is in
operation.
Otherwise, electric shock could occur.
Do not run the inverter with the front cover removed.
Otherwise, you may get an electric shock due to high voltage terminals or charged capacitor
exposure.
Do not remove the cover except for periodic inspections or wiring, even
if the input power is not applied.
Otherwise, you may access the charged circuits and get an electric shock.
Wiring and periodic inspections should be performed at least 10 minutes
after disconnecting the input power and after checking the DC link
voltage is discharged with a meter (below DC 30V).
Otherwise, you may get an electric shock.
Operate switches with dry hands.
Otherwise, you may get an electric shock.
Do not use the cable when its insulation is damaged.
Otherwise, you may get an electric shock.
Do not subject the cables to scratches, excessive stress, heavy loads or
pinching.
Otherwise, you may get an electric shock.
3

S100/H100 Conduit Option Installation Manual
CAUTION
Install the inverter on a non-flammable surface. Do not place flammable
material nearby.
Otherwise,fire could occur.
Disconnect the input power if the inverter gets damaged.
Otherwise, it could result in a secondary accidentand fire.
Do not touch the inverter while the input power is applied or after
removed. It will remain hot for a couple of minutes.
Otherwise, you may get bodilyinjuries such as skin-burn or damage.
Do not apply power to a damaged inverter or to an inverter with parts
missing even if the installation is complete.
Otherwise, electric shock could occur.
Do not allow lint, paper, wood chips, dust, metallic chips or other foreign
matter into the drive.
Otherwise,fire or accident could occur.
OPERATING PRECAUTIONS
 Make sure the assembly to the specified torque, do not over tighten the screw to
the specified torque.
Otherwise, it could result in product damage.
4

S100/H100 Conduit Option Installation Manual
1.
Product Overview
This installation guide is applied to the LSLV – S100 / H100 drive series Conduit Option..
2.
Before using the product
Perform the following tasks after receiving the conduit option.
Inspect the conduit option for damage.
If the conduit option appears damaged upon receipt, contact the shipper immediately.
Check the label of model whether it is as same as the model number printed on the package of the conduit
option.
3. Installation Procedure
Conduit Option Assembly and Installation Procedure
DANGER! Electrical Shock Hazard : Do not connect or disconnect wiring while the power is on. Failure to comply
will result in death or serious injury.
Wiring and periodic inspections should be performed at least 10 minutes after disconnecting the input power
And after checking the DC link voltage is discharged with a meter (below DC 30V)
5

S100/H100 Conduit Option Installation Manual
3.1 S100 0.4~4.0kW
①Remove the I/O cover and cable guide of the product as shown in the Figure 1.
Figure 1. Remove I/O Cover and CABLE Guide
②Fasten the Conduit Option to fit on the ground terminals of the product using the prescribed bolt as shown in
the Figure 2.
Figure 2. Install and Front Viewing
6

S100/H100 Conduit Option Installation Manual
③Install the I/O cover again.
Figure 3. After installation
3.2 S100 5.5~22kW
①Remove the Power cover and cable guide of the product as shown in the Figure 4.
Figure 4. Remove Power Cover and CABLE Guide
7

S100/H100 Conduit Option Installation Manual
②Fasten the Conduit Option to fit on the side of ground terminals of the product using the prescribed bolt as
shown in the Figure 5.
Figure 5. Install
③Install the Power cover again.
Figure 6. After installation
8

S100/H100 Conduit Option Installation Manual
3.3 S100 30~75kW
①Remove the Power cover and cable guide of the product as shown in the Figure 7.
Figure 7. Remove Power Cover and CABLE Guide
②Fasten the Conduit Option to fit on the ground terminals and both ends (4points) of the product using the
prescribed bolt as shown in the Figure 8.
Figure 8. Install
9

S100/H100 Conduit Option Installation Manual
③Install the Power cover again.
Figure 9. After installation
10

S100/H100 Conduit Option Installation Manual
3.4 H100 0.8~30kW
①Remove the Power cover and cable guide of the product as shown in the Figure 10.
Figure 10. Remove Power Cover and CABLE Guide
②Fasten the Conduit Option to fit on the side of ground terminals of the product using the prescribed bolt as
shown in the Figure 11.
Figure 11. Install
11

S100/H100 Conduit Option Installation Manual
③Install the Power cover again.
Figure 12. After installation
3.5 H100 37~90kW
①Remove the Power cover and cable guide of the product as shown in the Figure 13.
Figure 13. Remove Power Cover and CABLE Guide
12

S100/H100 Conduit Option Installation Manual
②Fasten the Conduit Option to fit on the ground terminals and both ends (4points) of the product using the
prescribed bolt as shown in the Figure 14.
Figure 14. Install
③Install the Power cover again.
Figure 15. After installation
13

S100/H100 Conduit Option Installation Manual
4. S100 Product Size (Drive with Conduit Option)

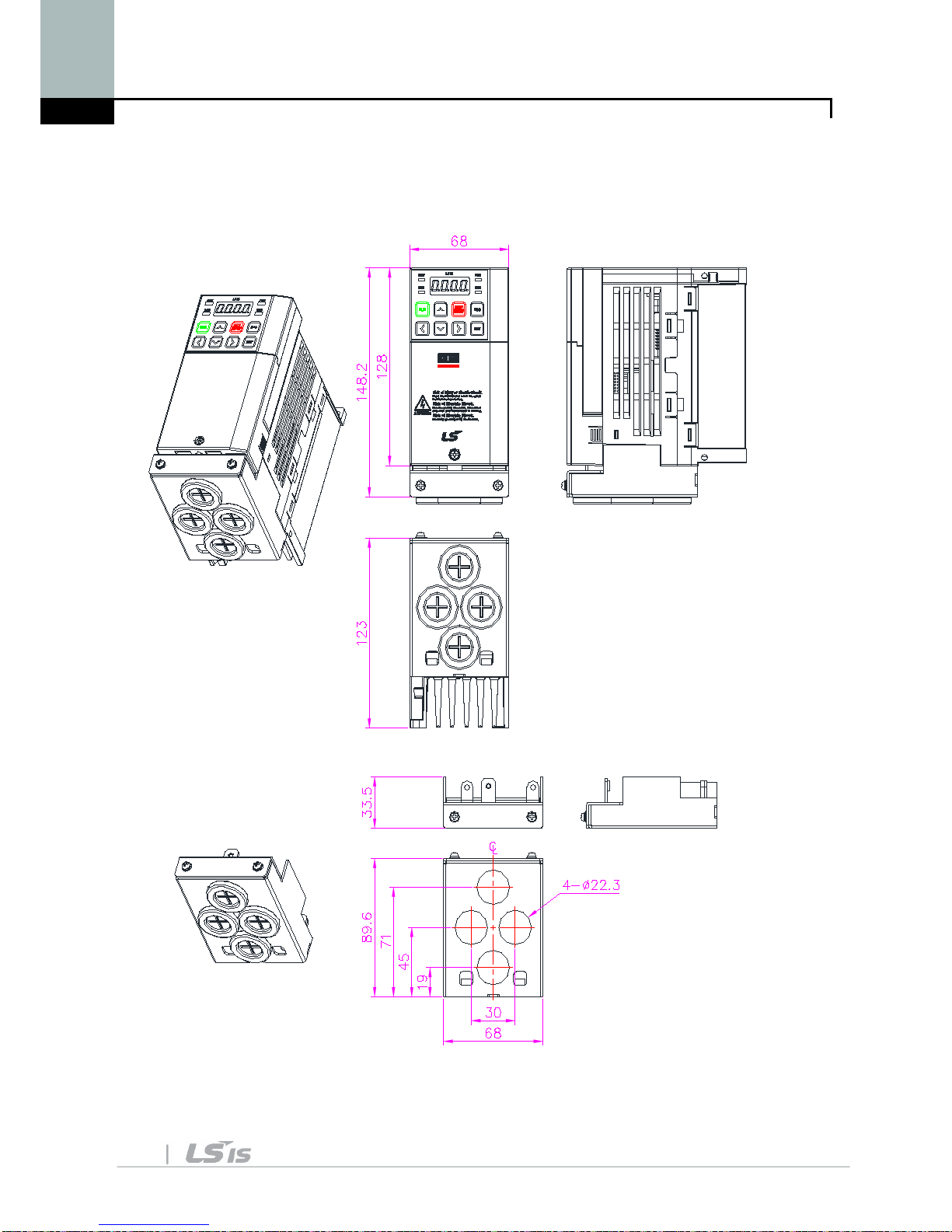

LSLV S100 0.4kW – 2/4
Drive + Conduit
Conduit
14

S100/H100 Conduit Option Installation Manual
LSLV S100 0.4kW – 1, 0.8kW – 2/4
Drive + Conduit
Conduit
15

S100/H100 Conduit Option Installation Manual
LSLV S100 0.8kW – 1, 1.5kW – 2/4
Drive + Conduit
Conduit
16

S100/H100 Conduit Option Installation Manual
LSLV S100 1.5kW – 1, 2.2kW – 2/4
Drive + Conduit
Conduit
17

S100/H100 Conduit Option Installation Manual
LSLV S100 2.2kW – 1, 3.7kW – 2/4, 4.0kW – 2/4
Drive + Conduit
Conduit
18

S100/H100 Conduit Option Installation Manual
LSLV S100 0.4kW – 1/4(EMC), 0.8kW – 4(EMC)
Drive + Conduit
Conduit
19

S100/H100 Conduit Option Installation Manual
LSLV S100 0.8kW – 1(EMC), 1.5kW – 1/4(EMC), 2.2kW – 4(EMC)
Drive + Conduit
Conduit
20
