LTS LTN07128-R16 User manual

Network Video Recorder
Quick Start Guide

Network Video Recorder Quick Start Guide
1
TABLE OF CONTENTS
Chapter1 Panels Description ...................................................................................................................... 7
1.1 Front Panel ...................................................................................................................................... 7
1.2 Rear Panel........................................................................................................................................ 8
Chapter 2Installation and Connections......................................................................................................10
2.1 NVR Installation ............................................................................................................................. 10
2.2 Hard Disk Installation..................................................................................................................... 10
2.3 Connections................................................................................................................................... 12
2.3.1 Alarm Input Wiring ........................................................................................................... 12
2.3.2 Alarm Output Wiring ........................................................................................................ 12
2.3.3 Using Alarm Connectors.................................................................................................... 13

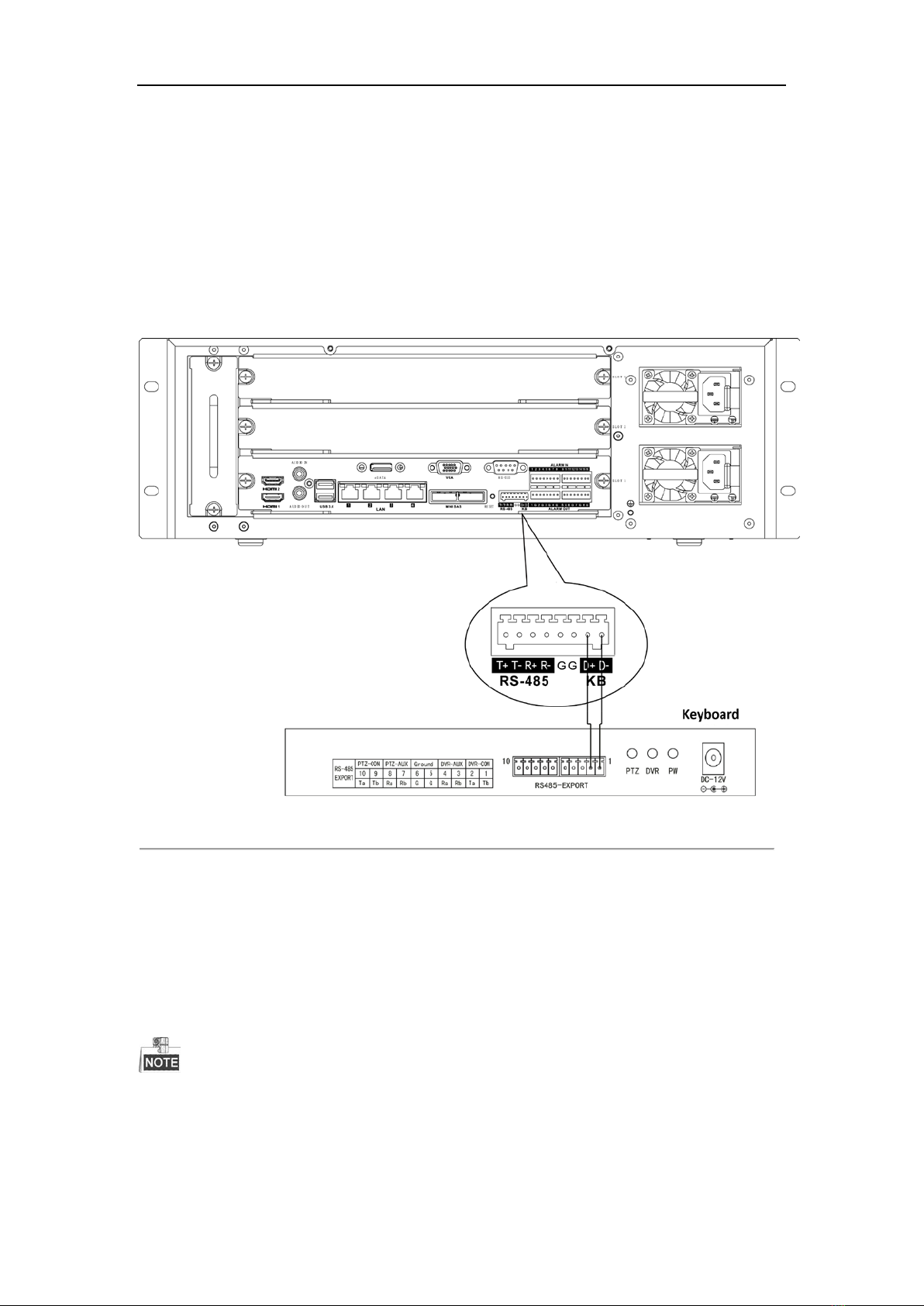

2.3.4 Controller Connection....................................................................................................... 13
2.4 HDD Storage Calculation Chart ...................................................................................................... 14
Chapter 3Menu Operation ........................................................................................................................15
3.1 Menu Structure ............................................................................................................................. 15
3.2 Startup and Shutdown................................................................................................................... 15
3.2.1 Startup .............................................................................................................................. 15
3.2.2 Shutdown.......................................................................................................................... 16
3.3 Activating Your Device ................................................................................................................... 16
3.4 Using the Unlock Pattern for Login ................................................................................................ 17
3.5 Login and Logout ........................................................................................................................... 18
3.5.1 User Login ......................................................................................................................... 18
3.5.2 User Logout....................................................................................................................... 18
3.6 Using the Setup Wizard ................................................................................................................. 19
3.7 Network Settings ........................................................................................................................... 19
3.8 Adding IP Cameras......................................................................................................................... 20
3.9 Live View ....................................................................................................................................... 21
3.10 One-Touch RAID Configuration ...................................................................................................... 21
3.11 Recording Settings ......................................................................................................................... 22
3.12 Playback......................................................................................................................................... 23
Chapter 4Accessing by Web Browser.........................................................................................................24

Network Video Recorder Quick Start Guide
2
About this Manual
Quick Start Guide
This Manual is applicable to Network Video Recorder (NVR).
The Manual includes instructions for using and managing the product. Pictures, charts, images and all other
information hereinafter are for description and explanation only. The information contained in the Manual is
subject to change, without notice, due to firmware updates or other reasons. Please find the latest version in the
company website.
Please use this user manual under the guidance of professionals.
Legal Disclaimer
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH ITS HARDWARE,
SOFTWARE AND FIRMWARE, IS PROVIDED “AS IS”, WITH ALL FAULTS AND ERRORS, AND OUR COMPANY MAKES
NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY
QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL
OUR COMPANY, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL,
CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF
BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH
THE USE OF THIS PRODUCT, EVEN IF OUR COMPANY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN
RISKS. OUR COMPANY SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE
OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER
INTERNET SECURITY RISKS; HOWEVER, OUR COMPANY WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.
SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE
USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE APPLICABLE LAW. OUR COMPANY
SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS

Network Video Recorder Quick Start Guide
3
Regulatory Information
FCC Information
Please take attention that changes or modification not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the interference at his own expense.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.
EU Conformity Statement
This product and - if applicable - the supplied accessories too are marked with "CE" and comply
therefore with the applicable harmonized European standards listed under the EMC Directive
2014/30/EU, the LVD Directive 2014/35/EU, the RoHS Directive 2011/65/EU.
2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted
municipal waste in the European Union. For proper recycling, return this product to your local
supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection
points. For more information see: www.recyclethis.info
2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as
unsorted municipal waste in the European Union. See the product documentation for specific
battery information. The battery is marked with this symbol, which may include lettering to indicate
cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a
designated collection point. For more information see:
Industry Canada ICES-003 Compliance
www.recyclethis.info
This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.

Network Video Recorder Quick Start Guide
4
Safety Instruction
These instructions are intended to ensure that user can use the product correctly to avoid danger or property
loss.
The precaution measure is divided into “Warnings” and “Cautions”
Warnings: Serious injury or death may occur if any of the warnings are neglected.
Cautions: Injury or equipment damage may occur if any of the cautions are neglected.
Warnings
●Proper configuration of all passwords and other security settings is the responsibility of the installer and/or
end-u s e r.
●In the use of the product, you must be in strict compliance with the electrical safety regulations of the nation
and region. Please refer to technical specifications for detailed information.
●Input voltage should meet both the SELV (Safety Extra Low Voltage) and the Limited Power Source with
100~240 VAC or 12 VDC according to the IEC60950-1 standard. Please refer to technical specifications for
detailed information.
●Do not connect several devices to one power adapter as adapter overload may cause over-heating or a fire
hazard.
●Please make sure that the plug is firmly connected to the power socket.
●If smoke, odor or noise rise from the device, turn off the power at once and unplug the power cable, and then
please contact the service center.
Preventive and Cautionary Tips
Before connecting and operating your device, please be advised of the following tips:
•Ensure unit is installed in a well-ventilated, dust-free environment.
•Unit is designed for indoor use only.
•Keep all liquids away from the device.
•Ensure environmental conditions meet factory specifications.
•Ensure unit is properly secured to a rack or shelf. Major shocks or jolts to the unit as a result of dropping it
may cause damage to the sensitive electronics within the unit.
•Use the device in conjunction with an UPS if possible.
•Power down the unit before connecting and disconnecting accessories and peripherals.
•A factory recommended HDD should be used for this device.
•Improper use or replacement of the battery may result in hazard of explosion. Replace with the same or
equivalent type only. Dispose of used batteries according to the instructions provided by the battery
manufacturer.
Warnings
Follow these
safeguards to prevent serious
injury or death.
Cautions
Follow these
precautions to prevent
potential injury or material
damage.

Network Video Recorder Quick Start Guide
5
Applicable Models
This manual is applicable to LTN07128-R16.

Network Video Recorder Quick Start Guide
6
Symbol Conventions
The symbols that may be found in this document are defined as follows.
Symbol Description
Provides additional information to emphasize or supplement
important points of the main text.

Network Video Recorder Quick Start Guide
7
Chapter1 Panels Description
1.1 Front Panel
Figure 1. 1 Front Panel
Table 1. 1 Description
No. Name Description
1 Panel lock Locks or unlocks the panel by the key.
2 Shortcut buttons
Exit
●Returns to the previous menu.
●Press it twice quickly to switch the main and auxiliary port.
●In live view mode, press it to enter PTZ control interface.
Menu
●Press it to pop up main menu.
●Hold it for 5 seconds to turn on/off button sound.
●During playback, press it to show/hide control panel.
3 Status indicator HDD
●Solid red: at least one HDD is installed
●Unlit: no HDD is detected.
●Blinking red: HDD is reading/writing.
Tx/Rx Blinking blue indicates network communication is normal.
4 Power switch Powers on/off device. Solid blue indicates device is powered on. Solid red
indicates device is shut down.
5 Control buttons ENTER
●Confirms selection in any of the menu modes.
●Checks the checkbox fields.
●Switches on/off status.
●Plays or pauses the video playing in playback mode.
●Advances the video by a single frame in single-frame playback mode.
●Stops/starts auto switch in auto-switch mode.

Network Video Recorder Quick Start Guide
8
No. Name Description
DIRECTION
●Navigates between different fields and items in menus.
●In the playback mode, use the Up and Down buttons to speed up and
slow down recorded video. Use the Left and Right buttons to select the
next and previous video files.
●Cycles through channels in live view mode.
●Controls the movement of the PTZ camera in PTZ control mode.
6 USB interfaces Universal Serial Bus (USB) ports for additional devices such as USB mouse
and USB Hard Disk Drive (HDD).
1.2 Rear Panel
Figure 1. 2 Rear Panel
Table 1. 2 Panel Description
No. Name Description
1 HDMI 1/2 HDMI video output connector.
2 Audio in RCA connector for audio input.
Audio out RCA connector for audio output.
3 USB 3.0 Universal Serial Bus (USB 3.0) ports for additional devices such as USB mouse
and USB Hard Disk Drive (HDD).
4 LAN 4 10/100/1000 Mbps self-adaptive Ethernet interfaces.
5 eSATA Connects external SATA HDD, CD/DVD-RM.
6 VGA DB9 connector for VGA output.
7 Mini SAS (optional) Connector for mini SAS.
8 Reset Reset button.
9 RS-232 Connector for RS-232 devices.
10 Alarm in Connector for alarm input.
Alarm out Connector for alarm output.
RS-485 Connector for RS-485 devices.
KB Connector for keyboard.
11 GND Ground (needs to be connected when NVR starts up).

Network Video Recorder Quick Start Guide
9
12 Power supply
modules
Only one power supply module is provided by default. Two power supply
modules are optional for redundancy.
13 Fiber Board Fiber connection

Network Video Recorder Quick Start Guide
10
Chapter 2 Installation and Connections
2.1 NVR Installation
During installation of the NVR:
1. Use brackets for rack mounting.
2. Ensure ample room for audio and video cables.
3. When routing cables, ensure that the bend radius of the cables are no less than five times than its diameter.
4. Connect the alarm cable.
5. Allow at least 2cm (≈0.75 inch) of space between racks mounted devices.
6. Ensure the NVR is grounded.
7. Environmental temperature should be within the range of -10 to +55 ºC, +14 to +131 º F.
8. Environmental humidity should be within the range of 10% to 90%.

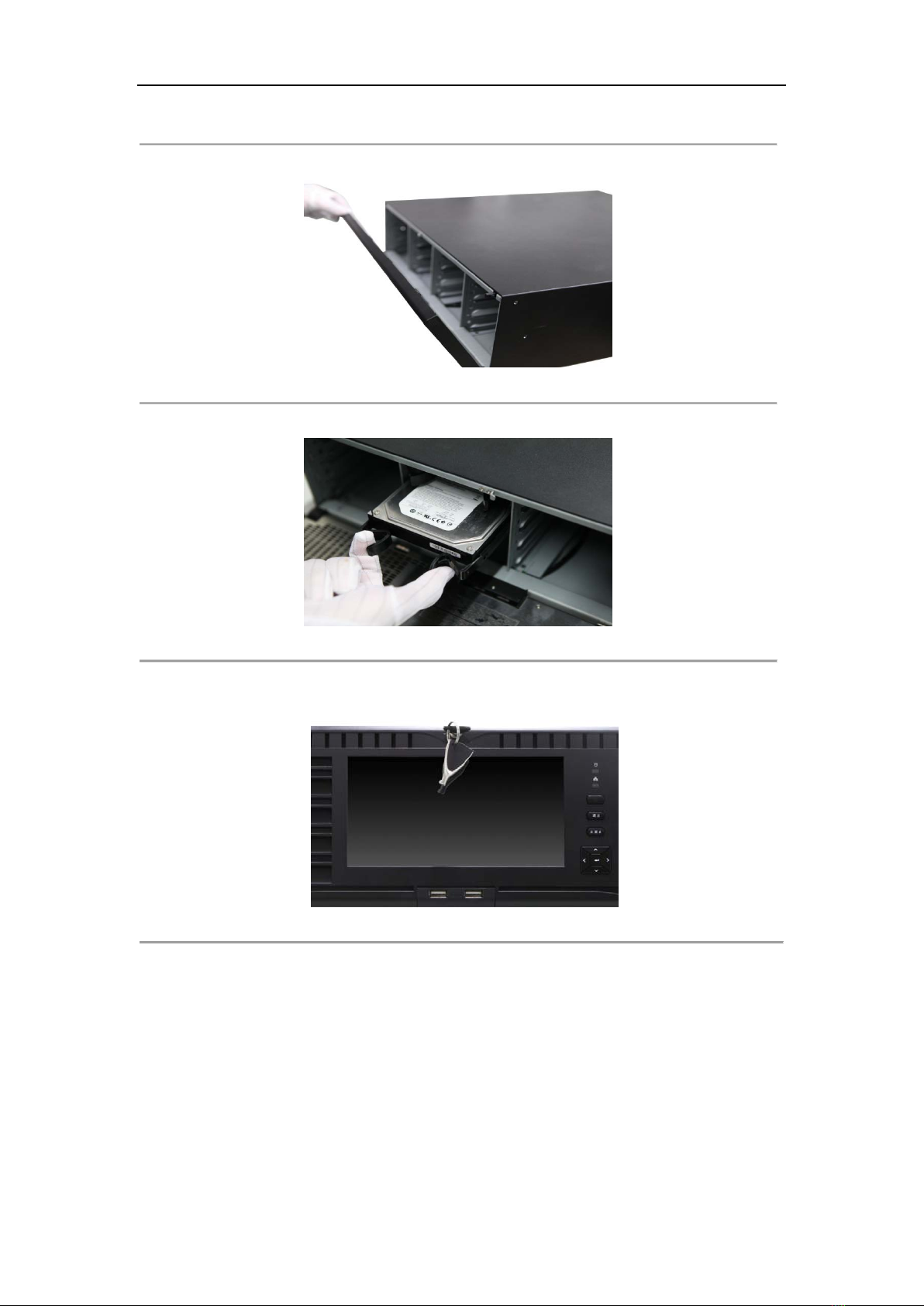

2.2 Hard Disk Installation
Before you start:
Disconnect the power from the NVR before installing a hard disk drive (HDD). A factory recommended HDD
should be used for this installation.
Tools Required: Screwdriver.
Purpose:
The following section introduces the HDD installation for LTN07128-R16.
Steps:
1. Fasten the hard disk mounting handle to the hard disk with screws.
Figure 2. 1 Fasten Hard Disk
2. Insert the key and turn in clockwise direction to open the panel lock.

Network Video Recorder Quick Start Guide
11
Figure 2. 2 Insert Panel Key
3. Press the buttons on the panel of two sides and open the front panel.
Figure 2. 3 Open Panel Lock
4. Insert the hard disk along the slot until it is placed into position.
Figure 2. 4 Insert Hard Disk
5. Repeat the above steps to install other hard disks onto the NVR. After having finished the installation of all
hard disks, close the front panel and lock it with the key again.
Figure 2. 5 Lock Panel

Network Video Recorder Quick Start Guide
12
2.3 Connections
2.3.1 Alarm Input Wiring
The alarm input is an open/closed relay. To connect the alarm input to the device, use the following diagram.
If the alarm input is not an open/close relay, please connect an external relay between the alarm input and the
device.
Figure 2. 6 Alarm Input Wiring
2.3.2 Alarm Output Wiring
To connect to an alarm output (AC or DC load), use the following diagram:
Figure 2. 7 Alarm Output Wiring
For DC load, the jumpers can be used within the limit of 12V/1A safely.
To connect an AC load, jumpers should be left open (you must remove the jumper on the motherboard in the
NVR). Use an external relay for safety (as shown in the figure above).
There are 4 jumpers (JP6, JP9, JP10, and JP11) on the motherboard, each corresponding with one alarm output.
By default, jumpers are connected. To connect an AC load, jumpers should be removed.
Example:
If you connect an AC load to the alarm output 3 of the NVR, then you must remove the JP 3 jumper.

Network Video Recorder Quick Start Guide
13
2.3.3 Using Alarm Connectors
To connect alarm devices to the NVR:
1. Disconnect pluggable block from the ALARM IN /ALARM OUT terminal block.
2. Unfasten stop screws from the pluggable block, insert signal cables into slots and fasten stop screws. Ensure
signal cables are tight.
3. Connect pluggable block back into terminal block.
2.3.4 Controller Connection
Figure 2. 8 Controller Connection
To connect a controller to the NVR:
1. Disconnect pluggable block from the KB terminal block.
2. Unfasten stop screws from the KB D+, D- pluggable block, insert signal cables into slots and fasten stop
screws. Ensure signal cables are in tight.
3. Connect Ta on controller to D+ on terminal block and Tb on controller to D- on terminal block. Fasten stop
screws.
4. Connect pluggable block back into terminal block.
Make sure both the controller and NVR are grounded.

Network Video Recorder Quick Start Guide
14
2.4 HDD Storage Calculation Chart
The following chart shows an estimation of storage space used based on recording at one channel for an hour at
a fixed bit rate.
Bit Rate Storage Used
96K 42M
128K
56M
160K 70M
192K
84M
224K 98M
256K
112M
320K 140M
384K
168M
448K 196M
512K
225M
640K 281M
768K
337M
896K 393M
1024K
450M
1280K 562M
1536K
675M
1792K 787M
2048K 900M
4096K 1.8G
8192K 3.6G
16384K 7.2G
Please note that supplied values for storage space used is just for reference. The storage values in the chart are
estimated by formulas and may have some deviation from actual value.

Network Video Recorder Quick Start Guide
15
Chapter 3 Menu Operation
3.1 Menu Structure
Refer to the following figure for the menu structure:
Menu
Export Manual HDD Camera Maintenance Shutdown Record Configuration
Playback
Normal Record General Schedule Camera General System Info Logout
Event Advanced Parameters OSD Network Log
Information Shutdown
Advanced Image Import/
Export Reboot
Holiday PTZ Upgrade
Motion
Live View
Default
Privacy
Mask
Exceptions
Net Detect
Video
Tampering
User
Video Loss
HDD Detect
Alarm
Alarm
VCA
Normal/
Smart
Event
Tag
Sub-periods
External
File
VCA Search
Behavior
Search
Face Search
Counting
Heat Map
Hot Spare
Plate
Search
Figure 3. 1 Menu Structure
3.2 Startup and Shutdown
Proper startup and shutdown procedures are crucial to expanding the life of the NVR.
3.2.1 Startup
Step:
Connect the device power supply interface and electrical socket with delivered power cable. It is HIGHLY
recommended that an Uninterruptible Power Supply (UPS) be used in conjunction with the device. The Power
button on the front panel should be red, indicating the device is receiving the power.
If the device is shut down according to steps of 3.2.2 Shutdown, press the POWER button in front panel to start

Network Video Recorder Quick Start Guide
16
device.
3.2.2 Shutdown
Steps:
1. Enter the Shutdown menu.
Menu > Shutdown
Figure 3. 2 Shutdown
2. Select the Shutdown button.
3. Click the Yes button.
3.3 Activating Your Device
Purpose:
For the first-time access, you need to activate the device by setting an admin password. No operation is allowed
before activation. You can also activate the device via Web Browser, SADP or client software.
Steps:
1. Input the same password in the text field of Create New Password and Confirm New Password.
Figure 3. 3 Set Admin Password
STRONG PASSWORD RECOMMENDED
–We highly recommend you create a strong password of your
own choosing (Using a minimum of 8 characters, including at least three of the following categories:
upper case letters, lower case letters, numbers, and special characters.) in order to increase the security
of your product. And we recommend you reset your password regularly, especially in the high security
system, resetting the password monthly or weekly can better protect your product.

Network Video Recorder Quick Start Guide
17
2. Click OK to save the password and activate the device.
For the old version device, if you upgrade it to the new version, the following dialog box will pop up once the
device starts up. You can click YES and follow the wizard to set a strong password.
Figure 3. 4 Warning of Weak Password
3.4 Using the Unlock Pattern for Login
For the Admin user, you can configure the unlock pattern for device login.
After the device is activated, you can enter the following interface to configure the device unlock pattern.
Steps:
1. Use the mouse to draw a pattern among the 9 dots on the screen. Release the mouse when the pattern is
done.
Figure 3. 5 Draw the Pattern
Connect at least 4 dots to draw the pattern.
Each dot can be connected for once only.
2. Draw the same pattern again to confirm it. When the two patterns match, the pattern is configured

Network Video Recorder Quick Start Guide
18
successfully.
3.5 Login and Logout
3.5.1 User Login
Purpose:
If NVR has logged out, you must login the device before operating the menu and other functions.
Steps:
1. Select the User Name in the dropdown list.
Figure 3. 6 Login
2. Input Password.
3. Click OK to log in.
In the Login dialog box, if you enter the wrong password 7 times for administrator or 5 times for other user, the
current user account will be locked for 60 seconds.
Figure 3. 7 Account Lock
3.5.2 User Logout
Purpose:
After logging out, the monitor turns to the live view mode and if you want to perform any operations, you need
to enter user name and password log in again.
Steps:
1. Enter the Shutdown menu.
Menu > Shutdown

Network Video Recorder Quick Start Guide
19
Figure 3. 8 Logout
2. Click Logout.
After you have logged out the system, menu operation on the screen is invalid. It is required to input a user name
and password to unlock the system.
3.6 Using the Setup Wizard
The Setup Wizard can walk you through some important settings of the device. By default, the Setup Wizard
starts once the device has loaded.
Check the checkbox to enable Setup Wizard when device starts. Click Next to continue the setup wizard. Follow
the guide of the Setup Wizard to configure the system resolution, system date/time, network settings, HDD
management, record settings, etc.
Figure 3. 9 Wizard
3.7 Network Settings
Purpose:
Network settings must be properly configured before you operate NVR over network.
Steps:
1. Enter the Network Settings interface.
Menu > Configuration > Network
