Lucid Connected Home Charging Station User manual

Lucid Connected Home
Charging Station Guide

Table of Contents
Chapters Sections
Safety Instructions Safety Instructions 2
Introduction Product View 5
Specifications Product Specifications 7
Installation Before Installation 10
Additional Tools and Parts 11
Charging Station Installation 12
Disassemble Logo Cover 12
Secure Mounting Bracket 12
Fasten the Charging Station 13
Input Power Cord Installation 15
Choosing Conduit 15
Attaching Compression Lugs 15
Electrical Wiring 15
Set Operating Current 17
Operations Charging Status Indicators 20
Connecting your Station to the Internet 22
Additional Power-On Operations 24
Authorization (For LTE Model only) 24
Auto Restart 24
Power Outage Recovery 24
Warranty Information 25
General Care 27
Customer Support 28

01
Safety
Instructions
Safety Instructions 1

Safety Instructions
This guide contains instructions and warnings
that must be followed when installing and
using the Electric Vehicle Supply Equipment
(EVSE). Before installing or using the EVSE,
read this entire guide including the WARNING
and CAUTION markings.
Safety Instructions
The following are some of the safety icons
used in the user guide:
CAUTION: RISK OF PERSONAL INJURY
WARNING: RISK OF ELECTRIC SHOCK
DANGER: RISK OF FIRE OR EXPLOSION
CAUTION: RISK OF DAMAGE TO THE
EQUIPMENT
The following color-codes of the safety
icons depict the severity of the warnings or
cautions:
Red: Severe risk of death or serious
injury if hazard is not avoided or mitigated
immediately.
Orange: Potential hazard of death or
serious injury if hazard is not avoided.
Yellow: Potentially hazardous situation. If
the hazard is not avoided, minor or moderate
injury could occur.
Blue: Risk of damage to the equipment.
The information in this guide does not exempt
the user from following all applicable codes or
safety standards.
This guide provides instructions for the
Electric Vehicle Supply Equipment (EVSE) and
should not be used for any other product.
Repair and Maintenance
-Only licensed electricians can fix or
repair this equipment. General users
should not attempt to fix, repair, or
adjust it.
-Always turn off the input power before
repairing or maintaining this equipment.
Federal Communication Commission (FCC)
Interference Statement
This equipment complies with part 15 of
the FCC rules. Operation is subject to the
following two conditions: (1) This equipment
may not cause harmful interference, and (2)
this equipment must accept any interference
received, including interference that may
cause undesired operation.
This equipment has been tested and
complies with the limits for a Class B
digital device, according to Part 15 of the
FCC rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses, and can
radiate radio frequency energy. However, if
it is not installed and used in accordance
with the instructions, it may cause harmful
interference to radio communications. There
is no guarantee that interference will not
occur in a particular installation. If this
equipment causes harmful interference to
radio or television reception, which can be
determined by turning the equipment off
and on, the user should try to correct the
interference by performing one or more of the
following measures:
-Reorient or relocate the receiving
antenna.
-Increase the separation between the
equipment and receiver.
-Connect the equipment into an outlet
on a circuit different from which the
receiver is connected.
-Consult the dealer or an experienced
radio/TV technician for help.
Changes or modifications not covered in
this guide must be approved in writing by
the manufacturer’s Regulatory Engineering
Department. Changes or modifications made
Safety Instructions 2

without written approval may void the user’s
authority to operate this equipment.
Industry Canada statement:
This equipment complies with ISED’s license-
exempt Radio Standards Specifications (RSS).
Operation is subject to the following
two conditions: (1) This device may not
cause harmful interference, and (2) this
equipment must accept any interference
received, including interference that may
cause undesired operation.
Radiation Exposure Statement:
This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment. This equipment should be
installed and operated with minimum distance
20 cm between the radiator and your body.
This equipment complies with ISED radiation
exposure limits set forth for an uncontrolled
environment. This equipment should be
installed and operated with greater than 23
cm between the radiator and your body.
WARNING: RISK OF ELECTRIC SHOCK
This equipment is intended only for charging
vehicles that do not require ventilation during
charging. Please refer to your vehicle’s owner’s
manual to determine ventilation requirements.
DANGER: RISK OF FIRE OR EXPLOSION
Do not use extension cables to increase
the length of the charging cable. Maximum
length is limited to 24 ft by the National Fire
Protection Agency.
WARNING: RISK OF ELECTRIC SHOCK
Do not pull or drag this equipment by the
input power cord. This could damage the
power cord and create an electric shock or
fire hazard.
WARNING: RISK OF ELECTRIC SHOCK
Improper connection of the equipment
grounding conductor can result in a risk
of electric shock. Check with a qualified
electrician or serviceman if there is doubt that
the product is properly grounded.
WARNING: RISK OF ELECTRIC SHOCK
Follow the basic precautions when using
electrical products. Read all the instructions
before using this equipment.
-Supervise this equipment when using
around children.
-Do not put fingers into the EV connector.
-Do not use this equipment if the flexible
power cord or EV cable is frayed, has
broken insulation, or any other signs of
damage.
-Do not use this equipment if the
enclosure or the EV connector is broken,
cracked, open, or shows any other
indication of damage.
-Improper connection of the equipment
grounding conductor can result in a
risk of electric shock. Check with a
qualified electrician or serviceman if
there is doubt that the product is
properly grounded.
-Do not touch live electrical parts.
Incorrect connections may cause
electric shock.
DANGER: RISK OF FIRE OR EXPLOSION
-To reduce the risk of fire, replace only
with same type and rating of fuse.
-This equipment has internal arcing or
sparking parts which should not be
exposed to flammable vapors. It should
not be located in a recessed area or
below floor level because flammable
vapors can accumulate.
CAUTION: RISK OF DAMAGE TO THE
EQUIPMENT
-Do not operate this equipment in
temperatures outside its operating range
of -30°C to +50°C (-22°F to +122°F).
-Store this equipment in a clean dry
place in temperatures between -40°C
and +85°C (-40°F to +185°F).
Safety Instructions 3

02
Introduction
Introduction 4

Product View

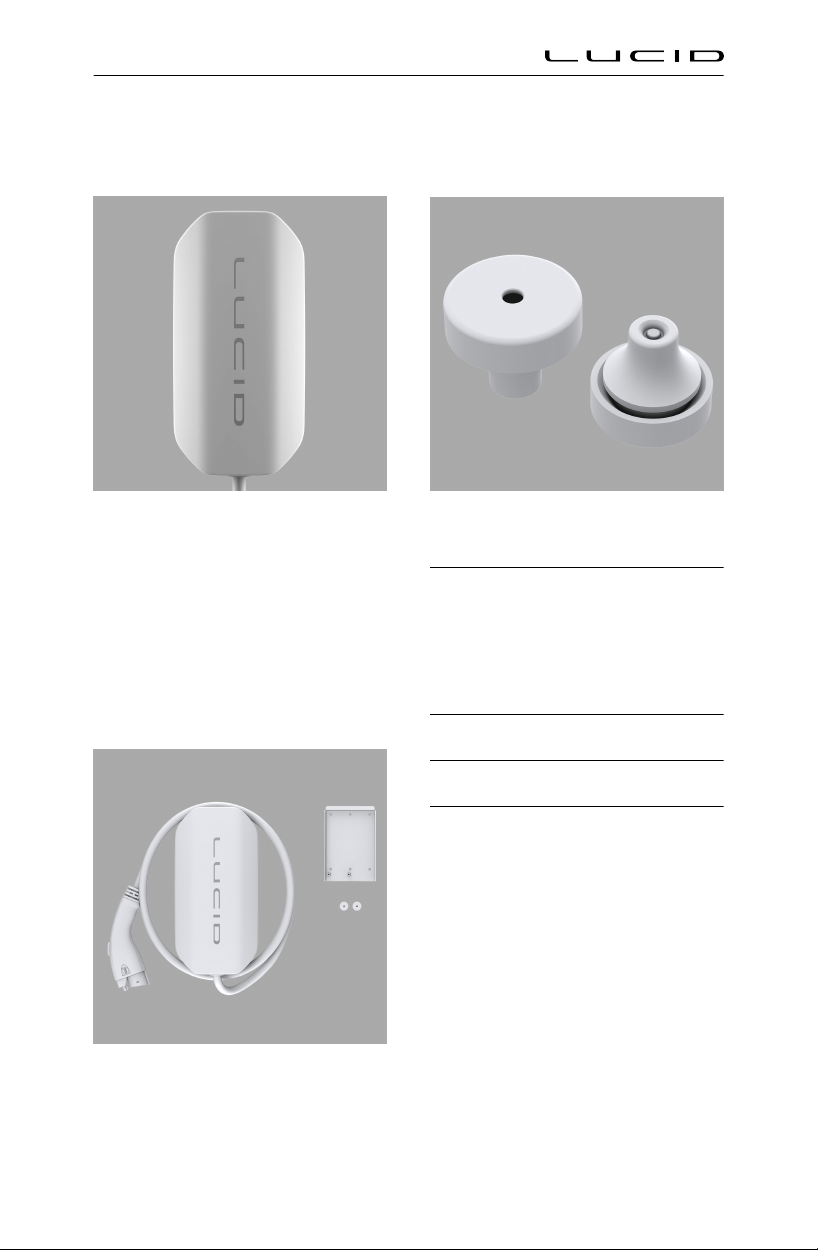

Package Contents
The box should consist of the following
components:
1. Lucid Connected Home Charging
Station and Cable
2. Ethernet Grommet
3. T20H drill bit
Components in box
Item Description Qty Remark
1 Lucid
Connected
Home Charging
Station OR
Lucid
Connected
Home Charging
Station, LTE
1 Ensure that the
variant in the box
is accurate per the
use type. LTE
variant is only for
commercial
installations.
2 Ethernet
Grommet
2
3 Backplate 1 Preconnected to
the station.
4 T20H drill bit 1
Introduction 5

03
Specifications
Specifications 6

Product Specifications
Item Lucid Connected Home Charging Station, NA Lucid Connected Home Charging Station, LTE,
NA
Application Residential Commercial
Voltage 208 - 240VAC, Single Phase 208 - 240VAC, Single Phase
Frequency 60Hz 60Hz
Current Adjustable up to 80A
(see Set Operating Current on page
17
Adjustable up to 80A
(see Set Operating Current on page
17
Charging Connecter SAE J1772, Type 1 SAE J1772, Type 1
Cable Length 24 ' 15 '
Battery Holder Battery holder for 3x AA batteries (if batteries are not installed, please refrain
from installing the batteries yourself)
Wi-Fi 802.11 b/g/n 802.11 b/g/n
Ethernet Yes Yes
Cellular N/A M2M connection (LTE CAT.M1 /
CAT.NBIoT)
RFID N/A ISO 14443 A/B, ISO 15693
Data Protocol OCPP 1.6J OCPP 1.6J
Operations Temp. -30 to +50 ℃(-22 to +122℉) -30 to +50 ℃(-22 to +122℉)
Storage Temp. -40 to +85 ℃(-40 to +185℉) -40 to +85 ℃(-40 to +185℉)
Mounting Type Wall or Pedestal Applications Wall or Pedestal Applications
Wiring Type Hardwired Hardwired
NEMA Rating NEMA 3R NEMA 3R
Impact Resistance IK09 IK09
Dimension (HxWxD) 15.3” x 7.7” x 5.2 15.3” x 7.7” x 5.2
Weight 18 lbs 14.5 lbs
Specifications 7

Item Lucid Connected Home Charging Station, NA Lucid Connected Home Charging Station, LTE,
NA
Certifications
UL 1998/2231/2594
FCC Part 15B
FCC Part 15.247 (WLAN 2.4GHz)
UL 1998/2231/2594
FCC Part 15B
FCC Part 15.247 (WLAN 2.4GHz)
N/A
FCC Part 15.225 (RFID 13.56MHz)
FCC Part 22/24/27
Specifications 8

04
Installation
Installation 9

Before Installation
Safety Check
-Check the exterior packaging for
signs of mishandling and ensure the
equipment was not damaged during
shipping.
-Before connecting the product to the
power supply, check that the power
supply voltage and current rating
corresponds with the power supply
details shown on the product rating
label.
WARNING: RISK OF ELECTRIC SHOCK
Disconnect the power supply before installing
or repairing the charging station. Disconnect
the power supply before installing or repairing
the charging station. Exposure to live wires
may result in physical injury or damage to the
power supply system and the charging station.
CAUTION: RISK OF PERSONAL INJURY
Keep all packing materials away from
children. These materials present a risk of
injury (e.g. suffocation).
Do not use extension cords with this
equipment.
THE CHARGING STATION MUST BE
INSTALLED ONLY BY A LICENSED
ELECTRICIAN IN ACCORDANCE WITH THE
PROVISIONS OF THE LOCAL INDUSTRY
CONSTRUCTIN AND SHOULD COMPLY
WITH NATIONAL ELECTRICAL CODES AND
STANDARDS.
Before installing the charging station, make
sure you have read all instructions in this
guide and fully understand its contents.
Appropriate protection is required when
connecting to a main switchboard. The tools
and parts used are outlined in Additional
Tools and Parts on page 11.
Installation 10

Additional Tools and Parts
Tool QTY Size
Screw 4 Appropriate for wall/pedestal material
Compression Lugs 3 Used to land branch circuit wires on terminal
block
Philips Screwdriver 1 PH3
Torx Screwdriver 1 T20H (included in the box)
Torque Wrench 1 >40 lb-in
Installation 11

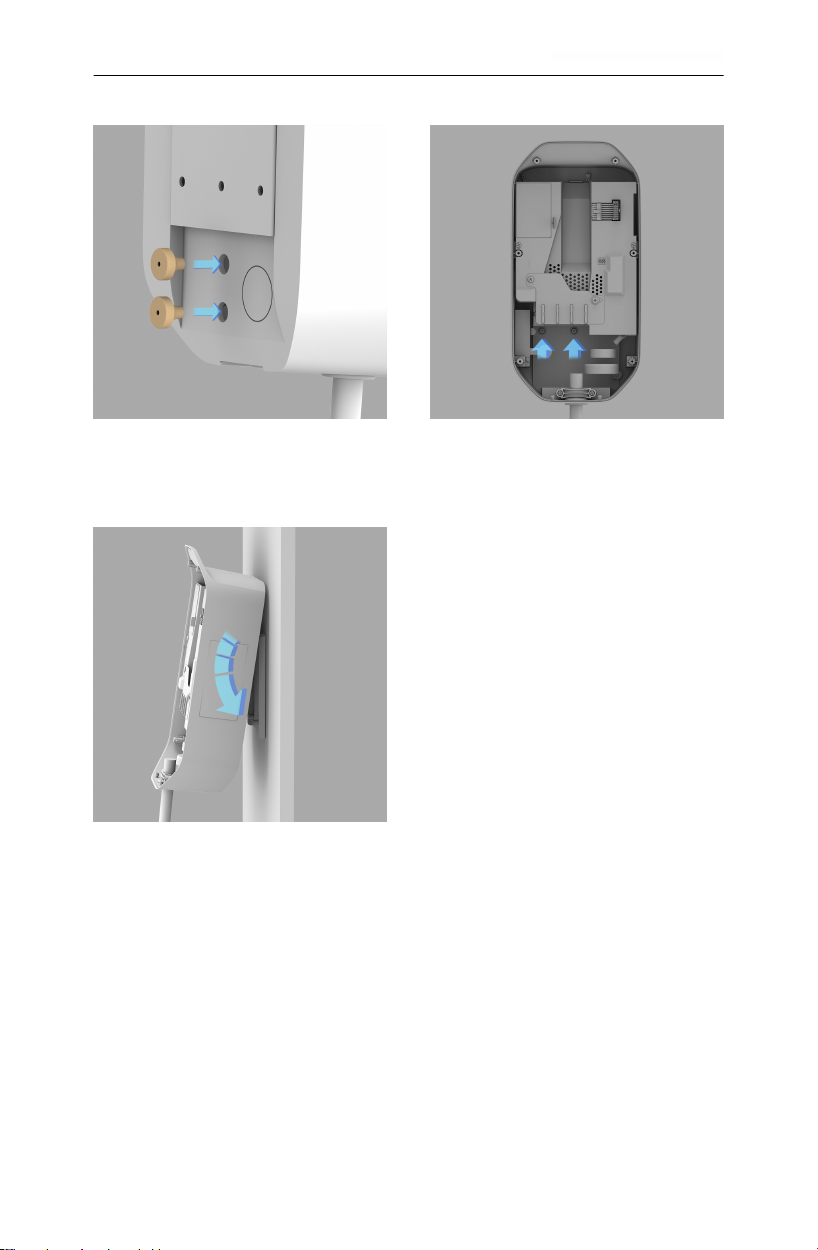

Charging Station Installation
Disassemble Logo Cover
1. Remove 2x M4 screw with T20H bit.
2. Slide logo cover up and remove by
pulling from charging station housing.
3. Remove 6x M4 screws with T20H bit,
and open the top cover.
4. Remove 2x M4 screw with T20H bit, and
remove rear mounting bracket.
Secure Mounting Bracket
Secure the main body mounting bracket to the
wall with the appropriate screw.
For the indoor site, ensure that mounting is
not lower than 18” (450 mm) and not higher
than 4’ (1.2m). For the outdoor site, please
ensure that mounting is not lower than 24”
(600 mm) and not higher than 4’ (1.2m).
Note: It is recommended to use four (4) screws
when mounting the bracket, however if the
preference is to only use two (2), please use
the middle two screw holes of the bracket.If
only two screws are used to fasten the
mounting bracket, the screws should pass
through the middle two screw holes of the
mounting bracket.
Installation 12

1. Fasten mounting bracket.
4-Hole Mounting
2-Hole Mounting
2. Refer to the following table for torque
specifications:
Screw Torque
M4 10 kgf.cm 8.5 lb-in
3. Screw holes of the mounting bracket.
Fasten the Charging Station
Fasten the charging station onto mounting
bracket.
1. If the user is planning to use a “Top or
back input” and “Ethernet cable”, drill
the appropriate holes before mounting
to any surface.
2. Insert the Ethernet grommet (included)
after drilling Ethernet hole if the
user requests an Ethernet connection
installation.
Installation 13

3. Place the charging station on the
mounting bracket.
4. Fasten the charging station on the
mounting bracket by tightening the 2x
M4 screws.
Installation 14

Input Power Cord Installation
Choosing Conduit
Choose the appropriate conduit in
accordance with all the applicable state, local,
and national electrical codes, and standards.
Attaching Compression Lugs
Please adhere to standard processes to
properly heat shrink the tubing on the
compression lug to ensure a secure fitment
on the wire before connecting to the terminal
blocks in the station.
Refer to the following wire specification. Use
a conductor type other than RHH, RHW, and
RHW-2 with outer covering.
Choose the appropriate conductors in
accordance with all applicable, state, local,
and national electric codes and standards.
Model Terminal Conductor Rating
Lucid Connected
Home Charging
Station
L1, L2 2 AWG 90 º
Copper
wire
G 8 AWG
Electrical Wiring
Electrical wiring to the charging station.
1. Fold the wire end to pass through the
conduit, and insert it into the input hole.
Choose input direction 1, 2, or 3, and
open the cap.
Note: Choose only one type, either 1, 2,
or 3.
Note: The waterproof warranty is voided
if more than one conduit is kept open.
2. Loosen the plastic screw, and open the
insulation sheet on the terminal block.
Installation 15

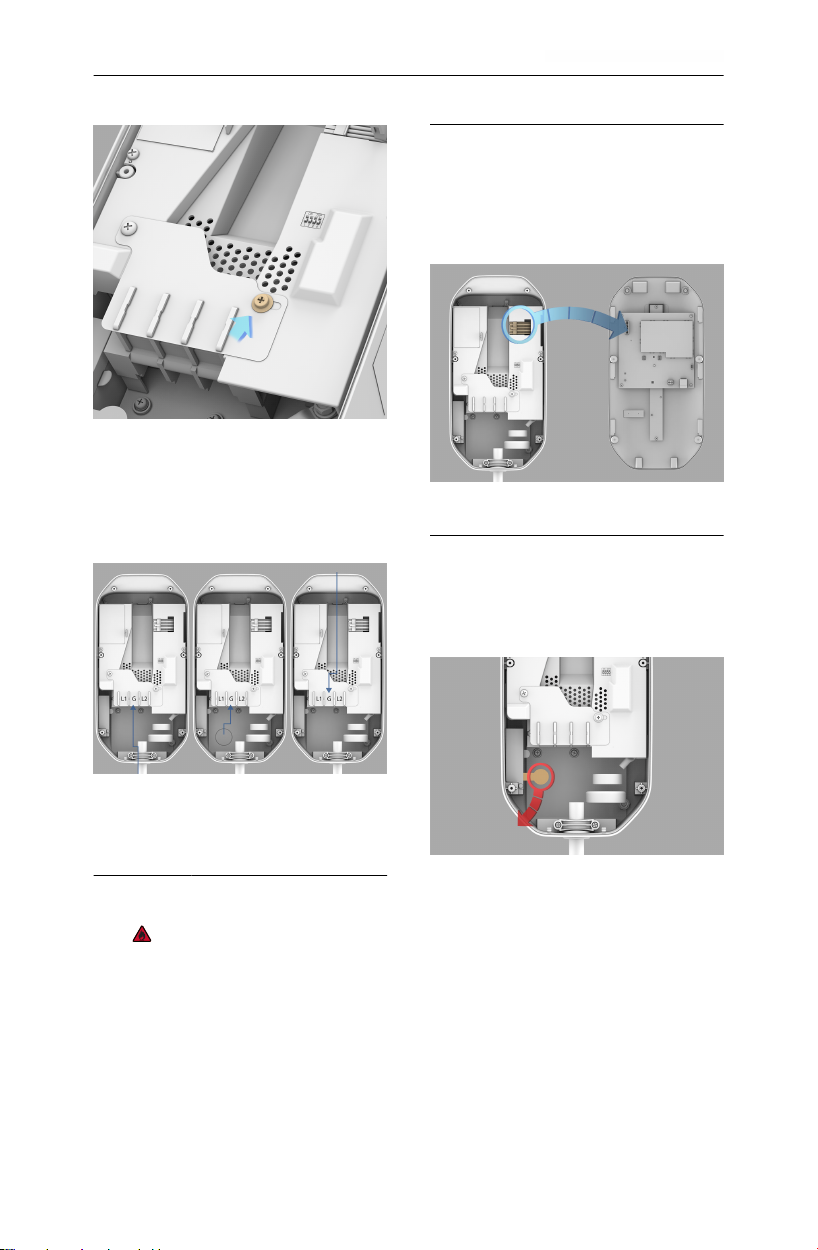

3. Fasten the copper wire on the
corresponding terminal block. The wiring
instruction is printed in front of the
terminal block (L1/L2/G).
4. Use the following torque to connect the
wire terminal to the terminal block.
Screw Torque
M6 31 kgf.cm 26.9 lb-in
DANGER: To reduce the risk of fire,
connect only to a circuit provided with
100 amperes maximum branch circuit
overcurrent protection in accordance
with the National Electrical Code, ANSI/
NFPA 70, and the Canadian Electrical
Code, Part I, C22.2.
5. Lock the conduit on the enclosure. Refer
to the following torque.
Conduit Torque
1 " 35 kgf.cm 30.36 lb-in
6. Remove the cable tie and connect the
jumper wire. Then, reassemble the top
cover, and fasten the M4 screw.
Screw Torque
M4 10 kgf.cm 12 lb-in
7. If applicable, remove the insulation
sheet of the battery package.
8. Once jumper wire is connected and
battery insulation sheet removed,
reassemble the top cover using 6x M4
screws, then place the logo cover on
top, fitting into the grooves, then sliding
down into place. Please ensure logo
cover is firmly snapped into top cover
before fastening final 2 bottom M4
screws to seal the station.
Installation 16

Set Operating Current
To set the operating current, configure SW1, SW2, SW3, SW4 from DIP switch
If the Lucid Connected Home Charging Station is installed on a breaker smaller than 100A, the dip
switches support de-rating the station to match said breaker. This same table below can also be
found on a sticker inside the station for ease of use.
Note: Power must remain off before setting or configuring the DIP switch.
Item Continuous Output Configure Circuit Breaker Size
DIP Switch Configuration
6A 1 2 3 4 7.5A
UP
DOWN
12A 1 2 3 4 15A
UP
DOWN
16A 1 2 3 4 20A
UP
DOWN
20A 1 2 3 4 25A
UP
DOWN
24A 1 2 3 4 30A
UP
DOWN
28A 1 2 3 4 35A
UP
DOWN
32A 1 2 3 4 40A
UP
DOWN
36A 1 2 3 4 45A
UP
DOWN
Installation 17

Item Continuous Output Configure Circuit Breaker Size**
DIP Switch Configuration
40A 1 2 3 4 50A
UP
DOWN
48A 1 2 3 4 60A
UP
DOWN
56A 1 2 3 4 70A
UP
DOWN
64A 1 2 3 4 80A
UP
DOWN
72A 1 2 3 4 90A
UP
DOWN
80A (Default) 1 2 3 4 100A
UP
DOWN
Installation 18
