Lumberjack SCMS254SB Installation manual

SCMS254SB
ORIGINAL INSTRUCTIONS
SAFETY AND OPERATING MANUAL

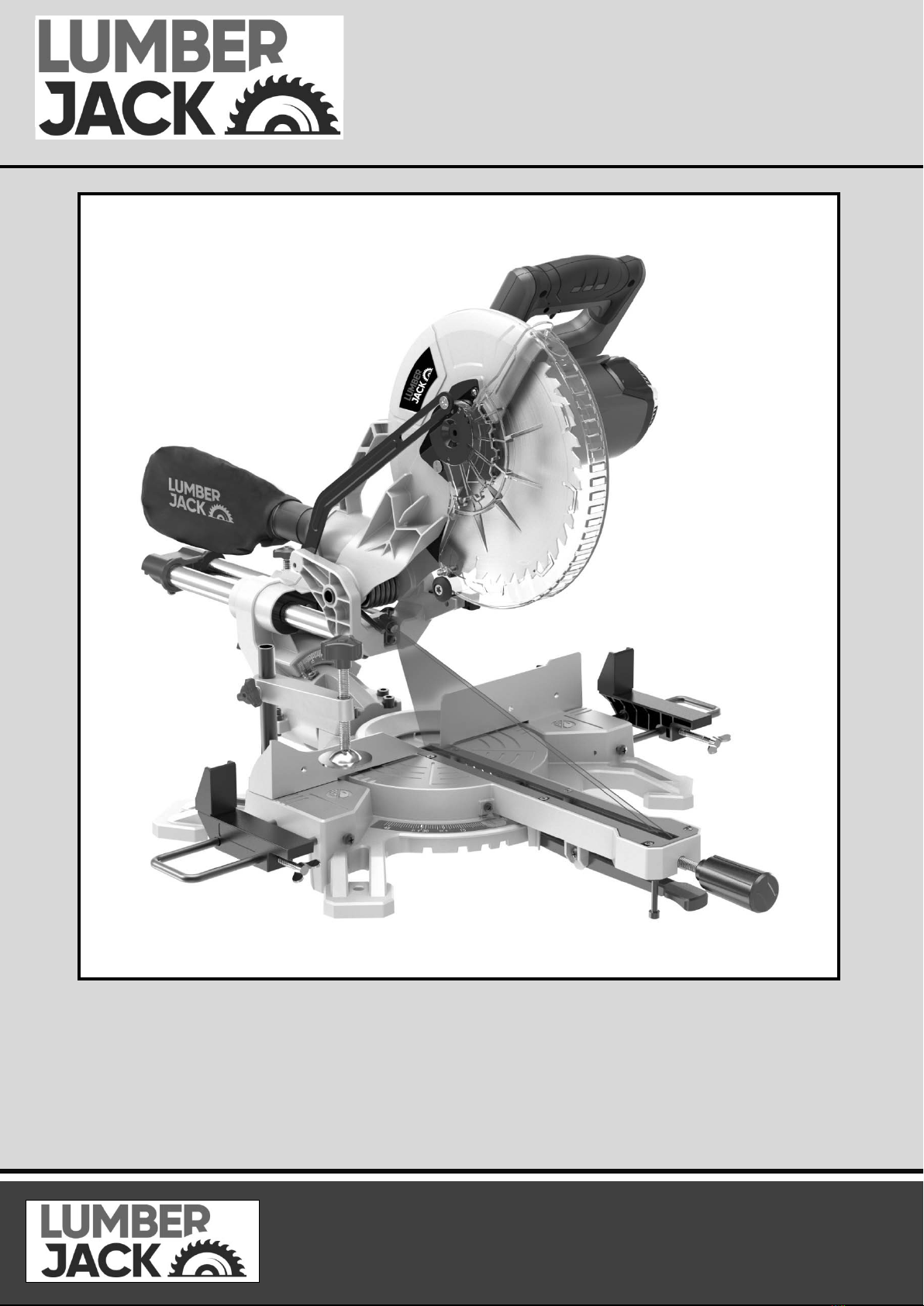

254mm Single Bevel Compound Sliding
Mitre Saw
SCMS254SB

SCMS254SB
TABLE OF CONTENTS
Welcome to Lumberjack!
Dear customer, Congratulations on your purchase. Before using the
Product for the first time please be sure to read these instructions for use.
They provide you with all information necessary for using the product safely and to
ensure its long service life.
Closely observe all safety information in these instructions!
General Power Tool Safety Warnings………………………………….…......01
Symbols & Cable Rating Chart ……….…………………………………….………05
Machine Details and Product Features……….…………………………….….06
Operation…………………………………………………………………………………..08
Maintenance and Service…………………………………………………………..14
Lumberjack Guarantee………….…………………………………………………….15
Declaration of Conformity……………………………………………………………17
Parts List…………..………………………………………………………………………...18
Parts Diagram………………………………………………………………………………21

SCMS254SB 01
GENERAL POWER TOOL SAFETY WARNINGS
WARNING Read all safety warnings and
all instructions. Failure to follow the warnings
and instructions may result in electric shock, fire
and/or serious injury.
Save all warnings and instructions for
future reference. The term "power tool" in
the warnings refers to your electric (corded)
power tool or battery-operated (cordless) power
tool.
1. Work area safety
a) Keep work area clean and well lit. Cluttered
or dark areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or
fumes.
c) Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control of the power tool.
2. Electrical safety
a) Power tool plugs must match the outlet.
Never modify the plug in any way. Do not use
any adapter plugs with grounded power tools.
Unmodified plugs and matching outlets will
reduce risk of electric shock.
b) Avoid body contact with grounded surfaces,
such as pipes, radiators, ranges and
refrigerators. There is an increased risk of
electric shock if your body is grounded.
c) Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords
increase the risk of electric shock.
e) When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of
electric shock.
f) If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk
of electric shock.
3. Personal safety
a) Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the influence of drugs, alcohol or medication. A
moment of inattention while operating power
tools may result in serious personal injury.
b) Use personal protective equipment. Always
wear eye protection. Protective equipment such
as dust mask, non-skid safety shoes, hard hat, or
hearing protection used for appropriate conditions
will reduce personal injuries.
c) Prevent unintentional starting. Ensure the
switch is in the off position before connecting to
power source and/or battery pack, picking up or
carrying the tool. Carrying power tools with your
finger on the switch or energising power tools that
have the switch on invites accidents.
d) Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.

SCMS254SB 02
GENERAL POWER TOOL SAFETY WARNINGS
e) Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes,
jewellery or long hair can be caught in moving
parts.
g) If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
4. Power tool use and care
a) Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
b) Do not use the power tool if the switch does
not turn it on and off. Any power tool that
cannot be controlled with the switch is
dangerous and must be repaired.
c) Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk of
starting the power tool accidentally.
d) Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions to
operate the power tool. Power tools are
dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment
or binding of moving parts, breakage of parts and
any other condition that may affect the power
tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused
by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits
etc. in accordance with these instructions, taking
into account the working conditions and the work
to be performed. Use of the power tool for
operations different from those intended could
result in a hazardous situation.
5. Service
a) Have your power tool serviced by a qualified
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
b) If the replacement of the supply cord is
necessary, this has to be done by the
manufacturer or its agent in order to avoid a
safety hazard.
6. Battery Tool Use and Care
a) Recharge only with the charger specified by
the manufacturer. A charger that is suitable for
one type of battery pack may create a risk of fire
when used with another battery pack.
b) Use power tools only with specifically
designated battery packs. Use of any other
battery packs may create a risk of injury or fire.

SCMS254SB 03
GENERAL POWER TOOL SAFETY WARNINGS
c) When Battery pack is not in use, keep it away
from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal object
that can make a connection from one terminal
to another. Shorting the battery terminals
together may cause burns or a fire.
d) User abusive conditions, liquid may be
ejected from the battery; Avoid contact. If
contact accidentally occurs, flush with copious
amounts of water. If liquid contacts eyes, seek
medical help immediately. Liquid ejected from
the batter may cause irritation or burns.
7 Additional Safety and Working
Instructions
a) Dusts from materials such as lead-containing
coatings, some wood types, minerals and
metals can be harmful to one’s health and
cause allergic reactions, leading to respiratory
infections and/or cancer. Materials containing
asbestos may only be worked by specialists.
Observe the relevant regulations in your country
for the materials to be worked.
b) Prevent dust accumulation at the workplace.
Dusts can easily ignite.
8 Safety Warnings for Chop and Mitre
Saws
a) Never stand on the power tool. Serious
injuries can occur when the power tool tips over
or when inadvertently coming into contact with
the saw blade.
b) Make sure that the guard operates properly
and that it can move freely. Never lock the
guard in place when opened.
c) Never remove cutting remainders, wood chips,
etc. from the sawing area while the machine is
running. Always guide the tool arm back to the
neutral position first and then switch the machine
off.
d) Guide the saw blade against the workpiece
only when the machine is switched on. Otherwise
there is damage of kickback, when the saw blade
becomes wedged in the workpiece.
e) Keep handles dry, clean, and free from oil and
grease. Greasy, oily handles are slippery causing
loss of control.
f) Operate the power tool only when the work
area to the workpiece is clear of any adjusting
tools, wood chips, etc. Small pieces of wood or
other objects that come in contact with the
rotating saw blade can strike the operator with
high speed.
g) Keep the floor free of wood chips and material
remainders. You could slip or trip.
h) Always firmly clamp the piece to be worked.
Do not saw workpieces that are too small to
clamp. Otherwise, the clearance of your hand to
the rotating saw blade is too small.
i) Use the machine only for cutting the materials
listed under Intended Use. Otherwise, the
machine can be subject to overload.
j) If the saw blade should become jammed,
switch the machine off and hold the workpiece
until the saw blade comes to a complete stop. To
prevent kickback, the workpiece may not be
moved until after the machine has come to a
complete stop. Correct the cause for the jamming
of the saw blade before restarting the machine.
k) Do not use dull, cracked, bent or damaged saw
blades. Unsharpened or improperly set saw blades
produce narrow kerf causing excessive friction,
blade binding and kickback.

SCMS254SB 04
GENERAL POWER TOOL SAFETY WARNINGS
l) Always use saw blades with correct size and
shape (diamond versus round) of bore. Saw
blades that do not match the mounting
hardware of the saw will run eccentrically,
causing loss of control.
m) Do not use high speed steel (HSS) saw
blades. Such saw blades can easily break.
n) Do not touch the saw blade after working
before it has cooled. The saw blade becomes
very hot while working.
o) Never operate the machine without the
insert plate. Replace a defective insert plate.
Without flawless insert plates, injuries are
possible from the saw blade.
p) Check the cable regularly and have a
damaged cable repaired only through an
authorised customer service agent. Replace
damaged extension cables. This will ensure that
the safety of the power tool is maintained.
q) Store the machine in a safe manner when
not being used. The storage location must be
dry and lockable. This prevents the machine
from storage damage, and from being operated
by untrained persons.
r) Secure the workpiece. A workpiece clamped
with clamping devices or in a vice is held more
secure than by hand.
r) Never leave the machine before it has come
to a complete stop. Cutting tools that are still
running can cause injuries.
s) Never use the machine with a damaged
cable. Do not touch the damaged cable and pull
the mains plug when the cable is damaged
while working. Damaged cables increase the risk
of an electric shock.
9. Safety Warnings for Lasers
The mitre saw has a built-in laser light. The laser is
CLASS IIIa. These lasers do not normally present an
optical hazard. However, DO NOT stare at the
beam, as this can cause flash blindness.
a) Do not remove or deface any product labels.
Removing product labels increases the risk of
exposure to laser radiation.
b) The laser beam can be harmful to the eyes.
Always avoid direct eye exposure. Do not project
the laser beam directly into the eyes of others or
at any object other than the workpiece.
c) Do not look directly into the laser-beam-
output aperture during operation.
d) Turn the laser on only when making cuts. The
laser on the mitre saw is not a toy. Always keep it
out of the reach of children. The laser light
emitted from this device should never be directed
toward any person for any reason.
e) Always turn the laser beam off when it is not
in use. Leaving the tool on increases the risk of
someone inadvertently staring into the laser’s
beam.
f) Be sure that the laser beam is aimed at a
workpiece (such as wood or a rough-coated
surface) that does not have a reflective surface.
g) Do not use on materials that have shiny,
reflective surfaces, such as sheet metal. The
reflective surface could reflect the beam back at
the operator. Be aware that laser light reflected
off of a mirror or any other reflective surfaces can
also be dangerous.
h) Always wear laser-protective eyewear when
working on or near reflective surfaces.
9.8 Do not attempt to activate the laser when the
tool housing is removed.
i) The laser is activated by means of a button
switch that is independent of the main switch for
the saw.

SCMS254SB 05
GENERAL POWER TOOL SAFETY WARNINGS
j) Do not replace the laser light assembly with a
different one. Any repairs must be carried out by
the laser manufacturer or an authorized service
agent.
k) Do not attempt to repair the laser guide by
yourself.
l) Do not attempt to change any parts of the
laser guide.

SCMS254SB 06
SYMBOLS AND POWER RATING CHART
Danger! – Read the operating
instructions to reduce the risk of
injury.
Caution! Wear safety goggles.
Caution! Wear ear defenders. The
impact of noise can cause damage
to hearing.
Caution! Risk of Injury! Do
not reach into the running
saw blade.
Caution! Wear a dust mask.
Caution: Laser radiation. Do
not look into the beam!
Laser class II product!

AIR6V 01 AIR6V 01 AIR6V 01 AIR6V 01
SCMS254SB 07
MACHINE DETAILS AND PRODUCT FEATURES
Machine Details
Specifications:
Mains Voltage - 220-240V/50Hz
Power Consumption -1800W
No load Speed -5000rpm
Blade Spec - 254x30x40T
Cutting Capacity:
At 0° / 0°- 305x75mm
At 45° / 0° - 210x75mm
At 0° / 45°- 305x38mm
At 45° / 45°- 210x38mm
Gross Weight - 16.5kg
Nett Weight - 12.5kg
Package Contents:
TCT Saw Blade
Dust Bag
Hex Key
Intended Use
The power tool is intended as a stationary
machine for making straight lengthways
and crossways cuts in wood. In this, mitre
angles from 45° to +45° as well as bevel
angles from -45° to 45° are possible.
The capacity of the power tool is designed
for sawing hardwood and softwood.
The power tool is not suitable for cutting
aluminium or other non-ferrous metals or
alloys.
Product Features
1. Saw arm
2. Release knob
3. Operating handle
4. Upper fixed blade guard
5. “G” Clamp
6. Rotating blade guard
7. Guard retraction arm
8. Blade bolt cover
9. Dust bag
10. Bevel lock
11.Bevel scale
12.Fence
13.6mm Hex key
14.Mitre table
15.Mitre scale
16.Table insert
17.Switch trigger
18.Mitre Lock Knob
19.Mitre Latch
20.Spindle Lock
21.Sliding Bar

AIR6V 01 AIR6V 01 AIR6V 01 AIR6V 01
SCMS254SB 08
MACHINE DETAILS AND PRODUCT FEATURES
22. Sliding Lock Knob
23. Trenching depth adjustment screw
24. Trenching stop
25. Trenching depth lock nut
26. 45° Bevel adjustment screw
27. 0° Bevel adjustment screw
28. Side support bars(X2)

AIR6V 01 AIR6V 01 AIR6V 01 AIR6V 01
SCMS254SB 09
OPERATION
Operation
Avoid unintentional starting of the machine.
During assembly and for all work on the
machine, the power plug must not be
connected to the mains supply.
Carefully remove all parts included in the
delivery from their packaging.
Remove all packaging material from the machine
and the accessories provided.
Before starting the operation of the machine for
the first time, check if all parts listed in the box
content section have been supplied
Note: Check the power tool for possible damage.
Before further use of the machine, check that all
protective devices are fully functional. Any
lightly damaged parts must be carefully checked
to ensure flawless operation of the tool. All parts
must be properly mounted and all conditions
fulfilled that ensure faultless operation.
Damaged protective devices and parts must be
immediately replaced by an authorised service
centre.
Bench Mounting
The saw base has holes in each corner to
facilitate bench mounting.
1. Place the saw on a level, horizontal bench or
work table using bolts (not supplied) and fix the
saw to the bench using 4 bolts.
2. If desired, you can mount the saw to a piece
of 1/2” (13 mm) or thicker plywood which can
then be clamped to your work support or moved
to other job sites and re-clamped.
CAUTION. Make sure that the mounting surface is
not warped as an uneven surface can cause
binding and inaccurate sawing.
Release knob
The release knob (2) is provided for holding the
cutting head down while transporting or storing
the mitre saw. The saw must never be used with
the release knob locking the head down.
Mitre table locks
The mitre table locks (18) are used to lock the
table at the desired mitre angle.
The mitre saw cuts from 0° to 45° both left and
right. To adjust the mitre angle loosen the mitre
table locks(18)(19) and rotate the mitre table to
the desired position.
The mitre table features positive click stops at 0°,
15°, 22.5°, 30° and 45° for quick setting of
common mitre angles.
Bevel lock
The bevel lock (10) is used to set the blade at the
desired bevel angle. The mitre saw bevel cuts from
0° to 45° to the left. To adjust the bevel angle
loosen the bevel lock and adjust the saw arm to
the desired bevel angle.
Spindle lock button
The spindle lock button (20) prevents the blade in
the saw from rotating. Depress and hold the
spindle lock button while installing, changing, or
removing the blade.
Rotating lower blade guard
The rotating lower blade guard (6) provides
protection from both sides of the blade. It retracts
over the upper blade guard (4) as the saw is
lowered into the workpiece.

2
AIR6V 01 AIR6V 01 AIR6V 01 AIR6V 01
SCMS254SB 10
OPERATION
Turning on and off
1. To turn on the saw, press the lock backward 1
and squeeze the trigger switch 2.
2. Release lock button and trigger switch to shut
off.
Dust extraction
1. Fit the dust bag (9) to the dust extraction port.
2. A vacuum dust extraction device can be
connected to the dust extraction port. Use a
suitable vacuum adaptor if necessary. The dust
extraction port has an internal diameter of 40
mm.
Setting the table square with the blade
1. Make sure that the electrical plug is removed
from the power point.
2. Push the saw arm (1) down to its lowest
position and engage the release knob (2) to hold
the saw arm in the transport position.
3. Loosen the mitre locks (18) and lifting up the
mitre latch(19) .
4. Rotate the table (14) until the pointer is
positioned at 0°.
5. Release mitre latch(19) and tighten the mitre
locks (18).
6. Loosen the bevel lock (10) and set the saw
arm (1) at 0°bevel (the blade at 90°to the mitre
table). Tighten the bevel lock (10).
7. Place a set square against the table (14) and
the flat part of the blade.
8. Rotate the blade by hand and check the blade-
to-table alignment at several points.
9. The edge of the set square and the saw blade
should be parallel.
10. If the saw blade angles away from the set
square, adjust as follows.
11. Use an 10 mm wrench or adjustable wrench to
loosen the lock nut securing the 0° bevel
adjustment screw (27). Also, loosen the bevel lock
(10).
12. Adjust the 0° bevel adjustment screw (27)
using a 4 mm hex key to bring the saw blade into
alignment with the square.
13. Loosen the Phillips head screw holding the
pointer of the bevel scale (11) and adjust the
position of the pointer so that it accurately
indicates zero on the scale. Retighten the screw.
14. Retighten the bevel lock (10) and the lock nut
securing the 0° bevel adjustment screw (27).
Setting the fence square with the table
1. Make sure that the electrical plug is removed
from the power point.
2. Push the saw arm (1) down to its lowest
position and engage the release knob (2) to hold
the saw arm in the transport position.
3. Loosen the mitre locks (18) and lifting up the
mitre latch (19).
4. Rotate the table (14) until the pointer is
positioned at 0°.
5. Release mitre latch (19) and tighten the mitre
locks (18).
6. Using a 5 mm hex key, loosen the two screws
securing the fence (12) to the base.
7. Place a square against the fence (12)and
alongside the blade.
8. Adjust the fence (12) until it is square with the
blade.

AIR6V 01 AIR6V 01 AIR6V 01 AIR6V 01
SCMS254SB 11
OPERATION
9. Tighten the screws securing the fence (12).
10. Loosen the Phillips head screw holding the
pointer of the mitre scale (15) and adjust it so
that it accurately indicates the zero position on
the mitre scale.
11. Retighten the screw securing the mitre scale
pointer.
Changing a blade
1. Make sure that the electrical plug is removed
from the power point.
2. Push down on the operating handle (3) and
pull the release knob (2) to disengage the saw
arm (1).
3. Raise the saw arm (1) to its highest position.
4. Loosen the cover plate screw about 2 turns
with a Phillips screwdriver. Do not remove this
screw from the tool.
5. Pull the rotating blade guard (6) down. When
the rotating blade guard (6) is positioned over
the upper fixed blade guard (4) it is possible to
access the blade bolt.
6. Lift and hold up the lower blade guard (6) to
expose the threaded blade bolt.
7. Hold the rotating guard (6) up and press the
spindle lock button (20). Rotate the blade until
the spindle locks.
8. Use the 6 mm hex key provided to loosen and
remove the blade bolt. (Loosen in a clockwise
direction as the blade screw has a left hand
thread).
9. Remove the flat washer, outer blade washer
and the blade.
10. Wipe a drop of oil onto the inner blade
washer and the outer blade washer where they
contact the blade.
11. Fit the new blade onto the spindle taking care
that the inner blade washer sits behind the blade.
12. Replace the outer blade washer.
13. Depress the spindle lock button (20) and
replace the flat washer and blade bolt.
14. Use the 6 mm hex key to tighten the blade bolt
securely (tighten in an anti-clockwise direction).
15. Lower the blade guard, hold the rotating lower
blade guard (6) and blade bolt cover (8) in position
and tighten the fixing screw to secure the blade
bolt cover in position.
16. Check that the blade guard operates correctly
and covers the blade as the saw arm is lowered.
17. Connect the saw to the power supply and run
the blade to make certain that it is operating
correctly.
Cross cut
If possible, always use a clamping device such as a
‘G" clamp to secure your workpiece.
When cutting your workpiece, keep your hands
well away from the blade area.
Do not remove a cut-off piece on the right-hand
side of the blade using your left hand.
A crosscut is made by cutting across the grain of
the workpiece. A 90°crosscut is made with the
mitre table set at 0°. Mitre crosscuts are made
with the table set at some angle other than zero.
1. Pull on the release knob (2) and lift the saw arm
(1) to its full height.
2. Loosen the mitre locks (18) and lifting up the
mitre latch(19) .
3. Rotate the mitre table (14) until the pointer
aligns with the desired angle.
4. Release mitre latch(19) and retighten the mitre
locks (18).

AIR6V 01 AIR6V 01 AIR6V 01 AIR6V 01
SCMS254SB 12
OPERATION
5. Place the workpiece flat on the table with one
edge securely against the fence (12). If the board
is warped, place the convex side against the
fence (12). If the concave side is placed against
the fence, the board could break and jam the
blade.
6. When cutting long pieces of timber, support
the opposite end of the timber with side support
bars, a roller stand or a work surface that is level
with the saw table.
7. Before turning on the saw, perform a dry run
of the
cutting operation to check that there are no
problems such as a clamp interfering with the
cutting action.
8. Hold the operating handle (3) firmly and
squeeze the switch trigger (17). Allow the blade
to reach maximum speed and slowly lower the
blade into and through the workpiece.
9. Release the switch trigger (17) and allow the
saw blade to stop rotating before raising the
blade out of the workpiece. Wait until the blade
stops before removing the workpiece.
Bevel cut
If possible, always use a clamping device such as
a ‘G" clamp to secure your workpiece.
When cutting your workpiece, keep your hands
well away from the blade area.
Do not remove a cut-off piece on the right-hand
side of the blade using your left hand.
A bevel cut is made by cutting across the grain of
the workpiece with the blade angled to the
fence and mitre table. The mitre table is set at
the zero degree position and the blade set at an
angle between 0°and 45°.
1. Pull on the release knob (2) and lift the saw arm
to its full height.
2. Loosen the mitre locks (18) and lifting up the
mitre latch (19).
3. Rotate the mitre table (14) until the pointer
aligns with zero on the mitre scale (15).
4. Release mitre latch (19) and retighten the mitre
locks (18).
5. Loosen the bevel lock (10) and move the saw
arm (1) to the left to the desired bevel angle
(between 0°and 45°). Tighten the bevel lock (10).
6. Place the workpiece flat on the table with one
edge securely against the fence (12). If the board is
warped, place the convex side against the fence. If
the concave side is placed against the fence, the
board could break and jam the blade.
7. When cutting long pieces of timber, support the
opposite end of the timber with side support bars,
a roller stand or a work surface that is level with
the saw table.
8. Before turning on the saw, perform a dry run of
the cutting operation to check that there are no
problems such as a clamp interfering with the
cutting action.
9. Hold the operating handle (3) firmly and
squeeze the switch trigger (17). Allow the blade to
reach maximum speed and slowly lower the blade
into and through the workpiece.
10. Release the switch trigger (17) and allow the
saw blade to stop rotating before raising the blade
out of the workpiece. Wait until the blade stops
before removing the workpiece.

AIR6V 01 AIR6V 01 AIR6V 01 AIR6V 01
SCMS254SB 13
OPERATION
Compound mitre cut
If possible, always use a clamping device such as
a ‘G" clamp to secure your workpiece.
When cutting your workpiece, keep your hands
well away from the blade area.
Do not remove a cut-off piece on the right-hand
side of the blade using your left hand.
A compound mitre cut involves using a mitre
angle and a bevel angle at the same time. It is
used in making picture frames, to cut mouldings,
making boxes with sloping sides and for roof
framing. Always make a test cut on a piece of
scrap wood before cutting into the good
material.
1. Pull on the release knob (2) and lift the saw
arm to its full height.
2. Loosen the mitre locks (18) and lifting up the
mitre latch (19) ..
3. Rotate the mitre table (14) until the pointer
aligns with the desired angle on the mitre scale
(15).
4. Release mitre latch (19) and retighten the
mitre locks (18).
5. Loosen the bevel lock (10) and move the saw
arm (1) to the left to the desired bevel angle
(between 0°and 45°). Tighten the bevel lock (10).
6. Place the workpiece flat on the table with one
edge securely against the fence (12). If the board
is warped, place the convex side against the
fence. If the concave side is placed against the
fence, the board could break and jam the blade.
7. When cutting long pieces of timber, support
the opposite end of the timber with the side
support bars, a roller stand or a work surface
that is level with the saw table.
8. Before turning on the saw, perform a dry run of
the cutting operation to check that there are no
problems such as a clamp interfering with the
cutting action.
9. Hold the operating handle (3) and firmly and
squeeze the switch trigger (17). Allow the blade to
reach maximum speed and slowly lower the blade
into and through the workpiece.
10. Release the switch trigger (17) and allow the
saw blade to stop rotating before raising the blade
out of the workpiece. Wait until the blade stops
before removing the workpiece.
To Slide Cut Wide Boards
To slide cut wide boards, Unlock the slide lock
knob (22) and allow the cutting head assembly to
move freely.
Setting cutting depth
The depth of cut can be preset for even and
repetitive shallow cuts.
1. Slide the stop plate (24) towards the front
position.
2. Loosen the lock nut (25) to free the lock knob
(23), turn the stop knob until the cutting head
down until the teeth of the blade are at the
desired depth.
3. While holding the upper arm in that position,
tighten the lock nut to secured the stop knob.
4. Recheck the blade depth by moving the cutting
head front to back through the full motion of
typical cut along the control arm.

AIR6V 01 AIR6V 01 AIR6V 01 AIR6V 01
SCMS254SB 14
MAINTENANCE AND SERVICE
Maintenance and Service
Maintenance and Cleaning
Before any work on the dust collector itself, pull
the mains plug.
For safe and proper working, always keep the
dust collector and ventilation slots clean.
If the replacement of the supply cord is
necessary, this has to be done by an authorized
service agent in order to avoid a safety hazard.
If the dust collector should fail despite the care
taken in manufacturing and testing procedures,
repair should be carried out by an authorised
service centre.
1. Store the tool, instruction manual and
accessories in a secure place. In this way you will
always have all the information and parts on
hand.
2. Keep the tool’s air vents unclogged and clean
at all times.
3. Remove dust and dirt regularly. Cleaning is
best done with compressed air or a rag.
4. Never use caustic agents to clean plastic
parts.
General inspection
1. Regularly check that all the fixing screws are
tight. They may vibrate loose over time.
SERVICE
1.Tool service must be performed only by qualified
repair personnel. Service or maintenance performed by
unqualified personnel could result in a risk of injury.
2.When servicing a tool, use only identical replacement
parts. Follow instructions in the Maintenance section
of this manual. Use of unauthorized parts or failure to
follow Maintenance Instructions may create a risk of
electric shock or injury.

AIR6V 01 AIR6V 01 AIR6V 01 AIR6V 01
SCMS254SB 15
LUMBERJACK GUARANTEE
1. Guarantee
1.1 Lumberjack guarantees that for a period of
12 months from the date of purchase the
components of qualifying products (see clauses
1.2.1 to 1.2.8) will be free from defects caused
by faulty construction or manufacture.
1.2. During this period Lumberjack, will repair or
replace free of charge any parts which are
proved to be faulty in accordance with
paragraph 1.1 providing that:
1.2.1 You follow the claims procedure set out in
clause 2
1.2.2 Lumberjack and its authorised dealers are
given reasonable opportunity after receiving
notice of the claim to examine the product
1.2.3 If asked to do so by Lumberjack or its
Authorised dealer, you return the product at
your own cost to Lumberjack’s or supplying
Authorised Dealer’s premises, for the
examination to take place clearly stating the
Returns Material Authorisation number given by
Lumberjack or an Authorised Dealer.
1.2.4 The fault in question is not caused by
industrial use, accidental damage, fair wear and
tear, wilful damage, neglect, incorrect electrical
connection, misuse, or alteration or repair of the
product without approval.
1.2.5 The product has been used in a domestic
environment only
1.2.6 The fault does not relate to consumable
items such as blades, bearings, drive belts, or
other wearing parts which can reasonably be
expected to wear at different rates depending
on usage.
1.2.7 The product has not been used for hire
purposes.
1.2.8 The product has been purchased by you as
the guarantee is not transferable from a private
sale.
2. Claims Procedure
2.1 In the first instance please contact the
Authorised Dealer who supplied the product to
you. In our experience many initial problems with
machines that are thought to be faulty due to
faulty parts are actually solved by correct setting
up or adjustment of the machine. A good
Authorised Dealer should be able to resolve the
majority of these issues much more quickly than
processing a claim under the guarantee. If a
return is requested by the Authorised Dealer or
Lumberjack, you will be provided with a Returns
Material Authorisation number which must be
clearly stated on the returned package, and any
accompanying correspondence. Failure to provide
a Returns Material Authorisation number may
result in item being refused delivery at Authorised
Dealer.
2.2 Any issues with the product resulting in a
potential claim under the guarantee must be
reported to the Authorised Dealer from which it
was purchased within 48 hours of Receipt.
2.3 If the Authorised Dealer who supplied the
product to you has been unable to satisfy your
query, any claims made under this Guarantee
should be made directly to Lumberjack. The Claim
itself should be made in a letter setting out the
date and place of purchase, giving a brief
explanation of the problem which has led to the
claim. This letter should be then sent with proof

AIR6V 01 AIR6V 01 AIR6V 01 AIR6V 01
SCMS254SB 16
LUMBERJACK GUARANTEE
of purchase to Lumberjack. If you include a
contact number with this it will speed your claim
up.
2.4 Please note that it is essential that the letter
of claim reaches Lumberjack on the last day of
this Guarantee at the latest. Late claims will not
be considered.
3. Limitation of Liability
3.1 We only supply products for domestic and
private use. You agree not to use the product for
any commercial, business or resale purposes and
we have no liability to you for any loss of profit,
loss of business, business interruption or loss of
business opportunity.
3.2 This Guarantee does not confer any rights
other than these expressly set out above and
does not cover any claims for consequential loss
or damage. This Guarantee is offered as an extra
benefit and does not affect your statutory rights
as a consumer.
4. Notice
This Guarantee applies to all product purchased
from an Authorised Dealer of Lumberjack within
the United Kingdom. Terms of Guarantee may
vary in other countries.

SCMS254SB 17
CE DECLARATION OF CONFORMITY
TOOLSAVE
Unit C, Manders Ind. Est.,
Old Heath Road, Wolverhampton,
WV1 2RP.
Tel: [phone]
Declares that the MITRE SAW(SCMS254SB)
Is in compliance with the regulations included in the Directives:2006/42/EC
EC DECLARATION OF CONFORMITY
Certificate for EC-type examination delivered by Intertek Testing Services Shanghai Building
No.86,1198 Qinzhou Road(North),Shanghai 200233, China (Report No.:200100937SHA-V1)
Person who declares: Bill Evans
01.07.2020
The Director

AIR6V 01AIR6V 01AIR6V 01
SCMS254SB 18
No. Description No. Description
1 Screw 28 Inner Flange
2 Washer 29 Gear Box Cover
3 Tapping Screw 30 Bearing
4 Upper Handle 31 Screw
5 Dust Bag 32 Spindle Lock Stop Plate
6 Dust Port 33 Brand Label
7 Locknut 34 Gear
8 Screw 35 Shaft Circlip
9 Switch Trigger Group 36 Bearing
9-1 Switch Trigger 37 Spindle Lock Pin
9-2 Switch Trigger Key 38 Circlip
9-3 Spring 39 Spindle Lock Pin Spring
9-4 Pin 40 Dust Chimney
10 Screw 41 Fix Guard
11 Switch Trigger Spring 42 Bearing
12 Switch 43 Knurled Nut
13 Terminal 44 Depth Adjuster
14 Cord Press Plate 45 Hex Screw
15 Spring Washer 46 Nut
16 Screw 47 Fan Baffle
17 Spring Washer 48 Set Screw
18 Locknut 49 Armature
19 Socket Screws 50 Tapping Screw
20 Cross Head Screws 51 Stator
21 Fence Extension Block 52 Bearing Sleeve
22 Lower Handle 53 Rating Label
23 Inner Wire Sleeve 54 Carbon Brush
24 Cable Sheath 55 Brush Holder
25 Power Cord And Plug 56 Carbon Brush Spring
26 Spindle 57 Tapping Screw
27 Flat Key 58 End Cap
Parts List
