LumenTruss Luxline 1450 Series Assembly instructions

LUXLINE
IP65 120VAC Direct Line LED Strip
1450 Series DIY Kit
B3056-LUXLINE120-72-16mm-13.2W-xxxxK
INSTALLATION SHEET
DEC2018-1
Warning: Risk of Fire and Shock

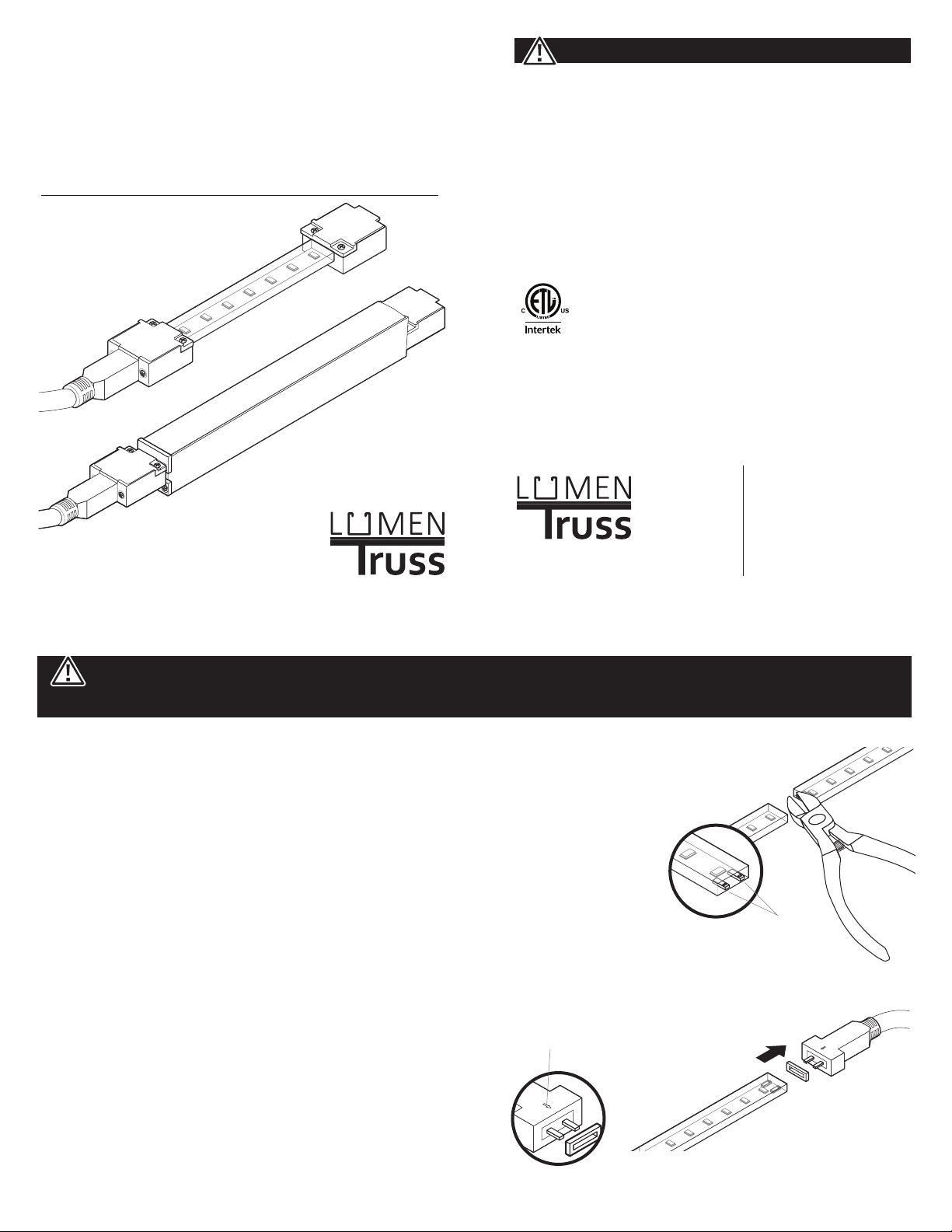

1. Cut the strip tape to the desired length.
Can be cut every foot. Make sure that
the power input side of the strip
contains terminal pins.
Terminal Pins
a) READ AND FOLLOW ALL SAFETY INSTRUCTIONS
b) Do not cover this product as the covering may cause the exible light to
overheat and melt or ignite.
c) Do not operate with the exible light tightly coiled. To prevent overheating
do not allow contact between exible light and parts of light with cables.
Maintain at least 12 mm spacing between exible light and parts of light
with cables.
d) Do not puncture, cut, shorten, or splice the exible lighting.
e) Do not route the cord or exible lighting through walls, doors, windows or
any like part of the building structure.
f) Do not use if there is any damage to the light or cord insulation. Inspect
periodically.
g) Do not submerge exible light in liquids, or use the product in the vicinity
of standing water or other liquids.
h) Secure this exible light using only the clips provided. Do not secure this
product or its cord with staples, nails, or like means that may damage the
insulation or permanently attach to the building structure.
i) Do not subject exible lighting to continuous exing.
j) DO NOT EXCEED THE MAXIMUM NUMBER OF EXTENSIONS OR
FLEXIBLE LIGHT LENGTHS PERMITTED BY THE MANUFACTURER.
k) Do not install in cabinets, tanks or closed enclosures of any kind.
l) This product has a polarized plug (one blade is wider than the other) as a
feature to reduce the risk of electric shock. This plug will t in a polarized
outlet only one way. If the plug does not t fully in the outlet, reverse it.
SAVE THESE INSTRUCTIONS
When using outdoor use portable lighting products, basic safety precautions should
always be followed to reduce the risk of re, electric shock, and personal injury,
including the following:
a) Ground Fault Circuit Interrupter (GFCI) protection should be included on the
circuits or electrical outlet to be used for the outdoor use exible lighting
product. Electrical outlets with built-in GFCI protection are available on the
market for this measure of safety.
b) Use only outdoor extension cords, such as SW, SOW, STW, STOW, SJW, SJOW,
SJTW, or SJTOW type. This designation is marked on the wire of the extension
cord.
c) Caution: Do not install closer than 3 meters from water surface.
d) Use only extension segments recommended by the manufacturer of this system.
2. Slide the silicone gasket onto plug pins. Insert
the plug carefully into the terminal pins
arrow side up.
Warning
9221, rue Edison
Montréal (Québec), H1J 1T4
1 514 903-5863
1 855 384-3384
[email protected]
www.lumentruss.com
Canadian leader in LED lighting
Le leader Canadien en éclairage DEL
MAKE SURE THAT THE PRODUCT IS DISCONNECTED FROM ANY POWER SOURCE BEFORE AND THROUGHOUT CUSTOMIZATION AND INSTALLATION PROCESS.
5003178
CONFORMS TO UL STD. 2388
CERTIFIED TO CSA C22.2 NO.37

5. Secure the upper cover of the end cap with 2 longer screws.
3. Insert the plug into the bottom part of the end cap.
Note: position before installing screws
4. Install the upper cover of the end cap.
9. If not already installed, push the PVC clips inside
the 1450 prole (we recommend using 1 PVC
clip every 6” for better results).
10. Align the LED strip with the 1450 prole
and clip it into place.
11. Slide the lens into place.
12. Screw on end caps.
7. Push the silicone gasket into the stub. Insert the end of the
strip into the stub completely.
MAKE SURE THAT THE PRODUCT IS DISCONNECTED FROM ANY POWER SOURCE BEFORE AND THROUGHOUT CUSTOMIZATION AND INSTALLATION PROCESS.
Warning: Risk of electric shock
6. Secure plug assembly to LED tape.
Note: position before installing screws
8. Insert the stub into the bottom part of the end cap.
Repeat steps 4 through 6.
8a
8b
