LUNATONE DALI Daylight User manual

DALI Daylight Manual © 2018, Lunatone Industrielle Elektronik Gmb
DALI Daylight
Manual
control module
DALI Bluetooth interface for control
and partial configuration of DALI
systems with mobile devices
Art. Nr. 89453863 (DALI Daylight)

DALI Daylight Manual © 2018, Lunatone Industrielle Elektronik Gmb
DALI Daylight Manual Control Module
Content
1. General ....................................................................................................................................... 3
1.1. Function ............................................................................................................................ 3
1.2. Configuration .................................................................................................................... 3
2. Configuration with DALI Cockpit ................................................................................................. 4
2.1. General settings ................................................................................................................ 5
2.2. Device settings .................................................................................................................. 5
2.2.1. ”Luminaires” settings ........................................................................................ 6
2.2.2. ”DALI CDCs" settings .......................................................................................... 7
2.2.3. ”DALI RTC Timers" settings ................................................................................ 7
2.2.4. ”Motion Detector” DALI CS settings .................................................................. 8
3. Operation with mobile device .................................................................................................... 9
3.1. Installation and connection .............................................................................................. 9
3.2. Manual Control ............................................................................................................... 11
3.3. Color Auto ....................................................................................................................... 12
3.4. Time Auto ....................................................................................................................... 12
3.5. Motion Auto ................................................................................................................... 13
3.6. Settings ........................................................................................................................... 14
3.7. Additional notes ............................................................................................................. 15
4. Installation ................................................................................................................................ 16

DALI Daylight Manual [3] © 2018, Lunatone Industrielle Elektronik Gmb
1. General
1.1. Function
The DALI-Daylight module is an interface module between mobile device (iOS/Android - Bluetooth
low energy capable) and a DALI lighting system. An app is available for iOS and Android.
The addressing, grouping and further functions of the control units and their effective ranges can
be set with the software tool DALI-Cockpit.
Device parameters of the connected DALI System (daylight curve, timer, schedules, brightness,
color temperature, etc.) can be set with the app. Following devices are supported:
•DALI CDC (Circadian daily schedule)
•DALI RTC (Timer Module)
•DALI CS (light and presence sensor)
•DALI LS (light sensor)
Only one mobile device can be connected to the interface module at any time.
1.2. Configuration
To integrate the DALI-Daylight module into a DALI system and then operate it, a certain
configuration procedure is recommended. The DALI Cockpit software is used to address and
configure the DALI system.
a. Addressing of the entire DALI system including the DALI Daylight module.
b. Configuration of the DALI system.
c. Configuration of the DALI-Daylight module -> see chapter 2. Configuration with DALI Cockpit
•Assign devices that can be set via the DALI-Daylight module and which luminaires / lighting
groups can be controlled with it.
•The automatic light control can be activated and deactivated (DALI CS) via the DALI cockpit
as well as via the DALI Daylight app.
•The CDCs, RTCs and CS can be activated and deactivated via the DALI cockpit as well as in
the app.
d. Operation and configuration via the app -> see chapter 3. Operation with mobile device

DALI Daylight Manual [4] © 2018, Lunatone Industrielle Elektronik Gmb
2. Configuration with DALI Cockpit
DALI Cockpit is the DALI configuration tool from Lunatone, it is available for free download from
the Lunatone website (http://www.lunatone.com/en/product/dali-cockpit/). Make sure you always
use the latest version to ensure all devices are recognised and all features are supported.
The Software can be used to address and configure DALI operating devices and Lunatone control
units. All components found on the DALI bus are listed in the component tree after addressing
(figure 1).
By clicking on the component, you will be taken to the device’s configuration page.
The marked control units (yellow: figure 1) are supported by the DALI Daylight module.
Furthermore: Tuneable White DT8 dimmers (red: figure 1) are required for color temperature
control.
figure 1 component tree

DALI Daylight Manual [5] © 2018, Lunatone Industrielle Elektronik Gmb
2.1. General settings
The configuration page of the DALI Daylight module is divided into tabs, one for each
functionality.
The header of the page contains general information about the device (manufacturer, article
name, article number, serial number and firmware version).
“Enable PIN” Activate the access protection with a 4-digit pin code. If this is activated, you will be
asked to enter this PIN the first time you use the app on a mobile device.
“Enable Proximity” function has to be enabled in the DALI Daylight module (DALI cockpit
settings) as well as in the App on a mobile device: in the event the mobile device enters the
Bluetooth reception area, the light can be automatically switched on and off after a certain hold
time.
Note The proximity feature is only supported on mobile devices with iOS operating system.
2.2. Device settings
In each tab (Luminaries, DALI CDCs, DALI RTC Timers, Motion Detectors) 5 devices can be added,
these devices can be operated/partially configured in the app. The numbers 1-5 correlate with the
app.
Each tab also has a Sync button, which will read the settings from the specified devices and display
them in the app. If no sync is performed, default values will be displayed the first time the app is
opened.

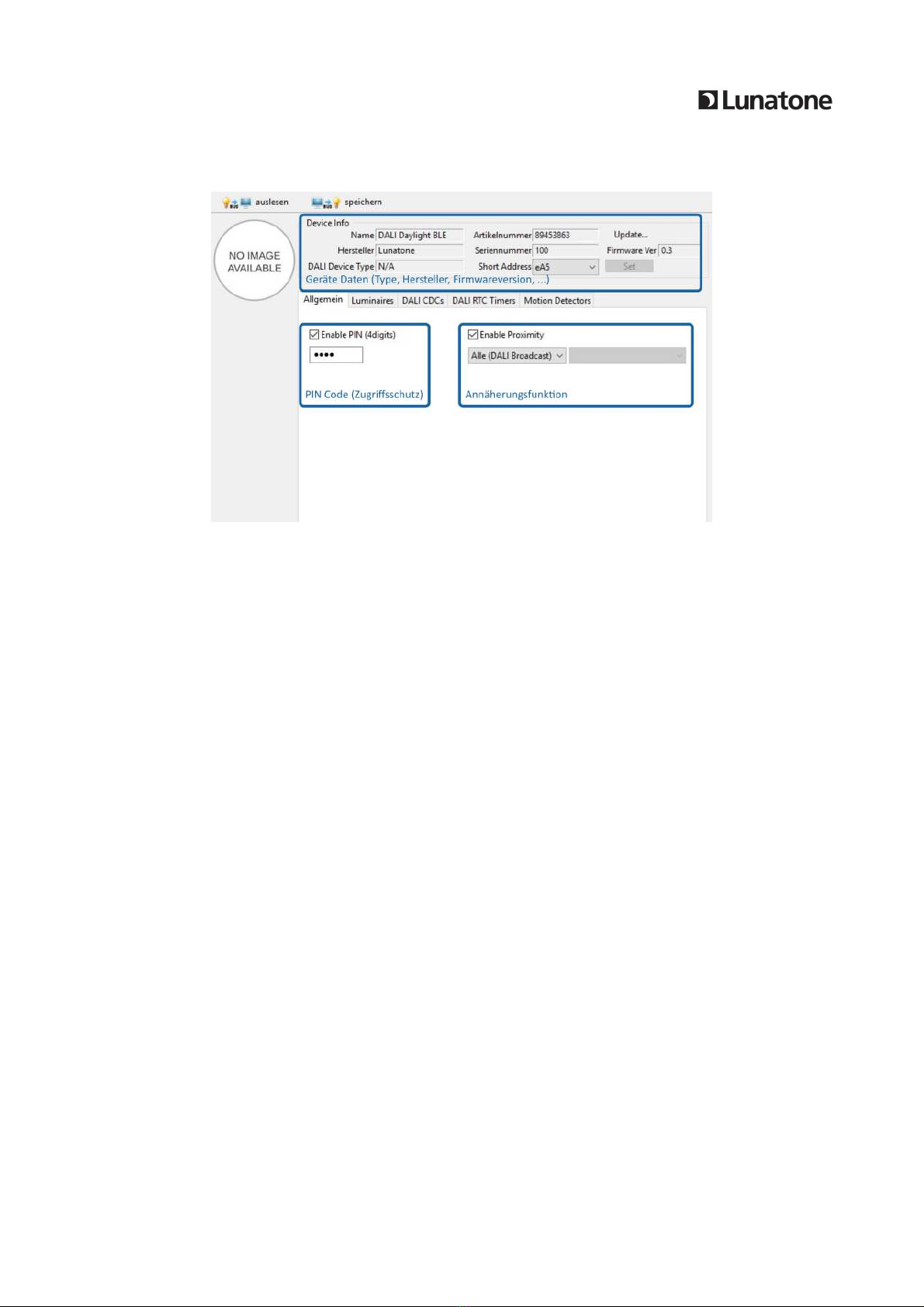

figure 2 Configuration tab “General"

DALI Daylight Manual [6] © 2018, Lunatone Industrielle Elektronik Gmb
If device settings are changed via DALI Cockpit (for example DALI CDC settings), a new sync for the
DALI Daylight module may be necessary to refresh the device status in the app.
2.2.1. ”Luminaires” settings
In the tab “Luminaires" you can choose between two control options:
•"Manual Control Only": This option is suited for manual control of brightness and color
temperature, without automatic control. A destination address is set for the DALI Daylight
module as an effective range that can be controlled via the app.
•"Sensor Control": If this mode is selected, DALI LS / CS
1
can be selected for automatic light
control (marked yellow in figure 3). The effective range of the selected sensor is
automatically taken over in the upper dropdown (marked red in figure 3). In this
dropdown you may select which of the 4 possible target addresses of the DALI CS can be
manually controlled with the app. If only one target address has been selected on the DALI
CS/LS setting page, only this single address will be shown in the dropdown.
The app can be used to activate and deactivate the automatic light control of the sensor.
The status is displayed on the right.
1
DALI CS has to be operated in one of the two master modes:
"Motion-controlled and manually activated constant light control" or "constant light control”
figure 3 Configuration tab “Luminaires"

DALI Daylight Manual [7] © 2018, Lunatone Industrielle Elektronik Gmb
2.2.2. ”DALI CDCs" settings
In this tab DALI CDC modules can be added to the DALI Daylight app. The status display indicates
whether the respective device is activated or deactivated in the app (see chapter 3.3).
Please note that only devices connected to the DALI installation, hence displayed in the DALI
Cockpit component tree, can be selected.
2.2.3. ”DALI RTC Timers" settings
In this tab DALI RTC Timer modules can be added to the DALI Daylight app. The status display
indicates whether the respective device is activated or deactivated in the app (see chapter 3.4).
figure 4 Configuration tab “CDCs"
figure 5 Configuration tab ”DALI RTC Timers”

DALI Daylight Manual [8] © 2018, Lunatone Industrielle Elektronik Gmb
Please note that only devices connected to the DALI installation, hence displayed in the DALI
Cockpit component tree, can be selected.
2.2.4. ”Motion Detector” DALI CS settings
In this tab DALI CS modules can be added to the DALI Daylight app. The status display indicates
whether the respective device is activated or deactivated in the app (see chapter 3.5).
Please note that DALI CS can only be added if operated in one of the master modes supporting
motion detection -> to change DALI CS master mode go to DALI CS product page in DALI Cockpit
Please note that only devices connected to the DALI installation, hence displayed in the DALI
Cockpit component tree, can be selected
figure 6 Configuration tab ”Motion Detector”

DALI Daylight Manual [9] © 2018, Lunatone Industrielle Elektronik Gmb
3. Operation with mobile device
3.1. Installation and connection
The "DALI Daylight" app for mobile devices can be downloaded via:
AppStore: https://itunes.apple.com/us/app/dalidaylight/id1097883849?mt=8
Google Play: https://play.google.com/store/apps/details?id=com.lunatone.dalidaylight
After the app has been installed and the DALI Daylight module has been connected to the DALI
circuit (installation see chapter 4), the app will be able to connect to the module.
In the "App overview", all DALI Daylight modules found are displayed with the corresponding
device name (default setting: serial number) (see figure 7).
If one of the existing modules is selected from the "App overview", the user interface shown in
Figure 8 appears. The DALI circuit can be controlled via the functions stored in the module. In
addition, it can also be used to adjust certain settings.
Note Destination addresses or effective ranges cannot be changed via the Daylight app; these
must be set via the DALI Cockpit (the module’s settings page).

DALI Daylight Manual [10] © 2018, Lunatone Industrielle Elektronik Gmb
a) The magnifying glass symbol (left top) is used to
search for DALI Daylight modules within range.
The devices found are displayed in the list
below.
b) The menu symbol (right top) gives access to the
demo mode and app information.
c) List of Luminaries: For each device name, serial
number and reception quality will be displayed.
To connect to a DALI Daylight module click on the
corresponding device, you will be forwarded to the
control page “manual”, as shown in figure 8.
In the bottom area you can switch between the control
pages.
figure 7 "App overview" found modules
figure 8 control page “Manual"

DALI Daylight Manual [11] © 2018, Lunatone Industrielle Elektronik Gmb
3.2. Manual Control
The control page “Manual" is used to control up to 5
lights or light groups that are set via the DALI Cockpit.
Only devices specified with DALI Cockpit are displayed
in this list.
Control Options
a) ON / OFF (ON -> switches to the value set on the
slider)
b) Toggle between “manual control” and
“automatic light control”:
toggle in position b/1: manual control on ->
automatic light control is turned off
clicking “save”-> automatic light control will be
activated and the currently measured light value
will be used as reference value to set DALI CS /
LS.
toggle in position b/2: automatic light control is
activated (without saving light values).
c) Slider to manually adjust the brightness
d) Slider to manually adjust the color temperature
Note automatic color curves, created with the
“Color Auto" function (see next chapter), will
not be influenced.
Please note, if “automatic light control” is turned on
and the brightness control (slider c)
is used the “automatic light control” will be
automatically turned off to enable manual control. If
you want to switch from the manual control back to
the automatic light control, set the toggle to position
b/2 and the brightness control (c) jumps back to the
previously stored value.
figure 9 control page “Manual"

DALI Daylight Manual [12] © 2018, Lunatone Industrielle Elektronik Gmb
3.3. Color Auto
The control page "Color Auto" is used to control the
color curve of up to 5 DALI CDC modules. The color
gradient is defined in the app by 3 parameters each
with color temperature and the associated time.
Using these 3 parameters a daylight curve is being
calculated and executed accordingly. After the color
temperature has run through to the “end time”, the
final color temperature is maintained until the “start
time” has been reached again.
Using the toggle switch on the right top of each section,
the color curves can be activated and deactivated.
Note
By changing the color curve in the Daylight app the
parameters in the respective CDC are adjusted and
existing color curves are overwritten.
3.4. Time Auto
The control page "Time Auto"is used to control up to 5
DALI RTC modules.
For each of the DALI RTC modules, two intervals can be
set for each of the 7 days of the week.
By clicking on the day (figure 10) you can activate or
deactivate the intervals, set start time, end time and
brightness value. At “start time” the defined brightness
is automatically set and held until the“end time” (DALI
command: DAP 0%).
figure 10 control page “Color Auto"
figure 11 control page “Time Auto"

DALI Daylight Manual [13] © 2018, Lunatone Industrielle Elektronik Gmb
Note The entries added via the app overwrite existing
entries in the DALI RTC module. The app occupies the
28 entries as follows:
1-4: Su
5-8: Mo
9-12: Tu
13-16: We
17-20: Th
21-24: Fr
25-28: Sa
3.5. Motion Auto
The control page "Motion Auto” is used to control up to
5 DALI CS modules.
The individual sensors can be activated / deactivated, a
light threshold can be set and also the switch-off
behavior can be configured.
Motion detection process
The motion detection process follows these
parameters:
States:
1: Fade In Time
P: Presence detected
2: old On Time -> set with “Turn on for …min” + slider
for brightness level
3: Fade Time 
4: old on Time (2nd Light Level) -> set with “before
turning off dim for …min” + slider for brightness level
5: Fade Out Time
figure 12 control page “Time Auto” -
“Monday”
figure 13 control page “Motion Auto"
figure 14 Motion detection process

DALI Daylight Manual [14] © 2018, Lunatone Industrielle Elektronik Gmb
In addition to the motion detection area (DALI CS), the
DALI Daylight module offers the option to use
Bluetooth to detect movement. Please note, the
Bluetooth option does not support “Ambient light
threshold”.
When “Motion Automatic” is triggered by approach,
the sequence is run through, as displayed in figure 14.
Manual control stops the process.
Note
This feature is only supported on mobile devices with
iOS operating system.
3.6. Settings
On the page "Settings" the serial number can be viewed
and the display name for the device can be changed.
figure 15 “Motion Automatic” - Bluetooth
figure 16 page “Settings”

DALI Daylight Manual [15] © 2018, Lunatone Industrielle Elektronik Gmb
3.7. Additional notes
This Symbol (figure 17) indicates that the Bluetooth
connection is being established or the connection has
been interrupted.
If a PIN has been assigned via the DALI Cockpit, the PIN
has to be entered when clicking on the corresponding
DALI Daylight module in the app (only first time).
figure 17 Bluetooth connection in progress
figure 18 Enter PIN

DALI Daylight Manual [16] © 2018, Lunatone Industrielle Elektronik Gmb
4. Installation
The DALI Daylight module is connected directly to the DALI line and supplied by the DALI line. The
connection to the DALI line can be made without regard to the polarity.
The DALI Daylight module is designed to fit a flush-mounted installation box.
For wiring, solid or fine wire with cross-section of 0.5mm2 to 1.5mm2 can be used.
The DALI Daylight module is multi-master capable, which means that several control modules can
be installed parallel in a DALI system.
The DALI Daylight module does not occupy any of the 64 DALI addresses, these are all available for
ballasts.
