The EcoSystem solution is designed to fulfill the needs of light
control in the 21st century. Specifically, EcoSystem revolutionizes
energy savings, flexibility, and maintenance in a way that changes
the workplace.
Designed for open office spaces and K-12/university classrooms,
EcoSystem easily integrates environment sensors, such as daylight
and occupancy sensors, with personal controls, such as wallstations
and infrared remotes. With up to 50% of energy use in offices
(60% of energy use in schools) going to lighting, the combined
effect of multiple environment sensors and personal controls
operating together brings unparalleled energy savings to spaces
that previously had none.
Beyond the energy savings, EcoSystem creates a more flexible
workspace. Composed of digital ballasts that have individual
addresses and communicate via control wires, EcoSystem ballasts
can be programmed, instead of wired, to work individually or as
a group. This eliminates the need for an area to be rewired when
changes take place, creating flexibility in a space that adjusts
to the shifting needs of a company.
Finally, EcoSystem reduces lighting system maintenance.
All of the environment sensors and personal controls connect
directly to any ballast, removing interfaces, power packs, and
control devices that on other systems require more parts,
programming and maintenance.
Annual electricity
use in office buildings1
44% Lighting
24% Office Equipment
8% Ventilation
14% Space Cooling
3% Space Heating
8% Other
1 Source: Energy Information Administration Office, Energy
Statistics from the U.S. Government, Commercial Buildings
Energy Consumption Survey.
02 |Lutron www.lutron.com/ecosystem Lutron World Headquarters: 1.610.282.3800
Lutron®|why EcoSystem™?

EcoSystem™Technical Guide
02 Why EcoSystem?
04 How to Design a System
Components
06 Ballasts/BMFs
08 Daylight Sensors
10 Occupancy Sensors
12 IR Receiver and Remote
14 Wallstations
15 Programmer
16 Bus Supply
System Information
18 Wiring Overview
20 Design Examples
24-29 Technical Information
Lutron |03
Technical Support: 1.800.523.9466 … 24 hours/7 days (US/CAN)
To Order: 1.888.LUTRON1 … 8 am – 8 pm/M-F ET (US/CAN)
Lutron®|table of contents

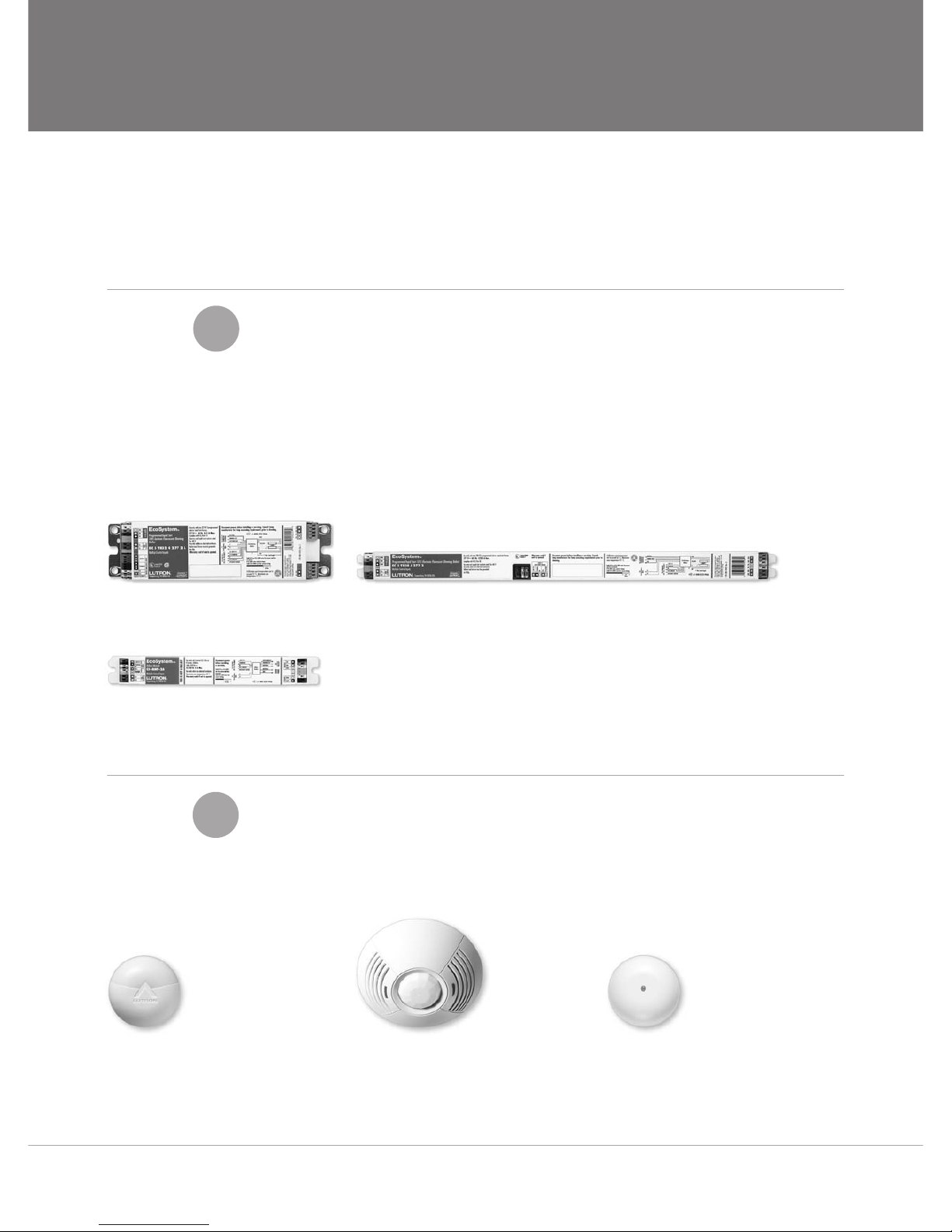

Here are the 4 steps to designing an EcoSystem:
Step Ballast Selection
A Determine number of fixtures that will be connected to EcoSystem.
Note: Do not consider control zones, since they will be programmed rather than wired.
B Classify the type of ballast in each fixture.
Note: Use a Ballast Module Fixture-mounted (BMF) in conjunction with a ballast for dimming
down to 1% or for lamp types where EcoSystem is not yet available. A BMF connected
to any Eco-10™or Hi-lume®ballast gives full EcoSystem functionality to that ballast.
Step Sensor/Receiver Selection
Determine what sensors should be connected to EcoSystem.
Note: EcoSystem ballasts are compatible only with EcoSystem daylight sensors.
1
2
EcoSystem T8 Digital Ballast
pg. 06
EcoSystem Ballast Module Fixture-mounted (BMF)
pg. 07
20VDC Occupancy Sensor
pg. 10
EcoSystem Daylight Sensor
with IR Receiver
pg. 08
EcoSystem IR Receiver
pg. 12
EcoSystem T5 Digital Ballast
pg. 06
04 |Lutron www.lutron.com/ecosystem Lutron World Headquarters: 1.610.282.3800
EcoSystem™|how to design a system

Step Control Selection
Determine what controls should be connected to EcoSystem.
Step Support Components
A Include 1 EcoSystem programmer for EcoSystem programming
B Include 1 bus supply for each room or area, up to a maximum of 64 ballasts
3
4
EcoSystem™ IR Receiver
and Remote for
Personal Control
pg. 12
EcoSystem 1-Button
Wallstation with
Raise/Lower
and IR Receiver
pg. 14
EcoSystem 4-Button
Wallstation with
Raise/Lower
and IR Receiver
pg. 14
EcoSystem Programmer
pg. 15
EcoSystem Bus Supply
pg. 16
Ballasts BMF Daylight
Sensors Occupancy
Sensors IR Receiver
and Remote Bus Supply
1 2 34
2
1Wallstations
3Programmer
4
Lutron |05
Technical Support: 1.800.523.9466 … 24 hours/7 days (US/CAN)
To Order: 1.888.LUTRON1 … 8 am – 8 pm/M-F ET (US/CAN)

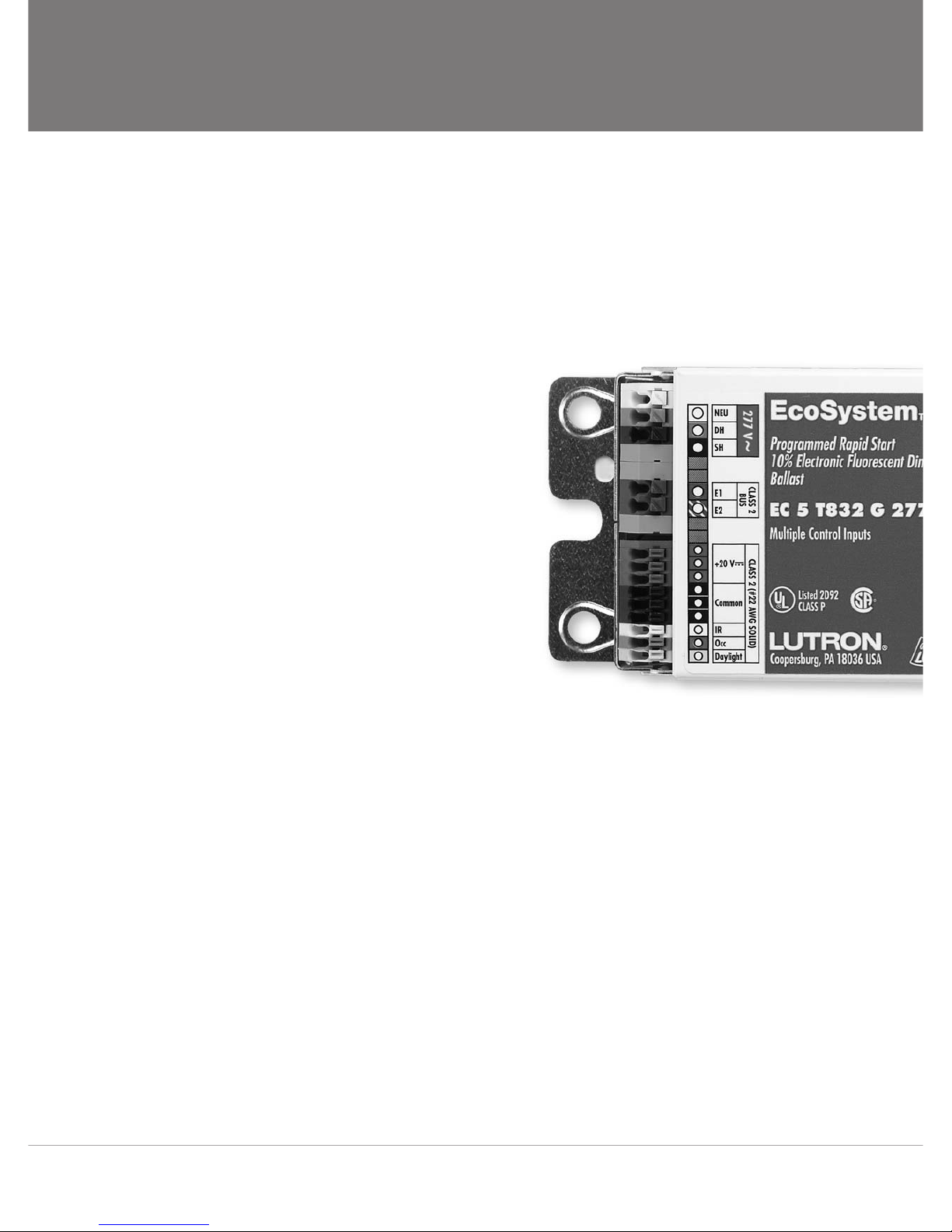

EcoSystem T8 Digital Ballast
EC 5 T832 J (120, 277) (1, 2)
T8 Linear & U-Bent 32W, 120 or 277V, 4' Lamp
EC 5 T832 G 277 (2, 3)
T8 Linear & U-Bent 32W, 277V, 4' Lamp
EcoSystem T5 Digital Ballast
EC 5 T514 J (120, 277) (1, 2) T5HE Linear 14W, 120 or 277V
EC 5 T521 J (120, 277) (1, 2) T5HE Linear 21W, 120 or 277V
EC 5 T528 J (120, 277) (1, 2) T5HE Linear 28W, 120 or 277V
EcoSystem T8 and T5 Digital Ballast
•Smooth and continuous dimming from 100% to 10%
•Provides power for and responds to one occupancy sensor, one daylight
sensor, and one personal control input (infrared receiver or wallstation)
•Communicates status and sensor inputs over the EcoSystem bus
•Lamp current crest factor: Less than 1.7
•Light output variation: Constant +/- 2% light output for line voltage
variations of +/- 10%
•Lamp life: Average lamp life meets or exceeds
lamp manufacturer ratings
•Total Harmonic Distortion (THD): model numbers with “J” have less
than 10% THD; model numbers with
“ G” have less than 20% THD
•Maximum inrush current: 3 Amps per ballast at 277V
•Ambient temperature operating range: 50 – 140ºF (10 – 60ºC)
•Terminal blocks on the ballast accept the following wire gauges:
- EcoSystem bus: #16 – #18 AWG (1.29 – 1.02mm) solid
- Power wiring: #16 – #18 AWG (1.29 – 1.02mm) solid
- Class 2 sensor wires: #22 AWG (0.635mm) solid
•Class P thermally protected
•Meets ANSI C82.11 high frequency ballast standard
•Meets FCC Part 18 non-consumer requirements for EMI/RFI emissions
•Meets ANSI C62.41 category A surge protection standards
up to and including 4kV
•Mounts using two screws inside a fluorescent fixture
Step Ballast Selection
1
J Ballast Dimensions
L: 18.00" (457mm)
W: 1.18" (30mm)
H: 1.00" (25mm)
Mounting center: 17.70" (450mm)
G Ballast Dimensions
L: 9.50" (241mm)
W: 2.38" (60mm)
H: 1.00" (25mm)
Mounting center: 8.9" (226mm)
06 |Lutron www.lutron.com/ecosystem Lutron World Headquarters: 1.610.282.3800
EcoSystem™|ballasts

EcoSystem Ballast Module Fixture-mounted (BMF)
C5-BMF-2A
•Allows integration of any Lutron Eco-10™or Hi-lume®
phase-control ballast into the EcoSystem bus
•Provides power for and responds to one occupancy sensor, one daylight
sensor, and one personal control input (infrared receiver or wallstation)
•Universal voltage input: 120/240/277 V ~ 50/60 Hz
•Dimming range: 100% to minimum ballast level
(10% for Eco-10, 1% for Hi-lume) relative light output
•Ambient temperature operating range: 50 – 140ºF (10 – 60ºC)
•Terminal blocks on the BMF accept the following wire gauges:
- EcoSystem bus: #16 – #18 AWG (1.29 – 1.02mm) solid
- Power wiring: #16 – #18 AWG (1.29 – 1.02mm) solid
- Class 2 sensor wires: #22 AWG (0.635mm) solid
•Mounts using two screws either inside a fluorescent fixture
or in a rated electrical enclosure
•If mounting outside a fluorescent fixture, can be up to 50' from ballast
•Can be used with a Lutron dimming ballast to dim one control
zone of up to 2 Amps
•BMF does not contain a 3-wire input
•Capable of mechanical off through internal air-gap switch
Step Ballast Selection
120V or 277V
Ballast Module
(C5-BMF-2A)

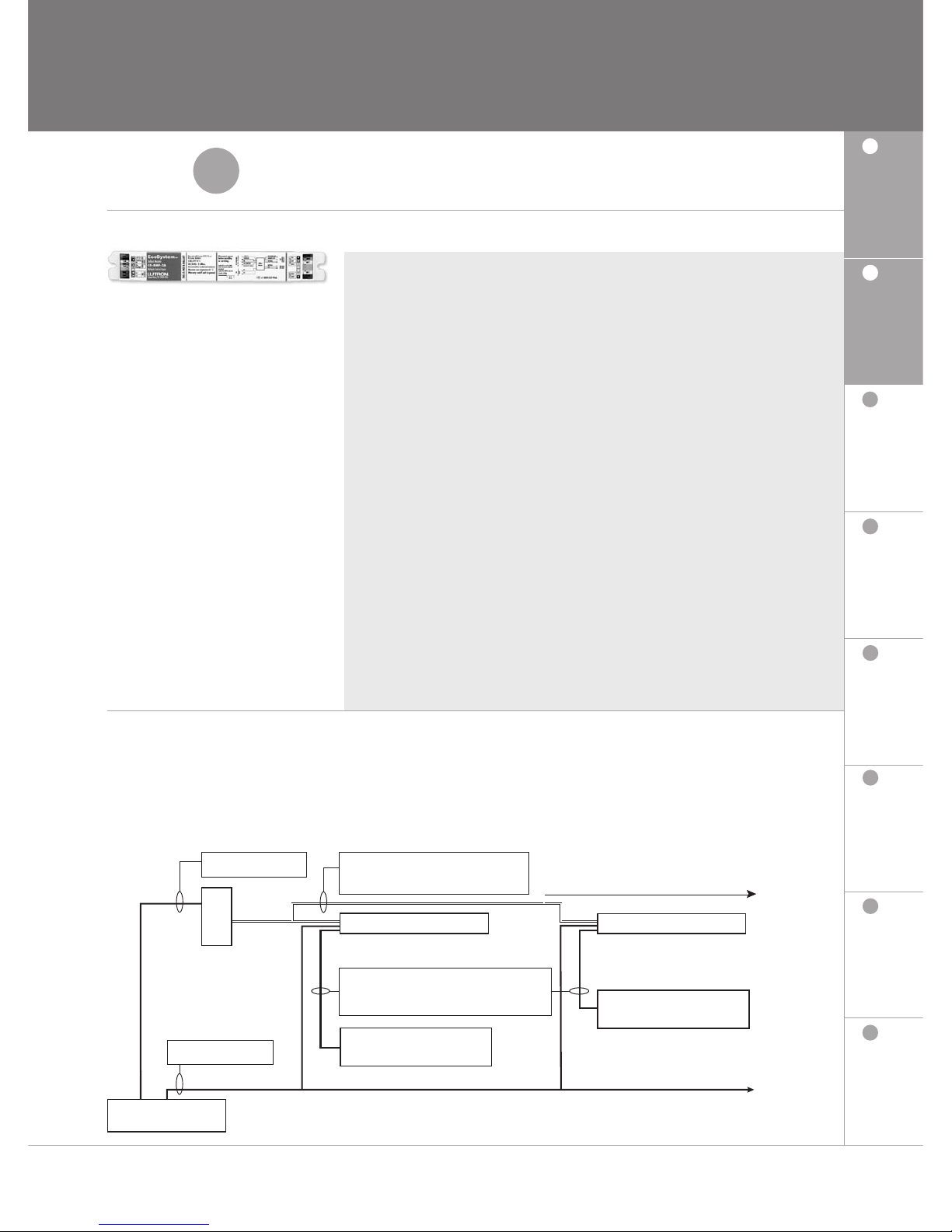

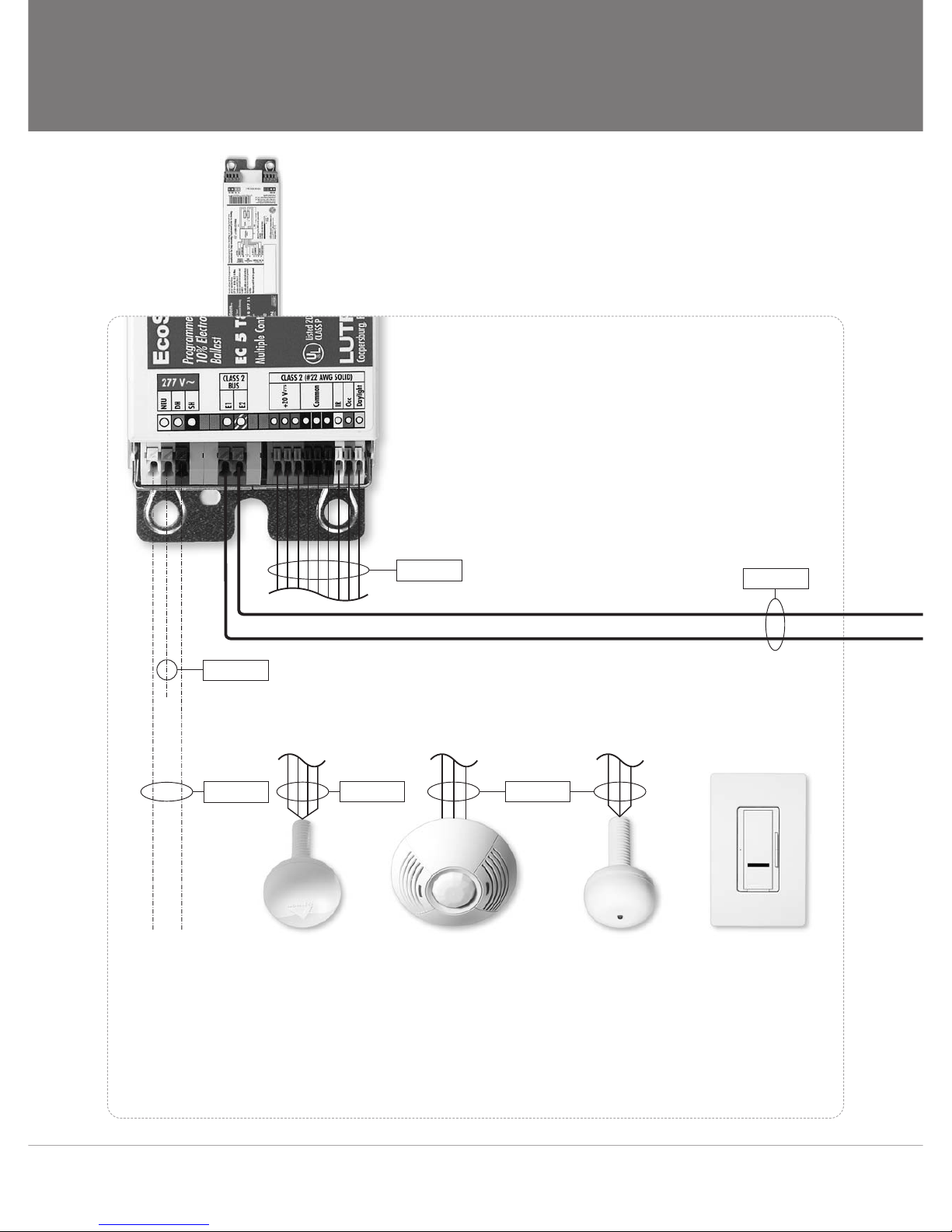

Implementing an EcoSystem BMF
The BMF has input terminals that accept EcoSystem low-voltage sensors, controls and the bus
communication wires. It controls any Lutron Eco-10 or Hi-lume dimming ballast.
One-Line Diagram
1
Distribution Panel
EcoSystem
Bus Supply
(CS-1L-WM)
BMF (C5-BMF-2A)
Any Eco-10 or Hi-lume Ballast
BMF (C5-BMF-2A)
Dimensions
L: 9.30" (236mm)
W: 1.18" (30mm)
H: 1.00" (25mm)
Mounting center: 8.90" (226mm)
Any Eco-10 or Hi-lume Ballast
To other
Ballasts
or BMFs
Daylight Sensors Occupancy
Sensors IR Receiver
and Remote Bus Supply
234
2Wallstations Programmer
3 4
Ballasts BMF
1
1
To other
Ballasts
or BMFs
120V or 277V EcoSystem Bus
Communication Wires
3 #16 Power Wires
(Hot, Dimmed Hot, Neutral)
120V or 277V
Lutron |07
Technical Support: 1.800.523.9466 … 24 hours/7 days (US/CAN)
To Order: 1.888.LUTRON1 … 8 am – 8 pm/M-F ET (US/CAN)
EcoSystem™|ballasts

EcoSystem Daylight Sensor with IR Receiver
C-SR-M1-WH
•Automatically dim the lights when the available daylight
is high and brighten the lights when the available daylight
is low in order to maintain a specific light level in the space
•Integrated IR receiver for EcoSystem programming
•1 daylight sensor can control multiple fixtures or groups
of fixtures differently
•Up to 8 daylight sensors can exist on a single EcoSystem bus
•Total wire length to ballast (or BMF) must not
exceed 100' (30m)
•Designed for Class 2 operation only
•Operating voltage: Low-voltage Class 2, 20VDC
•Analog signal: 0 – 20VDC
•Daylight (photo) sensors from other manufacturers
are not compatible with EcoSystem
Step Sensor Selection
Daylighting
Design Statement: Use 1 daylight sensor for each zone of fenestration.*
If the zone extends more than 30' (9.14m), include a daylight sensor for
every 30' (9.14m) segment. Wiring a daylight sensor to one ballast allows
control of multiple ballasts on a bus.
2
Dimensions
H: 0.69" (17mm)
D: 1.18" (30mm)
Stem Length: 1.25" (32mm)
H
08 |Lutron www.lutron.com/ecosystem Lutron World Headquarters: 1.610.282.3800
* Fenestration: Any opening in a building’s envelope including windows, doors and skylights.
EcoSystem™|daylight sensors

Step Sensor Selection

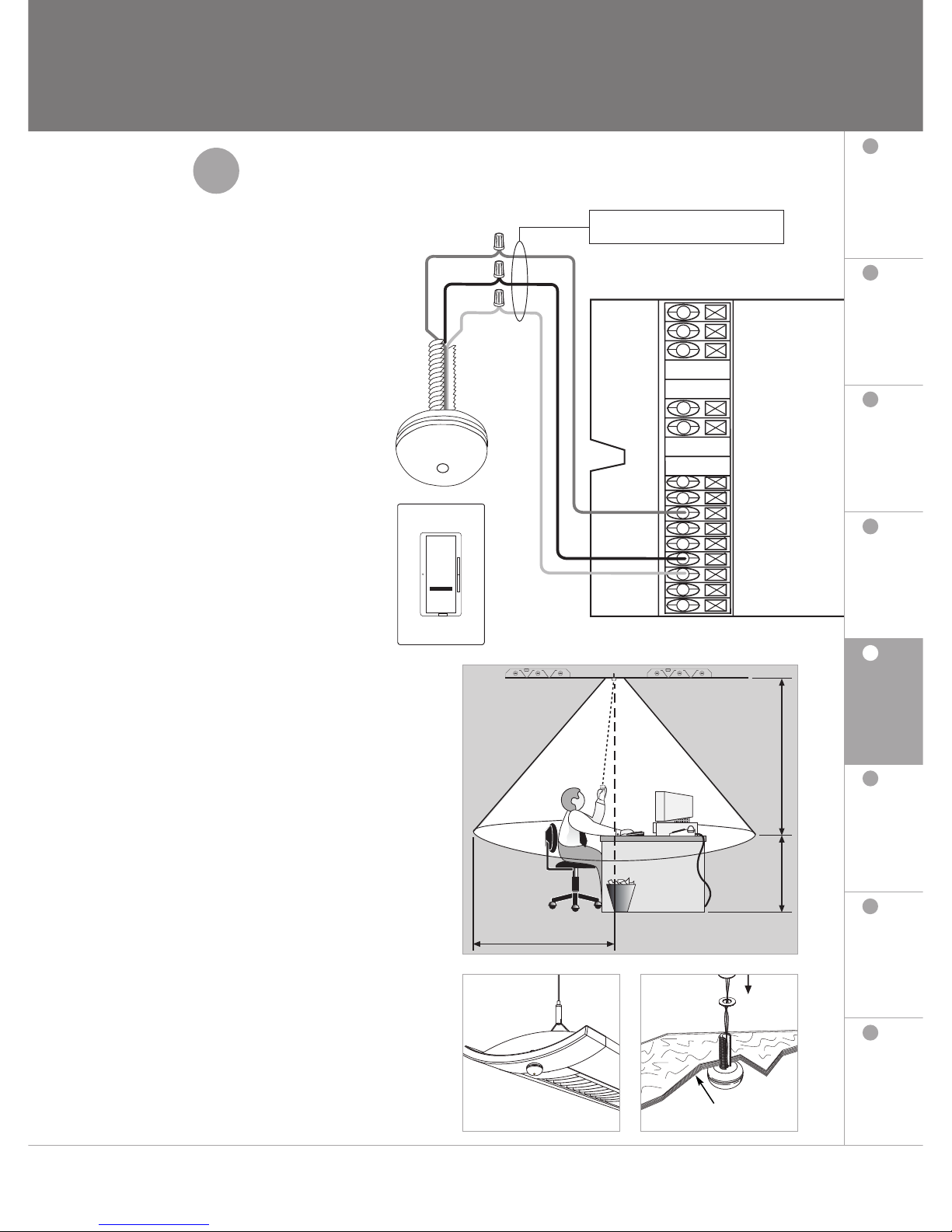

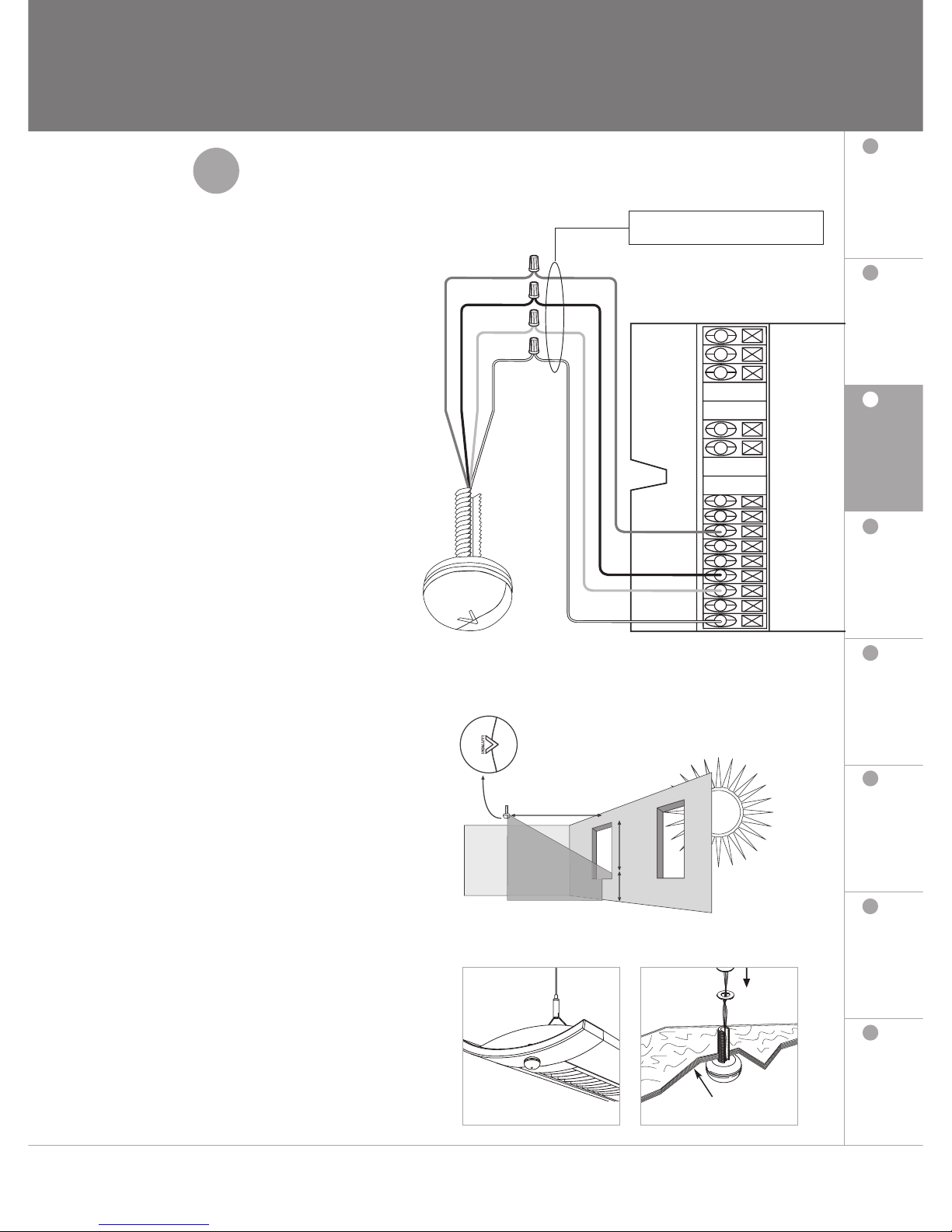

Wiring the Daylight Sensor
•Wire color designations of the daylight sensor:
Red = 20VDC
Black = Common
White = IR Signal
Yellow = Daylight Sensor Signal
•Make sure that the supply breaker
to the digital ballast is OFF when wiring
•Connect the four conductors to the
four digital ballast terminals as shown
Note: The digital ballast accepts only
one IR input. Use of the IR input
for the daylight sensor precludes
the use of an infrared receiver
with the same digital ballast.
Pendant Fixture Ceiling Tile or Fixture
2
Daylight Sensor
with IR Receiver
Arrow points toward the area
viewed by the sensor
Bottom of sensor
1-2 H
H
3' (0.9m)
H = Effective Window Height
Ballast Terminals
Pendant Fixture Ceiling Tile or Fixture
Red
Black
White
Yellow White
Orange
Black
E1
E2
+20V
+20V
+20V
Common
Common
Common
IR
Occ
Daylight

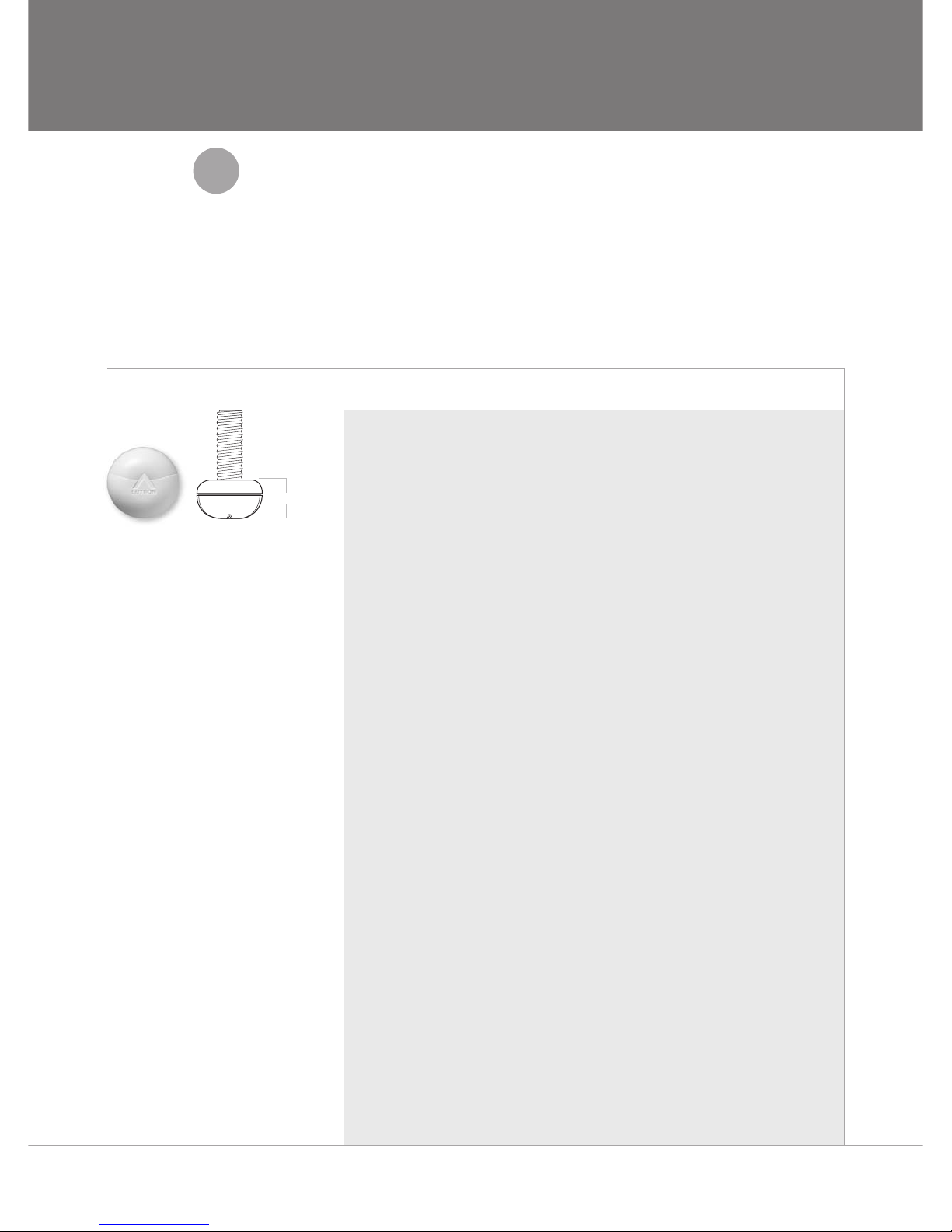

Mounting the Daylight Sensor
Determine the proper location of the daylight
sensor using the adjacent diagrams.
•The arrow on the daylight sensor points
toward the area viewed by the sensor
•Place the daylight sensor so its viewing area
is centered upon the nearest window at a
distance of between 1-2 H from the window
•The effective window height, H, starts
3' (0.91m) up from the floor or at the window
sill, whichever is higher, and ends at the top
of the window
•Ensure that the view of the daylight sensor
is not obstructed
•Do not position the daylight sensor in the well
of a skylight or above indirect lighting fixtures
Ballasts BMF Daylight
Sensors Occupancy
Sensors IR Receiver
and Remote Bus Supply
1 2 34
2
1Wallstations
3Programmer
4
Lutron |09
Technical Support: 1.800.523.9466 … 24 hours/7 days (US/CAN)
To Order: 1.888.LUTRON1 … 8 am – 8 pm/M-F ET (US/CAN)
22 AWG solid 105˚C only
EcoSystem™|daylight sensors

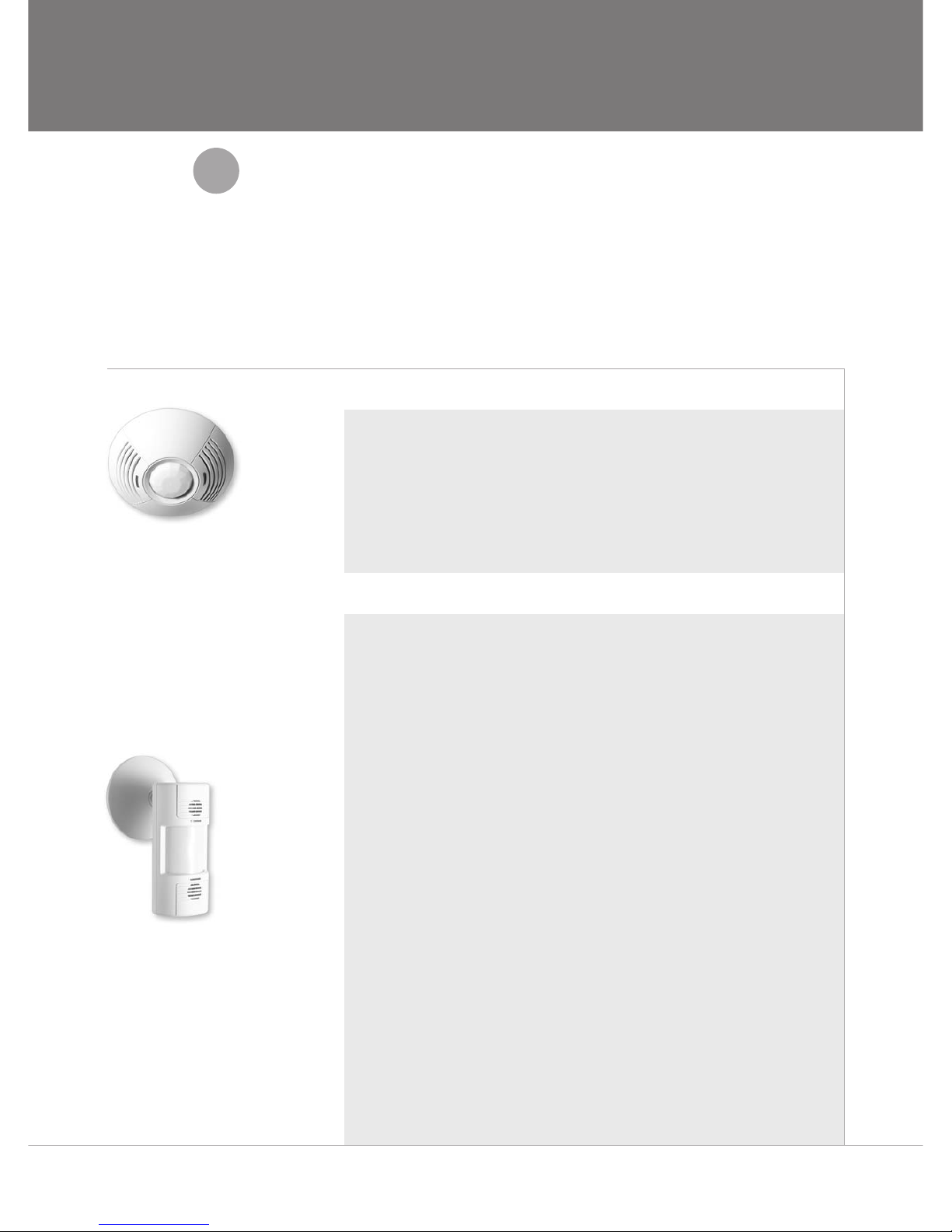

Occupancy Sensor – Ceiling Mounted*
LOS-CUS-(500, 1000, 2000†)-WH Ultrasonic
LOS-CDT-(500, 1000, 2000†)-WH Dual technology
LOS-CDT-(500R, 1000R, 2000R†)-WH Dual technology
with second contact closure output
LOS-CIR-(450, 1500†)-WH Infrared
†Denotes square feet of sensor coverage
Occupancy Sensor – Wall Mounted*
LOS-WDT-WH Dual technology
LOS-WDT-R-WH Dual technology
with second contact closure output
LOS-WIR-WH Infrared
•No power pack is necessary, occupancy sensor receives
power from BMF
* Please visit www.lutron.com/ecosystem for a complete list of
occupancy sensors compatible with EcoSystem.
2
Dimensions
W: 6.12" (156mm)
H: 1.62" (41mm)
D: 2.31" (59mm)
Ceiling Mounted: 3/4" (19mm)
diameter hole for mounting
post (Lutron-supplied)
Dimensions
W: 3.75" (95mm)
H: 5.50" (140mm)
D: 4.00" (102mm)
10 |Lutron www.lutron.com/ecosystem Lutron World Headquarters: 1.610.282.3800
Step Sensor/Receiver Selection
Occupancy Sensing
Design Statement: Use an ultrasonic sensor for small movement detection
when fans or other automated systems are not present. Use an infrared
sensor for occupant detection when “line of sight” is available from the
sensor. Use a dual-tech sensor for a combination of both technologies.
For more information visit www.lutron.com/occsensors.
EcoSystem™|occupancy sensors

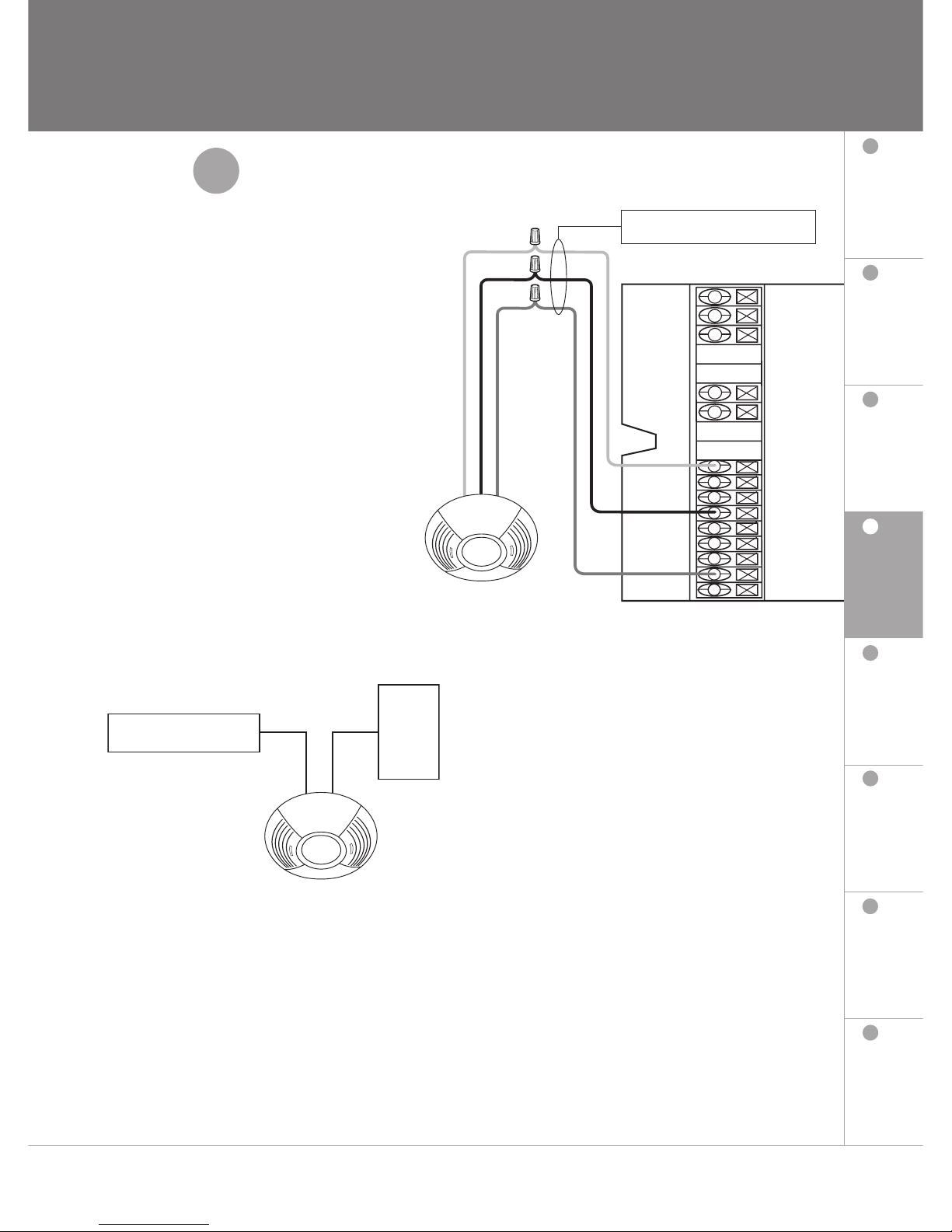

Wiring to an Occupancy Sensor
•Wire color designations of the sensor:
Red = 20VDC
Black = Common
Blue = Occupancy Sensor Signal
•Make sure that the supply breaker to
the digital ballast is OFF when wiring
•Connect the three conductors to the
three digital ballast terminals as shown
Occupancy Sensor Compatibility
All LOS- models are compatible.
Occupancy sensors from other
manufacturers must meet the
following criteria:
•Input Voltage and range includes 20V
•Maximum Current Draw is 40mA
Contact Closure Output
The “R” model numbers represent
a contact closure output that can be
used for BMS or HVAC response
to occupant detection.
2
EcoSystem
Ballast or BMF
Occupancy Sensor
Ballast Terminals
BMS
CCO1 CCO2
*Note: Occupancy sensors by other
manufacturers may use different
color wires but also need
to connect to the blue input
on the ballast or BMF.
Red
Black
Blue* White
Orange
Black
E1
E2
+20V
+20V
+20V
Common
Common
Common
IR
Occ
Daylight
Ballasts BMF Daylight
Sensors Occupancy
Sensors IR Receiver
and Remote Bus Supply
1234
2
1Wallstations
3Programmer
4
Lutron |11
Technical Support: 1.800.523.9466 … 24 hours/7 days (US/CAN)
To Order: 1.888.LUTRON1 … 8 am – 8 pm/M-F ET (US/CAN)
22 AWG solid 105˚C only
Step Sensor/Receiver Selection
EcoSystem™|occupancy sensors

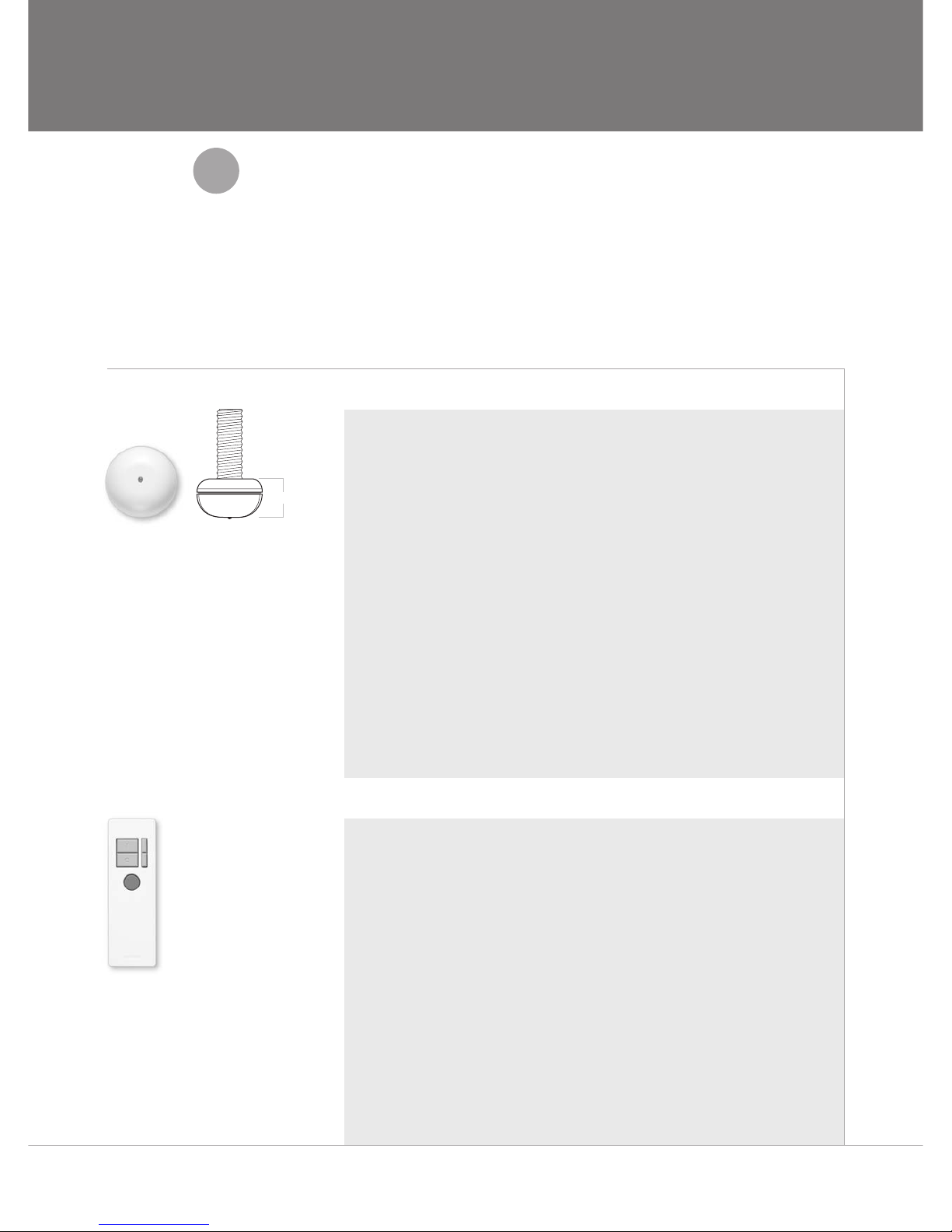

EcoSystem IR Receiver for Personal Control
C-R-M1-WH
•Can control individual or grouped EcoSystem
ballasts or BMFs
•Flashing LED response to indicate signal reception
•Receives IR signals from up to 8' (2.44m) away when mounted
on a 10' (3.05m) ceiling
•Designed for Class 2 operation only
•Operating voltage: Low-voltage Class 2, 20VDC
•Analog signal: 0 – 20VDC
•Total wire length to ballast (or BMF) must not
exceed 100' (30m)
•IR receivers from other manufacturers are not compatible
with EcoSystem
EcoSystem IR Remote with Favorite Scene
C-FLRC-WH
•Allows personal control of individual fixture or group of fixtures
•The round orange button allows programming of a favorite
light level for quick settings
3
Dimensions
W: 1.51" (38mm)
H: 4.63" (118mm)
D: 0.55" (14mm)
Dimensions
H: 0.69" (17mm)
D: 1.18" (30mm)
Stem Length: 1.25" (32mm)
12 |Lutron www.lutron.com/ecosystem Lutron World Headquarters: 1.610.282.3800
H
Step Control Selection
Personal Control
Design Statement: Add EcoSystem IR receivers with remotes to provide
personal control to any fixture on the EcoSystem bus.
EcoSystem™|IR receiver and remote

Pendant Fixture Ceiling Tile or Fixture
Pendant Fixture Ceiling Tile or Fixture
Wiring the Infrared Receiver/Wallstation
•Wire color designations of the IR sensor:
Red = 20VDC
Black = Common
White = IR Signal
•Make sure that the supply breaker
to the digital ballast is OFF when wiring
•Connect the three conductors to the
three digital ballast terminals as shown
Note: The digital BMF accepts only
one IR input. Use of the infrared
receiver precludes the use
of the IR output in the daylight
sensor for programming.
3
Infrared
Receiver
Ballast Terminals
or
Wallstation
Radius = 6' (1.83m)
3'
(0.91m)
7'
(2.13m)
Red
Black
White White
Orange
Black
E1
E2
+20V
+20V
+20V
Common
Common
Common
IR/Wallstation
Occ
Daylight
Mounting the Infrared Receiver
Determine the proper location of the infrared
receiver using the adjacent diagrams.
•The infrared receiver receives IR signals from
up to 8' (2.44m) away when mounted on a
10' (3.05m) ceiling
•The cone of reception is centered upon the
infrared receiver per the diagram to the right
•The cone of reception will be diminished
when receiver is mounted less than 10' (3.05m)
from the floor
•Ensure that the receiver is placed with a clear line
of sight between the receiver and the desired
control locations
Ballasts BMF Daylight
Sensors Occupancy
Sensors IR Receiver
and Remote Bus Supply
1 2 34
2
1Wallstations
3Programmer
4
Lutron |13
Technical Support: 1.800.523.9466 … 24 hours/7 days (US/CAN)
To Order: 1.888.LUTRON1 … 8 am – 8 pm/M-F ET (US/CAN)
22 AWG solid 105˚C only
Step Control Selection
EcoSystem™|IR receiver and remote

Dimensions
W: 2.75" (70mm)
H: 4.56" (116mm)
D: 1.25" (32mm)

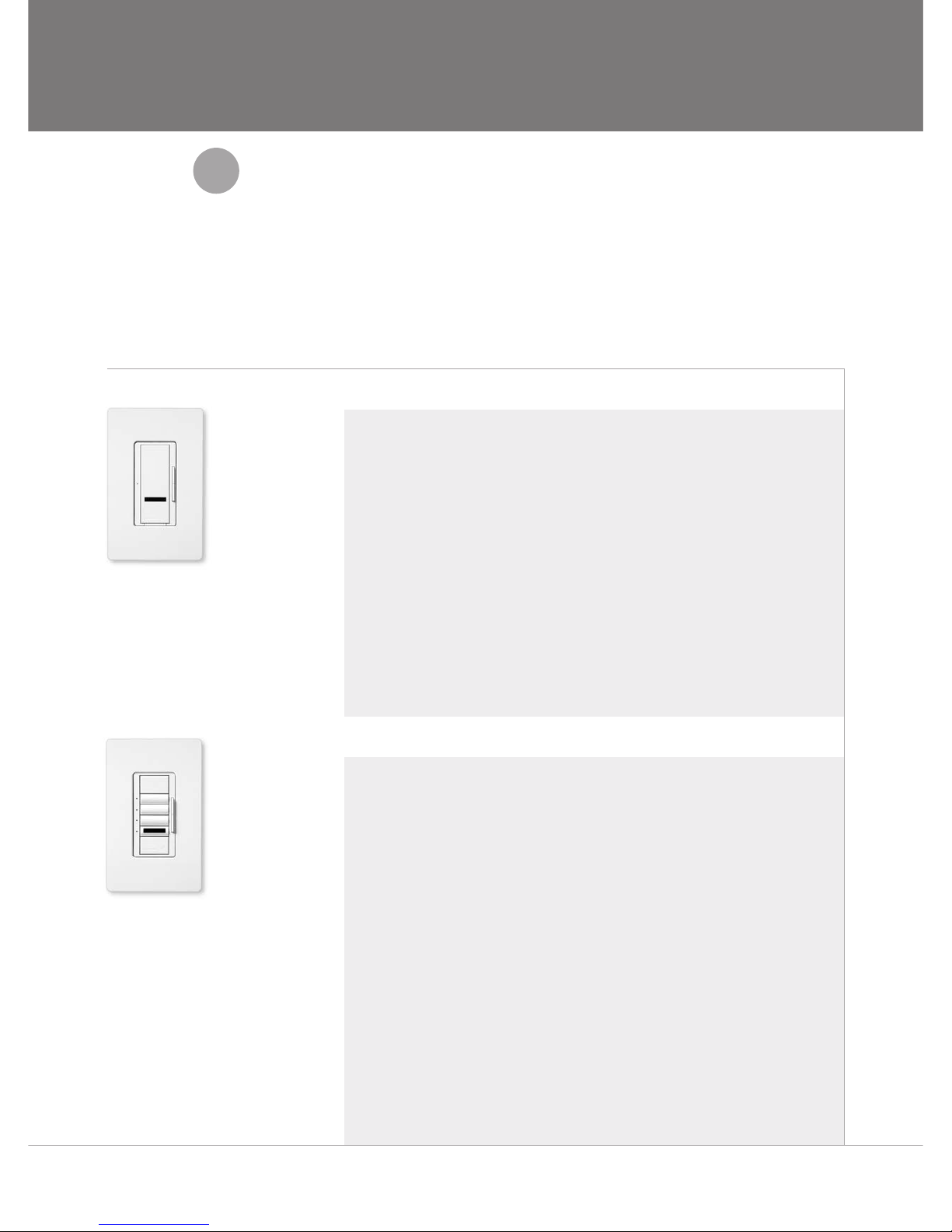

EcoSystem 1-Button Wallstations with Raise/Lower
CC-1BRL-WH
•Low-voltage wires connect directly to the ballast or BMF,
receives power from a ballast or BMF
•On/Off and dimmer rocker to adjust light between 100-10%
•Integrated IR receiver for programming or push-button programming
•Fits in standard single gang wall box
•Engraving is available
•Wallplate not included
EcoSystem 4-Button Wallstations with Raise/Lower
CC-4BRL-WH
•Low-voltage wires connect directly to the ballast or BMF,
receives power from ballast or BMF
•Allows 4 scenes to be created for instant recall from memory
•Integrated IR receiver for programming or push-button programming
•Fits in standard single gang wall box
•Engraving is available
•Wallplate not included
Dimensions
W: 2.75" (70mm)
H: 4.56" (116mm)
D: 1.25" (32mm)
3
14 |Lutron www.lutron.com/ecosystem Lutron World Headquarters: 1.610.282.3800
EcoSystem™|wallstations
Step Control Selection
Wallstations
Design Statement: Add EcoSystem 1-button or 4-button
wallstations where needed for full-range lighting control
from 100% to Off and preset scene selection.

Functionality
•Lighting Control
- Personal control of the light level of individual
fixtures or groups of fixtures
•Grouping
- Assign individual or groups of fixtures to
wallstations, daylight sensors and occupancy
sensors so that one sensor can control
multiple fixtures/ballasts
•Device Setup
- Daylight sensor: Set the electric light level that
responds to the presence of daylight
- Occupancy sensor: Set the time-out length,
light level when room is occupied, and light
level when room is not occupied
- 4-Button Wallstations: Set light levels for each
individual or group of fixtures to create scenes
for each button of the wallstation.
•Ballasts
- Addressing: This begins the automatic
addressing of individual or multiple ballasts
- Configuration: Set maximum level, fade time,
or emergency level for each ballast or all ballasts
on the system
- Replacement: Simply enter the serial number
of the old ballast and all programming is
transferred to the new ballast
EcoSystem Programmer
C-PDA-CLR
•Handles programming changes for all sensors and ballast
•Transmits to any IR receiver, daylight sensor, or
EcoSystem wallstation
•Simple user interface allows programming without training
or guidebook
•User name/Password requirement ensures security of system
•Programmer will not operate or store non-EcoSystem programs
or information
Ballasts BMF Daylight
Sensors Occupancy
Sensors IR Receiver
and Remote Bus Supply
4
1 2 34
Dimensions
W: 3.00" (76mm)
H: 4.75" (121mm)
D: 0.50" (13mm)
2
1Wallstations
3
Lutron |15
Technical Support: 1.800.523.9466 … 24 hours/7 days (US/CAN)
To Order: 1.888.LUTRON1 … 8 am – 8 pm/M-F ET (US/CAN)
Programmer
4
EcoSystem™|programmer
Step Support Components
Programming EcoSystem
Any EcoSystem can be programmed using the EcoSystem
programmer. This device is designed with a graphic display
to make programming quick and simple.

Limits
Each EcoSystem bus can
accommodate the following:
•64 Ballasts/BMFs
•32 Occupancy Sensors
•64 Wallstations or
Infrared Sensors
•8 Daylight Sensors
4
4
16 |Lutron www.lutron.com/ecosystem Lutron World Headquarters: 1.610.282.3800
EcoSystem Bus Supply
Design Statement: The EcoSystem bus supply is required for two
or more ballasts (or BMFs) to work together. The bus supply powers
the communication bus and is capable of supporting up to 64 ballasts
or BMFs. For integration of multiple bus supplies or other lighting
control systems, please contact a Lutron Representative.

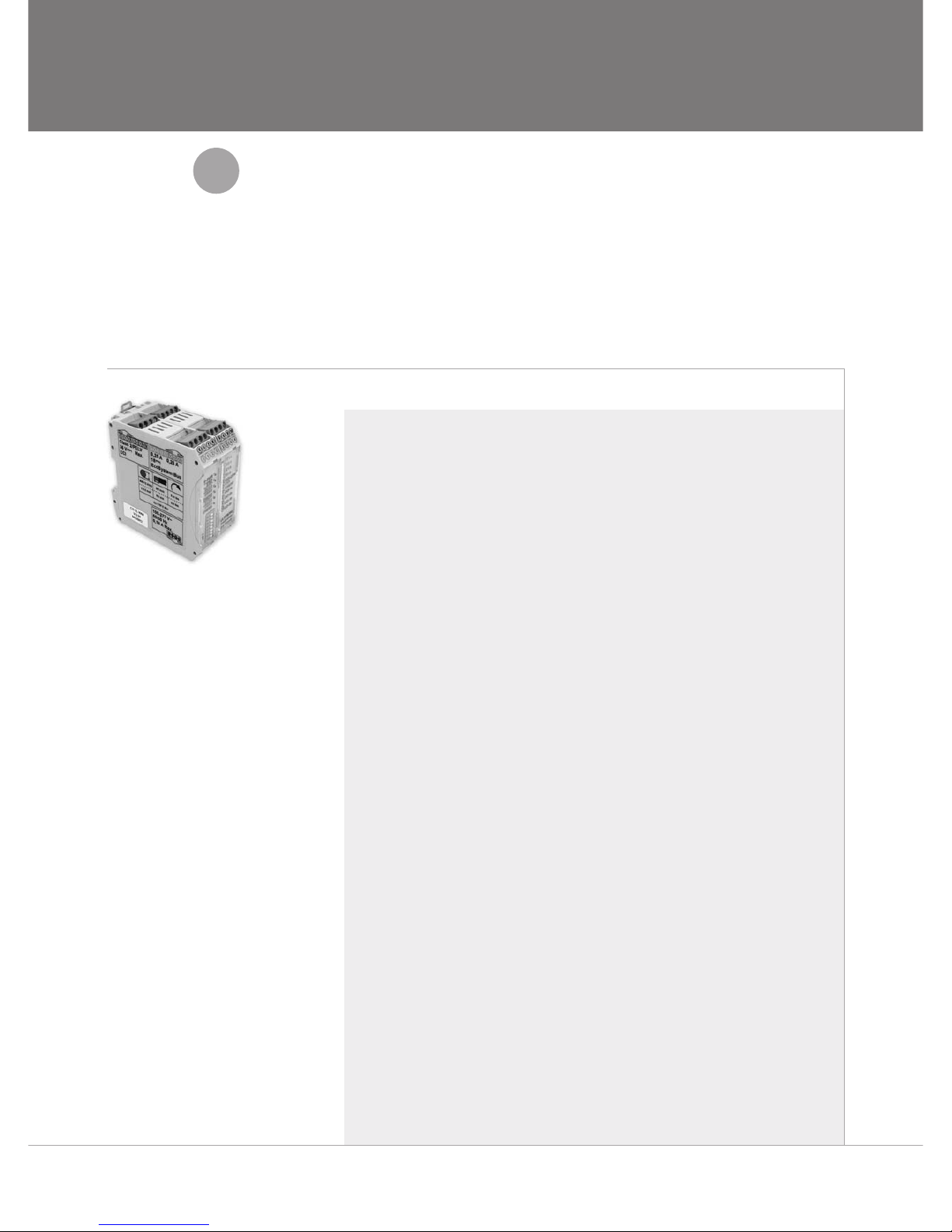

EcoSystem Digital Bus Supply
CS-1L-CM (shown)
Contractor mountable, no enclosure,
2 contact closures, 1 panic contact closure
CS-1L-WM
2 contact closures, 1 panic contact closure, 1 wallstation/
IR connection, wall-mountable inside enclosure
•Accepts one panic normally open or normally closed
dry contact closure to override light level to full output
•EcoSystem bus may be wired Class 1 or Class 2;
bus wires are polarity insensitive
•Topology-free wiring; Bus supply may be wired to the
communication bus at any point
•Output voltage: 16VDC 250 mA Max (Class 1 or Class 2)
•Powered by 120 or 277 V, ~50 or 60 Hz
•Bus supply terminals:
- EcoSystem bus: #12 – #18 AWG (2.05 – 1.02mm) Solid
- Power wiring: #12 – #18 AWG (2.05 – 1.02mm) Solid
- Class 2 contact closures
•Non-volatile (EEPROM) memory stores system programming
for 10 years from power down to power restored
•Lutron recommends 1 bus supply for each room being
controlled by EcoSystem
•Power draw is < 0.12 A; can be fed with same circuit as fixtures
Step Support Components
EcoSystem™|bus supply
Dimensions
W: 1.77" (45mm)
H: 3.56" (85mm)
D: 3.62" (92mm)

Wiring to an EcoSystem Bus Supply
•The bus supply does not have to be
located at the end of the EcoSystem bus
•E1 and E2 wires are polarity insensitive
•Bus length is limited by the wire gauge
used for E1 and E2 as follows:
Wire Gauge Max Loop Length
#12 AWG (2.05mm) 2,200' (670m)
#14 AWG (1.63mm) 1,400' (426m)
#16 AWG (1.29mm) 900' (274m)
#18 AWG (1.02mm) 550' (167m)
Attention Electricians and Contractors
Regardless of bus wire gauge, ballast and
BMF terminals will hold only one
#16 to #18 AWG solid wire. In most cases
a wire connection to the EcoSystem bus
is required.
Note: Two different color wires are
recommended for the EcoSystem bus.
This prevents accidentally creating
a loop circuit with one wire.
4
Ballast Terminals
To Other
Ballasts
BMF Terminals
Distribution
120/277V
Type D
Wire Gauge Key
Type A
EcoSystem Bus
#16 – #18 AWG Solid
Type D
Line Voltage
#12 – #18 AWG Solid
White
Orange
Black
E1
E2
+20V
+20V
+20V
Common
Common
Common
IR
Occ
Daylight
Type A
Ballasts BMF Daylight
Sensors Occupancy
Sensors IR Receiver
and Remote Bus Supply
1 2 34
2
1Wallstations
3Programmer
4
E1
E2
+20V
Common
IR
Occ
Daylight
Bus Supply
Lutron |17
Technical Support: 1.800.523.9466 … 24 hours/7 days (US/CAN)
To Order: 1.888.LUTRON1 … 8 am – 8 pm/M-F ET (US/CAN)
EcoSystem™|bus supply
Wire size
determined by
bus length
Step Support Components

Enlarged view of EcoSystem
ballast terminal blocks
and connections
Occupancy Sensor
pg. 10
EcoSystem Ballast
pg. 06
IR Receiver
pg. 12
Wallstation
with IR Receiver
pg. 14
Distribution
Two outer wires
connect to power
Ballast accepts Type B wire, other
wire types maybe pig-tailed on.
Note: Any sensor connected to 1 ballast can control any
or all ballasts or BMFs on the EcoSystem bus.
Note: Single or multiple
devices can connect to
EcoSystem ballasts.
Daylight
Sensor
pg. 08
or
Type D
18 |Lutron www.lutron.com/ecosystem Lutron World Headquarters: 1.610.282.3800

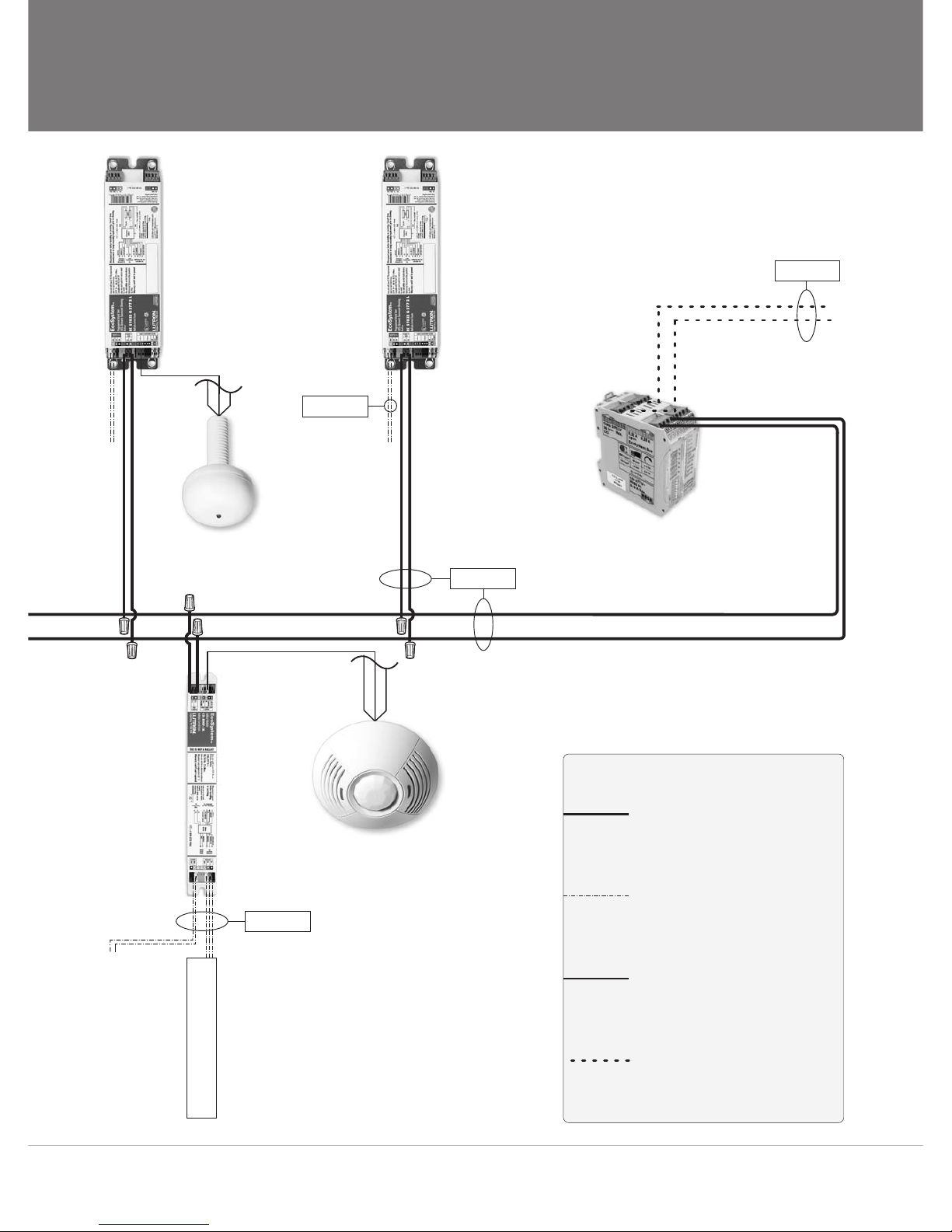

EcoSystem™|wiring overview
Type C Type A
Type B
Type C Type C

EcoSystem™
Ballast
pg. 06
EcoSystem
Ballast
pg. 06
EcoSystem bus is
Class 1 or Class 2,
topology free;
Lutron recommends
2 different colors
IR Receiver
pg. 12
Wire Gauge Key
Type A
EcoSystem Bus
#16 – #18 AWG Solid
Type B
Line Voltage
#16 – #18 AWG Solid
Type C
Class 2 LV
#22 AWG Solid 105˚C Only
Type D
Line Voltage
#12 – #18 AWG Solid
BMF
pg. 07
Occupancy
Sensor
pg. 10
Eco-10™or
Hi-lume®Ballast
Distribution
120/277V
To DistributionTo Distribution
To Distribution
EcoSystem Bus
Supply, pg.16
Can connect
up to 64 ballasts
or BMFs with
one power supply.
Lutron |19
Technical Support: 1.800.523.9466 … 24 hours/7 days (US/CAN)
To Order: 1.888.LUTRON1 … 8 am – 8 pm/M-F ET (US/CAN)
Type A
Type D
Type B
Type B
