Lutron Electronics TC-424 User manual

Pt-100 calibrator,Pt 100 thermometer,Type K,J,T,R,E,S thermocouple
400 ohm resistance calibrator, measurement
DC mV calibrator(source) , measurement

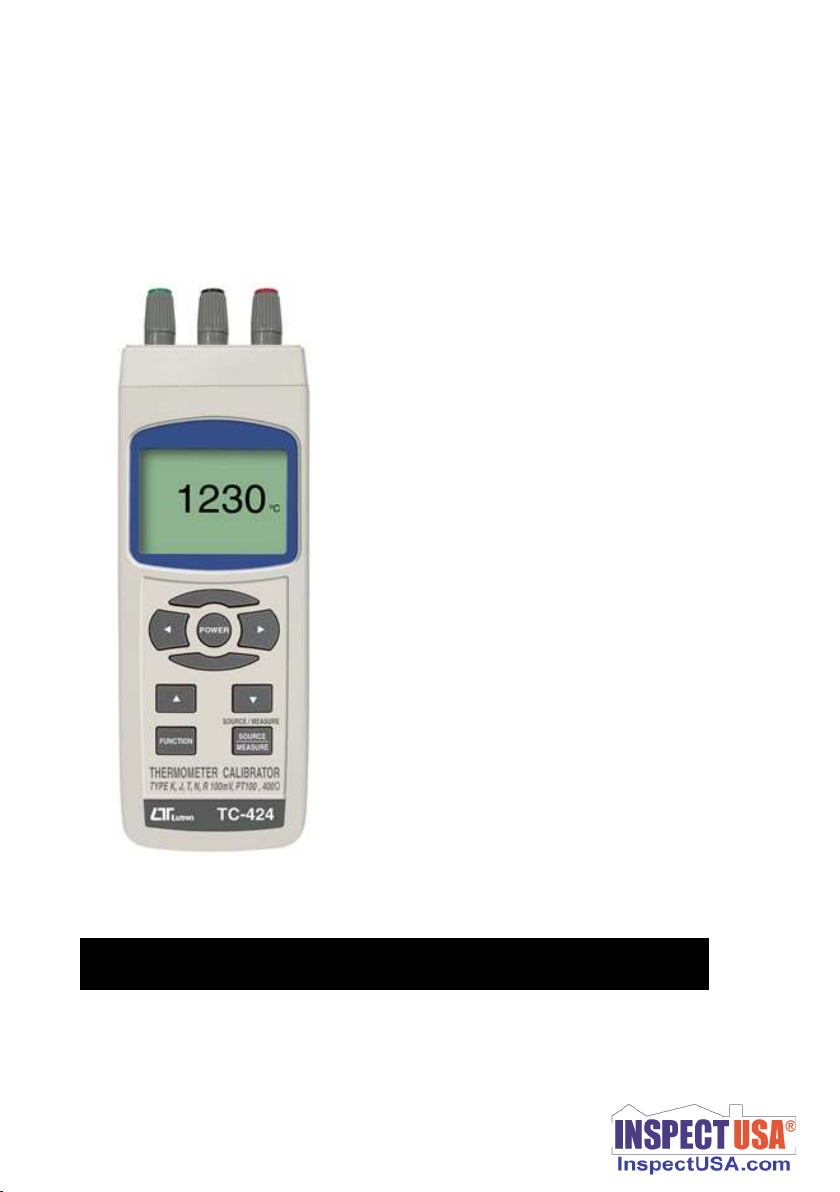

THERMOMETER CALIBRATOR
Model : TC-424
Your purchase of this 4 in 1
THERMOMETER CALIBRATOR
with
Source & Measurement
marks a step forward for you
into the field of
precision measurement.
Although this meter a
complex and delicate
instrument, its durable
structure will allow
many years of use if
proper operating
techniques are
developed. Please read
the following
instructions carefully
and always keep this
manual within easy
reach.
OPERATION MANUAL

TABLE OF CONTENTS
1. FEATURES....................................................................................
.......................................................................
1
2. SPECIFICATIONS....................................................................................................
..........................................
1
3. FRONT PANEL DESCRIPTION....................
......................................................................
5
4. SOURCE PROVIDE PROCEDURE................................................................................
..........................................................
6
4-1. Thermocouple SOURCE PROVIDE PROCEDURE ....................................................................................................................................................................................
6
4-2. VOLTAGE SOURCE PROVIDE PROCEDURE ..........................................................................................................................................
6
4-3. RTD Pt100 ohm SOURCE PROVIDE PROCEDURE .....................................................................................................................................................................
7
4-4. 400 ohm SOURCE PROVIDE PROCEDURE .....................................................................................................................................................................
7
5. MEASUREMENT PROCEDURE................................................................................
..........................................................
7
5-1.Thermocouple Type MEASURE PROCEDURE .....................................................................................................................................................................................
7
5-2. VOLTAGE MEASURE PROCEDURE ..........................................................................................................................................
8
5-3. RTD Pt100 ohm MEASURE PROCEDURE ..........................................................................................................................................
8
5-4. 400 ohm MEASURE PROCEDURE ..........................................................................................................................................
8
5-5. LCD Backlight Operation PROCEDURE ..........................................................................................................................................
8
6
. ADVANCED SETTING.......................................................................................................
8
6-1 Auto power OFF management ..........................................................................................................................................
9
6-2 Select the Temp. unit to ℃ or ℉
...........................................................................................................................................................................................
9
7
. POWER SUPPLY from DC ADAPTER........................................................................................
10
8
. BATTERY REPLACEMENT.................................................................................................
10
9. SYSTEM RESET............................................................................................................
...........................................
10

1. FEATURES
*Four kinds Source output :
1. Pt-100 source, 2. Voltage( DC mV) source.
3. 400 ohm source , 4. Type KJRETS Temp. source .
*Four kinds measurement inputer :
1. Pt-100 measure, 2. Voltage( DC mV) measure,
3. 400 ohm measure , 4. Type K/J/R/E/T/S Temp. measure .
* Portable instrument for calibrating process devices.
* Four kinds Source Adjustable output.
2. SPECIFICATIONS
2-1 General Specifications
Circuit Custom one-chip of microprocessor LSI
circuit.
Display LCD size : 52 mm x 30 mm.
LCD with white backlight ( ON/OFF ).
Measurement 1.Type k/J/R/E/T/S Temp. , 2. Voltage (DC mV).
3. Pt-100 ohm, 4. 400 ohm .
Source Type k/J/R/E/T/S Temp.,
Voltage (DC mV : - 10.00 to + 110.00 mV),
Pt-100 ohm , 400 ohm .
Sampling Time Approx. 1 second.
of Display
Advanced * Auto power OFF management.
setting * Set unit ℃ or ℉ .
1

Operating 0 to 50 ℃.
Temperature Less than 85% R.H.
and Humidity
Power Supply * Alkaline or heavy duty DC 1.5 V battery
( UM3, AA ) x 6 PCs, or equivalent.
* DC 9V adapter input. ( AC/DC power
adapter is optional ).
Power Current Normal operation ( w/o current source ) :
Approx. DC 18 mA.
LCD Backlight is ON) : Approx. + DC 2 mA.
Weight Meter : 282 g/ 0.61 LB. (with cable)
Dimension Meter : 198 x 68 x 45 mm
Accessories *
Instruction manual..............................................
1 PC
Included *
Hard carrying case( CA-06 ).....................................................
1 PC
*
( Type K source output line ), AC-DUK02.........................................
1 PC
*
MTL-CP424.......................................................................
1 PC
Optional AC to DC 9V adapter.
Accessories TP-01,TP-02A, TP-03, TP-04, TP-05
2

2-2 Electrical Specifications ( 23.0 ±
5
℃ )
Thermocouple
source measure
-200.0to 1370.0 ℃>-100℃: >-100℃:
-328 to 2498 ℉±(0.05 %+ 1 ℃) ±(0.07%+1.5℃
)
0.1 ℃ or 1 ℉
-200.0 to 1200.0 ℃<-100℃: <-100℃:
-328 to 2192 ℉±(0.05 %+ 2 ℃) ±(0.07%+ 2 ℃)
-200.0 to 400.0℃
-328 to 752 ℉
-200.0 to 1000.0 ℃
-328 to 1832 ℉
<100℃: >100℃:
±(0.05 %+ 3 ℃) ±(0.07 %+ 3 ℃
)
1 ℃ or 1 ℉
≧100℃:≧100℃:
±(0.05 %+ 2 ℃) ±(0.07 %+ 2 ℃)
* input impedence : 10 ^12 ohms.
* measure protection : DC 60 V , AC 24 V.
* source protection : Reference CAUTION.
DC Voltage
DC Voltage
Range of source / measure Display Accuracy
Resolution source / measure
-10.00mV to +110.00 mV 0.01 mV ± ( 0.05 % + 30 µV )
* input impedence : 10 ^12 ohms.
* measure protection : DC 60 V , AC 24 V.
* source protection : Reference CAUTION.
Pt100
Pt100
Range of source / measure Display Accuracy
Resolution source measure
-200.0 to 850.0 ℃0.1 degree ±(0.05%+0.6℃
)
±(0.05%+ 1℃)
-328.0 to 1562.0 ℉0.1 degree
* input impedence : 10 ^12 ohms.
* protection : Reference CAUTION.
Remark :
The above specification are tested under the environment
RF Field Strength less than 3 V/M & frequency less than the
30 MHz only.
3
K
J
R
E
T
S
Type Accuracy
0 to 1768 ℃
32 to 3214 ℉
ResolutionRange of source / measure

400 Ω
400 Ω
Range of source / measure Display Accuracy:
Resolution source measure
400.0 Ω 0.1 Ω ±(0.1%+ 0.4Ω)±(0.1%+ 0.6Ω)
* input impedence : 10 ^12 ohms.
* protection : Reference CAUTION.
* FS : full scale
Remark :
The above specification are tested under the environment
RF Field Strength less than 3 V/M & frequency less than the
30 MHz only.
CAUTION
* Do not apply a voltage exceeding the maximum input voltage.
otherwise the input part may be damaged.
* Do not short_circuit or apply an external voltage to output terminals of the
instrument or standard equipment, or else their internal circuitry may be damaged.
4

3. FRONT PANEL DESCRIPTION
Fig. 1
3-1 Display
3-11 DC 9V Power Adapter Input Socket
3-2 ◄ Button( Backlight Button )
3-12 Battery Compartment/Cover
3-3 Power Button 3-13 Battery Cover Screws
3-4 ► Button 3-14 Tripod Fix Nut
3-5
▲
Button
3-15 Stand
3-6
▼
Button
3-16 Red(Hi) bananaTerminal
3-7 FUNCTION Button/SET Button 3-17 Black(Lo) bananaTerminal
3-8 Source/Measure Button / Type Button 3-18 Green(Lo) bananaTerminal
3-9 Reset Button
3-10 Thermocouple Temp.Input Socket
5

4. SOURCE PROVIDE PROCEDURE
4-1. Thermocouple SOURCE PROVIDE PROCEDURE
1)
Power on the meter by press
the " Power
button
" ( 3-
3
,
Fig. 1 ) > 2 sec.
2) Press the " Source/Measure button " ( 3-8, Fig. 1 ) select to SOURCE
M
odel
.
3) Press the " FUNCTION button " ( 3-7, Fig. 1 ) select to Thermocouple
Function.
4) Press and hold the " Source/Measure button " ( 3-7, Fig. 1 ) select to
Thermocouple Type .
5) Press the " ► button "( 3-4, Fig. 1 )or " ◄ button"( 3-2, Fig. 1 ) select
a digit for adjustment. The blinking digit identifies the digit selected.
6) Press the " ▼button "( 3-6, Fig. 1 ) or " ▲button "( 3-5, Fig. 1 ) to adjust the
value of the digit. Press and Hold the ▼ or ▲ button to rapidly adjust the
value. And will generate the Temp. output same as the display value.
Remark :
It is recommended to use the Thermocouple Temp.Input Socket (3-10 Fig 1)
output better , or Use The " Red banana Terminal " ( 3-16, Fig. 1 ) is for the
positive Temp. output. The " Black banana Terminal " ( 3-17, Fig. 1 ) is
the " ground " for negtive Temp. output.
4-2. VOLTAGE SOURCE PROVIDE PROCEDURE
1)
Power on the meter by press
the " Power
button
" ( 3-
3
,
Fig. 1 ) > 2 sec.
2) Press the " Source/Measure button " ( 3-8, Fig. 1 ) select to SOURCE
M
odel
.
3) Press the " FUNCTION button " ( 3-7, Fig. 1 ) select to Votage Function.
4) Press the " ► button "( 3-4, Fig. 1 )or " ◄ button"( 3-2, Fig. 1 ) select
a digit for adjustment. The blinking digit identifies the digit selected.
5) Press the " ▼button "( 3-6, Fig. 1 ) or " ▲button "( 3-5, Fig. 1 ) to adjust the
value of the digit. Press and Hold the ▼ or ▲ button to rapidly adjust the
value. And will generate the voltage output same as the display value.
Remark :
Use The " Red banana Terminal" ( 3-16, Fig. 1 ) is for the positive
Votage output. The " Black banana Terminal " ( 3-17, Fig. 1 ) is
the " ground " for negtive Votage output.
6

4-3. RTD Pt100 ohm SOURCE PROVIDE PROCEDURE
1)
Power on the meter by press
the " Power
button
" ( 3-
3
,
Fig. 1 ) > 2 sec.
2) Press the " Source/Measure button " ( 3-8, Fig. 1 ) select to SOURCE Model .
3) Press the " FUNCTION button " ( 3-7, Fig. 1 ) select to Pt100 Function.
4) Press the " ► button "( 3-4, Fig. 1 )or " ◄ button"( 3-2, Fig. 1 ) select
a digit for adjustment. The blinking digit identifies the digit selected.
5) Press the " ▼button "( 3-6, Fig. 1 ) or " ▲button "( 3-5, Fig. 1 ) to adjust the
value of the digit. Press and Hold the ▼ or ▲ button to rapidly adjust the
value. And will generate the Pt100 ohm Temp. output same as the display value.
Fig. 1-A Fig. 1-B
Remark :

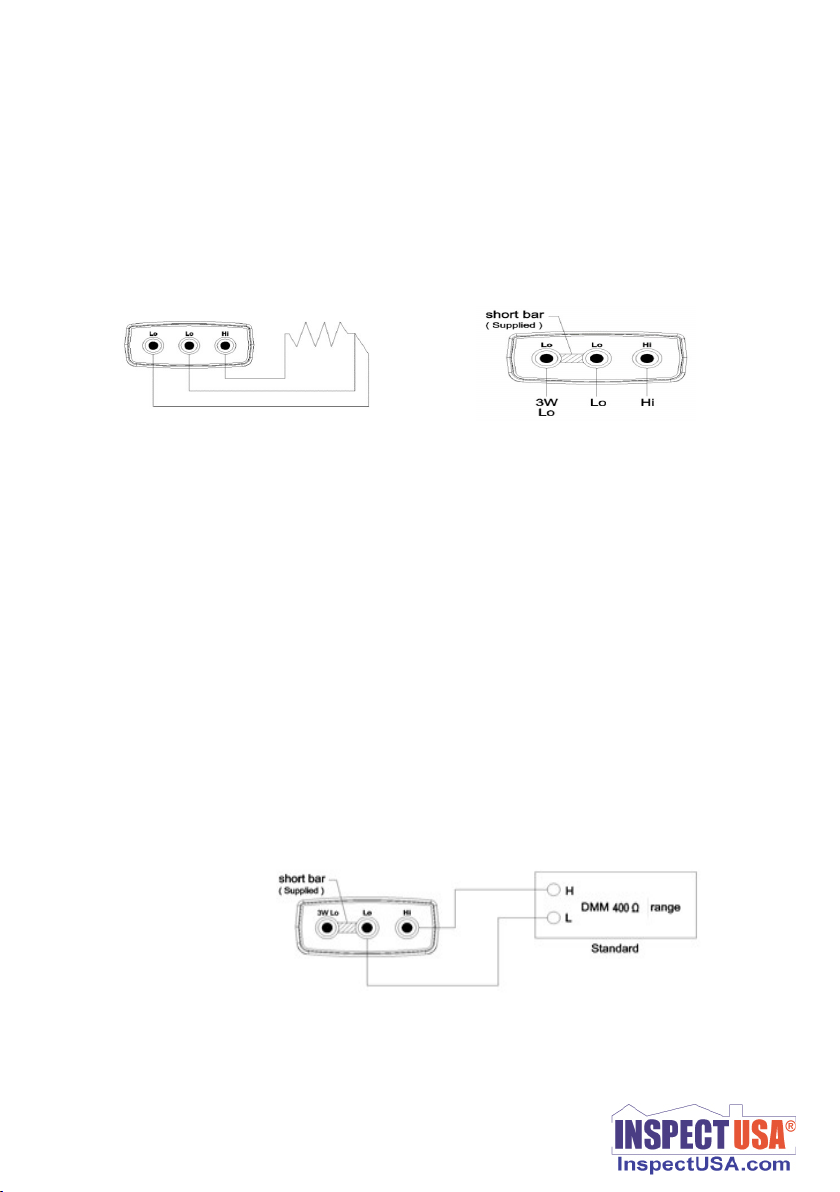

when carrying out calibration on a resistance temperature detector or a resistance
measurement unit in three-wire connection, the supplide terminal adapter can be used
to achieve a three-wire configuration (Fig. 1-A).2W Lo and LO terminals can
be shorted (Fig. 1-B) Otherwise connect as Fig.1-A
4-4. 400 ohm SOURCE PROVIDE PROCEDURE
1)
Power on the meter by press
the " Power
button
" ( 3-
3
,
Fig. 1 ) > 2 sec.
2) Press the " Source/Measure button " ( 3-8, Fig. 1 ) select to SOURCE
Model .
3) Press the " FUNCTION button " ( 3-7, Fig. 1 ) select to 400 ohm Function.
4) Press the " ► button "( 3-4, Fig. 1 )or " ◄ button"( 3-2, Fig. 1 ) select
a digit for adjustment. The blinking digit identifies the digit selected.
5) Press the " ▼button "( 3-6, Fig. 1 ) or " ▲button "( 3-5, Fig. 1 ) to adjust the
value of the digit. Press and Hold the ▼ or ▲ button to rapidly adjust the
value. And will generate the 400 ohm. output same as the display value.
7

5. MEASUREMENT PROCEDURE
5-1. Thermocouple Type MEASURE PROCEDURE
1)
Power on the meter by press
the " Power
button
" ( 3-
3
,
Fig. 1 ) > 2 sec.
2) Press the " Source/Measure button " ( 3-8, Fig. 1 ) select to
MEASURE Model .
3) Press the " FUNCTION button " ( 3-7, Fig. 1 ) select to Thermocouple Type
Measure Function.
4) Press and hold the " SOURCE/MESURE button " ( 3-8, Fig. 1 ) to select
Thermocouple Type .
5) Thermocouple Type Temp. probe into the "Thermocouple Type Temp. socket "
( 3-10, Fig. 1 ) .
6) The meter LCD display will show the measure value same as the input
Type k temp
.
value.
5-2. VOLTAGE MEASURE PROCEDURE
1)
Power on the meter by press
the " Power
button
" ( 3-
3
,
Fig. 1 ) > 2 sec.
2) Press the " Source/Measure button " ( 3-8, Fig. 1 ) select to
MEASURE Model .
3) Press the " FUNCTION button " ( 3-7, Fig. 1 ) select to Voltage
Measure Function.
4) Voltage (mV) input to the "RED banana Terminal " (3-16 ,Fig.1 ) and
"BLACK banana Terminal " (3-17 ,Fig.1) .
5) The meter LCD display will show the measure value same as the input
V
oltage (mV)
, value.
Remark :
Use The " Red banana Terminal " ( 3-16, Fig. 1 ) is for the positive
Votage input. The " Black banana Terminal" ( 3-17, Fig. 1 ) is
the " ground " for negtive Votage input.
8

5-3. RTD Pt100 ohm MEASURE PROCEDURE
1)
Power on the meter by press
the " Power
button
" ( 3-
3
,
Fig. 1 ) > 2 sec.
2) Press the " Source/Measure button " ( 3-8, Fig. 1 ) select to
MEASURE Model .
3) Press the " FUNCTION button " ( 3-7, Fig. 1 ) select to RTD Pt100 ohm
Measure Function.
4) Pt100 ohm Temp. probe into the Red (HI) banana Terminal(3-16,Fig1) and
Black (LO) banana Terminal(3-17,Fig1) .
5) The meter LCD display will show the measure value same as the input
Pt 100 temp. value.
5-4. 400 ohm MEASURE PROCEDURE
1)
Power on the meter by press
the " Power
button
" ( 3-
3
,
Fig. 1 ) > 2 sec.
2) Press the " Source/Measure button " ( 3-8, Fig. 1 ) select to
MEASURE Model .
3) Press the " FUNCTION button " ( 3-7, Fig. 1 ) select to 400 ohm
Measure Function.
4) Measured resistance into the Red (HI) banana Terminal (3-16,Fig1) and
Black (LO) banana Terminal(3-17,Fig1) .
5) The meter LCD display will show the measure value same as the input
Measured resistance, value.
5-5. LCD Backlight Operation
During the meter Power on
long press The" ◄ button"( 3-2, Fig. 1 ) > 2 sec. the LCD Backlight will be on ,and
long press The" ◄ button"( 3-2, Fig. 1 ) > 2 sec. the LCD Backlight will be off.
9

6. ADVANCED SETTING
Under do not execute the Datalogger function,
press the " Function Button " ( 3-7, Fig. 1 ) continuously at
least 3 seconds will enter the " Advanced Setting " mode.
Then press the " Function Button " (3-7, Fig. 1 ) once a while
in sequence to select the two main function, the lower
display will show :
P
O
FF.......
Auto power OFF management
t-CF....... Select the Temp. unit to ℃ or ℉
Remark :
During execute the " Advanced Setting " function, if
press " Power Button " ( 3-3, Fig. 1 ) once will exit
the " Advanced Setting " function, the LCD will return to
normal screen.
6-1 Auto power OFF management
When the lower display show " PoFF "
1) Use the " ▲ Button " ( 3-5, Fig. 1 ) or " ▼ Button "
( 3-6, Fig. 1 ) to select the upper value to " yES " or
" no ".
yES - Auto Power Off management will enable.
no - Auto Power Off management will disable.
2) After select the upper text to " yES " or " no ", press the
" Source/Measure Button " ( 3-8, Fig. 1 ) will save the setting
function with default.
10

6-2 Select the Temp. unit to ℃ or ℉
When the lower display show " t-CF "
1) Use the " ▲ Button " ( 3-5, Fig. 1 ) or " ▼ Button "
( 3-6, Fig. 1 ) to select the upper Display text to " C " or
" F ".
C - Temperature unit is ℃
F - Temperature unit is ℉
2) After Display unit is selected to " C " or " F ", press the
" Source/Measure " ( 3-8, Fig. 1 ) will save the setting
function with default.
7. POWER SUPPLY from DC ADAPTER
The meter also can supply the power supply from the
DC 9V Power Adapter ( optional ). Insert the plug of
Power Adapter into " DC 9V Power Adapter Input Socket
" ( 3-11, Fig. 1 ). The meter will auto select to DC 9V Power Adapter.
11

8. BATTERY REPLACEMENT
1) When the left corner of LCD display show " ", it
is necessary to replace the battery. However, in-spec.
measurement may still be made for several hours after
low battery indicator appears before the instrument
become inaccurate.
2) Loose the screws of the " Battery Cover Screws " ( 3-13,
Fig. 1 ) and take away the " Battery Cover " ( 3-12, Fig. 1 )
from the instrument and remove the battery.
3) Replace with DC 1.5 V battery ( UM3, AA,
Alkaline/heavy duty ) x 6 PCs, and reinstate the cover.
4) Make sure the battery cover is secured after changing
the battery.
9. SYSTEM RESET
If the meter happen the troubles such as :
CPU system is hold ( for example, the key button can
not be operated... ).
Then make the system RESET will fix the problem.
The system RESET procedures will be either following
method :
During the power on, use a pin to press the " Reset
Button " ( 3-9, Fig. 1 ) once a while will reset the
circuit system.
12 171016-TC-424
