Sivoia QEDTM |Roller 64TM Pocket Mount
Installation Instructions
SIVOIA QEDTM Roller 64 Pocket Mount Installation
Instructions
1
Tools Required:
Tape Measure 1/4” Hex-Head Driver
Wire Cutter/Stripper Level
Pliers Power Drill
#2 Phillips Screwdriver
Sivoia QED™Roller 64
Shade Brackets with Retaining Screws
(5) Mounting Screws
(#8x1-3/4" (#8x44mm)
Hex Head Screws)
(1) 7 Pin Terminal Block
(1) Programming Stylus
(1) Screwdriver
(1) Pocket
(1) Flap
(2) 4” (102mm) Cable Ties
Notes:
1) Complete wiring and programming information can be found in the Sivoia QED Wire and
Programming Guide, P/N 045-038 or at www.lutron.com.
2) The Electronic Drive Unit (EDU) will need to be powered to complete installation.
Box Contents:
(2) Bracket Leveling Spacer (2) Cable Tie Anchor
(2) Pocket Endcaps (if applicable)

SIVOIA QEDTM Roller 64 Pocket Mount Installation
Instructions 2
Warning: Incorrect installation can lead to severe injury, follow all installation instructions.
Notes:
• The Sivoia QED Roller 64 must be used only with window systems approved by Lutron.
• There must be a clearance of at least 1.3 feet (0.4 meters) between the fully lowered system
and any permanent object.
• Installation shall be executed by a qualified electrician according to national wiring rules.
• Before shade installation, remove any unnecessary cords and disable any equipment not
needed for powered operation. The Sivoia QED Roller 64 has a maximum rated operating
time of 8 min.
• The Sivoia QED Roller 64 must be used only with window systems approved by Lutron,
and should not be taken appart from the window system.
• Codes: Install in accordance with all local and national electrical codes.
• Environment: Ambient operating temperature: 0-40°C, 32-104°F, 0-90% humidity, non-condensing.
Indoor use only.
Sivoia QEDTM |Roller 64TM Pocket Mount
Installation Instructions (continued)

SIVOIA QEDTM Roller 64 Pocket Mount Installation
Instructions
3

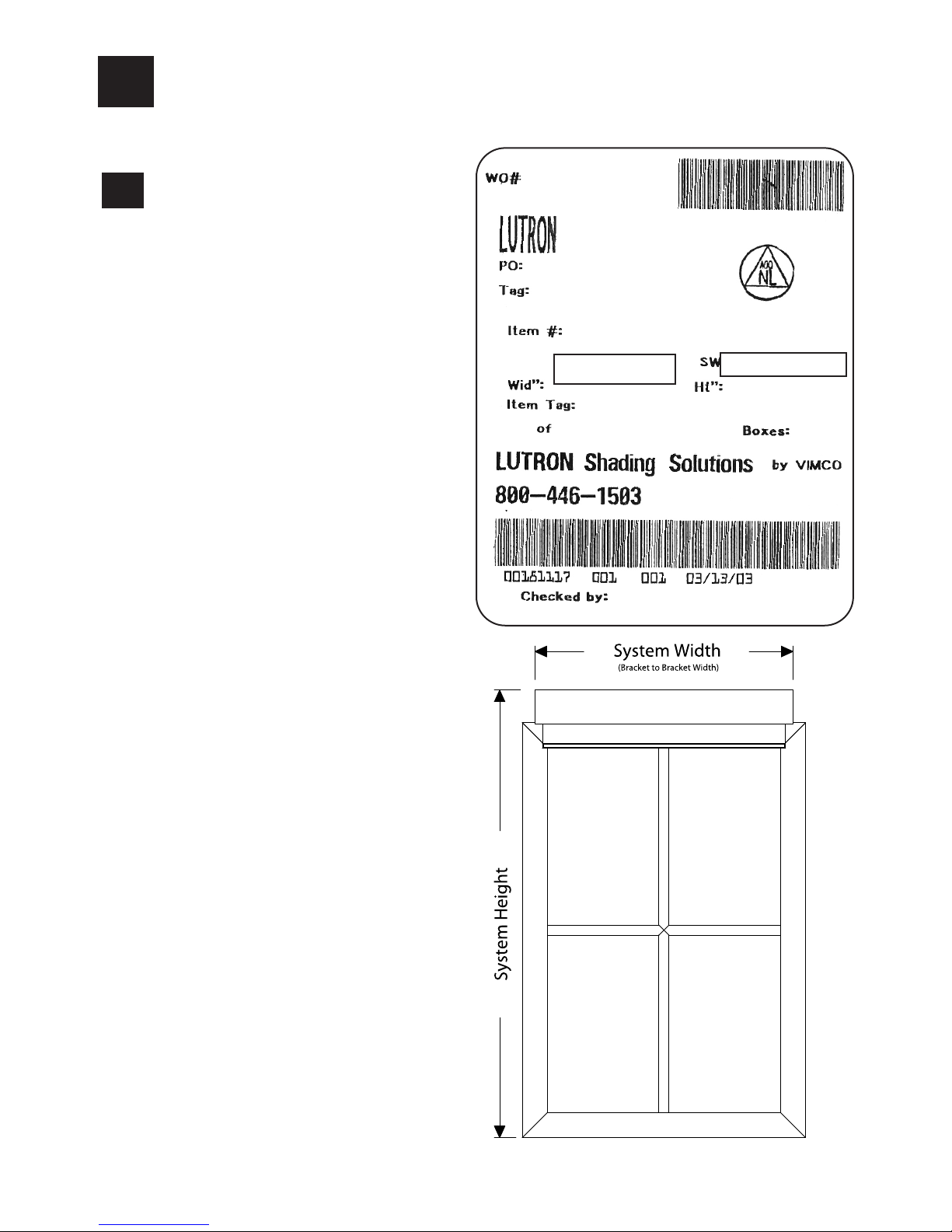

1Confirm System Dimensions
1.1
1
System Width System Height
Compare system dimensions on
the package label with the window
dimensions to verify appropriate
window/shade combination.
1.1
Package Label

SIVOIA QEDTM Roller 64 Pocket Mount Installation
Instructions 4
2Install Pocket Endcaps (if applicable)
Slide the 2 tabs of the pocket endcap into the pocket until it is flush with the outside.
2.1

SIVOIA QEDTM Roller 64 Pocket Mount Installation
Instructions 5

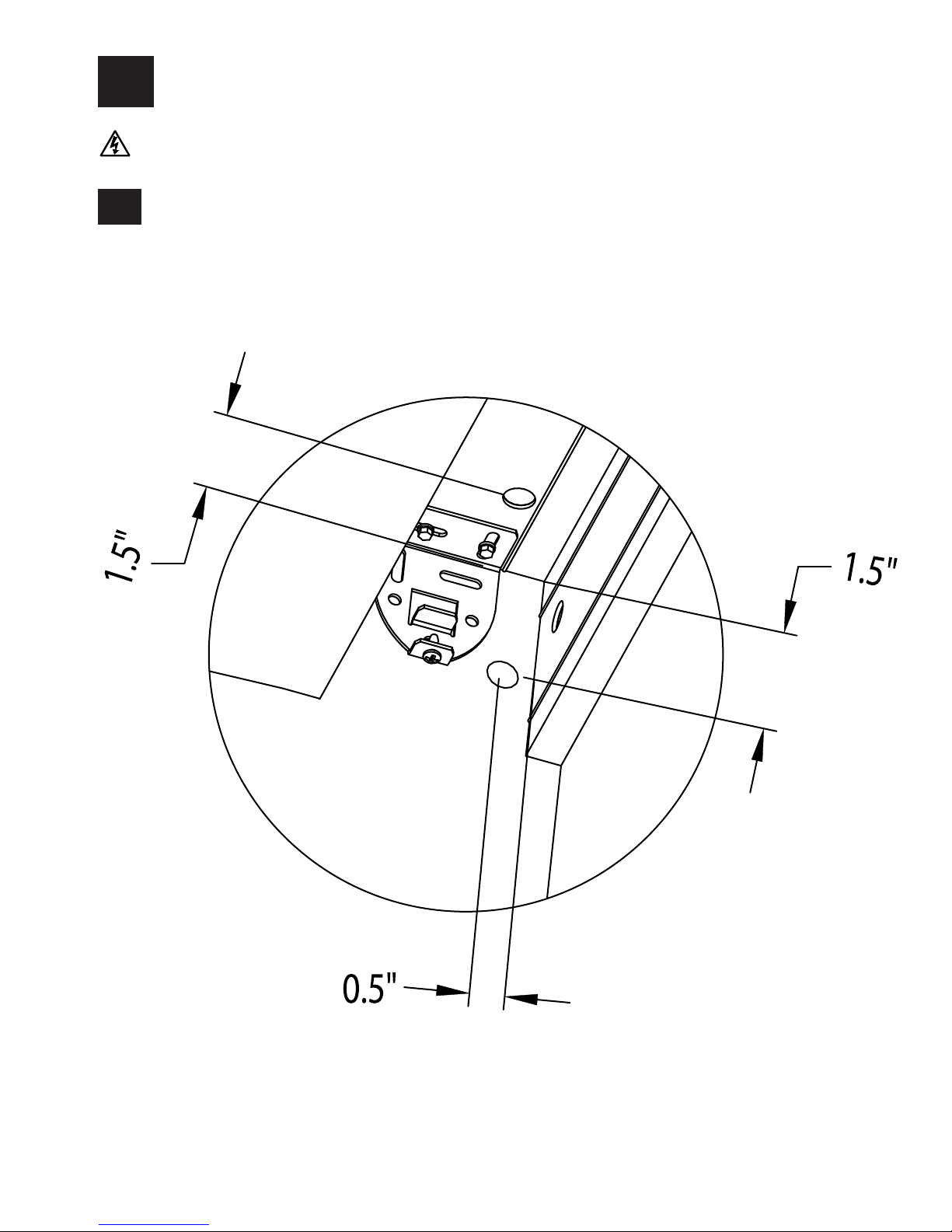

3Mount Pocket
Pre-drill pocket to allow clearance for the wires without interfering with the bracket. Follow figure below for suggested
hole locations.
Note: Hole should be large enough to allow adjustment during install without pinching the wire.
Note: Cable should exit from EDU side of the system.
3.1
DANGER - Locate and lock breaker to the shade power supply in the OFF position or
unplug the power plug-in transformer before doing any wiring.

SIVOIA QEDTM Roller 64 Pocket Mount Installation
Instructions 6
3Mount Pocket
Verify mounting surface is level/plumb before attaching pocket.
Note: Pocket may rub fabric if installed with an improper tilt or may cause flap to fall.
Orient the pocket. For regular roller shades, install pocket with flap hanging feature on the opposite side
of the glass. For reverse roller shades, flap hanging feature is on glass side.
3.3
3.2
Flap Hanging
Feature

SIVOIA QEDTM Roller 64 Pocket Mount Installation
Instructions 7
3Mount Pocket (continued)
Mount the pocket using appropriate fasteners (make sure it is level).
Note: Screws must be at least 1.5” (38mm) from system end to avoid interfering with mounting of
shade brackets.
Note: Be sure to pull cable from wall through the hole in pocket while mounting.
Note: The pocket should be mounted to support at least 300 lbs (136 kg). The fasteners provided may
not be appropriate for use in all applications.
Note: Blocks (Not Provided) may be required to prevent fabric from rubbing against trim, window, top
treatment, etc.
3.4

SIVOIA QEDTM Roller 64 Pocket Mount Installation
Instructions 8

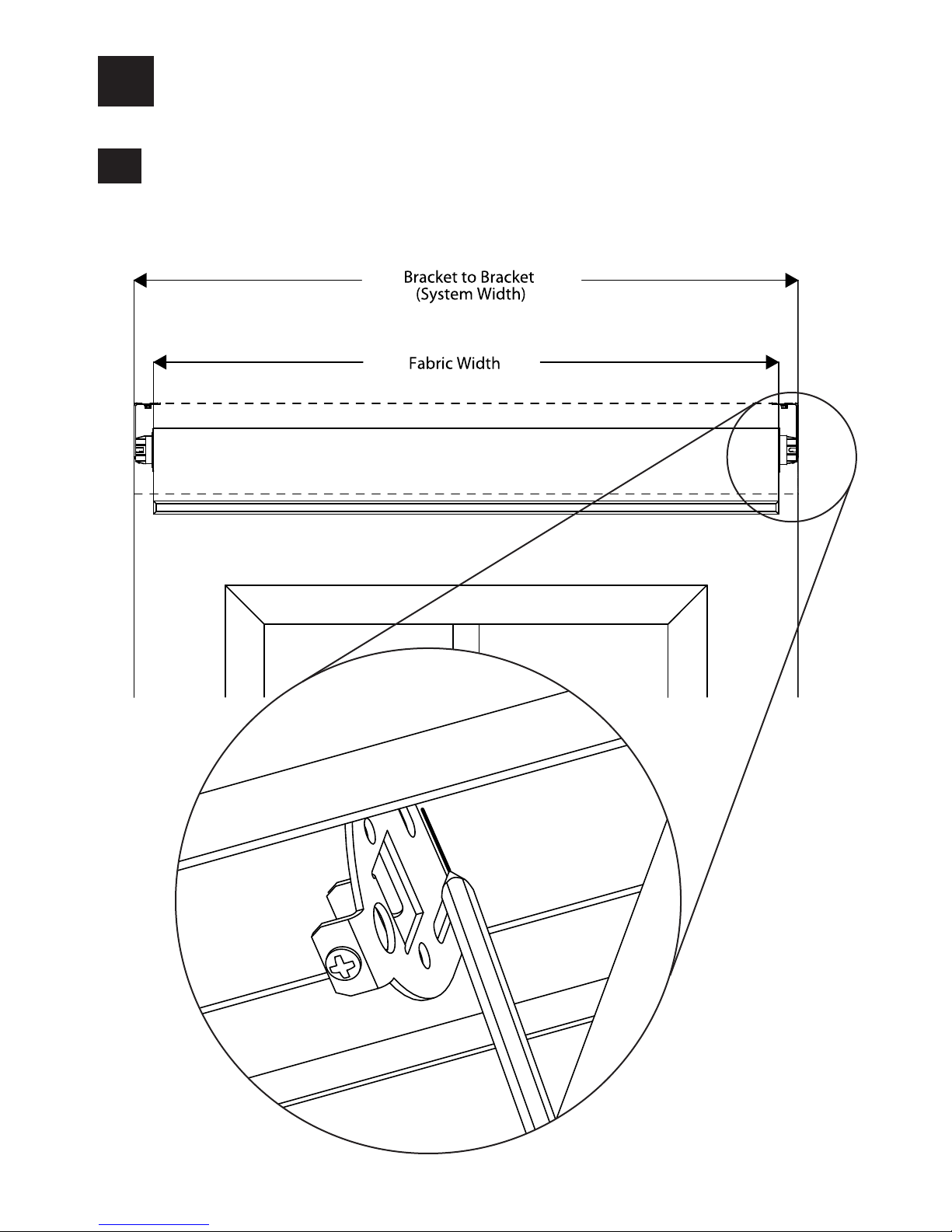

4Position the Mounting Brackets
Mark the location of the mounting brackets so they are centered over the window.
Note: Bracket to Bracket Distance = Fabric Width + 1.5” (38mm) = System Width.
4.1

SIVOIA QEDTM Roller 64 Pocket Mount Installation
Instructions 9

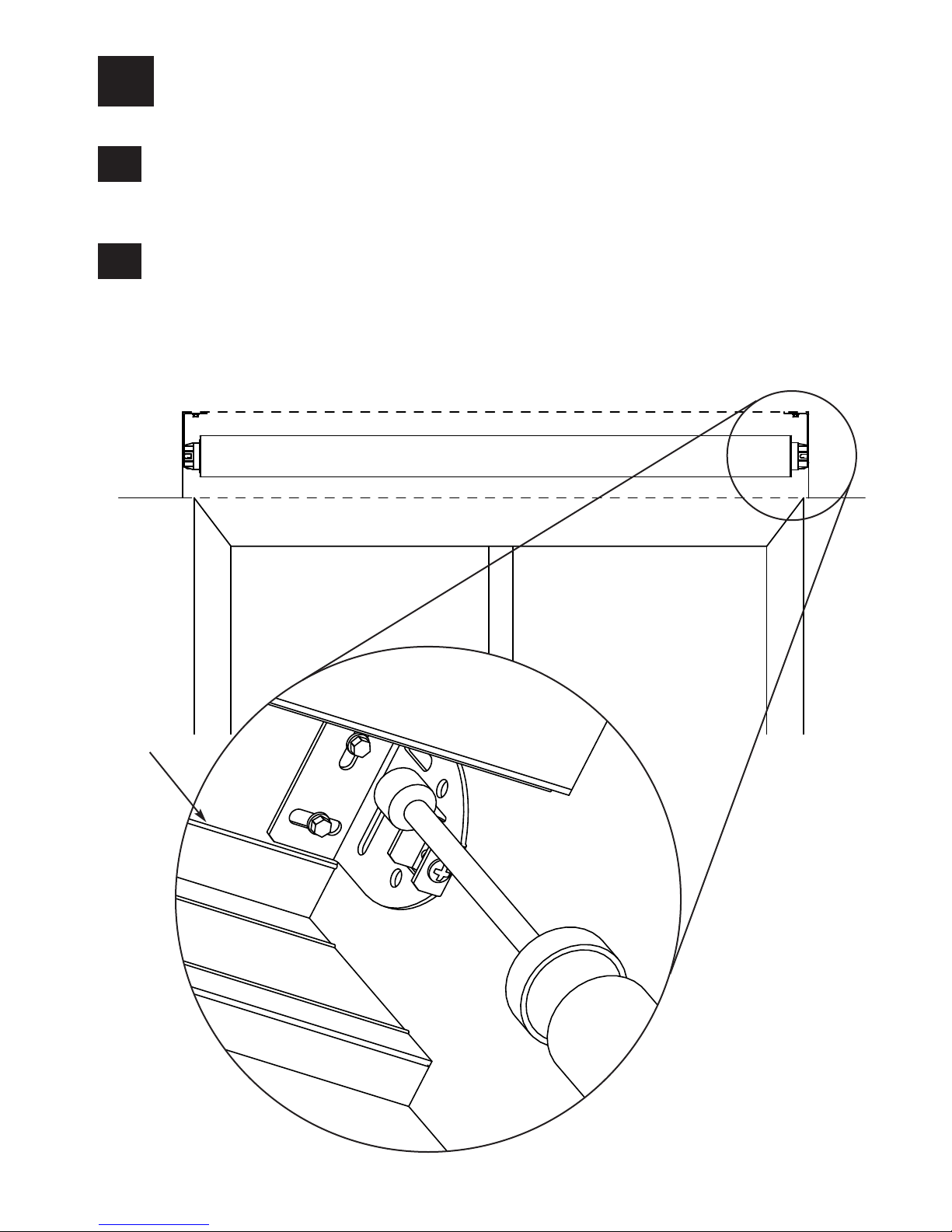

5Install the Mounting Brackets
Install the first mounting bracket between the aligning ribs in the pocket.
Aligning Ribs
5.1
Install the second mounting bracket between the aligning ribs in the pocket at the other end of
the system.
Note: Put a screw in the center of each slot. Use slots as needed to ensure brackets are level and
plumb as positioned.
5.2

SIVOIA QEDTM Roller 64 Pocket Mount Installation
Instructions 10

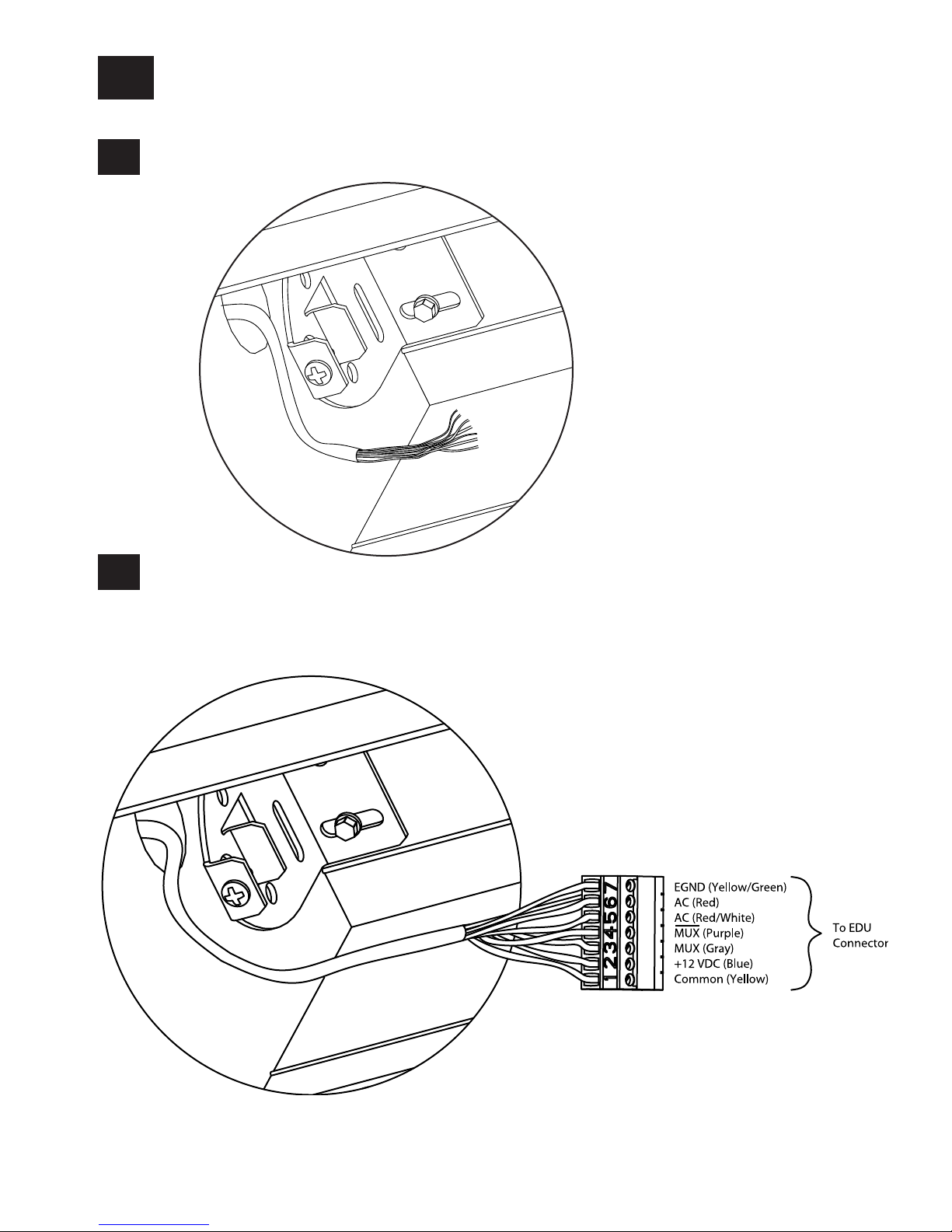

6Wire 7-Pin Terminal Block
Strip 2” (50mm)
of the jacket off
the cable run
from the wall.
6.1
Wire 7-Pin terminal block (provided) to cable using the included screwdriver.
Note: SVQ-CBL-250 shown.
6.2

SIVOIA QEDTM Roller 64 Pocket Mount Installation
Instructions 11
7Orient the Buttons and Wiring
Orient the shade as shown so the buttons are accessible (do not try to mount shade yet) and
the wires are not pitched or damaged.
7.1
Note: The wires may go in either or both of the slots shown on the figure below.
Buttons
Wire Slots

SIVOIA QEDTM Roller 64 Pocket Mount Installation
Instructions 12

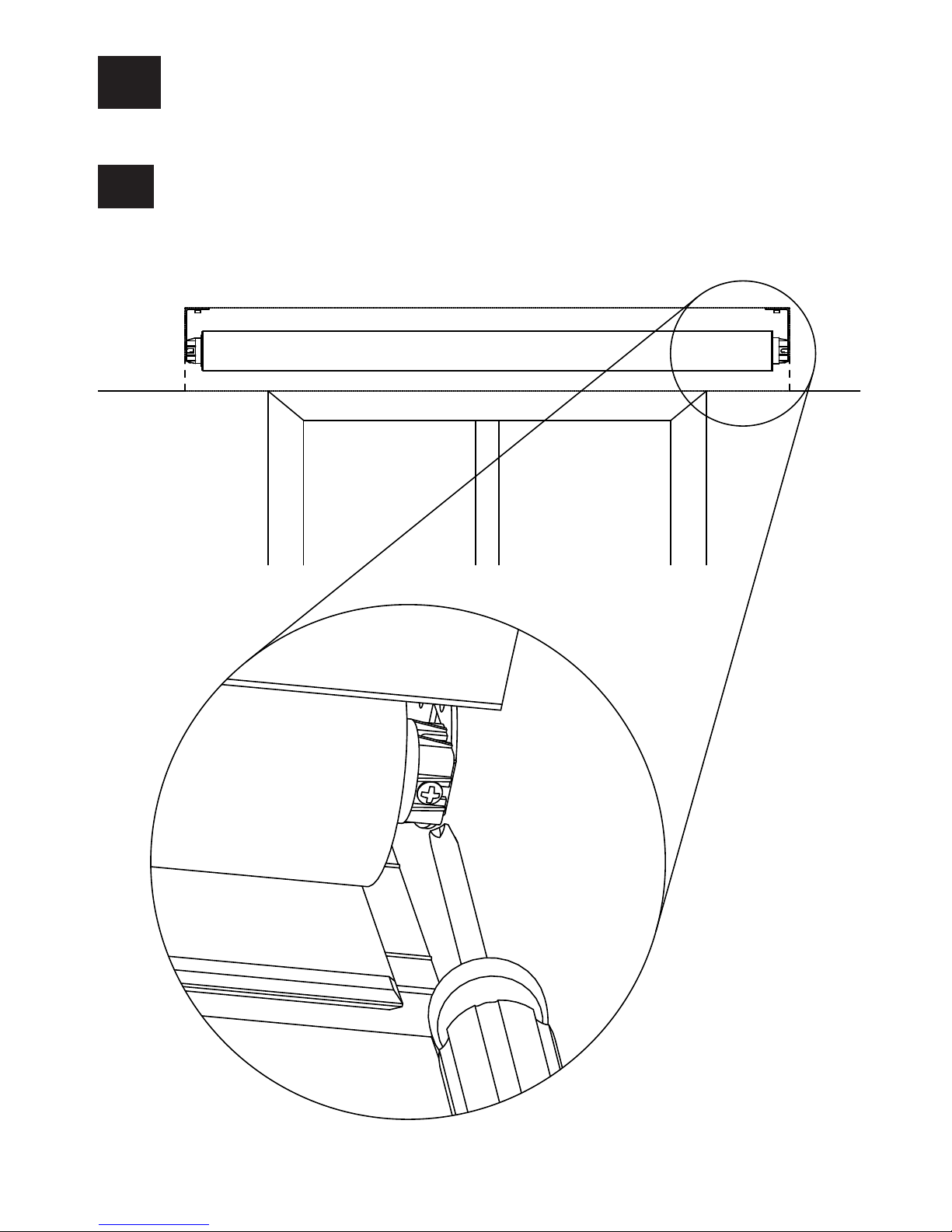

8Mount the Shade
Install the idler side of the shade onto its bracket.
8.1
Depress the spring loaded idler by pressing the shade towards the idler, and install the EDU side of the
shade onto its bracket.
8.2

SIVOIA QEDTM Roller 64 Pocket Mount Installation
Instructions 13

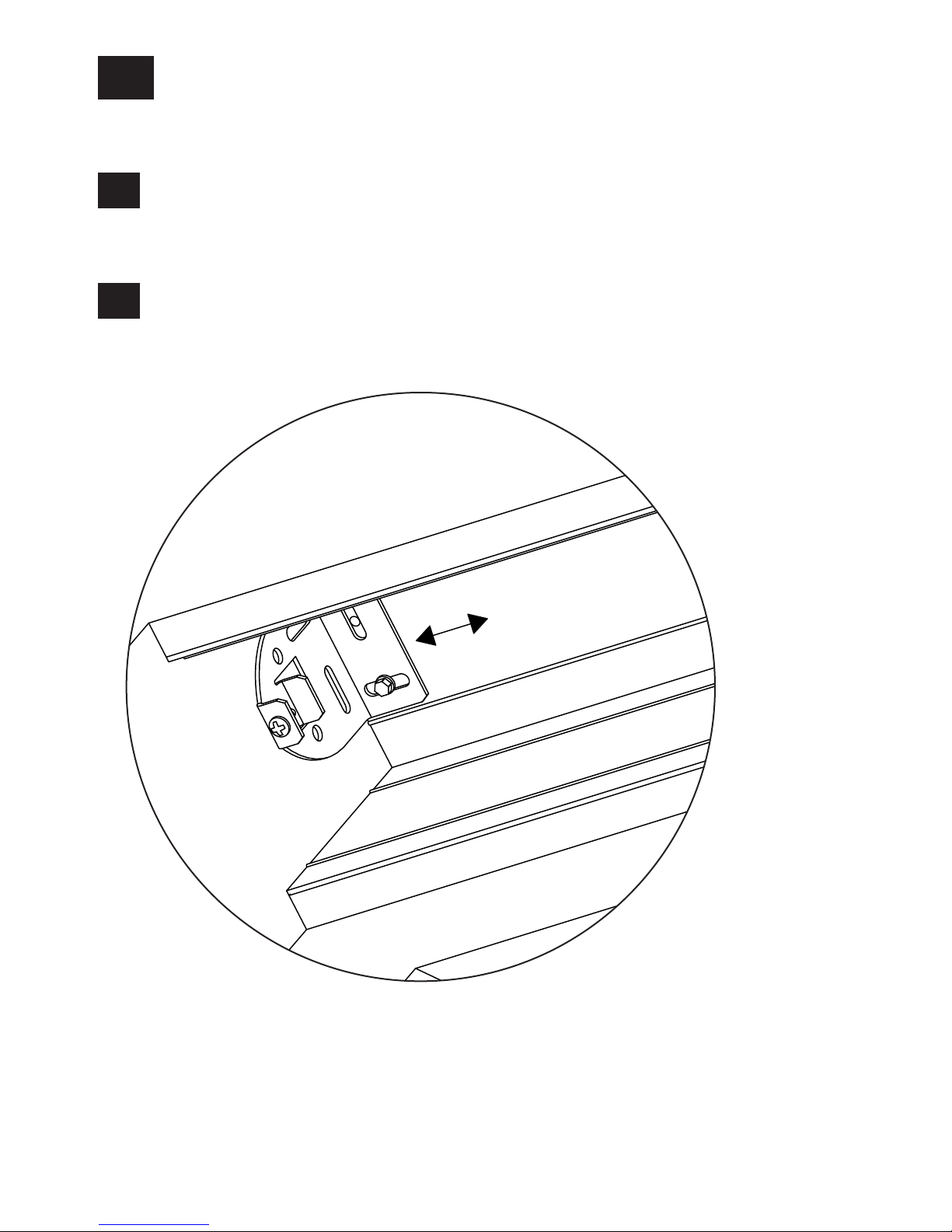

9Adjust the Shade
Adjust shade by removing the necessary screws and moving the brackets horizontally.
Note: You may have to remove the shade to access the bracket screws.
Note: It is not recommended to use bracket spacers inside the pocket.
9.1
Reinstall and tighten the screws.
9.2

SIVOIA QEDTM Roller 64 Pocket Mount Installation
Instructions 14

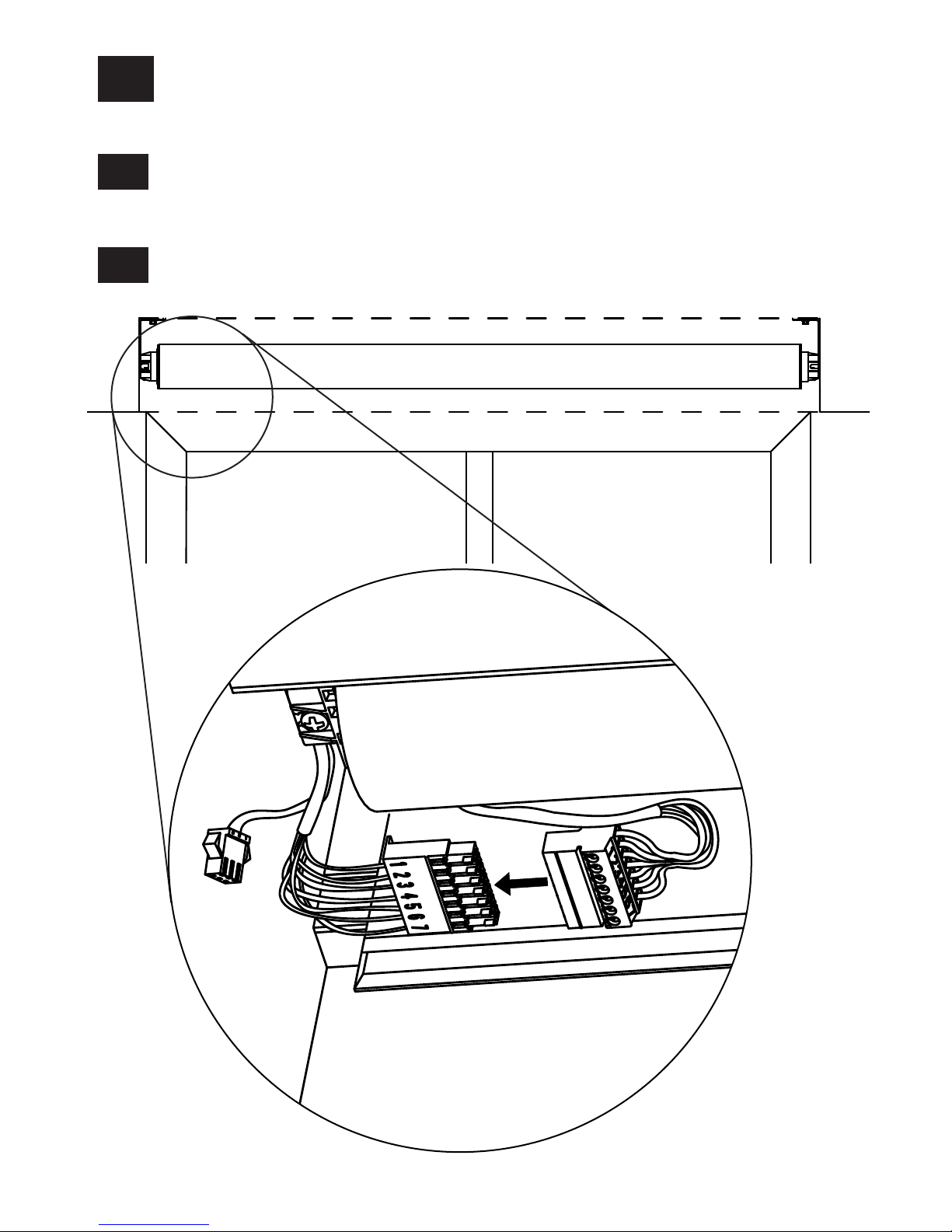

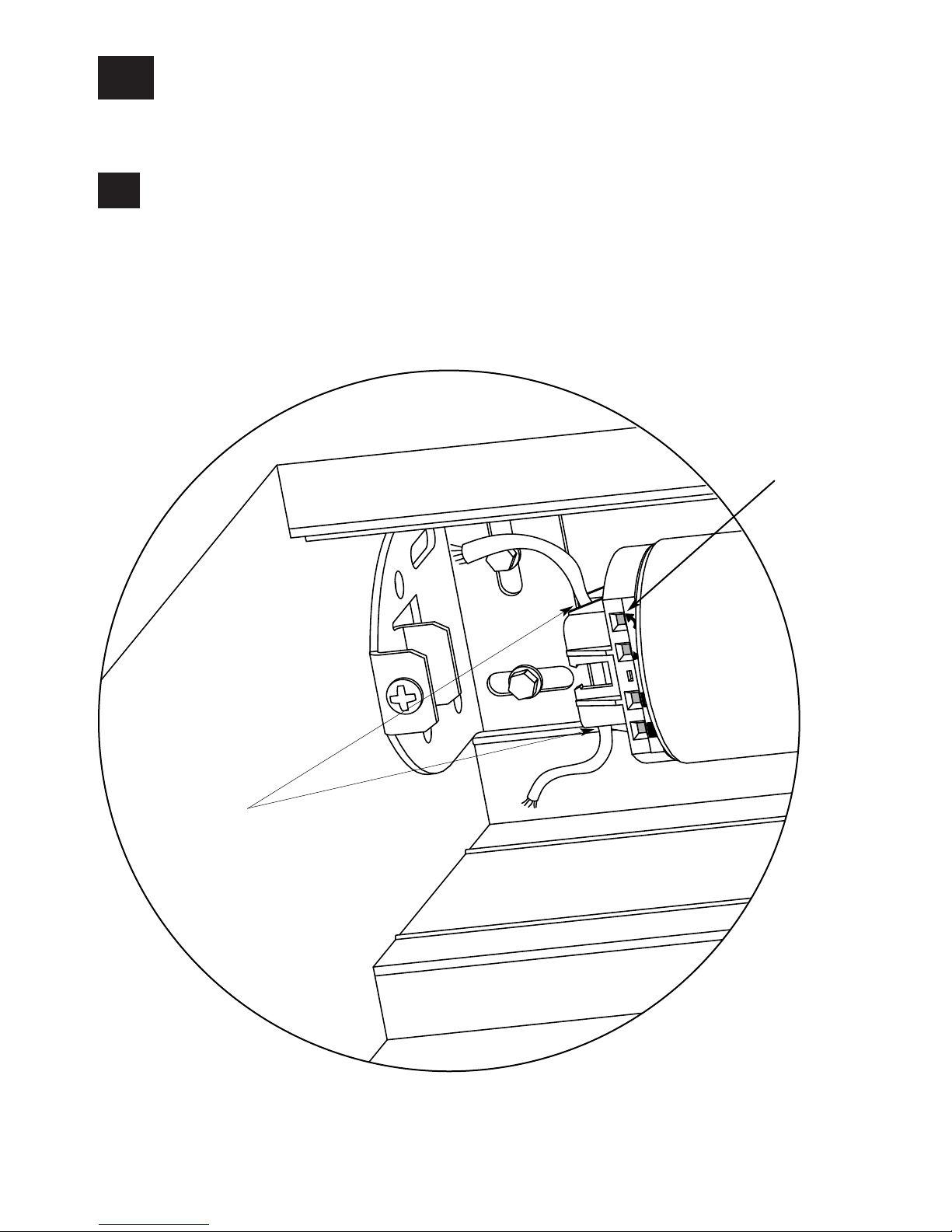

10 Connect Terminal Blocks
Plug 7-pin terminal block on cable into EDU terminal block (a cable tie can be used to
secure the terminal blocks together).
10.1
Dress wires to ensure fabric does not rub while the shade is moving.
10.2

SIVOIA QEDTM Roller 64 Pocket Mount Installation
Instructions 15

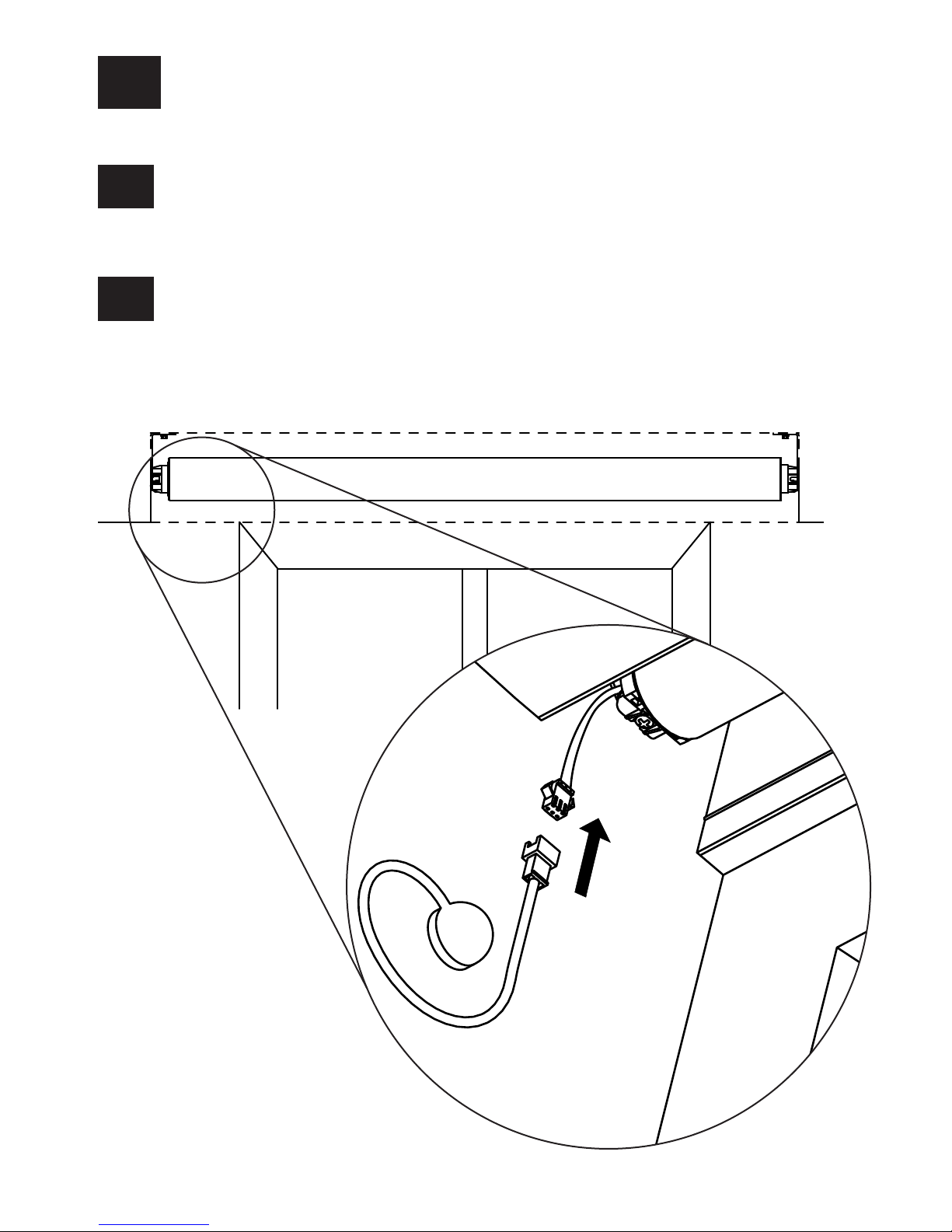

IR Receiver Connection (if applicable)
Plug in the IR receiver.
Position the IR receiver.
Note: The IR receiver should be mounted such that it is in line-of-sight with the
remote control and that it does not interfere with the shade.
11
11.1
11.2

SIVOIA QEDTM Roller 64 Pocket Mount Installation
Instructions 16
12 Secure and Check the Shade
Tighten retaining screws in each bracket to secure the shade.
12.1

SIVOIA QEDTM Roller 64 Pocket Mount Installation
Instructions 17
12.2
Reconnect power to the shade power supply.
Use the programming stylus to run the shade up and down using the adjustment
buttons ( ), re-level if needed.

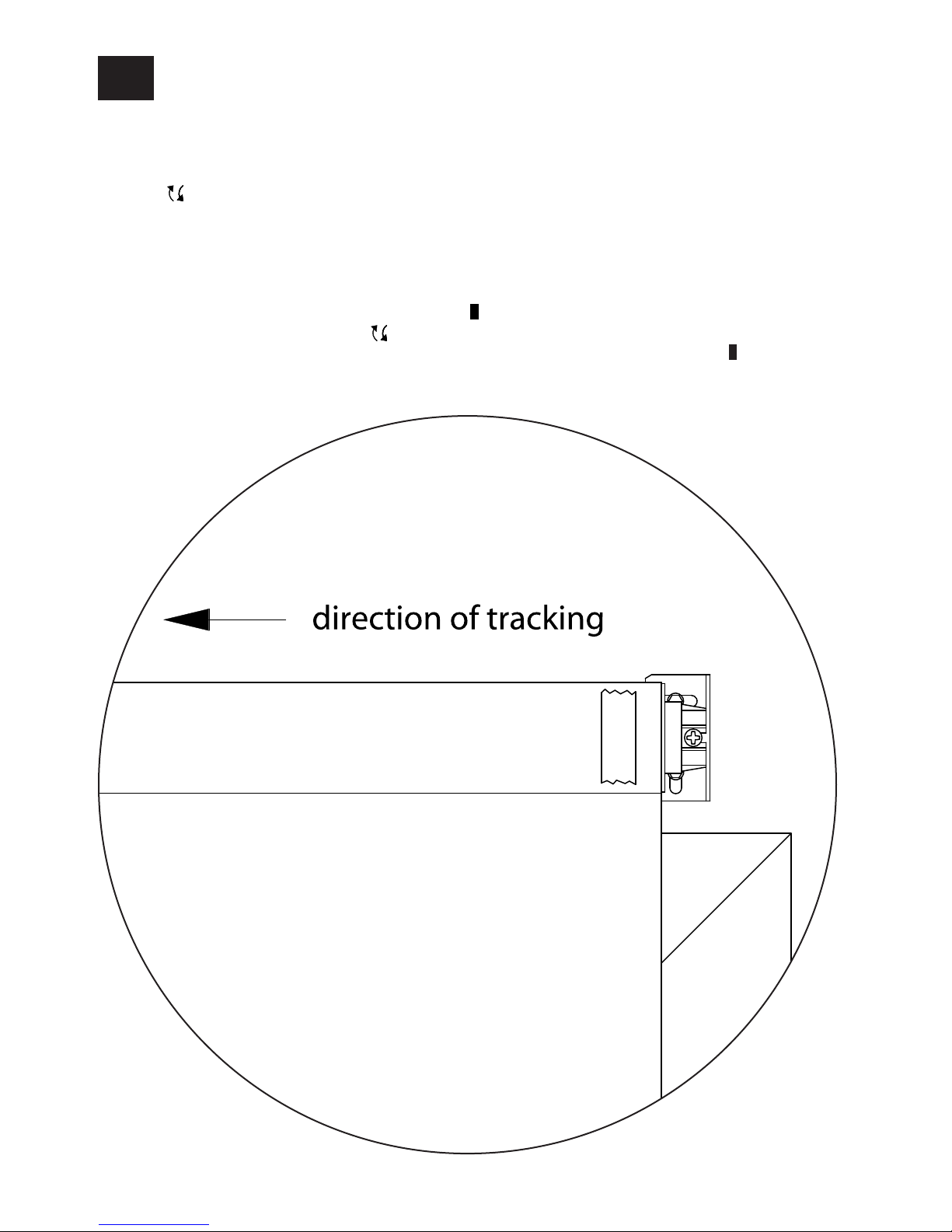

Observe: Pay careful attention to the shade roll up to ensure that it does not telescope
extremely to one side or the other.
Tip: Slight telescoping is normal. However, if the shade is telescoping severely to one
side and it is level, press the “Close Limit Button” ( ), and lower the shade all the way
down using the adjustment buttons ( ). Place a piece of tape on the side of the tube
that the fabric is telescoping away from when finished press the “Close Limit Button” ( )
once. This technique is referred to as “SHIMMING”. The shade will always track towards
the side that the tape (shim) is placed on.
Secure and Check the Shade (continued)

Press and hold the “Open
Limit Button” ( ) for 5
seconds. The green LED on
the roller shade EDU will
flash for 2 seconds, then go
dark, indicating that the
current position has been
stored as the Open Limit.
Adjust the position of the
EDU to the desired Open
Limit using the adjustment
buttons ( ).
Note: Setting the Open Limit lower than the Close Limit will cause the shade to move down when
raise is pressed and up when lower is pressed.

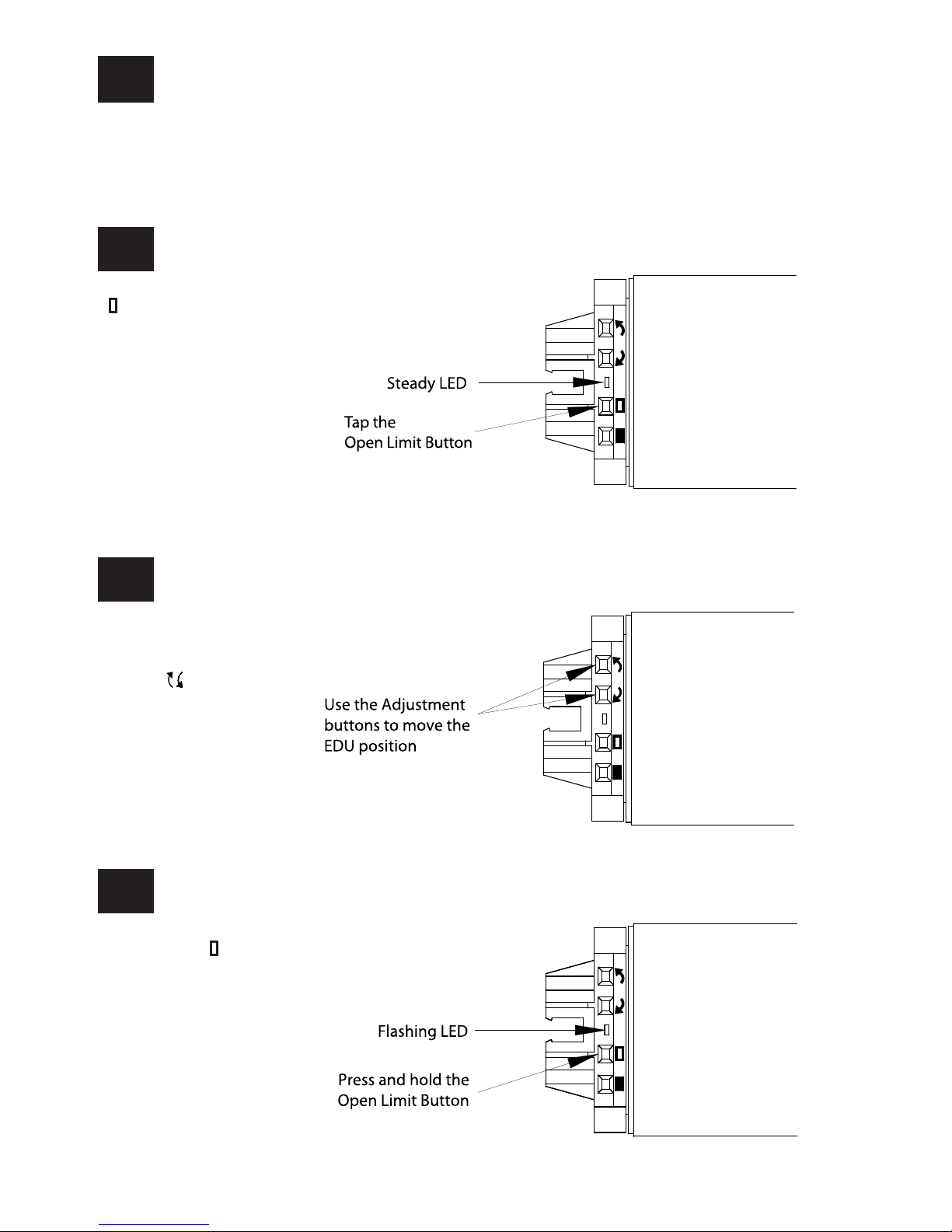

Setting the Open Limit from the EDU
13 Setting Limits from the EDU
Tap the “Open Limit Button”
( ), the green LED on the
roller shade EDU will turn on
steady, indicating that the EDU
is in “Set Open Limit Mode.”
13.1
13.2
13.3
SIVOIA QEDTM Roller 64 Pocket Mount Installation
Instructions 18

SIVOIA QEDTM Roller 64 Pocket Mount Installation
Instructions 19
13.5
13.6
13.4
13 Setting Limits from the EDU (continued)
Setting the Close Limit from the EDU
Press and hold the “Close
Limit Button” ( ) for 5
seconds. The green LED on
the roller shade EDU will
flash for 2 seconds, then go
dark, indicating that the
current position has been
stored as the Close Limit.
Tap the “Close Limit
Button” ( ). The green
LED on the roller Shade
EDU will turn on steady,
indicating that the EDU is
in “Set Close Limit Mode”.
Adjust the position of the
EDU to the desired Close
Limit using the adjustment
buttons ( ).
