Luxier SP25-CEC User manual

SP25-CEC Rev. A 102019
1Luxier
Features
• Stunning stylish European inspired design
• Elegant & Durable stainless steel frame construction
• Pressure balanced valve minimize the chance of scalding.
• 4 stage shower functions (Rainfall, Waterfall, Massage Spray, Hand Shower)
SP25-CEC

SP25-CEC Rev. A 102019
2Luxier
Thank you for purchasing Luxier products. Please read the information below and keep this
installation guide for future reference. If you require assistance, please contact our customer service
department at 1-877-711-8828, Monday - Friday 9AM - 5PM Pacifi c Time. Or by email at
[email protected].
Limited Two (2) Year Warranty (For USA Only)
The manufacturer warrants this product to be free of manufacture defects during daily normal
household use for as long as it is owned by the original purchaser of this product. Please keep a
copy of the original invoice as proof of purchase.
Should a malfunction occur within the warranty period, Luxier USA will, as its option, (1)
repair or replace the defective part(s) or product(s) at no charge; (2) issue a refund of the original
purchase price of the product(s) (Valid within 30 days from the date of purchase); or (3) issue a
credit to be applied toward the purchase of a new Luxier product. Shipping/delivery charges
may apply and are in Luxier USA’s sole discretion.
This limited warranty shall not apply to goods which have been subject to accident, negligence,
improper installation, product abuse, product misuse, or use of cleaners containing abrasives, alcohol
or other organic solvents, whether performed by a contractor, service company, or yourself, are
excluded from this warranty.
Our responsibility under this limited warranty is limited to only to replacement parts and no other
costs. Luxier USA will not be responsible for labor charges and/or damage incurred by installation,
repair or replacement, nor for any indirect incidental or consequential damages, losses, injury or costs
of any nature relating to this product. Except as provided by law, this limited warranty
is in lieu of and excludes all other warranties, conditions, and guarantees, whether expressed or
implied, statutory or otherwise, including without restriction those merchantability of fi tness for use.
This limited warranty is non-transferable. This limited warranty only applies to products purchased
and installed in the United States. This limited warranty covers the original consumer purchase
only and does not include business, commercial or industrial use of this product. To obtain service
under the Limited Warranty, please contact Luxier USA at [email protected]. The Luxier USA
Customer Care Department will determine whether to repair or replace your product, issue a refund,
or issue a credit.

SP25-CEC Rev. A 102019
3Luxier
Attention
• This installation guide is subject to change without notice, please contact us to request the most
updated version of this installation guide.
• This is a general installation guideline, actual installation may vary. Consult a professional if
necessary.
• Product drawings in this installation guide is for illustration purpose only. Actual product may vary
depends on model.
• Always take extra precautions and wear appropriate safety equipment when installing this product.
• Proper water pressure needs to be maintained to prevent possible scalding.
• Stainless steel shower panels are handmade and assembled. Product dimensions may vary
slightly, always measure the actual product before installation.
• This product is equipped with a water saving device with restricted  ow rate as required by the
state of California. To learn more about this water saving feature, please contact our customer
service department.
You may also need the following tools
1. Thread Sealant Tape, (PTFE Tape) 5. Pencil or Marker
2. Silicon Sealant 6. Level
3. Screw Driver Set 7. Hammer
4. Drill with ¼” Drill bit
Before You Begin
• Read and understand this instructions completely before installation.
• Unpack and inspect the shower panel from the package for shipping damage and make sure all
parts are included with the shower panel.
• Keep the product in its package until you are ready to install.
• Read and understand this installation guide completely.
• Make sure the installation site is clean and free of dust and debris.
• Please make sure the water supply is shut o󰀨 to the installation area. If necessary, shut o󰀨 the
water to the entire house.
• Turn on the water at a bathroom faucet in the house to relieve the pressure in the plumbing
system.
Rough-In
• Please follow all local building and plumbing codes.
• The height and placement of the shut o󰀨 valves will be based on the installation height of
the shower panel, see fi gure A. The installation height is approximately the total distance of
measurement A and measurement B.
• The fi nished wall opening for the valves should not be larger than 4.5” wide by 6” tall. Make sure
the opening is completely waterproof to prevent any water leaking into the wall space. (NOTE:
Product warranty does not cover any damages caused by water leak due to negligent and
improper installation of the shut o󰀨 valves and the shower panel.)
• An outlet box such as the Sioux Chief Ox BoxTM 696-2 is recommended to expedite the installation
process of the shut o󰀨 valves. (NOTE: additional parts such as 1/2” angle valves, 5/8” rubber
grommets, and other parts are required but not included with this product.) Refer to Appendix A for
detail diagram for the outlet box.

SP25-CEC Rev. A 102019
4Luxier
Recommended
10” - 12”
Approximate shower inlet
valve location
approx. outlet
box location
(This is the distance from
the oor to the bottom
edge of the shower panel)
* Shower panel drawing on this page is for
illustration purpose only. Actual product may
vary depends on model.

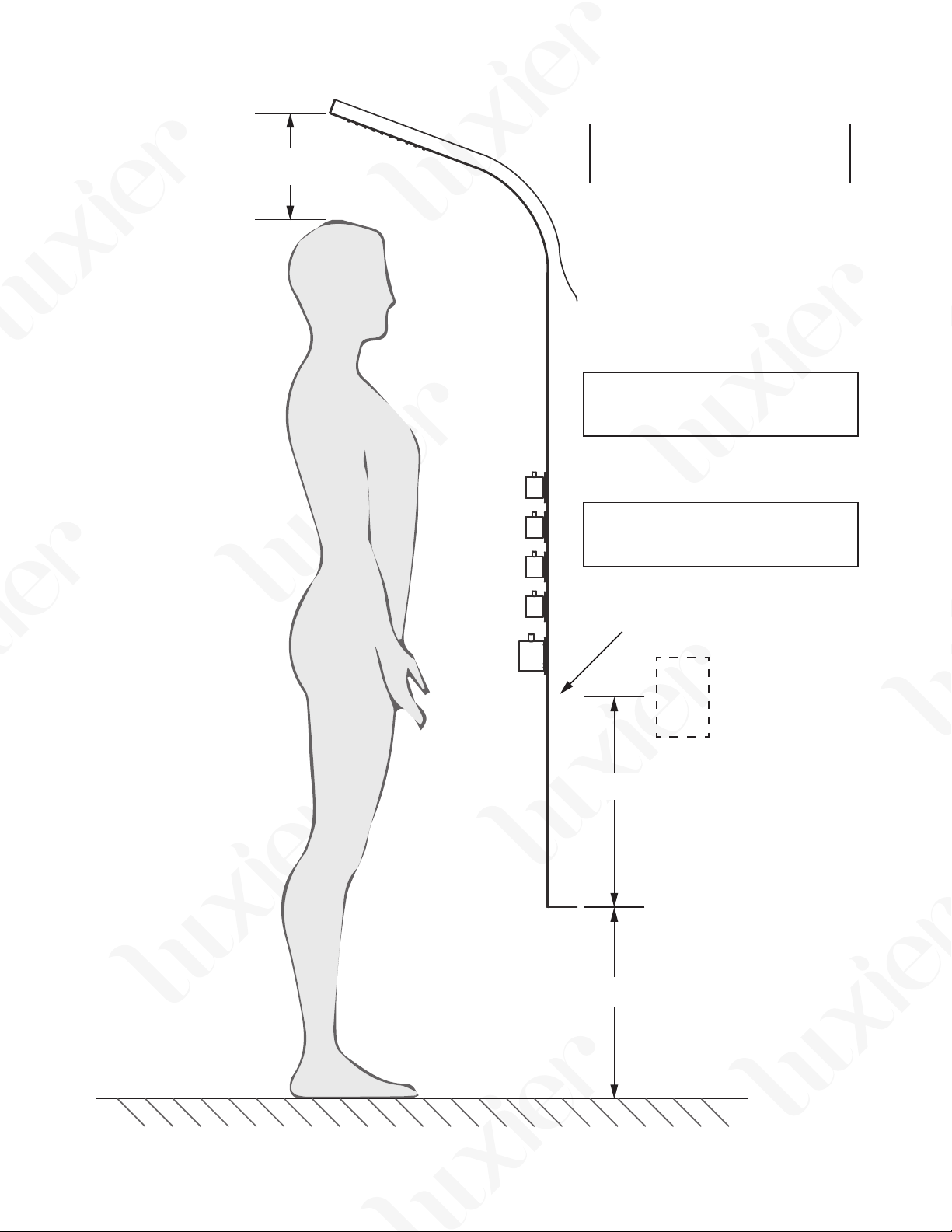

Fig. A
(This is the distance from
the bottom edge of the
shower panel to the
shower panel inlet valve.
NOTE: This distance vary
by models, always take the
actual measurement from
the shower panel)
A
B
The installation height of the outlet box
is approximately the total distance of
measurement A and measurement B.
It is recommened to aim the top hori-
zontal body jets at the chest area of the
user for optimal showering experience.

SP25-CEC Rev. A 102019
5Luxier

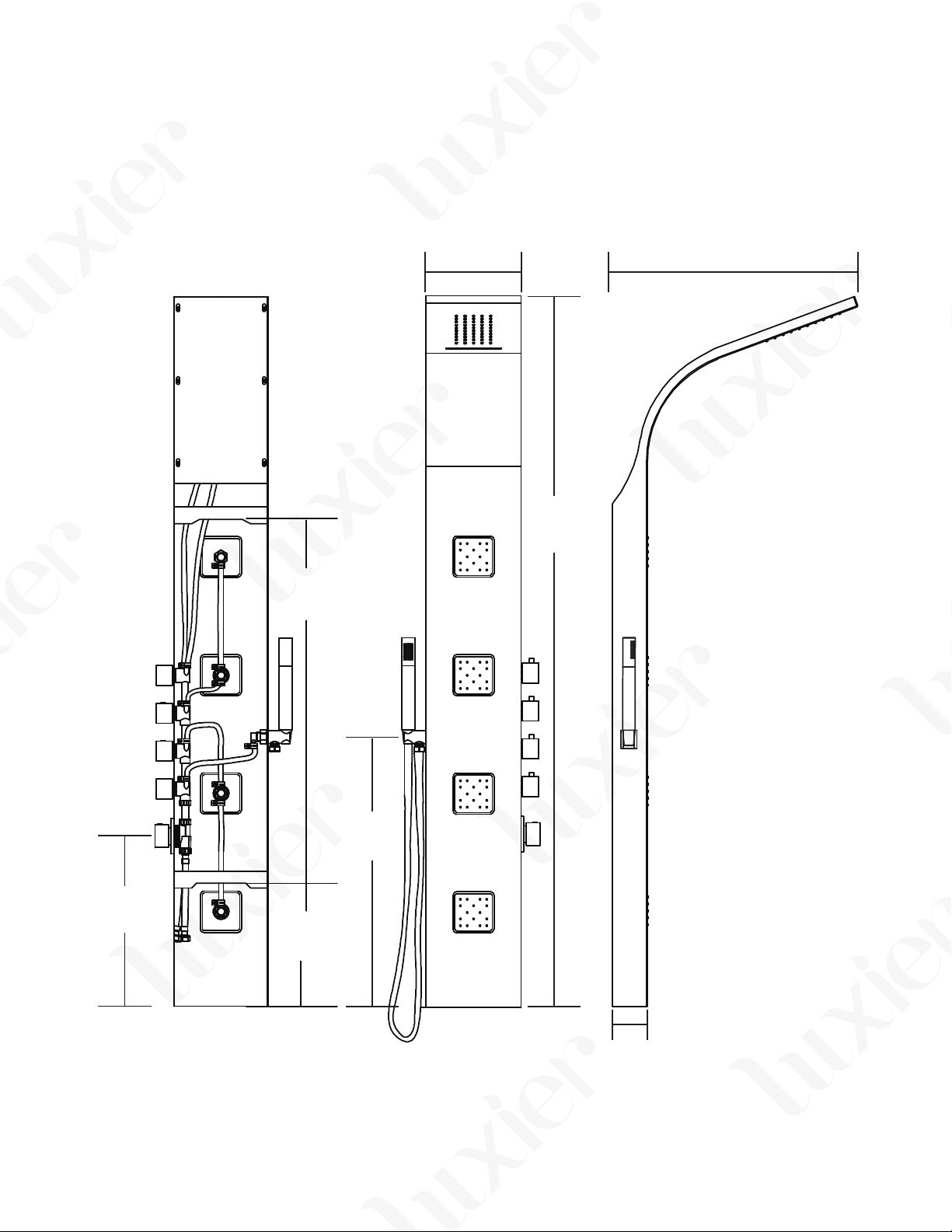

Technical Data
Recommended Operating Pressure: 50 - 80 psi
Flow Rate: 1.8 gpm at 80 psi
(NOTE: This product is equipped with a water saving device with restricted ow rate as required by the state of
California. To learn more about this water saving feature, please contact our customer service department.)
495 mm
19.49”
200 mm
7.87”
1500 mm
59.06”
72.5m
2.85 ”
570 mm
22.44”
770 mm
30.31”
260 mm
10.24”
365 mm
14.37”
* Drawings not to scale. All measurements are approximate *

SP25-CEC Rev. A 102019
6Luxier

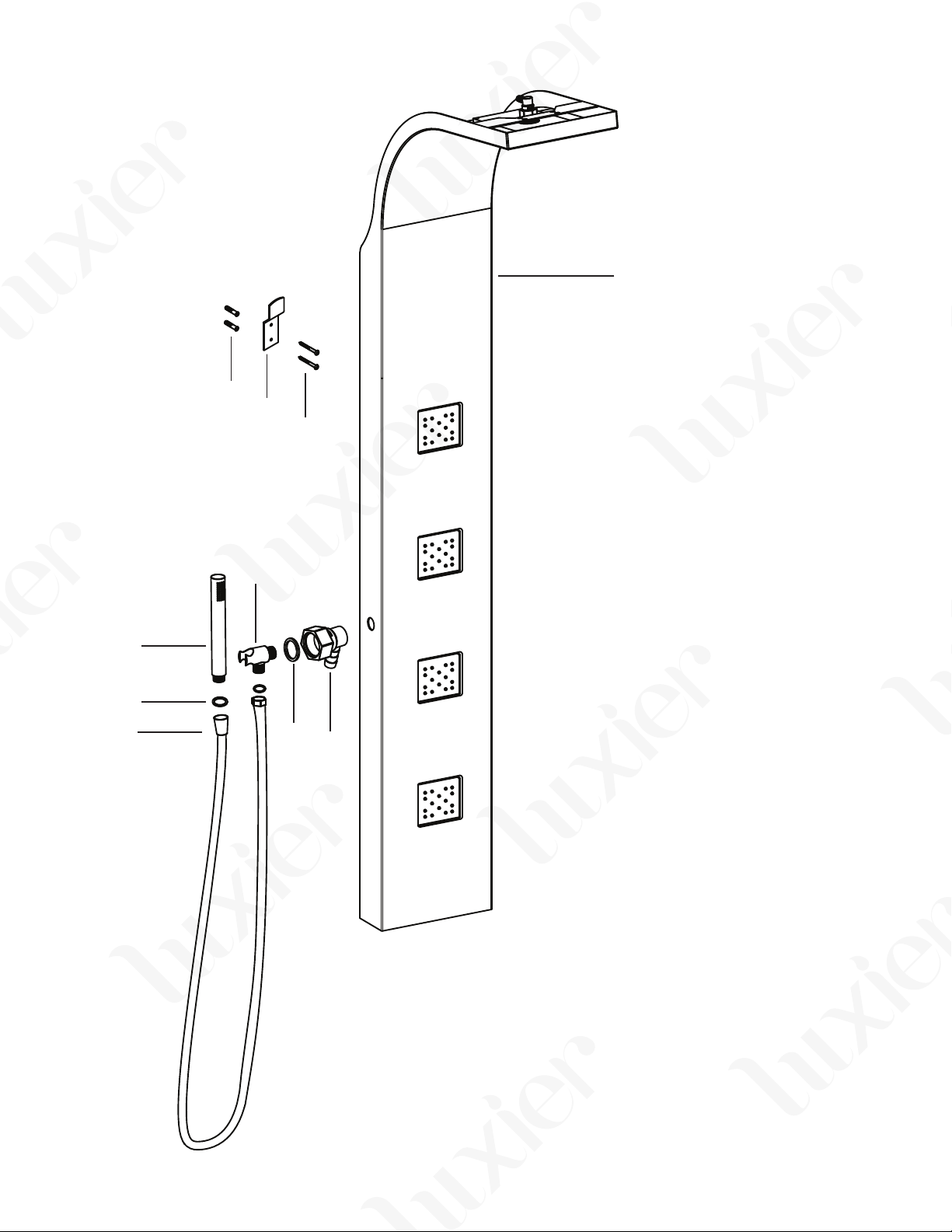

Parts List
01. Shower Panel Body
02. Hand Shower
03. Hand Shower Cradle
04. O rings
05. Hand Shower Hose
06. Gasket
07. Hand Shower Water Connector
08. Screws X 4
09. Mounting Brackets X 2
10. Wall Anchors X 4
8
9
10
2
1
3
4
567

SP25-CEC Rev. A 102019
7Luxier
Installation
2. Lift the panel to determine the proper height and placement.
It is recommened to aim the top horizontal body jet to the chest
area for optimal showering experience. Mark the positions of the
2 brackets on the wall and set a side the panel.
(NOTE: The distance between the two brackets should be 770
mm or 30.31”)
770mm
30.31”
1
2
3
45
1. Install hand shower cradle (1) to the shower panel by installing
the rubber washer (2) and the locking nut (3) and attach white
plastic hose tube connector (5) with PVC tubing to complete the
connection. (NOTE: Make sure the silicon gasket (4) is seated
properly inside the connector.)
1”
3. Using a drill with a tile bit, drill the hole slowly into the tile. Do
not drill into any piping or wiring in the wall. Insert the anchors
into the wall.
(NOTE: Before drilling the tiles, use a small piece of painters
tape or masking tape over the drill area. This will prevent dam-
ages to the tiles)
4. Secure the mounting brackets to the wall with the screws.

SP25-CEC Rev. A 102019
8Luxier

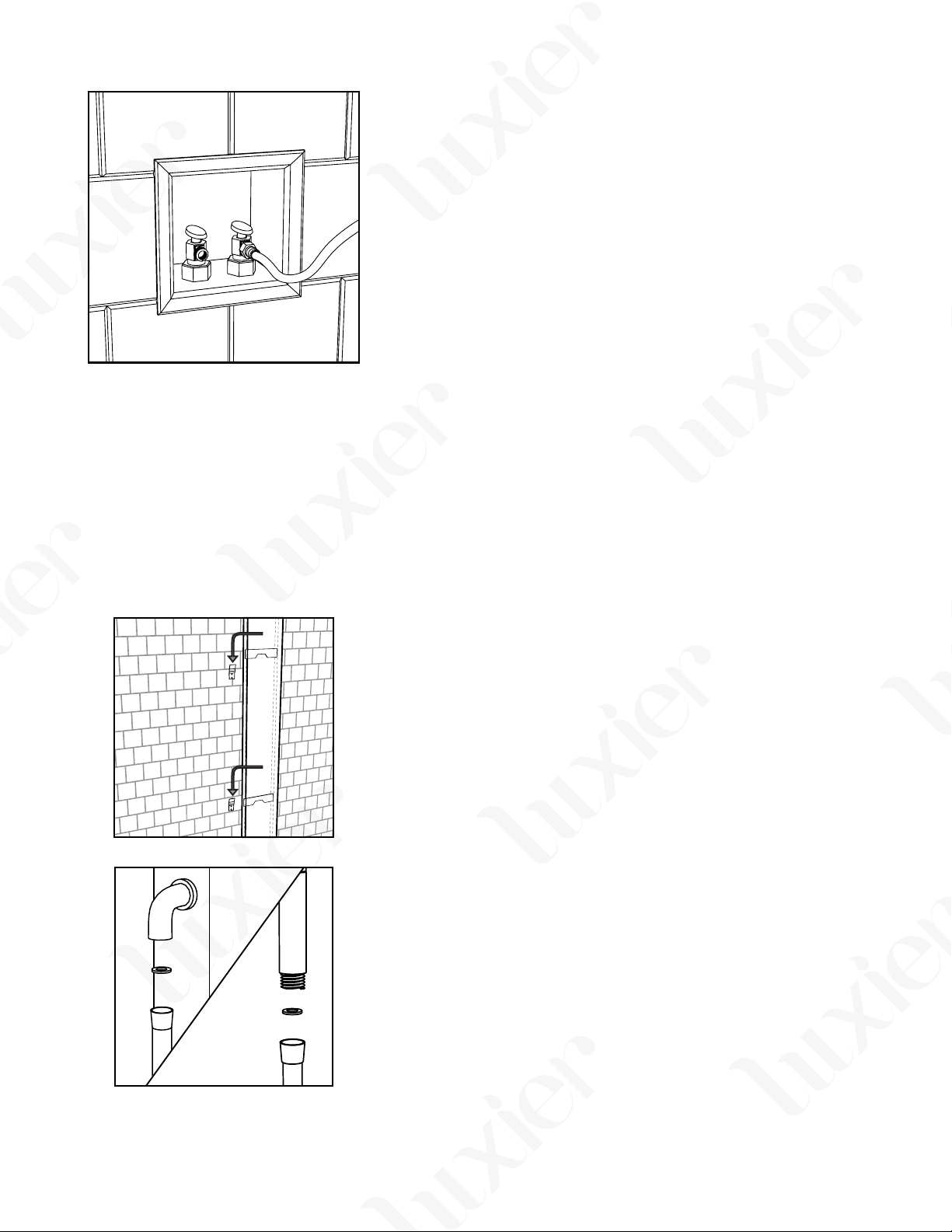

Installation (cont.)
5. Apply thread sealant tape to the threading on the shut-o󰀨
valves before connect both hot and cold water supply hoses
to the valves.
IMPORTANT :
- Make sure the water supply hoses are connected to the
corresponding shut-o󰀨 valves - i.e. cold water hose to the cold
water valve and hot water hose to the hot water valve. The
thermostatic valve will not function properly if the hoses are
installed incorrectly.
- Before hanging the shower panel on the wall. Turn on both
shut-o󰀨 valves and test all water functions on the shower
panel and check for leaks at this point. You should have good
water ow to the shower panel and full temperature control
from the knobs.
The range of the control knob is limited in both clockwise
and counter-clockwise directions. DO NOT force to
turn the knob pass its limit. Overturning the control will
damage the thermostatic valve making it fail to regulate
temperature.
6. Once the shower panel has been tested for functions and
leaks. Hang the unit on the wall to complete the installation.
Due to the limited space behind the shower panel, do not
bend the hoses. Any restrictions in the water supply hoses will
greatly reduce the performance of the shower panel. After the
shower panel is set properly on the wall, apply silicon sealant
on both sides of the shower panel to prevent the unit from
moving.
(NOTE: Do not seal the bottom of the panel.)
7. Connect hand shower hose to the main panel body and
connect the hand shower wand to the hose. Make sure the
silicon gaskets are seated properly to prevent water leak. The
installation process is now complete.

SP25-CEC Rev. A 102019
9Luxier

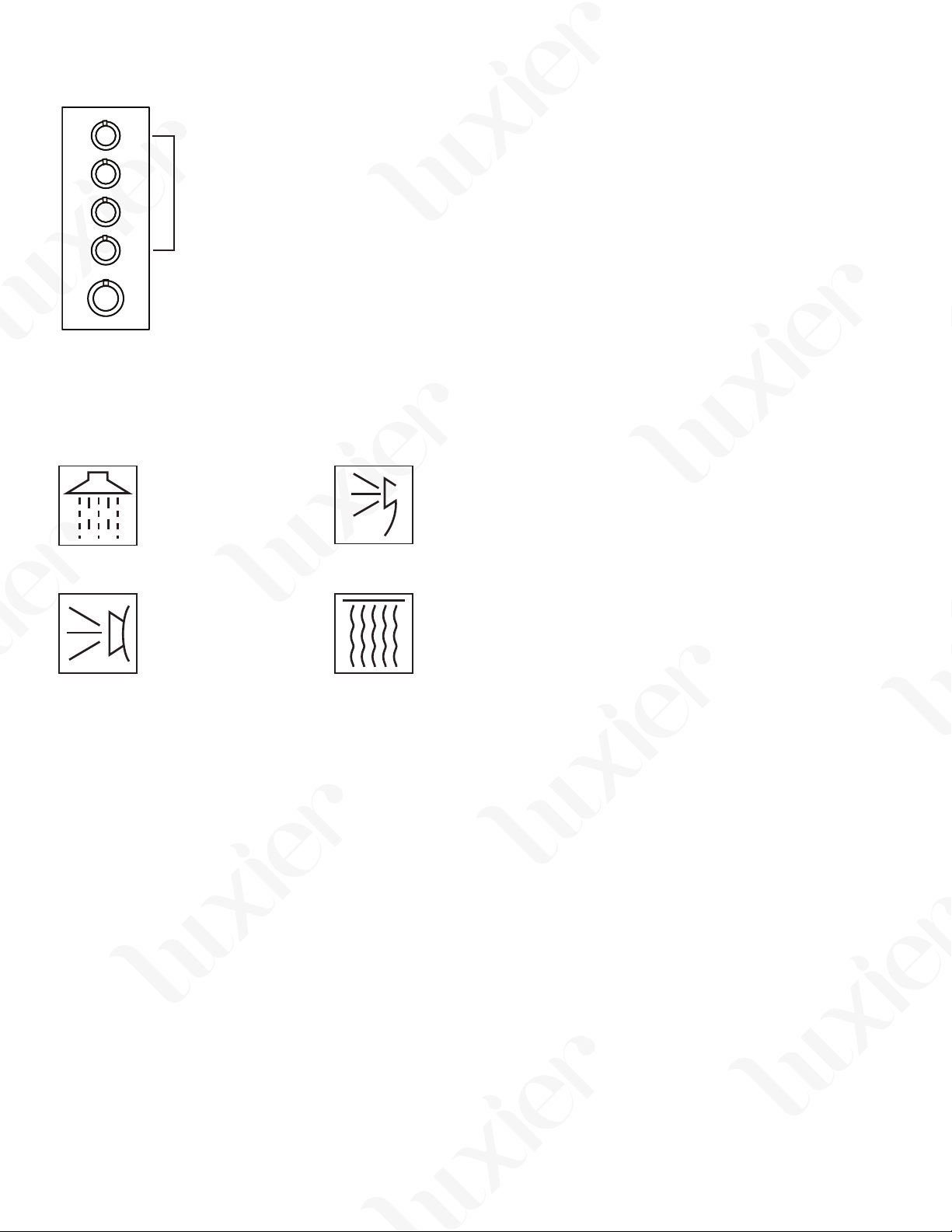

Operation
Water Functions
Overhead Jets
Overhead Waterfall
Horizontal Body Jets
Handheld Shower
1. Turn the temperature control knob counter-clockwise to
set the desired water temperature. The control starts with
cold temperature and goes to warm and hot as the knob
is turned counter-clockwise (Important: Scalding may
occur if the control is set at high temperature, use this
control with caution)
2. Select the desired water function by turning the selector to
the corresponding marking. Multiple functions can be used
simultaneously only if there is adequate water pressure
supplied to the shower panel.
Temperature Control
Function Selectors
Maintenance Guide
Please follow the cleaning material manufacturer’s instructions. In addition, pay attention to the
following points:
1. Regular cleaning can prevent mineral build up on shower head and handheld shower.
2. Use a mild detergent such as liquid dishwashing soap and warm water for cleaning.
3. Do not use abrasive / harsh chemical when cleaning the fi xture as they will damage and dull the
fi nish.
4. Carefully read the cleaner product label to ensure the cleaner is safe for use on the material.
5. Test the cleaner on a small area before using on the entire surface.
6. Do not leave the cleaner on the fi xture longer than necessary.
7. When using spray cleaners, spray fi rst onto a soft cloth or sponge. Never spray directly onto the
faucet as droplets can enter openings and gaps and cause damage.
8. After cleaning, rinse thoroughly with clean water to remove any cleaner residue.
9. Wipe dry with soft cloth to keep shower panel surface spot free.

SP25-CEC Rev. A 102019
10Luxier

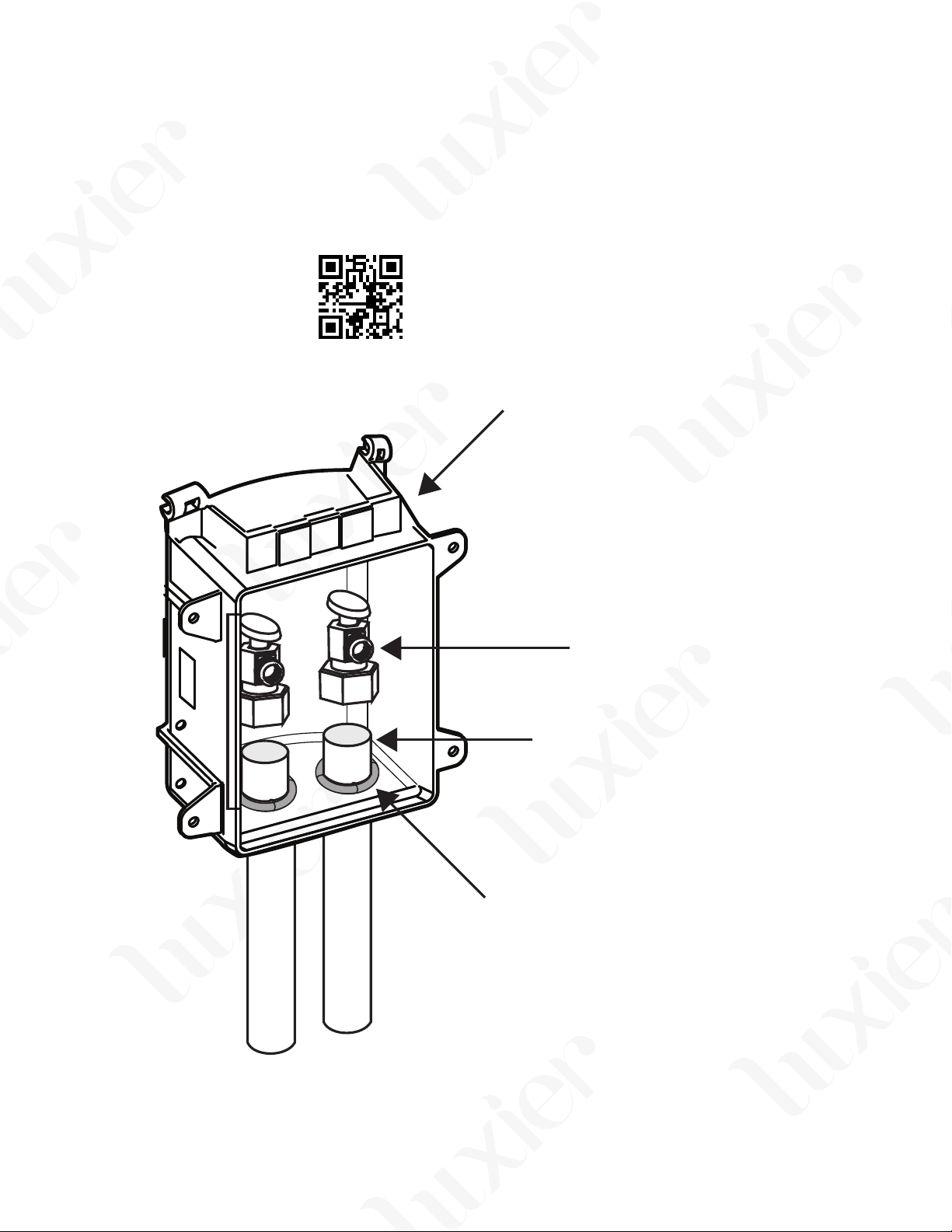

Appendix A.
This diagram provides a general idea of the outlet box. Actual installation may vary. Consult a
professional if necessary. You may also refer to the following link for a video demonstration of the
general installation process.
NOTE: Luxier is not affi liated with the owner of the video. The purpose of this video is meant to
provide a visual concept of the shower outlet box to speed up the installation process. All images are
copyright to their respective owners.
https://youtu.be/51Z1Xb5n6F0
Sioux Chief OxBoxTM 696-2
1/2” Copper Pipe
1/4-Turn Angle Valve
(1/2” Nom. Comp. Inlet
7/16” & 1/2” Slip-Joint Outlet)
5/8” Rubber Grommet
* Drawings not to scale *
