LVI MagniLink S PREMIUM Chromebook User manual

User Manual
MagniLink S PREMIUM -
Chromebook
LVI Low Vision International
Verkstadsgatan 5 Tel: [phone] [email protected]
SE-352 46 Växjö Faks: [phone] www.lvi.se

MagniLink S PREMIUM -
Chromebook
User Manual 7944987 | MagniLink S PREMIUM - Chromebook 3
Table of Contents
1 About LVI......................................................................................... 5
2 Introduction to the MagniLink S.................................................... 6
3 Safety information .......................................................................... 8
4 Unpacking ....................................................................................... 9
4.1 Packaging.................................................................................. 10
5 Accessories ................................................................................... 11
6 Hardware....................................................................................... 14
6.1 Installation of hardware............................................................ 14
6.2 Using the hardware................................................................... 15
7 MagniLink ChromeViewer............................................................ 18
7.1 Minimum system requirements ............................................... 18
7.2 Recommended system requirements ..................................... 18
7.3 Installation of software ............................................................. 19
7.4 Using the software .................................................................... 21
8 Working with the reading camera............................................... 28
9 Troubleshooting ........................................................................... 29
10 Technical information................................................................... 30
11 Declaration of Conformity ........................................................... 31

MagniLink S PREMIUM -
Chromebook
4 User Manual 7944987 | MagniLink S PREMIUM -
Chromebook

MagniLink S PREMIUM -
Chromebook
User Manual 7944987 | MagniLink S PREMIUM - Chromebook 5
1About LVI
LVI Low Vision International AB was founded in 1978 and is one of the
world’s leading manufacturers of magnifying TV- and computer systems
for visually impaired. New products are developed in close cooperation
with users and professional personnel of vision rehabilitation. LVI is a
Quality System Certified ISO 9001 and Environmental System Certified
ISO 14001 company.
The information in this manual has been carefully checked and is
believed to be accurate. However, LVI assumes no responsibility for any
inaccuracies that may be contained in this manual. In no event will LVI be
liable for direct, indirect, special, exemplary, incidental, or consequential
damages resulting from any defect or omission in this manual. In the
interest of continued product development, LVI reserves the right to
make improvements in this manual and the products it describes at any
time, without notice or obligation.

MagniLink S PREMIUM -
Chromebook
6 User Manual 7944987 | MagniLink S PREMIUM -
Chromebook
2Introduction to the MagniLink S
Thank you for choosing this video magnifier. We aim to ensure that you
are completely satisfied with your choice of supplier and reading aid.
The MagniLink S is a portable camera system with autofocus, which can
be connected to a computer or directly to an external monitor. The
system is controlled via a keyboard and/or control box. MagniLink S is
available in a number of different models. Choose model in the following
steps:
Choose reading camera HD or FHD.

MagniLink S PREMIUM -
Chromebook
User Manual 7944987 | MagniLink S PREMIUM - Chromebook 7
Model Camera
MLS-HD HD (720p)
MLS-FHD FHD (1280p)
Choose among the following accessories.
Product code Accessory
AText To Speech for PC
BText To Speech for Mac
CMagniLink Docking Station with reading table (DVI).
DMagniLink Docking Station with reading table (HDMI)
EMagniLink Docking Station with table clamp (DVI)
MagniLink S meets all the requirements for CE marking of medical
devices in accordance with Directive 93/42/EEG. Our products comply
with MDD 93/42/EEC with additions from Directive 2007/47/EC.

MagniLink S PREMIUM -
Chromebook
8 User Manual 7944987 | MagniLink S PREMIUM -
Chromebook
3Safety information
The reading aid is only intended for indoor use and must be used in
accordance with the following safety instructions.
Use only the power adaptor supplied with MagniLink S. If the
wrong type of adaptor is used for operation of MagniLink S, this
can cause damage to the system.
Units such as HDMI monitors and/or computers that are to be
connected to the system must comply with the appropriate safety
regulations for their country of use.
Never turn on or use the product if it has been exposed to water,
rain or other liquids. Pull out the USB cable and allow trained
service personnel to carry out an inspection of the product before
it is used again.
Place the power cord in such a way that you can neither trip over it
or that crush damages can occur.
If the product is moved from the cold into a warm room,
condensation (moisture) can form inside the unit or on the camera
lens. To prevent problems with condensation, the apparatus should
be installed in the room at least 30 minutes prior to usage.
If the system requires cleaning, pull out all cables and use a slightly
damp (not wet) cloth. Use only water or a cleaning agent that is
intended for monitors and computers.
Do not rely 100 per cent on the results of an OCR conversion; the
OCR engine can misinterpret the text. This is particularly important
to bear in mind when processing sensitive information such as a
medical prescription.
Make no further adjustments, even if the product does not function
normally after following the functional descriptions. Pull out the
USB cable and contact service personnel or the product distributor.
Only use spare parts that are specified by LVI
If in doubt, contact your supplier.
Warning
MagniLink S is supplied packed in a plastic bag. To avoid risk of
suffocation, keep the bag out of the reach of children and infants.

MagniLink S PREMIUM -
Chromebook
User Manual 7944987 | MagniLink S PREMIUM - Chromebook 9
4Unpacking
The system is supplied in a box with the following contents:
Reading camera
USB cables
Case
USB memory stick with software
Polishing cloth
User Guide
Power adaptor
HDMI to HDMI cable
HDMI to DVI cable
Check first that the box has no damage to its exterior. In the event of
damage, contact the delivery company and file a notification of damage.
Open the box and take out the MagniLink S; remove the white
packaging. For further information see Installation.

MagniLink S PREMIUM -
Chromebook
10 User Manual 7944987 | MagniLink S PREMIUM -
Chromebook
4.1 Packaging
The packaging consists of the following packaging material (LVI
recommends that the packaging be kept in case you have to return the
system or you need to move it):
Packing material (EPP)
Box (corrugated cardboard)
Polyethylene (LDPE4)
For sorting and collection of packaging material, please call the
packaging collection customer service department for information on the
rules that apply in your municipality.

MagniLink S PREMIUM -
Chromebook
User Manual 7944987 | MagniLink S PREMIUM - Chromebook 11
5Accessories
External control box (MLS-A100).
Larger external control box (MLV-A110A).

MagniLink S PREMIUM -
Chromebook
12 User Manual 7944987 | MagniLink S PREMIUM -
Chromebook

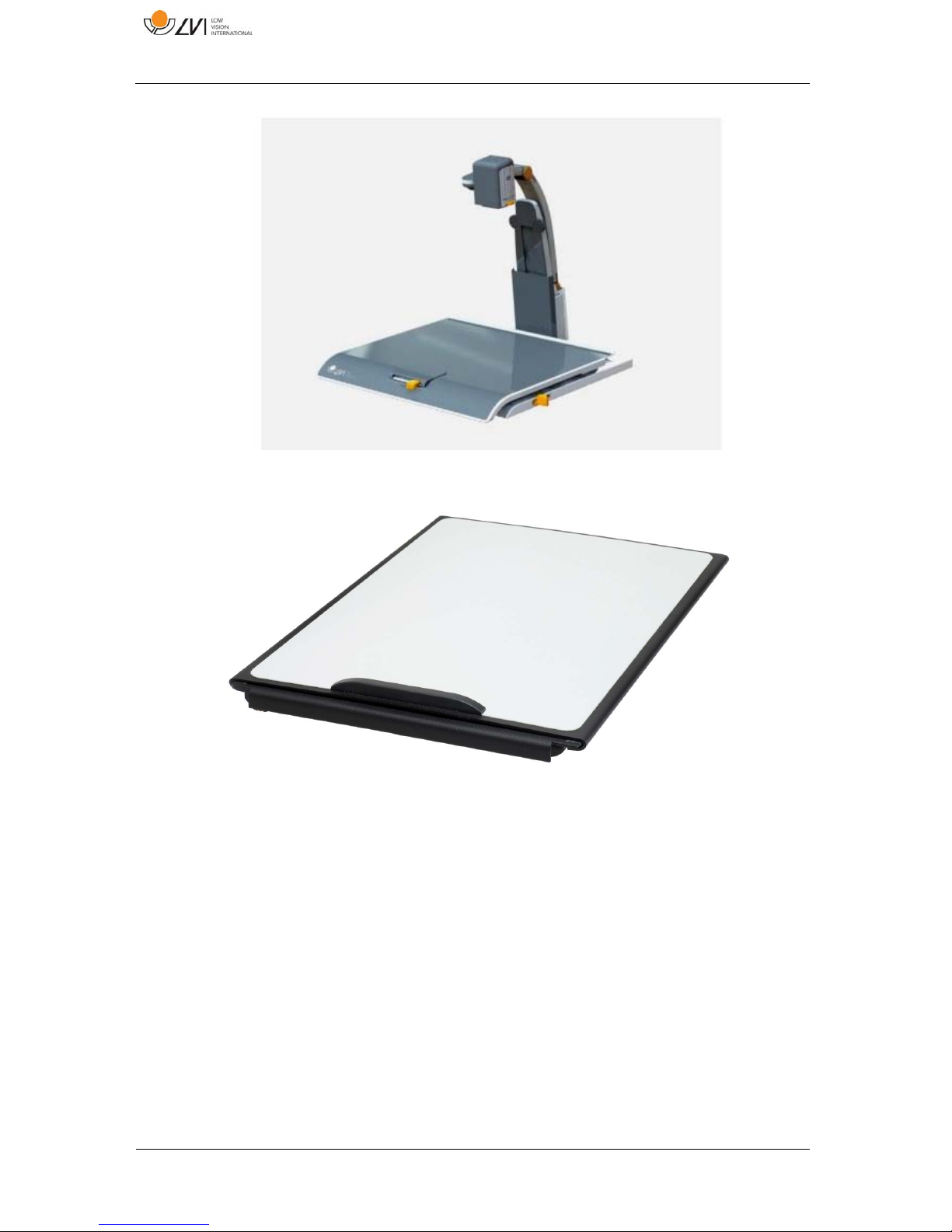

MagniLink Docking Station (MLS-A101), stationary reading table.
MagniLink Reading Table (MLRT), portable reading table.

MagniLink S PREMIUM -
Chromebook
User Manual 7944987 | MagniLink S PREMIUM - Chromebook 13

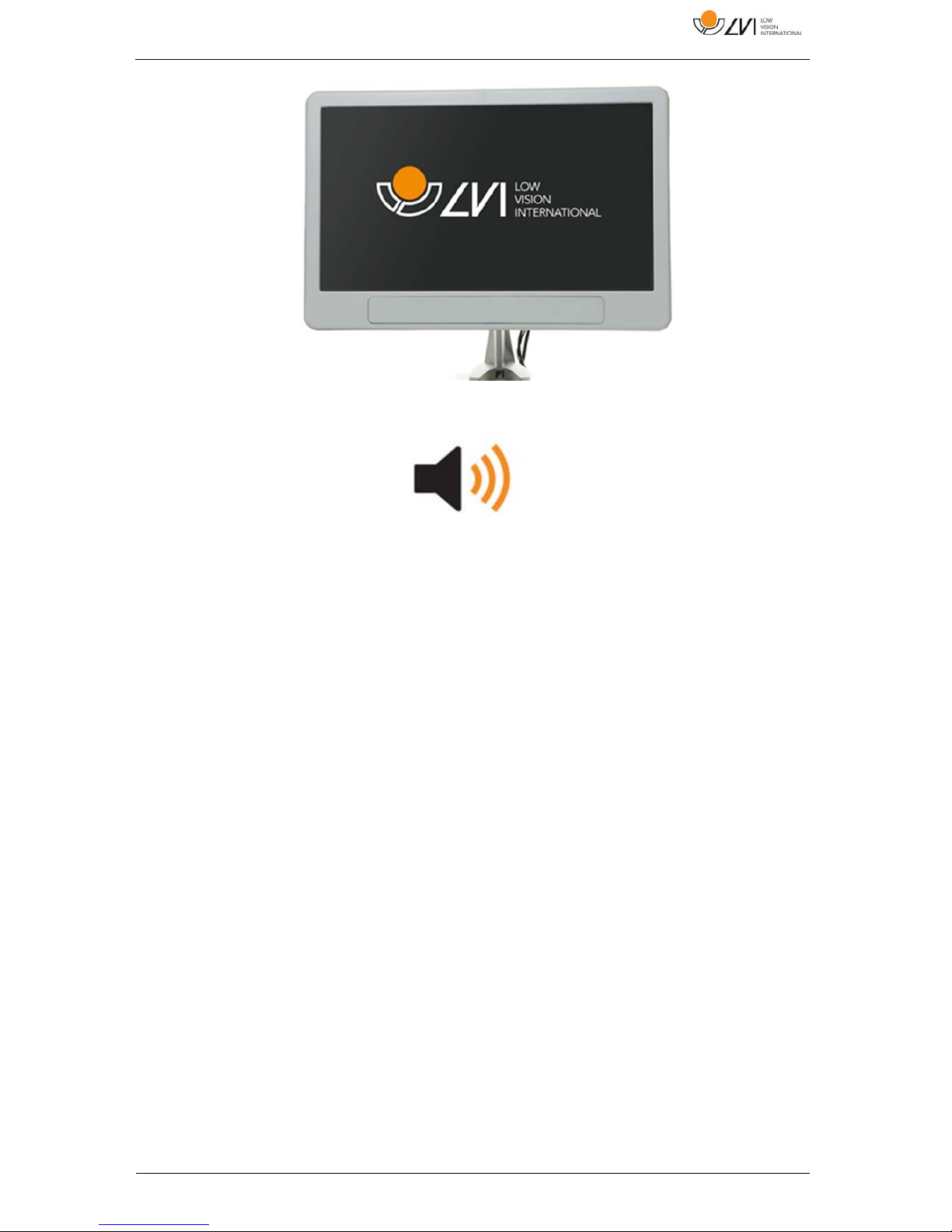

LVI Monitor 19" (MLS-A103) and 23" (MLS-A104).
Text To Speech for PC (TTS-PC) or Mac (TTS-MAC).

MagniLink S PREMIUM -
Chromebook
14 User Manual 7944987 | MagniLink S PREMIUM -
Chromebook
6Hardware
6.1 Installation of hardware
Open the camera's arm and pull out the camera's supporting legs. It is
not possible to manipulate the camera's arm until the supporting legs
have been extended.
On the back of the camera there are several connection options. The
connection options available depend on the camera model.
1. USB connection
In addition to transferring images to a computer, the USB
connection is used to provide power to the system.

MagniLink S PREMIUM -
Chromebook
User Manual 7944987 | MagniLink S PREMIUM - Chromebook 15
2. HDMI connection
Here the camera can be connected to a monitor that supports
HDMI or DVI.
3. External control panel
An external control panel can be connected via this input.
6.2 Using the hardware
6.2.1 Control box
1. LED
A green light indicates that the system is on. A flashing green light
means that the system is starting up. A slowly flashing yellow light
indicates standby. A red light indicates that something is wrong in
the system. See the chapter on Troubleshooting page 29.
2. Power on/off
Press to start or shut down the system.
3. Lighting configuration
Used to configure the light intensity in order to optimize reading
conditions. Press the upper half to increase the light intensity and
the lower half to decrease it. For systems that have LED lighting,
the intensity is adjusted by holding down the button (7).
4. Autofocus on/off
Press the button once to lock the focus. This can be used when
you wish to write by hand. Autofocus is not affected by the pen or
your hand. Press the button a second time, to reactivate
autofocus.

MagniLink S PREMIUM -
Chromebook
16 User Manual 7944987 | MagniLink S PREMIUM -
Chromebook
5. Zoom control
Used to set the zoom. To reduce the zoom, press the lower key
(minus) and to increase the zoom, pressure the upper key (plus).
6. Reference line/Bar
Adjust the position of the reference line. Press the right-hand
button to move the horizontal line down. Hold the button in to
change the reference line to vertical and move it to the left. The
reference line then becomes a horizontal bar which diminishes the
viewing area. To make the bar vertical, press the button again. The
left button gives the opposite result.
7. Picture mode
Press the button to switch the picture mode between natural
colours and grey scale.
Lighting adjustment
Hold the button down to temporarily enable adjustment of the
lighting via the lighting configuration (3). When the lighting
configuration (3) is used to adjust the lighting, there is no
switching between colour and grey scale (only possible if the
system has LED lighting).
Mirroring
A mirror image can be obtained by holding the button down for
three seconds.
8. High contrast modes with artificial colours
Press the key to switch between the various colour combinations.
Rotation
By holding the button down for three seconds, the image can be
rotated 180 degrees.

MagniLink S PREMIUM -
Chromebook
User Manual 7944987 | MagniLink S PREMIUM - Chromebook 17
6.2.2 Position sensor
MagniLink S is equipped with a position sensor that is used to switch
between reading mode (the user points the camera down and flips the
lens into place) and distance mode (the user opens the lens). The settings
for both modes are automatically saved when you switch from one to the
other.
Settings that are automatically saved for these modes are:
Artificial colours
Negative/Positive/Natural colours
Light
Magnification level
Reference line/Bar
Rotation of camera image
Mirroring of camera image

MagniLink S PREMIUM -
Chromebook
18 User Manual 7944987 | MagniLink S PREMIUM -
Chromebook
7MagniLink ChromeViewer
MagniLink ChromeViewer is a programme used on a Chromebook to
display images from a MagniLink camera system. The programme can
control the camera properties, such as magnification level, artificial
colours and brightness.
7.1 Minimum system requirements
Chrome OS version 59
2 integrated USB 2.0 ports.
Intel Celeron, 2 GB RAM
7.2 Recommended system requirements
1 integrated USB 3.0 type A port.
Intel i5 processor
4 GB RAM
LVI recommends using an Intel-based Chromebook together with a
MagniLink camera since we have noticed compatibility problems with
ARM-based Chromebooks.
A USB 3.0 Y may be needed to supply sufficient power to the MagniLink
camera system. A USB Y cable permits the use of 2 USB ports to drive a
MagniLink camera system.
LVI has tested the software on a number of Intel-based Chromebooks
without problems, but there is no guarantee that the system will work
with all Chromebooks that follow the specification. LVI recommends
testing the software with the Chromebook where the system is to be
used, in order to ensure compatibility. Better performing computers will
facilitate better camera performance.

MagniLink S PREMIUM -
Chromebook
User Manual 7944987 | MagniLink S PREMIUM - Chromebook 19
7.3 Installation of software
MagniLink ChromeViewer is available for download via the Chrome Web
Store. If you cannot find the application with the search function on the
Chrome Web Store, there is a direct link on our website that takes you to
the installation page.
The link opens a new page with the Chrome Web Store and the
MagniLink ChromeViewer is selected automatically.
Click ADD to start the installation.

MagniLink S PREMIUM -
Chromebook
20 User Manual 7944987 | MagniLink S PREMIUM -
Chromebook
You will then see an information box explaining what the application is
able to do; click Add app to go on.
When the installation is finished, you can start the application by clicking
START APP or search for the application via App Launcher.
