LVI MagniLink Vision TTS User manual

User Manual
MagniLink Vision TTS
LVI Low Vision International
Verkstadsgatan 5 Tel: [phone] [email protected]
SE-352 46 Växjö Faks: [phone] www.lvi.se

MagniLink Vision TTS
User Manual 7944787c | MagniLink Vision TTS 3
Table of Contents
1 About LVI......................................................................................... 5
2 Introducing MagniLink Vision TTS................................................. 6
3 Safety information .......................................................................... 7
4 Unpacking ....................................................................................... 8
4.1 Packaging.................................................................................... 8
5 Installation....................................................................................... 9
6 Use ................................................................................................. 10
6.1 Panels......................................................................................... 10
6.2 Reading table............................................................................ 14
6.3 Profiles and settings ................................................................. 15
6.4 Simple profile............................................................................ 16
6.5 Advanced profile ...................................................................... 18
6.6 Settings...................................................................................... 23
6.7 Quick guide computer mouse................................................. 29
6.8 Computer mouse...................................................................... 30
6.9 Extra voices on a USB stick ...................................................... 30
6.10 Quality of OCR conversion ...................................................... 31
7 Ergonomics ................................................................................... 32
8 Troubleshooting ........................................................................... 33
9 Technical information................................................................... 34
10 Declaration of Conformity ........................................................... 37

MagniLink Vision TTS
4 User Manual 7944787c | MagniLink Vision TTS

MagniLink Vision TTS
User Manual 7944787c | MagniLink Vision TTS 5
1About LVI
LVI Low Vision International AB was founded in 1978 and is one of the
world's leading manufacturers of equipment for persons with visual
impairments. Development of new products takes place in close
cooperation with users and professional staff within the low vision
rehabilitation industry. LVI is quality-certified in accordance with ISO 9001
and environmentally-certified in accordance with ISO 14001.
The information in this manual has been carefully checked and is
believed to be accurate. However, LVI assumes no responsibility for any
inaccuracies that may be contained in this manual. In no event will LVI be
liable for direct, indirect, special, exemplary, incidental, or consequential
damages resulting from any defect or omission in this manual. In the
interest of continued product development, LVI reserves the right to
make improvements in this manual and the products it describes at any
time, without notice or obligation.

MagniLink Vision TTS
6 User Manual 7944787c | MagniLink Vision TTS
2Introducing MagniLink Vision TTS
Thank you for choosing this video magnifier. Our aim is for you to be
satisfied with your choice of supplier and reading aid.

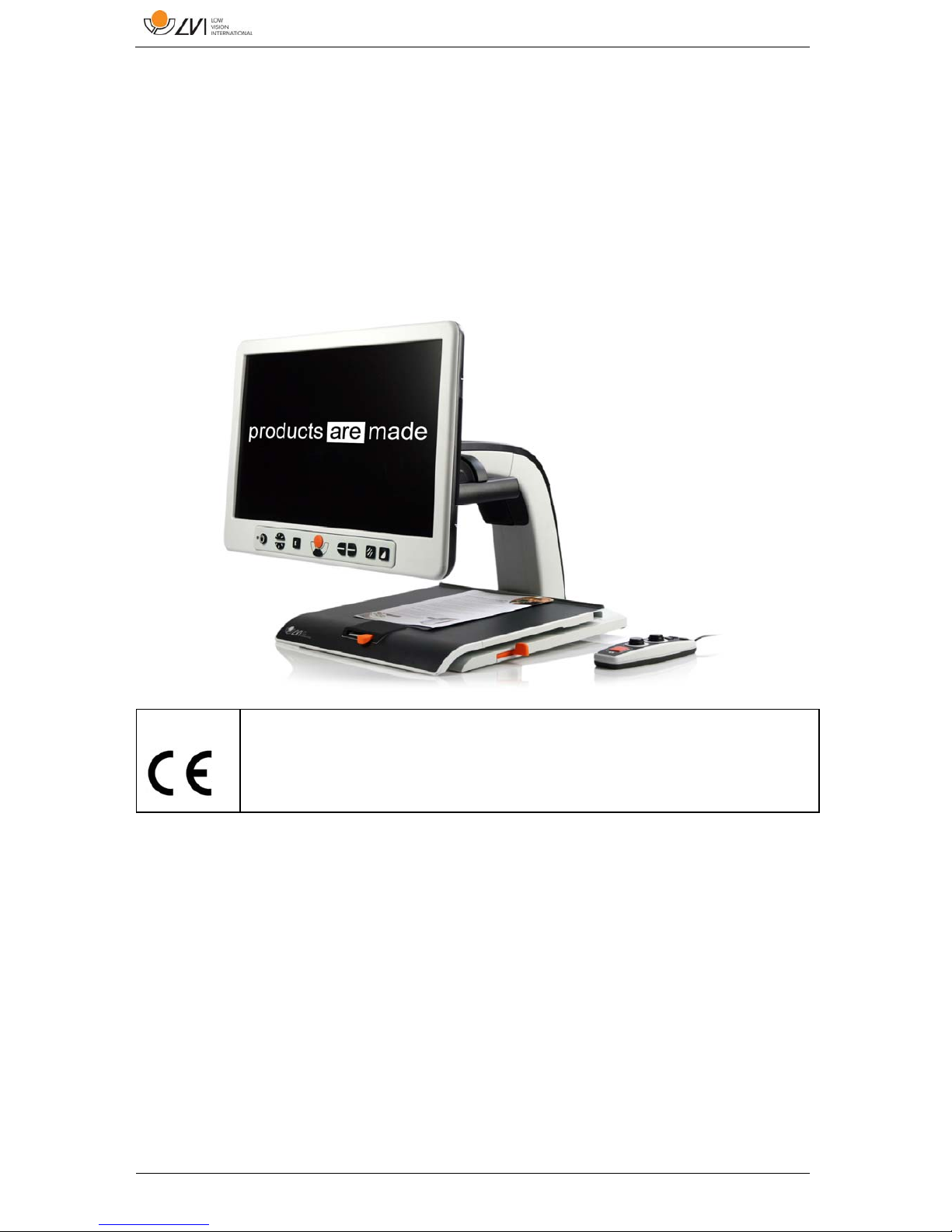

MagniLink Vision TTS is a combined reading camera and reading
machine. The reading camera includes features such as autofocus,
several artificial colours and the potential to set the magnification. The
reading machine makes it possible to OCR-process a text and have it
read aloud.
MagniLink Vision meets all the requirements for CE marking of medical
devices in accordance with Directive 93/94/EEC. Our products comply
with MDD 93/94/EEC with additions from Directive 2007/47/EC.

MagniLink Vision TTS
User Manual 7944787c | MagniLink Vision TTS 7
3Safety information
Only use the power adaptor supplied with the product. Using an
incorrect type of power adapter may cause damage to the system.
Never operate the product if it has been exposed to water or other
liquids. Damaged or wet product can cause electric shocks or fire.
Place the power cord in such a way that you can neither trip over it
or that crush damages can occur.
Place the system at least 10 cm from the edge of the table. When
moving the reading table, make sure your hands are not below or
behind the reading table, as there is a risk of your fingers
becoming trapped. When the reading table is in its outermost
position, an excessive load can cause the system to tip over,
resulting in personal injury.
If the system has to be moved, do not lift at the screen or reading
table as these are moving parts.
If the product is moved from the cold into a warm room,
condensation (moisture) can form inside the unit or on the camera
lens. To prevent problems with condensation, the apparatus should
be installed in the room at least 30 minutes prior to usage.
If the system requires cleaning, detach all cables. Use a slightly
damp (not wet) cloth to clean the system. Use only water or a
cleaning agent that is intended for monitors and computers.
Do not rely 100 per cent on the results of an OCR conversion; the
OCR engine can misinterpret the text. This is particularly important
to bear in mind when processing sensitive information such as a
medical prescription.
If in doubt, contact your supplier.
Warning
The product is supplied packed in a plastic bag. To avoid risk of
suffocation, keep the bag out of the reach of children and infants.

MagniLink Vision TTS
8 User Manual 7944787c | MagniLink Vision TTS
4Unpacking
The system is supplied in a box with the following contents:
Combined reading machine and reading camera
User Guide
USB memory stick
Power adaptor
Hand control
Check first that the box has no external damage. In the event of damage,
contact the delivery company and file a notification of damage.
Open the box and take out the MagniLink Vision; remove the packaging.
4.1 Packaging
The packaging consists of the following packaging material (LVI
recommends that the packaging be kept in case you have to return the
system or you need to move it):
Packing material (EPP)
Box (corrugated cardboard)
Polyethylene (LDPE4)
For sorting and collection of packaging material, please call the
packaging collection customer service department for information on the
rules that apply in your municipality.
Note that the product and its accessories must be recycled as electronic
waste. A worn-out battery is recycled as electronic waste.

MagniLink Vision TTS
User Manual 7944787c | MagniLink Vision TTS 9
5Installation
Place your MagniLink Vision far enough in on the table in front of your
seat, but at least 10 cm from the edge of the table. Remember that the
reading table can be pulled out approximately 30 cm in three directions.
MagniLink Vision has a low total weight. It is therefore very important to
position the system in the right place on your table, particularly when you
are using the reading table in its most extended position. An excessive
load in this position can cause the system to tip over.
Connect the power cable to the wall socket and press the start button.
The unit is now ready to be used. The screen can be tilted approximately
10 degrees backwards and lowered 8.5 cm from its highest position. Use
the grips on both sides of the screen and move it to find the desired
position. Release the brakes on the reading table and start using
MagniLink Vision.
The following connection options can be found on the rear of the unit.
1. Port for headphones
Here you can plug in headphones.
2. USB ports
The unit has three USB ports. The hand control must be
connected to one of these ports. If you wish to save or open a
document, you can connect a USB memory stick.

MagniLink Vision TTS
10 User Manual 7944787c | MagniLink Vision TTS
6Use
MagniLink Vision TTS is started from the panel. LVI’s logo is displayed on
the screen when the system is starting, and the picture from the CCTV
camera is shown after ten seconds. After a further 40 seconds, the
reading machine starts with the message “Reading machine ready”.

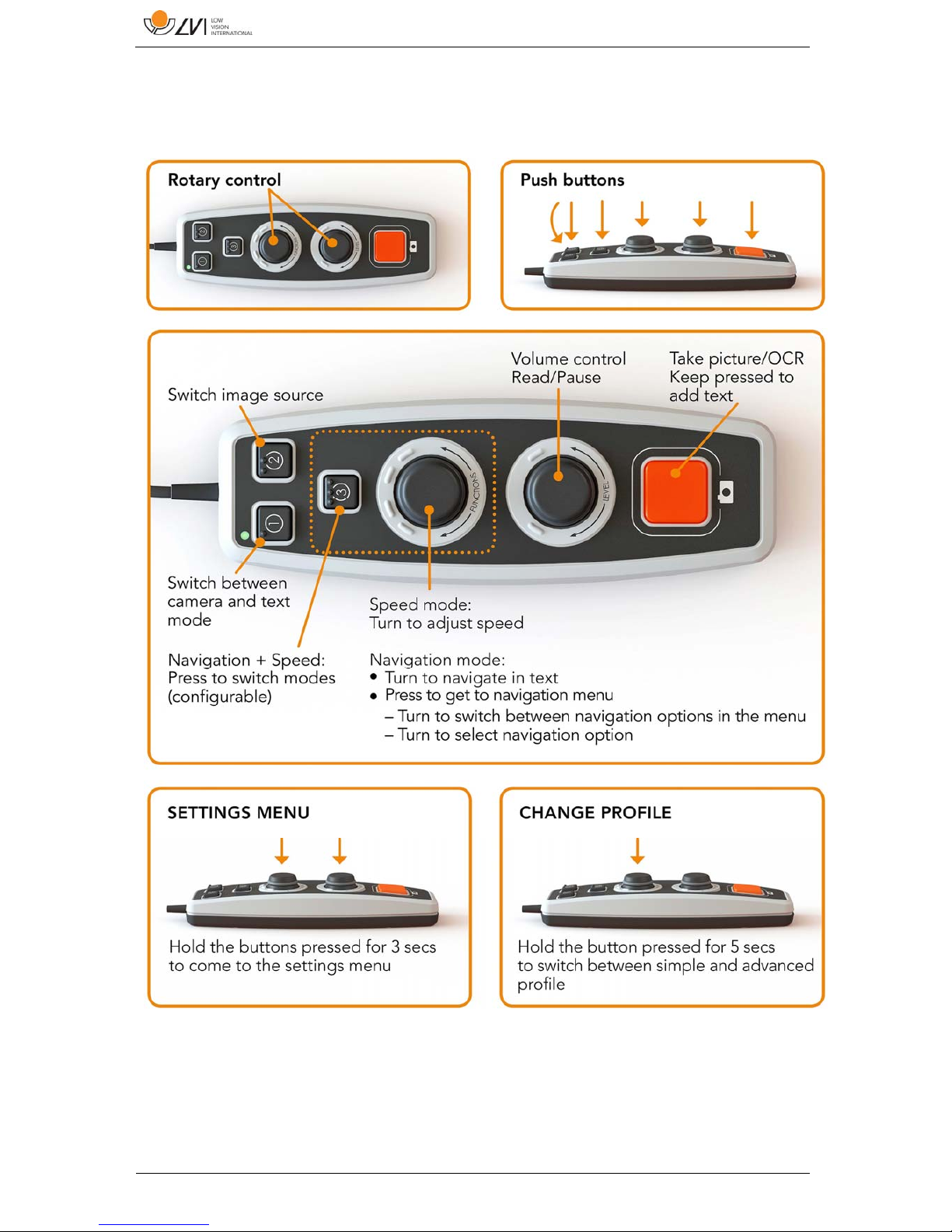

Using the hand control, it is now possible to switch between CCTV mode
and OCR mode. When you are in CCTV mode, the panel is used to
control the system. When you are in OCR mode, the hand control is used
to control the system.
6.1 Panels

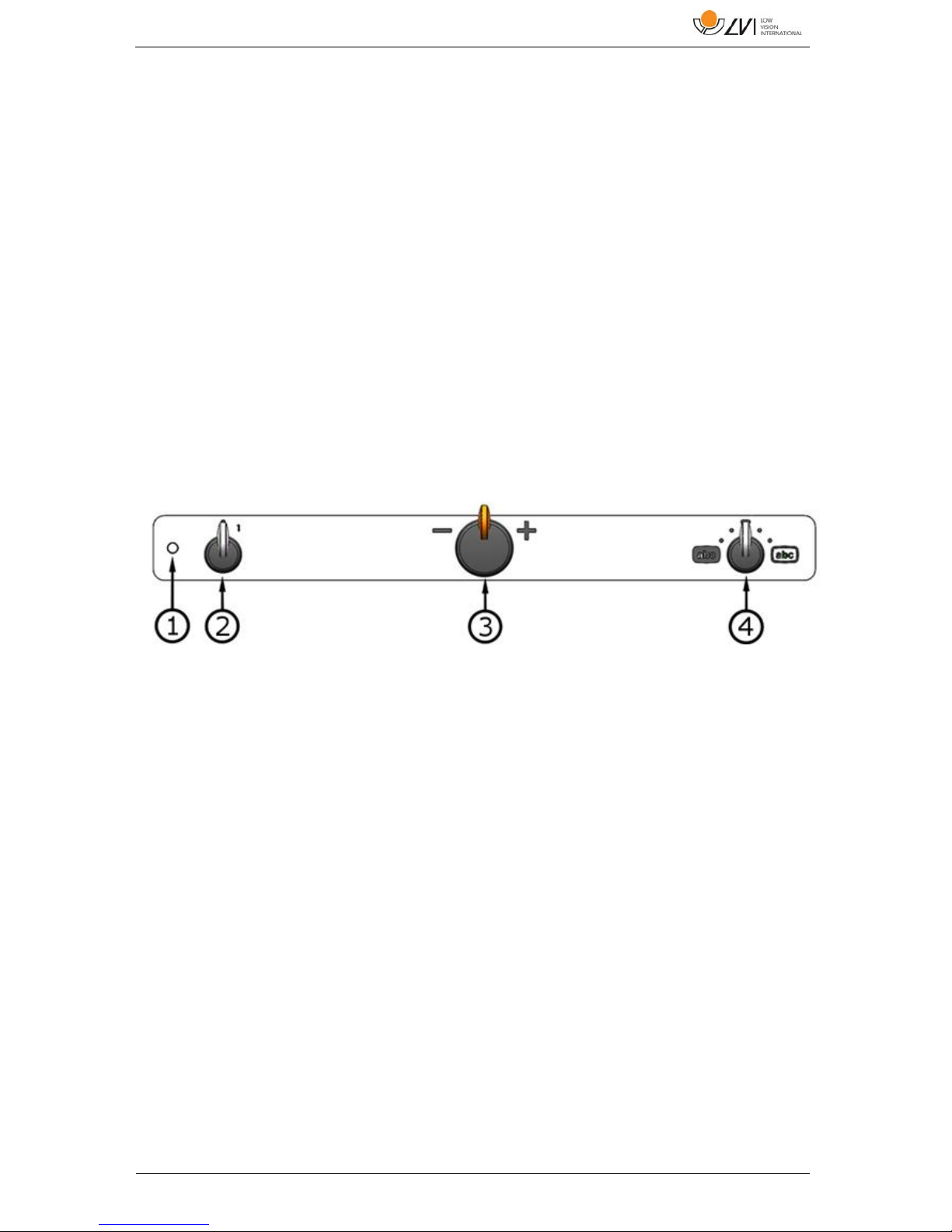

Three panels are available for MagniLink Vision. The functions of each
panel are explained below.

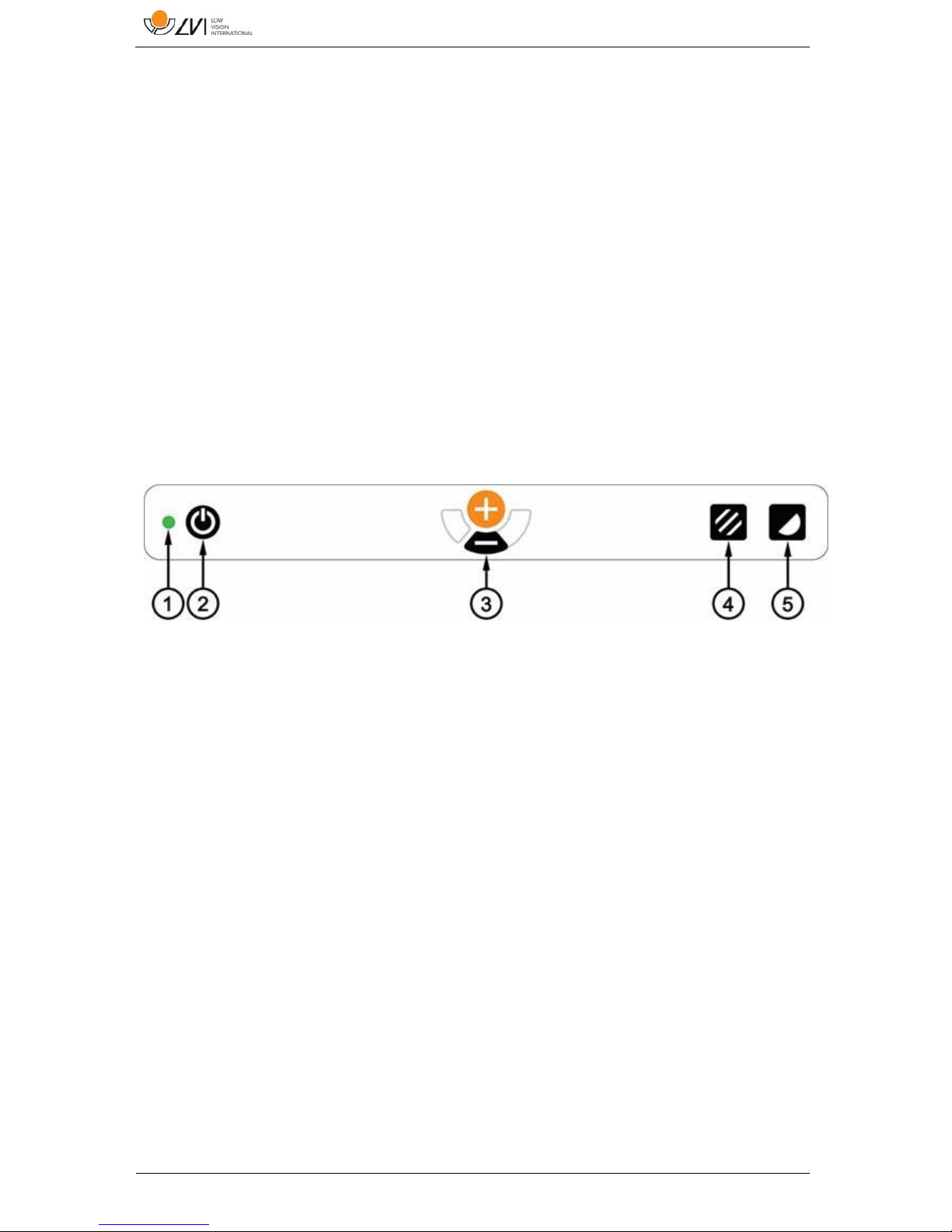

6.1.1 3 Press
1. LED
A green light indicates that the system is on. A flashing green light
means that the system is starting up. A slowly flashing yellow light
indicates standby. A red light indicates that something is wrong in
the system. See the chapter on “Troubleshooting”.
2. Power on/off
Press to start or shut down the system.
3. Magnification control
Used to set the magnification. To reduce the magnification, press
the lower key (minus) and to increase the magnification, pressure
the upper key (plus).
4. Picture mode and Lighting on/off
Press the button to switch the picture mode between natural
colours and grey scale.
The lights can be switched on and off by holding the button down
for three seconds. The system switches automatically between
ROPC (Reading Optimized Picture Control) and DPC (Dynamic
Picture Control).

MagniLink Vision TTS
User Manual 7944787c | MagniLink Vision TTS 11
5. High contrast mode with artificial colours
Press the button to switch between the various colour
combinations. These colours are available as standard:
Background/Text Background/Text
White/Black Red/Black
Black/White Black/Red
Yellow/Black Yellow/Blue
Black/Yellow Blue/Yellow
Green/Black White/Blue
Black/Green Blue/White
6.1.2 5 Press
1. LED
A green light indicates that the system is on. A flashing green light
means that the system is starting up. A slowly flashing yellow light
indicates standby. A red light indicates that something is wrong in
the system. See the chapter on “Troubleshooting”.
2. Power on/off
Press to start or shut down the system.
3. Light and contrast control
In picture mode, this control is used to configure the light intensity
in order to optimise reading conditions. Press the upper half to
increase the light intensity and the lower half to decrease it. In
high contrast mode, it is used to set the contrast level. If you hold
in the Picture mode button (7), the level of lighting is adjusted
instead with the Light control.

MagniLink Vision TTS
12 User Manual 7944787c | MagniLink Vision TTS
4. Autofocus on/off
Press the button once to lock the focus. This can be used when
you wish to write by hand. Autofocus is not affected by the pen or
your hand. Press the button a second time to reactivate autofocus.
5. Magnification control
Used to set the magnification. To reduce the magnification, press
the lower key (minus) and to increase the magnification, pressure
the upper key (plus).
6. Reference line/Bar
Adjust the position of the reference line. Press the right-hand
button to move the reference line down horizontally. Hold the
button in to change the reference line to vertical and move it to
the left. The reference line then becomes a horizontal bar which
diminishes the viewing area. To make the bar vertical, press the
button again. The left-hand section of the control has the opposite
effect.
7. Picture mode
Press the button to switch the image between natural colours and
grey scale.
Lighting adjustment
Hold the button down to temporarily enable adjustment of the
lighting via the lighting configuration (3). This can be used by
light-sensitive users or when reading on glossy paper. The system
automatically switches between ROPC (Reading Optimized Picture
Control) and DPC (Dynamic Picture Control) when the lighting
reaches a certain level. When the lighting configuration (3) is used
to adjust the lighting, there is no switching between colour and
grey scale.
Lights off/on
The lights can be switched on and off by holding the button down
for three seconds. The system switches automatically between
ROPC (Reading Optimized Picture Control) and DPC (Dynamic
Picture Control).

MagniLink Vision TTS
User Manual 7944787c | MagniLink Vision TTS 13
8. High contrast mode with artificial colours
Press the button to switch between the various colour
combinations. These colours are available as standard:
Background/Text Background/Text
White/Black Red/Black
Black/White Black/Red
Yellow/Black Yellow/Blue
Black/Yellow Blue/Yellow
Green/Black White/Blue
Black/Green Blue/White
6.1.3 3 Rotate
1. LED
A green light indicates that the system is on. A flashing green light
means that the system is starting up. A slowly flashing yellow light
indicates standby. A red light indicates that something is wrong in
the system. See the chapter on “Troubleshooting”.
2. Power on/off
Rotate to start or shut down the system.
3. Magnification control
Used to set the magnification. Using this control, you can select
between 16 different magnification positions.

MagniLink Vision TTS
14 User Manual 7944787c | MagniLink Vision TTS
4. Picture and high contrast mode
The picture mode is displayed on the screen when the control is
straight up in its starting position. Rotate the control to the right or
left to display four different high contrast modes. These colours
are available as standard:
Background/Text Background/Text
White/Black Yellow/Black
Black/White Black/Yellow
6.2 Reading table
1. Side way direction friction adjustment
Set the side way friction by moving this handle. With the brake in
the left end position, the reading table is unlocked. To increase
friction, push the side way brake to the right (at the far right, the
brake clicks into locked mode).
2. Depth way direction friction adjustment
Set the depth way friction by moving this handle. With the brake
in the near end position, the reading table is unlocked. To
increase friction, push the depth way brake towards the back. Push
the brake in as far as possible to lock the reading table.

MagniLink Vision TTS
User Manual 7944787c | MagniLink Vision TTS 15
6.3 Profiles and settings
The unit can be used in simple profile or advanced profile. When the unit
is in simple profile the LED lights green. When the unit is in advanced
profile the LED lights blue. There is also a settings mode. When the unit
is in settings mode it lights yellow.
To switch between simple and advanced profile, hold the control (E)
pressed for five seconds.
To go into settings, hold the controls (E) and (F) pressed for three
seconds.

MagniLink Vision TTS
16 User Manual 7944787c | MagniLink Vision TTS
6.4 Simple profile
6.4.1 Quick guide simple profile

MagniLink Vision TTS
User Manual 7944787c | MagniLink Vision TTS 17
6.4.2 Functions in simple profile
A. LED
In simple profile this LED lights green. When the unit is in standby-
mode it lights white.
B. Switch between camera and text mode
This button switches between the OCR camera and the OCR
processed text.
C. Switch image source
This button switches between the CCTV camera and OCR camera.
D. Quick button for navigation
When this button is pressed it switches to navigation mode. It is
possible to configure this button so that it has another function.
E. Speed control
When you rotate the control, you adjust the speed of reading
aloud.
In navigation mode you can navigate in the text by turning the
control. It is also possible to select navigation mode by pressing
the control, turning it to the desired mode and then pressing it
again.
F. Volume control
This is a combined push button and rotary control. When the
control is pressed, you can start and pause the reading. When you
rotate the control, you adjust the volume level.
G. OCR button
This button is used to take a picture, OCR process the text and
read aloud the result. If you hold the button in for more than two
seconds the text is added to a new page.

MagniLink Vision TTS
18 User Manual 7944787c | MagniLink Vision TTS
6.5 Advanced profile
6.5.1 Quick guide advanced profile

MagniLink Vision TTS
User Manual 7944787c | MagniLink Vision TTS 19
6.5.2 Functions in advanced profile
A. LED
In advanced profile this LED lights blue. When the unit is in
standby-mode it lights white.
B. Switch between camera and text mode
This button switches between the OCR camera and the OCR
processed text.
C. Switch image source
This button switches between the CCTV camera and OCR camera.
D. Quick button for navigation
When you press this button you are brought to navigation, and it
is now possible to navigate in the text by rotating the “Level
control”.
E. Function control
This is a combined push button and rotary control. The control is
rotated until the desired function is read aloud. Some functions
have a sub-menu and pressing the control will enter this menu.
Other functions have a setting that you can switch on or off by
pressing the control.
F. Reading and Level control
This is a combined push button and rotary control. When the
control is pressed, you can start and pause the reading. When you
rotate the control, you adjust the relevant function.
G. OCR button
This button is used to take a picture, OCR process the text and
read aloud the result. If you hold the button in for more than two
seconds the text is added to a new page.

MagniLink Vision TTS
20 User Manual 7944787c | MagniLink Vision TTS
6.5.3 Describing functions in advanced profile
The unit’s various functions and settings are controlled using the hand
control. After a period of inactivity by the user, the unit returns to basic
function. Below is a list of the unit's functions and descriptions of how
they are performed.
Take a picture and start the reading
Press the OCR button(G) to take a picture to be OCR processed. When
the OCR process is complete, the reading begins. If you hold the button
in for more than two seconds the text is added to a new page.
Pause reading
Press the reading control(F) to pause the reading. Press it again to
resume the reading.
Adjust the volume
Rotate the level control(F) to increase or decrease the volume.
Adjust the speech speed
Rotate the function control(E) until the unit says speed. Then rotate the
level control(F) to increase or decrease the speech speed.
Save documents
Make sure that a USB memory stick is plugged into the unit. Rotate the
function control (E) until the unit says "handle document" and then press
the control. Rotate the function control again (E) until the unit says "save"
and then press the control to save the document. The document is saved
in the directory "lvi_text".
Change file format
To change the format that you save to. Rotate the function control (E)
until the unit says "handle document" and then press the control. Rotate
the function control (E) again until the unit says “file format” and press
the control. Rotate the control until the desired format is spoken and
press the control to select it.
