LVI MagniLink S User manual

User Manual
MagniLink S - Mac
LVI Low Vision International
Verkstadsgatan 5
Tel: [phone]
[email protected]
SE-352 46 Växjö
Faks: [phone]
www.lvi.se

MagniLink S - Mac
User Manual 7943541a | MagniLink S - Mac
3
Table of Contents
1 About LVI.......................................................................................... 5
2 Introduction to the MagniLink S..................................................... 6
3 Safety information ........................................................................... 8
4 Unpacking......................................................................................... 9
4.1 Packaging ................................................................................... 10
5 Accessories..................................................................................... 11
6 Hardware ........................................................................................ 14
6.1 Installation of hardware............................................................. 14
6.2 Using the hardware.................................................................... 15
7 Mac software.................................................................................. 18
7.1 Minimum system requirements................................................ 18
7.2 Recommended system requirements...................................... 18
7.3 Installation of software .............................................................. 18
7.4 Using the software..................................................................... 20
7.5 Download voices........................................................................ 31
8 Working with the reading camera................................................ 32
9 Troubleshooting ............................................................................ 33
10 Technical information.................................................................... 34
11 Declaration of Conformity ............................................................ 35

MagniLink S - Mac
4
User Manual 7943541a | MagniLink S - Mac

MagniLink S - Mac
User Manual 7943541a | MagniLink S - Mac
5
1About LVI
LVI Low Vision International AB was founded in 1978 and is one of the
world’s leading manufacturers of magnifying TV- and computer systems
for visually impaired. New products are developed in close cooperation
with users and professional personnel of vision rehabilitation. LVI is a
Quality System Certified ISO 9001 and Environmental System Certified
ISO 14001 company.
The information in this manual has been carefully checked and is
believed to be accurate. However, LVI assumes no responsibility for any
inaccuracies that may be contained in this manual. In no event will LVI be
liable for direct, indirect, special, exemplary, incidental, or consequential
damages resulting from any defect or omission in this manual. In the
interest of continued product development, LVI reserves the right to
make improvements in this manual and the products it describes at any
time, without notice or obligation.

MagniLink S - Mac
6
User Manual 7943541a | MagniLink S - Mac
2Introduction to the MagniLink S
Thank you for choosing this video magnifier. We aim to ensure that you
are completely satisfied with your choice of supplier and reading aid.
The MagniLink S is a portable camera system with autofocus, which can
be connected to a computer or directly to an external monitor. The
system is controlled via a keyboard and/or control box. MagniLink S is
available in a number of different models. The following choices are
available:
•Camera (two options available; Standard Definition (SD) or High
Definition (HD)).
•Connection (choose between connection to a computer (USB 3.0
or USB 2.0), an external monitor (HDMI) or to both a computer and
an external monitor (USB and HDMI)).
•Software (for a system with a HD camera and a USB-3.0 connection,
software with OCR functionality can be selected).

MagniLink S - Mac
User Manual 7943541a | MagniLink S - Mac
7
Model Camera Connection Panel LED OCR
MLS-C01 SD USB No No No
MLS-M01 SD HDMI Yes No No
MLS-M02 HD HDMI Yes Yes No
MLS-CM01 SD HDMI/USB Yes Yes No
MLS-CM02 HD HDMI/USB Yes Yes No
MLS-CM03 HD HDMI/USB Yes Yes Yes
MLS-CM03-MAC HD HDMI/USB Yes Yes Yes
MagniLink S meets all the requirements for CE marking of medical
devices in accordance with Directive 93/42/EEG. Our products comply
with MDD 93/42/EEC with additions from Directive 2007/47/EC.

MagniLink S - Mac
8
User Manual 7943541a | MagniLink S - Mac
3Safety information
The reading aid is only intended for indoor use and must be used in
accordance with the following safety instructions.
•Use only the power adaptor supplied with MagniLink S. If the
wrong type of adaptor is used for operation of MagniLink S, this
can cause damage to the system.
•Units such as HDMI monitors and/or computers that are to be
connected to the system must comply with the appropriate safety
regulations for their country of use.
•Never turn on or use the product if it has been exposed to water,
rain or other liquids. Pull out the USB cable and allow trained
service personnel to carry out an inspection of the product before
it is used again.
•Place the power cord in such a way that you can neither trip over it
or that crush damages can occur.
•If the product is moved from the cold into a warm room,
condensation (moisture) can form inside the unit or on the camera
lens. To prevent condensation forming, the units should be
installed in the room at least 30 minutes prior to usage.
•If the system requires cleaning, pull out all cables and use a slightly
damp (not wet) cloth. Use only water or a cleaning agent that is
intended for monitors and computers.
•Do not rely 100 per cent on the results of an OCR conversion; the
OCR engine can misinterpret the text. This is particularly important
to bear in mind when processing sensitive information such as a
medical prescription.
•Make no further adjustments, even if the product does not function
normally after following the functional descriptions. Pull out the
USB cable and contact service personnel or the product distributor.
Only use spare parts that are specified by LVI
If in doubt, contact your supplier.
Warning
MagniLink S is supplied packed in a plastic bag. To avoid risk of
suffocation, keep the bag out of the reach of children and infants.

MagniLink S - Mac
User Manual 7943541a | MagniLink S - Mac
9
4Unpacking
The system is supplied in a box with the following contents:
•Reading camera
•USB cables
•Case
•USB memory stick with software
•Polishing cloth
•User Guide
•Power adaptor*
•HDMI to HDMI cable*
•HDMI to DVI cable*
*Not included with model MLS-C01 since its power is always provided by
the computer and it cannot be connected to a monitor.
Check first that the box has no damage to its exterior. In the event of
damage, contact the delivery company and file a notification of damage.
Open the box and take out the MagniLink S; remove the white
packaging. For further information on installation, please see the chapter
on Installation of hardware page 14.

MagniLink S - Mac
10
User Manual 7943541a | MagniLink S - Mac
4.1 Packaging
The packaging consists of the following packaging material (LVI
recommends that the packaging be kept in case you have to return the
system or you need to move it):
•Packing material (EPP)
•Box (corrugated cardboard)
•Polyethylene (LDPE4)
For sorting and collection of packaging material, please call the
packaging collection customer service department for information on the
rules that apply in your municipality.

MagniLink S - Mac
User Manual 7943541a | MagniLink S - Mac
11
5Accessories
The following accessories can be ordered with MagniLink S.
External control box (
MLS-A100
).
Larger external control box (
MLV-A110A
).

MagniLink S - Mac
12
User Manual 7943541a | MagniLink S - Mac

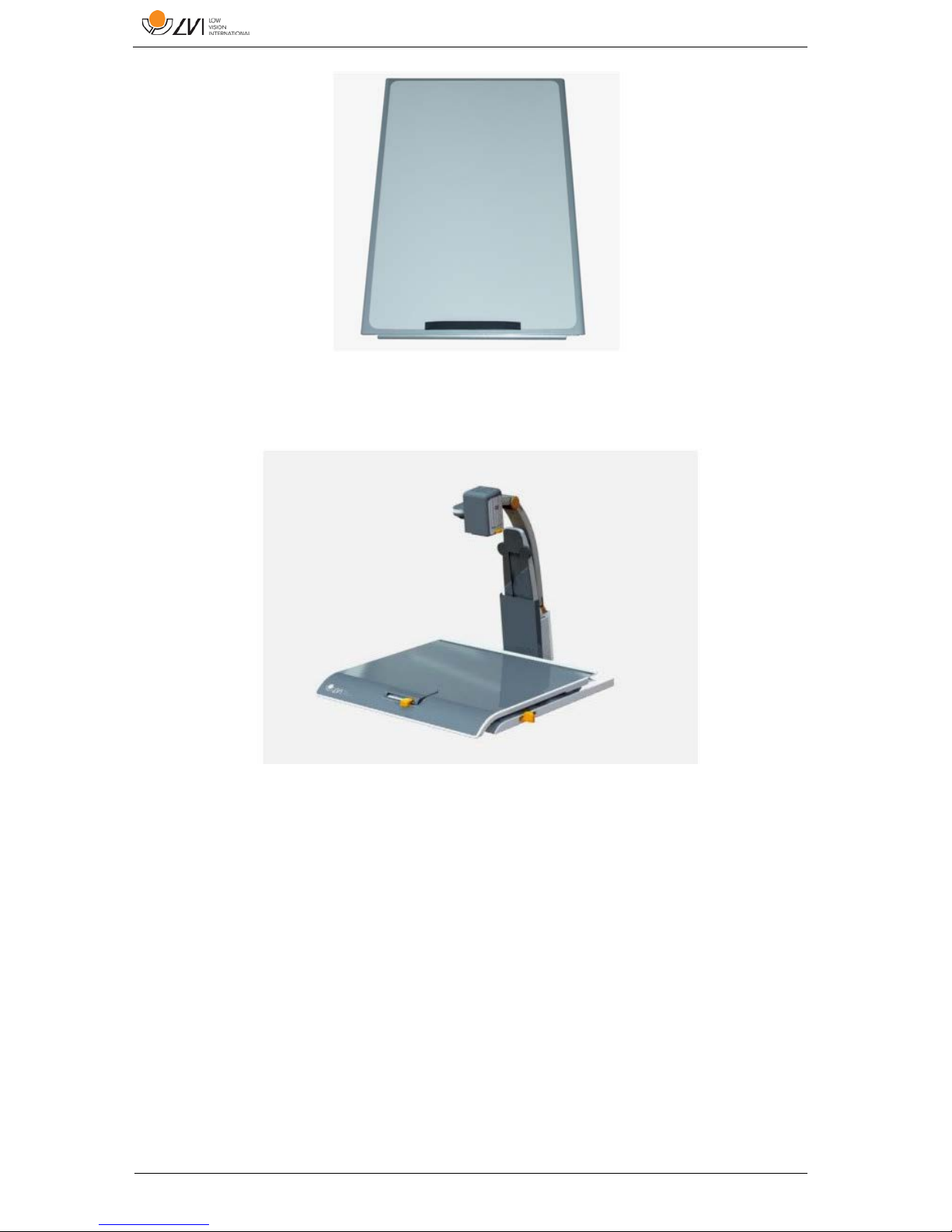

MagniLink Reading Table (
MLRT
), portable reading table.
MagniLink Docking Station (
MLS-A101
), stationary reading table.

MagniLink S - Mac
User Manual 7943541a | MagniLink S - Mac
13
LVI Monitor 19" (
MLV-A103
) and 23" (
MLV-A104
).
OCR functionality (
MLS-A102, MLS-A102-MAC
). It is possible to
upgrade an
MLS-CM02
to an
MLS-CM03
and acquire OCR functionality
for the software.

MagniLink S - Mac
14
User Manual 7943541a | MagniLink S - Mac
6Hardware
6.1 Installation of hardware

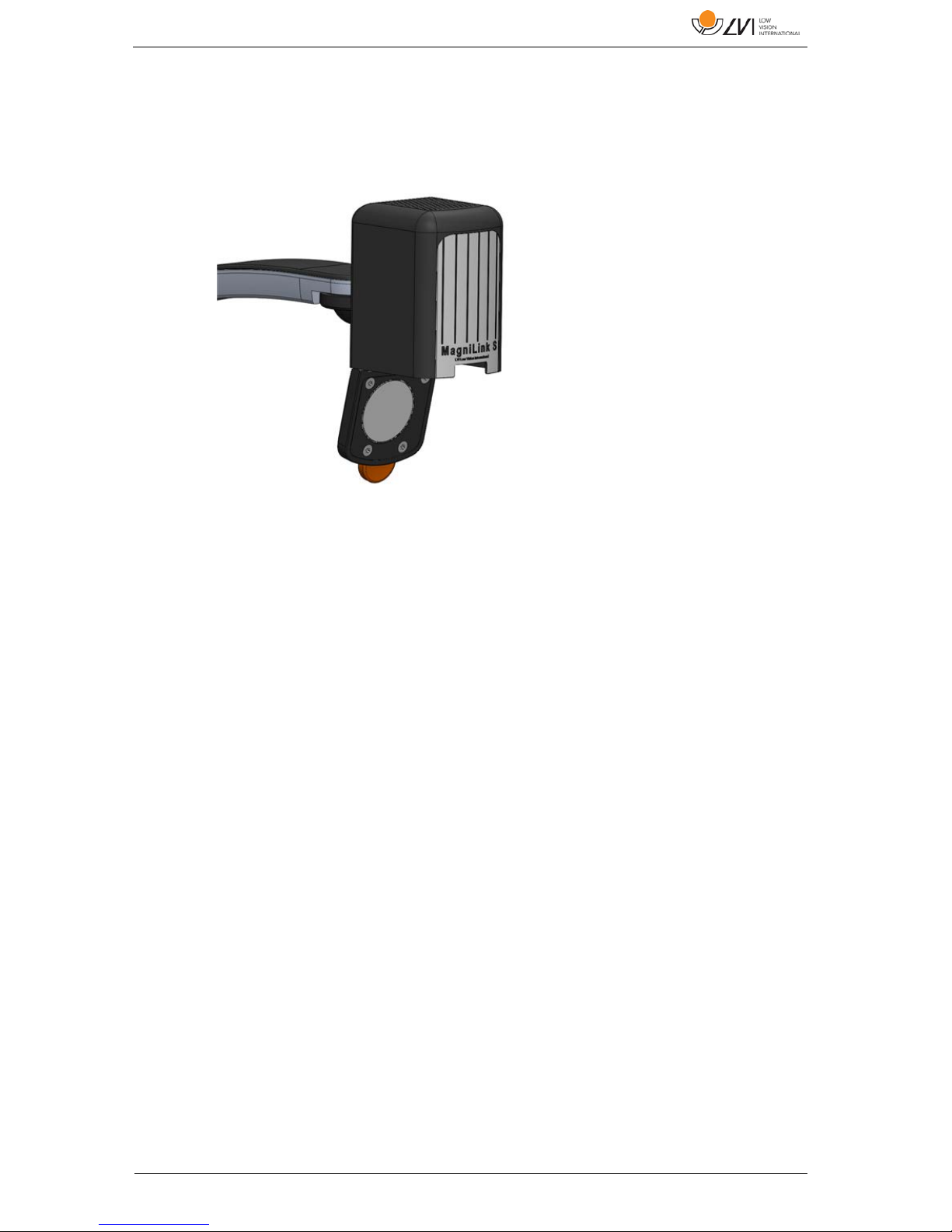

Open the camera's arm and pull out the camera's supporting legs. It is
not possible to manipulate the camera's arm until the supporting legs
have been extended.
On the back of the camera there are several connection options. The
connection options available depend on the camera model.
1.
USB connection
In addition to transferring images to a computer, the USB
connection is used to provide power to the system.
2.
HDMI connection
Here the camera can be connected to a monitor that supports
HDMI or DVI.

MagniLink S - Mac
User Manual 7943541a | MagniLink S - Mac
15
3.
External control panel
An external control panel can be connected via this input.
6.2 Using the hardware

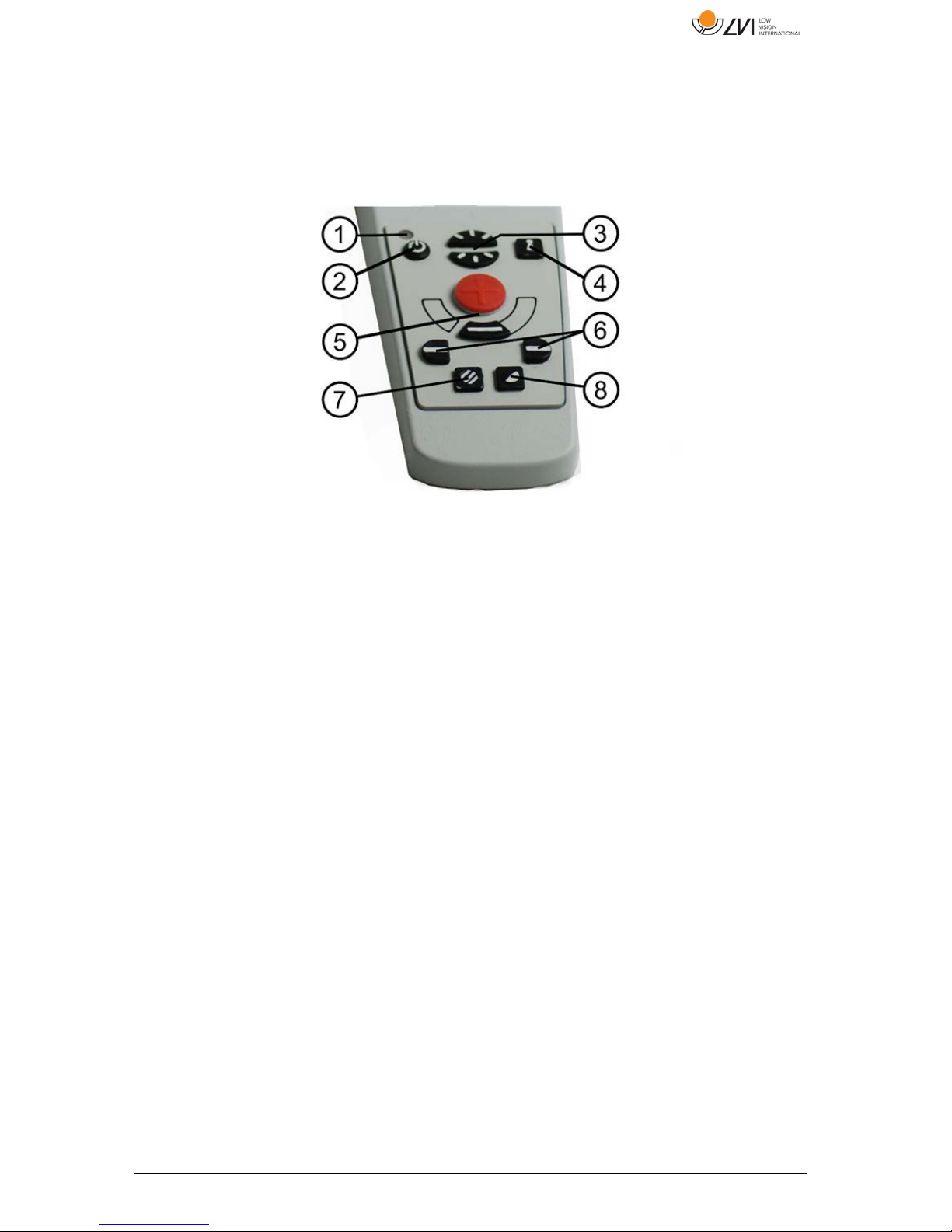

6.2.1 Control box
1.
LED
A green light indicates that the system is on. A flashing green light
means that the system is starting up. A slowly flashing yellow light
indicates standby. A red light indicates that something is wrong in
the system. See the chapter on Troubleshooting page 33.
2.
Power on/off
Press to start or shut down the system.
3.
Lighting configuration
Used to configure the light intensity in order to optimize reading
conditions. Press the upper half to increase the light intensity and
the lower half to decrease it. For systems that have LED lighting,
the intensity is adjusted by holding down the button (7).
4.
Autofocus on/off
Press the button once to lock the focus. This can be used when
you wish to write by hand. Autofocus is not affected by the pen or
your hand. Press the button a second time, to reactivate
autofocus.
5.
Zoom control
Used to set the zoom. To reduce the zoom, press the lower key
(minus) and to increase the zoom, pressure the upper key (plus).
6.
Reference line/Bar
Adjust the position of the reference line. Press the right-hand

MagniLink S - Mac
16
User Manual 7943541a | MagniLink S - Mac
button to move the horizontal line down. Hold the button in to
change the reference line to vertical and move it to the left. The
reference line then becomes a horizontal bar which diminishes the
viewing area. To make the bar vertical, press the button again. The
left button gives the opposite result.
7.
Picture mode
Press the button to switch the picture mode between natural
colours and grey scale.
Lighting adjustment
Hold the button down to temporarily enable adjustment of the
lighting via the lighting configuration (3). When the lighting
configuration (3) is used to adjust the lighting, there is no
switching between colour and grey scale (only possible if the
system has LED lighting).
Mirroring
A mirror image can be obtained by holding the button down for
three seconds.
8.
High contrast modes with artificial colours
Press the key to switch between the various colour combinations.
Rotation
By holding the button down for three seconds, the image can be
rotated 180 degrees.

MagniLink S - Mac
User Manual 7943541a | MagniLink S - Mac
17
6.2.2 Position sensor
MagniLink S is equipped with a position sensor that is used to switch
between reading mode (the user points the camera down and flips the
lens into place) and distance mode (the user opens the lens). The settings
for both modes are automatically saved when you switch from one to the
other.
Settings that are automatically saved for these modes are:
•Artificial colours
•Negative/Positive/Natural colours
•Light
•Magnification level
•Reference line/Bar
•Rotation of camera image
•Mirroring of camera image

MagniLink S - Mac
18
User Manual 7943541a | MagniLink S - Mac
7Mac software
The following pages describe the installation and use of the MagniLink S
software for Mac.
7.1 Minimum system requirements
•Mac OS X Version 10.6 Snow Leopard, or later
•2 integrated USB 2.0 ports
•To use the system in minimum resolution and picture frequency
you will need a computer with 2.53 Hz Intel Core 2 Duo processor,
4 GB RAM.
7.2 Recommended system requirements
•Mac OS X Version 10.6 Snow Leopard, or later
•1 integrated USB 3.0 port
•To use the system in maximum resolution and picture frequency
you will need a computer with an i5 or i7 processor, 4 GB RAM-
memory, external graphics card with at least 512 MB inbuilt
memory.
7.3 Installation of software
To install MagniLink S on your Mac, insert the USB stick containing the
software into one of the computer's USB ports. Begin the installation by
double clicking on the "Software Mac.dmg" file located in the "Software
Mac" folder. This will open the following window.
Continue the installation by double clicking the MagniLink.dmg file.

MagniLink S - Mac
User Manual 7943541a | MagniLink S - Mac
19
Read the text in the ”License Agreement” dialogue box, and accept the
license agreement by clicking the "Agree" button. After clicking
"Agree", the following window will open.
To install MagniLink, drag the MagniLink icon to the "Applications"
folder. This completes the installation.

MagniLink S - Mac
20
User Manual 7943541a | MagniLink S - Mac
7.4 Using the software
7.4.1 Functions via the keyboard
MagniLink Student is presented in a Mac application and all features in
the system can be controlled from the keyboard.
If you want to use the standard F1, F2, etc. keys without pressing the (fn)
key. You can change the keyboard settings. This setting can be accessed
from the Apple menu -> System Preferences -> Hardware -> Keyboard.
Default hotkey settings from the computer keyboard.
fn + F1
Natural colours
fn + F2
Positive picture with increased contrast
Artificial colours; White/Black, Yellow/Black, Green/Black,
Red/Black, Yellow/Blue, White/Blue
Press F2 to toggle through the different colours. (Shift + fn
+ F2 toggles backwards.)
fn + F3
Negative picture with increased contrast
Artificial colours; Black/White, Black/Yellow, Black/Green,
Black/Red, Blue/Yellow, Blue/White
Press F3 to toggle through the different colours. (Shift + fn
+ F3 toggles backwards.)
fn + F5
Take snapshot
Press fn + F5 to open the Picture saving dialog box. A file
name (today’s date and time) and folder (MagniLink) is
automatically suggested. Just press Enter to save the
picture. If you want to save the picture somewhere else or
with another name or format (JPG is standard) you can
manually change this.
fn + Shift + F5
Take snapshot – fast
To save a snapshot picture fast without specifying file name
and folder, press fn + Shift + F5. This command will save
the snapshot to the MagniLink folder or to the last folder
that was selected with F5.
fn + Alt + F5
Start/Stop video recording
Press fn + Alt + F5 to open the Video recording dialog box.
A file name (today’s date and time) and folder (MagniLink) is
automatically suggested. Just press Enter to save the video.
If you want to save the video somewhere else or with
another name or format you can manually change this. Stop
the video recording by pressing fn + Alt + F5 once again.
fn + Alt + Shift + F5
Start video recording – fast
