LYBESS LFP Magi-C 60 User manual

Wall-mounted Home Battery
System User Manual
LFP Magi-C 60
Anhui LEAD-WIN New Energy Technology Co., Ltd.
First floor, No. 8-5, Liandong U Valley Shushan
International Enterprise Port, 1499 Zhenxing Road,
Shushan District, Hefei City, Anhui, China
Tel: [phone]
E-mail: [e-mail]
Website: www.lybess.com
Get to know us

1. Product Information
2.
3.
4.
C O N T E N T S
Safety Information
Attentions
Specifications
1.1 Battery Overview
1.2 Appearance
1.3 Dimensions
1.4 Capacity Options
1.5 Installation Use
2.1 General Safety
2.2 Personal Safety
2.3 Electrical Safety
2.4 Transportation Safety
About this Document
This document describes the installation, electrical connection, operation and commission of 12.8V 60Ah Lifepo4 Battery System (hereafter simply
put LFP Magi-C 60). Before installing and operating LFP Magi-C 60, ensure that you are familiar with product features, functions, and safety
precautions provided in this document.

1 Product Information
1.1 Battery Overview
The battery is a lifepo4 battery pack uses A-grade lithium iron phosphate (LFP) cells
and combines with high-quality accessories. It can be used in camping, RV, ship, small
lighting and other scenes and equipment.
Features
LiFePO4 cylindrical cell
＞4000 cycles @0.5C conditions
Maximum 1C charge and discharge capability
IP 67 grade
Support up to 4 series and 4 parallel
Made of ABC+PC material
Fully recyclable at the end of life
Compact
1.2 Appearance
1.3 Dimensions

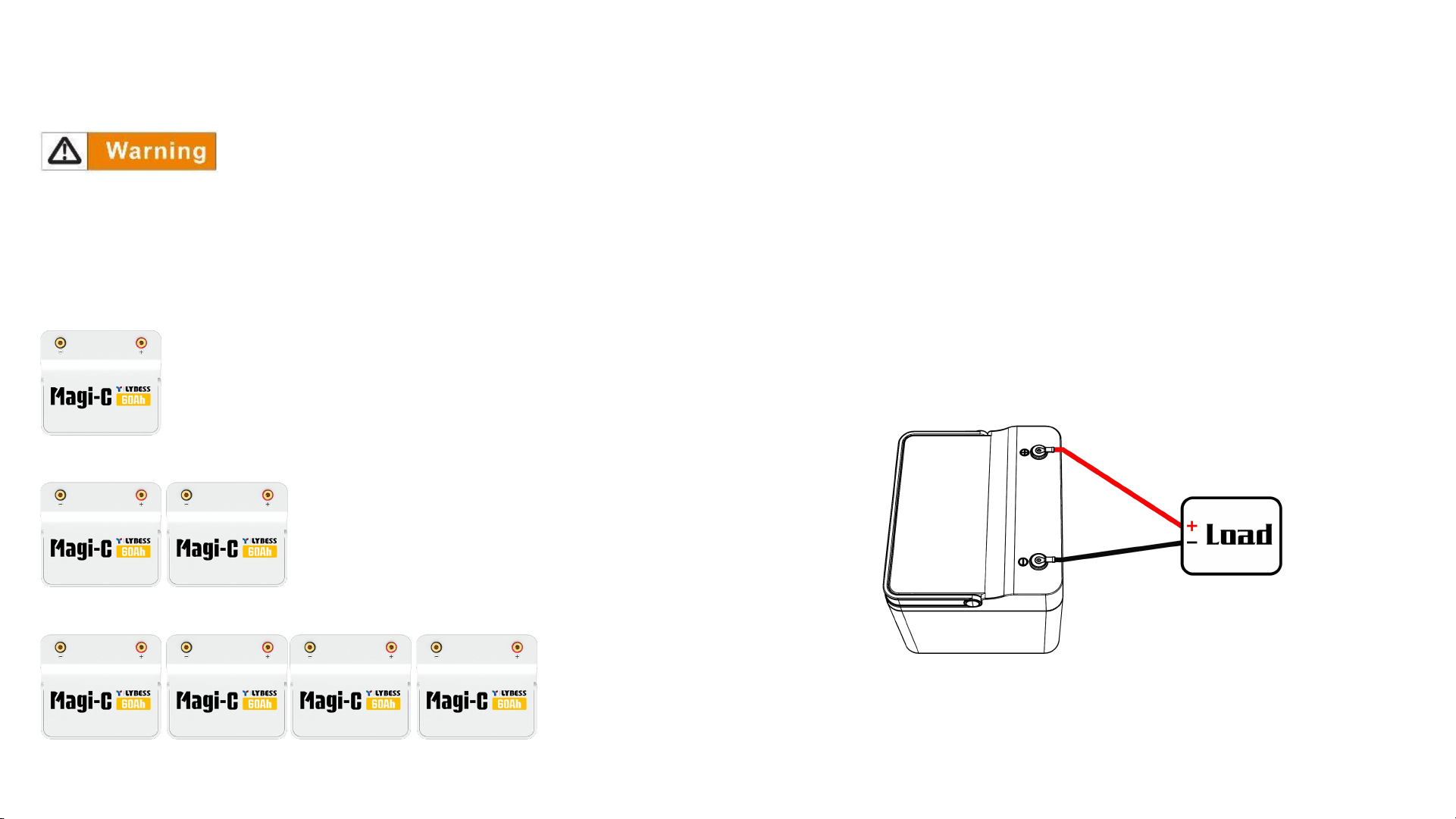

1.4 Capacity Options
The battery can be connected in parallel and in series to extend power (kW) and
energy (kWh).
ØThe maximum 4 battery packs can be parallel communicated.
ØThe maximum 4 battery packs can be series communicated.
For example, ONE PACK is 768Wh,
768Wh
1536Wh
3072Wh
AND MORE …… Scalable up to 12.288kWh.
1.5 Installation Use
Standalone use
Connect the charging and discharging wires to the battery as shown in the figure. The
wire harness end is pressed against the O-terminal of M8, and then fixed with the triple
set screws for the M8. The screws must be fully tightened to hold the terminals
completely in place. At this point, the positive and negative terminals can be connected
to the load and start using the battery.
Users need to choose different wire diameter harness according to different load power.
If the load power is higher, using a thinner wire harness will cause the harness to heat
up or even fire.

1.5 Installation Use

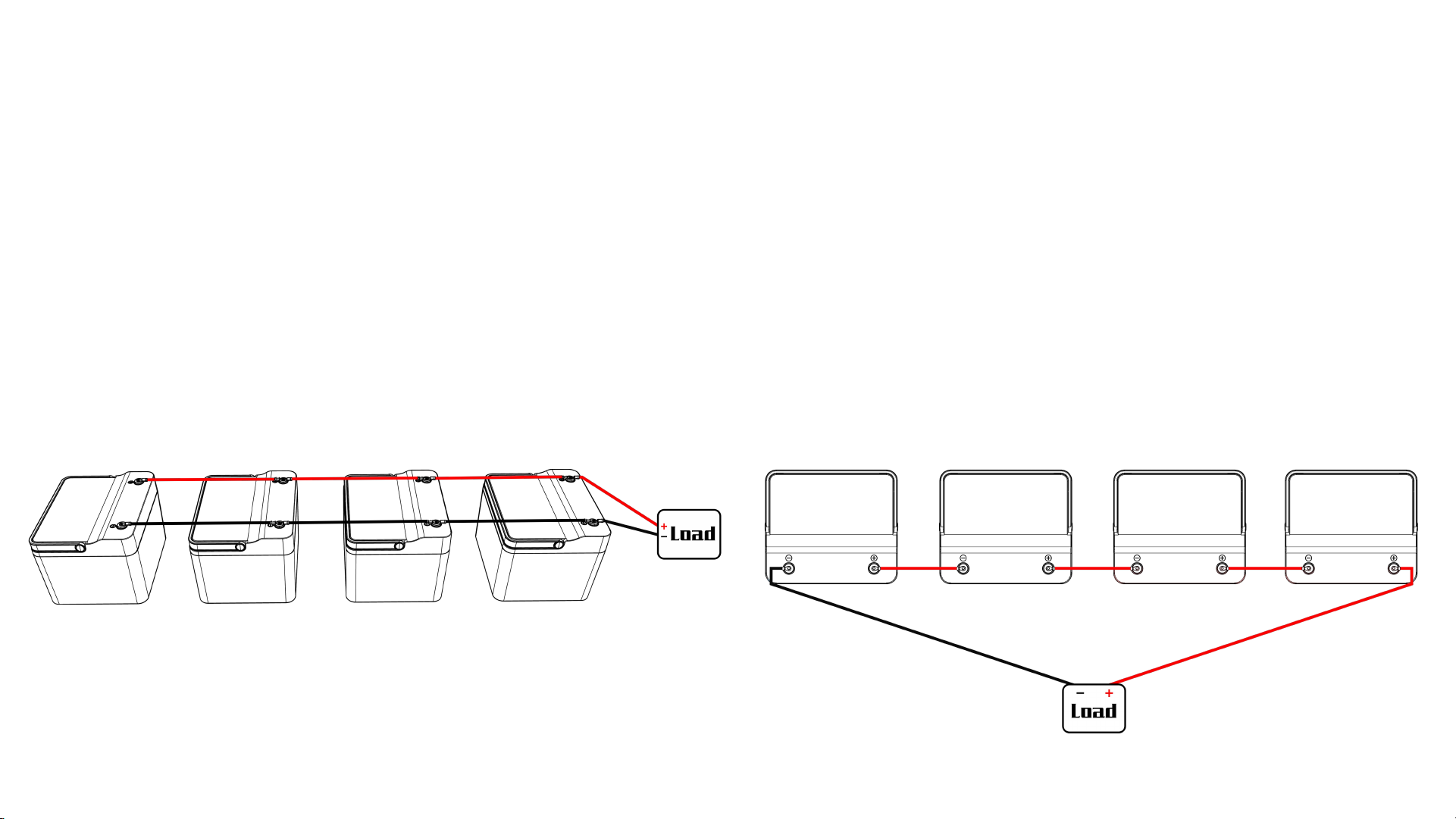

Parallel use
Before using multiple battery packs in parallel, all batteries must be fully charged
individually, and then connected in parallel as shown in the figure below. (Please
note: This product supports up to four batteries in parallel)
The wire harness end is pressed against the O-terminal of M8, and then fixed with
the triple set screws for the M8. The screws must be fully tightened to hold the
terminals completely in place.
Users need to choose different wire diameter harness according to different load
power. If the load power is higher, using a thinner wire harness will cause the
harness to heat up or even fire.
Series use
Before using multiple battery packs in series, all batteries must be fully charged
individually and then connected in series as shown in the diagram below. Please strictly
follow the wiring diagram and pay attention to the positive and negative pole positions.
(Please note: This product supports up to four batteries in series)
The wire harness end is pressed against the O-terminal of M8, and then fixed with the
triple set screws for the M8. The screws must be fully tightened to hold the terminals
completely in place.
Users need to choose different wire diameter harness according to different load power.
If the load power is higher, using a thinner wire harness will cause the harness to heat
up or even fire.

2 Safety Information
2.1 General Safety
Please carefully read the manual safety precautions, and observe all the safety
instructions on the equipment and in this document.
The "DANGER”，"WARNING", and "NOTICE” statements in this document do not
cover all the safety instructions. They are only supplements to the safety instructions.
For user safety and utilization efficiency of this manual, a list of symbols are
designed to alert people from danger. You must understand and comply with the
emphasized information to avoid personal injury and property damage. Relative
safety symbols have been listed below.
DANGER indicates a hazardous situation
which, if not avoided will result in serious
injury and fire.
WARNING indicates a hazardous
situation which, if not avoided will result
in property loss or void warranty.
NOTICE indicates normal situation which,
if not avoided will result in that battery
doesn't work.
Danger
Warning
Notice
Follow local laws and regulations when installing, operating, or maintaining the
equipment. The safety instructions in this document are only supplements to local
laws and regulations.
1.5 Installation Use
Bluetooth function (Bluetooth version battery)
Mobile phone APP to download.
Android Setup version download Apple APP Customer Edition Download
AC output use
When the battery needs to provide AC power to household appliances and other
equipment, it is necessary to confirm whether the rated power of the device matches
the rated power of the battery pack (the overall power of the battery pack can be
adjusted by means of series and parallel connection), and then connect the sine
wave inverter that meets the rated power. Finally, connect the device to the inverter
to obtain AC power.

Electrical Safety
2.3 Electrical Safety
ØBefore installation, ensure that the equipment is intact. Otherwise, electric shocks
or fire may occur.
ØDo not connect or disconnect power cables when battery is power-on. Which may
cause electric arcs and sparks more overfire or personal injury. Before connecting
a power cable, check the positive or negative connectors are correct.
ØDifferent batteries should not be connected in parallel.
ØDo not connect battery with AC directly.
ØDo not connect battery with PV wiring directly.
ØDo not connect battery to faulty or unqualified inverter or charger.
ØDo not create short circuits with the external connection.
ØMake sure the grid is cut off and the battery is powered off before maintenance.
ØMake sure the earth cable is connected correctly.
ØRecharge battery in every three months.
ØRecharge battery within 10 days after battery is fully discharged.
ØPlease engage greater than or equal to two batteries when maximum charge
current is more than 60A.
ØMake sure battery cable placement is installed correctly.
ØWhen the battery is being installed or repaired, make sure the battery is powered
off and using a multimeter to make sure there is no voltage in the positive and
negative terminals.
2.2 Personal Safety
Personal Requirements
People who plan to install or maintain battery equipment must be trained,
understood all necessary safety precautions, and are able to perform all operations
correctly.
Only qualified professionals or trained people are allowed to install, operate, and
maintain the equipment.
Personal Safety
ØDo not place battery at a children or pet touchable area.
ØDo not touch the energized battery, as the enclosure is hot.
ØDo not touch the energized battery terminals.
ØDo not stand on, lean on, or sit on the battery.
2.3 Electrical Safety

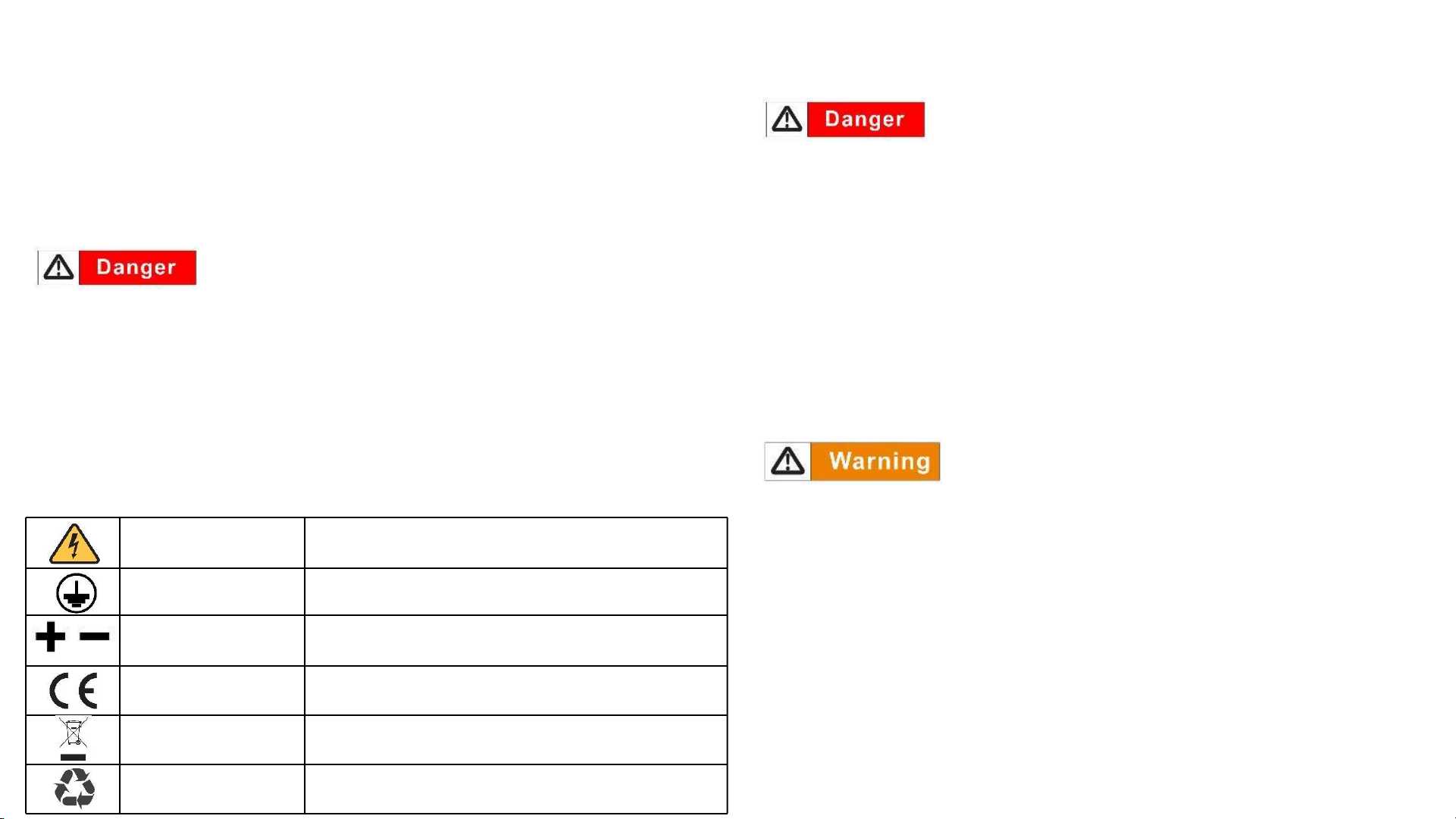

Symbols on Battery
There are some electrical symbols on battery relate to electrical safety. Please make
sure you have fully understand them before installation.
Electrical danger
Voltage exits when the battery is powered on.
Only qualified engineers are allowed to operate.
Earth connector
Earth connection.
DC positive and
negative connectors
Identify positive and negative connectors of DC
power source.
CE mark
The product meets CE certification.
WEEE tag
Can't leave battery as garbage disposal.
Recycle
Battery can be recycled.

2.3 Electrical Safety
ØPlease use dedicated insulated tools for install and maintenance.
ØPlease make sure all batteries are power-off when multiple parallel connection.
ØPlease check lights on sequence when battery power-on.
ØPlease make sure communication connection connect correctly with battery and
inverter.
ØPlease make sure ADDS dip switch settings are correctly for single or multiple
batteries.
ØPlease check inverter alarm or SOC reading when there is BMS communicated
with inverter.
Environment Safety
ØEnsure that the equipment is installed in a dry and well-ventilated environment.
ØThe installation position must be away from direct sunlight and rain.
ØThe installation position must be far away from fire sources.
ØThe installation position must be far away from water sources such as taps, sewer
pipes, and sprinklers to prevent water seepage.
ØThe bracket must be installed solidly and horizontally.
ØDo not expose the equipment to flammable or explosive gas or smoke.
ØDo not perform any operation on the equipment in such environments.
ØThe operation and service life of the battery depends on the operating
temperature. Operate the battery at a temperature equal to or better than the
ambient temperature. The recommended operating temperature range is from
0°C to 30°C.
2.4 Transportation Safety
ØThe products passed certification UN38.3.
ØThe products have MSDS.
ØThe products belong to class 9 dangerous goods.
ØPlease protect the packing case from the below situations.
ØBeing dampened by rains, snows, or falling into water.
ØFalling or mechanical impact.
ØBeing upside-down or tilted.

3 Attentions
Please read these safety instructions carefully before use
Please keep these installation instructions for future reference
Avoid short-circuiting the battery. A short circuit can produce a very high current
and cause injury to equipment and personnel.
Dropping, bumping, bending, etc. may reduce the performance of the battery.
The battery is fixed in the mobile equipment, should prevent the wire due to long-
term friction, resulting in the risk of short circuit of broken insulation.
The installation of the battery should have enough space, prohibit extrusion,
collision battery.
The environment where the battery is used should be as dry, clean and ventilated
as possible.
When the battery is not in use, it should be charged to more than 50% of the
power. The positive and negative poles of the battery should be well insulated.
Store at room temperature. If stored for a long time, the battery should be fully
charged once every three months to prevent battery failure caused by self-
discharge.
4 Specifications
Model
LFP Magi-C 60
Usable Capacity
768Wh
Nominal Voltage
12.8V
Nominal Capacity
60Ah
Discharge Voltage Range
10-14.6V
Max. Charging Current
60A
Recommended charging
Current
30A
Max. Discharging Current
60A
Recommended discharge Current
30A
Max. Output Power
768W
Shell Material
ABS+PC
Modules Connection
Max. 4*4
Communication
Bluetooth
Cycle Life
＞4000 (0.5C 25℃)
Working Temp. Range
-10℃~60℃
Storage Temperature
-10℃~35℃
Certifications
UL/CE/UN38.3/IEC62619
Net Weight
6.8kg
Product Dimension
248*214*184mm
Protection
IP67
