Lynx C DA 5010 User manual

Series 5000
© LYNX Technik AG
Brunnenweg 3
D-64331 Weiterstadt
Germany
www.lynx-technik.com
Reference Manual
C DA 5010
10 Bit SDI to Analog Video Converter
CardModul
e
Ver 1.8

Reference Manual C DA 5010 Version1.8
Page 2
Information in this document is subject to change without
notice. No part of this document may be reproduced or
transmitted in any form or by any means, electronic or
mechanical for any purpose, without express written permission
of LYNX Technik AG.
LYNX Technik AG may have patents, patent applications,
trademarks, copyrights or other intellectual property rights
covering the subject matter in this document. Except as
expressly written by LYNX Technik AG, the furnishing of this
document does not give you any license to patents,
trademarks, copyrights or other intellectual property of LYNX
Technik AG or any of its affiliates.
© LYNX Technik AG 2004 - 2006 all rights reserved

Reference Manual C DA 5010 Version1.8
Page 3
Warranty
LYNX Technik AG warrants that the product will be free from
defects in materials and workmanship for a period of two (2)
year from the date of shipment. If this product proves defective
during the warranty period, LYNX Technik AG at its option will
either repair the defective product without charge for parts and
labor, or will provide a replacement in exchange for the
defective product.
In order to obtain service under this warranty, customer must
notify LYNX Technik of the defect before expiration of the
warranty period and make suitable arrangements for the
performance of service. Customer shall be responsible for
packaging and shipping the defective product to the service
center designated by LYNX Technik, with shipping charges
prepaid. LYNX Technik shall pay for the return of the product to
the customer if the shipment is within the country which the LYNX
Technik service center is located. Customer shall be responsible
for payment of all shipping charges, duties, taxes and any other
charges for products returned to any other locations.
This warranty shall not apply to any defect, failure, or damage
caused by improper use or improper or inadequate
maintenance and care. LYNX Technik shall not be obligated to
furnish service under this warranty a) to repair damage resulting
from attempts by personnel other than LYNX Technik
representatives to install, repair or service the product; b) to
repair damage resulting from improper use or connection to
incompatible equipment; c) to repair any damage or
malfunction caused by the use of non LYNX Technik supplies; or
d) to service a product which has been modified or integrated
with other products when the effect of such modification or
integration increases the time or difficulty servicing the product.
THIS WARRANTY IS GIVEN BY LYNX TECHNIK WITH RESPECT TO THIS
PRODUCT IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR
IMPLIED. LYNX TECHNIK AND ITS VENDORS DISCLAIM ANY IMPLIED
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE. LYNX TECHNIK`S RESPONISIBILITY TO REPAIR AND
REPLACE DEFECTIVE PRODUCTS IS THE SOLE AND EXCLUSIVE
REMEDY PROVIDED TO THE CUSTOMER FOR BREACH OF THIS
WARRANTY. LYNX TECHNIK AND ITS VENDORS WILL NOT BE LIABLE
FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTAL
DAMAGES IRRESPECTIVE OF WHETHER LYNX TECHNIK OR THE
VENDOR HAS ADVANCE NOTICE OF THE POSSIBILITY OF SUCH
DAMAGES.

Reference Manual C DA 5010 Version1.8
Page 4
Regulatory information
Europe
Declaration of Conformity
USA
FCC 47 Part 15
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Note: This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to the part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in
a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own
expense
We LYNX Technik AG
Brunneweg 3
D-64331 Weiterstadt
Germany
Declare under our sole responsibility that the product
TYPE: C DA 5010
To which this declaration relates is in conformity with the following
standards (environments E1-E3):
EN 55103-1 /1996
EN 55103-2 /1996
EN 60950 /2001
Following the provisions of 89/336/EEC and 73/23/EEC directives.
Winfried Deckelmann
Weiterstadt, November 2004
Place and date of issue Legal Signature

Reference Manual C DA 5010 Version1.8
Page 5
Contents
Warranty........................................................................... 3
Regulatory information................................................... 4
Europe.......................................................................... 4
Declaration of Conformity ..................................... 4
USA ............................................................................... 4
FCC 47 Part 15......................................................... 4
Contents........................................................................... 5
Getting Started ................................................................ 7
Packaging ................................................................... 7
Product Description .................................................... 7
Functional Diagram .................................................... 9
Module Layout ............................................................ 9
Connections .................................................................. 11
Video Connections................................................... 11
Installation ..................................................................... 12
Settings and Control ..................................................... 13
Switch Settings........................................................... 14
Switch Function Detail .......................................... 14
Additional Remote Functions. ............................. 16
Factory Preset Condition...................................... 17
Auto Store .............................................................. 17
Alarm/LED Status Indicators..................................... 18
Status Indicators .................................................... 18
Alarm Indicator ..................................................... 18
Locate Function .................................................... 19
Specifications (C DA 5010) .......................................... 20
Available Options ......................................................... 21
Parts List.......................................................................... 21
Service ........................................................................... 22
Contact Information ..................................................... 23

Reference Manual C DA 5010 Version1.8
Page 6
This page is intentionally left blank

Reference Manual C DA 5010 Version1.8
Page 7
Getting Started
Packaging
The shipping carton and packaging materials
provide protection for the module during transit.
Please retain the shipping cartons in case
subsequent shipping of the product becomes
necessary.
Product Description
The C DA 5010 is a high quality 10 bit video D/A
converter designed primarily for broadcast and
professional applications.
The Module accepts 1 SDI input signal and provides
a RGB or YUV component analog output. It also
provides 3 x CVBS, or 1x CVBS and one S-Video
(Y/C) output (in parallel to the component analog
output selected). The component outputs can also
be configured to provide 3 x Black Burst reference
outputs if required. Two re-clocked SDI loop through
signals are provided for further use downstream.
The C DA 5010 has a variety of features, which
includes:
•Component RGB or YUV component video
outputs plus
•3x CVBS or CVBS and a S video output (Y/C)
•3 x Black Burst output selectable (on
component outputs)
•PAL or NTSC operation, auto detect
•Internal color bars
•If no input signal is present, test signals can
be selected or output can be disabled
automatically
•Internal 4x over sampling (54MHz)
•2 x reclocked SDI loop through outputs
•Local DIP-switches and LED's for control and
status monitoring.
•Microprocessor controlled.
•Remote control interface.

Reference Manual C DA 5010 Version1.8
Page 8
The module has a built in micro-controller with local
controls, status and alarm indicators and well as
internal flash ram for storing setups. Any operational
parameters configured and stored into the module
are recalled when powered up. Remote control
and remote status monitoring is possible when using
the optional rack controller
CardModules are installed in the series 5000 card
frame that can accommodate up to 10
CardModules. All modules are hot swappable and
options include full redundant power and a range
of controller options.

Reference Manual C DA 5010 Version1.8
Page 9
Functional Diagram
Figure 1 below is the basic functional diagram for
the C DA 5010 CardModule.
Figure 1- C DA 5010 Functional Diagram
Module Layout
Figure 2 shows the physical layout of the C DA 5010
CardModule and also the connection panel which
is fitted to the rear of the rack.
G / Y or BB Ref
B / U or BB Ref
R / V or BB Ref
CVBS
CVBS / LUMA
DAC
SER
PAR
PLL
EQ
Color
Bars
Control / Select
Alarm
Status
Dip Switch
SDI LOOP 1
SDI LOOP 2
Remote
CVBS / Chroma
SDI in

Reference Manual C DA 5010 Version1.8
Page 10

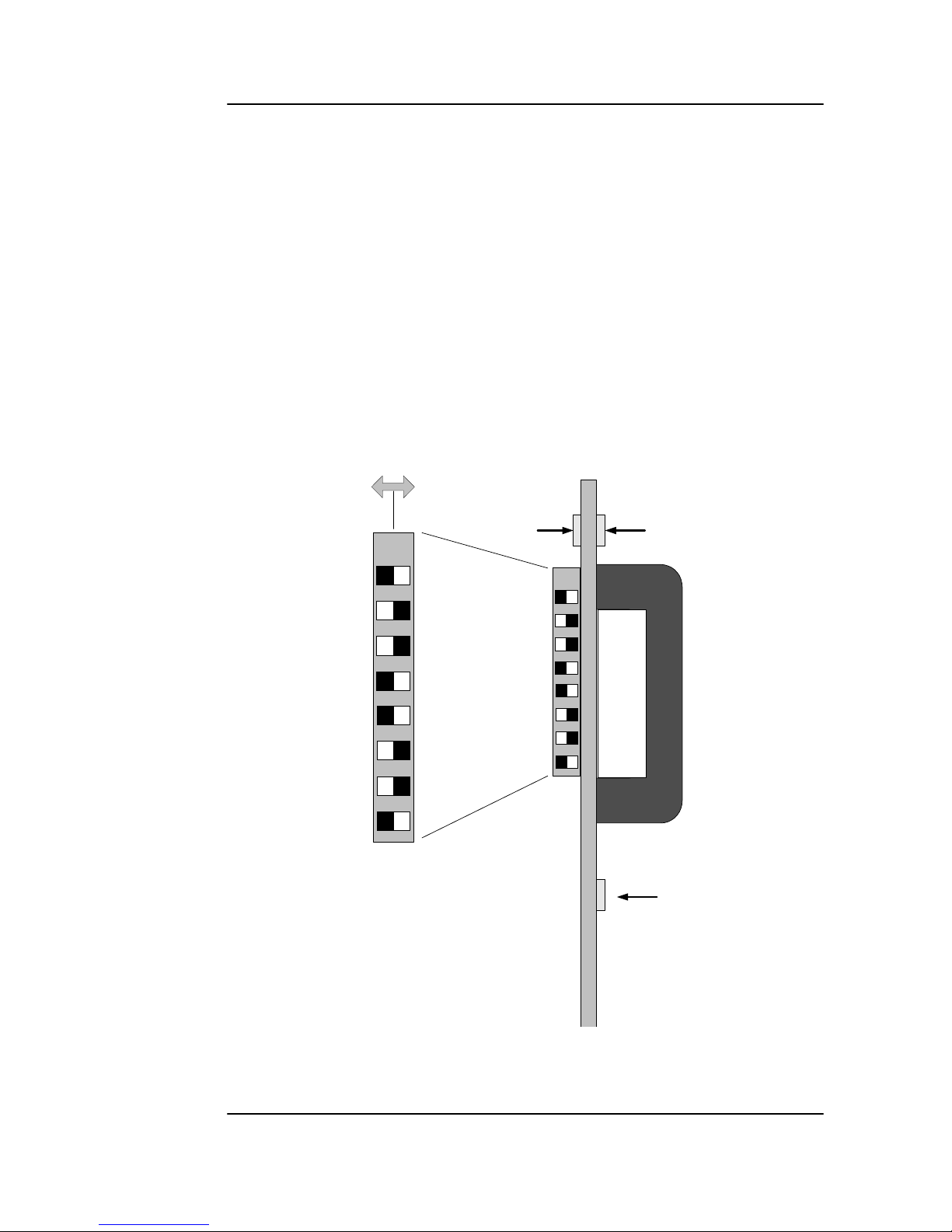

Figure 2 – Module Layout
PCB Layout
Rear Connection Panel
PCB Front View
LED 1LED 2
Alarm
LED
C DA
5010
SDI to Analog Video Conv
10 Bit SDI to Analog Video Converter
C DA 5010
SDI in n.c.
SDI out 1 SDI out 2
G/Y out CVBS out
B/U out
Y(S-Vid) out
R/V out C out
LYNX Technik AG
1
2
3
4
5
6
7
8
OFF ON
8 Position Switch

Reference Manual C DA 5010 Version1.8
Page 11
Caution
Use static precautions when handling the
PCB. Static discharge could result in serious
damage to the module.
Connections
Video Connections
The C DA 5010 CardModule is configured with
standard 75 Ohm BNC connectors. Connection is
self-explanatory. We recommend the use of high
quality video cables for digital video connections
to reduce the risk of interference or errors due to
excessive cable attenuation. Some guidelines for
max cable length are shown below.
250m (820 feet) Belden 8281 (270Mbits/s)
Note. Due to the compact design of the
connection plate it will be necessary to use a
connection tool to secure the BNC video
connectors.

Reference Manual C DA 5010 Version1.8
Page 12
Installation
Caution
The CardModule is shipped in a
protective anti-static bag. Please take
suitable precautions to avoid static
discharge onto any part of the PCB or
components when handling module or
serious damage could result.
Each Card Module is supplied with a rear
connection panel and two mounting screws.
Please follow the following procedure for
installation of the card module into the Series 5000
Card Frame.
a) Select a slot in the card frame where the
CardModule will be located
b) Remove the blank connection panel from the
rear of the rack (if fitted)
c) Install the rear connection panel using the
screws supplied. Do not tighten the screws fully
d) Slide the card module into the card frame and
carefully check the CardModule easily
connects to the rear connection plate. The
card should fit easily and should not require
excessive force to insert, if you feel any
resistance, there could be something wrong
with the rear connection panel location. Do not
try and force the connection. Remove the rear
connection panel and check alignment with
the CardModule.
e) Insert and remove the CardModule a few times
to ensure correct alignment and then tighten
the two screws to secure the rear connection
plate

Reference Manual C DA 5010 Version1.8
Page 13
Settings and Control
The C DA 5010 has an integrated micro-controller,
which enables the module to be configured and
controlled locally using integral 8 position dip switch
or from remote when using one of the optional
controllers and control software.
Once set, all settings are automatically saved in
non-volatile internal memory. (Flash ram) The
module will always recall the settings used prior to
power down.
Figure 3 – Switch and LED locations
LED 1LED 2
Alarm
LED
C DA
5010
SDI to Analog Video Conv
1
2
3
4
5
6
7
8
OFF ON
8 Position Switch

Reference Manual C DA 5010 Version1.8
Page 14
Switch Settings
Below the switch settings for the 8-position dip-
switch are defined. Please see the section following
the table for more detail on the switch function.
Switch Function Detail
All settings are stored in Flash Ram inside the
module (see Auto Store section in this manual).
Settings will be recalled on power up.
Dip Switch 1
This switch enables local control using the dip-
switches. ON enables local control and makes
selections on the dipswitch active, and OFF
disables local control (locking out any local
changes)
Note.
When Switch 1 is initially switched to ON, the static
settings currently set on the dip-switches may not
reflect the actual configuration stored in the
module. This is because all settings can be
Switch Setting Function
ON Enable Local Adjustments
1 OFF Disable local Adjustments
ON RGB Component Output
2 OFF YUV Component Output
ON 3 x CVBS outputs
3 OFF 1 x CVBS and S Video (Y/C) outputs
ON Test signal (color bars) ON
4 OFF Test Signal (color bars) OFF
ON Test Signal format = NTSC
5 OFF Test Signal Format = PAL
ON Switch 7 active
6 OFF If no input, then output = Color Bars
ON If no input, output disabled
7 OFF If no input, then output = Color Bars
ON VBI disabled (transparent)
8 OFF VBI enabled (blanked)

Reference Manual C DA 5010 Version1.8
Page 15
changed from the remote control system. This
overrides the local dip switches regardless of Switch
1 ON/OFF setting. To ensure the module reads the
local dip switch settings it is recommended to
toggle Switch 1 ON-OFF-ON before making any
local changes to the dip switches.
Dip Switch 2
This switch selects either RGB or YUV component
analog outputs from the module. ON = RGB, OFF =
YUV Only active when Note: Outputs selected on
Switch 3 are always present.
Dip Switch 3
This is used to select the second set of analog
outputs from the module. ON will set 3 x CVBS
outputs and OFF will select1X CVBS and S Video
(Y/C) outputs.
Dip Switch 4
This switch will select the internal color bars, and
these will pear on all outputs. ON selects color bars
OFF turns them off.
Dip Switch 5
This selects the video standard for the color bar
signal. This does not automatically change with the
input auto detection, and has to selected
manually. ON selected NTSC, OFF selects PAL
Dip Switch 6
Switch 6 and Switch 7 select what output the
module should provide when the input signal is
removed or missing. ON makes Switch 7 active.
OFF selects color bars.
Dip Switch 7
If Switch 6 is ON the output is disabled when the
input signal is removed or missing. ON selects
disabled output output. OFF selects black.

Reference Manual C DA 5010 Version1.8
Page 16
Dip Switch 8
This switch is used to select VBI (vertical Blanking
Interval) on and off. When set to OFF VBI is enabled
and the module will insert a vertical blanking signal
on the outgoing analog video signal. ON will switch
the module to a transparent mode, so inserted
ancillary data will not be deleted.
Remote Functions.
This is a powerful module and it was not possible to
map all the functionality onto the local dipswitch.
Only primary functions are covered with the switch.
An extended set of controls is possible when used
with the optional control system. Additional
functions include:
•Selectable Luma / chroma filters
•Adjustable Contrast, Color, Brightness, Sharpness,
HUE and Gamma
•Luma Saturation Control
•Luma undershoot Limiter
•Chrominance ON/OFF
•Burst ON/OFF
•YUV-Level presets: Betacam or SMPTE
•Line duration: CCIR Rec.601 / ITU-R BT 470
•NTSC Pedestal (setup)

Reference Manual C DA 5010 Version1.8
Page 17
Factory Preset Condition
The C DA 5010 is delivered preset for the following
mode of operation:
•Local control ENABLED
•YUV Output
•RGB sync enabled
•Test signal OFF
•Test signal format PAL
•VBI enabled (blanked)
If this is the mode of operation required, then no
adjustments are necessary.
Auto Store
If no parameters are changed for 10 seconds then
the current settings will be written into flash memory
automatically, this can be seen by the alarm LED
flashing yellow four times.

Reference Manual C DA 5010 Version1.8
Page 18
Alarm/LED Status Indicators
The C DA 5010 module has three LED indicators,
which serve as alarm and status indication for the
module. (Figure 2 or 3) Function is described below.
Status Indicators
2 status LEDs are provided on the module edge
Alarm Indicator
There is also a general alarm LED on the lower edge
of the module, which can be seen when the rack
front cover is fitted.
LED OFF indicates power is lost, or there is a power
supply fault.
LED 1 Same as Alarm indicator
Red Input signal missing
LED Color Indication
Green Input signal present
Yellow Test pattern selected (color bars)
Red Input signal missing
LED 2 Indication
Green Local control enabled
OFF Remote Control enabled

Reference Manual C DA 5010 Version1.8
Page 19
Locate Function
For larger systems which may have multiple
MiniModules of the same type in a single rack, or
multiple rack systems on a large central control
system we have added a useful utility which will
help to visually locate a suspect module quickly
(When used in conjunction with the optional control
system and software)
Once the specific module has been selected on
the control system there is a locate button on the
top of the GUI:
Locate Function in Control System
When Locate is selected the status indicator on the
GUI and the module LED`s will flash yellow in the
following continuous sequence.
3 short flashes…. Pause…. 3 short flashes …
This uses the alarm LED located on the front of the
module and in some cases any channel or status
LED`s that may be used in the module.
Use of the locate function will not interfere with the
normal operation of the module.
For more details on this feature please check the
documentation supplied with the controller
software.

Reference Manual C DA 5010 Version1.8
Page 20
Specifications (C DA 5010)
Inputs
Signal Serial 4:2:2 SMPTE 259M-C (270 Mbit/s)
Standards NTSC-(M/N), PAL (B/D/G/H/I/N/60)
Auto detection
Return Loss >15dB (270MHz)
Jitter <0,2UI
Connection BNC
Impedance 75 Ohm
Outputs
Signal (component) YUV or RGB component analog or 3 x Black Burst
reference (selectable)
Signal (composite) 3 x CVBS or 1x CVBS and S-Video (Y/C)
(selectable)
Return Loss >35dB (5,75MHz)
Signal to noise >62dB
Connections BNC
Impedance 75 Ohm
Operating Modes
Conversion D/A conversion for SDI-Signals
TV Standard NTSC or PAL (Auto detect)
Test Internal Color Bars
Performance
Quantization 10 Bits
Sampling 54 MHz (4x Over sampling)
Filters Selectable Chroma and Luma filters (remote only)
S/N Ratio < -62 dB (unweighted to 5,75 MHz)
Electrical Specifications
Operating Voltage + 5VDC
Power Consumption 5 W
Safety IEC 60950/ EN 60950/VDE 0805
Mechanical
Size 283mm x 78mm
Weight Card module 120g, connection panel 50g
Ambient
Temperature 5°C to 40°C Maintaining specifications
-20°C to +70°C Storage
Humidity Max 90% non condensing
Supplied Accessories
Documentation C DA 5010 Reference Manual
