Lynx D AD 3260 BS User manual

Series 3000
© LYNX Technik AG
Brunnenweg 3
64331 Weiterstadt
Germany
www.lynx-technik.com
Reference Manual
DAD3260BS-6 x AES3-id to AES3 converter
DAD3260SB-6 x AES3 to AES3-id converter
MiniModule
s

Reference Manual D AD 3260 Version1.1
Page 2
Information in this document is subject to change without
notice. No part of this document may be reproduced or
transmitted in any form or by any means, electronic or
mechanical for any purpose, without express written permission
of LYNX Technik AG.
LYNX Technik AG may have patents, patent applications,
trademarks, copyrights or other intellectual property rights
covering the subject matter in this document. Except as
expressly written by LYNX Technik AG, the furnishing of this
document does not give you any license to patents,
trademarks, copyrights or other intellectual property of LYNX
Technik AG or any of its affiliates.
© LYNX Technik AG 2005-2006 all rights reserved

Reference Manual D AD 3260 Version1.1
Page 3
Warranty
LYNX Technik AG warrants that the product will be free from
defects in materials and workmanship for a period of two (2)
years from the date of shipment. If this product proves defective
during the warranty period, LYNX Technik AG at its option will
either repair the defective product without charge for parts and
labor, or will provide a replacement in exchange for the
defective product.
In order to obtain service under this warranty, customer must
notify LYNX Technik of the defect before expiration of the
warranty period and make suitable arrangements for the
performance of service. Customer shall be responsible for
packaging and shipping the defective product to the service
center designated by LYNX Technik, with shipping charges
prepaid. LYNX Technik shall pay for the return of the product to
the customer if the shipment is within the country which the LYNX
Technik service center is located. Customer shall be responsible
for payment of all shipping charges, duties, taxes and any other
charges for products returned to any other locations.
This warranty shall not apply to any defect, failure, or damage
caused by improper use or improper or inadequate
maintenance and care. LYNX Technik shall not be obligated to
furnish service under this warranty a) to repair damage resulting
from attempts by personnel other than LYNX Technik
representatives to install, repair or service the product; b) to
repair damage resulting from improper use or connection to
incompatible equipment; c) to repair any damage or
malfunction caused by the use of non LYNX Technik supplies; or
d) to service a product which has been modified or integrated
with other products when the effect of such modification or
integration increases the time or difficulty servicing the product.
THIS WARRANTY IS GIVEN BY LYNX TECHNIK WITH RESPECT TO THIS
PRODUCT IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR
IMPLIED. LYNX TECHNIK AND ITS VENDORS DISCLAIM ANY IMPLIED
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE. LYNX TECHNIK`S RESPONISIBILITY TO REPAIR AND
REPLACE DEFECTIVE PRODUCTS IS THE SOLE AND EXCLUSIVE
REMEDY PROVIDED TO THE CUSTOMER FOR BREACH OF THIS
WARRANTY. LYNX TECHNIK AND ITS VENDORS WILL NOT BE LIABLE
FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTAL
DAMAGES IRRESPECTIVE OF WHETHER LYNX TECHNIK OR THE
VENDOR HAS ADVANCE NOTICE OF THE POSSIBILITY OF SUCH
DAMAGES.

Reference Manual D AD 3260 Version1.1
Page 4
Regulatory information
Europe
Declaration of Conformity
USA
FCC 47 Part 15
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Note: This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to the part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in
a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own
expense
We LYNX Technik AG
Sandstrasse 7
D-64404 Bickenbach
Germany
Declare under our sole responsibility that the product
TYPE: D AD 3260 SB, D AD 3260 BS
To which this declaration relates is in conformity with the following
standards (Environments E1-E3):
EN 55103-1 /1996
EN 55103-2 /1996
EN 60950 /2001
Following the provisions of 89/336/EEC and 73/23/EEC directives.
Winfried Deckelmann
Weiterstadt, March 2006
Place and date of issue Legal Signature

Reference Manual D AD 3260 Version1.1
Page 5
Contents
Warranty .................................................................. 3
Regulatory information........................................... 4
Europe .............................................................................4
Declaration of Conformity..........................................4
USA.................................................................................4
FCC 47 Part 15............................................................4
Contents .................................................................. 5
Getting Started........................................................ 7
Packaging........................................................................7
Product Description ........................................................7
Module Layout................................................................8
Connections............................................................ 9
Audio Input Connections ................................................9
Audio Output Connections .............................................9
Audio Connections (balanced)....................................9
Power Connections .......................................................10
DC Power Connector ................................................10
Installation ............................................................. 11
Mechanical....................................................................11
Stand Alone Operation..............................................11
Multiple Units ...........................................................12
Electrical Installation. ...................................................13
Stand Alone Operation..............................................13
Multiple Units ...........................................................14
Settings and Control ............................................. 14
Alarm/LED Status Indicators................................. 14
Specifications (D AD3260) ................................... 14
Available Options................................................. 15
Parts List.................................................................. 17
Service ................................................................... 17
Contact Information ............................................. 18

Reference Manual D AD 3260 Version1.1
Page 6

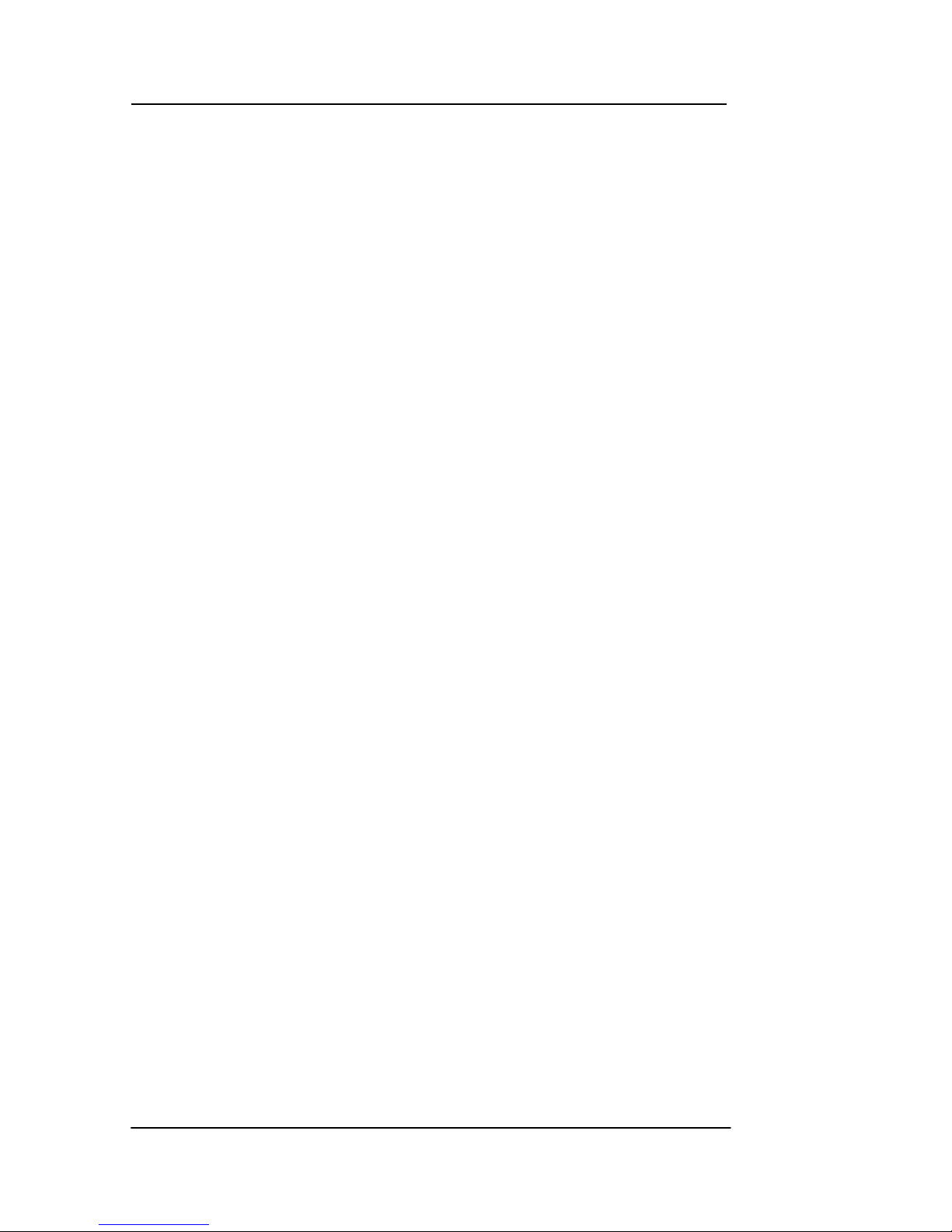

This Page is intentionally left blank

Reference Manual D AD 3260 Version1.1
Page 7
Getting Started
Packaging
The shipping carton and packaging materials
provide protection for the module during transit.
Please retain the shipping cartons in case
subsequent shipping of the product becomes
necessary.
Product Description
The D AD 3260 BS is a high quality AES3-id
(unbalanced 75 Ohm) to AES 3 (balanced 110
Ohm), the D AD 3260 SB a AES3 to AES3-id
converter designed primarily for broadcast and
professional applications.
D AD 3260 BS: 6 Channels of digital unbalanced
Audio (AES3-id) on 75 Ohm BNC connectors are
converted to digital balanced Audio (AES3) on 110
Ohm Weco screw terminal style connections.
Conversion is active providing 4Vpp (nom.) output
level.
D AD 3260 SB: 6 Channels of digital balanced Audio
(AES3) on 110 Ohm Weco screw terminal style
connections are converted to digital unbalanced
Audio (AES3-id) on 75 Ohm BNC connectors.
Conversion is active providing 1Vpp (nom.) output
level.
The D AD 3260 is part of the 3000 series of
MiniModules, which offer high quality, modularity
and flexibility in a very small form factor ideal for
applications where space is at a premium.
The modules can be used either stand alone using
the optional power supply brick, or as part of a
tightly integrated space saving system where up to
10 MiniModules can be mounted utilizing the
optional LYNX R FR 3005 / 3010 rack housing. This
includes integrated power supply and optional
remote control interfaces.

Reference Manual D AD 3260 Version1.1
Page 8

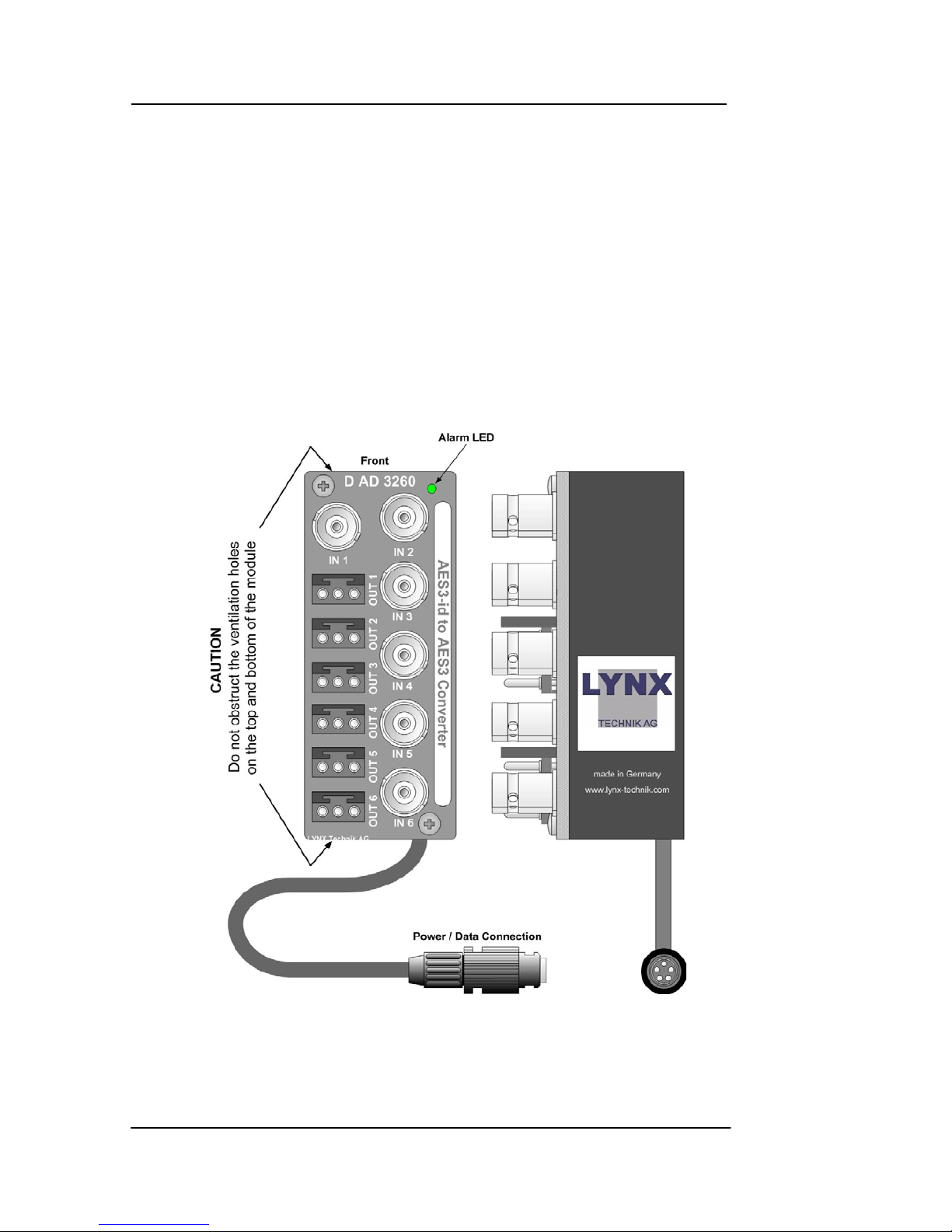

Module Layout
Figure 2 shows the physical layout of the D AD 3260
MiniModule.
If the module is being used in a stand alone
application then the optional power supply (R PS
3001 E, R PS 3001 U, R PS 3001-3 or R PS 3004) is
required to power the module (not shown)
Figure 2 – Module Layout

Reference Manual D AD 3260 Version1.1
Page 9
Connections
Audio Input Connections
The D AD3260 MiniModule is configured with
standard 75 Ohm BNC connectors for the AES3-id
Audio connections. Connection is self-explanatory.
We recommend the use of high quality audio
cable to reduce the risk of interference or errors
due to excessive cable attenuation.
Note. Due to the compact design of the module it
will be necessary to use a connection tool to
secure the BNC video connectors to the module.
Audio Output Connections
The D AD 3260 MiniModule is configured for Weco
type audio connections for the balanced AES3
audio. These connectors should be wired in
accordance with the table below. Please use high
quality screened cable to prevent the introduction
of noise and interference to the audio signals
(twisted pair suitable for balanced digital audio
signals).

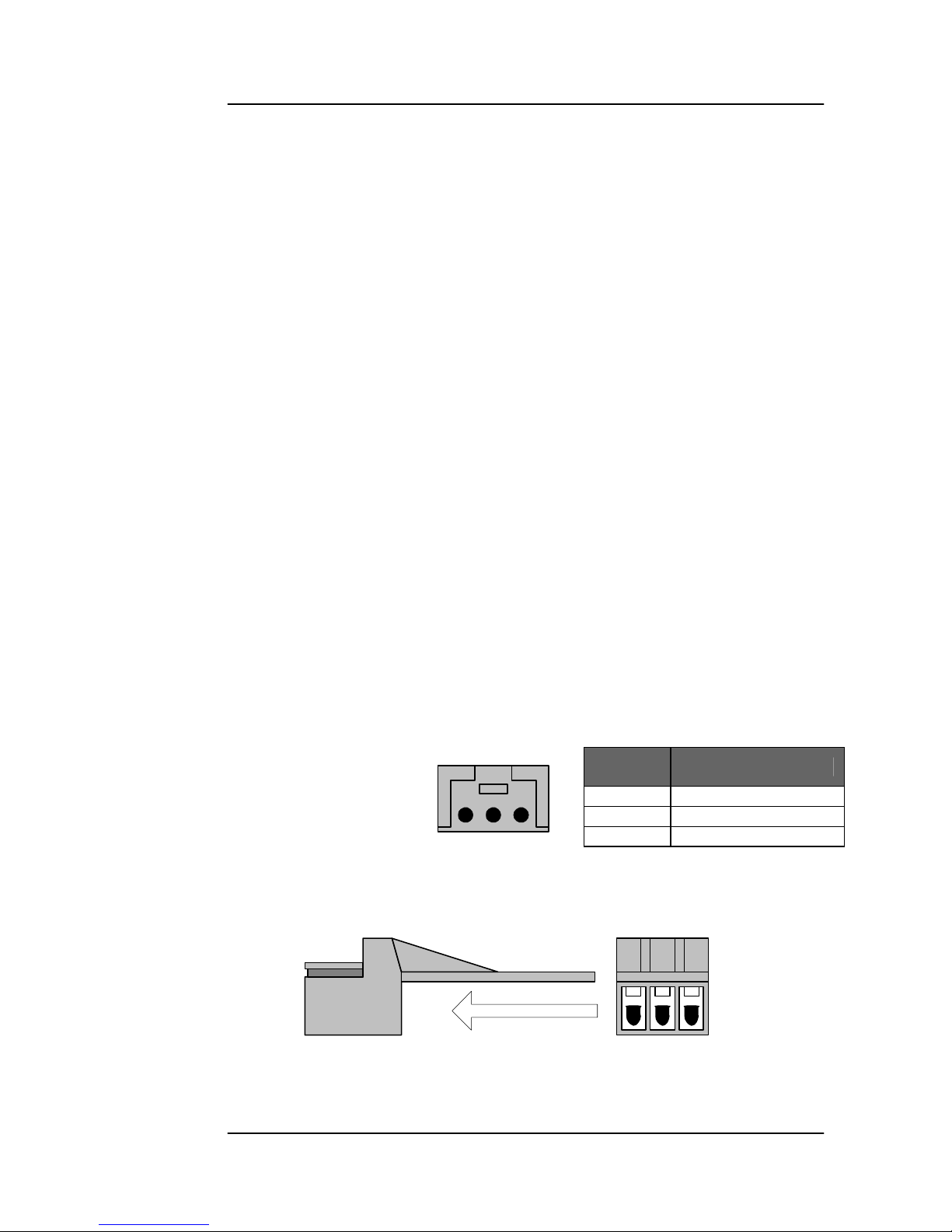

Audio Connections (balanced)
Weco 3 pin male connector
Weco male connector
on module
123
123
Weco female
connector
Pin
Number Connection
1 Positive (+)
2 GND
3 Negative (-)

Reference Manual D AD 3260 Version1.1
Page 10
!
Power Connections
If using the module in a stand-alone application
use the separate R PS 1 E (for Europe), R PS 1 U
(USA) power brick option, the desk power supply R
PS 3001-3 or the R PS 3004 desk power supply for 4
Minimodules
DC Power Connector
The MiniModule has a captive power lead fitted to
the module, with a male 5 pin locking bayonet
connector. This connection provides DC power
and also data connectivity to the module.
Connector wiring is shown below.
3
4
51
2
GND
+ 5V
i2C-SDA (data)
i2C-SCL (clock)
Power ConnectionData Connection
Male Connector
(view looking into connector from front)
Caution
Only use the optional LYNX R PS power modules.
Ensure the 5-pin power connector is locked securely
in place.

Reference Manual D AD 3260 Version1.1
Page 11
!
Installation
Mechanical
Stand Alone Operation
The D AD 3260 MiniModule can be used in a stand
alone application. There are two options for the use
of the module in this way.
a) Using the R FR 3005 Rack Frame 1 option. This
allows up to any 10 of the MiniModules to be
secured onto a rack frame assembly for 19 inch
rack mounting. This keeps the modules secured,
organized and out of the way. The R PS 3001
power brick option or the R FR 3010 option is
required to power each module. Please refer to
the R FR 3005 Reference Manual supplied with
this option for more details.
b) Single Use. The MiniModule can be powered
independently with the R PS 3001 option and
used in any location where this functionality is
required.
Caution. Care needs to be taken
when using the module in this way, as
it is not physically secured. Keep the
module away from the floor to avoid
the risk of someone stepping or
tripping on the unit, and locate the
unit away from excessive sources of
heat and any sources or moisture.
If using more than one MiniModule in any
installation, the R FR 3005/3010 Rack frame
combination is highly recommended.

Reference Manual D AD 3260 Version1.1
Page 12
Multiple Units
Most applications will require more than one
MiniModule, which can include any of the
available Series 3000 MiniModule product range.
There are two options for mounting multiple units.
a) Using the R FR 3005 Rack Frame option. This
allows up to any 10 of the MiniModules to be
secured onto a rack frame assembly for 19 inch
rack mounting. The R PS 3001 power brick
option or the R FR 3010 option is required to
power each module. Please refer to the R FR
3005 Reference Manual for more details.
b) Using the R FR 3010 Rack frame extension
option. Can be combined with the R FR 3005
Rack frame option. Each module plugs into a
connection bus, which provides common
power for all modules. (no R PS external power
supplies are needed). Remote control and
status monitoring of all modules is possible with
the addition of the R CT 5020 rack controller
and R CT 5030 master controller options. Please
refer to the respective reference manuals for
these options for details of mechanical
installation.
The very small size and density of the MiniModules
combined with the available rack frame options
allows the addition of a complex and custom signal
distribution system without taking any additional
front rack space. The rack frames are designed for
installation in the back of 19-inch racks where there
is normally plenty of available space. Ideal for
mobile truck installations and facility expansions
where space is at a premium.

Reference Manual D AD 3260 Version1.1
Page 13
!
!
Electrical Installation.
Stand Alone Operation
The MiniModule requires the R PS 3001 power brick
option for stand-alone operation. Three versions are
available: R PS 3001 E for European markets, R PS
3001 U for the US markets or the desk power supply
R PS 3001-3. Please ensure you have the correct
power option for your region. The connection to
the module is made with a small 5-pin connector,
which has a twist bayonet securing system. Please
make sure the connection is solid and locked in
place. A strain relief is included within the module
to prevent excessive strain on the connection.
Signal connections should be made with care,
please ensure connections are correct and
compatible equipment is feeding / receiving the
signals from the module or damage can result.
Caution. Only use the optional Lynx R PS 1
power modules. Ensure the 5-pin power
connector is locked securely in place.
Caution. Care needs to be taken when
using the module in this way, if it is not
physically secured. Keep the module
away from the floor to avoid the risk of
someone stepping or tripping on the unit,
and locate the unit away from excessive
sources of heat and any sources or
moisture.

Reference Manual D AD 3260 Version1.1
Page 14
Multiple Units
When installing multiple MiniModule units it is
recommended you use the R FR 3005 Rack Frame 1
and / or R FR 3010 Rack Frame 2 options. Please
refer to the documentation supplied with these
options for details on electrical installation.
Settings and Control
No settings are necessary for this module
Alarm/LED Status Indicators
The D AD 3020 module has one front LED which
indicates that the right supply voltage is applied.
Specifications (D AD3260 BS)
Inputs
Signal 6 x AES balanced transformer isolated inputs
Input Impedance 110 Ohms
Connection WECO
Return Loss <25dB (32KHz to 100KHz)
Outputs
Signal 6 x AES 3-id unbalanced transformer isolated
outputs
Output Impedance 75 Ohms
Connection BNC
Output Level 1.0v p-p (nominal)
Electrical Specifications
Operating Voltage + 5VDC
Power Consumption 3.0 VA
Connection DC input via 5 pin locking bayonet connector
Safety IEC 60950/ EN 60950/VDE 0805
Mechanical
Size 85.5mm x 35.3mm x 27mm + connectors
Weight 150g
Ambient
Temperature 5°C to 35°C Maintaining specifications
-0°C to +50°C Operating
Humidity Max 80% non condensing
Supplied Accessories
Documentation D AD 3260 Reference Manual and quick reference
guide

Reference Manual D AD 3260 Version1.1
Page 15
Specifications (D AD3260 SB)
Inputs
Signal 6 x AES 3-id unbalanced transformer isolated
inputs
Input Impedance 75 Ohms
Connection BNC
Return Loss <25dB (32KHz to 100KHz)
Outputs
Signal 6 x AES 3 balanced transformer isolated outputs
Output Impedance 110 Ohms
Connection Weco
Output Level 4.0v p-p (nominal)
Electrical Specifications
Operating Voltage + 5VDC
Power Consumption 3.0 VA
Connection DC input via 5 pin locking bayonet connector
Safety IEC 950/ EN 60950/VDE 0805
Mechanical
Size 85.5mm x 35.3mm x 27mm + connectors
Weight 150g
Ambient
Temperature 5°C to 35°C Maintaining specifications
-0°C to +50°C Operating
Humidity Max 80% non condensing
Supplied Accessories
Documentation D AD 3260 Reference Manual and quick reference
guide

Reference Manual D AD 3260 Version1.1
Page 16
Available Options
Below is a list of available options for the D AD 3260
MiniModule. Please refer to product brochures or
our web site for more detailed information.
Model Description
R PS 3001 E
External brick power supply module for
Series 3000 MiniModules. European market
version. 100-240 VAC input, +5V DC output.
R PS 3001 U
External brick power supply module for
Series 3000 MiniModules. USA market
version. 110-240 VAC input, +5V DC output.
R PS 3001-3
External desk power supply module for
Series 3000 MiniModules. 110-240 VAC
input, +5V DC output.
R FR 3004
Mounting Support for 4 MiniModules
R FR 3005
Rack Frame 1. This is a basic 19 inch rack
mountable frame which can accommodate
10 MiniModules with power bricks R PS 1 or
can be extended with the R FR 3010.
R FR 3010
Rack Frame 2. This is a card cage with
integrated central power supply, optional
redundant power supply and optional
controller, which can accommodate 10
MiniModules. Can be combined with R FR
3005
R PS C15
1.5m cable extension to connect one
MiniModule to R FR 3010
R PS C25
2.5m cable extension to connect one
MiniModule to R FR 3010
R PS 3010
Redundant power supply for the R FR 3010
card cage

Reference Manual D AD 3260 Version1.1
Page 17
Parts List
Due to the very dense design and high level of
integration there are no user serviceable electronic
assemblies within the D AD 3260 module.
D AD 3260 SB Mini Module (complete)
Description AES3-id to AES3 Converter
Model Number D AD 3260 SB
Part Number 5.155.003.290
D AD 3260 SB Mini Module (complete)
Description AES3 to AES3-id Converter
Model Number D AD 3260 BS
Part Number 5.155.003.291
Service
If you are experiencing problems, or have questions
concerning your D AD 3020 MiniModule please
contact your local distributor for assistance.
We offer a fixed cost service exchange program for
defective Series 3000 MiniModules out of Warranty.
Please contact your distributor or check our web
site for details on this program.
More detailed information and product updates
may be available on our web site:
www.lynx-technik.com
You will also find links to contact us directly for
assistance.

Reference Manual D AD 3260 Version1.1
Page 18
Contact Information
Please contact your local distributor; this is your
local and fastest method for obtaining support and
sales information.
LYNX Technik can be contacted directly using the
information below.
Address LYNX Technik AG
Brunnenweg 3
64331 Weiterstadt
Germany.
Website www.lynx-technik.com
E-Mail [e-mail]
LYNX Technik manufactures a complete range of
high quality modular products for broadcast and
Professional markets, please contact your local
representative or visit our web site for more product
information.

Reference Manual D AD 3260 Version1.1
Page 19
This Page is intentionally left blank

Reference Manual D AD 3260 Version1.1
Page 20
Notes
