M-Elec GD-5610v1 User manual

５-phase Stepping Motor Driver
GD-5610v1
Instructions Manual
(For designers' use)
MN0382-1
Please ensure to read and understand this
Instructions Manual before using the product.
Please keep this Instructions Manual at hand

GD-5610v1
Instructions Manual
Introduction
This Instructions Manual describes the safe and proper method of handling
'5-phase Stepping Motor Driver GD-5610v1' with emphasis on the specifications,
assuming that our readers are engaged in designing of control devices
incorporating stepping motors.
Please ensure to read and understand this Instructions Manual
before using the product.
Please keep this Instructions Manual at hand
so that it is always available for reference.
-2-

GD-5610v1
Instructions Manual
Descriptions in this manual on safety matters:
This product must be operated and used properly.
Otherwise, or when it is operated and used erroneously, unforeseen accidents
may occur, causing physical injuries or property damages.
Majority of these accidents can be avoided if you are well informed of
hazardous circumstances in advance.
Consequently, this instructions manual describes all the hazardous and
dangerous circumstances and situations which can be foreseen and anticipated
as well as necessary precautions.
All the above descriptions are being titled by the following symbol-marks and
signal-words, namely:
Represents warnings ignorance of which can cause accidents
involving fatal or serious physical injuries, or death.
Represents cautions ignorance of which can cause accidents
involving minor physical injuries or property damages.
WARNING
CAUTIONCAUTION
-3-

GD-5610v1
Instructions Manual
Introduction
Descriptions in this manual on safety matters:
CONTENTS PAGE
１． Safety
1-1. Safety Precautions 6
1-2. Safety Information for Handling 7
Overview
2-1. Characteristics 11
2-2. Product Configuration 11
2-3. Appearance 11
３． Name and Function of Each Section
3-1. Signal I/O Connector（J1） 12
3-2. AC Input/Motor Output Terminal Block（J2,J3) 13
3-3. POWER LED 13
3-4. O.H.A LED 13
3-5.
Operating Section
14
４． Setting
4-1. Setting STEP ANGLE SELECT switch 15
4-2. Setting HOLD CURRENT SELECT switch 16
4-3. Setting DRIVE CURRENT SELECT switch 17
4-4.
Setting HOLD SWITCHING TIME SELECT switch
18
4-5. Setting ROTATE CHARACTERISTIC SELECT switch 18
4-6. Setting PULSE INPUT TYPE SELECT switch 19
4-7. Setting MOTOR SELECT switch 19
５．
Installation
5-1. Conditions for Installation 20
5-2. Mounting Method 21
６． Connection
6-1. Overview of Connection Configuration 22
6-2. Connecting Signal I/O Connector（J1） 23
6-3. Connecting AC Input/Motor Output Terminal Block（J2,J3） 24
6-4. Inputting Power 27
７． Confirmation of Setting and Connection
7-1. Check Points 28
２．
-4-

GD-5610v1
Instructions Manual
PAGE
８． Maintenance and Check-up
8-1. Maintenance and Check-up 29
8-2. Troubleshooting 30
９． Storing and Disposal
9-1. Storing 31
9-2. Disposal 31
１０．
Specifications
10-1. General Specifications 32
10-2. Conforming to Europe standards and UL standards 33
10-3. I/O Signal
(1) Example Circuit Connection 34
(2) Drive pulse input (CW,CCW) 35
(3) Motor excitation stop input (M.F) 36
(4) Phase signal output (P.O) 37
(5) Overheat alarm signal output and overheat alarm LED (O.H.A) 38
(6) Step angle switch input (C.S) 39
10-4. Dimensions 40
10-5.
Applicable Motors
41
10-6. Torque Characteristics 42
The main parts which revised by this manual
-5-

GD-5610v1
Instructions Manual
１．Safety
１－１．Safety Precautions
(1)
This product is not designed or manufactured for application for equipment
requiring high level of reliability such as equipment related to nuclear
energy, aeronautics-related equipment, automobiles, ships, medical appliances
directly handling the human body and equipment that might seriously affect
properties.
(2) Do not use or keep the product in explosive or corrosive environments,
in the presence of flammable gases, locations subjected to splashing water,
fine particles, soot, steam, or exposed to radiation or direct sunshine.
Doing so may cause electric shock, injury or fire.
(3)
This product is designed for use within machinery, so it should be installed
within an enclosure.
Be sure to ground the protective earth terminal of the driver.
(4) Do not transport, move, install the product, perform connections or inspections
when the power is on.
Doing so may cause electric shock, injury or fire.
(5) Only qualified personnel are allowed to transport, move, install the product,
perform connections or inspections.
Failure to do so may cause electric shock, injury or fire.
(6) Do not touch the driver during operation or immediately after stopping.
Doing so may cause burn on the skin due to overheating of the driver.
(7) Ensure to use this product according to the method specified
in the Instructions Manual and within the specifications.
(8) Depending on the operational conditions, the stepping motor may step out when
it is on holding-state or driving-state.
In particular, the load in transport may fall if the motor steps out on the
vertical drive (such as the Z-axis).
Start operation after test run for deliberate confirmation of operation.
(9)
Provide fail-safe measures so that the entire system may operate in a safe
mode even in cases of the external power supply failure, disconnection of the
signal line, or any failure on the driver.
WARNING
CAUTION
-6-

GD-5610v1
Instructions Manual
１－２．Safety Information for Handling
●Overall:
Do not touch the driver during operation.
Failure to do so may cause electric shock.
indicate terminals on which power voltage
is applied.
Do not touch such terminals while
inputting power and while POWER LED is on.
Doing so may cause electric shock.
Use only an insulated screwdriver to
adjust or set internal switches.
Failure to do so may cause electric shock.
Do not touch the driver during operation
or immediately after stopping.
Doing so may cause burn on the skin due to
overheating of the driver.
●When connecting the AC Input/Motor Output Terminal Block (J2, J3):
Turn the main power OFF.
Failure to do so may cause electric shock.
Securely ground the protective earth
Failure to do so may cause electric shock.
Do not force the power line or the motor
line to be bent or pulled or pinched.
Doing so may cause electric shock or fire.
WARNING
WARNING
WARNING
CAUTION
WARNING
WARNING
WARNING
-7-

GD-5610v1
Instructions Manual
Erroneous connection may result
in breakage of the motor or the driver.
Correctly connect the motor wiring.
●When setting up the STEP ANGLE SELECT switch:
Erroneous setting may cause breakage of
the machine or injury due to unexpected
rotation of the motor.
Ensure correct setting.
●When setting up the HOLD CURRENT SELECT switch:
A high setting value may cause burn on the
skin due to overheating of the motor.
Do not select a high value beyond the
required.
●When setting up the DRIVE CURRENT SELECT switch:
Erroneous setting may cause burn on the
skin due to overheating of the motor.
Ensure correct setting.
●When setting up the PULSE INPUT TYPE SELECT switch:
Erroneous setting may cause breakage of
the machine or injury due to unexpected
rotation of the moter.
Ensure correct setting.
●When setting up the MOTOR SELECT switch:
Erroneous setting may cause burn on the
skin due to overheating of the motor.
Ensure correct setting.
CAUTION
CAUTION
CAUTION
CAUTION
CAUTION
CAUTION
-8-

GD-5610v1
Instructions Manual
●When inputting the motor excitation stop (M.F) signal:
Deterioration of the holding power with
the motor may cause breakage of machine
or injury.
Check safety before inputting.
●When installing:
Overheating may cause fire.
Mount it on a noncombustible member.
Keep it away from combustibles.
●When inputting power:
Do not contact with a wet hand.
Doing so may cause electric shock.
indicate terminals on which power voltage
is applied.
Do not touch such terminals while
inputting power and while POWER LED is on.
Doing so may cause electric shock.
Unexpected behavior of the motor may cause
breakage of the machine or injury.
Maintain the state where emergency stop is
enabled at any time.
●When the overheat alarm (O.H.A) signal is output:
Overheating may cause fire.
Stop operation upon output of this signal.
WARNING
WARNING
WARNING
CAUTION
WARNING
CAUTION
-9-

GD-5610v1
Instructions Manual
●When the overheat alarm (O.H.A) LED comes on
Overheating may cause fire.
Stop operation when this LED comes on.
●When performing maintenance and checking:
Only qualified personnel are allowed to
perform maintenance and checking.
Failure to do so may cause electric shock.
Do not contact with a wet hand.
Doing so may cause electric shock.
indicate terminals on which power voltage
is applied.
Do not touch such terminals while
inputting power and while POWER LED is on.
Doing so may cause electric shock.
Do not replace fuse.
Do not disassemble, repair or modify.
Doing so may cause electric shock, injury
or fire.
WARNING
WARNING
WARNING
WARNING
WARNING
-10-

GD-5610v1
Instructions Manual
２．Overview
２－１．Characteristics
GD-5610v1 is a driver for a 5-phase stepping motor with single-phase 100-115V input.
Ten step angles can be selected from angles ranging from a 1/1 division to
a 1/800 division of the basic angle.
HOLD CURRENT and DRIVE CURRENT can be set up.
●
Applicable motors and setting for each motor are given in the table
"10-5. Applicable Motors".
２－２．Product Configuration
The product consists of the main frame and the accessories.
●
GD-5610v1 One unit
(Complete with terminal block covers)
●
Housing for J1 (51103-1200:Molex) One unit (accessory)
●
Contact for J1 (50351-8100:Molex) 14 contacts (accessories,2 for spares)
２－３．Appearance
2
1
J3
5
4
3
RED/GRY
VIO/BLU
BLK/YLW
WHT/ORN
GRN/BRN
GRN
BLK
BLU
RED
ORN
!
０
8
4
０
8
4
０
8
4
MOTOR
Model Name
Signal I/O Connector
O.H.A LED(RED)
POWER LED(GREEN)
Operating Section
Model Name
Mounting Section
Motor Output
Terminal Block
AC Input
Terminal Block
Mounting Section
SN277 3 GD-5610V1
R
Protective earth
Terminal Block
-11-

GD-5610v1
Instructions Manual
３．Name and Function of Each Section
３－１．Signal I/O Connector（Ｊ１）
GD-5610v1
CW+
J1
●Directs the motor to operate CW.
●Shuts off output current to drive the motor.
●Outputs the signal when internal temperature
of the driver has reached approx. 80℃or more.
1
Motor excitation stop signal input terminal
Step angle switch signal input terminal
Phase signal output terminal
Overheat alarm signal output terminal
CW drive pulse signal input terminal
●Switches the step angle by 1/20 division.
●Outputs the signal when the motor-excitation
state is the excitation home position.
CW-
CCW+
CCW-
M.F+
M.F-
C.S+
C.S-
2
3
4
5
6
7
8
9
10
11
12
P.O+
O.H.A+
CCW drive pulse signal input terminal
●Directs the motor to operate CCW.
P.O-
O.H.A-
-12-

GD-5610v1
Instructions Manual
３－２．AC Input/Motor Output Terminal Block（Ｊ２，Ｊ３）
Do not touch the driver during operation.
Failure to do so may cause electric shock.
GD-5610v1
３－３．POWER LED
POWER LED (GREEN) comes on upon inputting power.
３－４．O.H.A LED
O.H.A LED（RED）comes on when internal temperature
of the driver has reached approx. 80℃ or more.
Motor output terminal
J2
4
J3
3
2
1
5
GRN
BRN
WHT
ORN
BLK
YLW
RED
GRY
VIO
BLU
3
2
1
100-
115V～
●Outputs current to drive the motor.
AC input terminal
●Power input terminal.
The power supply is connected.
Protective earth terminal
●Protects against electric shock as connected
to the protective earth terminal of the equipment.
N
L
MOTOR
BLU
RED
ORN
GRN
BLK
WARNING
-13-

GD-5610v1
Instructions Manual

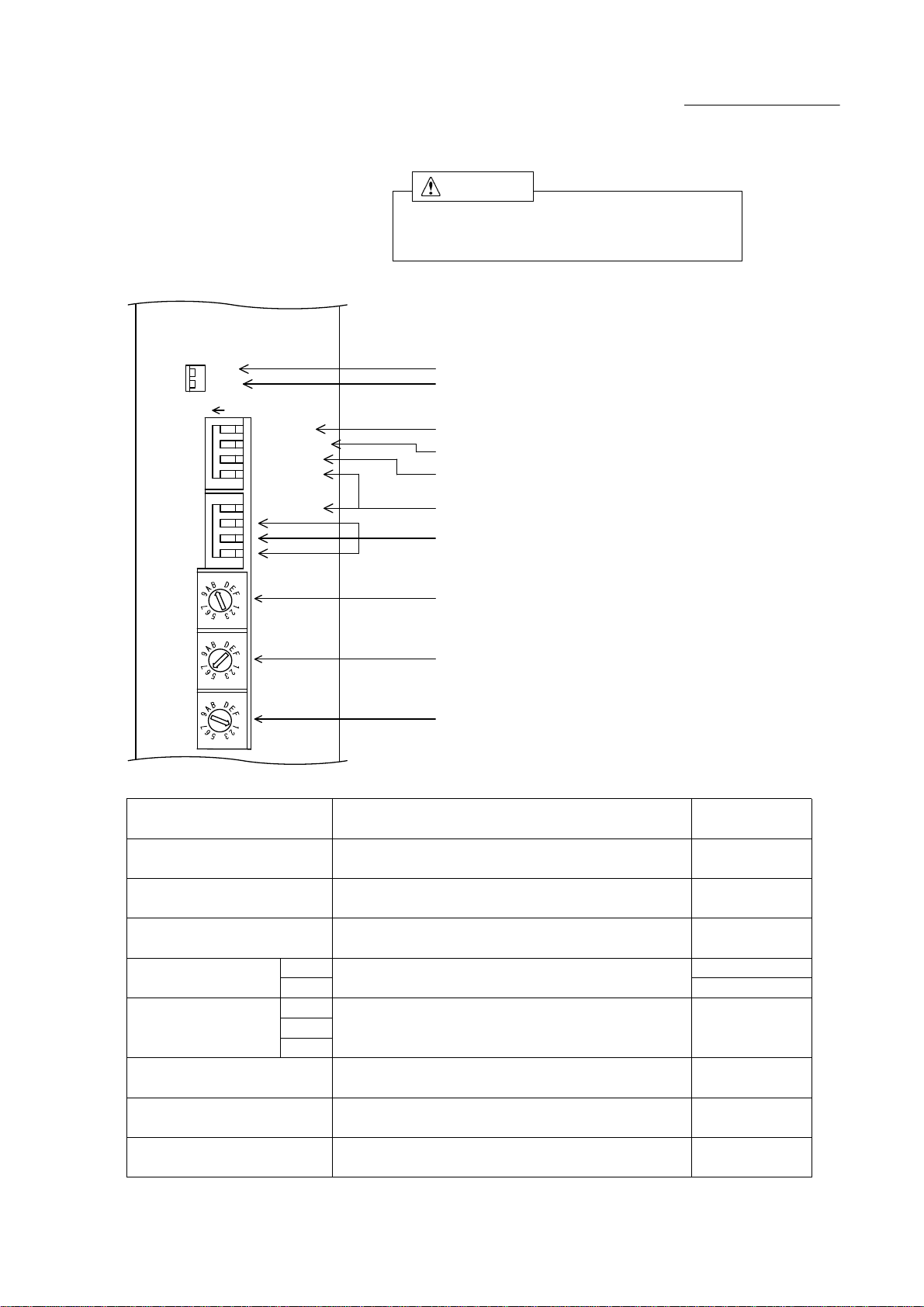

３－５．Operation Section
Do not touch the driver during operation.
Failure to do so may cause electric shock.
GD-5610v1
Factory Setting
PULSE INPUT TYPE CELECT
switch
Selects a pulse input type.
OFF
OP4
Name of Operation Section
Function
ON
ON
OP1
OP2
OP3
OFF
ROTATE CHARACTERISTIC
SELECT switch
Please use it with OFF.
OFF
HOLD SWITCHING TIME
SELECT switch
DRIVE/HOLD CURRENT automatic switching time
is selected.
OFF
Please use it with OFF.
MOTOR SELECT
switch
Selects the applicable motor.
STEP ANGLE
SELECT switch
Selects a step angle.
No.1
Selects HOLD CURRENT.
No.6
No.D
HOLD CURRENT
SELECT switch
DRIVE CURRENT
SELECT switch
Selects DRIVE CURRENT.
OP5
Extend functions
switch
DRIVE CURRENT SELECT switch (DRIVE)
DRIVE
4
0
C
8
HOLD
STEP
HOLD CURRENT SELECT switch (HOLD)
STEP ANGLE SELECT switch (STEP)
POWER
OHA POWER LED(GREEN)
OHA LED(RED)
ON
HOLD SWITCHING TIME SELECT switch (DHT)
ROTATE CHARACTERISTIC SELECT switch (RC)
Extend functions switch
OP1
RC
DHT
SPI
OP2
OP3
OP4
OP5
[1P - 2P]
[1s - 150ms]
[ON - OFF]
PULSE INPUT TYPE SELECT switch (SPI)
4
0
C
8
4
0
C
8
MOTOR SELECT switch (OP1,OP2)
[ON - OFF]
[ON - OFF]
WARNING
-14-

GD-5610v1
Instructions Manual
４．Setting
４－１．Setting STEP ANGLE SELECT switch
Erroneous setting may cause breakage of
the machine or injury due to unexpected
rotation of motor.
Ensure correct setting.
The step angle is set up with the 〔STEP〕 switch.
(1) Set the 〔STEP〕switch No. to the step angle required.
●
Relationship between the 〔STEP〕switch No. and the step angle.
(Factory Setting)
●
Driving with two types of step angles are provided by combining
the STEP SEL switch setting and the C.S signal.
1/80
0.009
1/160
0.0045
E
F
1/16
0.045
A
B
C
D
-
-
-
-
1/8
0.09
Step angle(°)
0.72°motor
0.72
0.36
1/100
0.18
0.072
8
9
1/
Divisions
1/1
1/2
1/4
1/10
1/20
1/40
5
1/800
1/200
1/400
6
7
Switch No.
1
2
3
4
0
0.0018
0.0009
0.036
0.018
0.0072
0.0036
CAUTION
-15-

GD-5610v1
Instructions Manual
４－２．Setting HOLD CURRENT SELECT switch
A high setting value may cause burn on the
skin due to overheating of the motor.
Do not select a high value beyond the
required.
HOLD CURRENT is set up with the 〔HOLD〕switch.
(1) Set the 〔HOLD〕switch No. to the ratio of HOLD CURRENT to
DRIVE CURRENT required.
●
Ratio of HOLD CURRENT
HOLD CURRENT
DRIVE CURRENT
(Factory Setting)
●
HOLD CURRENT changes relative to DRIVE CURRENT setting.
The ratio of HOLD CURRENT set the switch No. to [No.F]:100% represents
the same as the setting for DRIVE CURRENT.
●
The greater the ratio of HOLD CURRENT grows, the more heat the motor
generates when is on holding-state.
E
90
Ｆ
100
C
70
D
80
A
60
B
65
25
6
7
4
3
8
9
50
55
30
35
40
45
5
×100
Switch No.
Ratio of HOLD CURRENT (％)
10
15
Ratio of HOLD CURRENT（％）
＝
0
1
20
2
CAUTION
-16-

GD-5610v1
Instructions Manual
４－３．Setting DRIVE CURRENT SELECT switch
Erroneous setting may cause burn on the
skin due to overheating of the motor.
Ensure correct setting.
DRIVE CURRENT is set up with the 〔DRIVE〕switch.
(1) Set the 〔DRIVE〕switch No. to the setting specified in the table
'10-5.Applicable Motors'.
●
Relationship between the 〔DRIVE〕switch and DRIVE CURRENT.
(Factory Setting)
4
E
8
9
A
B
2.9
3.0
DRIVE CURRENT
(A/phase)
1.4
1.5
1.6
1.7
DRIVE
Switch No.
0
1
2
3
F
D
1.8
2.0
2.1
2.2
2.3
2.4
2.5
2.6
C
5
6
7
2.7
2.8
CAUTION
-17-

GD-5610v1
Instructions Manual
４－４．Setting HOLD SWITCHING TIME SELECT switch
DRIVE/HOLD CURRENT automatic switching time is set up
with the 〔DHT〕switch.
(1) Set the 〔DHT〕switch.
４－５．Setting ROTATE CHARACTERISTIC SELECT switch
Please use it with OFF.
(Factory Setting)
Hold Switching
Time
DHT
1s
150ms
ON
OFF
-18-

GD-5610v1
Instructions Manual
４－６．Setting PULSE INPUT TYPE SELECT switch
Erroneous setting may cause breakage of
the machine or injury due to unexpected
rotation of motor.
Ensure correct setting.
2-pulse input method / 1-pulse input method are
set up by the 〔SPI〕switch.
The new setting of the function setting switch
will become effective after the power is cycled.
(1) Set the 〔SPI〕switch.
●When the motor is operated with two pulse signal inputs of CW and CCW,
set the SPI switch to [OFF].
●When the motor is operated with the pulse signal and direction signal
input, set the SPI switch to [ON].
●In the case that 1-pulse input method is selected, the CCW terminal becomes
direction signal input designating the direction of the motor rotation.
Drive pulse set to the CW terminal(CW+,CW-).
●The input timing is same with 2-pulse input method and 1-pulse input method .
As for input timing, refer to "10-3. (2)Drive pulse input（CW, CCW)"
４－７．Setting MOTOR SELECT switch
Erroneous setting may cause burn on the
skin due to overheating of the motor.
Ensure correct setting.
The OP1 and OP2 switches is turned to the setting
corresponding to the motor in use.
(1) Set the OP1 and OP2 switches to the specified in the talbe
'10-5.Applicable Motors'.
(Factory Setting)
SPI
Input type
1PULSE (1P)
2PULSE (2P)
ON
OFF
CCW terminal(CCW+,CCW-)
direction set
Photo-coupler OFF：CCW direction
Photo-coupler ON ：CW direction
CAUTION
CAUTION
-19-

GD-5610v1
Instructions Manual

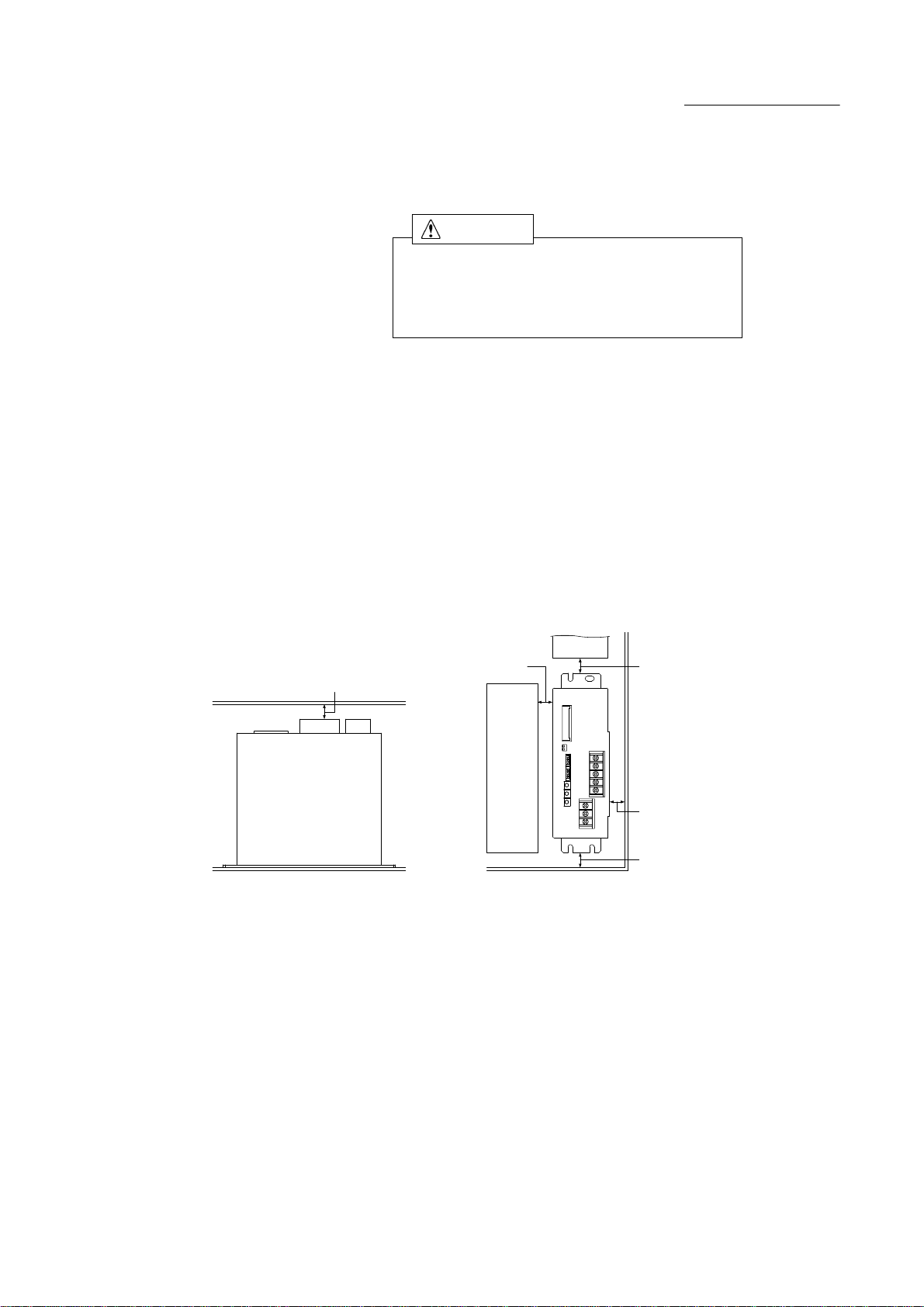

５．Installation
５－１．Conditions for Installation
Mount it on a noncombustible member.
Keep it away from combustibles.
Overheating may cause fire.
(1) Designed for incorporating into equipment used indoors, this product requires
to be installed in the following environment:
●
Area that is free of explosive, corrosive or inflammable gas
●
Indoors (Area not exposed to direct sunshine)
●
Area that ambient temperature and humidity are controlled within the range
set out in the specifications
●
Area protected from dust, salt or iron particles
●
Area not subject to direct vibration or shock
●
Area not subject to splashing water, oil or chemicals
(2) Install the driver at least 10mm away from other equipment.
However, please be installed to a distance of at least 15mm from the
heating element.
●
Please contact us if you are not installed to a distance of at least 15mm
from the heating element.
(3) Considering heat release, control the ambient temperature around the driver
within the specified value.
●
Take measures against accumulation of heat such as allowing generous space
ようにする。
around the driver or installing a fan so that heat release is taken care of.
●
Install the driver securely in contact with metal or other substance with
adequate heat conductivity.
(4) In the case that an overheat alarm signal is output, perform the cooling measure of
the mounting plate is enlarged or compulsion air cooling etc.
Use the driver on the condition that an overheat alarm signal is not output.
(5)
Do not allow standing or placing anything heavy on the product.
WARNING
10mm or more
10mm or more
15mm or more
Driver
10mm or more
Driver
10mm or more
heating
element
-20-
