M-Elec ADB-5F41EL User manual

５-phase Stepping Motor Driver
ADB-5F41EL
Instructions Manual
(For designers' use)
MN0300-1
Please ensure to read and understand this
Instructions Manual before using the product.
Please keep this Instructions Manual at hand

ADB-5F41EL
Instructions Manual
Introduction
This Instructions Manual describes the safe and proper method of handing
"5-phase Stepping Motor Driver ADB-5F41EL" with emphasis on the specifications,
assuming that our readers are engaged in designing of control devices
incorporating stepping motors.
Please ensure to read and understand this Instructions Manual
before using the product.
Please keep this Instructions Manual at hand
so that it is always available for reference.
-2-

ADB-5F41EL
Instructions Manual
Descriptions in this manual on safety matters:
This product must be operated and used properly.
Otherwise , or when it is operated and used erroneously, unforeseen accidents
may occur, causing physical injuries or property damages.
Majority of these accidents can be avoided if you are well informed of
hazardous circumstances in advance.
Consequently, this instructions manual describes all the hazardous and
dangerous circumstances and situations which can be foreseen and anticipated
as well as necessary precautions.
All the above descriptions are being titled by the following symbol-marks and
signal-words, namely:
Represents warnings ignorance of which can cause accidents
involving fatal or serious physical injuries.
Represents cautions ignorance of which can cause accidents
involving minor physical injuries or property damages.
WARNING
CAUTION
-3-

ADB-5F41EL
Instructions Manual
Introduction
Descriptions in this manual on safety matters:
CONTENTS PAGE
１． Safety
1-1. Safety Precautions 6
1-2. Safety Information for Handling 7
２． Overview
2-1. Characteristics 9
2-2. Product Configuration 9
2-3. Appearance 9
３． Name and Function of Each Section
3-1. Signal I/O Connector（J1） 10
3-2. DC Input/Motor Output Connector（J2, J3) 10
3-3. Encoder I/O Connecter (J4) 11
3-4. POWER LED 12
3-5. ENC LED 12
3-6. ALM LED 12
3-7.
Operating Section
12
４． Function Set-up by Use
4-1. Setting STEP ANGLE SELECT switch 13
4-2. Setting HOLD CURRENT SELECT switch 14
4-3. Setting DRIVE CURRENT SELECT switch 14
4-4. Setting of the Extend functions switch 15
５．
Installation
5-1. Conditions for Installation 16
5-2. Mounting Method 17
６． Connection
6-1. Overview of Connection Configuration 18
6-2. Connecting Signal I/O Connector（J1） 19
6-3.
Connecting DC Input/Motor Output Connector（J2, J3）
20
6-4. Connecting Encoder I/O Connecter（J4） 22
6-5. Inputting Power 23
７． Confirmation of Setting and Connection
7-1. Check Points 24
-4-

ADB-5F41EL
Instructions Manual
PAGE R1
８． Maintenance and Check-up
8-1. Maintenance and Check-up 25
8-2. Troubleshooting 26
９． Storing and Disposal
9-1. Storing 27
9-2. Disposal 27
１０．
Specifications
10-1. General Specifications 28
10-2. I/O Signal
(1) Example Circuit Connection (J1) 29
(2)
Drive pulse input
(CW, CCW) 30
(3) Extend functions signal input
( IN )
31
(4)
Extend functions signal output
( OUT ) 31
(5) Alarm signal output (ALM) 32
(6)
Alarm clear signal input
(ACLR） 32
(7) Example Circuit Connection (J4) 33
(8) Encoder input ( A, A, B, B, Z, Z ) 34
(9) Encoder +5V output 34
10-3. Alarm LED (ALM) 35
10-4. Dimensions 36
10-5.
Applicable Motors
37
10-6. 5-phase stepping motor specifications with encoder
(1) General Specifications 38
(2) Encoder Specifications 39
(3) 5-phase stepping motor Dimensions with encoder 40
10-7. Torque Characteristics 43
10-8. Conforming to Europe standards 45
10-9. Encoder cable specifications 46
The main parts which revised by this manual
-5-

ADB-5F41EL
Instructions Manual
１．Safety
１－１．Safety Precautions
(1)
This product is not designed or manufactured for application for equipment
requiring high level of reliability such as equipment related to nuclear
energy, aeronautics-related equipment, automobiles, ships, medical appliances
directly handling the human body and equipment that might seriously affect
properties.
(2) Do not use or keep the product in explosive or corrosive environments,
in the presence of flammable gases, locations subjected to splashing water,
fine particles, soot, steam, or exposed to radiation or direct sunshine.
Doing so may cause injury or fire.
(3) For the driver's power supply, use a DC power supply with reinforced insulation
on its primary and secondary sides.
Failure to do so may cause electric shock.
(4) This product is designed for use within machinery, so it should be installed
within an enclosure.
Failure to do so may cause injury.
(5) Do not transport, move, install the product, perform connections or inspections
when the power is on.
Doing so may cause electric shock, injury or fire.
(6) Only qualified personnel are allowed to transport, move, install the product,
perform connections or inspections.
Failure to do so may cause injury or fire.
(7) Do not touch the driver during operation or immediately after stopping.
Doing so may cause burn on the skin due to overheating of the driver.
(8) Ensure to use this product according to the method specified
in the Instructions Manual and within the specifications.
(9) Depending on the operational conditions, the stepping motor may step out when
it is on holding-state or driving-state.
In particular, the load in transport may fall if the motor steps out on the
vertical drive (such as the Z-axis).
Start operation after test run for deliberate confirmation of operation.
(10)
Provide fail-safe measures so that the entire system may operate in a safe
mode even in cases of the external power supply failure, disconnection of the
signal line, or any failure on the driver.
WARNING
CAUTION
-6-

ADB-5F41EL
Instructions Manual
１－２．Safety Information for Handling
●Overall:
Do not touch the driver during operation
or immediately after stopping.
It may cause burn on the skin due to
overheating of the driver.
●When setting up the STEP ANGLE SELECT switch:
Erroneous setting may cause breakage of
the machine or injury due to unexpected
rotation of the motor.
Ensure correct setting.
●When setting up the HOLD CURRENT SELECT switch:
A high setting value may cause burn on the
skin due to overheating of the motor.
Do not select a high value beyond the
required.
●When setting up the DRIVE CURRENT SELECT switch:
Erroneous setting may cause motor
deterioration or damage and burn on the
skin due to overheating of the motor.
Ensure correct setting.
CAUTION
CAUTION
CAUTION
CAUTION
-7-

ADB-5F41EL
Instructions Manual
●When installing:
Overheating may cause fire.
Mount it on a noncombustible member.
Keep it away from combustibles.
●When connecting the DC Input/Motor Output Connectors (J2, J3):
Erroneous connection may cause
breakage of the motor or the driver.
Correctly connect the DC Input/Motor
output connector.
●When inputting power:
Breakage of the machine or injury is
apprehended due to unexpected behavior of
the motor. Maintain the state where
emergency stop is enabled at any time.
●When the alarm LED comes on:
Overheating may cause fire.
Stop operation when this LED comes on.
●When performing maintenance and checking:
Injury or fire is apprehended due to
unexpected behavior.
Do not replace fuse.
Do not disassemble, repair or modify.
WARNING
CAUTION
CAUTION
WARNING
WARNING
-8-

ADB-5F41EL
Instructions Manual
２．Overview
２－１．Characteristics
ADB-5F41EL is a step-out detection function driver for a 5-phase stepping motor
with DC +24V input.
It can drive a 5-phase stepping motor with 0.75A/phase and 1.4A/phase.
Step angles can be selected from six step angles ranging from a 1/1,1/2,
1/4,1/10,1/20,1/40 division of the basic angle.
HOLD CURRENT and DRIVE CURRENT can be set up.
It offers a 5-phase stepping motor with incremental encoder
(Sanyo Denki Co., Ltd.) at our company.
２－２．Product Configuration
●ADB-5F41EL One unit(main frame)
J1、J2、J3、J4用のハウジング及びコンタクトは付属品ではありません。
J1, J2, J3, J4 of the housing and the contact is not in accessories.

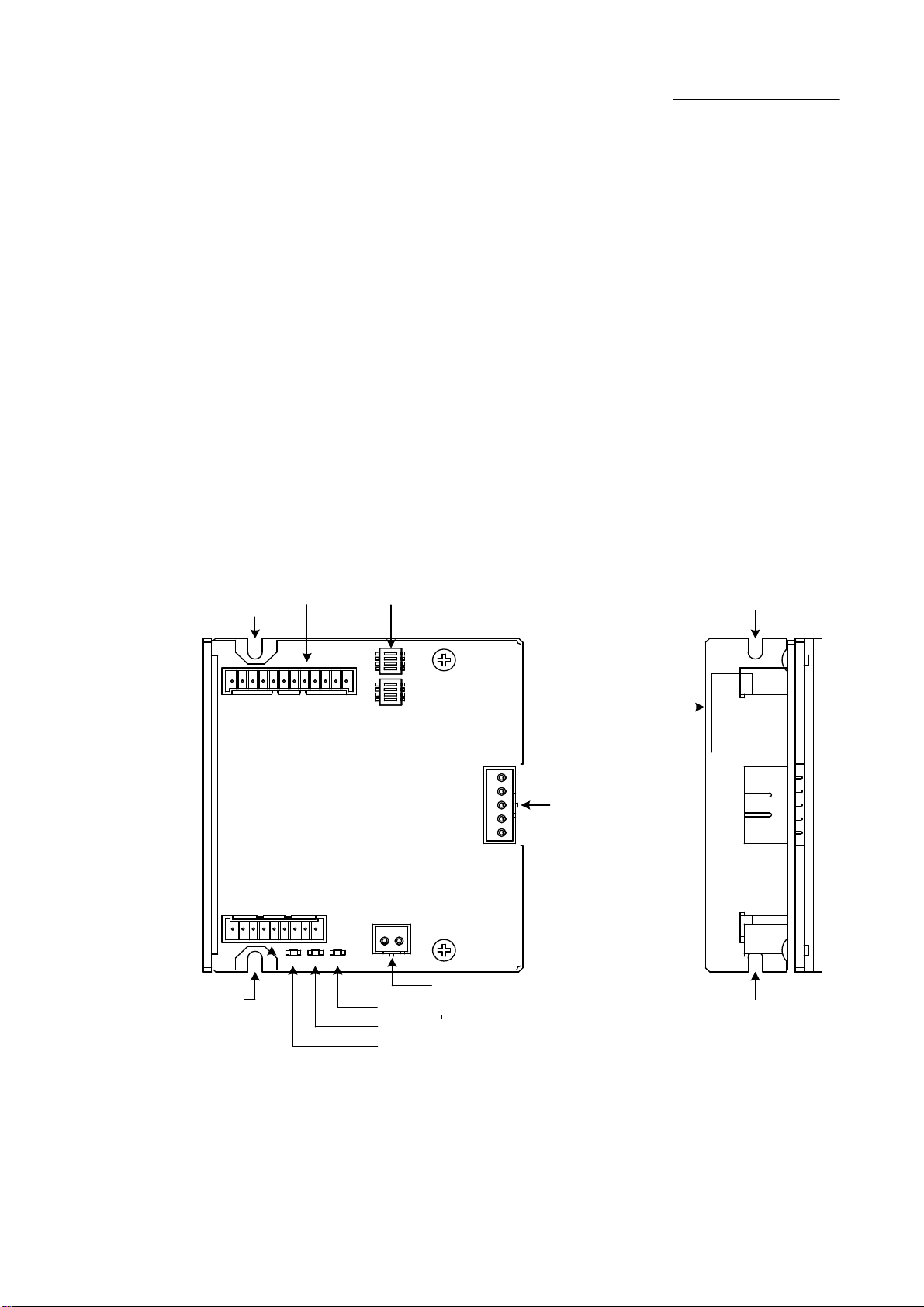

２－３．Appearance
ADB-5F41EL
Melec Made in Japan
Signal Input Connector(J1)
Model
name
Motor Output
Connector (J3)
Mounting section
Operating section
H1
OP0
OP1
OP2
S1
S2
D1
SA
SB
SC
ALM POWER ENC
ALM LED(RED)
POWER LED(GREEN)
ENC LED(GREEN)
DC Input Connector (J2)
Encoder I/O Connector （Ｊ４）
Mounting section
Mounting section
Mounting section
-9-

ADB-5F41EL
Instructions Manual
３．Name and Function of Each Section R1
３－１．Signal I/O Connector（Ｊ１）
ADB-5F41EL
J1
●Directs the motor to operate CW.
●Directs the motor to operate CCW.
●It uses the Extend functions
●It uses the extend functions
Alarm signal output terminal and the
return GND terminal
●Output the step-out alarm
(Photo-coupler ＯＦＦ：Positive logic )
●Clear the step-out alarm and an internal counter.
３－２．DC Input/Motor Output Connector（Ｊ２，Ｊ３）
ADB-5F41EL
●Power input terminal.
DC power supply is connected.
12
ACLR-
9
ALM
10
R.GND
11
ACLR+
(OUT-)
4
6
5
8
7
(OUT+)
1
(IN-)
CCW-
CCW+
(IN+)
2
3
CW-
CW+
J2
DC+24V
DC+
1
0V
DC-
2
CW drive pulse signal input terminal
CCW drive pulse signal input terminal
Extend functions signal input terminal
Extend functions signal output terminal
Alarm clear signal input terminal
DC input terminal
-10-

ADB-5F41EL
Instructions Manual

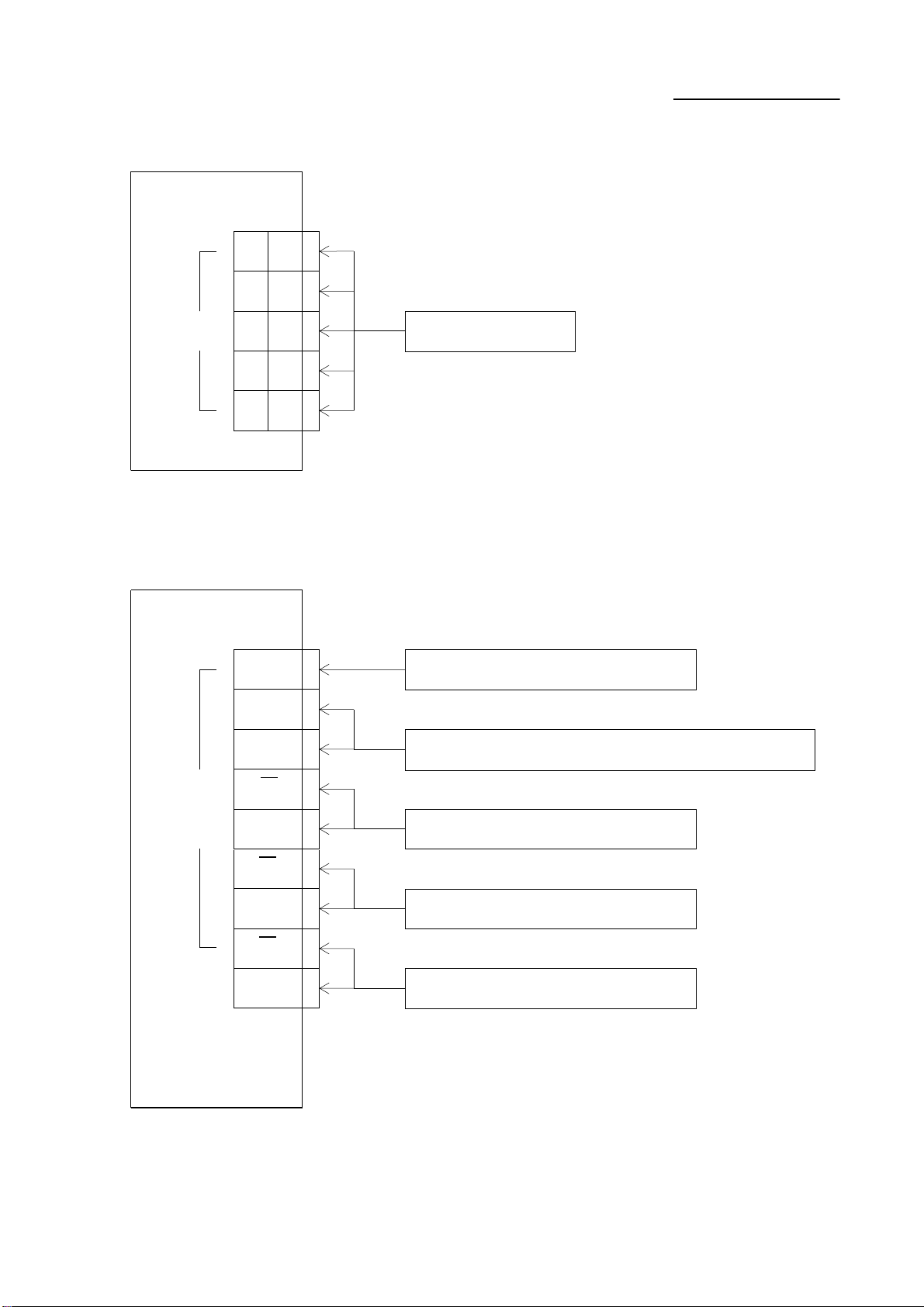

ADB-5F41EL
J3
●Outputs current to drive the motor.
３－３．Encoder I/O Connecter (J4)
ADB-5F41EL
J4
●The shield of encoder is connected
●Encoder power supply(+5V､GND) is connected
●Inputs the encoder Z phase pulse
●Inputs the encoder B phase pulse
●Inputs the encoder A phase pulse
MOTOR
3
BLK
ORN
YLW
5
WHT
RED
ORN
GRN
BLU
BRN
1
BLK
VIO
2
4
BLU
RED
GRN
GRY
ENCODER
7
6
B
B
A
A
2
1
SHIELD
GND
+5V
Z
Z
5
3
4
9
8
Encoder shield terminal
Encoder 5v power supply terminal and GND terminal
Encoder Z phase signal input terminal
Encoder B phase signal input terminal
Encoder A phase signal input terminal
Motor output terminal
-11-

ADB-5F41EL
Instructions Manual
３－４．POWER LED
POWER LED(GREEN) comes on upon inputting power.
３－５．ENC LED
ENC LED (GREEN) comes on upon outputting of +5V power for encoder.
３－６．ALM LED
When an alarm occurs, ALM LED (red) comes on or flashing.
・In case of internal temperature of the driver reaches approx. 70℃ or more,
ALM LED comes on.
・When it detects the step-out Flashes (0.5-second intervals).
・It blinks at 5V output abnormality of the encoder.
(0.5-second intervals twice, repeat of off 1.5 seconds)
３－７．Operating Section
ADB-5F41EL
Name of Operating Section
Function
Factory Setting
S1 1 DRIVE CURRENT SELECT switch
Selects DRIVE CURRENT.
D1：〔ON〕
S1 2 STEP ANGLE SELECT switch
Selects a step angle.
SA：〔ON〕
S1 3 STEP ANGLE SELECT switch
SB：〔ON〕
S1 4 STEP ANGLE SELECT switch
SC：〔OFF〕
S2 1 HOLD CURRENT SELECT switch
Selects HOLD CURRENT.
H1：〔OFF〕
S2 2 Extend functions switch
Selects Extend functions
OP0：〔OFF〕
S2 3 Extend functions switch
OP1：〔OFF〕
S2 4 Extend functions switch
OP2：〔OFF〕
H1
OP0
OP1
OP2
S1
S2
D1
SA
SB
SC
(ON ⇔OFF)
STEP ANGLE SELECT switch (STEP SEL)
DRIVE CURRENT SELECT switch (DRIVE I. SEL)
Extend functions switch (OP SEL)
HOLD CURRENT SELECT switch (HOLD I. SEL)
O
N
O
N
-12-

ADB-5F41EL
Instructions Manual
４．Function Set-up by Use
４－１．Setting STEP ANGLE SELECT switch
Erroneous setting may cause breakage of
the machine or injury due to unexpected
rotation of motor.
Ensure correct setting.
The step angle is set up with the STEP SEL switch.
The step angle can be selected from six different
types of step angles.
(1) Set the step angle required by the STEP SEL switch [SA,SB,SC].
●Relationship between the STEP SEL switch and the step angle.
(Factory setting)
(Not available)
(Not available)
STEP SEL switch
1/
Divisions
Step angle(°)
SC
SB
SA
0.72°motor
ON
ON
OFF
1/2
0.36
ON
ON
ON
1/1
0.72
1/40
0.018
ON
OFF
ON
1/4
0.18
ON
OFF
OFF
1/10
0.072
OFF
OFF
OFF
Sub adjustment
OFF
OFF
OFF
ON
Sub adjustment
ON
ON
1/20
0.036
OFF
ON
OFF
CAUTION
-13-

ADB-5F41EL
Instructions Manual
４－２．Setting HOLD CURRENT SELECT switch
A high setting value may cause burn on the
skin due to overheating of the motor.
Do not select a high value beyond the
required.
DRIVE CURRENT is set up with the HOLD I.SEL switch.
The ratio of HOLD CURRENT to DRIVE CURRENT can be selected.
(1) Set the HOLD I.SEL switch No. to the ratio of HOLD CURRENT to
DRIVE CURRENT required.
●
Ratio of HOLD CURRENT
HOLD CURRENT
DRIVE CURRENT
(Factory setting)
●
HOLD CURRENT changes relative to DRIVE CURRENT setting.
●
The greater the ratio of HOLD CURRENT grows, the more heat the motor
generates when is on holding-state.
４－３．Setting DRIVE CURRENT SELECT switch
Erroneous setting may cause motor
deterioration or damage and burn on the
skin due to overheating of the motor.
Ensure correct setting.
DRIVE CURRENT is set up with the DRIVE I.SEL switch.
The DRIVE CURRENT can be selected from two different
types of DRIVE CURRENT.
(1) Set the DRIVE CURRENT required by the RIVE I.SEL switch [D1].
●
Relationship between the DRIVE I.SEL switch and DRIVE CURRENT.
(Factory setting)
＝
×
100
DRIVE I.SEL switch
DRIVE CURRENT
D1
Approx. 40％
Ratio of HOLD CURRENT（％）
ON
1.4A/phase moter
OFF
0.75A/phase moter
HOLD I.SEL switch
Ratio of HOLD
CURRENT (％)
H1
ON
Approx. 50％
OFF
注意
CAUTION
CAUTION
-14-

ADB-5F41EL
Instructions Manual
４－４．Setting of the Extend functions switch
Erroneous setting may cause breakage of
the machine or injury due to unexpected
rotation of motor.
Ensure correct setting.
Set this switch with power OFF.
(1) Set the functions required by the OP SEL switch [OP2,0P1,OP0].
-(Factory setting)
-
-
-
-
-
-
OFF
ON
ON
OFF
OFF
ON
OFF
ON
OFF
OP1
OP0
OFF
OFF
OFF
ON
Extend functions switch
Function allocation
ON
OFF
ON
ON
ON
OFF
ON
ON
ON
OFF
OFF
Sub adjustment
(Step-out detection function is disabled)
OP2
CAUTION
-15-

ADB-5F41EL
Instructions Manual
５．Installation
５－１．Conditions for Installation
Overheating may cause fire.
Mount it on a noncombustible member.
Keep it away from combustibles.
(1) Designed for incorporating into equipment used indoors, this product requires
to be installed in the following environment:
●Indoors (where it is not exposed to direct sun).
●Where ambient temperature and humidity are controlled within the range set
out in the specifications.
●Where there is no explosive, corrosive or inflammable gas.
●Where it can be protected from dust, salt or iron powder.
●Where the product main frame is not exposed to direct vibration or shock.
●Where it is not exposed to splashes of water, oil or chemicals.
(2) Install the driver at least 5mm away from other equipment.
However, please be installed to a distance of at least 15mm from the
heating element.
●
Please contact us if you are not installed to a distance of at least 15mm
from the heating element.
(3) Considering heat release, control the ambient temperature around the driver
within the specified value.
●
Take measures against accumulation of heat such as allowing generous space
around the driver or installing a fan so that heat release is taken care of.
●
Install the driver securely in contact with metal or other substance with
adequate heat conductivity.
(4) In the case that the alarm(ALM) LED comes on, perform the cooling measure
of the mounting plate is enlarged or compulsion air cooling etc.
Use the driver on the condition that the alarm(ALM) LED goes out.
(5)
Do not allow standing or placing anything heavy on the product.
ADB-5F41EL
ADB-5F41EL
WARNING
15mm or more
5mm or more
5mm or more
5mm or more
5mm or more
heating
element
-16-

ADB-5F41EL
Instructions Manual

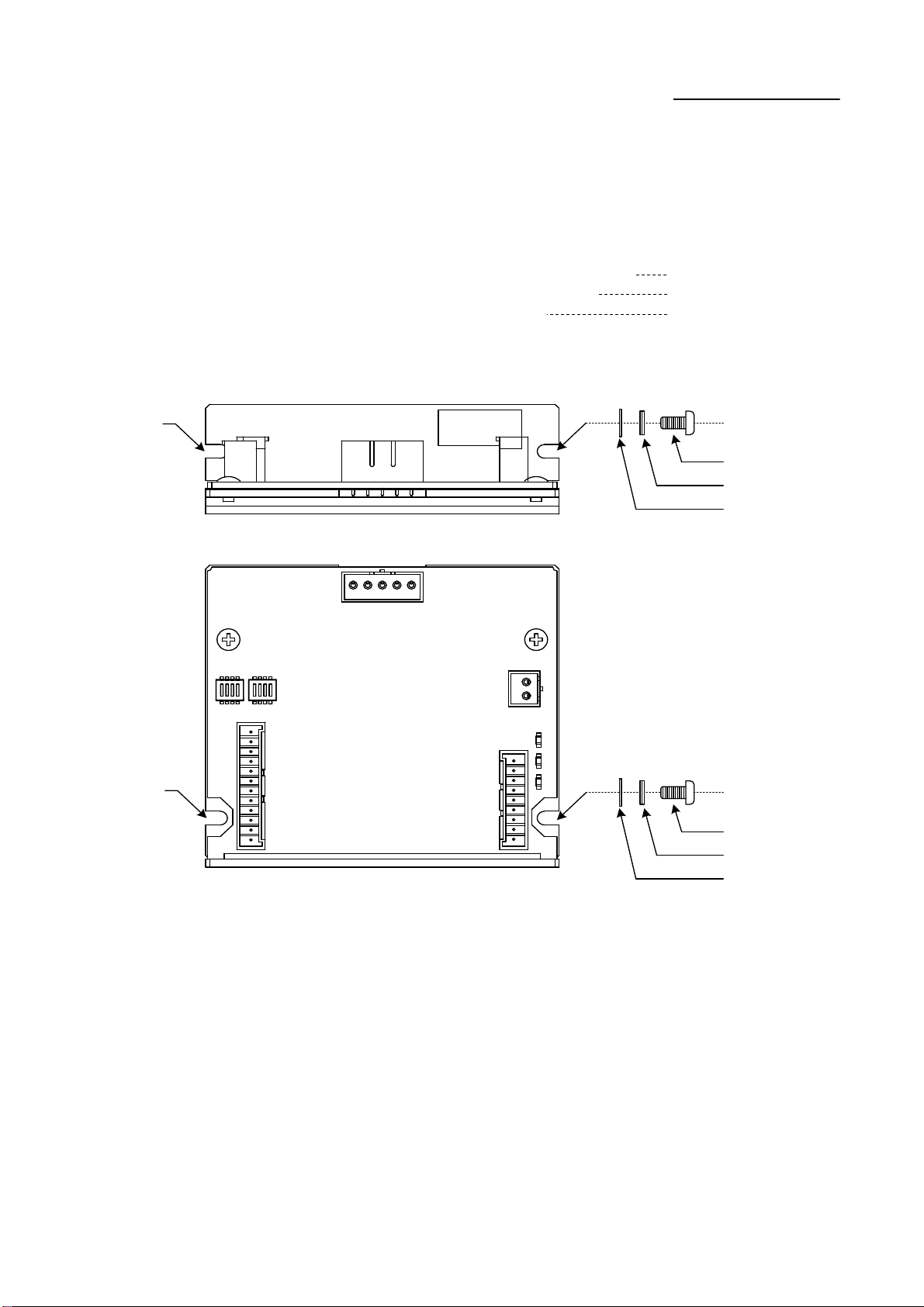

５－２．Mounting Method
The round holes on the main frame are used.
The following items are required:
●M-3 screw (8mm or more in length): 2
●M-3 spring washer: 2
●M-3 flat washer: 2
(1) Fix the product at the two round holes on the main frame.
●Mounting example
ADB-5F41EL
Melec Made in Japan
Fixing with
a screw
Fixing with
a screw
Ｍ-３screw
Ｍ-３spring washer
Ｍ-３flat washer
Fixing with
a screw
Fixing with
a screw
Ｍ-３screw
Ｍ-３spring washer
Ｍ-３flat washer
-17-

ADB-5F41EL
Instructions Manual
６．Connection
６－１．Overview of Connection Configuration
●Connect only one motor to one driver.
●Use twisted pair wire for the CW/CCW input signal line.
●Provide shielding for the signal line where considerable noise is generated.
●Use the wire material of the characteristic that is difficult to burn.
●Provide shielding for the motor line if it generates significant noise.
●For the driver's power supply, use a DC power supply with reinforced insulation
on its primary and secondary sides.
〔Example configuration〕
The metallic enclosure and shielded wires work to shield noise.
User
Controller
ADB-5F41EL
Grounding Grounding
Motor
Grounding
Shield
Metal Encloseure
Metal Encloseure Metal Encloseure
Shield
User
Controller
ADB-5F41EL
J1
CW+
CW-
CCW+
CCW-
6
CWP
(IN-)
(IN+)
CCWP 3
4
5
2
1
CWP
CCWP
Twisted pair wire
7
8(OUT-)
(OUT+)
DC Power Supply
DC+24V
0V(GND)
(+COM)
( IN )
21 43
J3
Motor
J2
2
1DC+
DC-
5
10
9
11
12
ALM
R.GND
+COM
ACLR
ALM
R.GND
ACLR+
ACLR-
( OUT )
(R.GND)
J4
6
3
4
5
2
1
7
8
9
A
A
B
B
Z
Z
+5V
GND
SHIELD
Encoder
-18-

ADB-5F41EL
Instructions Manual

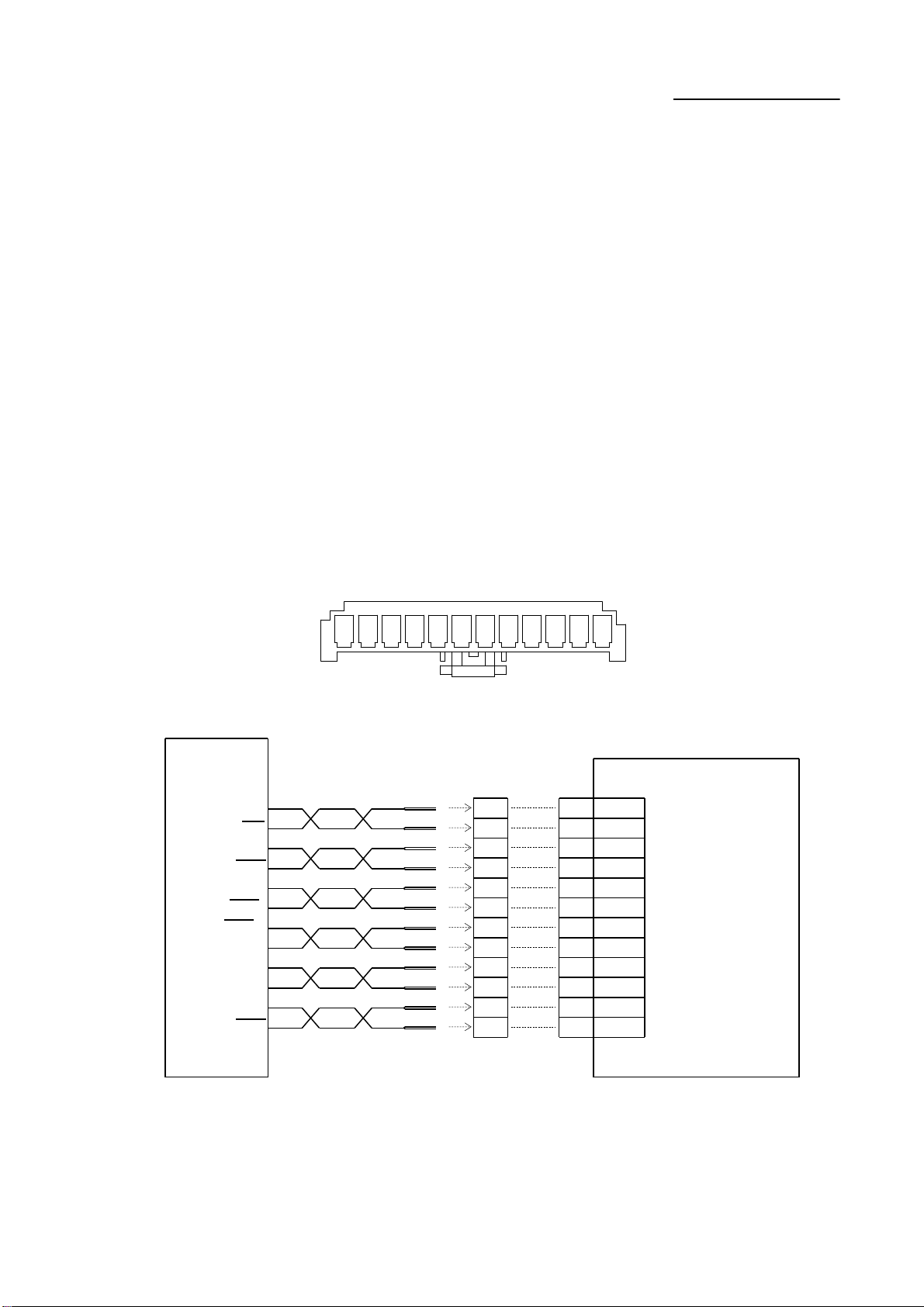

６－２．Connecting Signal I/O Connector（Ｊ１） R1
The following items are required:
●Housing for J1 (51103-0800:Molex) One unit
●Contact for J1 (50351-8100:Molex) 12 contacts
●Manually operated crimping tool One unit
for AWG28-22(57295-5000:Molex)
(1) Crimp the contact to the cable used for wiring.
(2) Insert the contact into the housing.
Make sure that the housing No. and the connector No. on the main frame are
matched before inserting the contacts.
(3) Connect the housings to the connectors on the main frame.
●The contacts for J1 are 12 pieces.
●When inserting, keep pushing J1 housing into the connectors until it is locked.
Also, check if the contacts are not displaced from the housing.
●In wiring, isolate the J1 signal lines from equipment that may be
さい。
a source of noise, the power line and the motor line.
(Surface on which the contacts are inserted)
Housing for J1
〈Crimping〉
〈Wiring〉 〈Insertion〉 〈Connection〉
User Contact ADB-5F41EL
Controller
(0.15mm2or more) J1
CWP
CWP
CCWP
CCWP
( +COM )
( IN )
( OUT )
( R.GND )
ALM
R.GND
+COM
ACLR
Housing
for J1
Drive pulse input
Drive pulse input
1
1
CW+
2
2
CW-
3
3
CCW+
4
4
CCW-
5
5
6
6
7
7
10
10
IN-
ALM
R.GND
8
Extend functions
signal input
Extend functions
signal output
Alarm signal output
Alarm clear signal
input
11
11
OUT+
12
12
OUT-
ACLR+
ACLR-
9
9
8
IN+
12 11 10 9 8 7 6 5 4 3 2 1
-19-

ADB-5F41EL
Instructions Manual
６－３．Connecting DC Input/Motor Output Connector（Ｊ２，Ｊ３）
Erroneous connection may cause
breakage of the motor or the driver.
Correctly connect the DC Input/Motor
output connector.
The following items are required:
●Housing for J2 (51067-0200:Molex) One unit
●Housing for J3 (51067-0500:Molex) One unit
●Contact for J2,J3 (50217-9101:Molex) 7 contacts
●Manually operated crimping tool One unit
for AWG24-18(57189-5000:Molex)
(1) Crimp the contact to the cable used for wiring.
(2) Insert the contact into the housing.
Make sure that the housing No. and the connector No. on the main frame are
matched before inserting the contacts.
(3) Connect the housings to the connectors on the main frame.
●
The contacts for J2(for DC input) are 2 pieces, and for J3(motor output)
are 5 pieces.
●
When inserting, keep pushing J2,J3 housings into the connectors until it is
locked. Also, check if the contacts are not displaced from the housing.
(Surface on which the contacts are inserted)
Housing for J2 Housing for J3
〔DC input Connector〕
〈Crimping〉
〈Connection〉
〈Insertion〉
〈Wiring〉
Contact DC
J2 Power Supply
ADB-5F41EL
Housing
for J2
DC+24V
DC+
1
1
DC+24V
0V
DC-
2
2
0V(GND)
12
25 4 3 1
CAUTION
(0.3mm2or more)
(0.3mm2or more)
-20-
