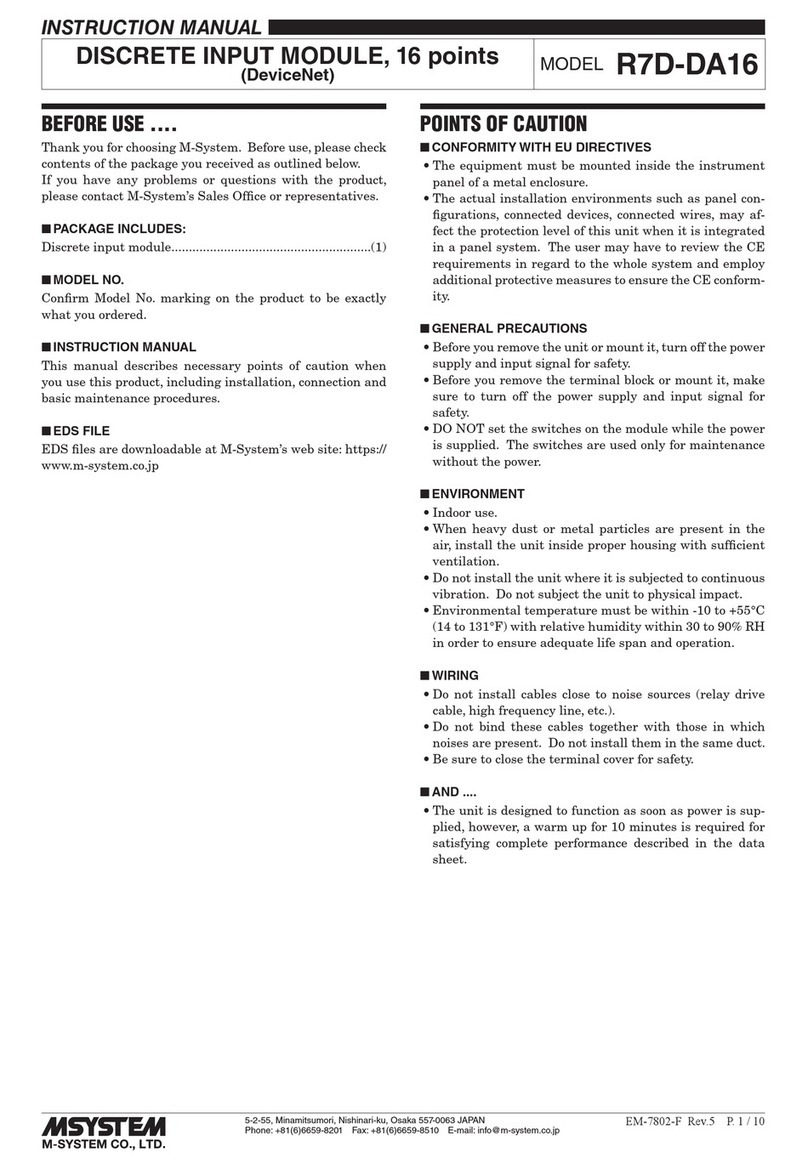

M-system R7D-DA16 User manual

M-system

M-system R7D-DA16 User manual

M-system R3-SV8B User manual

M-system

M-system R3-SV8B User manual

M-system R6-PSM User manual

M-system

M-system R6-PSM User manual

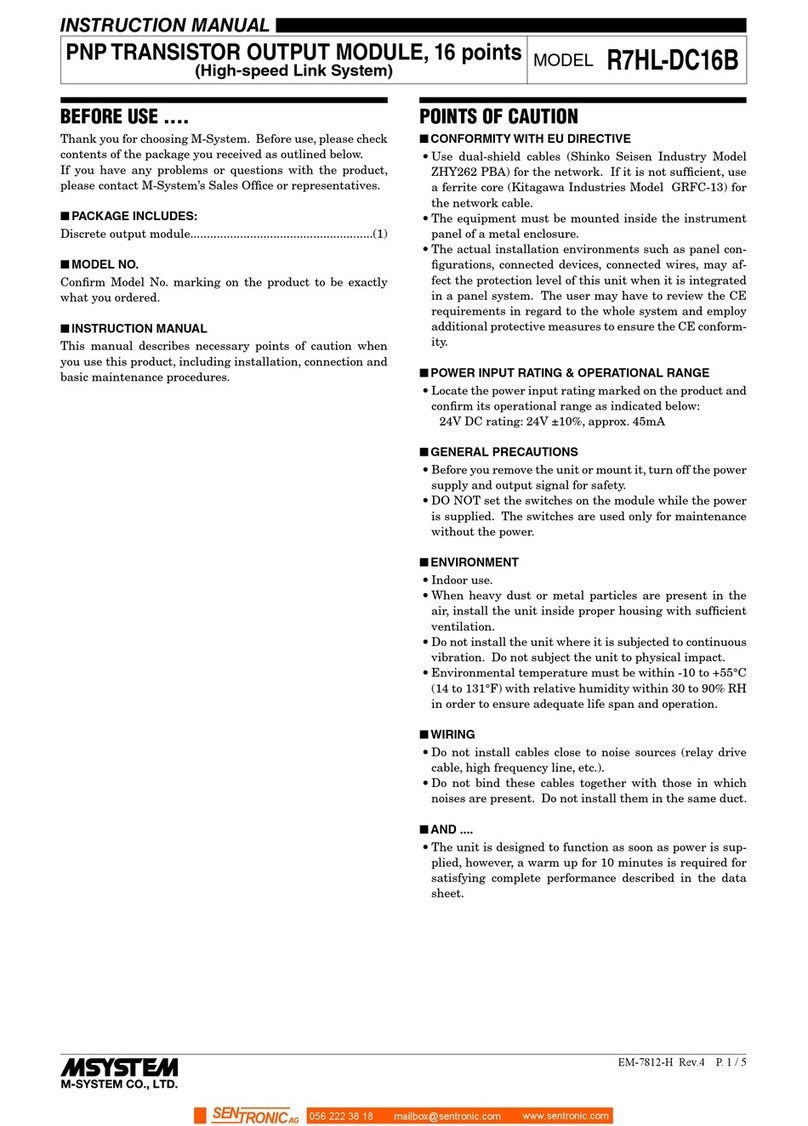

M-system R7HL-DC16B User manual

M-system

M-system R7HL-DC16B User manual

M-system LONWORKS R3-NL2 User manual

M-system

M-system LONWORKS R3-NL2 User manual

M-system R7HL-TS4 User manual

M-system

M-system R7HL-TS4 User manual

M-system Devicenet R7F4HD-DAC32C User manual

M-system

M-system Devicenet R7F4HD-DAC32C User manual

M-system R7F4HML3-D-DAC32A User manual

M-system

M-system R7F4HML3-D-DAC32A User manual

M-system R7M-MS4 User manual

M-system

M-system R7M-MS4 User manual

M-system R7M-EC8A User manual

M-system

M-system R7M-EC8A User manual

M-system R7ML-EC8B User manual

M-system

M-system R7ML-EC8B User manual

M-system R3Y-DS8N User manual

M-system

M-system R3Y-DS8N User manual

M-system R3-NF1 User manual

M-system

M-system R3-NF1 User manual

M-system R7D-EC8A User manual

M-system

M-system R7D-EC8A User manual

M-system R7M-YV2-R User manual

M-system

M-system R7M-YV2-R User manual

M-system R7M-CT4E User manual

M-system

M-system R7M-CT4E User manual

M-system R6S-TS2 User manual

M-system

M-system R6S-TS2 User manual

M-system R7L-EC16A User manual

M-system

M-system R7L-EC16A User manual

M-system R7G4HEIP-6-DC16B User manual

M-system

M-system R7G4HEIP-6-DC16B User manual

M-system R7 Series User manual

M-system

M-system R7 Series User manual

Popular Control Unit manuals by other brands

Festo Compact Performance CP-FB6-E Brief description

Festo

Festo Compact Performance CP-FB6-E Brief description

Elo TouchSystems DMS-SA19P-EXTME Quick installation guide

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Quick installation guide

JS Automation MPC3034A user manual

JS Automation

JS Automation MPC3034A user manual

JAUDT SW GII 6406 Series Translation of the original operating instructions

JAUDT

JAUDT SW GII 6406 Series Translation of the original operating instructions

Spektrum Air Module System manual

Spektrum

Spektrum Air Module System manual

BOC Edwards Q Series instruction manual

BOC Edwards

BOC Edwards Q Series instruction manual

KHADAS BT Magic quick start

KHADAS

KHADAS BT Magic quick start

Etherma eNEXHO-IL Assembly and operating instructions

Etherma

Etherma eNEXHO-IL Assembly and operating instructions

PMFoundations Attenuverter Assembly guide

PMFoundations

PMFoundations Attenuverter Assembly guide

GEA VARIVENT Operating	 instruction

GEA

GEA VARIVENT Operating instruction

Walther Systemtechnik VMS-05 Assembly instructions

Walther Systemtechnik

Walther Systemtechnik VMS-05 Assembly instructions

Altronix LINQ8PD Installation and programming manual

Altronix

Altronix LINQ8PD Installation and programming manual

Eaton Powerware Series user guide

Eaton

Eaton Powerware Series user guide

WAGO 750-407/040-000 manual

WAGO

WAGO 750-407/040-000 manual

Sony CCU-590 Operation manual

Sony

Sony CCU-590 Operation manual

Graco 25D614 instructions

Graco

Graco 25D614 instructions

Task Force Tips YE-RF-900 Instructions for installation, safe operation and maintenance

Task Force Tips

Task Force Tips YE-RF-900 Instructions for installation, safe operation and maintenance

Shini SPV-U Series manual

Shini

Shini SPV-U Series manual

https://manuals.online logo
https://manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2026 Manuals.Online. All Rights Reserved.

BEFORE USE ....
Thank you for choosing M-System. Before use, please check
contents of the package you received as outlined below.
If you have any problems or questions with the product,
please contact M-System’s Sales Office or representatives.
■PACKAGE INCLUDES:
Discrete input module.........................................................(1)
■MODEL NO.
Confirm Model No. marking on the product to be exactly
what you ordered.
■INSTRUCTION MANUAL
This manual describes necessary points of caution when
you use this product, including installation, connection and
basic maintenance procedures.
POINTS OF CAUTION
■CONFORMITY WITH EU DIRECTIVES
• The equipment must be mounted inside the instrument
panel of a metal enclosure.
• The actual installation environments such as panel con-
figurations, connected devices, connected wires, may af-
fect the protection level of this unit when it is integrated
in a panel system. The user may have to review the CE
requirements in regard to the whole system and employ
additional protective measures to ensure the CE conform-
ity.
■HOT INSERTION/REMOVAL OF MODULES
• Removing or replacing modules does not affect other mod-
ules on the same backplane. It is possible to replace them
without removing the power supply. However, replacing
multiple modules at once may greatly change line voltage
levels. We recommend that you replace them one by one.
■ENVIRONMENT
• Indoor use.
• When heavy dust or metal particles are present in the
air, install the unit inside proper housing with sufficient
ventilation.
• Do not install the unit where it is subjected to continuous
vibration. Do not subject the unit to physical impact.
• Environmental temperature must be within -10 to +55°C
(14 to 131°F) with relative humidity within 30 to 90% RH
in order to ensure adequate life span and operation.
■WIRING
• Do not install cables close to noise sources (relay drive
cable, high frequency line, etc.).
• Do not bind these cables together with those in which
noises are present. Do not install them in the same duct.
■AND ....
• The unit is designed to function as soon as power is sup-
plied, however, a warm up for 10 minutes is required for
satisfying complete performance described in the data
sheet.
INSTALLATION
Use the Installation Base (model: R5-BS).
DISCRETE INPUT MODULE
(screw terminal block; Di 4 points) MODEL R5T-DA4
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
EM-6128 Rev.3 P. 1 / 3
INSTRUCTION MANUAL
COMPONENT IDENTIFICATION
ON
1
DO NOT USE
2345678 RUN
4
32
1
65
1
2
3
4
Status Indicator LED
RUN LED
■
SIDE VIEW ■FRONT VIEW
■STATUS INDICATOR LED
RUN indicator: Bi-color (red/green) LED;
Red when the bus A operates normally;
Green when the bus B operates normally;
Amber when both buses operate normally.
Input status indicator: Red LED; turns on with the inputs supplied.
R5T-DA4
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
EM-6128 Rev.3 P. 2 / 3
TERMINAL CONNECTIONS
Connect the unit as in the diagram below.
■EXTERNAL DIMENSIONS unit: mm (inch)
4
32
1
65
38.5 (1.52) 98.5 (3.88)
TERMINAL COVER
6–M3.5
TERMINAL
SCREWS
8.2 (.32)
7.2 (.28)
LOCKING CLAMP
90 (3.54) 5.6
(.22)
18 (.71)
POSITIONING GUIDE
■CONNECTION DIAGRAM
BUS CONNECTOR
INTERNAL POWER
*For dual redundant communication.
1
5
2
3
6
4
Di 1
Di 2
COM1(–)
Di 3
Di 4
COM2(–)
24VDC
24VDC
■R5T-DA4x/B
1
5
2
3
6
4
Di 1
Di 2
COM1(+)
Di 3
Di 4
COM2(+)
24VDC
24VDC
■R5T-DA4x/A
1
5
2
3
6
4
Di 1
Di 2
COM1(–)
Di 3
Di 4
COM2(–)
■R5T-DA4x
INTERNAL BUS A
INTERNAL BUS B*
WIRING INSTRUCTIONS
■SCREW TERMINAL
Torque: 0.8 N·m
R5T-DA4
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
EM-6128 Rev.3 P. 3 / 3
