M-system 6M User manual

BEFORE USE ....
Thank you for choosing M-System. Before use, please check
contents of the package you received as outlined below.
If you have any problems or questions with the product,
please contact M-System’s Sales Office or representatives.
■PACKAGE INCLUDES:
Signal conditioner ...............................................................(1)
(Option) DIN rail mounting plate (model: A-31) .........(1 set)
(Option) Spring clip (model: A-02)................................(1 set)
■MODEL NO.
Confirm Model No. marking on the product to be exactly
what you ordered.
■INSTRUCTION MANUAL
This manual describes necessary points of caution when
you use this product, including installation, connection and
basic maintenance procedures.
POINTS OF CAUTION
■GENERAL PRECAUTIONS
• Before you remove the unit or mount it, turn off the power
supply and input signal for safety.
■ENVIRONMENT
• Indoor use.
• When heavy dust or metal particles are present in the
air, install the unit inside proper housing with sufficient
ventilation.
• Do not install the unit where it is subjected to continuous
vibration. Do not subject the unit to physical impact.
• Environmental temperature must be within -5 to +70°C
(23 to 158°F) with relative humidity within 30 to 90% RH
in order to ensure adequate life span and operation.
■WIRING
• Do not install cables close to noise sources (relay drive
cable, high frequency line, etc.).
• Do not bind these cables together with those in which
noises are present. Do not install them in the same duct.
■AND ....
• The unit is designed to function as soon as power is sup-
plied, however, a warm up for 10 minutes is required for
satisfying complete performance described in the data
sheet.
COMPONENT IDENTIFICATION
Specifications
Knurled Knob
Body
Knurled Knob
Connection Diagram
(Top)
INSTALLATION
■35-mm DIN RAIL MOUNTING PLATE A-31 (optional) unit: mm (inch)
1) Attach the unit to the DIN rail mounting plate with
screws included in the package.
2) Set the plate so that its DIN rail adapter is at the bottom.
Hang the upper hook at the rear side on the DIN rail
and push in the lower. When removing the plate, push
down the DIN rail adapter utilizing minus screwdriver
and pull.
80 (3.15) MIN.
■SPRING CLIP A-02 (optional)
1) Remove the two flat-
head screws Alocated at
the bottom as shown to
the right.
2) Set Spring Clip Bon
the mounting hole and
tighten it as shown to
the right with a binding
screw Cincluded in the
package.
3) Check that the clips
contract and release
smoothly.
A
B
C
POTENTIOMETER TRANSMITTER MODEL 6M
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
EM-4215 Rev.5 P. 1 / 2
INSTRUCTION MANUAL
TERMINAL CONNECTIONS
Connect the unit as in the diagram below or refer to the connection diagram on the top of the unit.
■EXTERNAL DIMENSIONS unit: mm (inch)
76 (2.99) dia. 40 (1.57)
52.5 (2.07)
1 (.04)
60.9 (2.40)
46 (1.81)
50 (1.97)
4–M3 (.12) TAP
6 (.24) deep
1 2 3 4
5 6
■CONNECTION DIAGRAM
1
2
3
3
2
1
POTENTIOMETER
max.
min.
+
–
+
–
LOAD
6
5
OUTPUT
24V DC
4 – 20mA DC
WIRING INSTRUCTIONS
■SCREW TERMINAL
Torque: 0.6 N·m
CHECKING
1) Terminal wiring: Check that all cables are correctly con-
nected according to the connection diagram.
2) Input: Check voltage across the terminal 2 (+) – 3 (–)
with a voltmeter to show 0V at 0% potentiometer input
and the same voltage as that across 1 (+) – 3 (–) at 100%
input.
3) Output: Check that the load is within the permissible
limit including wiring resistance.
Load Resistance (Ω) = Supply Voltage (V) – 13 (V)
0.02 (A)
(including leadwire resistance)
ADJUSTMENT PROCEDURE
This unit is calibrated at the factory with the total resist-
ance input, therefore you do not need any calibration if you
use the potentiometer’s total resistance.
When you do not use the total resistance or in case of regu-
lar calibration, adjust the output as explained in the follow-
ing. Zero and Span adjustments are located behind the top
cover. Release the knurled knobs and open the cover.
1234
56
VR1 VR2
■HOW TO CALIBRATE THE OUTPUT SIGNAL
Use a signal source and measuring instruments of sufficient
accuracy level. Turn the power supply on and warm up for
more than 10 minutes.
1) ZERO: Apply 0% input and adjust output to 0% with the
VR1.
2) SPAN: Apply 100% input and adjust output to 100% with
the VR2.
3) Check ZERO adjustment again with 0% input.
4) When ZERO value is changed, repeat the above proce-
dure 1) – 3).
MAINTENANCE
Regular calibration procedure is explained below:
■CALIBRATION
Warm up the unit for at least 10 minutes. Apply 0%, 25%,
50%, 75% and 100% input signal. Check that the output
signal for the respective input signal remains within accu-
racy described in the data sheet. When the output is out of
tolerance, recalibrate the unit according to the “ADJUST-
MENT PROCEDURE” explained earlier.
LIGHTNING SURGE PROTECTION
M-System offers a series of lightning surge protector for
protection against induced lightning surges. Please contact
M-System to choose appropriate models.
6M
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
EM-4215 Rev.5 P. 2 / 2

Other M-system Transmitter manuals

M-system KP User manual

M-system

M-system KP User manual

M-system Mini-M M2YV User manual

M-system

M-system Mini-M M2YV User manual

M-system M3LU2 User manual

M-system

M-system M3LU2 User manual

M-system 6BLC User manual

M-system

M-system 6BLC User manual

M-system M2EXS User manual

M-system

M-system M2EXS User manual

M-system Mini-M M2XM2 User manual

M-system

M-system Mini-M M2XM2 User manual

M-system Mini-M M2RS1 User manual

M-system

M-system Mini-M M2RS1 User manual

M-system VOS2T-R User manual

M-system

M-system VOS2T-R User manual

M-system Mini-MW Series User manual

M-system

M-system Mini-MW Series User manual

M-system Mini-M M2TG User manual

M-system

M-system Mini-M M2TG User manual

M-system M5YV User manual

M-system

M-system M5YV User manual

M-system 6BVS User manual

M-system

M-system 6BVS User manual

M-system W2RS User manual

M-system

M-system W2RS User manual

M-system M5XPA User manual

M-system

M-system M5XPA User manual

M-system M5PA User manual

M-system

M-system M5PA User manual

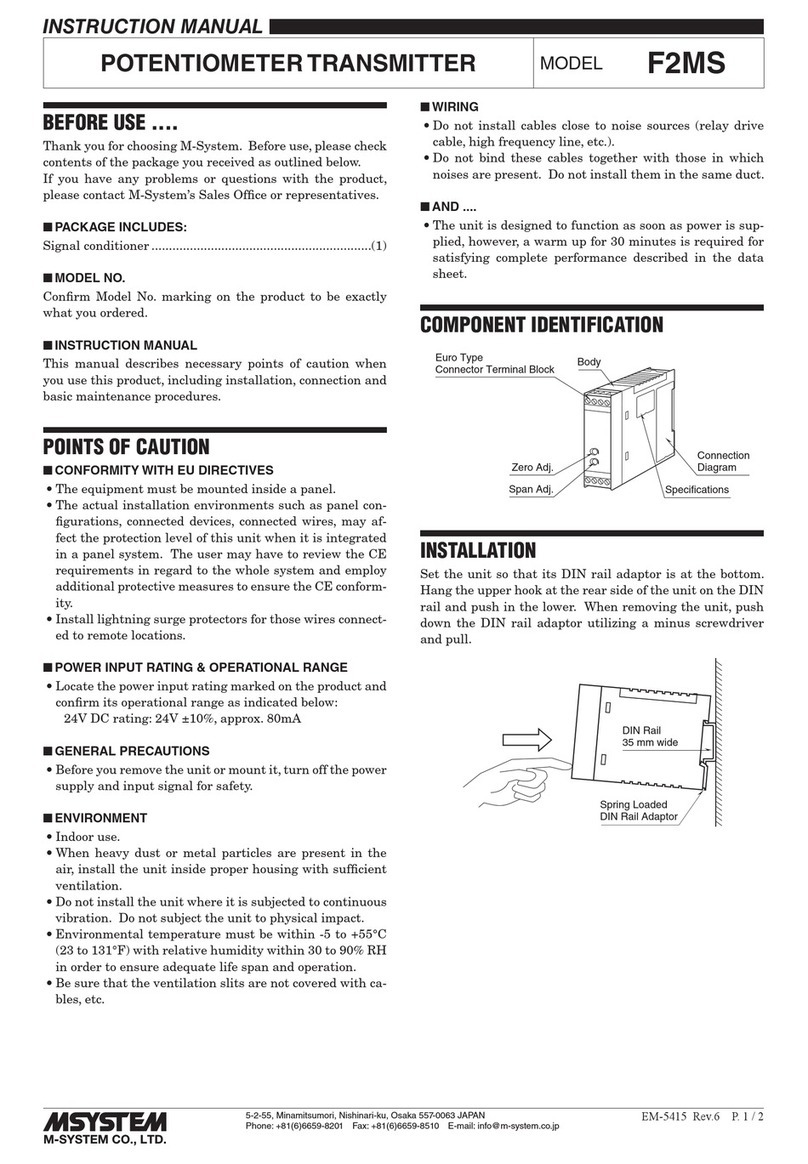

M-system F2MS User manual

M-system

M-system F2MS User manual

M-system W2XT User manual

M-system

M-system W2XT User manual

M-system W2VF User manual

M-system

M-system W2VF User manual

M-system B3VS/2 User manual

M-system

M-system B3VS/2 User manual

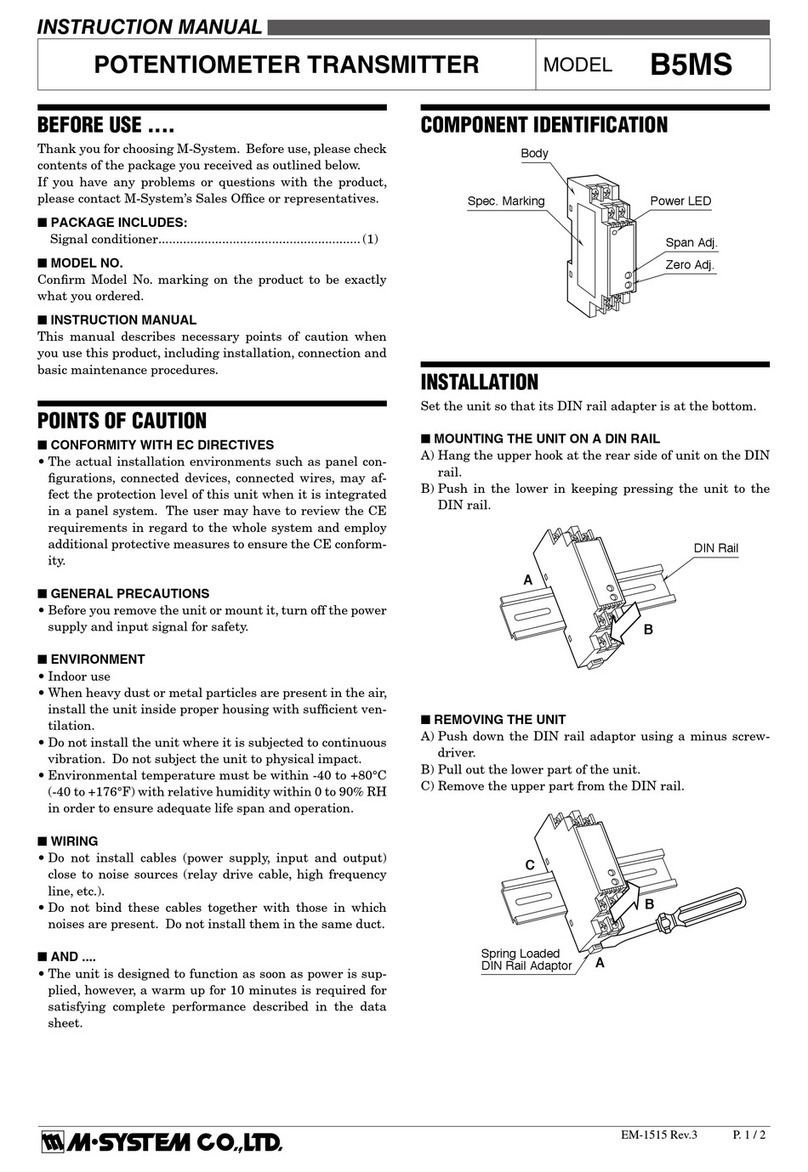

M-system B5MS User manual

M-system

M-system B5MS User manual

M-system TM User manual

M-system

M-system TM User manual

M-system Mini-M M2AC User manual

M-system

M-system Mini-M M2AC User manual

M-system 27PM User manual

M-system

M-system 27PM User manual

M-system LC User manual

M-system

M-system LC User manual

Popular Transmitter manuals by other brands

Climax Technology Halo-VRI quick start guide

Climax Technology

Climax Technology Halo-VRI quick start guide

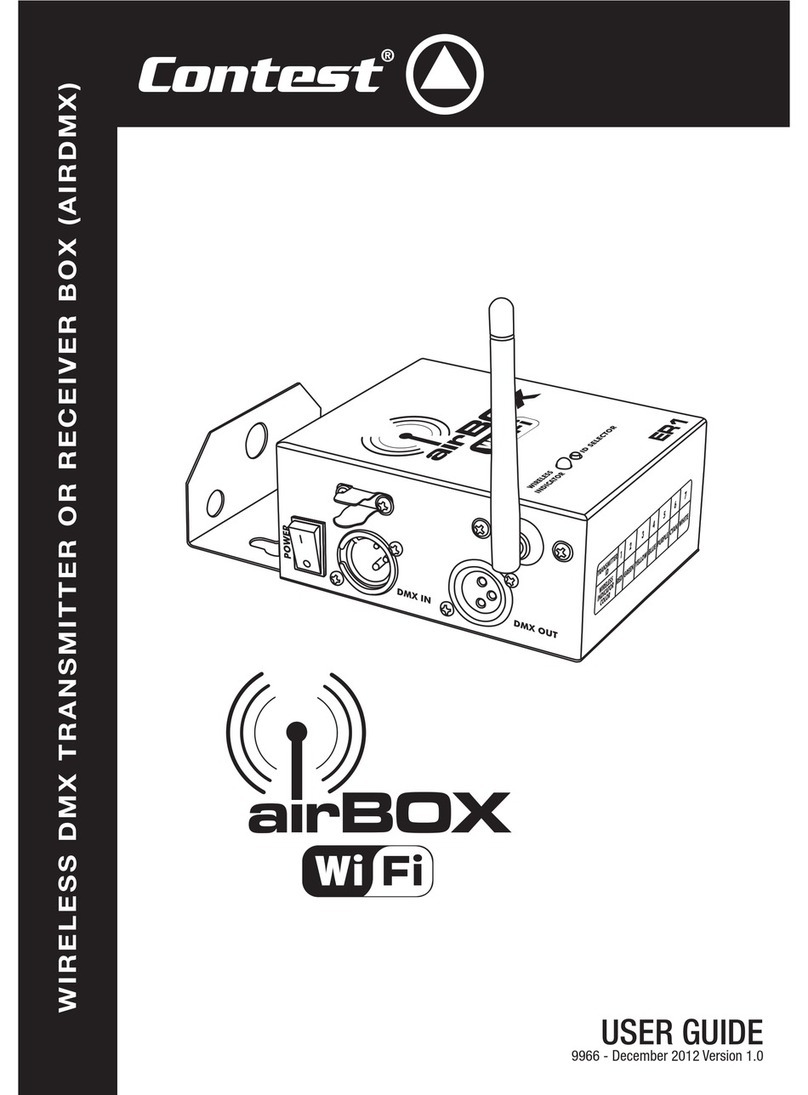

Contest airBOX ER1 user guide

Contest

Contest airBOX ER1 user guide

FlowLine EchoBeam LR81 Series quick start guide

FlowLine

FlowLine EchoBeam LR81 Series quick start guide

Burkert 8205 Mechanical assembly

Burkert

Burkert 8205 Mechanical assembly

Monacor JTS IN-264TB/2 instruction manual

Monacor

Monacor JTS IN-264TB/2 instruction manual

ABB AWT210 manual

ABB

ABB AWT210 manual

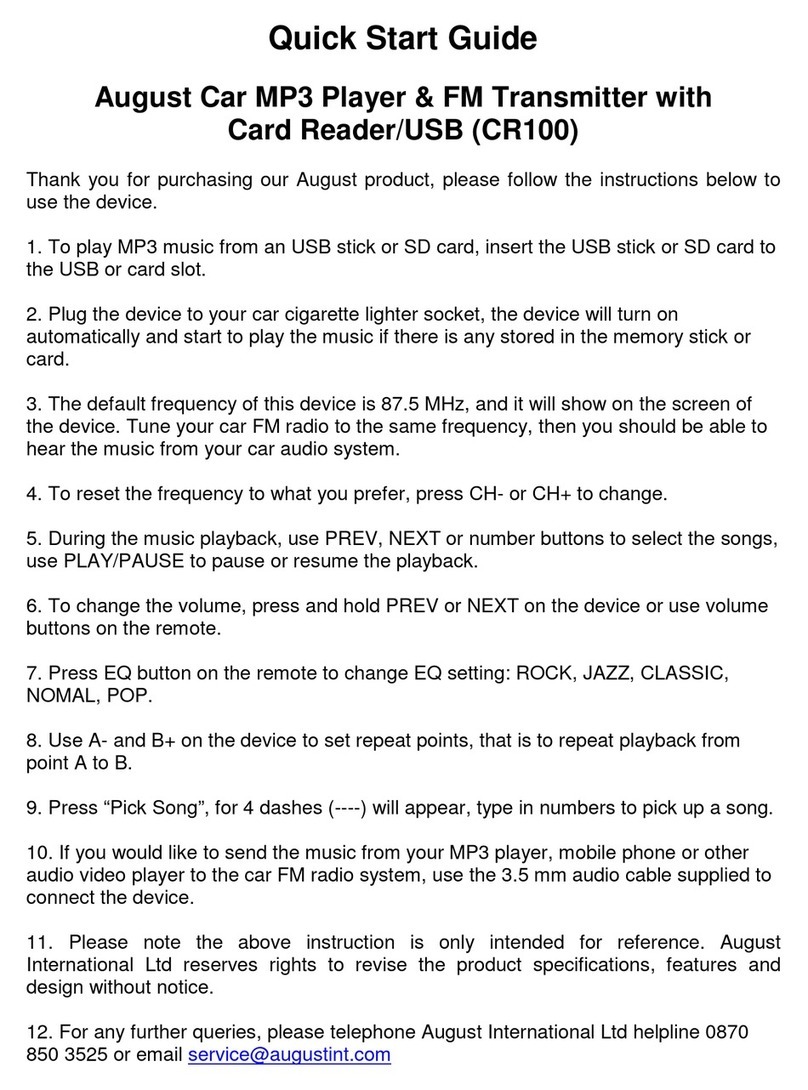

August CR100 Quick start guide august

August

August CR100 Quick start guide august

Siemens SITRANS LR260 Quick start manual

Siemens

Siemens SITRANS LR260 Quick start manual

ADEMCO 5804 installation instructions

ADEMCO

ADEMCO 5804 installation instructions

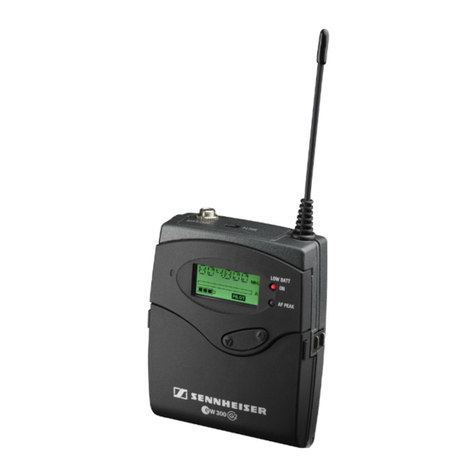

Sennheiser SK 500 G2 Service manual

Sennheiser

Sennheiser SK 500 G2 Service manual

Novus RHT-WM-485-LCD manual

Novus

Novus RHT-WM-485-LCD manual

Spektrum DX5R HOW TO UPDATE FIRMWARE

Spektrum

Spektrum DX5R HOW TO UPDATE FIRMWARE

Extron electronics FOXBOX 4G Tx user manual

Extron electronics

Extron electronics FOXBOX 4G Tx user manual

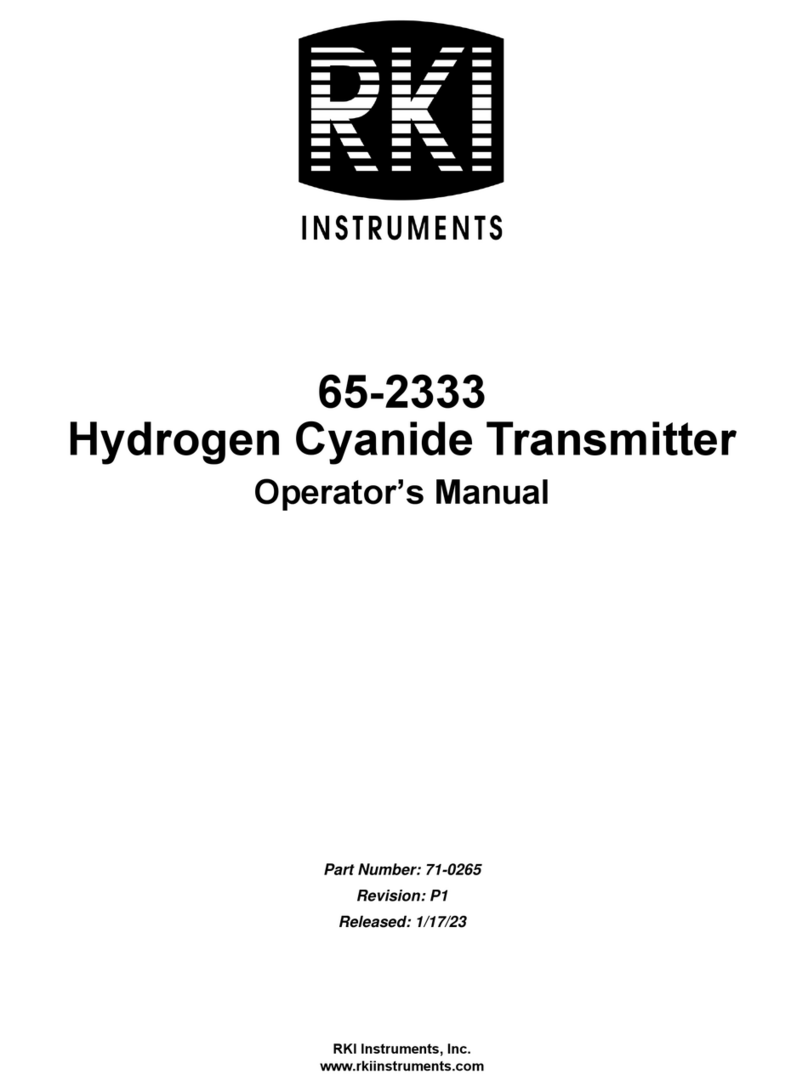

RKI Instruments 65-2333 Operator's manual
