Magick Woods Elements B12L User manual

1

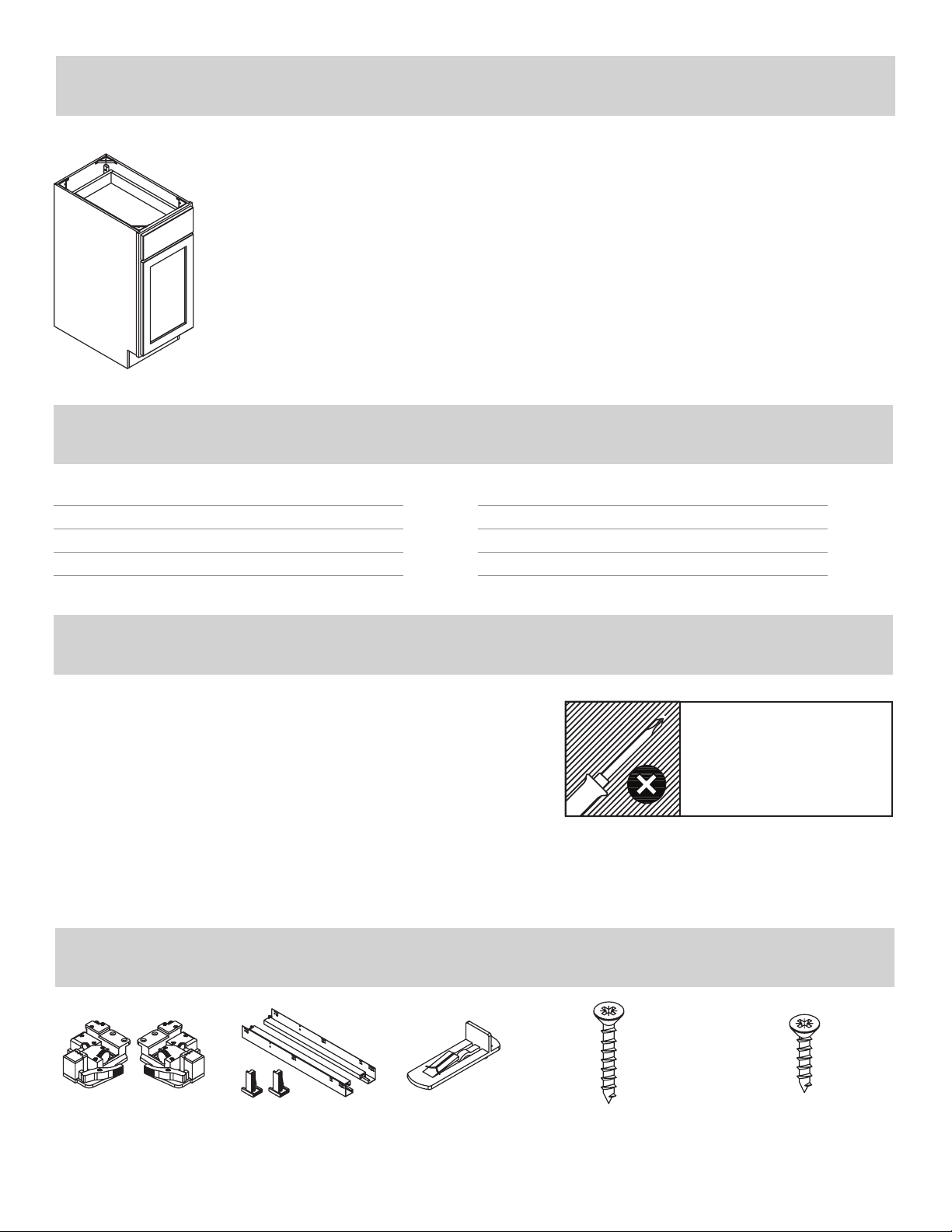

Model # B12(L/R), B15(L/R),
B18(L/R), B21(L/R), B24(L/R)
Finish: White, Gray
TOOLS REQUIRED
FOR ASSEMBLY
TABLE OF CONTENTS
Before you Begin Page 1
Hardware Included Page 1
Package Contents Page 2
Assembly Page 3
BEFORE YOU BEGIN
Review the parts in the box with the contents outlined
in our Hardware Included section of this manual. If
any part is missing or damaged, contact our customer
support before performing any assembly.
To ensure no damage to the product occurs, assemble
the cabinet on a soft surface such as carpet, a towel or
the cardboard packaging.
HARDWARE INCLUDED Hardware continued on next page.
Drawer Front Adjustment Page 10
Door Adjustment Page 11
Care and Cleaning Page 12
Warranty Page 12
DRAWER BOTTOM
BRACKET SET
x1
DRAWER SLIDE
SET
x1
SHELF PIN
x4
1" CSK SCREW
x4
5/8" CSK SCREW
x8
ASSEMBLY INSTRUCTIONS Français : page 14
Español: página 27
Thank you for your purchase! Have
questions or need help? Please call
our customer service 8:30 a.m. - 5 p.m.,
CST, Monday - Friday.
1.833.748.4846
[email protected]

2

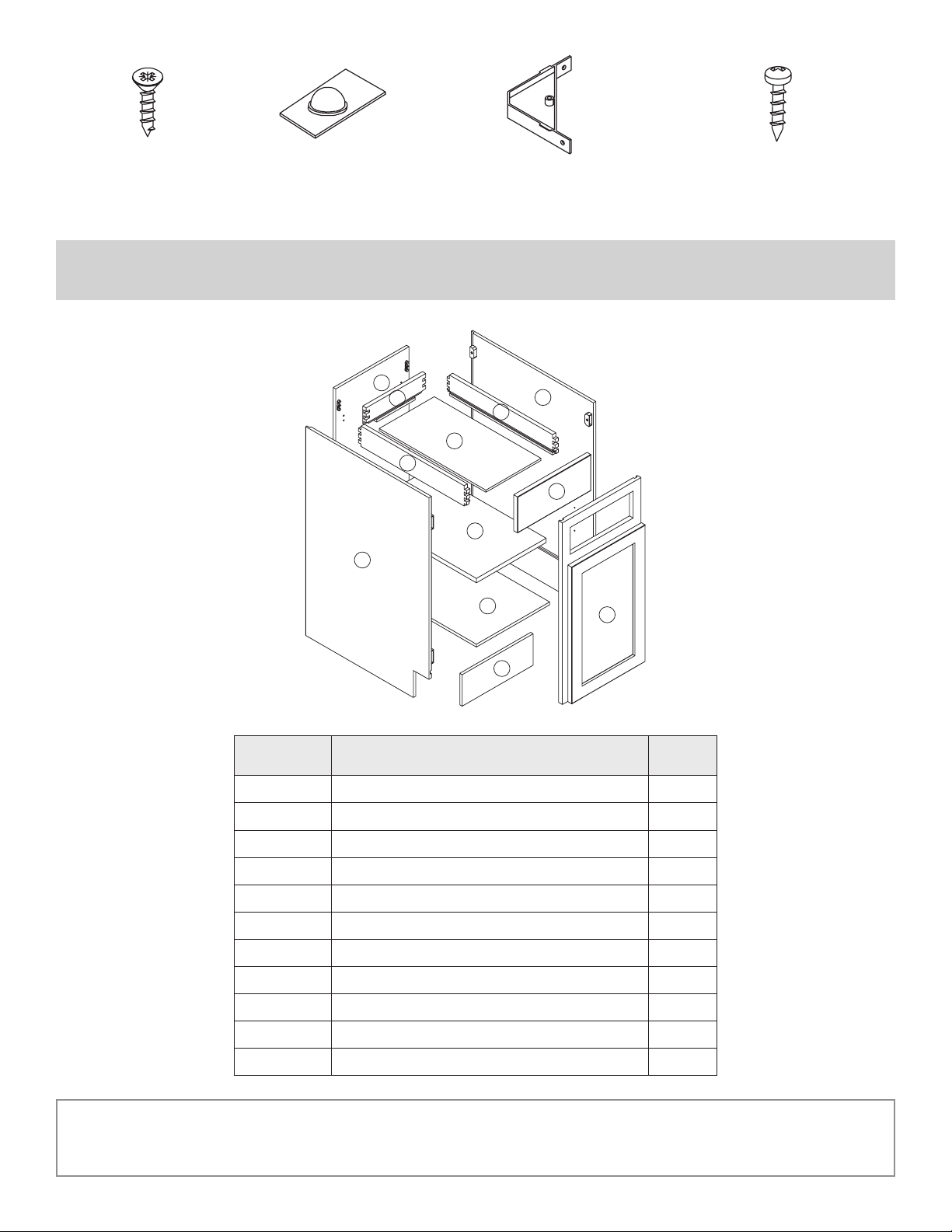

PACKAGE CONTENTS
1/2" CSK SCREW
x2
5 MM BUMPER
x4
CORNER BRACKET
x4
1/2" PAN HEAD SCREW
x8
A
B
K
C
D
E
F
G
G
H
I
J
Part # Description Qty.
A LEFT-HAND GABLE 1
B RIGHT-HAND GABLE 1
C BACK PANEL 1
D SHELF 1
E FRAME & DOOR ASSEMBLY 1
FDRAWER FRONT ASSEMBLY 1
G DRAWER SIDE 2
H DRAWER BOTTOM 1
I DRAWER BACK 1
J TOE KICK 1
K BOTTOM 1
Need assistance? Contact us at 1.833.748.4846.
HELPFUL HINT: Use painter's tape to temporarily label components as shown in the diagram
for easy assembly.

3

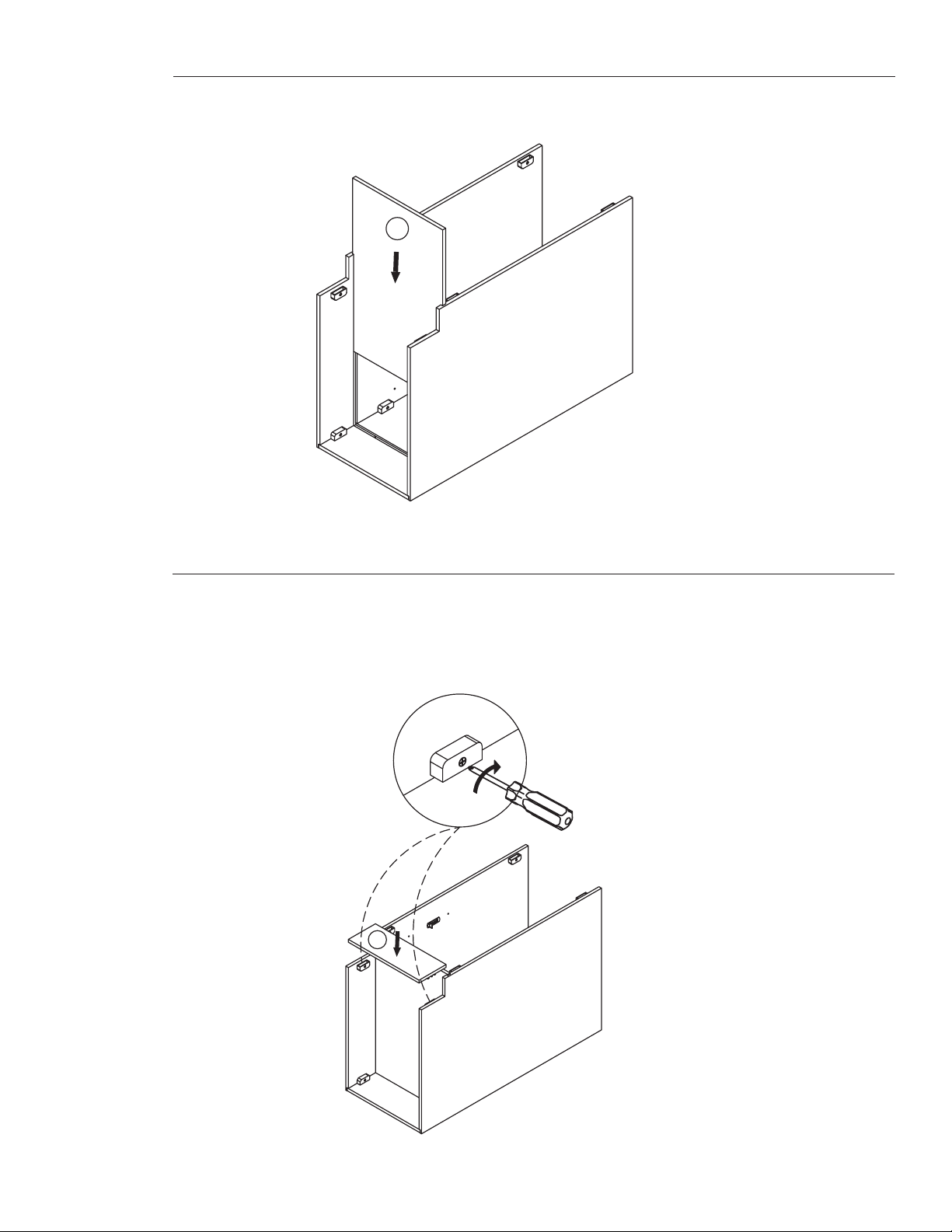

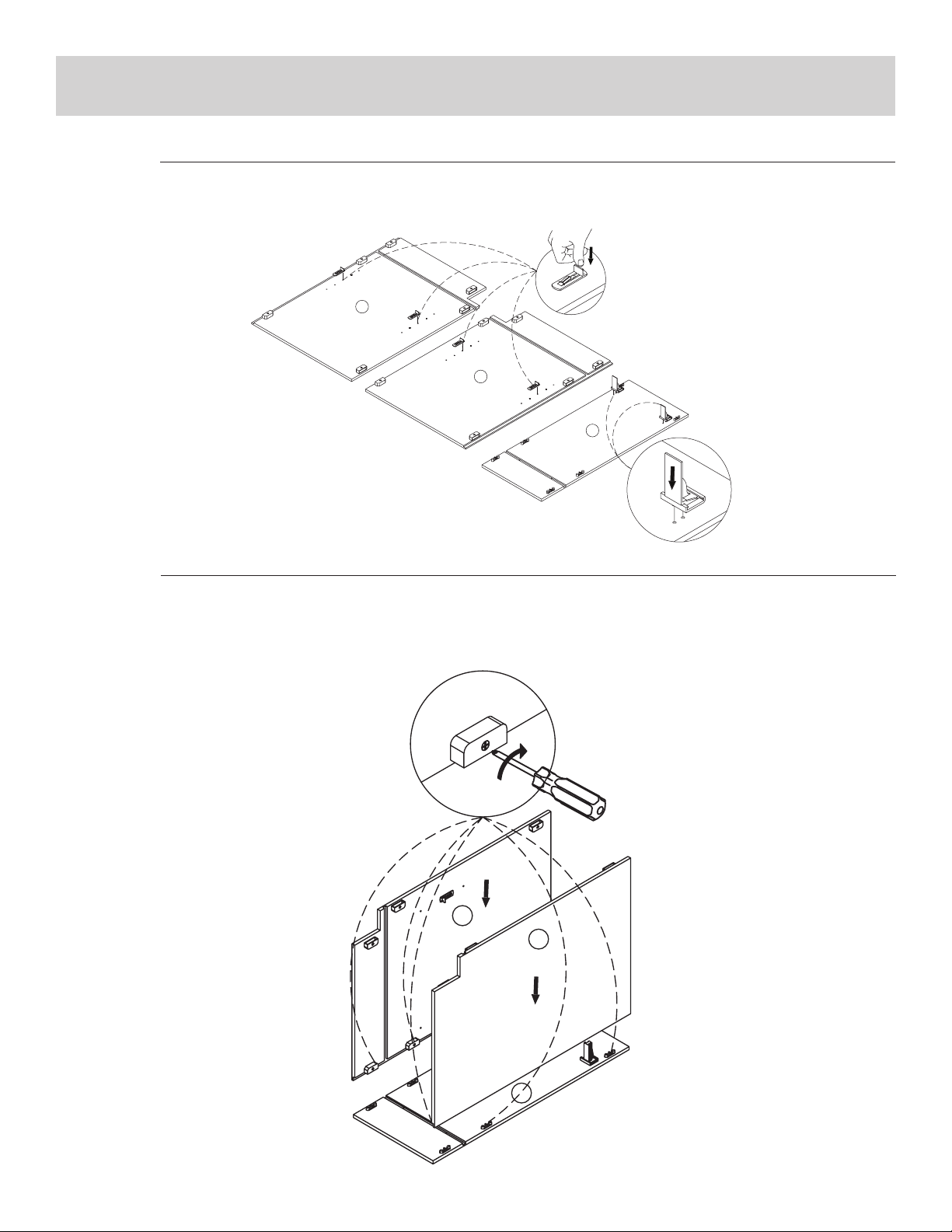

Step 2
Assemble the cabinet parts as per the illustration. Using a Phillips Head screwdriver, rotate the
connector clockwise to fasten into place. Ensure all connectors are locked into place before
moving the cabinet.
Need assistance? Contact us at 1.833.748.4846.
C
B
A
Insert the shelf pins in your preferred locations as per the illustration. Insert the drawer slide rear
support parts as per the illustration.
ASSEMBLY
Step 1
A
B
C

4
Step 4
Align the toe kick onto the assembled cabinet box as per the illustration. Using a Phillips Head
screwdriver, rotate the connector clockwise to fasten into place. Ensure all connectors are locked
into place before moving the cabinet.
Need assistance? Contact us at 1.833.748.4846.
J

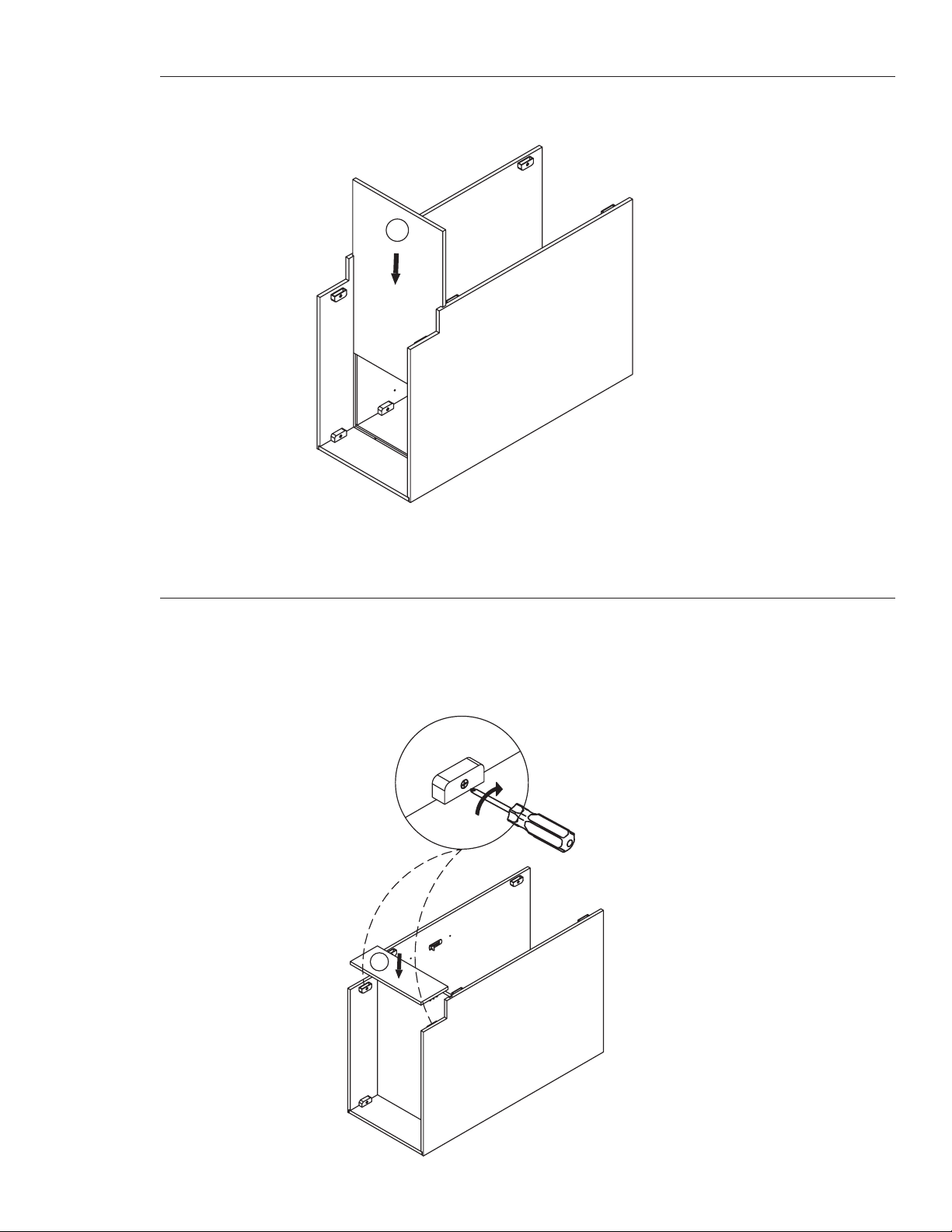

Step 3
Insert the bottom panel as shown in the drawing.
K

5
Ensure the side gables and bottom shelf are aligned with the grooves in the frame
before tightening the connectors.

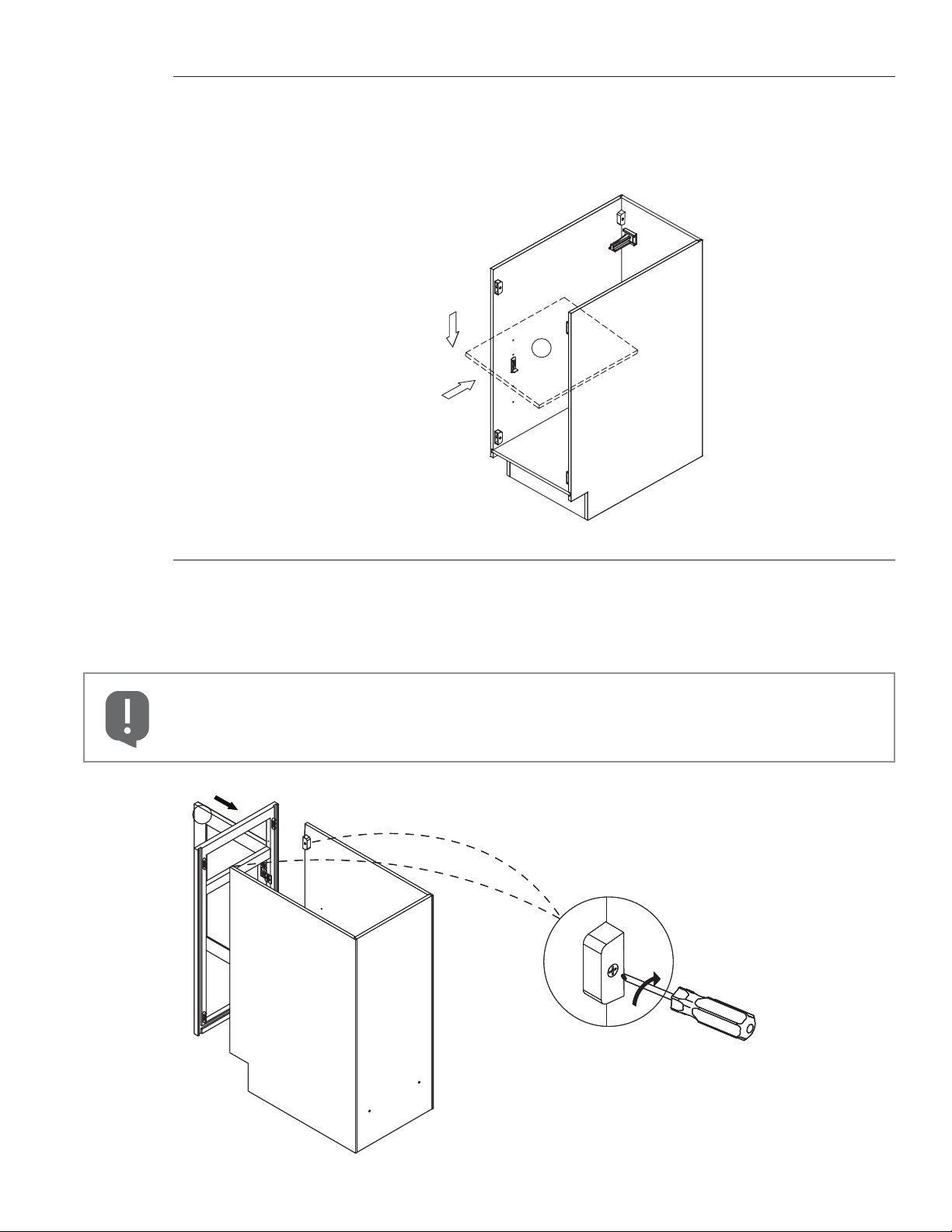

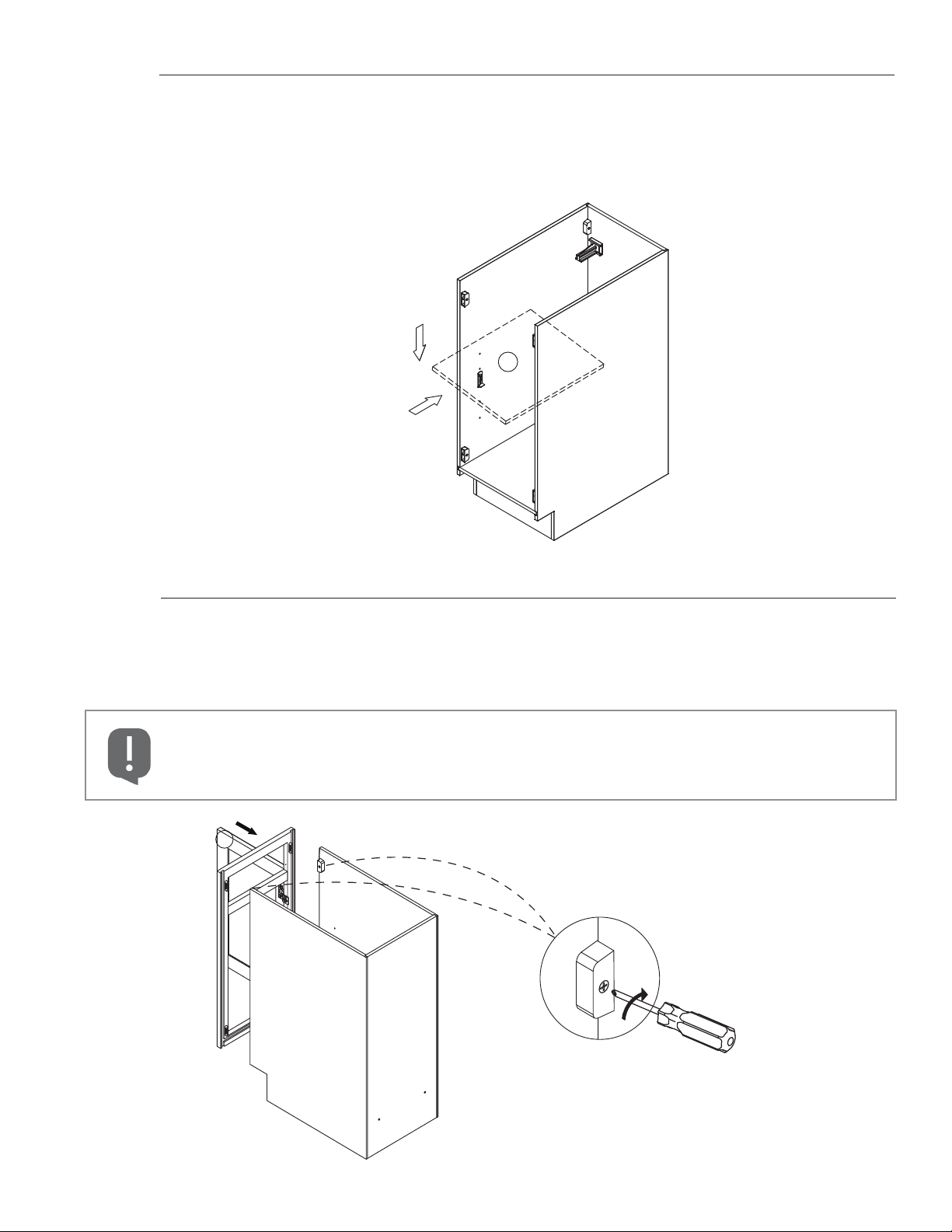

Step 6
Add the frame and door assembly to the cabinet box as shown in the illustration. Using a Phillips
Head screwdriver, rotate the connector clockwise to fasten into place. Ensure all connectors are
locked into place before moving the cabinet.
Need assistance? Contact us at 1.833.748.4846.
E
Step 5
1. Stand the cabinet upright. Slightly tilt and insert the shelves into the cabinet as shown on
the diagram.
2. Press shelves in a downward direction to lock them into place.
1
ANGLE INSERT
2
PRESS TO FIX
D
PRESS TO FIX
ANGLE INSERT
SHELF ASSEMBLY

6Need assistance? Contact us at 1.833.748.4846.

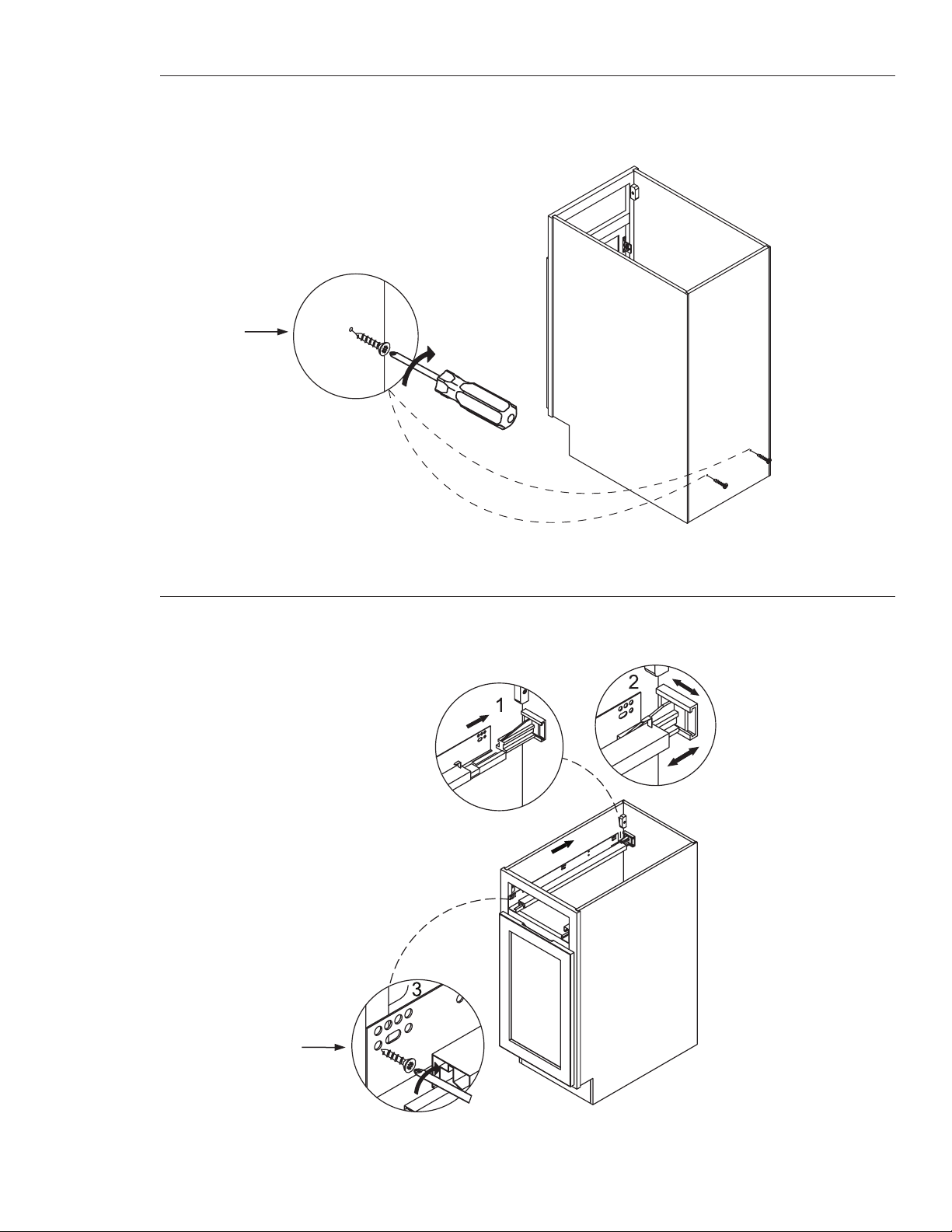

Step 8
Place the drawer slides in the correct position and fasten with 5/8" CSK screws as shown.
5/8" CSK
SCREW
x2
Step 7
Using a Phillips Head screwdriver, secure the back panel with 5/8" CSK screws as shown in the
illustration. Be careful not to over-tighten as this may damage the product.
5/8" CSK
SCREWS
x2

7
Need assistance? Contact us at 1.833.748.4846.
Step 9
Place the drawer front on a soft surface to prevent damage. Assemble the drawer box parts as per
the illustration.
Step 10
1. Using a Phillips Head screwdriver, secure the drawer box assembly with 1" CSK screws as
shown in the diagram.
2. Turn the drawer box upside down, place the drawer bottom bracket into the correct positions
and secure using the 5/8" and 1/2" CSK screws as per illustration. Be careful not to over-tighten
the screws as this may damage the product.
1" CSK
SCREW
x4
5/8" CSK
SCREW
x4
1/2" CSK
SCREW
x2

8
Step 12
1. Fully extend the left and right slides and place the drawer box assembly on top.
2. Ensure the slides are lined up with the grooves on the bottom of the drawer box.
3. Push the drawer box swiftly and rmly into the cabinet box to attach slides and drawer box as
demonstrated in the diagram.
4. If the box does not attach, remove and repeat the process.
Need assistance? Contact us at 1.833.748.4846.
Drawer maximum load capacity is 65 lbs.
INSERT
DRAWER
Step 11
Place the bumpers on the drawer front as shown.
BUMPER
x2

9

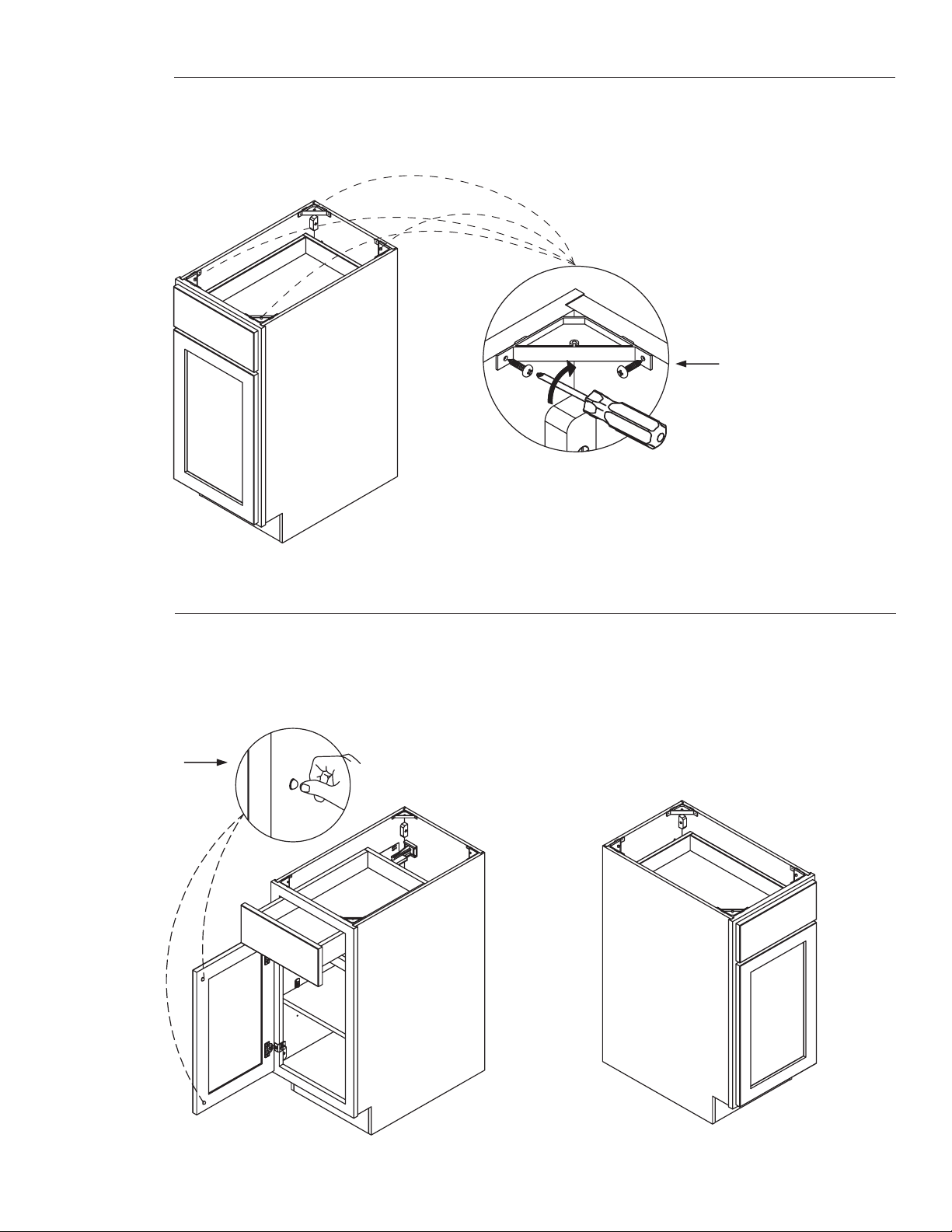

Step 13
Line up the corner brackets in the correct positions and use the 1/2" pan head screws to secure
them into place as shown in the illustration.
Need assistance? Contact us at 1.833.748.4846.
Step 14
Place the bumpers on the door as shown. If needed, drawer and door adjustment instructions are
available on pages 10 and 11.
BUMPER
x2
ENJOY YOUR NEW CABINETS
1/2" PAN
HEAD
SCREW
x8

10
DRAWER FRONT ADJUSTMENT
If you need to adjust your drawer front/back, up/down or left/right, please follow the below
instructions.
Need assistance? Contact us at 1.833.748.4846.
Front/Back Adjustment
Up/Down Adjustment
Left/Right Adjustment

11
DOOR ADJUSTMENT
If you need to adjust your door front/back, up/down or left/right, please follow the below
instructions.
Front/Back Adjustment
Up/Down Adjustment
Left/Right Adjustment
Need assistance? Contact us at 1.833.748.4846.

12
CARE AND CLEANING
• For normal cleaning, using a soft damp cloth. Dry the surface after wiping.
• Use a mild soap and water solution, with most of the water squeezed from the cloth.
• For items tougher to clean, you can use most general-purpose household cleaners.
• Do not use abrasive scrubbers or harsh chemical cleaners on the doors or drawers.
• Do not allow liquids to remain on the doors or other surfaces of the cabinets for extended
periods of time.
WARRANTY
All products must be inspected immediately upon receipt for any physical damage, missing boxes or components. Any
visible damage to the goods or missing packages must be noted to the carrier and marked on the bill of lading. These
claims must be submitted within 14 days of receipt.
What This Warranty Covers: The manufacturer warrants its products to be free from substantial defects in materials
and workmanship from the original date of purchase under normal home use. This warranty is offered only to the
original consumer purchaser and may not be transferred. The manufacturer is only responsible for the actual
purchase price.
How Long the Warranty Lasts: Coverage for all wall cabinets, base cabinets, pantry cabinets, door fronts, drawer
fronts, shelves, cover panels, llers, mouldings, hinges, drawer parts (rails and soft-close mechanisms), adjustable feet
and storage accessories are warranted to the original purchaser for as long as they own their home. This warranty is
not transferable.
What the Manufacturer Will Do Under the Warranty: During the warranty period, the manufacturer at its discretion,
will repair or replace any part or product that proves to have substantial defects in materials or workmanship, or the
manufacturer will provide an equivalent replacement product. The manufacturer reserves the right to change
specications in design and materials without notice and with no obligation to replace products that were previously
manufactured.
Implied Warranties: The manufacturer disclaims any implied warranty of merchantability, and there are no warranties
that extend beyond the descriptions on the face hereof.
Aging, Manufacturing, Natural Characteristics and Appearing in Printed Materials: Because of the varying natural
characteristics of wood and the effects of aging, product shown in displays and/or printed materials (such as product
photos printed in brochures, yers, catalogs, etc.) will not be an exact match to the cabinetry you will receive.
Depending on the wood grain characteristics, the age of a sample and the environment of the retail showroom,
samples will show some degree of variation from a new product. In addition, you should not expect all doors, drawer fronts,
cover panels, trim or molding to match exactly in either nish or grain. Variation in wood grain is normal and
unavoidable. In addition, it is not possible to exactly match our colors in printed materials. Therefore, you should view
the actual samples when making your color selection. Depending on the wood grain characteristics, the age of a
sample and the environment of the retail showroom, samples will show some degree of variation from a new product.
In addition, you should not expect all doors, drawer fronts, cover panels, trim or molding to match exactly in either nish
or grain. Variation in wood grain is normal and unavoidable. In addition, it is not possible to exactly match our colors in
printed materials. Therefore, you should view the actual samples when making your color selection.
Need assistance? Contact us at 1.833.748.4846.

13
What This Warranty Does Not Cover: This warranty does not cover any problems or damage which result from
improper transportation, improper installation, mishandling, misuse, abuse, neglect, abnormal use, commercial use,
improper maintenance, unauthorized repairs, accidents, or acts of God, such as hurricanes, re, earthquakes or oods.
The warranty and any applicable implied warranties do not cover incidental or consequential damages arising from any
defects in the product such as labor charges for installation or removal of the product or any associated products. The
manufacturer is not responsible for any installation charges. This warranty does not cover defects or damage caused
by normal wear and tear, alterations, environmental conditions, humidity absorption, or mold. In addition, variations in
wood grain, nish color or aging are not considered defects and are not covered by this warranty.
How to Obtain Warranty Service: If you need replacement parts or would like to make a warranty claim, please
contact our Customer Service Representative at 1.833.748.4846. All warranty claims must include the model number of
the product, a copy of the original receipt, and the nature of the problem. In addition, the manufacturer may at its
discretion require inspection of the installation site, photography, or authorize the prepaid return of the claimed
defective part. Merchandise not pre-approved for return will not be accepted and the associated claim not accepted.
If upon inspection you nd your product is damaged or missing parts, it is not necessary to return the unit to the store of
purchase. Please contact the manufacturer.
Need assistance? Contact us at 1.833.748.4846.

14
Modèle Nº B12(L/R), B15(L/R),
B18(L/R), B21(L/R), B24(L/R)
Fini : Blanc, Gris
OUTILS
NÉCESSAIRES
POUR
L’ASSEMBLAGE
MATIÈRES
Avant de commencer Page 14
Quincaillerie incluse Page 14
Contenu de l’emballage Page 15
Assemblage Page 16
AVANT DE COMMENCER
QUINCAILLERIE INCLUSE La quincaillerie est présenté à la page suivante.
Réglage du devant de tiroir Page 23
Réglage des portes Page 24
Entretien et nettoyage Page 25
Garantie Page 25
SUPPORT DU
FOND DE TIROIR
PAQUET x1
GLISSIÈRE DE
TIROIR
PAQUET x1
TAQUET À
TABLETTE
x4
VIS À TÊTE
FRAISÉE DE 1 PO
x4
VIS À TÊTE
FRAISÉE DE 5/8 PO
x8
INSTRUCTIONS POUR L’ASSEMBLAGE
Nous vous remercions de votre achat!
Si vous avez des questions ou avez
besoin d’aide : Veuillez communiquer
avec notre service à la clientèle entre
8 h et 17 h (HNE), du lundi au vendredi.
1 833 748.4846
[email protected]
Comparez les pièces contenues dans la boîte avec le
contenu indiqué à la section " Quincaillerie incluse "
du présent manuel. S’il y a des pièces manquantes ou
endommagées, communiquez avec notre service à la
clientèle avant d’e󰀨ectuer l’assemblage.
Pour éviter d’endommager l’article, assemblez
l’armoire sur une surface douce, comme un tapis, une
serviette ou le carton d’emballage.

15
SUPPORT EN
CORNIÈRE
x4
BUTOIR DE 5 MM
x4
CONTENU DE L’EMBALLAGE
VIS À TÊTE CYLINDRIQUE
DE 1/2 PO
x8
Nº de pièce Description Qté.
A PANNEAU GAUCHE 1
B PANNEAU DROIT 1
CPANNEAU ARRIÈRE 1
D TABLETTE 1
E ENSEMBLE CADRE ET PORTE 1
FASSEMBLAGE DU DEVANT DE TIROIR 1
GCÔTÉ DU TIROIR 2
HFOND DE TIROIR 1
IARRIÈRE DU TIROIR 1
J COUP-DE-PIED 1
K PARTIE INFÉRIEURE 1
VIS À TÊTE FRAISÉE
DE 1/2 PO
x2
Vous avez besoin d’aide? Communiquez avec nous au 1 833 748-4846.
A
B
K
C
D
E
F
G
G
H
I
J
CONSEIL UTILE : utilisez du ruban adhésif de peintre pour étiqueter temporairement
les composants comme indiqué sur le diagramme an de faciliter l'assemblage.

16
Étape 2
Assemblez les pièces de l’armoire, tel qu’il est illustré. À l’aide d’un tournevis cruciforme, faites
tourner le raccord dans le sens des aiguilles d’une montre pour le xer. Assurez-vous que tous les
raccords sont verrouillés en place avant de déplacer l’armoire.
C
B
A
Vous avez besoin d’aide? Communiquez avec nous au 1 833 748-4846.
Insérez les taquets à tablette aux endroits désirés, tel qu’il est illustré. Insérez les pièces du
support arrière de la glissière de tiroir pour les insérer, tel qu’il est illustré.
ASSEMBLAGE
Étape 1
A
B
C

17
Étape 3
Insérez le panneau inférieur tel que le démontre l’illustration.
K
Vous avez besoin d’aide? Communiquez avec nous au 1 833 748-4846.
Alignez le coup-de-pied sur le caisson d’armoire assemblé, tel qu’il est illustré. À l’aide d’un
tournevis cruciforme, faites tourner le raccord dans le sens des aiguilles d’une montre pour le
xer. Assurez-vous que tous les raccords sont verrouillés en place avant de déplacer l’armoire.
J
Étape 4

18
Assurez-vous que les panneaux latéraux et la tablette inférieure sont alignés sur les
rainures du cadre avant de serrer les raccords.
Fixez l’ensemble cadre et porte au caisson d’armoire, tel qu’il est illustré. À l’aide d’un tournevis
cruciforme, faites tourner le raccord dans le sens des aiguilles d’une montre pour le xer.
Assurez-vous que tous les raccords sont verrouillés en place avant de déplacer l’armoire.
EE
Étape 6
Vous avez besoin d’aide? Communiquez avec nous au 1 833 748-4846.
1. Placez l’armoire en position verticale. Inclinez légèrement les tablettes et insérez-les dans
l’armoire, comme le montre l’illustration.
2. Appuyez sur les tablettes pour les xer en place.
Étape 5
1
ANGLE INSERT
2
PRESS TO FIX
D
APPUYER POUR FIXER
INSÉRER EN ANGLE
ENSEMBLE DE
TABLETTE

19
Étape 7
À l’aide d’un tournevis cruciforme, xez le panneau arrière avec des vis à tête fraisée de 5/8 po, tel
qu’il est illustré. Prenez soin de ne pas trop serrer les vis, car vous risqueriez d’endommager l’article.
VIS À TÊTE
FRAISÉE DE 5/8 PO
x2
Vous avez besoin d’aide? Communiquez avec nous au 1 833 748-4846.
Placez les glissières de tiroir dans la bonne position et xez-les à l’aide de vis à tête fraisée de
5/8 po, tel qu’il est illustré.
Étape 8
VIS À TÊTE
FRAISÉE DE 5/8 PO
x2

20
1. À l’aide d’un tournevis cruciforme, xez l’ensemble de tiroir avec des vis à tête fraisée de 1 po,
tel qu’il est illustré.
2. Mettez le tiroir à l’envers, placez le support du fond de tiroir dans la bonne position et xez-le
à l’aide de vis à tête fraisée de 5/8 po et de 1/2 po, tel qu’il est illustré. Prenez soin de ne pas
trop serrer les vis, car vous risqueriez d’endommager l’article.
Étape 10
VIS À TÊTE
FRAISÉE DE 1 PO
x4
VIS À TÊTE
FRAISÉE DE
1/2 PO
x2
VIS À TÊTE
FRAISÉE DE 5/8 PO
x4
Vous avez besoin d’aide? Communiquez avec nous au 1 833 748-4846.
Placez le devant de tiroir sur une surface douce pour éviter de l’endommager. Assemblez les
pièces du tiroir, tel qu’il est illustré.
Étape 9
