Magiglo TRIBUTE PD-08-002 User guide

TRIBUTE
Balanced Flue Convector
Model Number; PD-08-002
Fuel Effect Options:
Coal Effect
Gas Options:
NG
Control Options:
Manual Control
Remote Control
Total Control
For use on Natural Gas (G20) at a supply pressure of 20mbar in GB and IE.
Users,
Installation & Servicing
Instructions
MUST BE LEFT WITH THE USER

Manufacturer Contact Details:
Burley Appliances Ltd
Lands’ End Way
Oakham
Rutland LE15 6RB
Tel: [phone]
Fax: [phone]
General E-Mail: [email protected]
Web Site: www.magiglo.co.uk
Technical Support: Direct Dial on [phone] or email: [e-mail]
Burley Magiglo Document Number:
MF476.2
Revision Date:
June 2015
Copyright:
This documentation is copyrighted by Burley Appliances Ltd. ©2013.
No part of this document may be copied, photocopied or reproduced in any form or by any
means without permission in writing from Burley Appliances Ltd.
Magiglo is a registered trademark of Burley Appliances Ltd.
Service Warranty:
In the unlikely event of a defect in materials or workmanship occurring within one year of
purchase, Burley will arrange to repair or replace the item free of charge.
Any claims under this warranty must be made through the retailer from whom the product
was purchased.
As the purchaser’s contract of sale is with the retailer, Burley are unable to enter into
discussions with the purchaser until the retailer has inspected any claim and deemed it to
be valid.
Burley Appliances reserve the right to refuse service or make a charge for any service call,
when a defect is due to installation error or misuse.
Extended warranty (if purchased) commences after the first year; please see separate
registration for further information.

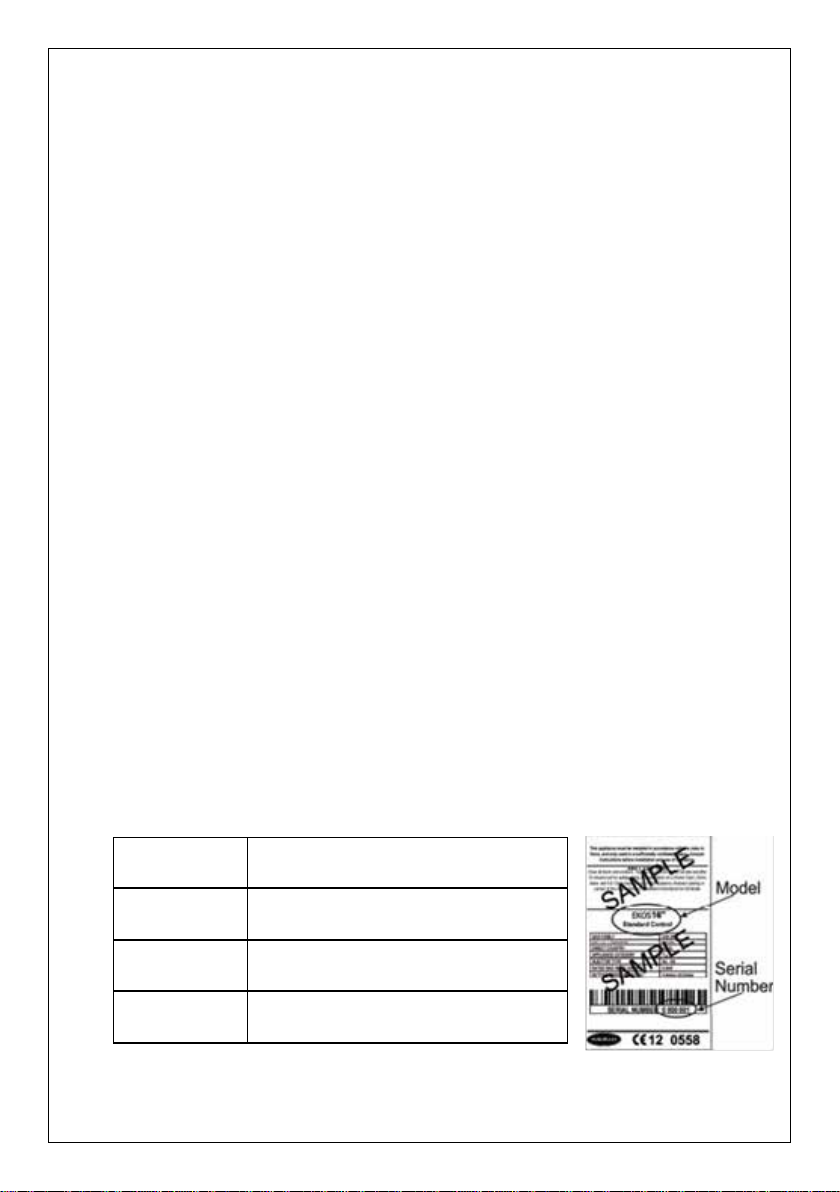

Appliance Details:
For future reference, please complete the following information at the time of installation.
Model and Serial Number details may be found on the data plate as shown.
Serial Number
Model
Installation Date
Installed By

Contents
1. GENERAL INFORMATION ..........................................................................................1
2. USER INSTRUCTIONS ................................................................................................3
2.1. Location of Pilot Burner.................................................................................3
2.2. Lighting Procedure........................................................................................4
2.2.1. Manual Control ........................................................................................5

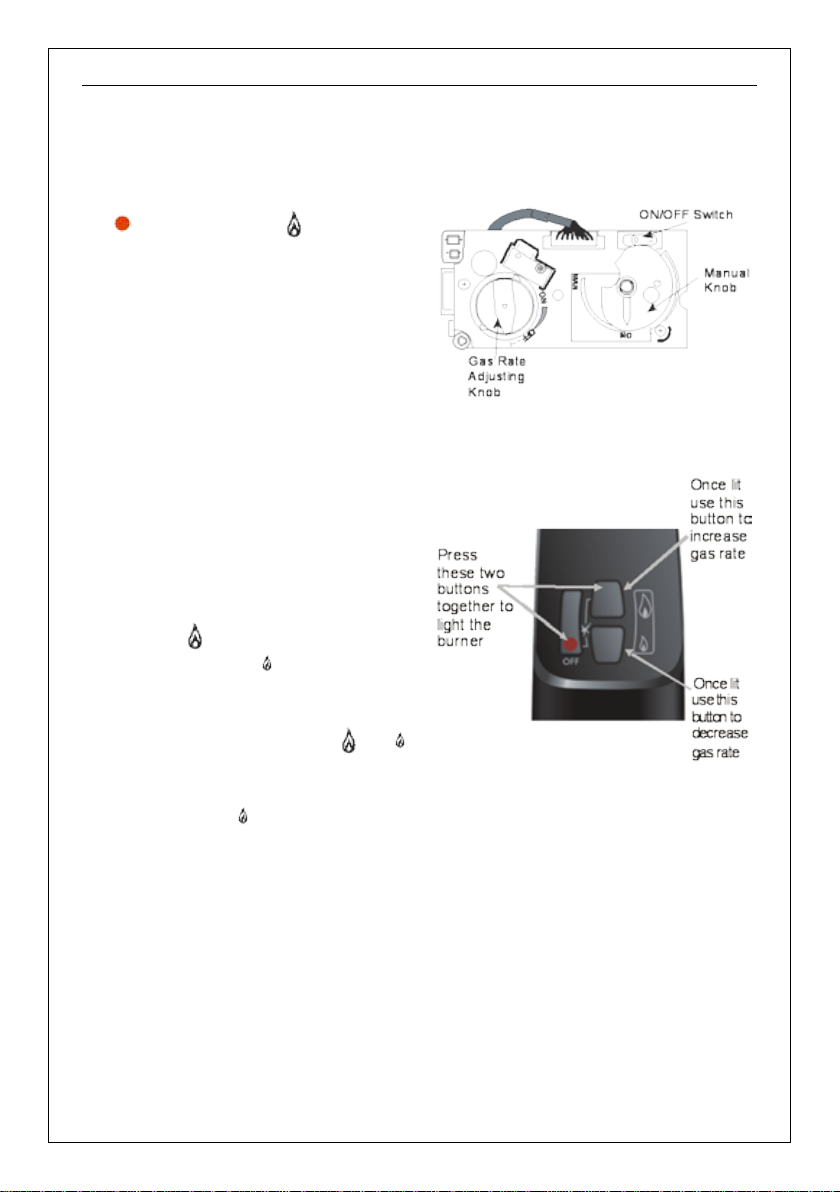

2.2.2. Lighting Procedure (Remote Control).......................................................6
2.2.3. Lighting Procedure (Total Control) ...........................................................7
2.3. Battery Replacement (Remote Control).........................................................8
2.3.1. Handset ...................................................................................................8
2.3.2. Receiver Unit...........................................................................................8

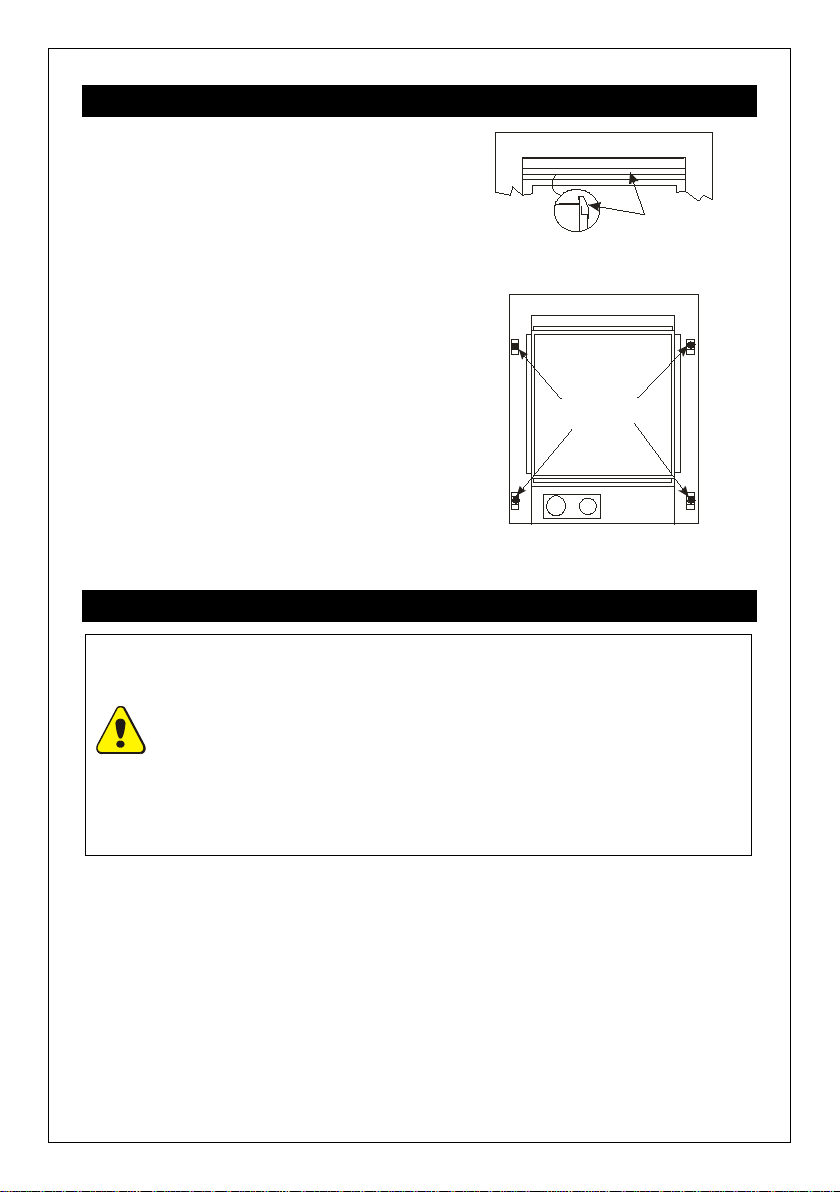

2.4. Fitting the Trim..............................................................................................9
2.5. Home Improvements.....................................................................................9
2.6. Cleaning and Care Instructions ...................................................................10
2.6.1. Painted Metal Surfaces..........................................................................10
2.6.2. Brass or Chrome Surfaces.....................................................................10
3. INSTALLATION INSTRUCTIONS ..............................................................................11
3.1. General Safety Requirements .....................................................................11

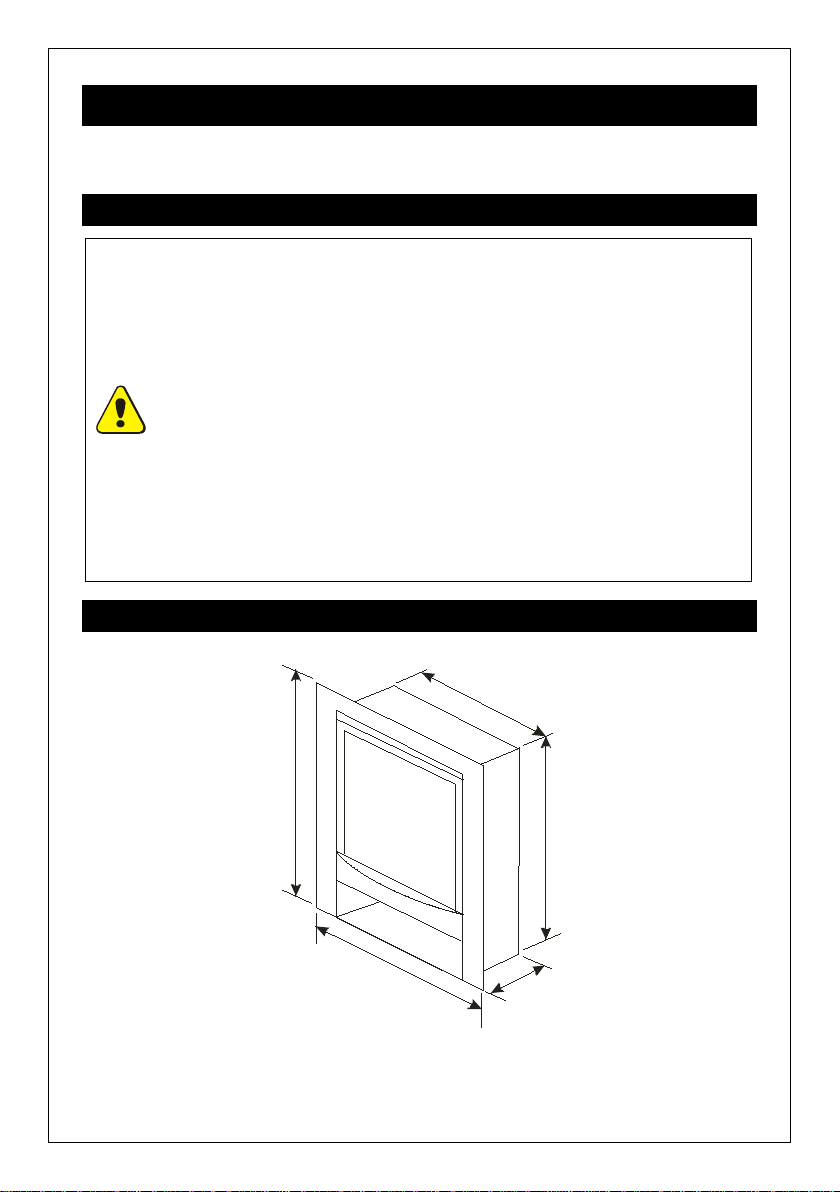

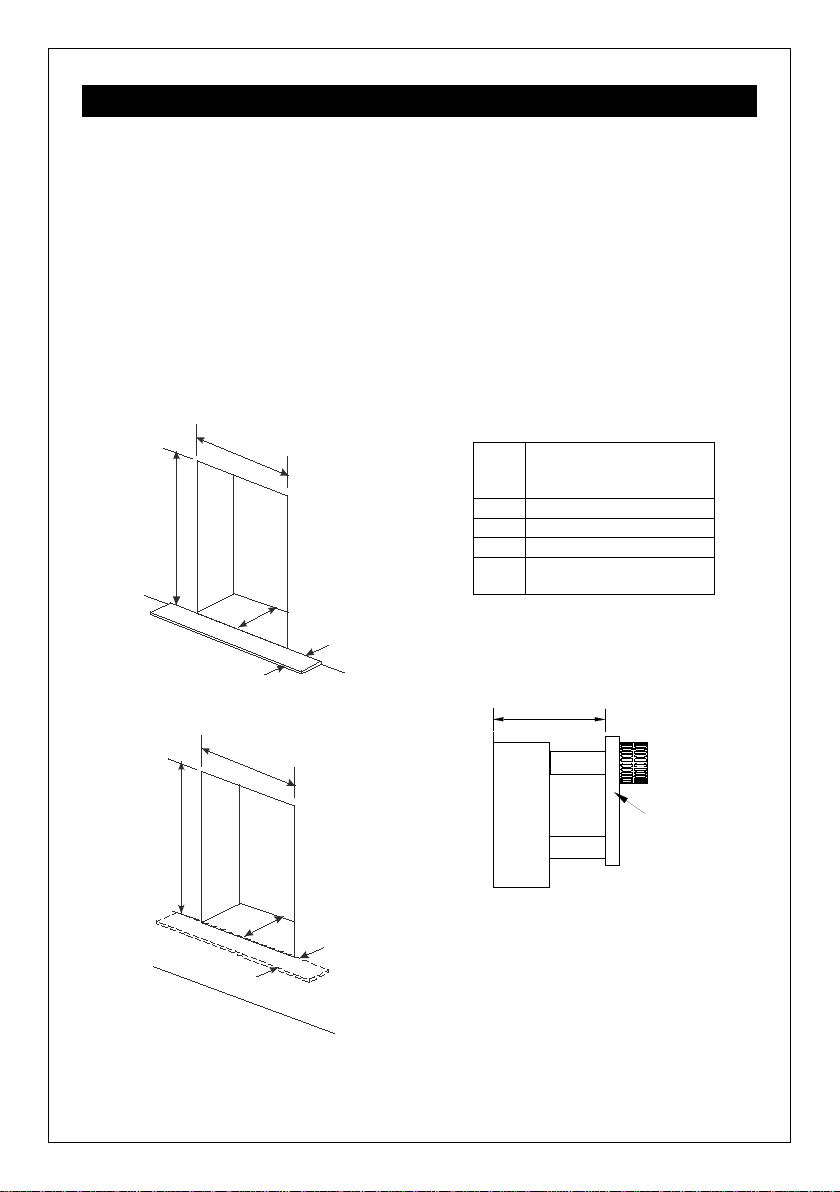

3.2. General Dimensions....................................................................................11
3.3. Flue Options................................................................................................12
3.4. Technical Data............................................................................................13
3.5. Appliance Location......................................................................................14
3.5.1. Mantels & Combustible Shelves.............................................................15

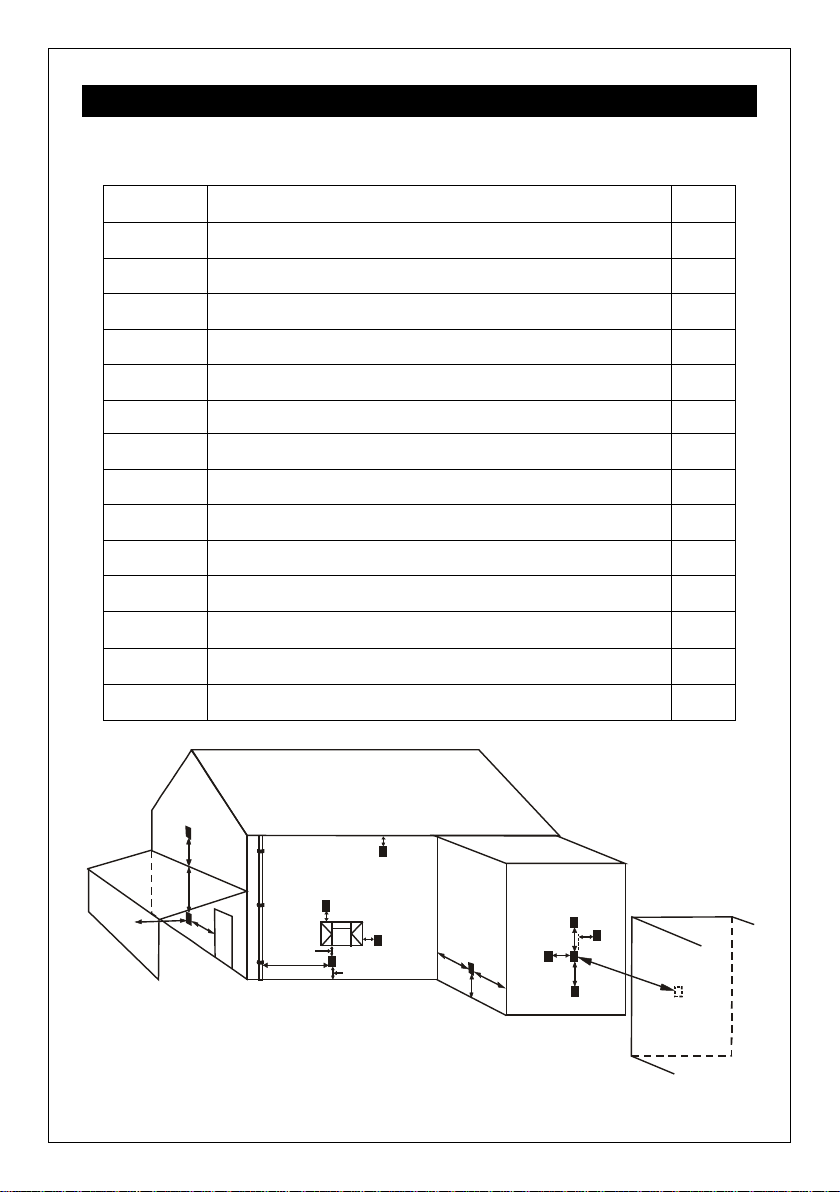

3.6. Flue Terminal Location................................................................................16
3.7. Flue Components........................................................................................17
3.8. Contents Checklist ......................................................................................17
3.9. Installation Procedure..................................................................................18
3.9.1. Pre-Installation Procedure......................................................................18
3.9.2. Preparing the Installation .......................................................................18
3.9.3. Surface Mounted Firebox Preparation....................................................23
3.9.4. The Gas Supply.....................................................................................26
3.9.5. Fuel Effect Layouts................................................................................27
3.9.6. Coal Effect Layout..................................................................................28
3.9.7. Fitting the Glass Panel and Frame.........................................................29
3.9.8. Continuation of Installation - Remote Control .........................................29
3.9.9. Continuation of Installation - Total Control..............................................30
3.9.10. Commissioning ......................................................................................31
3.9.11. Fitting the Trim.......................................................................................32
3.9.12. Instructing the User................................................................................32

4. SERVICING INSTRUCTIONS.....................................................................................33
4.1. General Requirements ................................................................................33
4.1.1. Cleaning the Fuel Effect, Fire-bed and Combustion Chamber................34
4.1.2. Cleaning Lining Board Panels................................................................34
4.1.3. Care of Lining Panels.............................................................................34
4.2. Replacing Parts...........................................................................................35
4.2.1. Pilot Components Removal and Replacement .......................................35
4.2.2. Injector Replacement.............................................................................35
4.2.3. Control Valve Replacement (Manual Control /Remote Control)..............36
4.2.4. Control Valve Replacement (Total Control)............................................37
4.2.5. Motor Replacement (Remote Control Model) .........................................38
4.2.6. Replacing the Receiver (Total Control)...................................................39
4.2.7. Programming Handset to Receiver (Total Control).................................39
4.3. Installation and Operational Troubleshooting...............................................40

Page 1
1.GENERAL INFORMATION
Introduction
1. This appliance is suitable for installation in GB and IE and should be installed in
accordance with the rules in force.
In GB, the installation must be carried out by a Gas Safe Registered Installer. It must be
carried out in accordance with the relevant requirements of the:
•Gas Safety (Installation and Use) Regulations.
•The appropriate Building Regulations either The Building Regulations, The
Building Regulations (Scotland), Building Regulations (Northern Ireland).
Where no specific instructions are given, reference should be made to the relevant British
Standard Code of Practice (see item 2).
In IE, the installation must be carried out by a Competent Person and installed in
accordance with the current edition of I.S.813 “Domestic Gas Installations”, the current
Building Regulations and reference should be made to the current ETCI rules for electrical
installation.
On completion of an installation in IE, it is necessary to complete a “Declaration of
Conformity” to indicate compliance to I.S.813.
2. The installation of the fire should also follow the recommendations of the following current
British Standards (or equivalent):
BS 6891 Pipe work Installation
BS 5440: Pts 1 & 2 Flues and Ventilation
IGE/UP/7 IGE document for gas installations in Timber Frame Buildings
(Available from Institute of Gas Engineers and Managers)
3. In other EC countries equivalent rules in force must be used.
4. It is important for correct combustion of this fire that the imitation fuel is placed in
accordance with the instructions given in this and associated booklets. Only approved
imitation fuel, available from Burley Appliances Ltd., should be used with this appliance.
5. It is recommended that a fire guard complying with BS 8423 be fitted for the protection of
young children, the elderly or infirm.
6. Ensure that curtains are not positioned above the appliance and there is at least 300mm
between the sides of the appliance and any curtains.
7. Combustible shelves or materials must only be fitted above the fire in accordance with the
instructions given in this and associated booklets.
8. The user is warned not to remove the glass panel or to disturb the fuel bed.
9. If any cracks appear in the glass panel do not use the appliance until the glass
panel has been replaced (by a qualified installer).
10. Ensure that the flue terminal is always kept clear of any obstructions (e.g. shrubs, plants,
objects leaning against it, etc.).
11. It is important for the fire to be serviced regularly. An annual service is recommended.

Page 2
Ventilation Requirements
1. This appliance does not require any ventilation in the room where it is fitted. It is a
balanced flue appliance whereby the air for combustion is drawn in from the outside and
the products of combustion are evacuated to the outside through a concentric flue duct
system.
2. In other EC countries equivalent rules in force must be used.
Gas Supply
1. This range of gas fires is suitable for use with Natural Gas (G20) at 20mbar supply
pressure.
2. A separate means of isolating the gas supply should be provided near to the appliance to
facilitate servicing. An isolation valve (with a pressure test point) has been supplied for
this purpose.
Electrical Supply
Not applicable to this range of appliances.
Efficiency Declaration
The efficiency of this appliance has been measured as specified in BS EN 613:2001 and the
results are 80% net. The gross calorific value of the fuel has been used for this efficiency
calculation. The test data from which it has been calculated has been certified by BSI Ltd. The
efficiency value may be used in the UK Government Standard Assessment Procedure (SAP)
for energy rating of dwellings.
Hot Surfaces
Certain parts of this appliance get very hot during normal use. It is therefore recommended
that a suitable fireguard be used for the protection of young children and the infirm. The

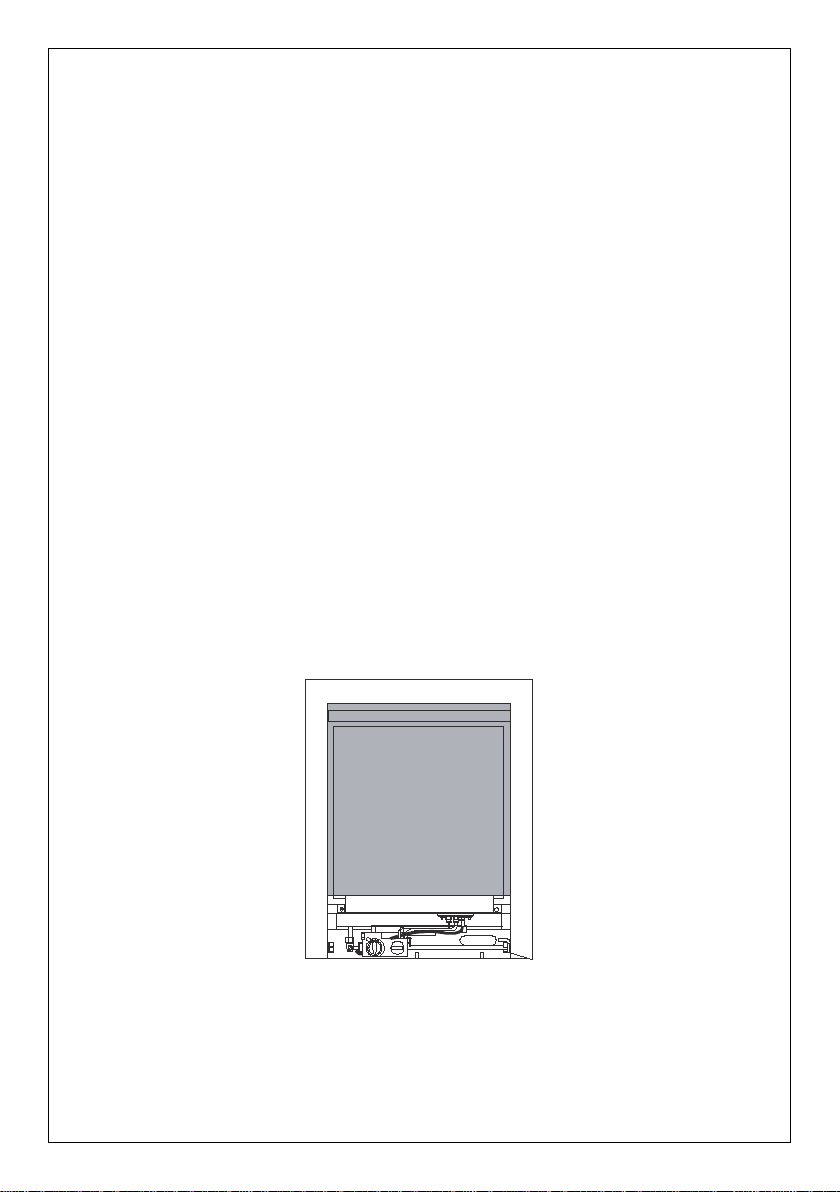

shaded parts in Figure 1 show the ‘Working Surfaces’ on the appliance.
Masking Plate
All shaded portion is
working surface
Figure 1

Page 3
2.USER INSTRUCTIONS

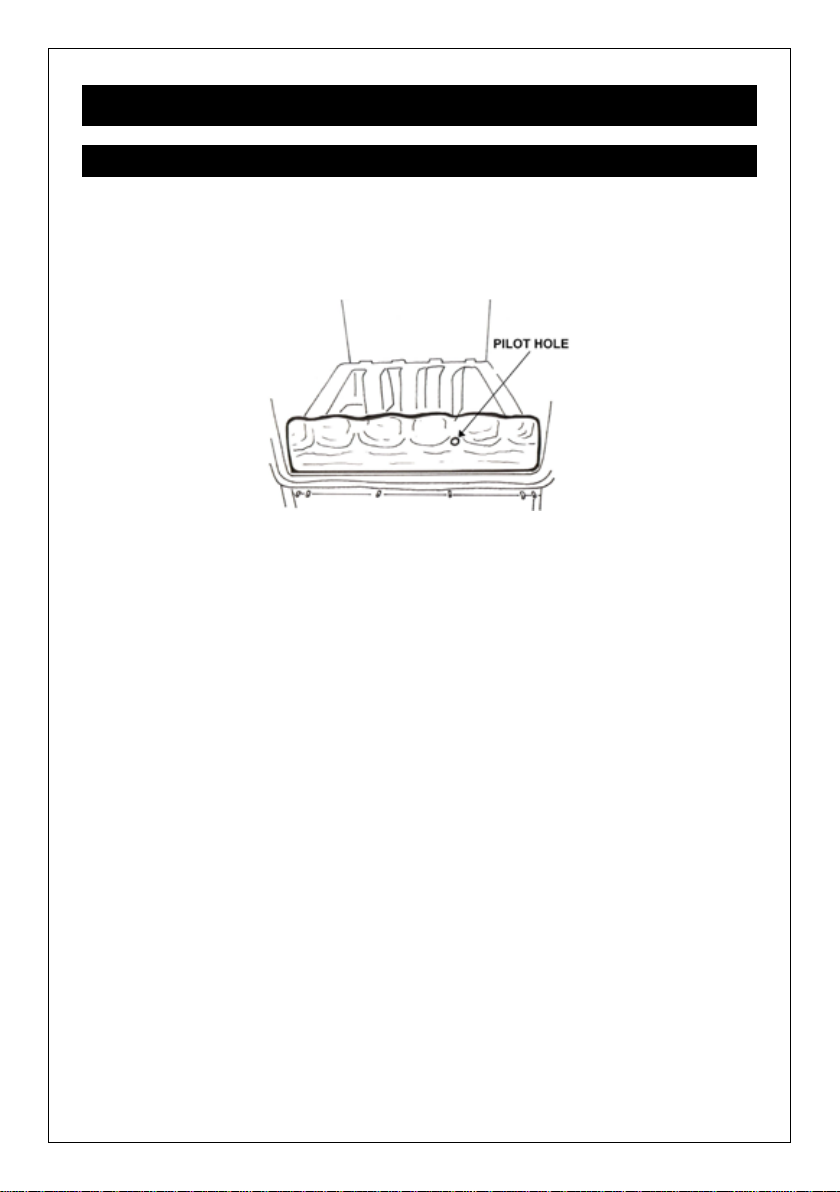

2.1. Location of Pilot Burner
The pilot assembly is located at the centre of the appliance in front of the main burner.
The pilot can be viewed by looking downwards through the hole in the front ceramic between
the second and third coals from the right hand side (see Figure 2).
Figure 2

Page 4

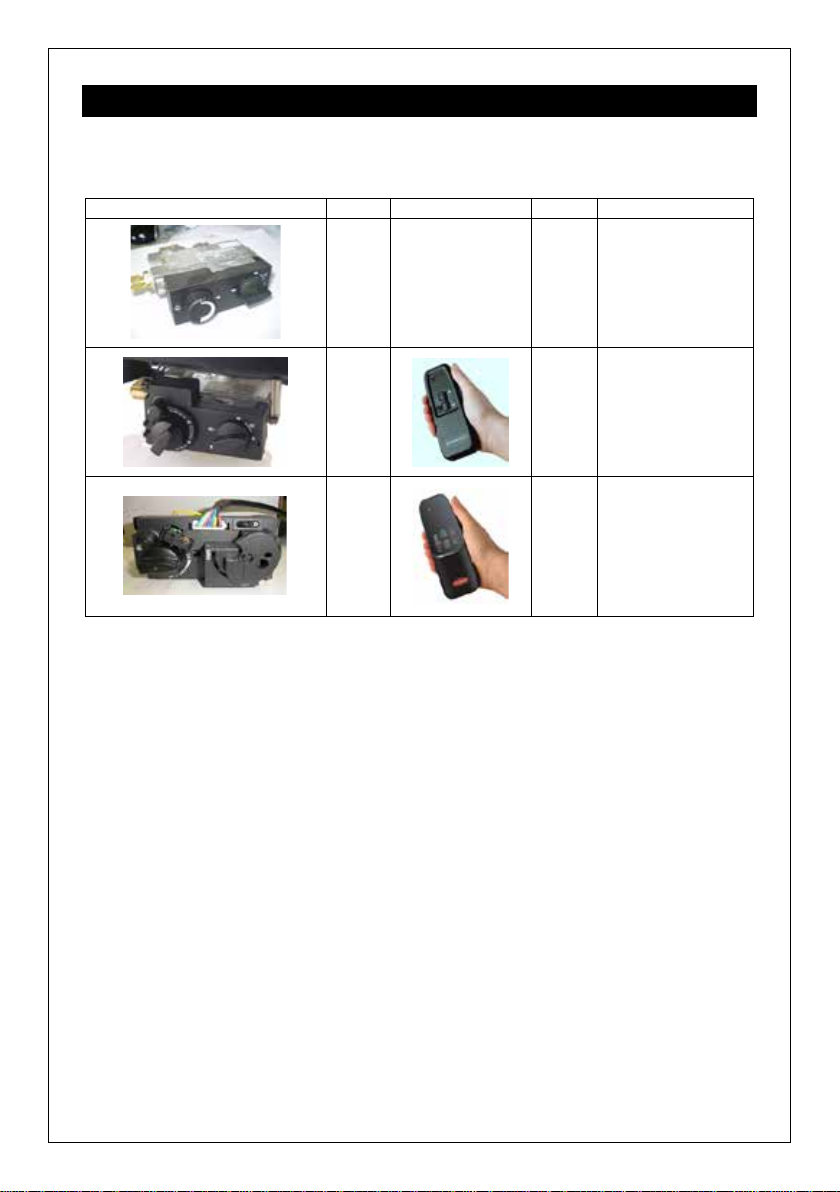

2.2. Lighting Procedure
Your fire will be fitted with one of the following different types of gas control valves. Identify the
control system on your fire as shown and follow the appropriate operating instructions in the
appropriate section.
Control Valve
Operation
Control Type
+
Manual =
Manual Control
See
Section 2.2.1
on Page 5
+
=
Remote Control
See
Section 2.2.2
on Page 6
+
=
Total
Control
See
Sections
2.2.3
on Page 7

Page 5

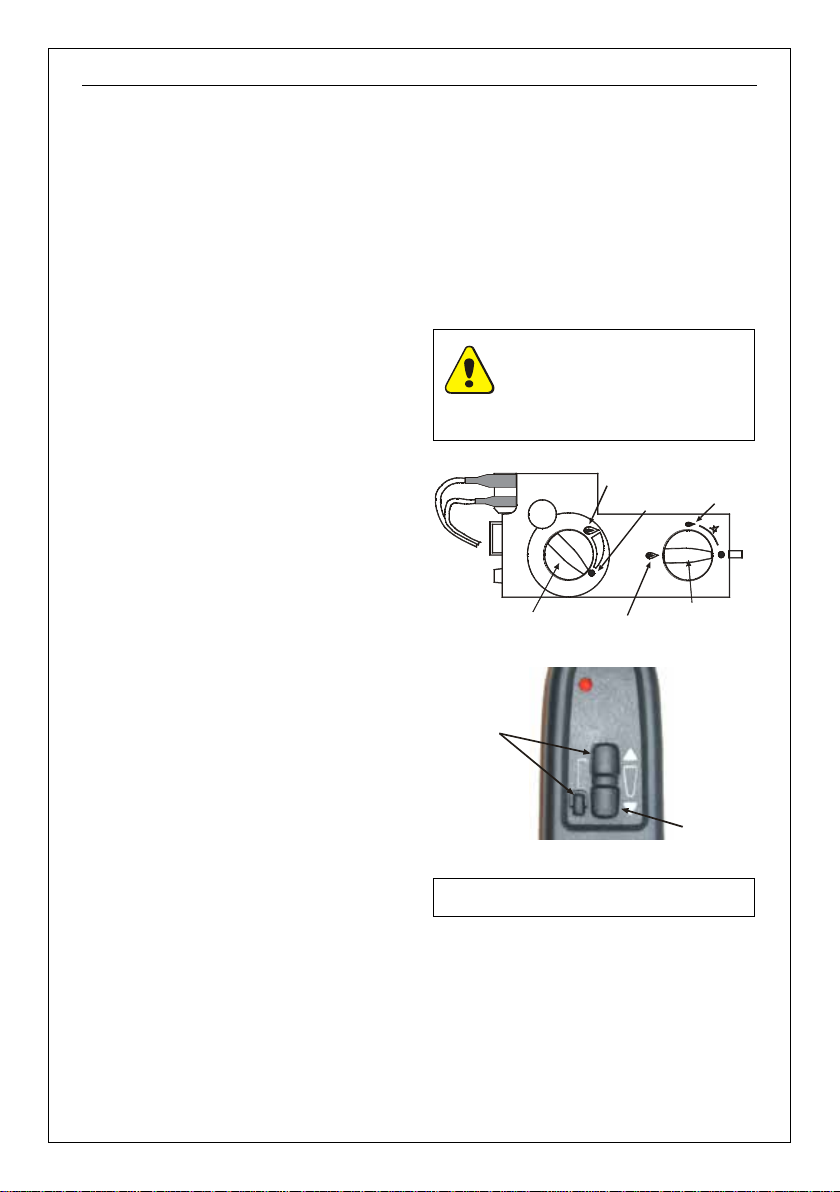

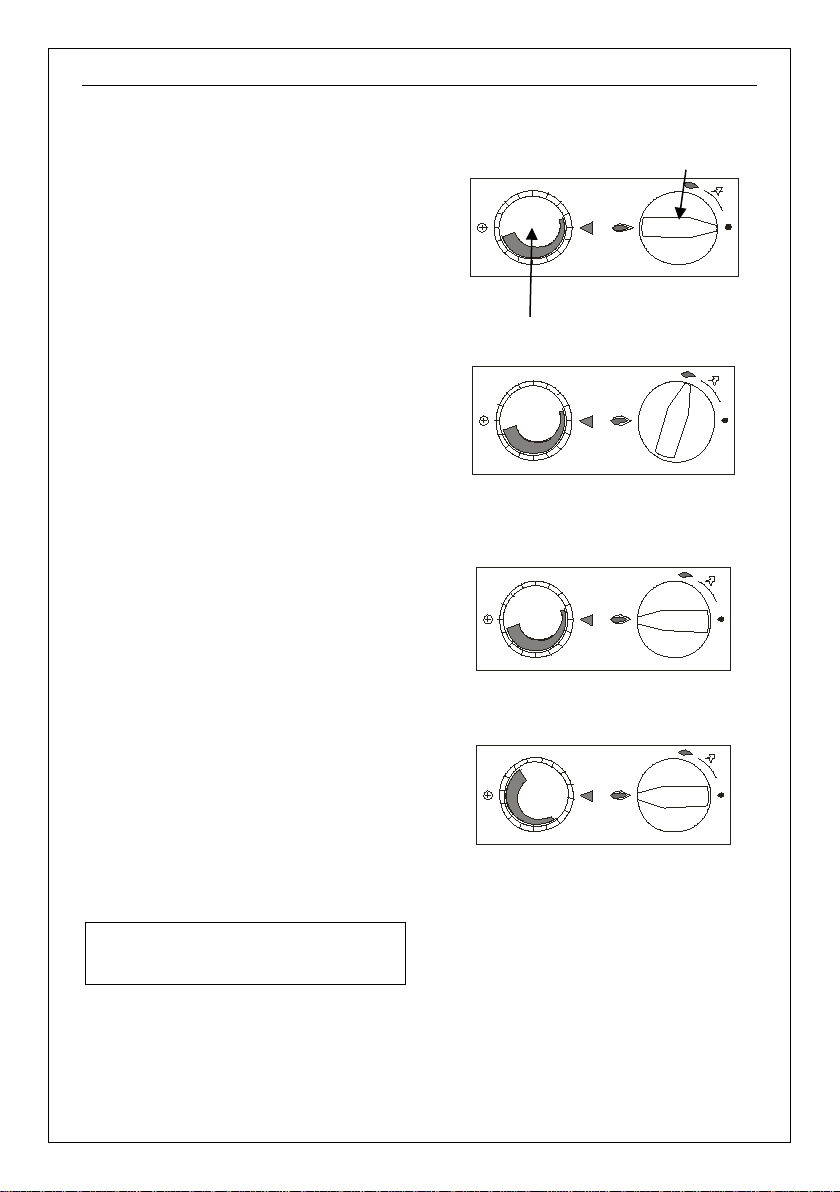

2.2.1. Manual Control
1. Whilst pushing the IGNITION KNOB
in (see Figure 3), turn it
anticlockwise to the pilot flame
position as shown in Figure 4.
During this process, the spark
ignition will have operated and lit the
pilot flame. On lighting the pilot
flame continue to depress the
ignition knob for a further 15 - 20
seconds then slowly release. The
pilot flame should stay alight. If the
flame goes out, repeat the procedure
above to establish the pilot. Due to
safety and the efficient way the fire
works, it is not unusual for the pilot
to stay alight only after the second or
even third attempt.
2. Turn the IGNITION KNOB
anticlockwise to the main flame
position as shown in Figure 5 .
3. Turn the GAS RATE ADJUSTING
KNOB fully anticlockwise (until you
reach the stop position) i.e. the
maximum gas rate. See Figure 6.
4. The main burner will have cross-lit
from the pilot.
5. Now the gas rate can be adjusted to
the desired setting by turning the
GAS RATE ADJUSTING KNOB to
any position between the pre-set
high and low.
6. To switch off the main burner turn
the IGNITION KNOB to the ‘Pilot
burner only Position’ as shown in
Figure 4. The appliance may be left
in this standby mode if desired.
7. To turn the pilot off turn the Ignition
Knob on the control valve fully
clockwise to ‘Ä’ position.
Figure 3-Off Position
Figure 4- Pilot Burner Only
Figure 5- Main Burner Operational, but gas flow off
Figure 6-Main Burner Operational and Max. Gas
Rate
Ignition Knob
Gas Rate Adjusting Knob

Page 6
2.2.2. Lighting Procedure (Remote Control)
1. Press the bottom button on the remote
handset until clicking is heard on the
valve, and the gas rate adjustment knob
is at the off position.
2. With gas available at the valve press the
IGNITION KNOB in and turn it
anticlockwise to the pilot flame position
(see Figure 7). A click of the piezo
igniter will be heard and a spark will
appear at the electrode. At the same
time the gas will flow to the pilot burner
and should be ignited by the spark.
Repeat the procedure until the pilot
flame is established.
3. Keep the knob pressed in for a further 15
- 20 seconds and slowly release it. The
pilot flame should stay alight. If the flame
goes out repeat the procedure above to
establish the pilot. Due to safety and the
efficient way the fire works, it is not
unusual for the pilot to stay alight only
after the second or even third attempt.
4.
5. Turn the IGNITION KNOB
anticlockwise to the Main Burner
Operation position as shown in Figure
7.
6. Using the HANDSET (as shown in
Figure 8) press and hold both the top
and the small button together until the
main burner goes to full rate and clicking
can be heard from the valve. During this
process the main burner will ignite from
the pilot.
7. By pressing the two buttons together (to
increase the gas rate) and the lower
button only (to decrease the gas rate)
the valve can be manipulated to select
the desired gas rate between maximum
and minimum. By pressing the buttons in
short bursts you will be able to adjust the
gas rate in small steps.
8. To turn the fire off, continuously press
the lower button until the flame dies
down and clicks can be heard from the
valve. Release the button as soon as the
clicks are heard.
9. The fire can safely be left in this position
at all times, however to prevent
unauthorised or accidental use (say by
children) it is recommended to turn the
IGNITION KNOB to the pilot flame
position by turning it 90 degrees
clockwise. To turn the pilot off, turn the
IGNITION KNOB fully clockwise.
NOTE:
The clicking sound
made by the valve is the
operation of the valve clutch,
and indicates either maximum
or minimum positions.
IGNITION
KNOB
FULL RATE
POSITION
MAIN BURNER
OFF POSITION
PILOT ONLY
POSITION
MAIN BURNER
OPERATION
GAS RATE
ADJUSTMENT
KNOB
Figure 7 – Gas Valve
Press these
two buttons
together to
increase
gas rate
Press this
button to
decrease
gas rate
Figure 8 - Handset Operation

Page 7
2.2.3. Lighting Procedure (Total Control)
1. Ensure that gas is available at the valve
and the ON/OFF switch in the ON
position (–). (See Figure 9)
2. Simultaneously press and hold the
(red circle) and (large flame)
buttons until a short acoustic signal
confirms the start sequence has begun,
then release the buttons (see Figure
10).
3. The pilot flame should stay alight. If the
flame goes out repeat the procedure
above to establish the pilot. Due to
safety and the efficient way the fire
works, it is not unusual for the pilot to
stay alight only after the second or even
third attempt.
4. Continuing signals confirm the ignition is
in process. Once the pilot is lit the gas
rate adjusting knob automatically
turns to high gas rate. The main
burner cross-lights from the pilot.
5. To adjust the gas rate to desired setting
press the (large flame) to increase the
flame height or (small flame) to
decrease the flame height on the
handset (see Figure 10).
6. For fine adjustment tap the or
buttons.
7. To leave the burner in the standby
mode press the (small flame) until the
main burner goes out. In the standby
mode the pilot stays alight.
8. To turn off the main burner and the pilot
press the ‘OFF’ button on the hand set.
Figure 9
Figure 10

Page 8
2.3. Battery Replacement (Remote Control)
2.3.1. Handset
1. On the reverse of the handset remove
the battery cover by pressing down at
the top of the cover and sliding down.
2. Remove and unclip the old battery and
replace with a new PP3 9V battery.
3. Replace the cover. - Figure 11
Press here and
slide down
Figure 11
2.3.2. Receiver Unit
1. Remove the receiver unit from under the
fire burner (or from wherever positioned
if mounted remotely) and remove the
battery compartment cover (see Figure
12).
2. Replace the old batteries with new ones,
ensuring they are inserted in the correct
polarity.
3. Replace the cover on the receiver unit,
ensuring that it is securely closed.
4. Return the receiver unit to its original
mounting position.
Figure 12
CAUTION: With the exception of battery replacement, the battery holder must be
located within the heat shield at all times.
Note: For programming a replacement remote control handset to the receiver. Refer to
P.40 item 4.2.7.

Page 9
2.4. Fitting the Trim
1. Most trims are coated with a
protective film. This must be
removed by peeling off before fitting
the trim.
2. Hook the outlet fascia plate at the top
of the glass frame (see Figure 13).
3. The trim is held on by four magnets.
These will either be attached to the
trim or supplied loose in a separate
envelope. Attach them to the four
brackets on the side flanges of the
fire as in Figure 14.
4. Offer the trim onto the flange of the
firebox. The magnets will hold the
trim in position.
5. Centralise the trim as necessary.
Outlet Fascia
Plate
section
Figure 13
Magnets
Figure 14
2.5. Home Improvements
NOTICE: Discolouration of wall surfaces
Generally, heating appliances will create warm air convection currents that will
transfer heat to any wall surface against which they are located.
Some soft furnishings (including blown vinyl wallpapers) may not be suitable for
use where they are likely to encounter temperatures above the normal room
level. For this reason, the manufacturer’s advice should be sought before using
this type of wall covering adjacent to any heating appliance.
The likelihood of wall staining caused from convected air currents will be
increased in areas where high levels of tobacco smoke or other contaminants
exist.

Page 10
2.6. Cleaning and Care Instructions
2.6.1. Painted Metal Surfaces
These surfaces should be dusted regularly and any marks removed with a soft damp cloth.
This should be done only when the appliance is cold.
2.6.2. Brass or Chrome Surfaces
These surfaces should be cleaned with a proprietary non-abrasive metal cleaner.
Remove the trim (if fitted), the fret and the ash-pan cover before cleaning.
The trim is held in place by means of four magnets at the rear of the trim. The fret and the ash-
pan cover are free standing in front of the fire.

Page 11
3.INSTALLATION INSTRUCTIONS
Before installation, ensure that the local distribution conditions (identification of the
type of gas and pressure) and the adjustment of the appliance are compatible)
3.1. General Safety Requirements
Before commencing installation, ensure that the intended installation will comply
with details in General Information on Page 1.
The installation of the fire should follow the recommendations of the following
current British Standards (or equivalent):
BS 6891 Pipe work Installation
BS 5440: Pts 1 & 2 Flues and Ventilation
IGE/UP/7
IGE document for gas installations in Timber
Frame Buildings (Available from Institute of Gas
Engineers and Managers)
Combustible shelves or materials must only be fitted above the fire as described
later in this section.
Ensure that curtains are not positioned above the appliance and there is at least
300mm between the sides of the appliance and any curtains.
3.2. General Dimensions
598
mm
553
mm
400mm
490
mm
180
mm
Figure 15

Page 12

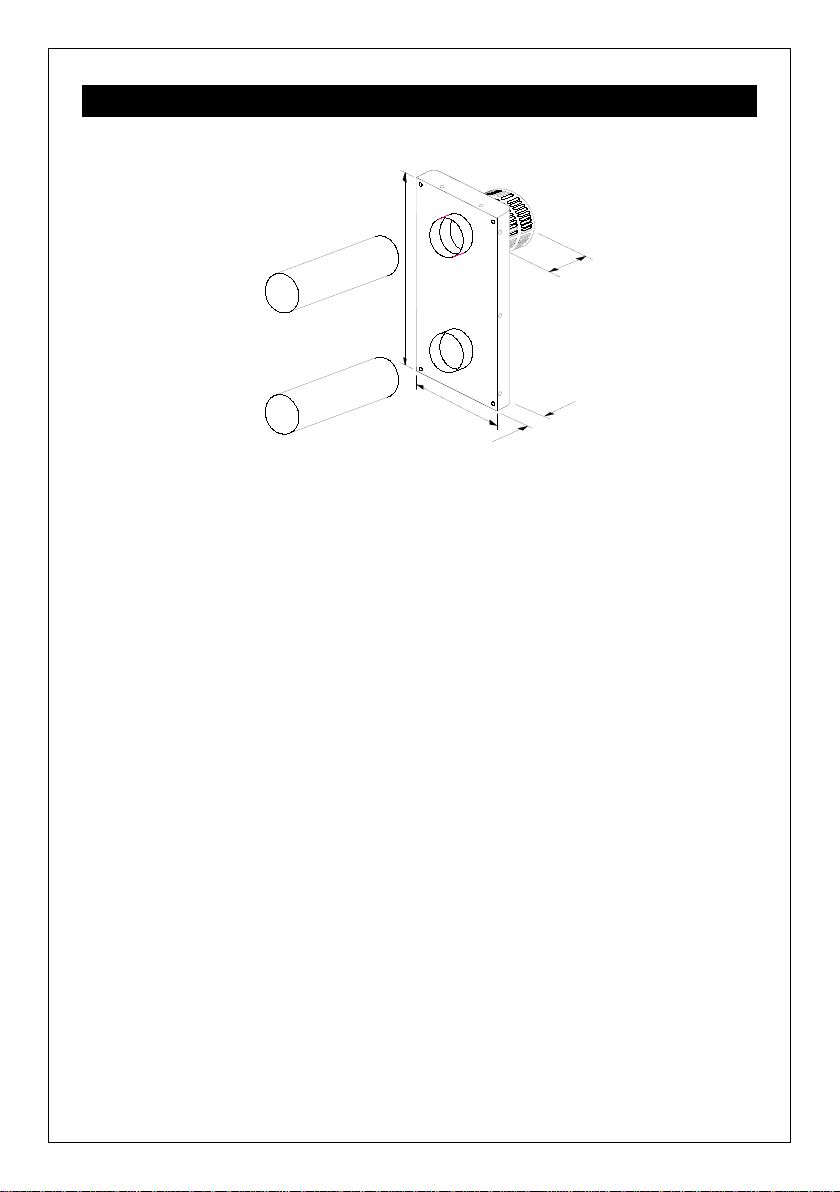

3.3. Flue Options
Ducts 440 x 100 dia.
141
45
230
(Upto 1000 long available)
520
Figure 16
The horizontal length is measured from the rear of the appliance outer flange to the external
face of an external wall.

Page 13
3.4. Technical Data
Natural Gas (G20)
Nominal maximum heat input (hot)
4.0 kW (gross)
Nominal minimum heat input (hot)
2.3 kW (gross)
Setting pressures (cold) Max
7.0 ±0.5 mbar
Setting pressures (cold) Min
2.0 + 0.2 mbar
Gas Rate
0.36 m3/h
Injector Size Multiport
7 x 0.77mm
ø
Gas Inlet Connection
8 mm Compression
Pilot
Polidoro 440.0333.11
Pilot Injector
2 x 0.25mm holes
Efficiency
Class I
Weighted NOx
Class 4
Max / Min length of flue tube
1000 / 150mm
Table 1

Page 14
3.5. Appliance Location
The appliance is designed to be fitted through a non-combustible back panel and to be inset
into a cavity wall. Alternatively the appliance may be fitted into a false chimney breast, a deep
rebated fire surround or a defunct fireplace sited on an outside wall. The appliance may be
sited at floor level or as a raised ‘hole in the wall’ installation. If sited in an ‘hole in the wall
Installation’ provision must be made to stand the decorative fret upon.
In all installations we recommend a non-combustible back panel is used. We do not
recommend installing the appliance against a plastered wall without a back panel. The fire
must be fitted on a flat non-combustible base. In addition a non-combustible hearth with
minimum dimensions shown in figures below should be provided in front of the fireplace
opening where relevant. This is required to protect combustible floor coverings from radiant
heat from the fire. If the appliance is to be installed with its base more than 100mm above floor
level the hearth projection in front of the appliance may be reduced to the minimum required to
support the decorative fret (75mm).
Floor Level and Raised Fireplace Openings
Figure 17-Floor Level Opening
Figure 18 – Raised Level Opening
Floor Level and
raised Level
Openings
OH
560mm
OW
420mm
OD
200mm
HD
Enough to support
decorative fret (75mm)
Table 2
Terminal/
Air Duct
L
L min - 320mm
L max - 1170mm
Figure 19
OW
OH
OD
HD
OW
OH
OD
HD

Page 15
3.5.1. Mantels & Combustible Shelves
1. Shelves or mantels made from combustible materials should not be placed closer than
300mm above the appliance.
Light coloured and resin mantels may discolour in time. The temperature rating of the
surround should be checked before use. We recommend a fire surround with a minimum 150
degrees Celsius rating.

Page 16
3.6. Flue Terminal Location
The minimum acceptable dimensions from the flue terminal to obstructions and ventilating
openings are shown in Table 3and Figure 20.
Dimension Terminal Position
Value
mm
A Directly below an opening, air brick, opening windows, etc. 300
B Above an opening, air brick, opening window, etc. 300
C Horizontally to an opening, air brick, opening window, etc. 300
D Below gutters, soil pipes or drain pipes 300
E Below eaves 300
F Below balconies or car port roof 600
G From a vertical drain pipe or soil pipe 300
H From an internal or external corner 600
I Above ground, roof or balcony level 300
J From a surface facing the terminal 600
K From a terminal facing a terminal 600
L
From an opening in the car port (e.g. door, window) into the
dwelling
1200
M Vertically from a terminal on the same wall 1500
N Horizontally from a terminal on the same wall 300
Table 3
II
A
G
BC
H
H
D,E
I
F
L
J
M
M
N
N
K
Figure 20
