Magnimage MIG-F4 User manual

4K Video Mosaic Box
User ManualV1.1
△
!
Before using this video mosaic box，please read
this manual carefully and preserved for reference
in the future.
MIG-F4

2
Statements
Without the written permission, any unit or individual could not copy,
reproduction or translate the book or part of it. Also could not transmit it in
any form or any way（electronic, mechanical, photocopying, record or other
way) for any business and profitable purpose.
The product specifications and information mentioned in this manual is just
for reference, will not give prior notice if there is any updated. Unless there is a
special agreement, it is just used as guidelines. All the statements or
information in this manual shall not constitute any form of guarantee

3
Directory
Briefs ..................................................................................................................1
About Software ................................................................................................ 1
Features............................................................................................................ 1
Safety Instructions............................................................................................ 2
Function Introduction .........................................................................................3
Brief.................................................................................................................. 3
Technical Specifications.................................................................................... 4
MIG-F4 Front panel introduction ..................................................................... 5
Controlling Software operation introduction ......................................................7
Install and unload............................................................................................. 7
Running Environment....................................................................................... 7
Installing processing.................................................................................. 8
Unload the software ................................................................................. 9
Open the software ......................................................................................... 11
Connection indication window ............................................................... 12
Main program window............................................................................ 13
Output Setting......................................................................................... 19
Software usage............................................................................................... 21
Preparation ............................................................................................. 21
Specific application ................................................................................. 22
Warranty...........................................................................................................27
The whole unit warranty ................................................................................ 27
The warranty provisions................................................................................. 27

1
Briefs
Thanks for your purchasing our MIG-F4 video mosaic box. Do hope you can
enjoy the experience of the product performance. The design of the video
mosaic box conforms to international and industry standards. But if with
improper operation, there will be a personal injury and property damage. In
order to avoid the danger, please obey the relevant instructions when you
install and operate the product.
About Software
Do not change, decompile, disassemble, decrypt or reverse engineer the
software installed in the product, these acts are illegal.
Features
4 Screens Splicing in 1 box：
2 DP inputs,2 HDMI inputs.
Single input supports 4K×2K/60Hz input, 8K×1K/60Hz input.
EDID management.
Output support DVI×4 or HDMI×4
Supports customized output resolution
A single unit uploads 9,000,000 pixels
Supports input backup function
Multiple cascade synchronization
Presets saving&loading function
Image crop,layer zoom function
Edge blending function
Computer host control, Android&apple app wireless control
WIFI module attached

2
Safety Instructions
Please use the correct power supply according that the power input
voltage for this product range is 100～240V AC, 50/60Hz.
When you need connect or pull out any signal or bound guideline. Please
confirm that all the power supply cords have been pulled out ahead.
When you need to add hardware device for the video mosaic box, make
sure all of the signals and power cables have been pulled out ahead.
Before you operate any hardware, please turn off the video mosaic box's
power, and to set you on the electrostatic by touching the ground
surfaces.
Please use the processor in clean, dry and ventilated environment, not
use it in the high temperature, humidity environment.
The product is electronic product; please stay away from the fire, water
and of which is inflammable and blast, dangerous.
This product is with high pressure components, please don't open the
case or maintain it by your own.
As there is exceptional condition with smoke, ill-smelling, please turn off
the switch at once and contact with the dealers.

3
Function Introduction
Brief
4K video mosaic box is a mini video equipment that released by magnimage
company recently, it has greater uploading capacity and with the
characteristics of single machine 4 screens mosaic, smart control and auto
backup; it supports multiple DP and HDMI input ports, single input supports
maximum 4K×2K/60Hz , DP supports 8K×1k/60Hz input resolution, and
downward compatible with common resolution; 4K mosaic video box with its
fashionable design and convenient usage is suitable for all kinds of screen
applications.
Model Description:
MIG-F4D: 4 DVI outputs
MIG-F4H: 4 HDMI outputs

4
Technical Specifications
Input Indication
Port
Quantity
Resolution
HD
MI
2
HDMI 2.0 standard 3840×2160/60Hz and EDID
management
DP
2
DP 1.2 standard 3840×2160/60Hz,
7680×1080/60Hz input and EDID management
Output Indication
Port
Quantity
Resolution（each DVI output）
DVI or
HDMI
4
1024×768、1366×768、1440×900、
1280×1024、1680×1050、1600×1200、
2560×816、1440×1440;
50Hz and 60Hz optional
Customized output resolution
（Bandwidth optimized）：
The width resolution is up to 3840
The height resolution is up to 2160
Whole Unit Specifications
Input Power Supply
100-240V AC~50/60Hz
Working
Temperature
0-45℃
Working humidity
10% -90%

5
MIG-F4 Front panel introduction
1. output connection indicator light：
Indicator light is green when connection valid, red when output not
available.
2. working conditions indicator light：
Green light flashes when system is working.
3. WIFI indicator light:
Green light when WIFI working conditions OK.
4. Output synchronization status indicator light:
Synchronization status indicator light.
5. Input status indicator light:
selected input light is green while the lights not selected are off.
MIG-F4 right side

6
MIG-F4 left side
The outputs of MIG-F4 can be 4 DVI or 4 HDMI; two types of outputs are
optional.

7
Controlling Software operation introduction
Install and unload
MIG-F4 computer control software(called software as following), is a
professional control software mainly developed for the F4 mosaic box screen
display controllers. The software interface is intuitive concise, easily handled
and almost all the functions of the controller is achieved by the software.
Running Environment
CPU frequency ≥1.6GHz
RAM ≥1G
Video memory ≥512M
Windows XP \ Windows 7 (32 Bit or 64 Bite) \ Windows 8 (32 Bit or 64
Bite)
Minimum Display Resolution：1024×768
Open the device attached USB disk, find the file “MIG_F4-SetupVX.X.X.msi”,
double click this file, to initiate the installing program in the computer which
has not yet installed the software, in the computer that has already installed
the software, the computer will initiate repairing or unloading program.

8
Installing processing

9
Double-click program to start install,click "Next" to continue.
Select program installation location, and setup the program user.
Confirm all the setting, and click “Next” to go on.
Installing process starting
Ask for uses-permission, please select “Yes”.
When they finish, please click the “Close”. And you got it.
Unload the software

10
Double-click the installer, start the uninstalling with the software, click
"Next" to go on.
Finish and click “Close”.

11
Open the software

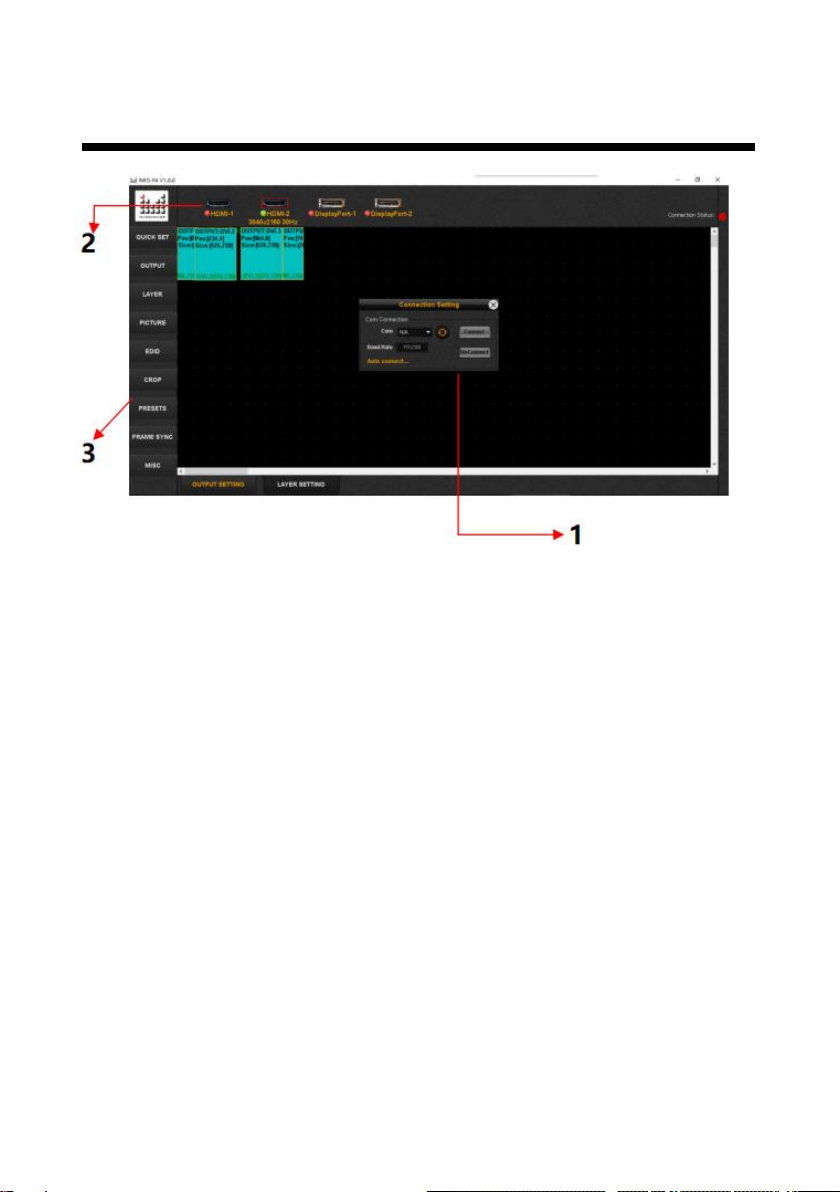

After opened the software, you will see software interface as the above
1、connection prompt window
2、input status display area
3、function area
配置外部设备

12
Connection indication window
After the corresponding connection serial port selected, click”connect”to
proceed connection, click ”disconnect”to proceed disconnection.
Select the corresponding
connection serial port, normally
COM3, refresh rate selection
Baud Rate display, normally select
the default value

13
Main program window
Function menu
after the software connected with the device successfully, the top right
indicator light in the software will be green, and will become red if not
successfully connected.
1.、Find the left bottom function setting menu in the MISC after connection
confirmed.
2、check device firmware version
3、the Upgrade menu can upgrade FPGA/MCU/HDMIRX of the device
4、factory reset
5.、Get data from machine, which is to get back the device data after software
reconnected with the device successfully.
6、Wifi Configure, can set WIFI IP,name and WIFI password
7、Input signal backup switch, the device can detect the signal automatically
and do hot backup after turning on.

14
Frame Synchronization menu
Two modes in the frame synchronization menu
1、Frame Synchronization mode：
In this mode input and output refresh rare should be the same, the output
will be synchronous and at the same time indicating current input and
output refresh rate
2、Frame conversion mode：
In this mode the output can be synchronous as well but can only indicate
the input signal information, the output information is to be set in the
output setting menu.

15
10 presets in total, click the below“LOAD””SAVE” and“SELECT”to load save
and delete presets after select the current preset.
Image crop can crop the edge of signal source, enter this menu and switch on
the function, set the height width and H pos V pos value to crop the selected
input signal, there will be the part of the area of the signal after cropped.
Preset setting menu
Image crop menu

16
EDID function can lock the input resolution of the current select input signal,
can apply the input width, height and refresh rate in current interface, or can
go to the Advance to precede more specific value setting, and also can reset
the parameters. All the four input ports of F4 to be reset are 4K input port, it
can maximum support 3840×2160@60Hz, and is compatible downwards.
EDID menu

17
Picture setting can set not only brightness, contrast, gamma and color
temperature of each output separately, but also the color temperature
configuration of all the outputs at the same time, and also can customize RGB
value.
Picture setting menu
