Makita DJV142 User manual

DJV142
DJV182
EN Cordless Jig Saw INSTRUCTION MANUAL 6
UK Бездротовий лобзик ІНСТРУКЦІЯ З
ЕКСПЛУАТАЦІЇ 13
PL Wyrzynarka Akumulatorowa INSTRUKCJA OBSŁUGI 21
RO Ferăstrău pendular cu
acumulator MANUAL DE INSTRUCŢIUNI 29
DE Akku-Stichsäge BEDIENUNGSANLEITUNG 36
HU Akkumulátoros szúrófűrész HASZNÁLATI KÉZIKÖNYV 44
SK Bezdrôtová lupienková píla NÁVOD NA OBSLUHU 52
CS Akumulátorová elektronická
přímočará pila s předkyvem NÁVOD K OBSLUZE 59

12
3
1
1
2
1
123
1
1
2
Fig.7
1

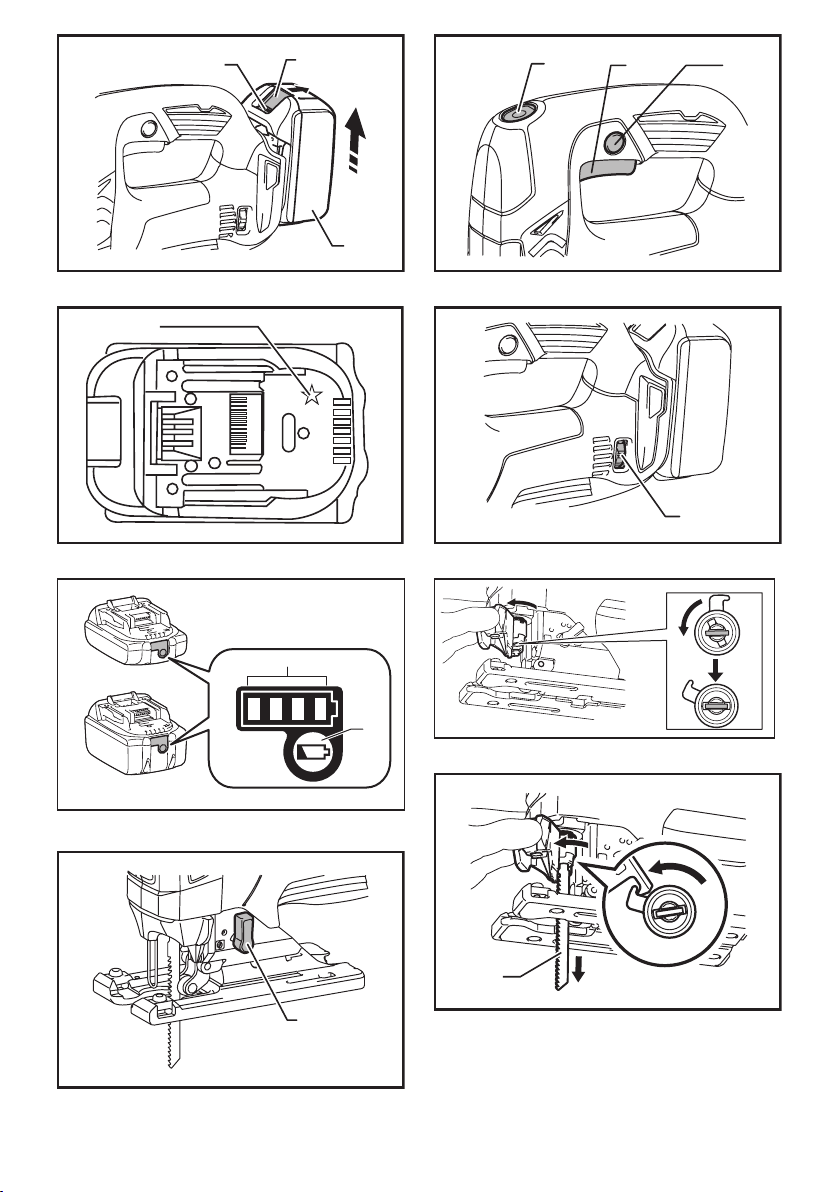

Fig.1
Fig.2
Fig.3
Fig.4
Fig.5
Fig.6
Fig.8
2

12
1
2
2
1
1
2
1
1
2
1
2
Fig.9
Fig.10
Fig.11
Fig.12
Fig.13
Fig.14
Fig.15
Fig.16
3

12
3
1
2
3
4
5
6
12
3
1
1
1
2
3
Fig.17
Fig.18
Fig.19
Fig.20
Fig.21
Fig.22
Fig.23
Fig.24
4

1
2
3
12
1
2
3

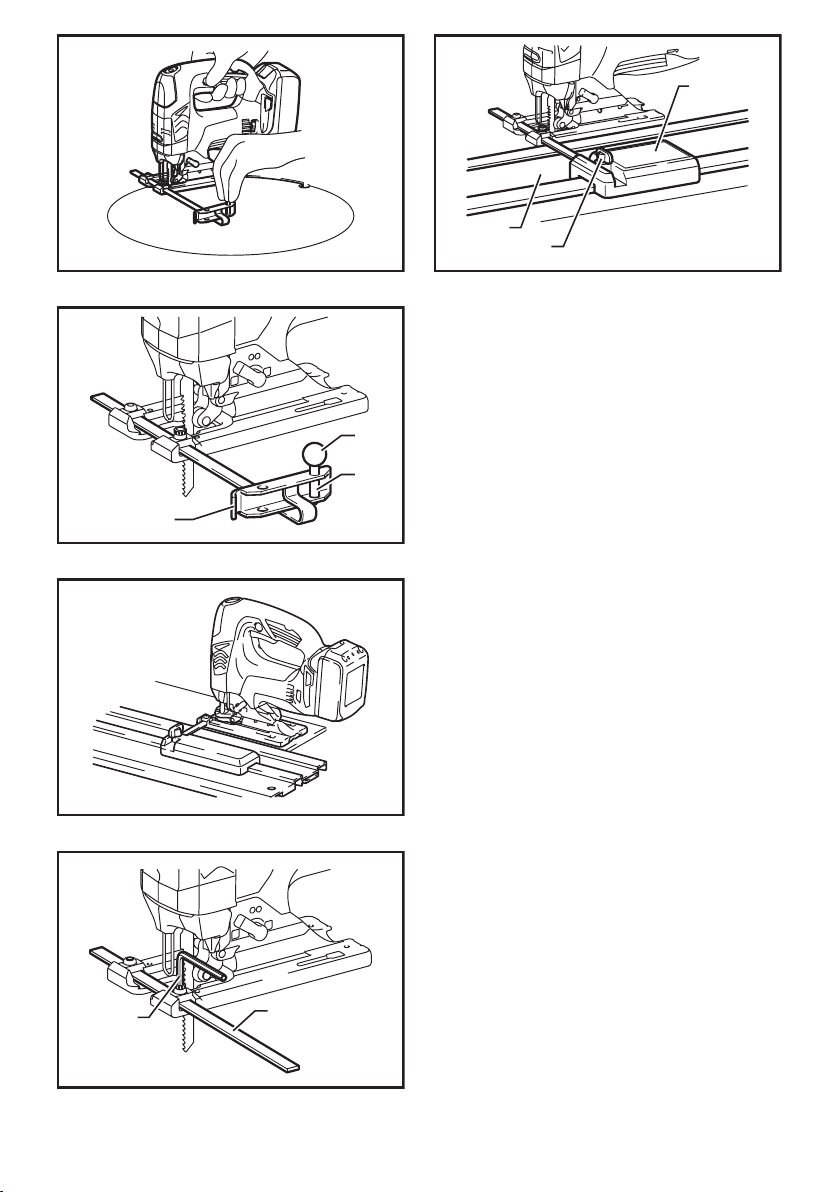

Fig.25
Fig.26
Fig.27
Fig.28
Fig.29
5

6ENGLISH
ENGLISH (Original instructions)
SPECIFICATIONS
Model DJV142 DJV182
Length of stroke 26 mm 26 mm
Max. cutting capacities Wood 135 mm 135 mm
Mild steel 10 mm 10 mm
Aluminum 20 mm 20 mm
Strokes per minute (min-1)800 - 3,500 800 - 3,500
Overall length 264 mm 266 mm
Net weight 2.3 - 2.6 kg 2.4 - 2.7 kg
Rated voltage D.C. 14.4 V D.C. 18 V
• Duetoourcontinuingprogramofresearchanddevelopment,thespecicationshereinaresubjecttochange
without notice.
• Specicationsmaydifferfromcountrytocountry.
• Theweightmaydifferdependingontheattachment(s),includingthebatterycartridge.Thelightestandheavi-
estcombination,accordingtoEPTA-Procedure01/2014,areshowninthetable.
Applicable battery cartridge and charger
Batterycartridge D.C.14.4 V Model BL1415N/BL1430/BL1430B/BL1440/BL1450/BL1460B
D.C.18 V Model BL1815N/BL1820/BL1820B/BL1830/BL1830B/BL1840/
BL1840B/BL1850/BL1850B/BL1860B
Charger DC18RC/DC18RD/DC18RE/DC18SD/DC18SE/DC18SF/
DC18SH
• Someofthebatterycartridgesandchargerslistedabovemaynotbeavailabledependingonyourregionof
residence.
WARNING: Only use the battery cartridges and chargers listed above.Useofanyotherbatterycartridges
andchargersmaycauseinjuryand/orre.
Intended use
Thetoolisintendedforthesawingofwood,plasticand
metalmaterials.Asaresultoftheextensiveaccessory
andsawbladeprogram,thetoolcanbeusedformany
purposesandisverywellsuitedforcurvedorcircular
cuts.
Noise
ThetypicalA-weightednoiseleveldeterminedaccord-
ingtoEN62841-2-11:
Model DJV142
When soft no-load rotation function is enabled:
Sound pressure level (LpA):78dB(A)
Uncertainty(K):3dB(A)
Thenoiselevelunderworkingmayexceed80dB(A).
When soft no-load rotation function is disabled:
Sound pressure level (LpA):85dB(A)
Sound power level (LWA):96dB(A)
Uncertainty(K):3dB(A)
Model DJV182
When soft no-load rotation function is enabled:
Sound pressure level (LpA):77dB(A)
Uncertainty(K):3dB(A)
Thenoiselevelunderworkingmayexceed80dB(A).
When soft no-load rotation function is disabled:
Sound pressure level (LpA):86dB(A)
Sound power level (LWA):97dB(A)
Uncertainty(K):3dB(A)
NOTE:Thedeclarednoiseemissionvalue(s)has
beenmeasuredinaccordancewithastandardtest
methodandmaybeusedforcomparingonetoolwith
another.
NOTE:Thedeclarednoiseemissionvalue(s)
mayalsobeusedinapreliminaryassessmentof
exposure.
WARNING: Wear ear protection.
WARNING: The noise emission during actual
use of the power tool can differ from the declared
value(s) depending on the ways in which the
tool is used especially what kind of workpiece is
processed.
WARNING: Be sure to identify safety mea-
sures to protect the operator that are based on an
estimation of exposure in the actual conditions of
use (taking account of all parts of the operating
cycle such as the times when the tool is switched
off and when it is running idle in addition to the
trigger time).

7ENGLISH
Vibration
Thevibrationtotalvalue(tri-axialvectorsum)deter-
minedaccordingtoEN62841-2-11:
Model DJV142
Workmode:cuttingboards
Vibrationemission(ah,B):7.0m/s2
Uncertainty(K):1.5m/s2
Workmode:cuttingsheetmetal
Vibrationemission(ah,M):4.0m/s2
Uncertainty(K):1.5m/s2
Model DJV182
Workmode:cuttingboards
Vibrationemission(ah,B):7.0m/s2
Uncertainty(K):1.5m/s2
Workmode:cuttingsheetmetal
Vibrationemission(ah,M):3.5m/s2
Uncertainty(K):1.5m/s2
NOTE:Thedeclaredvibrationtotalvalue(s)hasbeen
measured in accordance with a standard test method
andmaybeusedforcomparingonetoolwithanother.
NOTE:Thedeclaredvibrationtotalvalue(s)mayalso
beusedinapreliminaryassessmentofexposure.
WARNING: The vibration emission during actual
use of the power tool can differ from the declared val-
ue(s) depending on the ways in which the tool is used
especially what kind of workpiece is processed.
WARNING: Be sure to identify safety measures
to protect the operator that are based on an estima-
tion of exposure in the actual conditions of use (tak-
ing account of all parts of the operating cycle such
as the times when the tool is switched off and when
it is running idle in addition to the trigger time).
EC Declaration of Conformity
For European countries only
TheECdeclarationofconformityisincludedasAnnexA
to this instruction manual.
General power tool safety warnings
WARNING: Read all safety warnings, instruc-
tions, illustrations and specications provided
with this power tool.Failuretofollowallinstructions
listedbelowmayresultinelectricshock,reand/or
seriousinjury.
Save all warnings and instruc-
tions for future reference.
Theterm"powertool"inthewarningsreferstoyour
mains-operated(corded)powertoolorbattery-operated
(cordless) power tool.
Cordless jig saw safety warnings
1. Hold the power tool by insulated gripping
surfaces, when performing an operation where
the cutting accessory may contact hidden wir-
ing.Cuttingaccessorycontactinga“live”wiremay
makeexposedmetalpartsofthepowertool“live”
and could give the operator an electric shock.
2. Use clamps or another practical way to secure
and support the workpiece to a stable plat-
form.Holdingtheworkpiecebyhandoragainst
yourbodyleavesitunstableandmayleadtoloss
of control.
3. Always use safety glasses or goggles.
Ordinary eye or sun glasses are NOT safety
glasses.
4. Avoid cutting nails. Inspect workpiece for any
nails and remove them before operation.
5. Do not cut oversize workpiece.
6. Check for the proper clearance beyond the
workpiece before cutting so that the blade will
not strike the oor, workbench, etc.
7. Hold the tool rmly.
8. Make sure the blade is not contacting the
workpiece before the switch is turned on.
9. Keep hands away from moving parts.
10. Do not leave the tool running. Operate the tool
only when hand-held.
11. Always switch off and wait for the blade to
come to a complete stop before removing the
blade from the workpiece.
12. Do not touch the blade or the workpiece imme-
diately after operation; they may be extremely
hot and could burn your skin.
13. Do not operate the tool at no-load
unnecessarily.
14. Some material contains chemicals which may
be toxic. Take caution to prevent dust inhala-
tion and skin contact. Follow material supplier
safety data.
15. Always use the correct dust mask/respirator
for the material and application you are work-
ing with.
SAVE THESE INSTRUCTIONS.
WARNING: DO NOT let comfort or familiarity
with product (gained from repeated use) replace
strict adherence to safety rules for the subject
product. MISUSE or failure to follow the safety
rules stated in this instruction manual may cause
serious personal injury.
Important safety instructions for
battery cartridge
1. Before using battery cartridge, read all instruc-
tions and cautionary markings on (1) battery
charger, (2) battery, and (3) product using
battery.
2. Do not disassemble battery cartridge.
3. If operating time has become excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.
4. If electrolyte gets into your eyes, rinse them
out with clear water and seek medical atten-
tion right away. It may result in loss of your
eyesight.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any con-
ductive material.

8ENGLISH
(2) Avoid storing battery cartridge in a con-
tainer with other metal objects such as
nails, coins, etc.
(3) Do not expose battery cartridge to water
or rain.
A battery short can cause a large current
ow, overheating, possible burns and even a
breakdown.
6. Do not store the tool and battery cartridge in
locations where the temperature may reach or
exceed 50 °C (122 °F).
7. Do not incinerate the battery cartridge even if
it is severely damaged or is completely worn
out. The battery cartridge can explode in a re.
8. Be careful not to drop or strike battery.
9. Do not use a damaged battery.
10. The contained lithium-ion batteries are subject
to the Dangerous Goods Legislation require-
ments.
Forcommercialtransportse.g.bythirdparties,
forwarding agents, special requirement on pack-
agingandlabelingmustbeobserved.
Forpreparationoftheitembeingshipped,consult-
ing an expert for hazardous material is required.
Pleasealsoobservepossiblymoredetailed
national regulations.
Tapeormaskoffopencontactsandpackupthe
batteryinsuchamannerthatitcannotmove
around in the packaging.
11. When disposing the battery cartridge, remove
it from the tool and dispose of it in a safe
place. Follow your local regulations relating to
disposal of battery.
12. Use the batteries only with the products
specied by Makita.Installingthebatteriesto
non-compliantproductsmayresultinare,exces-
siveheat,explosion,orleakofelectrolyte.
13. If the tool is not used for a long period of time,
the battery must be removed from the tool.
SAVE THESE INSTRUCTIONS.
CAUTION: Only use genuine Makita batteries.
Useofnon-genuineMakitabatteries,orbatteriesthat
havebeenaltered,mayresultinthebatterybursting
causingres,personalinjuryanddamage.Itwill
alsovoidtheMakitawarrantyfortheMakitatooland
charger.
Tips for maintaining maximum
battery life
1. Charge the battery cartridge before completely
discharged. Always stop tool operation and
charge the battery cartridge when you notice
less tool power.
2. Never recharge a fully charged battery car-
tridge. Overcharging shortens the battery
service life.
3. Charge the battery cartridge with room tem-
perature at 10 °C - 40 °C (50 °F - 104 °F). Let
a hot battery cartridge cool down before
charging it.
4. Charge the battery cartridge if you do not use
it for a long period (more than six months).
FUNCTIONAL DESCRIPTION
CAUTION:
• Alwaysbesurethatthetoolisswitchedoffand
thebatterycartridgeisremovedbeforeadjust-
ing or checking function on the tool.
Installing or removing battery
cartridge
►Fig.1: 1. Red indicator 2. Button 3.Batterycartridge
CAUTION:
• Alwaysswitchoffthetoolbeforeinstallingor
removingofthebatterycartridge.
• Hold the tool and the battery cartridge rmly
when installing or removing battery car-
tridge.Failuretoholdthetoolandthebattery
cartridgermlymaycausethemtoslipoffyour
hands and result in damage to the tool and
batterycartridgeandapersonalinjury.
Toremovethebatterycartridge,slideitfromthetool
whileslidingthebuttononthefrontofthecartridge.
Toinstallthebatterycartridge,alignthetongueonthe
batterycartridgewiththegrooveinthehousingandslip
itintoplace.Insertitallthewayuntilitlocksinplace
withalittleclick.Ifyoucanseetheredindicatoronthe
uppersideofthebutton,itisnotlockedcompletely.
CAUTION:
• Alwaysinstallthebatterycartridgefullyuntilthe
redindicatorcannotbeseen.Ifnot,itmayacci-
dentallyfalloutofthetool,causinginjurytoyou
orsomeonearoundyou.
• Donotinstallthebatterycartridgeforcibly.Ifthe
cartridgedoesnotslideineasily,itisnotbeing
insertedcorrectly.
Battery protection system (Lithium-
ion battery with star marking)
►Fig.2: 1. Star marking
Lithium-ionbatterieswithastarmarkingareequipped
withaprotectionsystem.Thissystemautomatically
cutsoffpowertothetooltoextendbatterylife.
Thetoolwillautomaticallystopduringoperationifthe
tooland/orbatteryareplacedunderoneofthefollowing
conditions:
• Overloaded:
Thetoolisoperatedinamannerthatcauses
ittodrawanabnormallyhighcurrent.
In this situation, release the switch trigger on
the tool and stop the application that caused
thetooltobecomeoverloaded.Thenpullthe
switch trigger again to restart.
Ifthetooldoesnotstart,thebatteryisover-
heated.Inthissituation,letthebatterycool
beforepullingtheswitchtriggeragain.
• Lowbatteryvoltage:
Theremainingbatterycapacityistoolow
and the tool will not operate. In this situation,
removeandrechargethebattery.

9ENGLISH
Indicating the remaining battery
capacity
Only for battery cartridges with the indicator
►Fig.3: 1. Indicator lamps 2.Checkbutton
Pressthecheckbuttononthebatterycartridgetoindi-
catetheremainingbatterycapacity.Theindicatorlamps
light up for a few seconds.
Indicator lamps Remaining
capacity
Lighted Off Blinking
75% to 100%
50% to 75%
25% to 50%
0% to 25%
Charge the
battery.
Thebattery
mayhave
malfunctioned.
NOTE: Depending on the conditions of use and the
ambienttemperature,theindicationmaydifferslightly
fromtheactualcapacity.
Selecting the cutting action
►Fig.4: 1. Cutting action changing lever
Thistoolcanbeoperatedwithanorbitalorastraight
line(upanddown)cuttingaction.Theorbitalcutting
actionthruststhebladeforwardonthecuttingstroke
andgreatlyincreasescuttingspeed.
Tochangethecuttingaction,justturnthecuttingaction
changing lever to the desired cutting action position.
Refertothetabletoselecttheappropriatecutting
action.
Position Cutting action Applications
For cutting mild steel,
stainless steel and plastics.
For clean cuts in wood
and plywood.
Small orbit
cutting action
For cutting mild steel,
aluminum and hard wood.
For cutting wood and
plywood.
For fast cutting in
aluminum and mild steel.
Large orbit
cutting action
For fast cutting in
wood and plywood.
0Straight line
cutting action
Medium orbit
cutting action
Switch action
CAUTION:
• Beforeinsertingthebatterycartridgeintothe
tool,alwayschecktoseethattheswitchtrigger
actuatesproperlyandreturnstothe"OFF"
position when released.
►Fig.5: 1. Lock switch 2. Switch trigger 3. Lock on
button
Tostartthetool:
Pressthelockswitchtoturnthetoolintostandbymode.
It turns the lamp on, too.
Pulltheswitchtriggertostartthetool.Releasethe
switch trigger to stop.
Forcontinuousoperation,pulltheswitchtriggerand
thenpushinthelockonbutton.
Tostopthetoolfromthelockedposition,pulltheswitch
triggerfully,andthenreleaseit.
Instandbymode,pressthelockswitchtoturnthelamp
off and turn the tool into lock-off mode.
NOTE:
• Thelockswitchdoesnotactuateduringcutting
operation.
• Whenthetoolisinstandbymode,thelamp
keeps lighting.
• Ifthetoolisleft10secondswithoutanyopera-
tionsinstandbymode,thetoolisautomatically
turned into lock-off mode and the lamp goes off.
Lighting up the lamps
CAUTION:
• Donotlookinthelamporseethesourceof
lampdirectly.
Toturnonthelamp,pressthelockswitch.
Toturnoffthelampwithin10seconds,pressthelock
switch again.
NOTE:
• Useadryclothtowipethedirtoffthelensof
lamp. Be careful not to scratch the lens of lamp,
oritmaylowertheillumination.
• Whenthetoolisoverheated,thelampickers.
Cooldownthetoolfullybeforeoperatingagain.
Speed adjusting dial
►Fig.6: 1.Speedadjustingdial
Thetoolspeedcanbeinnitelyadjustedbyturningthe
speedadjustingdial.Youcangetthehighestspeedat6
and the lowest speed at 1.
Refertothetabletoselecttheproperspeedforthe
workpiecetobecut.However,theappropriatespeed
maydifferwiththetypeorthicknessoftheworkpiece.In
general,higherspeedswillallowyoutocutworkpieces
fasterbuttheservicelifeofthebladewillbereduced.
Number on adjusting dial
4 - 6
Mild steel 3 - 6
Stainless steel 3 - 4
Aluminum 3 - 6
Plastics 1 - 4
Workpiece to be cut
Wood

10 ENGLISH
CAUTION:
• Thespeedadjustingdialcanbeturnedonlyas
faras6andbackto1.Donotforceitpast6or
1,orthespeedadjustingfunctionmaynolonger
work.
Electronic function
Thetoolisequippedwiththeelectronicfunctionsfor
easyoperation.
• Softstart
Thesoft-startfunctionminimizesstart-upshock,
andmakesthetoolstartsmoothly.
• Softno-loadrotation
Toreducethevibrationandalignthejigsawblade
withthecuttinglineeasily,thetoolautomatically
reduces the rotation speed until the tool starts cut-
tingtheworkpiecewhenthespeedadjustingdial
is set at 3 or higher. Once the tool starts cutting
the workpiece, the tool speed reaches the preset
speed and keeps the speed until the tool stops.
NOTE: When the temperature is low, this function
maynotbeavailable.
Disabling the soft no-load rotation
function
Country specic
Todisablethesoftno-loadrotationfunction,followthe
stepsbelow.
1. Make sure that the tool is turned off.
2. Setthespeedadjustingdialto"1".
3. Pressthelock/unlockbuttontoturnonthetool.
4. Setthespeedadjustingdialto"6"byturningit,
andthensetitto"1"byturnitback.
Thelampblinkstwicetoindicatethatthesoftno-load
rotationfunctionisdisabled.Toenablethisfunction
again, perform the same procedure again.
NOTE:Ifthesoftno-loadrotationfunctionisdisabled,
thelampblinkstwicewhenthetoolisturnedon.
NOTE:Youcanalsodisableorenablethesoft
no-loadrotationfunctionbychangingthespeed
adjustingdialfrom"6"to"1"andchangingitfrom"1"
to"6".
ASSEMBLY
CAUTION:
• Alwaysbesurethatthetoolisswitchedoffand
thebatterycartridgeisremovedbeforecarrying
outanyworkonthetool.
Installing or removing saw blade
CAUTION:
• Alwayscleanoutallchipsorforeignmatter
adheringtothebladeand/orbladeholder.
Failuretodosomaycauseinsufcienttighten-
ingoftheblade,resultinginaseriouspersonal
injury.
• Donottouchthebladeortheworkpieceimme-
diatelyafteroperation;theymaybeextremely
hotandcouldburnyourskin.
• Tightenthesawbladesecurely.Failuretodoso
maycauseaseriousinjury.
• Whenyouremovethesawblade,becarefulnot
tohurtyourngerswiththetopofthebladeor
the tips of workpiece.
►Fig.7: 1.Fixedposition2. Released position
Beforeinstallingtheblade,makesurethattheblade
holder is in the released position.
Toinstalltheblade,inserttheblade(teethfacingfor-
ward)intothebladeholderuntilitlatches.Theblade
holdermovestothexedpositionbyitselfandthe
bladeislocked.Pullthebladelightlytomakesurethat
thebladedoesnotfalloffduringoperation.
CAUTION:
• Donotopenthetoolopenerexcessively,orit
maycausetooldamage.
►Fig.8: 1.Jigsawblade
Toremovetheblade,pushthetoolopenerforwardas
farasitwillgo.Thisallowsthebladetobereleased.
NOTE:
• Occasionallylubricatetheroller.
Hex wrench storage
►Fig.9: 1. Base 2. Hex wrench
When not in use, store the hex wrench as shown in the
guretokeepitfrombeinglost.
Cover plate
►Fig.10: 1. Cover plate 2. Base
Use the cover plate when cutting decorative veneers,
plastics, etc. It protects sensitive or delicate surfaces
fromdamage.Fititonthebackofthetoolbase.
Anti-splintering device
►Fig.11: 1. Anti-splintering device 2. Base
Forsplinter-freecuts,theanti-splinteringdevicecan
beused.Toinstalltheanti-splinteringdevice,movethe
toolbaseallthewayforwardandtitfromtheback
oftoolbase.Whenyouusethecoverplate,installthe
anti-splintering device onto the cover plate.
CAUTION:
• Theanti-splinteringdevicecannotbeusedwhen
makingbevelcuts.
